Panel Cart Trolleys

A-Frame Trolleys for Glass


View Pricing & Order

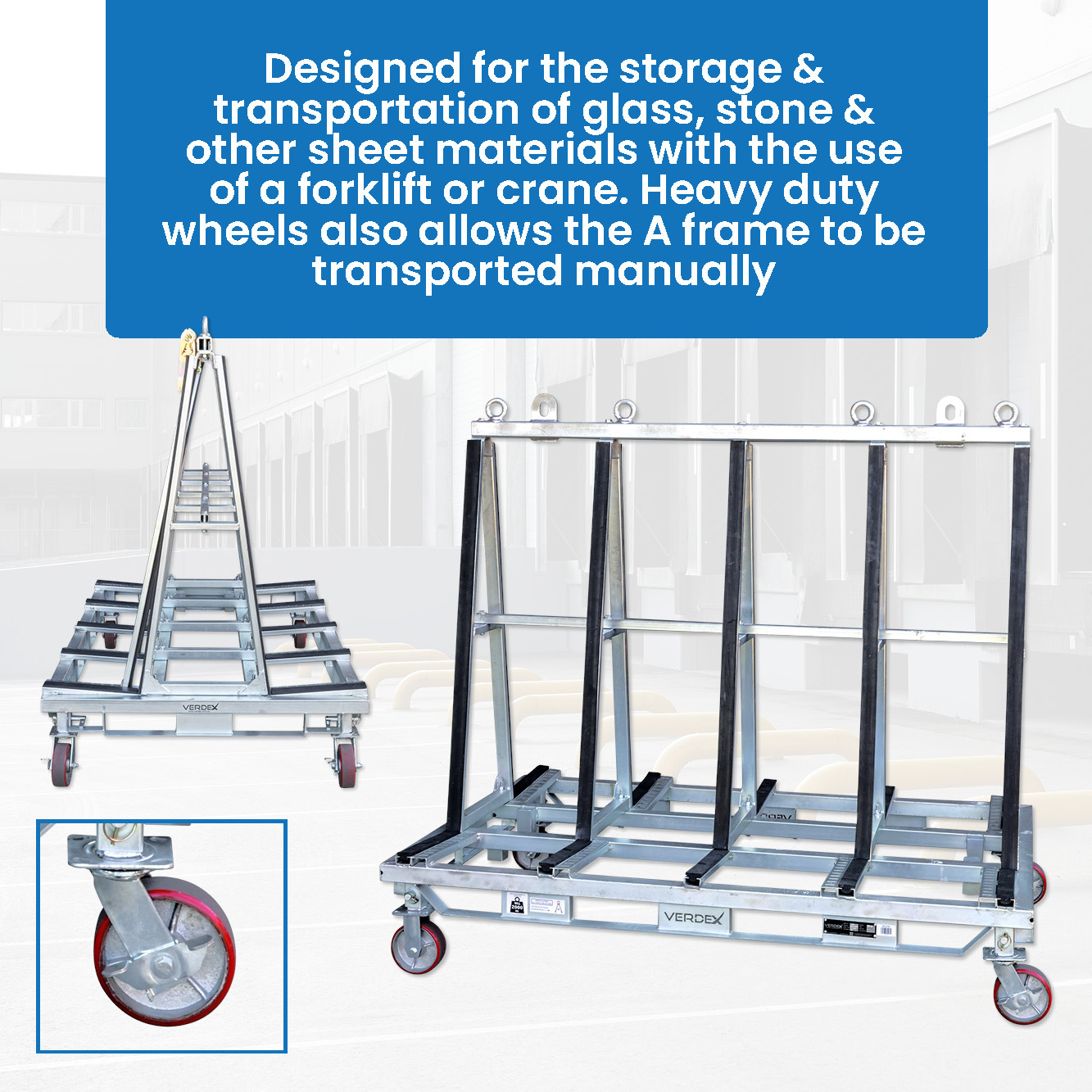

  • Suitable for storing & transporting glass, stone & other sheet materials
  • Load is secured by 4 adjustable clamp bars

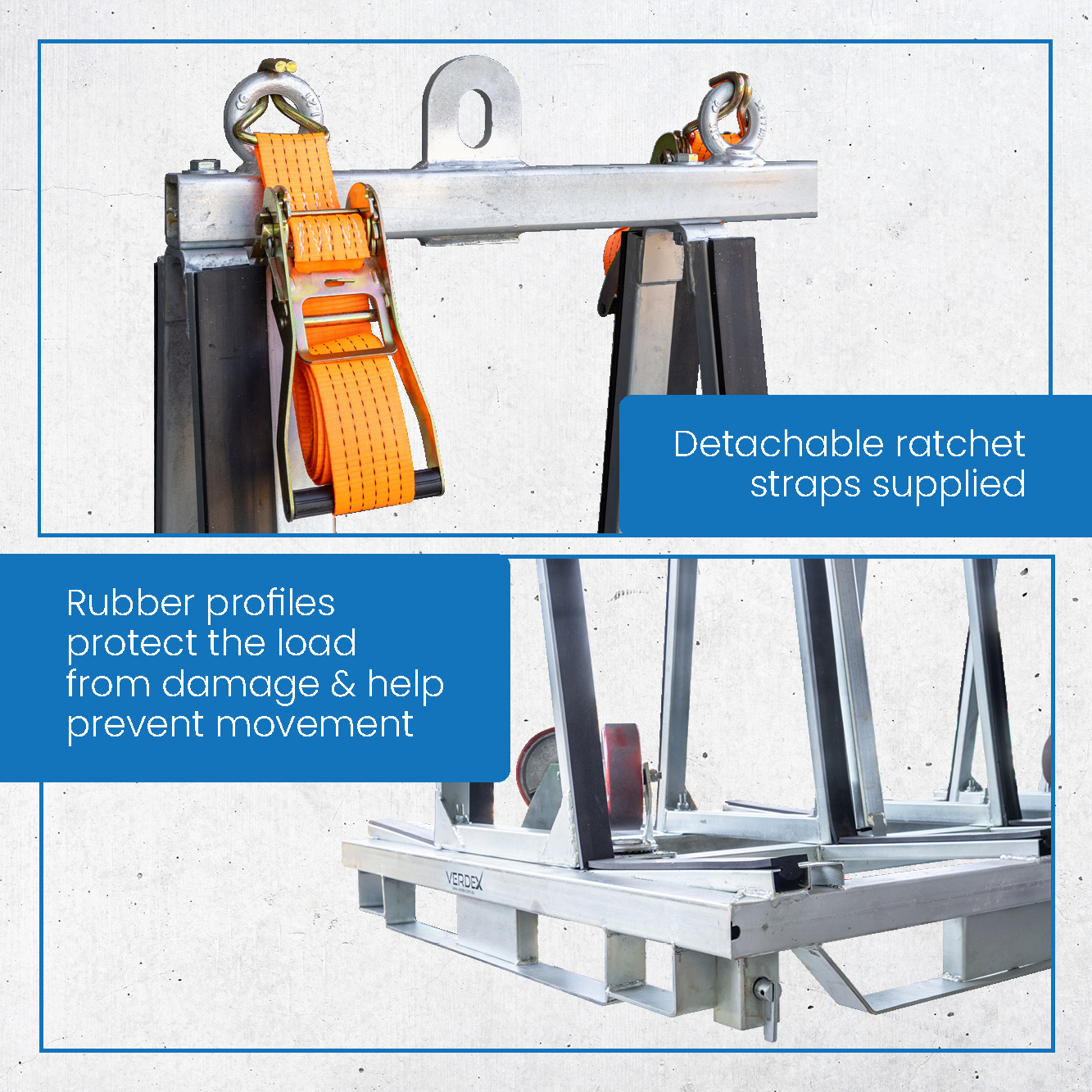

  • Detachable ratchet straps supplied
  • Rubber profiles protect the load from damage and help prevent movement
  • Heavy duty A Frame construction for maximum stability

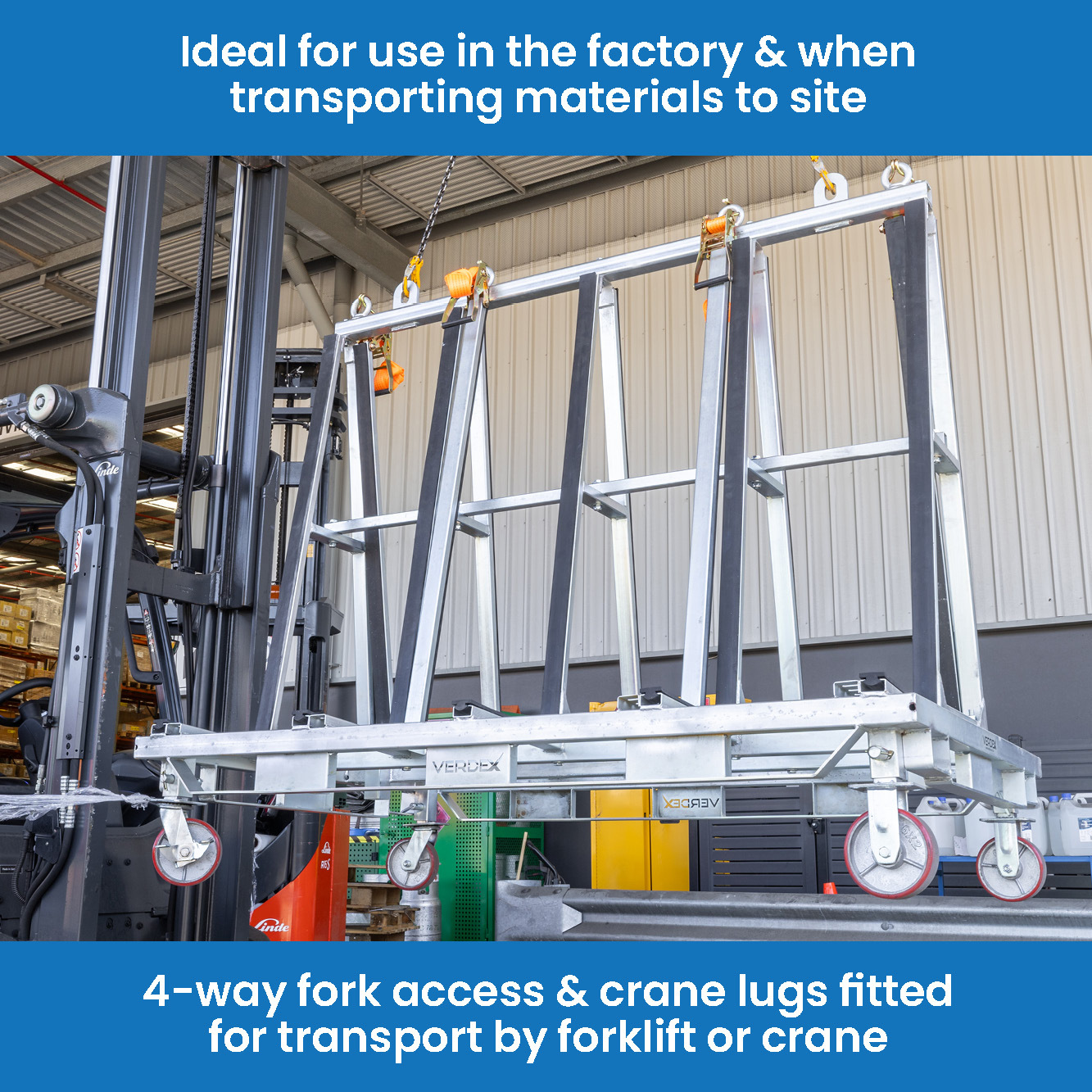

  • 4-way fork access and crane lugs fitted for transport by forklift or crane
  • 150mm poly wheels with brakes allow easy manoeuvering around the worksite
  • Wheel kit is designed for quick release with a provision for storage when not in use
  • V1279 base is sized (800mm) to use less space on a ute tray and fit through a standard doorway
  • V1281 base is designed with racking locators to suit storage in highbay racking
  • Zinc finish



Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

  • Suitable for storing & transporting glass, stone & other sheet materials
  • Load is secured by 4 adjustable clamp bars
  • Detachable ratchet straps supplied
  • Rubber profiles protect the load from damage and help prevent movement
  • Heavy duty A Frame construction for maximum stability
  • 4-way fork access and crane lugs fitted for transport by forklift or crane
  • 150mm poly wheels with brakes allow easy manoeuvering around the worksite
  • Wheel kit is designed for quick release with a provision for storage when not in use
  • V1279 base is sized (800mm) to use less space on a ute tray and fit through a standard doorway
  • V1281 base is designed with racking locators to suit storage in highbay racking
  • Zinc finish



View More Specifications

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

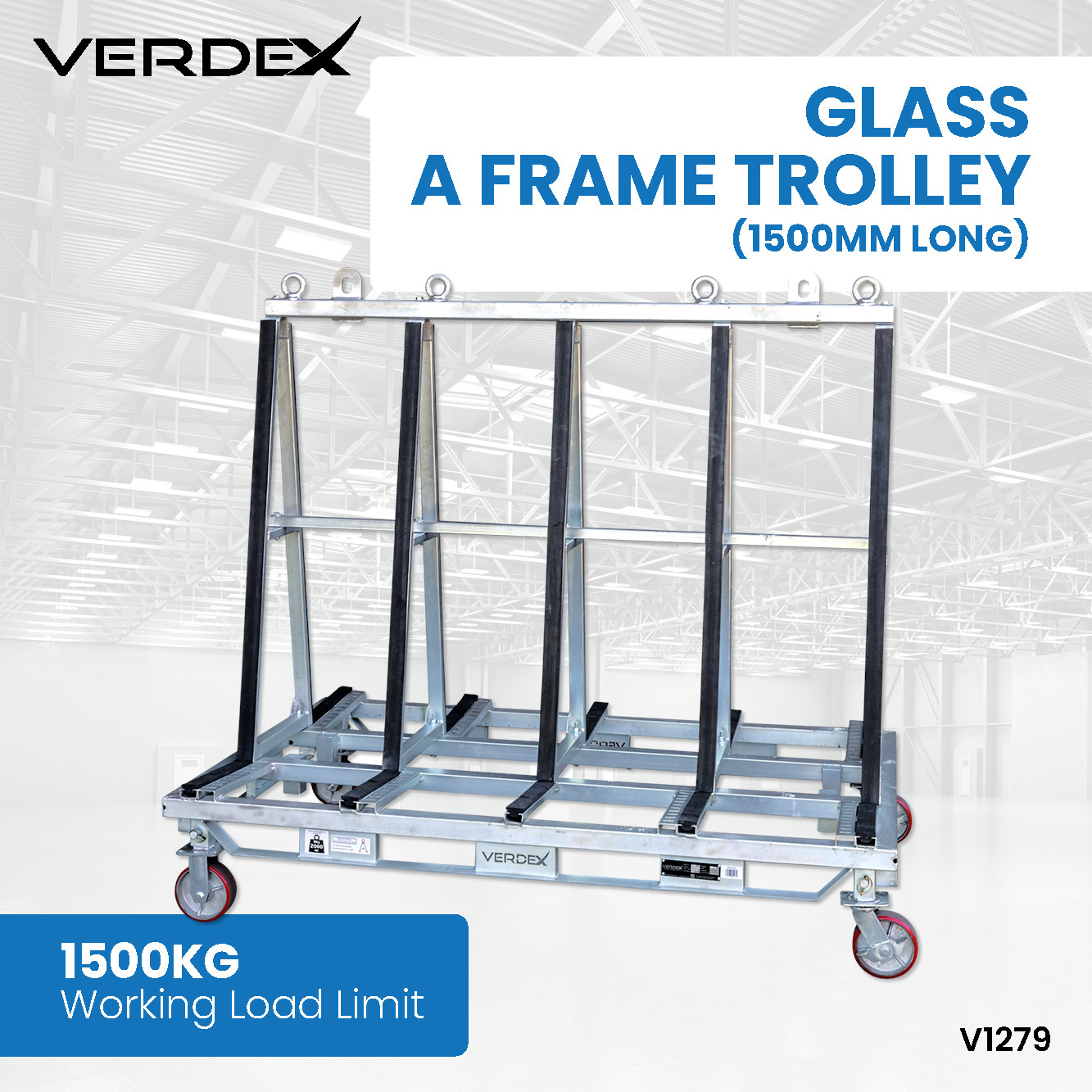

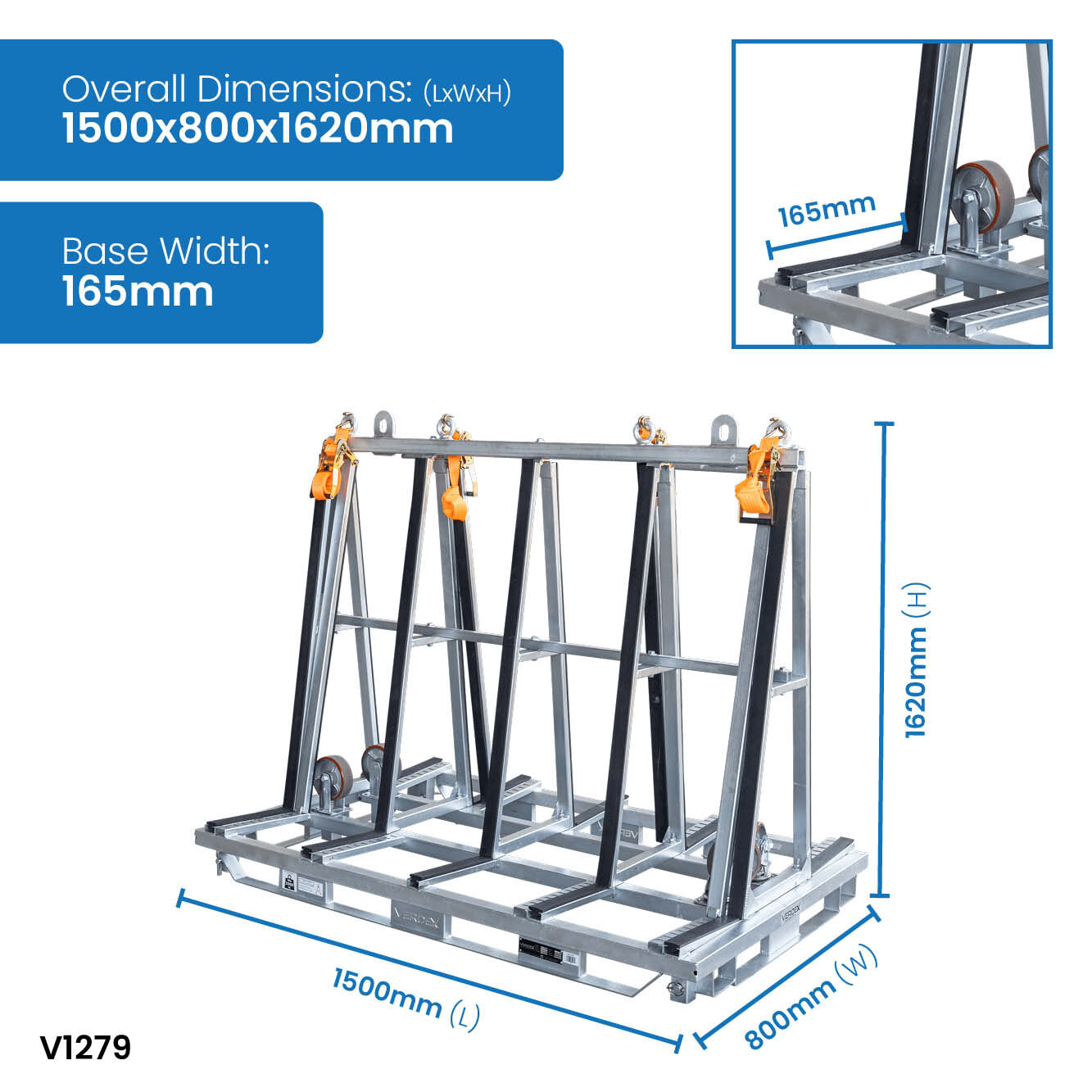

 A-Frame Trolley for Glass - 1500mm long

A-Frame Trolley for Glass - 1500mm long

Product Code: V1279

  • Rubber profiles protect the load from damage and help prevent movement
  • Heavy duty A Frame construction for maximum stability
  • 4-way fork access and crane lugs fitted for transport by forklift or crane
  • 150mm poly wheels with brakes allow easy manoeuvering around the worksite
  • Wheel kit is designed for quick release with a provision for storage when not in use
  • Frame can be loaded onto the back of a truck by forklift or crane
  • High load carrying capacity
  • Base Size (800mm) to use less space on a ute tray and fit through a standard doorway
  • Zinc finish

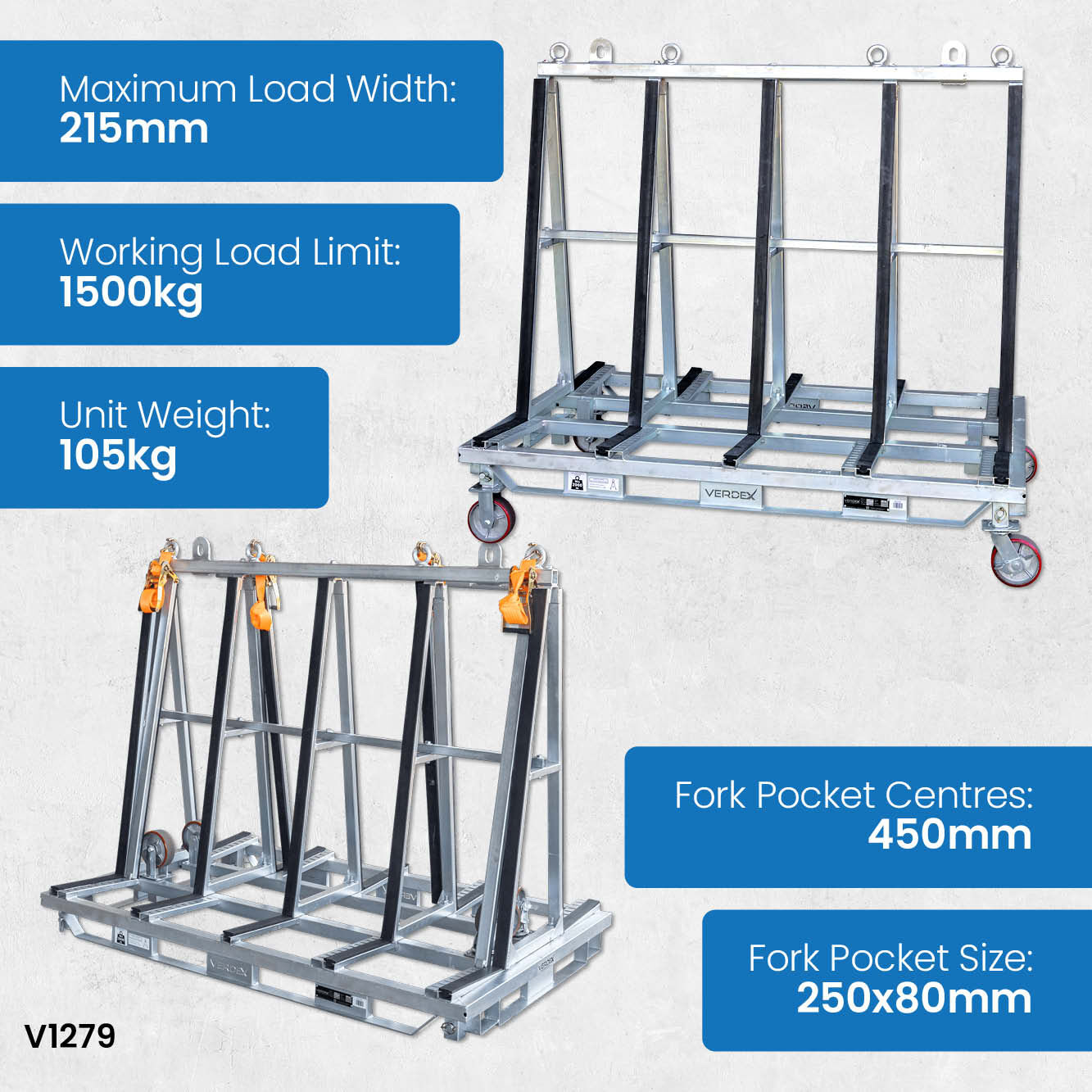

  • Working Load Limit: 1500kg
  • Overall Dimensions: 1500x800x1620mm
  • Maximum Load Width: 215mm
  • Fork Pocket Size: 250x80mm
  • Fork Pocket Centres: 450mm
  • Unit Weight: 105kg



A-Frame Trolley for Glass - 1500mm long V1279
View Details

$1,710.00

-
+
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM
APPROX. 7-10 DAY LEAD TIME ON THIS ITEM

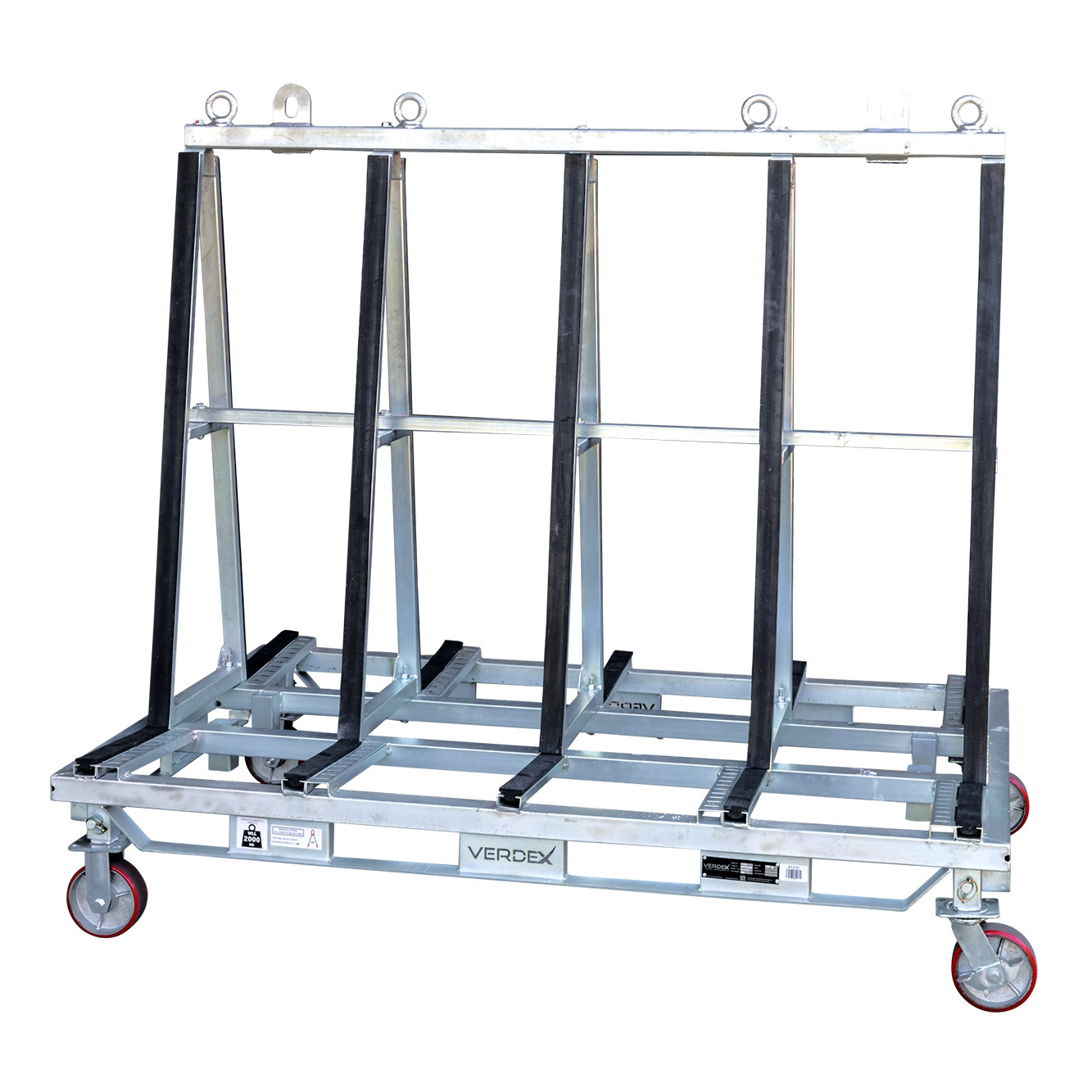

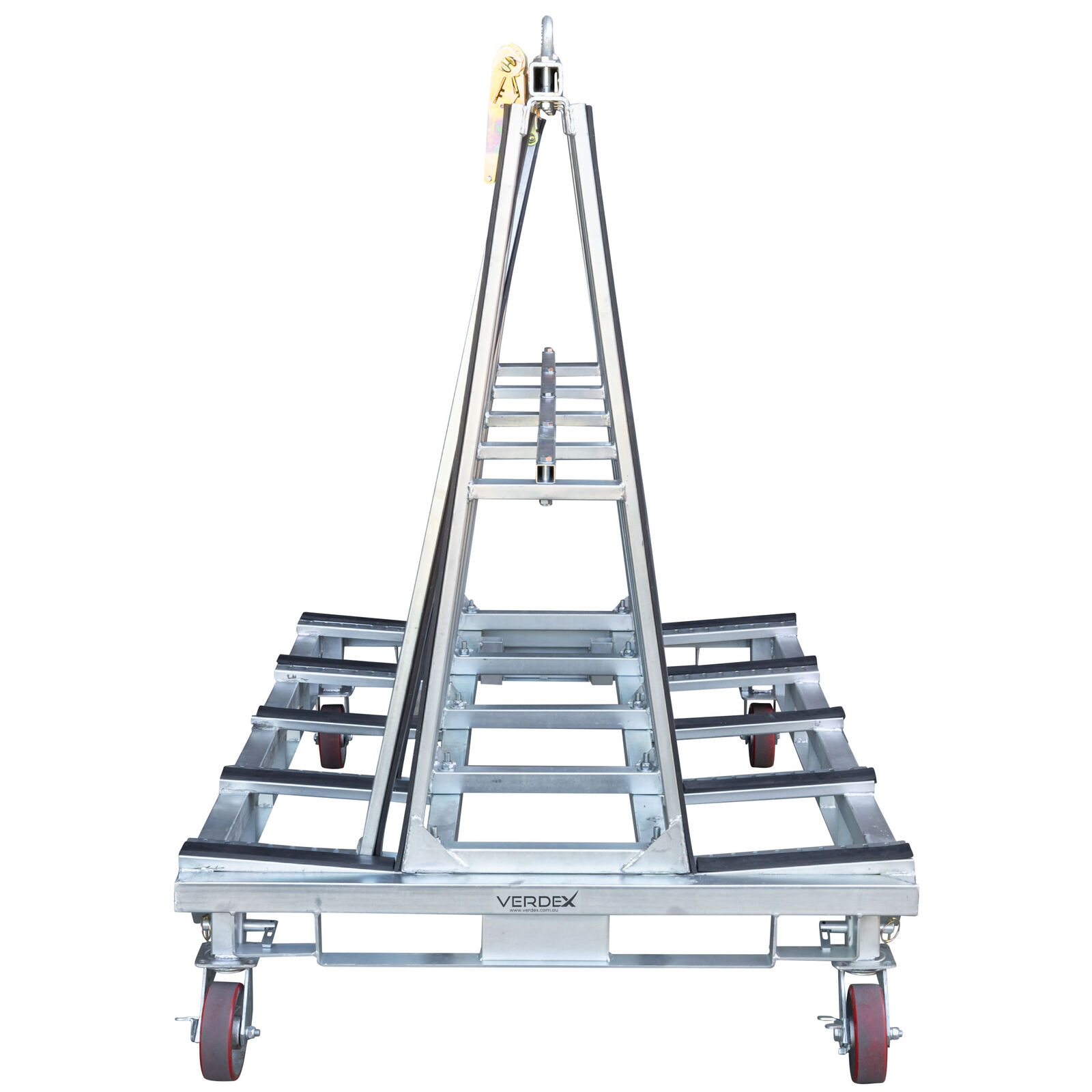

A-Frame Trolley for Glass - 1800mm long

A-Frame Trolley for Glass - 1800mm long

Product Code: V1281

  • Suitable for storing & transporting glass, stone & other sheet materials
  • Load is secured by 4 adjustable clamp bars
  • Detachable ratchet straps supplied
  • Rubber profiles protect the load from damage and help prevent movement
  • Heavy duty A Frame construction for maximum stability
  • 4-way fork access and crane lugs fitted for transport by forklift or crane
  • 150mm poly wheels with brakes allow easy manoeuvering around the worksite
  • Wheel kit is designed for quick release with a provision for storage when not in use less space on a ute tray and fit through a standard doorway
  • Base is designed with racking locators to suit storage in highbay racking
  • Zinc finish

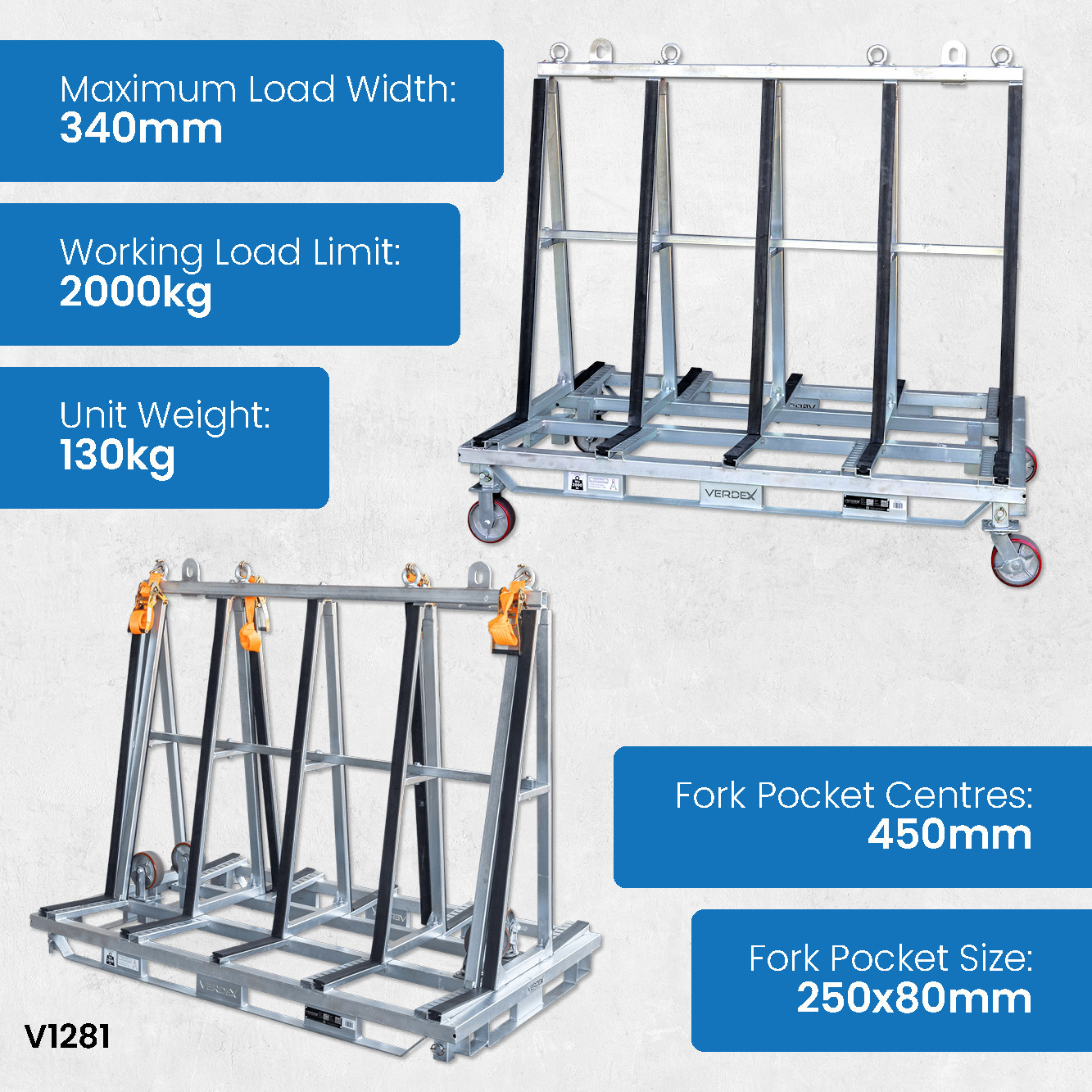

  • Working Load Limit: 2000kg
  • Maximum Load Width: 340mm
  • Fork Pocket Size: 250x80mm

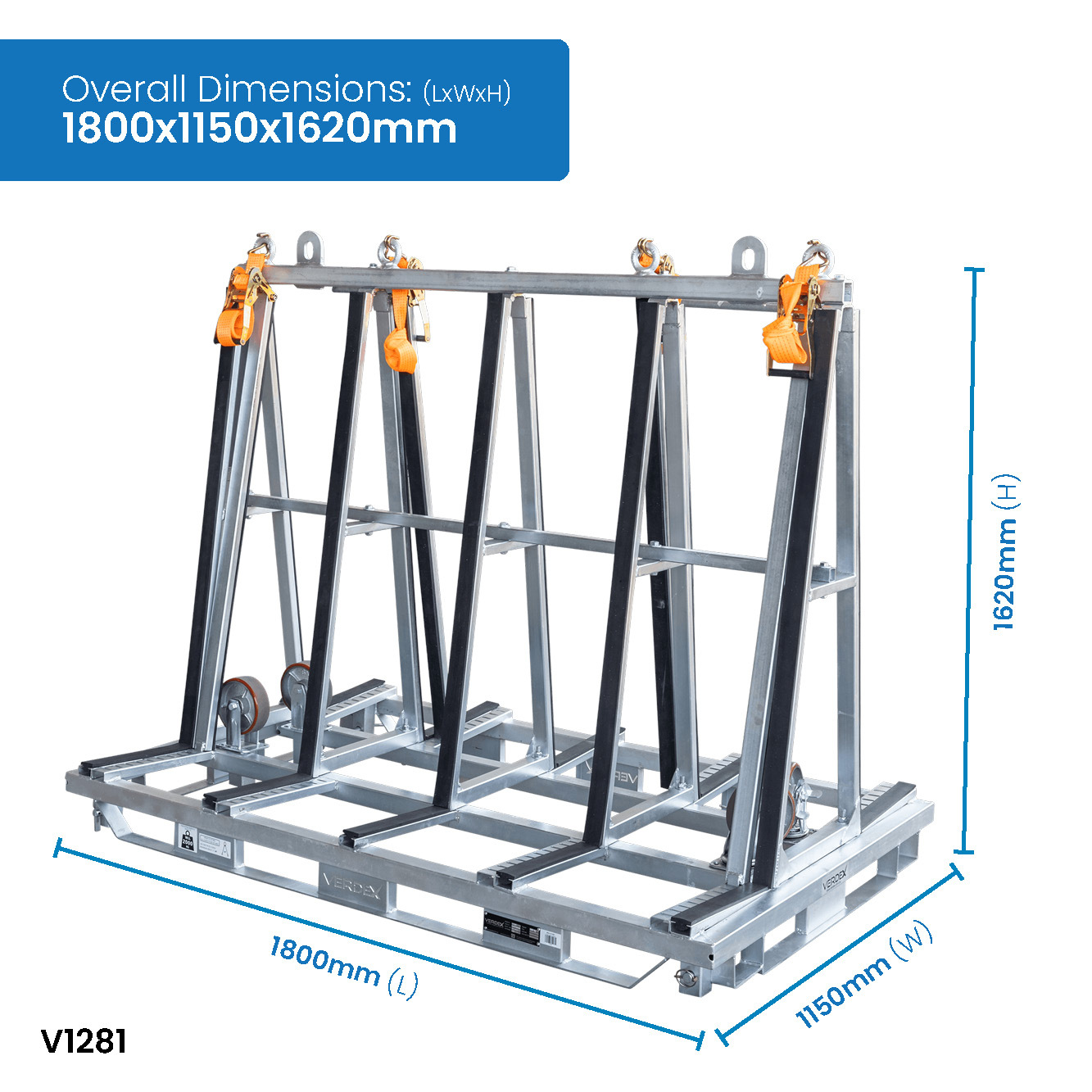

  • Overall Size (LxWxH): 1800x1150x1620mm
  • Unit Weight: 130kg



A-Frame Trolley for Glass - 1800mm long V1281
View Details

$1,980.00

-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications
  • Suitable for storing & transporting glass, stone & other sheet materials
  • Load is secured by 4 adjustable clamp bars
  • Detachable ratchet straps supplied
  • Rubber profiles protect the load from damage and help prevent movement
  • Heavy duty A Frame construction for maximum stability
  • 4-way fork access and crane lugs fitted for transport by forklift or crane
  • 150mm poly wheels with brakes allow easy manoeuvering around the worksite
  • Wheel kit is designed for quick release with a provision for storage when not in use
  • V1279 base is sized (800mm) to use less space on a ute tray and fit through a standard doorway
  • V1281 base is designed with racking locators to suit storage in highbay racking
  • Zinc finish




Code
Details
Load Capacity
Max. Load Width
Overall Size (LxWxH)
Fork Pocket Size
Unit Weight
V1279 A-Frame Trolley - 1500mm long 1500kg 215mm 1500x800x1620mm 250x80mm 105kg
V1281  A-Frame Trolley - 1800mm long 2000kg 340mm 1800x1150x1620mm 250x80mm 130kg

Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


A-Frame Trolley for Glass is designed to provide secure and efficient transportation of glass panels and sheets within various environments, including construction sites and manufacturing facilities. Its innovative A-frame design ensures that glass is held securely in place, preventing accidental tipping or shifting during movement. Constructed from high-strength steel, this trolley offers exceptional durability and stability, with a powder-coated finish for added protection against corrosion.

The trolley features padded contact points to safeguard delicate glass surfaces from scratches and damage. Its large, robust wheels ensure smooth and effortless manoeuvrability across different floor types, including rough or uneven surfaces. Equipped with adjustable supports, the A-Frame Trolley can accommodate various glass sizes and thicknesses, making it a versatile solution for handling a range of glass products. The ergonomic handle allows for comfortable control and precise steering, enhancing operational efficiency. Ideal for industries that handle glass regularly, this trolley combines functionality with safety, providing a reliable tool for efficient glass handling and transport.

A-Frame Trolleys for Glass: The Perfect Solution for Safe and Efficient Transport
When it comes to transporting and storing delicate and heavy materials like glass, stone, and sheet metal, having the right equipment is important for both safety and efficiency. The A-Frame Trolleys for Glass are designed specifically for the secure and easy movement of these materials, providing a robust and reliable solution for industries that require the safe handling of fragile, heavy items. Whether you're in construction, glass manufacturing, or any other industry dealing with sheet materials, this trolley is designed to keep your materials safe, organised, and easy to transport.



Heavy Duty Construction for Maximum Stability
The A-Frame Trolley for Glass is built with heavy-duty A-frame construction, ensuring maximum stability when transporting large sheets of glass, stone, or other materials. The frame design is strong and durable, providing a solid foundation that prevents tipping or movement during transit. This stability is critical for safely moving heavy or fragile materials, especially in environments with uneven terrain or tight spaces.
The trolley’s frame is coated with a zinc finish, providing additional protection against corrosion, which is specfcially important when the trolley is used in outdoor or industrial environments. This finish helps maintain the trolley’s longevity, even under harsh conditions.



Adjustable Clamp Bars for Secure Load Holding
One of the key features of the A-Frame Trolley for Glass is its ability to secure loads safely. The trolley comes equipped with four adjustable clamp bars, which are designed to hold the material firmly in place. These bars can be adjusted to fit various sizes and thicknesses of glass, stone, or sheet metal, ensuring that the materials are securely fastened during transport.
Additionally, the trolley includes removeable ratchet straps that provide further security, ensuring that materials do not shift or fall off the trolley during transportation. This is a particularly beneficial feature when moving large, heavy sheets, as it adds an extra layer of protection and safety. With the combination of adjustable clamps and ratchet straps, the trolley gives users confidence, knowing that materials will remain secure throughout the journey.



Rubber Profiles for Protection and Stability
The A-Frame Trolley features rubber profiles that line the areas where the materials make contact with the frame. These rubber profiles provide protection against damage, preventing scratches, chips, or cracks from occurring while the materials are being moved. The rubber also helps reduce movement within the trolley, guaranteeing that the materials remain stable during transit.
This feature is particularly beneficial when transporting glass or other delicate materials, where even the slightest bump or shift could cause damage. The rubber profiles not only protect the load from damage but also improve the overall stability of the trolley, ensuring a smooth and safe transport process.



Designed for Easy Manoeuvrability
Despite its heavy-duty construction, the A-Frame Trolley is easy to move around the worksite. Equipped with 150mm poly wheels, the trolley is designed for smooth movement over various surfaces. The wheels are made from durable poly material, offering excellent traction and stability, even when transporting heavy loads.
The brakes on the wheels ensures that the trolley remains stationary when needed, adding an extra level of security during loading or unloading. Whether you’re moving the trolley across a flat surface or through tighter spaces, the ease of manoeuvrability is a great benefit that saves time and reduces the physical strain on workers.
