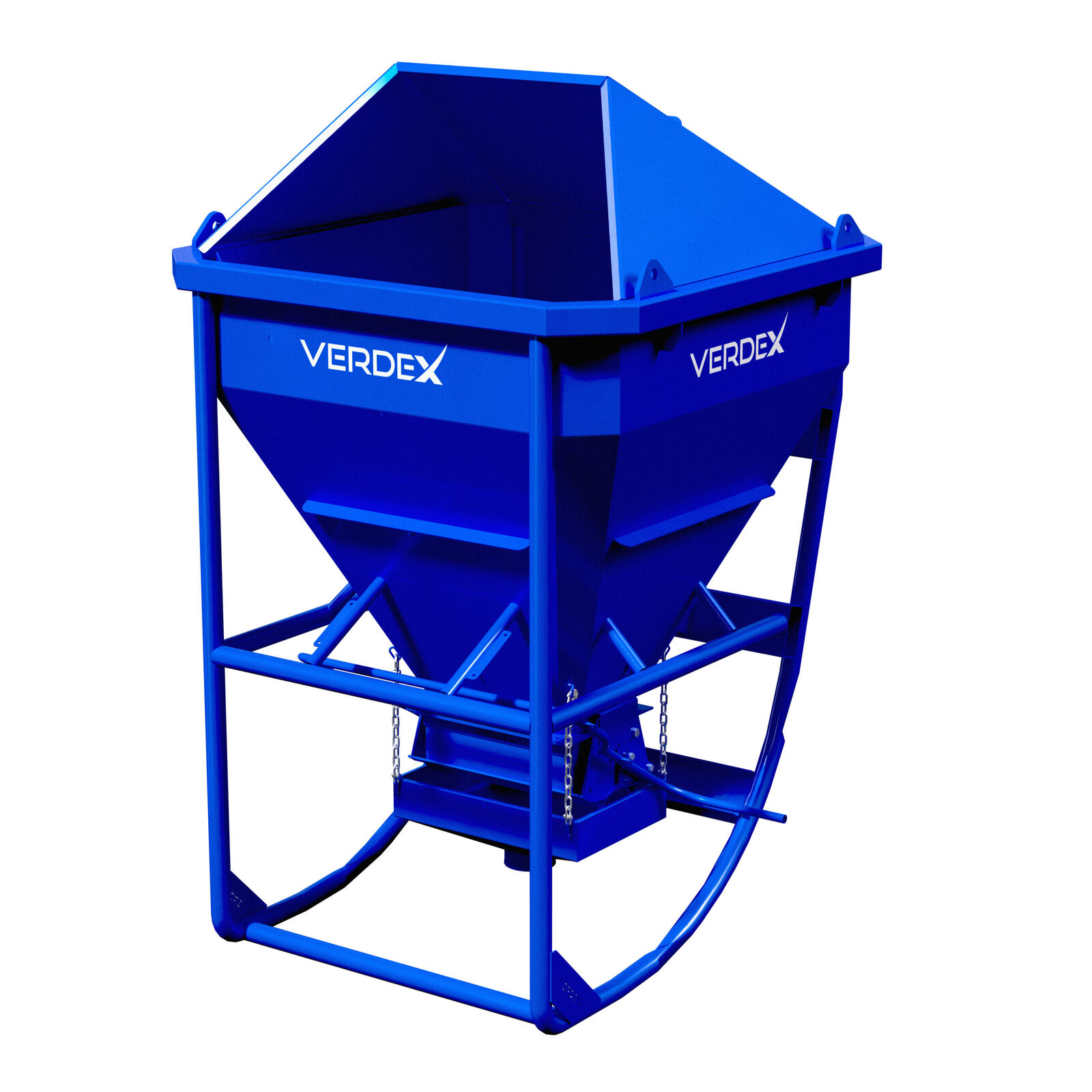

Concrete Kibble Laydown (3.0 Cubic Metre)
Click on image above to enlarge

Concrete Equipment

Concrete Kibble Laydown (3.0 Cubic Metre)


$11,950.00 Price excludes GST

SKU

V6233

Availability:

Out Of StockAvailable for Backorder

Subtotal:

$11,950.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

Built for large-scale use, the Concrete Kibble combines heavy-duty construction with roll-over functionality for streamlined crane transfer of concrete.

  • Available in models accommodating up to 3.0 cu.m for heavy-duty use
  • Roll-over (laydown) design enables direct filling from a concrete chute

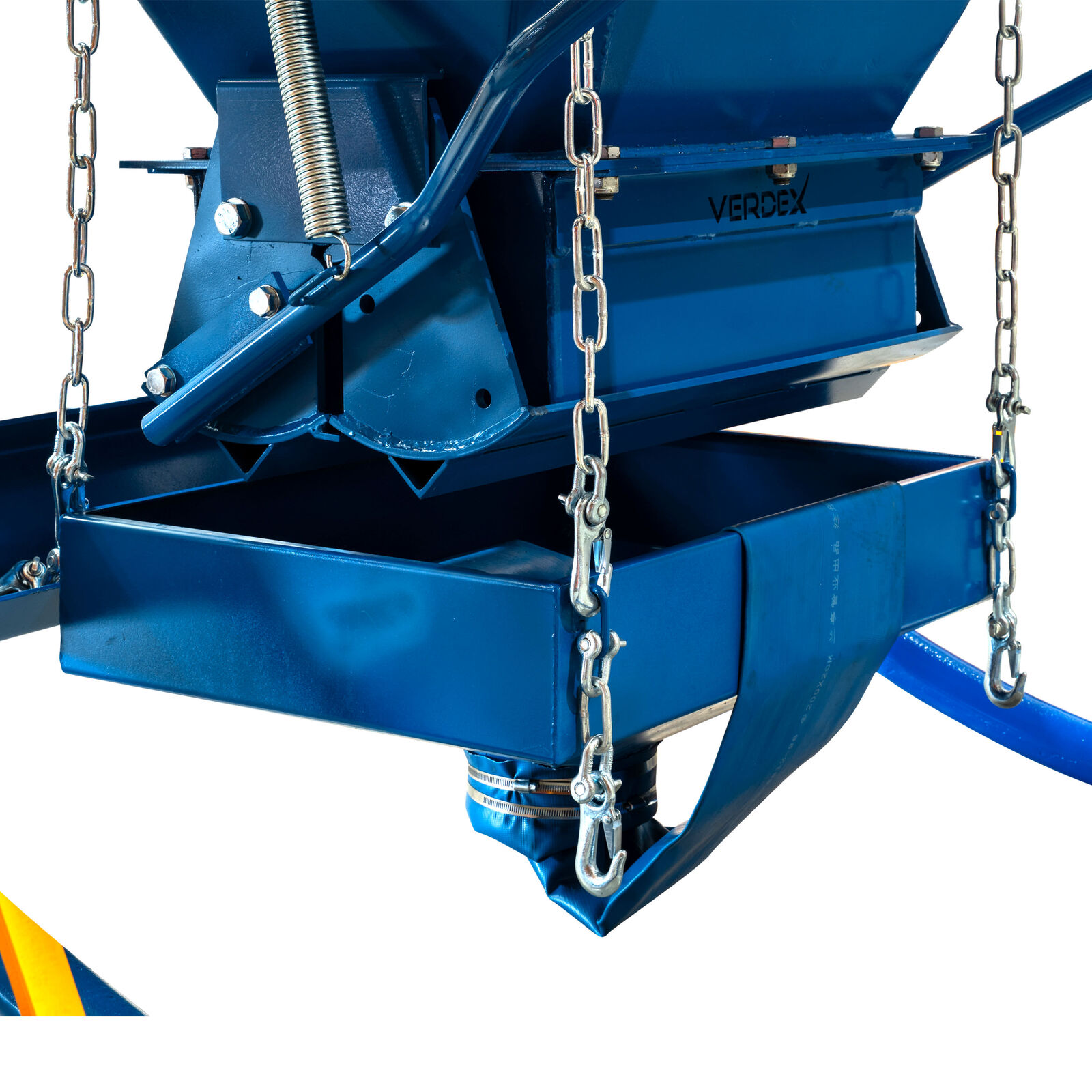

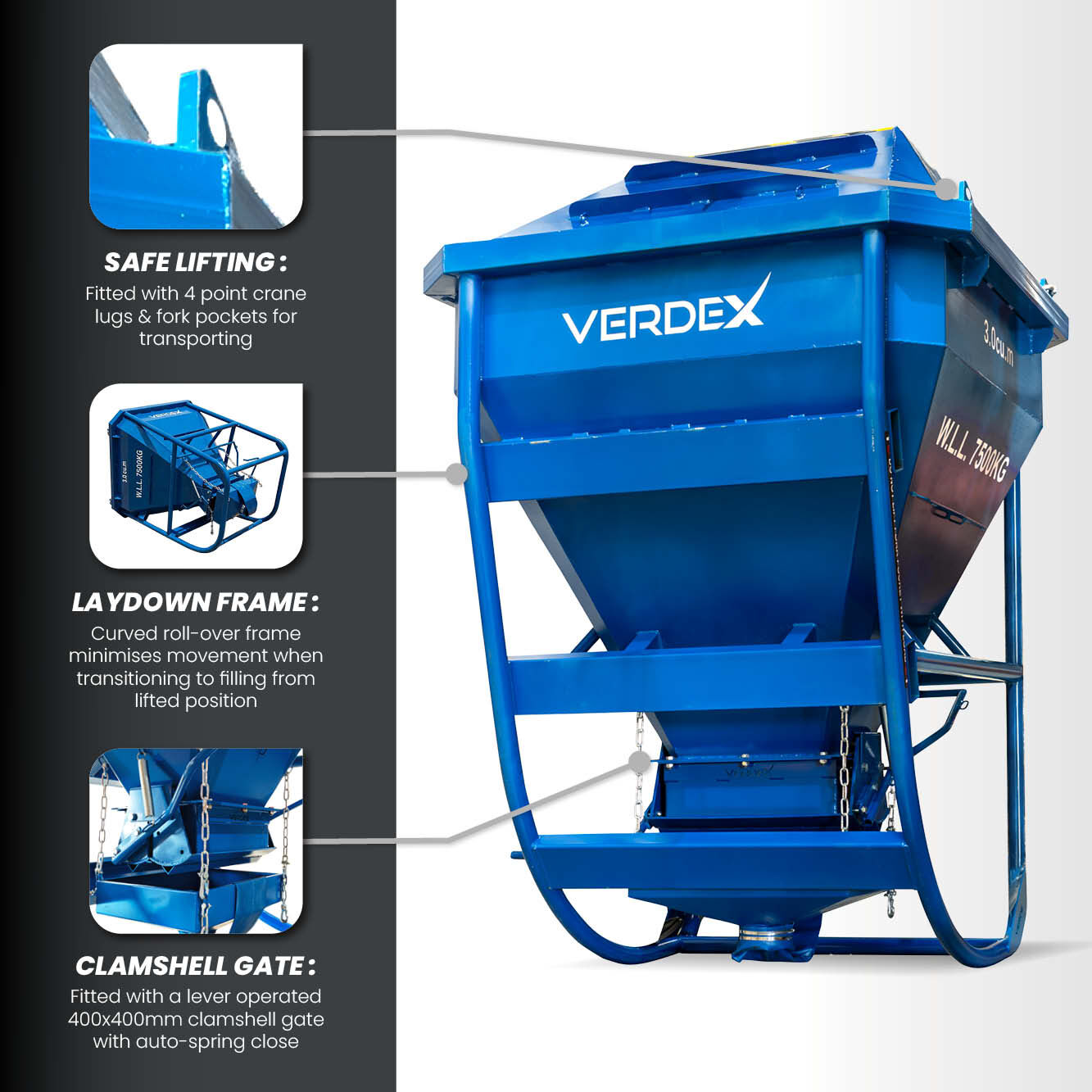

  • Equipped with a 400x400mm clamshell gate, lever operated and auto-closing for safety

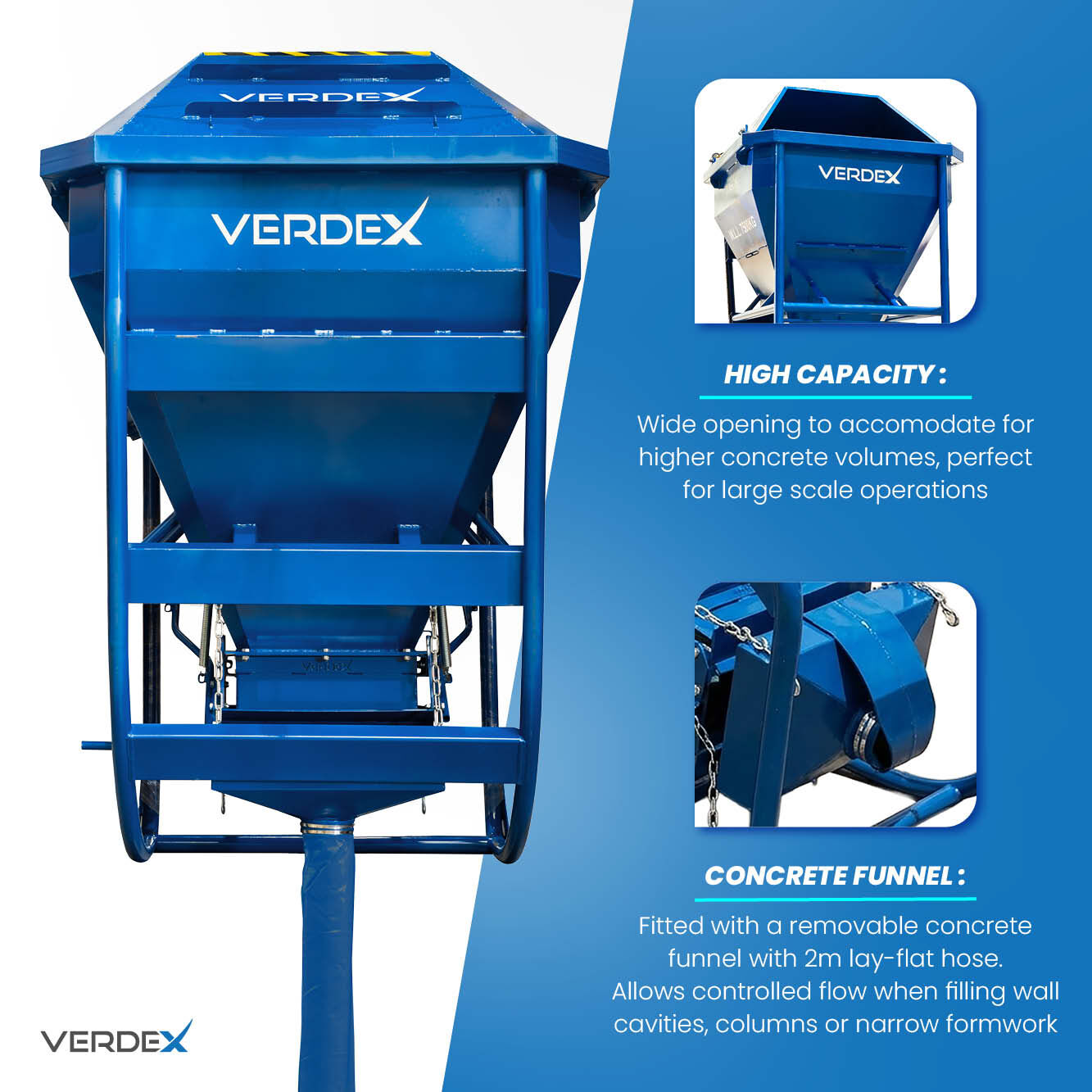

  • Supplied with a removable funnel and 2m lay-flat hose for controlled concrete placement
  • Fitted with 4-point crane lugs to enhance lifting safety and minimise stress
  • Includes fork pockets for easy relocation around the worksite
  • Protected with an enamel paint finish
  • Lay Flat Hose Dimensions (LxW): 200x2000mm
  • Working Load Limit (WLL): 7500kg
  • Capacity: 3.0 cu.m
  • Laydown Dimensions: 3280x2010x2090mm
  • Fork Pocket Size: 185x85mm
  • Fork Pocket Centres: 750mm
  • Unit Weight: 1000kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to fill in the form to request your required document

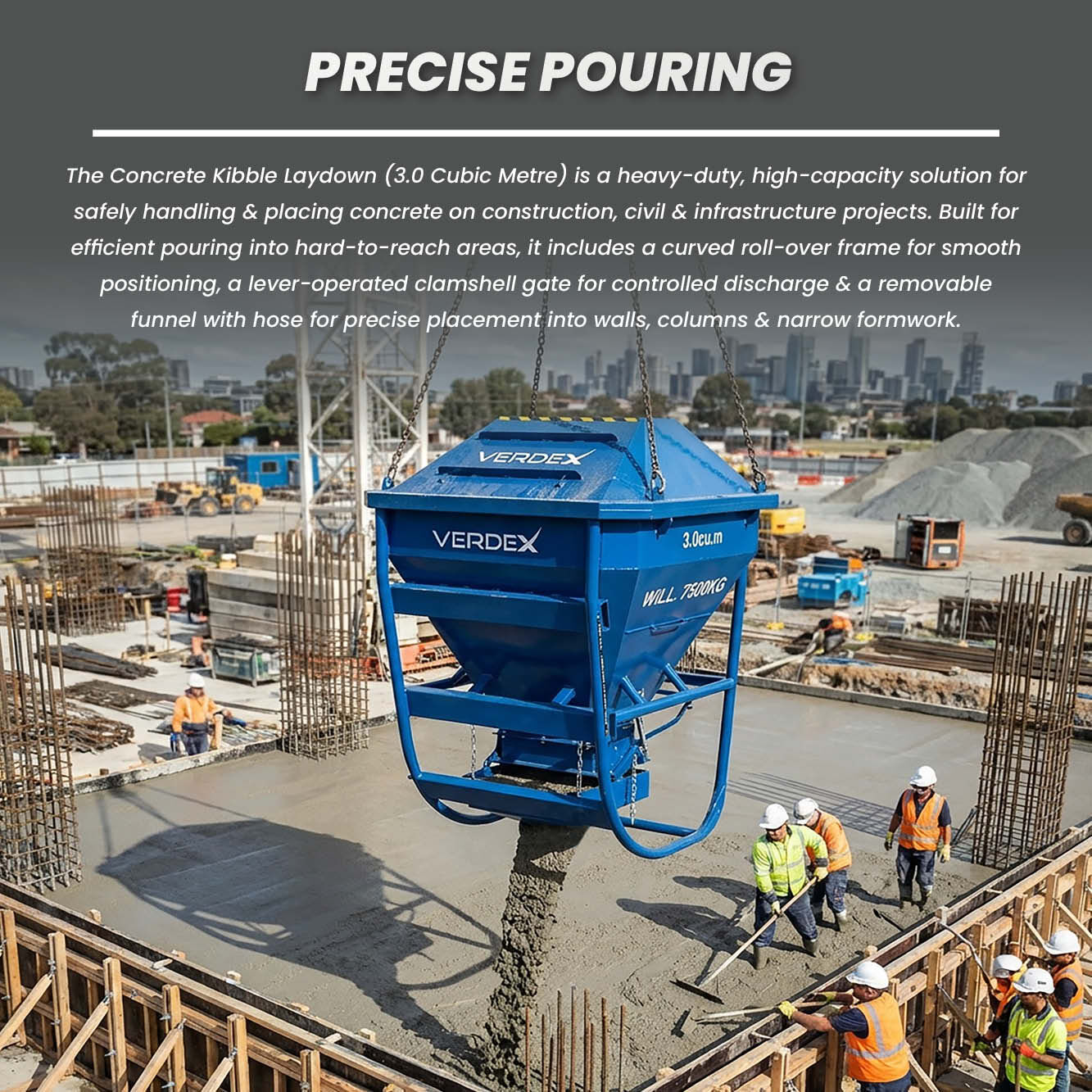

Concrete Kibble Laydown is engineered for large-scale applications, accommodating up to 3 cubic metres of material. Its roll-over (laydown) design allows for efficient filling from a concrete dispensing chute, streamlining the process for large pours and precise applications. Equipped with a lever-operated clamshell gate measuring 400mm x 400mm, this kibble ensures controlled dispensing and features an auto-close function for enhanced safety. The removable concrete funnel, paired with a 2m lay-flat hose, enables targeted filling for wall cavities, columns, or narrow formwork, improving versatility and precision on site.

The kibble includes fork pockets for easy transport around the worksite and is available with a hydraulic option (HPP-REMOTE) for remote control operation. Finished in durable enamel paint, it combines resilience with practical functionality. With a working load limit of 7500kg, it is built to handle substantial loads, and its dimensions are 3615x2100x2415mm (LxWxH), with fork pockets sized at 185x85mm and centres at 700mm. Weighing 1310kg, the Concrete Kibble Laydown is a robust and efficient solution for managing large volumes of concrete in various construction applications.

The Best Solution for Large-Scale Concrete Handling

When it comes to large-scale concrete handling, efficiency, safety, and reliability are paramount. The 3.0 cubic metre Concrete Kibble is designed to meet the demands of high-volume concrete applications, delivering smooth operation and controlled pouring.

Built for durability and versatility, this roll-over (laydown) style kibble allows for easy filling from a concrete dispensing chute. With both manual and hydraulic control options, this unit is perfect for high-rise construction, civil infrastructure, and large-scale commercial projects.

Key Features & Benefits

✔ High-Capacity Design – Suits large applications with models available for up to 3.0 cubic metres.
✔ Roll-Over (Laydown) Style – Allows for easy and efficient filling from a concrete chute.
✔ Lever-Operated Clamshell Gate – 400mm x 400mm gate with auto-close function ensures controlled discharge.
✔ Removable Concrete Funnel – Includes a 2-metre lay-flat hose, ideal for filling columns, wall cavities, and narrow formwork.
✔ Forklift & Crane Compatible – Features 4-point lift crane lugs and forklift pockets for easy transport and positioning.
✔ Hydraulic Control Option Available – The HPP-REMOTE hydraulic kibble allows for remote operation, increasing efficiency and safety.
✔ Heavy-Duty Construction – Built for rugged conditions, with an enamel paint finish for added durability.

Designed for Maximum Efficiency & Safety

The 3.0 cubic metre Concrete Kibble is engineered to streamline concrete handling while guaranteeing precision and safety on-site.

✔ Efficient Filling & Pouring – The roll-over design makes it easy to fill, while the lay-flat hose guarantees controlled discharge.
✔ Auto-Close Clamshell Gate – The lever-operated system ensures smooth and accurate concrete flow, reducing waste and spills.
✔ Forklift & Crane Lift Ready – Equipped with fork pockets and 4-point crane lifting lugs, making transport easy and secure.
✔ Hydraulic Remote Control Option – The HPP-REMOTE system enables operators to control the kibble remotely, improving precision and reducing manual handling risks.

Technical Specifications

  • Working Load Limit (WLL): 7500kg
  • Capacity: 3.0 cubic metres
  • Lay Flat Hose Dimensions: 200mm Ø x 2000mm (L)
  • Laydown Dimensions (LxWxH): 3280 x 2010 x 2090mm
  • Fork Pocket Size: 185 x 85mm
  • Fork Pocket Centres: 750mm
  • Unit Weight: 1310kg

Ideal Applications

The 3.0 cubic metre Concrete Kibble is suitable for a wide range of large-scale construction applications, including:

✔ High-Rise Construction – Ensures efficient concrete placement at elevated heights.
✔ Civil Engineering Projects – Ideal for bridges, tunnels, and road infrastructure projects.
✔ Precast Concrete Facilities – Facilitates precise pouring into moulds and formwork.
✔ Large-Scale Commercial Developments – Supports efficient and streamlined concrete distribution.

Why Choose This Concrete Kibble?

✔ High Volume Capacity – Designed for large-scale concrete handling, improving efficiency on big projects.
✔ Precision Pouring – Controlled discharge system reduces spillage and waste.
✔ Durable & Safe – Built to Australian Standards for strength, reliability, and safety.
✔ Flexible Operation – Choose between manual lever operation or hydraulic remote control.
