Clearance Item
Crane / Forklift Spreader Beam (Clearance) Crane / Forklift Spreader Beam (Clearance) Crane / Forklift Spreader Beam (Clearance)
Click on image above to enlarge

Clearance Stock

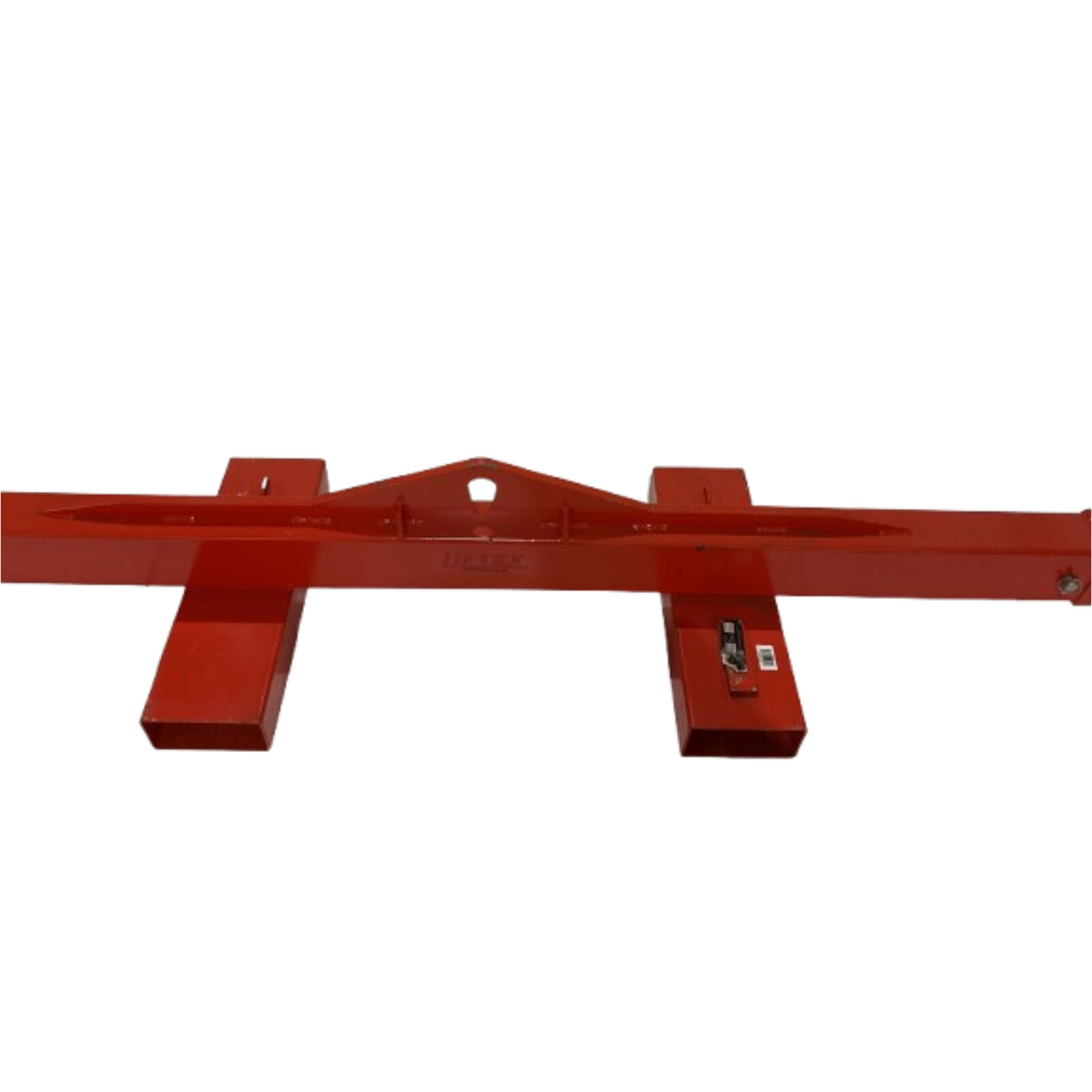

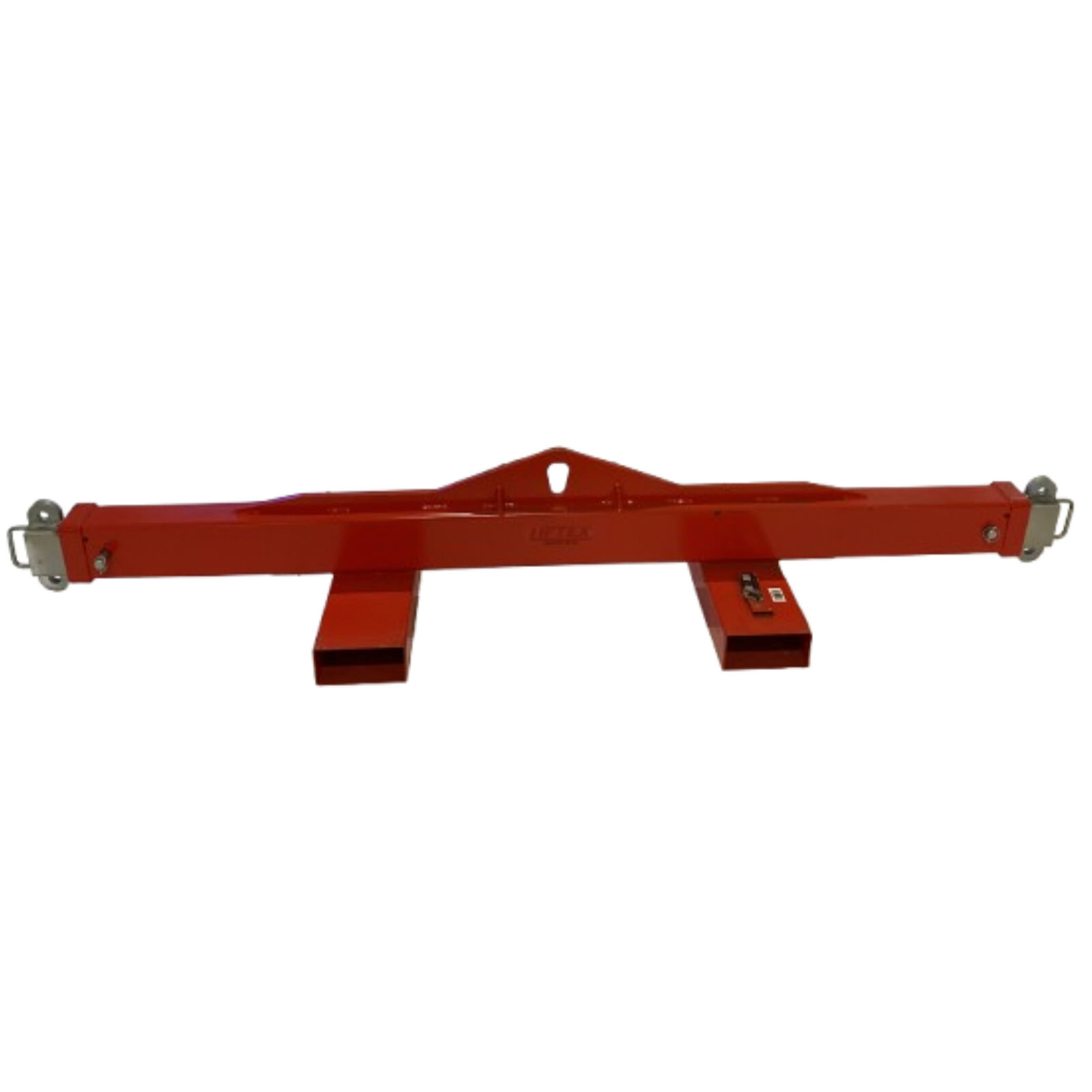

Crane / Forklift Spreader Beam (Clearance)


$1,820.00 Price excludes GST

SKU

CLR0097

Availability:

Only 1 left in Stock

Subtotal:

$1,820.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

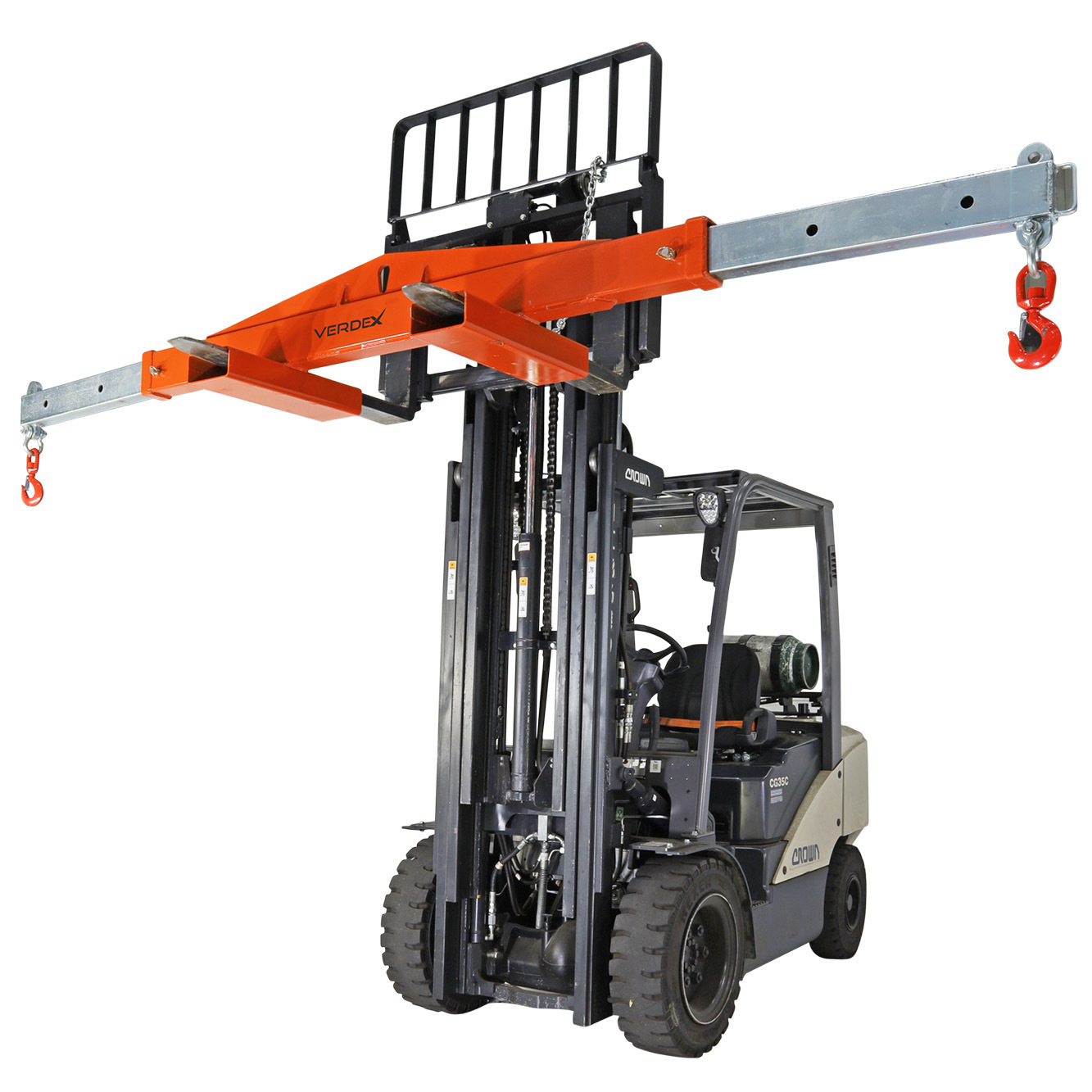

The Crane/Forklift Spreader Beam is a unique multitasking Beam which can be used by Crane or Forklift to lift long loads. Using a Crane, loads can be lifted via the centre single hook point (as a ‘Lifting Beam’), or end lifted using a 2 leg Chain Sling (as a ‘Spreader Beam’). If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection to the truck. The Spreader Beam load connection points are adjustable to 3 positions by moving the extendable arms each end. Both extendable arms are locked into position via safety pins. The unit is supplied standard with a safety swivel hook on each end. The extendable arms are zinc plated with the main body painted in ‘safety orange’.

  • Old version, unit has some scratches - missing chains and hooks
  • F/Lift HCG: 2405mm
  • Rated Capacity (RC Max.): 9000kg
  • Load Centre (LC): 330mm
  • Overall Size: 2600x600x410mm
  • Fork Pocket Size: 190x65mm
  • Fork Centres: 900mm
  • Unit Weight: 172kg

Rated Capacity (RC)
When used as
Fully Retracted
(LC @ 2405mm)
Middle Position
(LC @ 3165mm)
Fully Extended
(LC @ 3925mm)
Forklift Attachment 3500kg 1500kg 750kg
Lifting Beam 4500kg 2500kg 1300kg
Spreader Beam 9000kg 7200kg 5600kg




Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to fill in the form to request your required document

Crane / Forklift Spreader Beam – Clearance Sale on Old Version

The Crane / Forklift Spreader Beam is now available on clearance – offering serious value for businesses needing a heavy-duty lifting solution. This is an older version of the unit, featuring some surface scratches. The unit remains fully functional, making it a smart buy for cost-conscious operators who don’t want to compromise on performance. Chains and hooks can be purchased separately, just call us directly.

Built for Long Load Lifting – Now at Clearance Pricing

Whether you're lifting long pipes, timber, precast concrete, or awkward machinery, this spreader beam is built to handle it all. Designed for use with both cranes and forklifts, it allows for flexibility on-site while supporting safe and stable lifts.

  • Rated Capacity: 9000kg – suitable for serious industrial tasks

  • Forklift Load Centre: 330mm

  • Forklift HCG: 2405mm

  • Dimensions (LxWxH): 2600x600x410mm

  • Fork Pockets: 190x65mm with 900mm centres

  • Dual-Purpose Versatility You Can Rely On

This unit functions as both a lifting beam (via central hook point) and a spreader beam (via dual sling lifting). With adjustable load connection points and safety-pinned extendable arms, you’ll get reliable control over long or uneven loads. Slipper pockets make forklift use safe and easy, while the unit’s robust steel construction ensures lasting durability.

It’s an opportunity to get industrial-grade lifting gear at a fraction of the standard cost. Still built tough. Still does the job. Just bring your own hooks, and you're good to go.

Ideal For:

  • Construction and infrastructure projects

  • Freight yards and transport depots

  • Heavy manufacturing and warehousing

  • Sites needing flexibility between crane and forklift lifting

Don’t Miss Out – Limited Clearance Stock

This is a limited opportunity to secure a professional-grade lifting attachment at a reduced price. Perfect for businesses that don’t mind minor cosmetic flaws in exchange for solid performance.

Call 1800 750 500 or email sales@verdex.com.au to order, check availability, or enquire about hooks.
