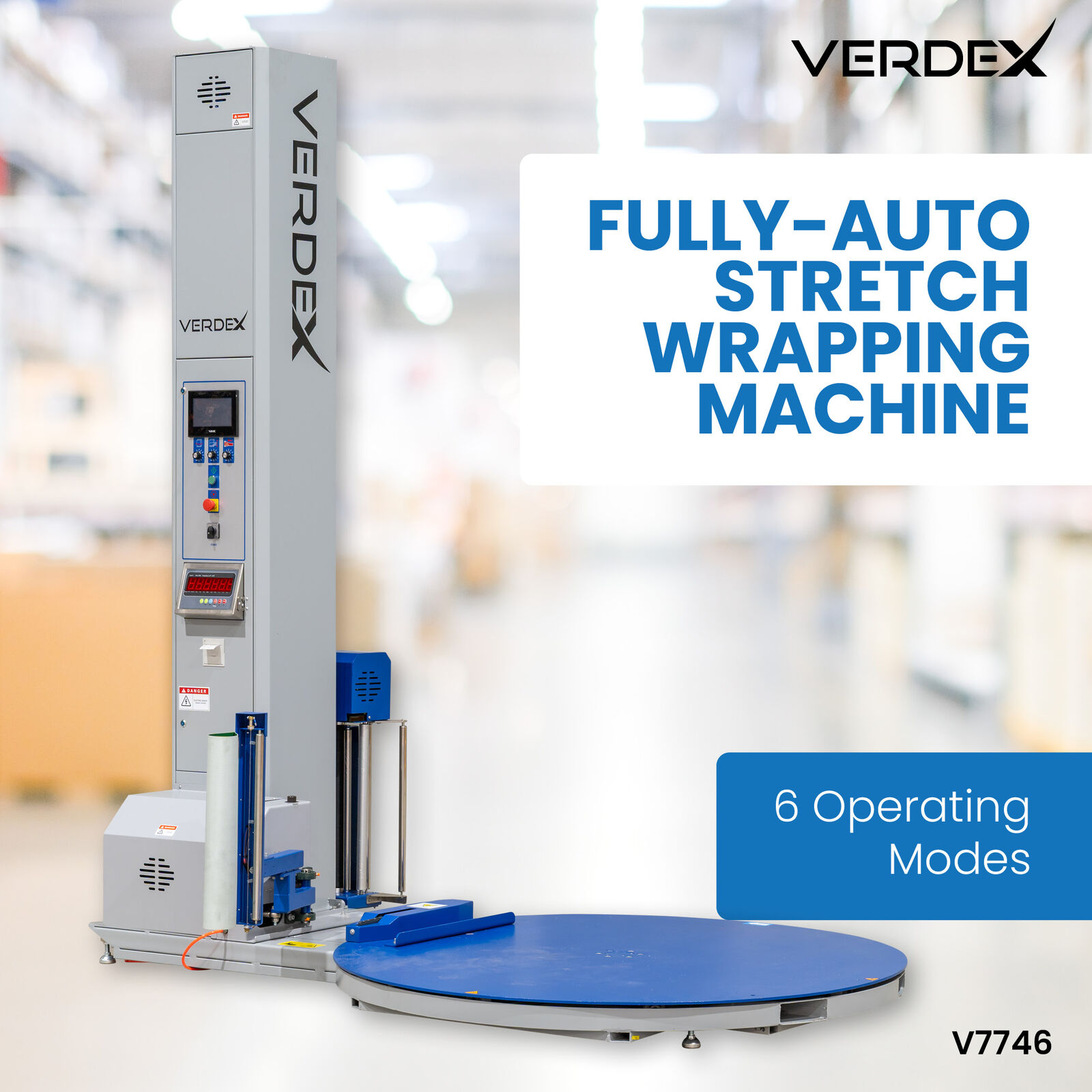

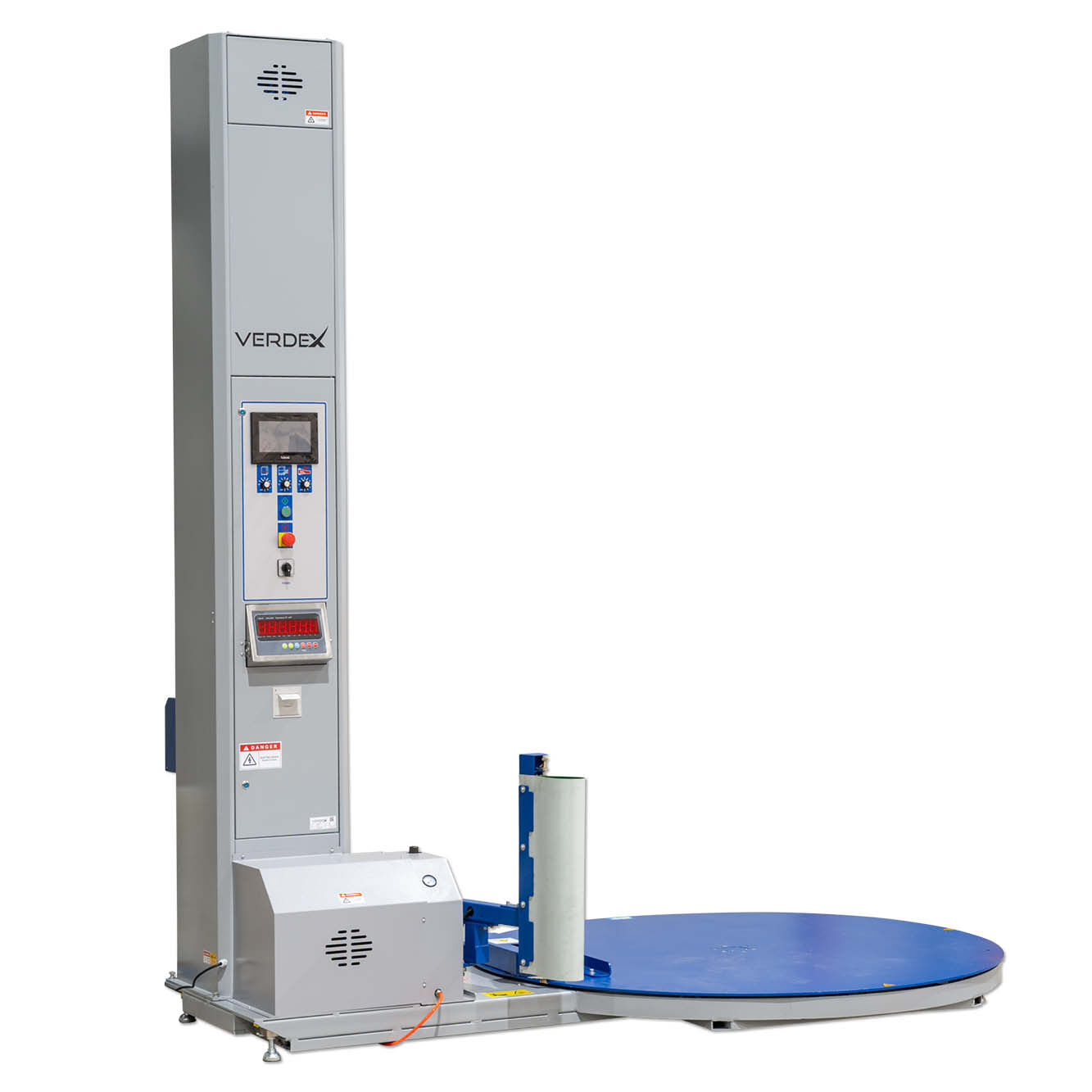

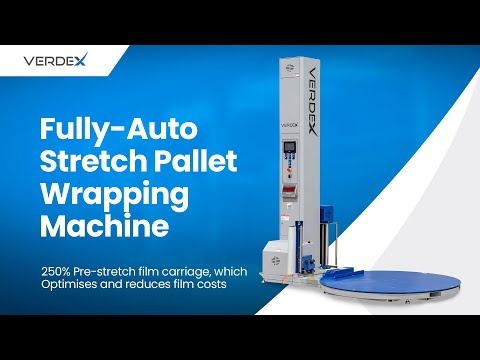

Fully-Auto Stretch Wrapping Machine
SKU
V7746Availability:
Product Code: V7746

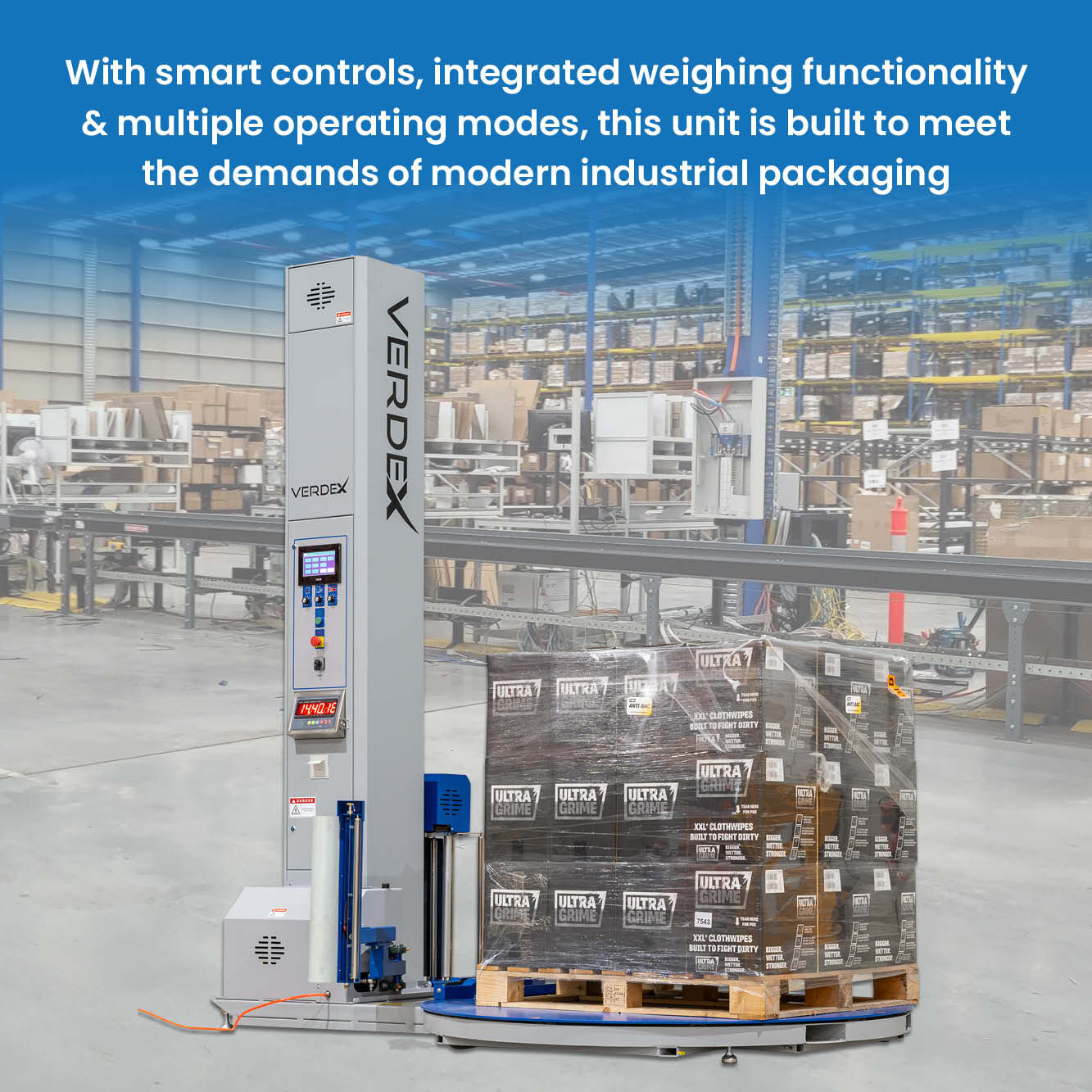

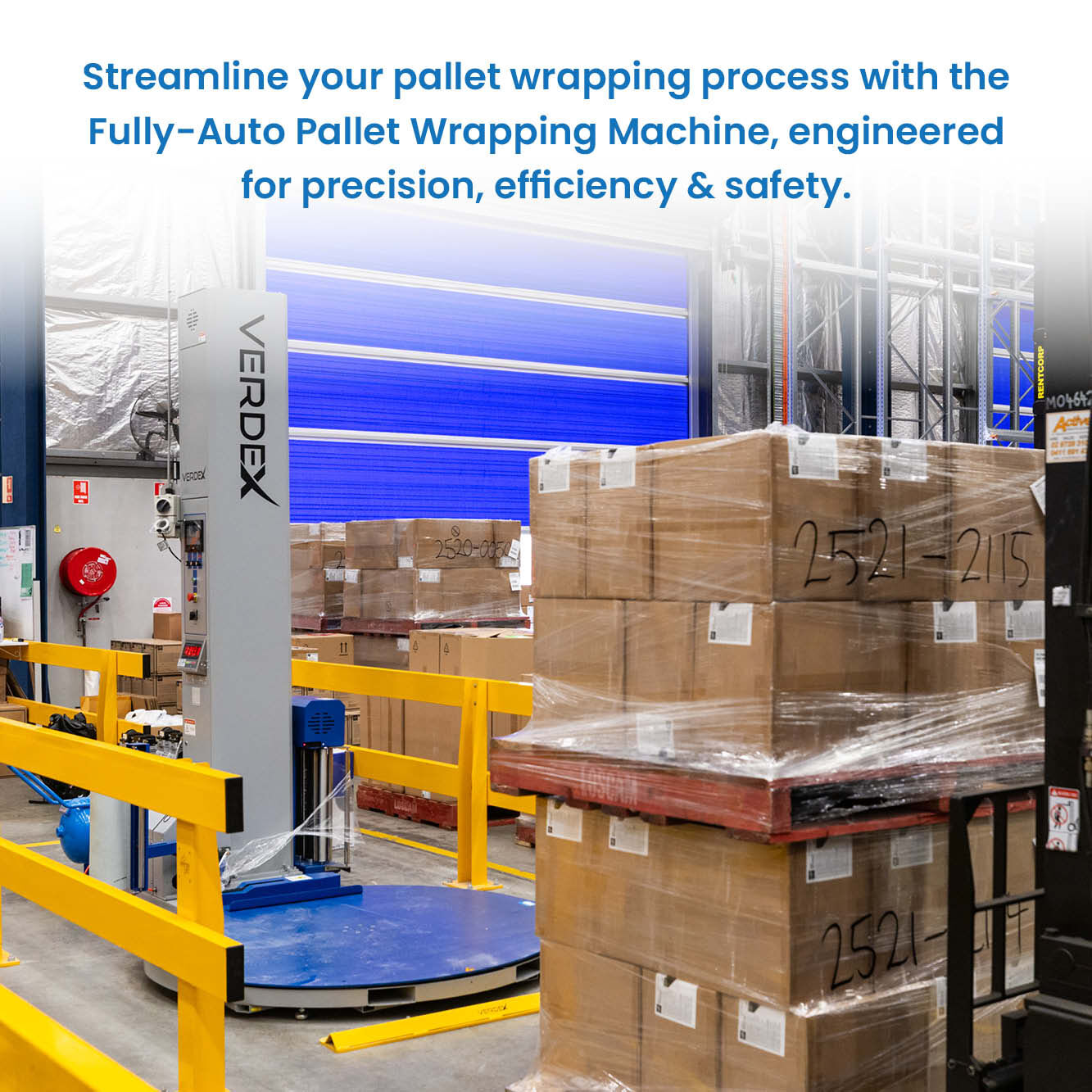

Streamline your pallet wrapping process with the Fully-Auto Stretch Wrapping Machine, engineered for precision, efficiency, and safety. With smart controls, integrated weighing functionality, and multiple operating modes, it's built to meet the demands of modern industrial packaging.
- Automatically attach & cut film

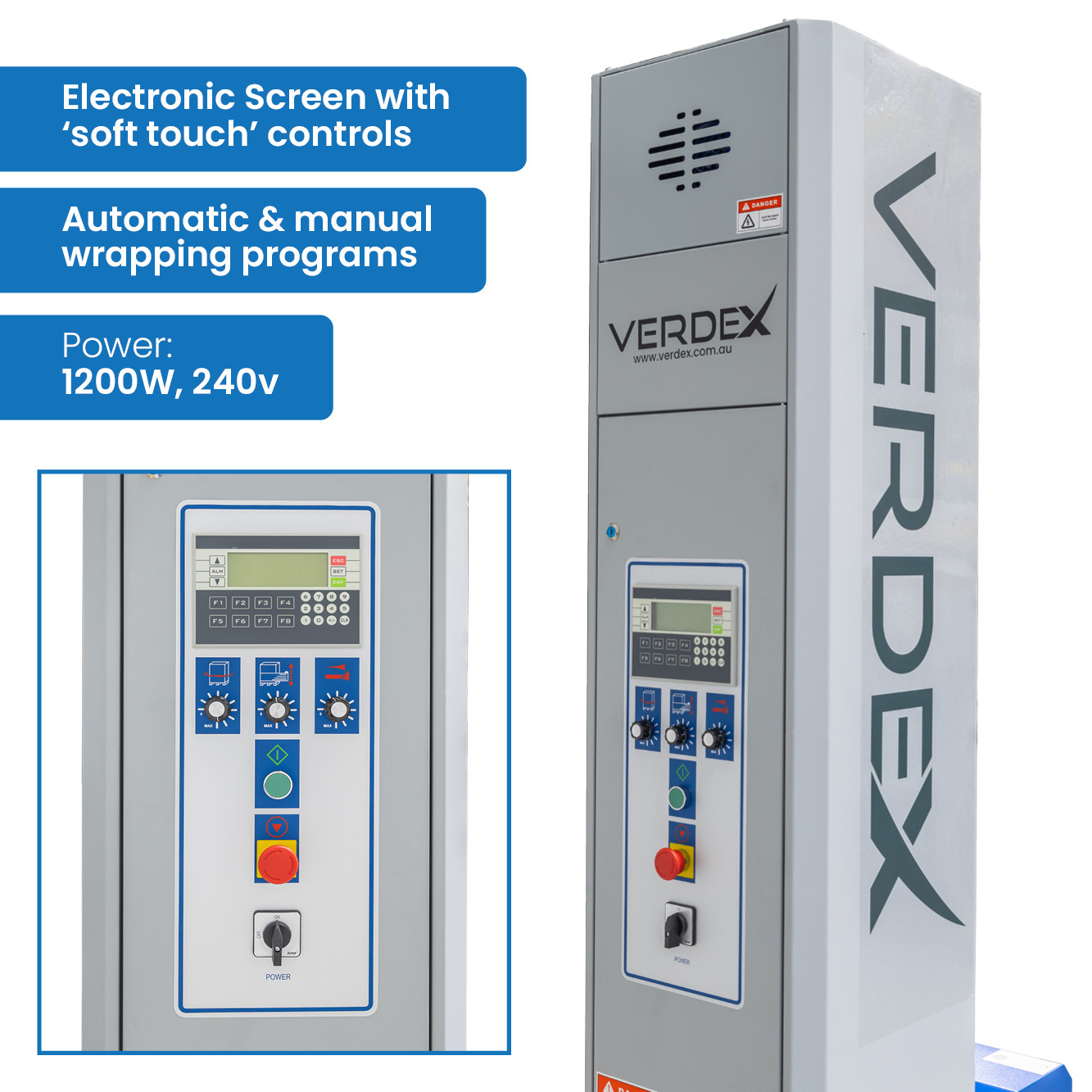

- PLC control+key board control

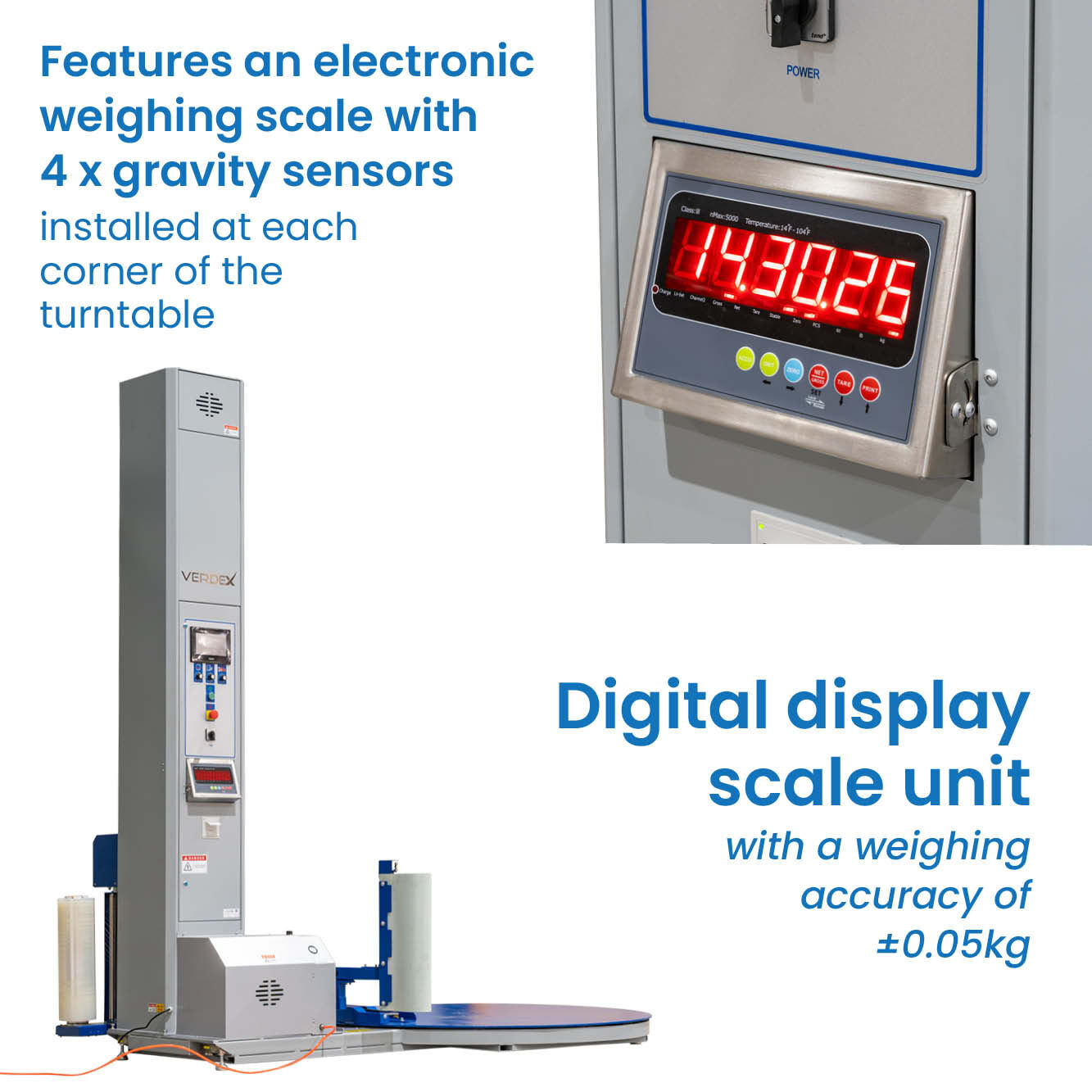

- Features an electronic weighing scale with 4 x gravity sensors installed at each corner of the turntable
- Digital display scale unit with a weighing accuracy of ±0.05kg

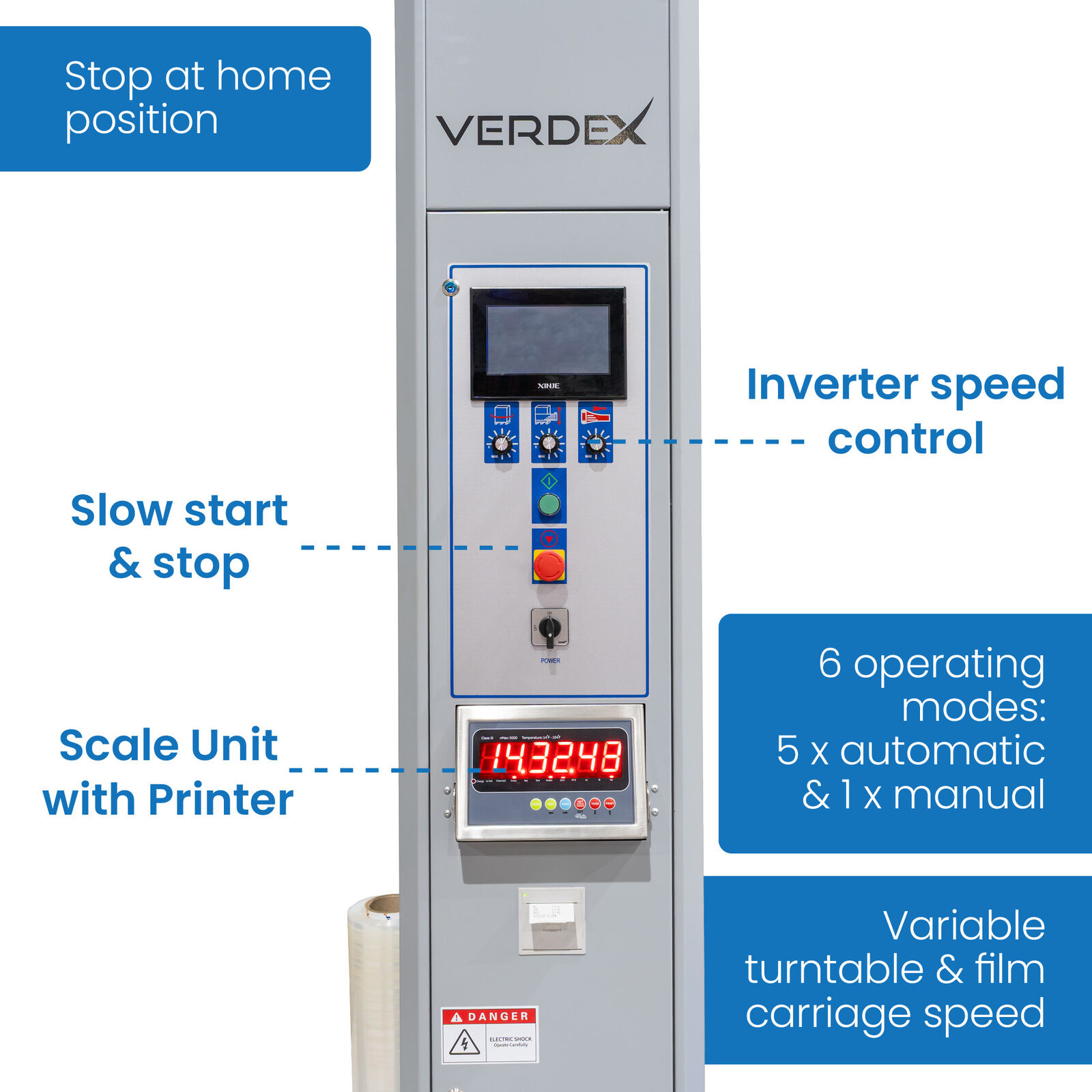

- Scale unit printer
- 6 operating modes: 5 x automatic modes & 1 x manual mode

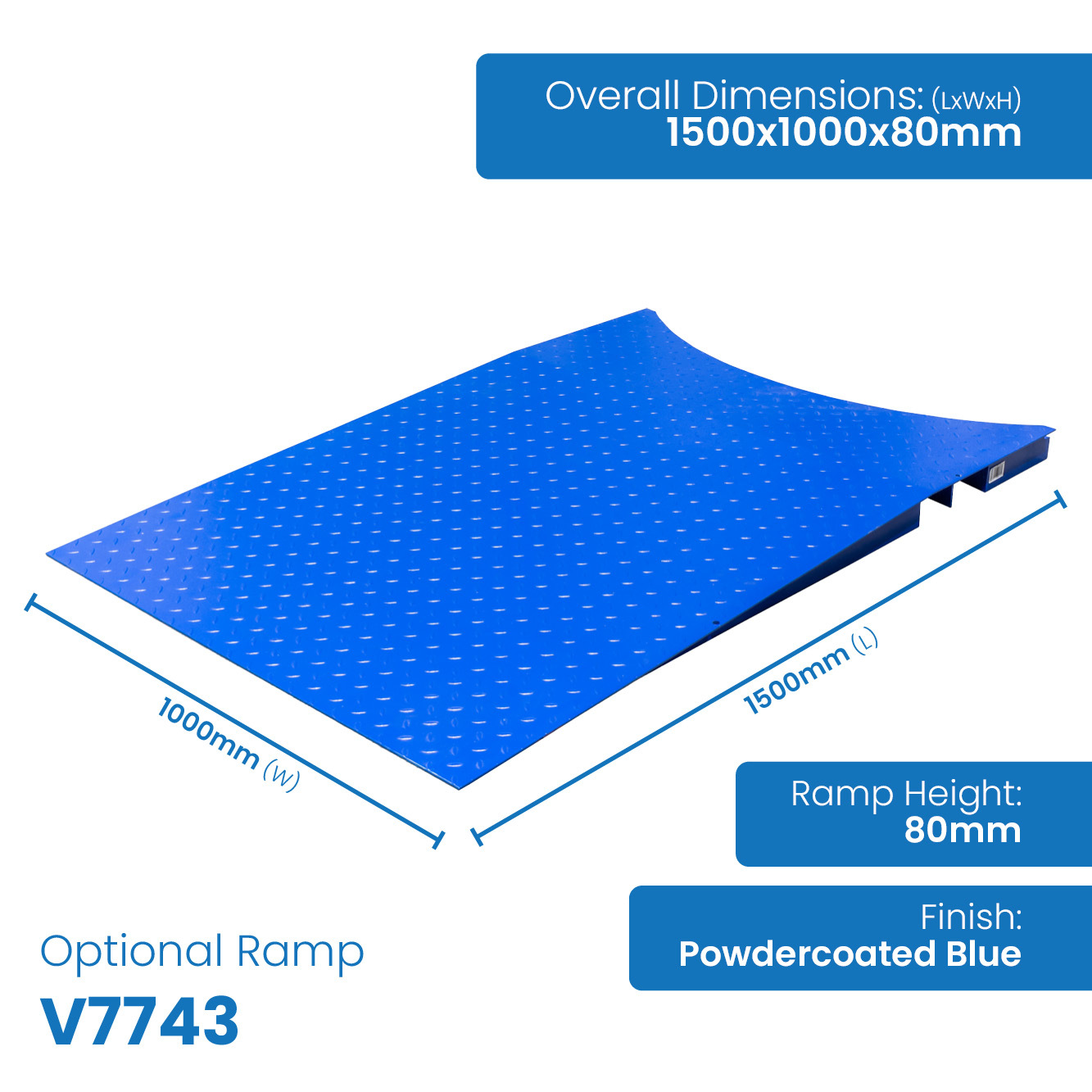

- Supplied with a ramp as standard
- Inverter speed control

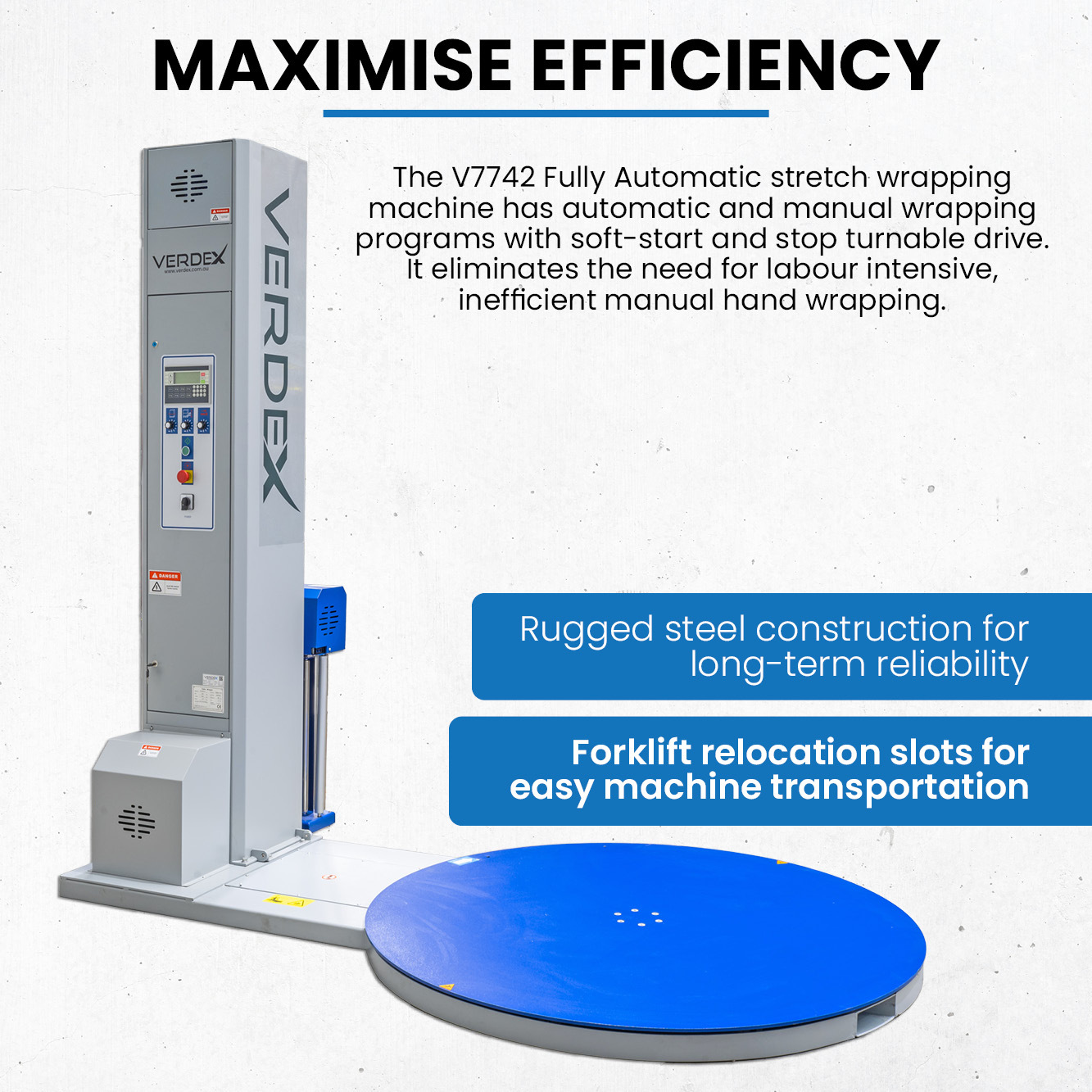

- Slow start & stop
- Stop at home position

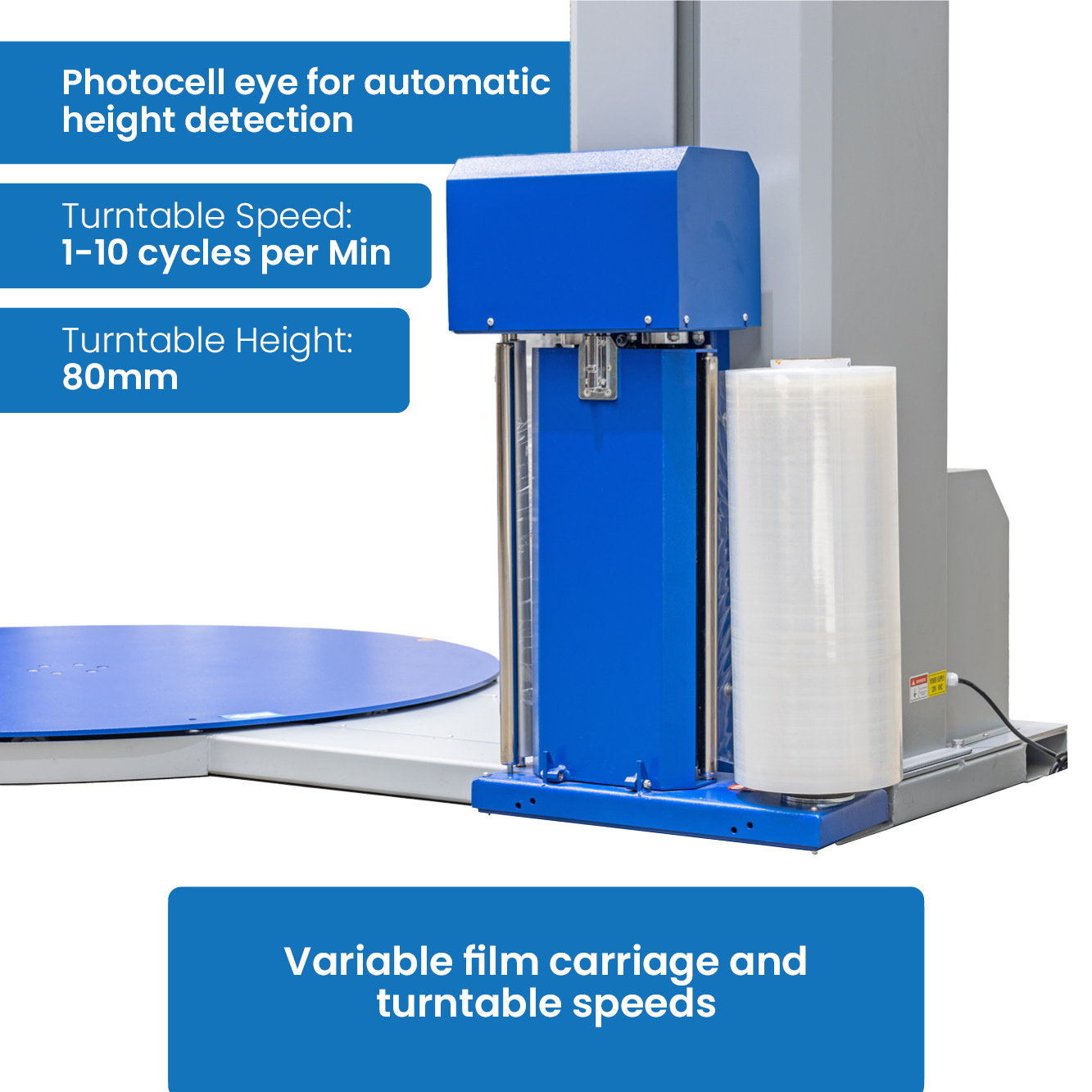

- Auto detect pallet height
- Front & rear forklift access
- Variable turntable & film carriage speed
- Configurable shrink wrap setting for top, middle & bottom of pallet - 5 memory settings available
- Package weight capacity: 50-1500kg

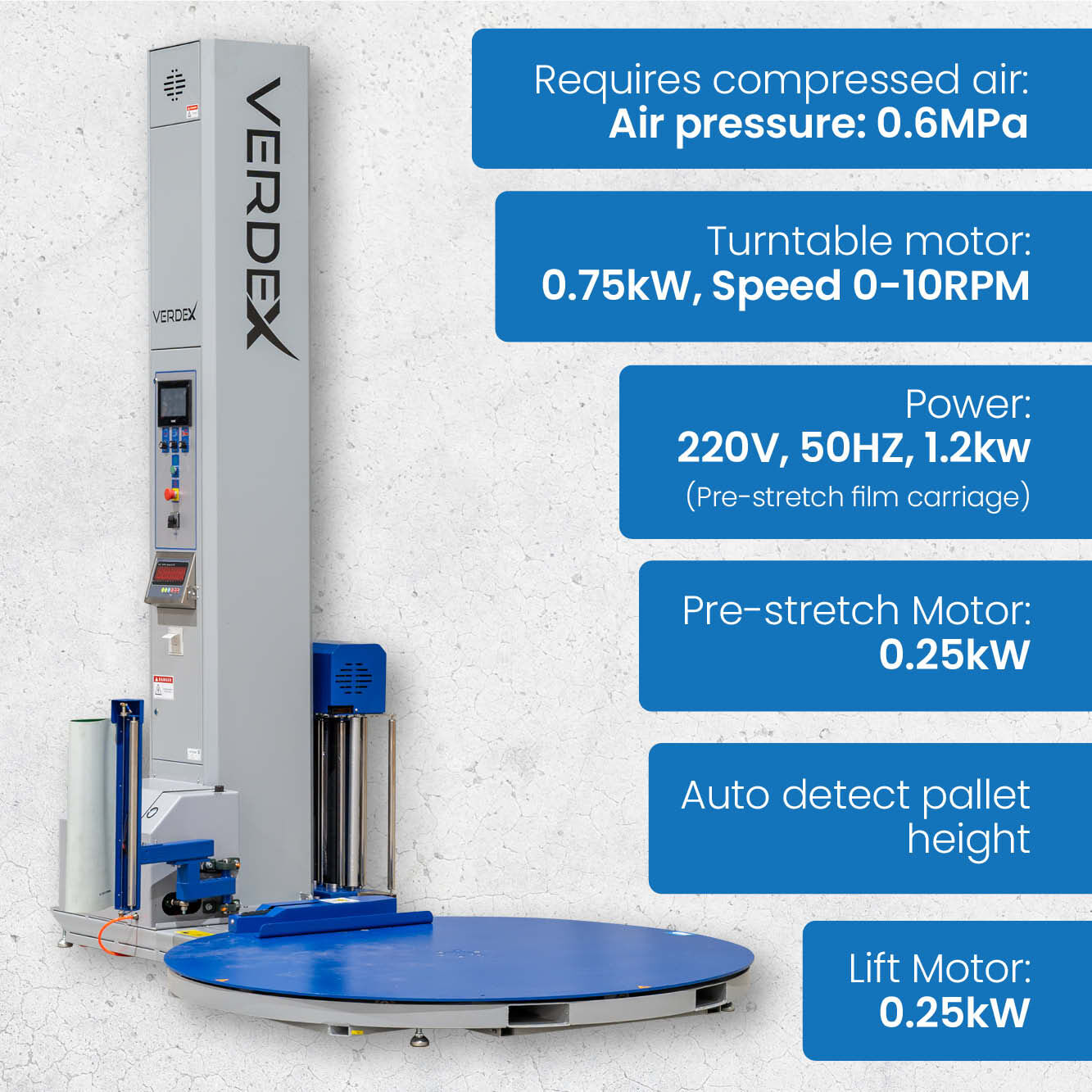

- Power: 220V, 50HZ, 1.2kw (Pre-stretch film carriage)
- Lift motor: 0.25kW
- Pre-stretch motor: 0.25kW
- Turntable motor: 0.75kW, Speed 0-10 RPM
- Requires compressed air, air pressure: 0.6MPa

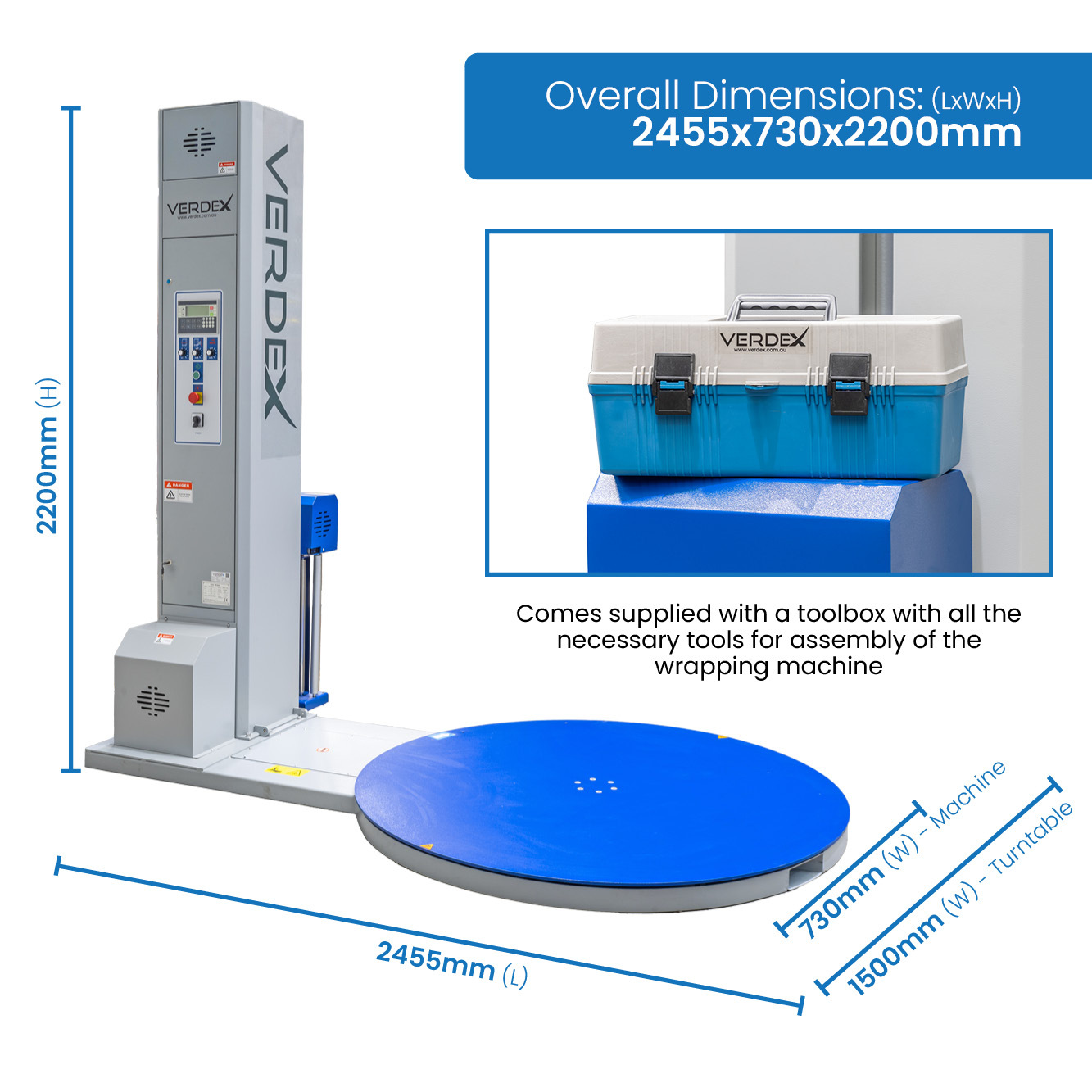

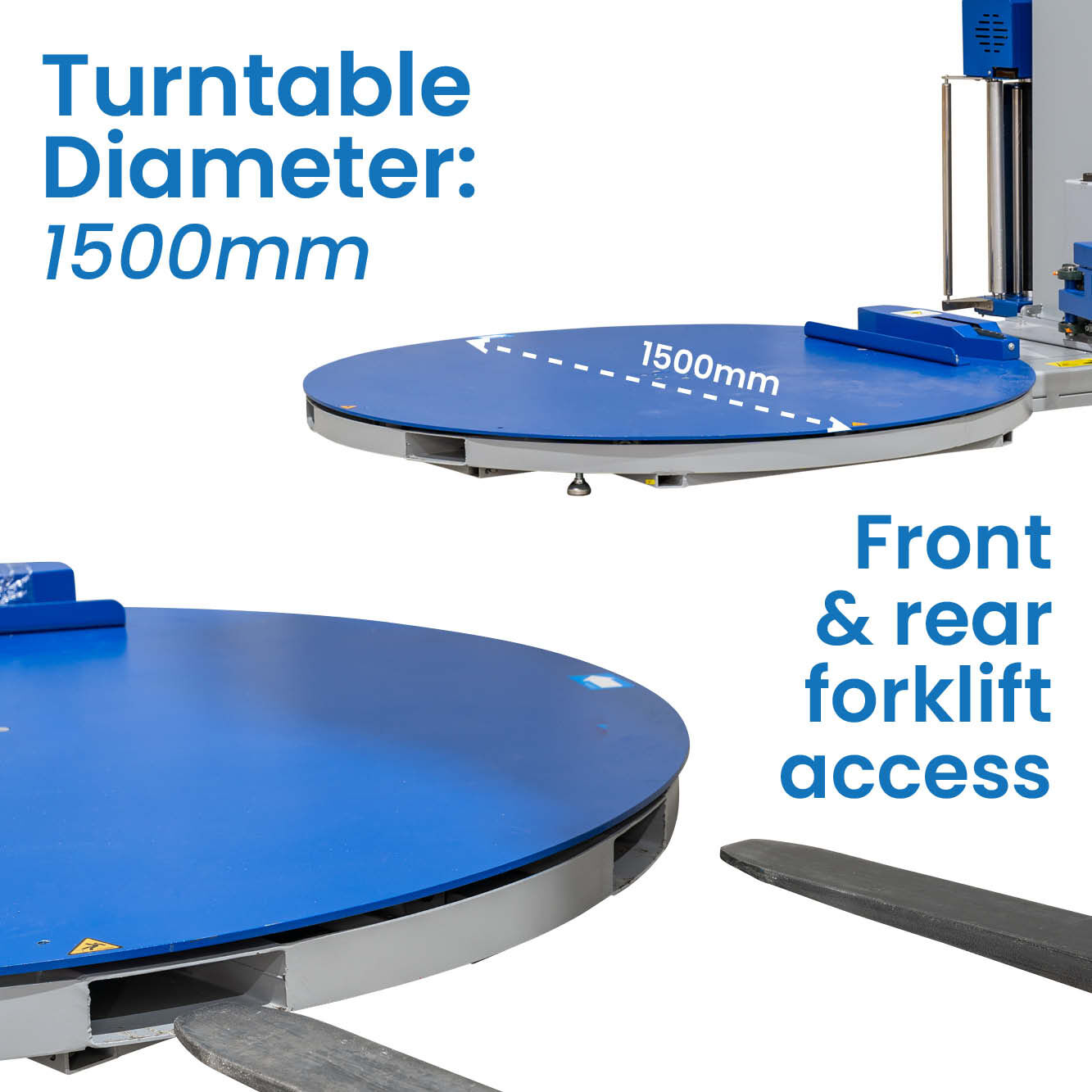

- Turntable Diameter: 1500mm

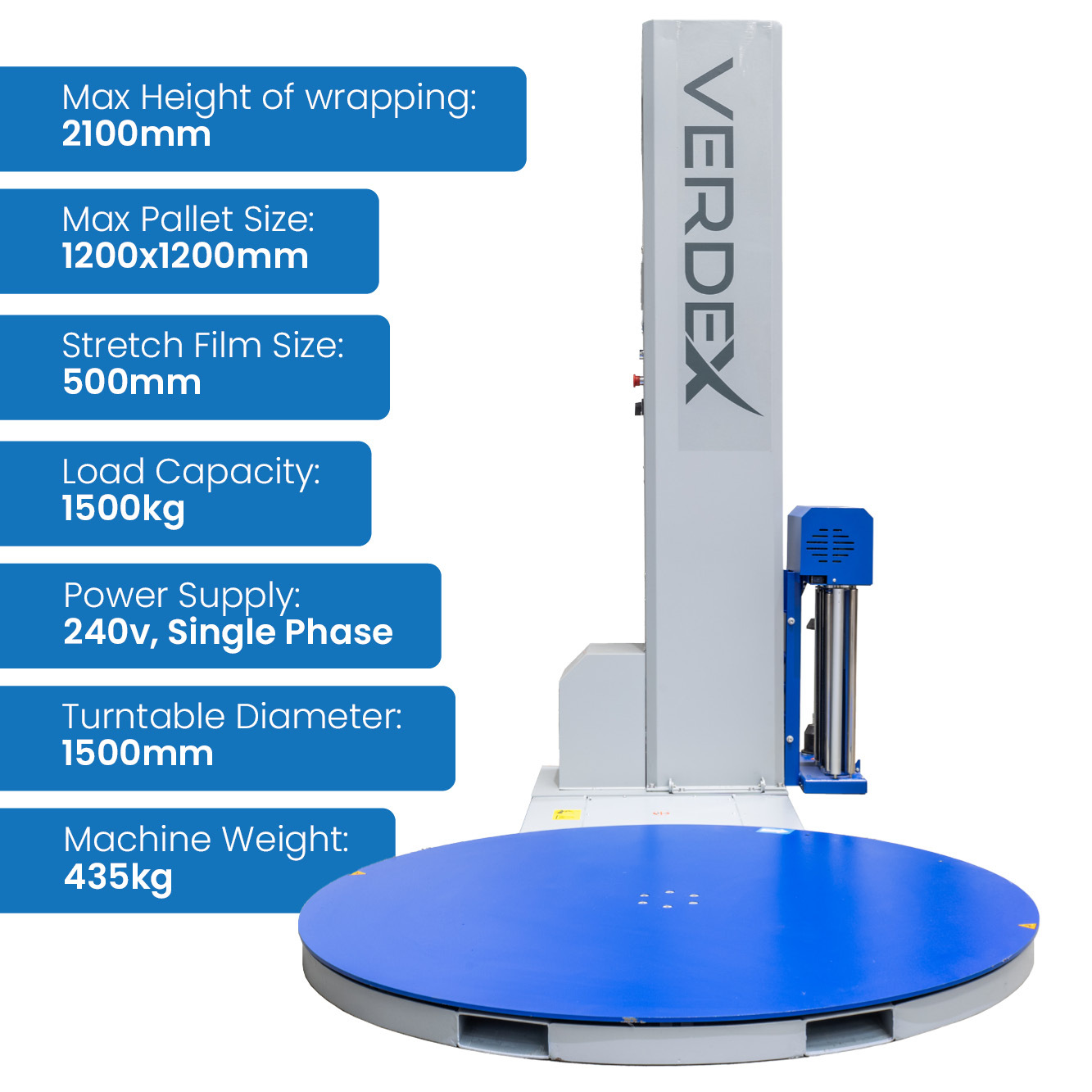

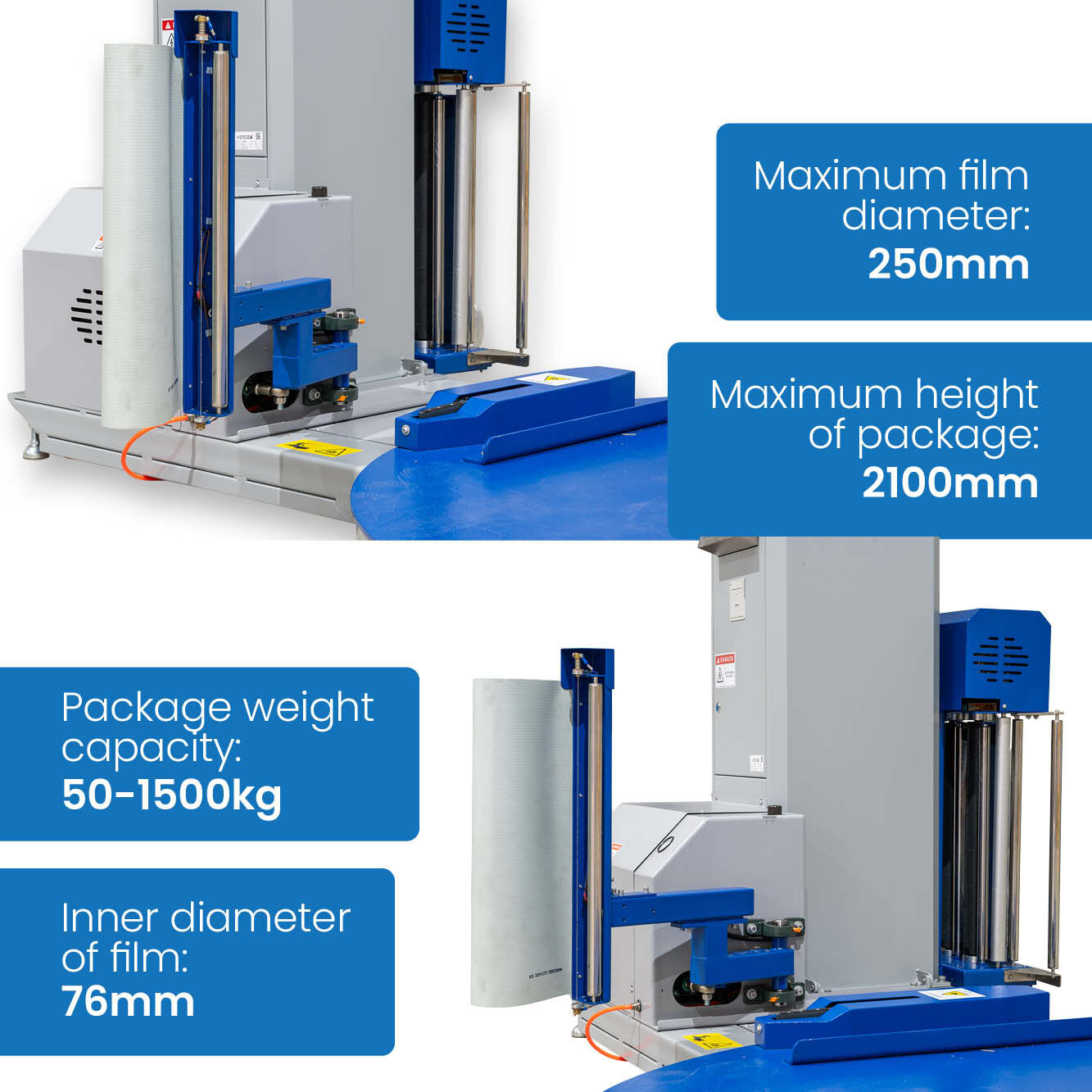

- Max height of package: 2100mm
- Maximum film diameter: 250mm
- Inner diameter of film: 76mm
- Unit Weight: 550kg
Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.
Please Note - We are not able to deliver goods to a PO Box address.
Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.
Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.
Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.
Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.
Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.
Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.
International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.
Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.
Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.
Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.
Click here to download a PDF Brochure Click here to fill in the form to request your required document
Code: V4030
10 Tonne Heavy Duty Container Ramp (Extra Long)
Now $4,130.00 Was $4,650.00
View DetailsStreamline Your Packaging with the Fully-Auto Stretch Wrapping Machine
The Fully-Auto Stretch Wrapping Machine is designed to enhance your pallet wrapping process with precision, speed, and safety. Featuring advanced controls and integrated weighing functionality, this machine meets the rigorous demands of modern industrial packaging environments.
Key Features and Benefits
The Fully-Auto Stretch Wrapping Machine automates the film attachment and cutting process, reducing manual handling and speeding up your packaging workflow. It is operated via a smart PLC system combined with a keyboard control, making it easy to program and use for different wrapping requirements.
Equipped with an integrated electronic weighing scale, the machine utilises four gravity sensors located at each corner of the turntable. This ensures highly accurate load measurements, with precision up to ±0.05 kilograms. The digital display shows real-time weight data, and a built-in printer provides scale records for quality control.
This machine offers six operating modes: five fully automatic and one manual, giving you the flexibility to tailor the wrapping process to your specific needs. Variable turntable and film carriage speeds allow for optimal wrapping tension and speed adjustments, depending on the load size and type.
For convenience and safety, the wrapping process includes slow start and stop functions controlled by an inverter, which extends equipment life and reduces mechanical stress. The machine automatically detects pallet height to apply consistent film coverage every time. Additionally, it provides front and rear forklift access to easily move and position pallets.
The shrink wrap settings are fully configurable, allowing you to set wrap levels at the top, middle, and bottom of your pallets. You can save up to five memory settings for quick repeat use. Built to handle package weights ranging from 50 to 1500 kilograms and heights up to 2100 millimetres, this machine is suited for a wide variety of industrial pallet wrapping tasks.
Fully-Auto Stretch Wrapping Machine Specifications
The machine operates on a power supply of 220 volts at 50 hertz, with a total power rating of 1.2 kilowatts for the pre-stretch film carriage. It features three motors: a lift motor and a pre-stretch motor, each rated at 0.25 kilowatts, and a turntable motor rated at 0.75 kilowatts. The turntable rotates at variable speeds ranging from 0 to 10 revolutions per minute and has a diameter of 1500 millimetres.
It supports packages weighing between 50 and 1500 kilograms, with a maximum package height of 2100 millimetres. The machine accepts film rolls with a maximum diameter of 250 millimetres and an inner film core diameter of 76 millimetres. A compressed air supply at 0.6 megapascals is required for operation.
The Fully-Auto Stretch Wrapping Machine includes six operating modes, controlled via a programmable logic controller (PLC) and keyboard interface, ensuring ease of use and versatility across various wrapping scenarios.
Applications and Ideal Use Cases
The Fully-Auto Stretch Wrapping Machine is perfect for warehouses, distribution centres, manufacturing plants, and logistics facilities requiring efficient, consistent pallet wrapping. It is ideal for:
-
Heavy-duty industrial packaging
-
High-volume pallet wrapping operations
-
Packages requiring precise weight measurement and wrap controlBusinesses aiming to reduce manual labour and increase throughput
-
Environments where safety, speed, and film waste reduction are priorities
