Shelf & Tiered Trolleys

2 Tier Ladder Trolley


$1,145.00 Price excludes GST

SKU

V1970

Availability:

In StockIn Stock

Subtotal:

$1,145.00
PRICES EXCL. GST

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

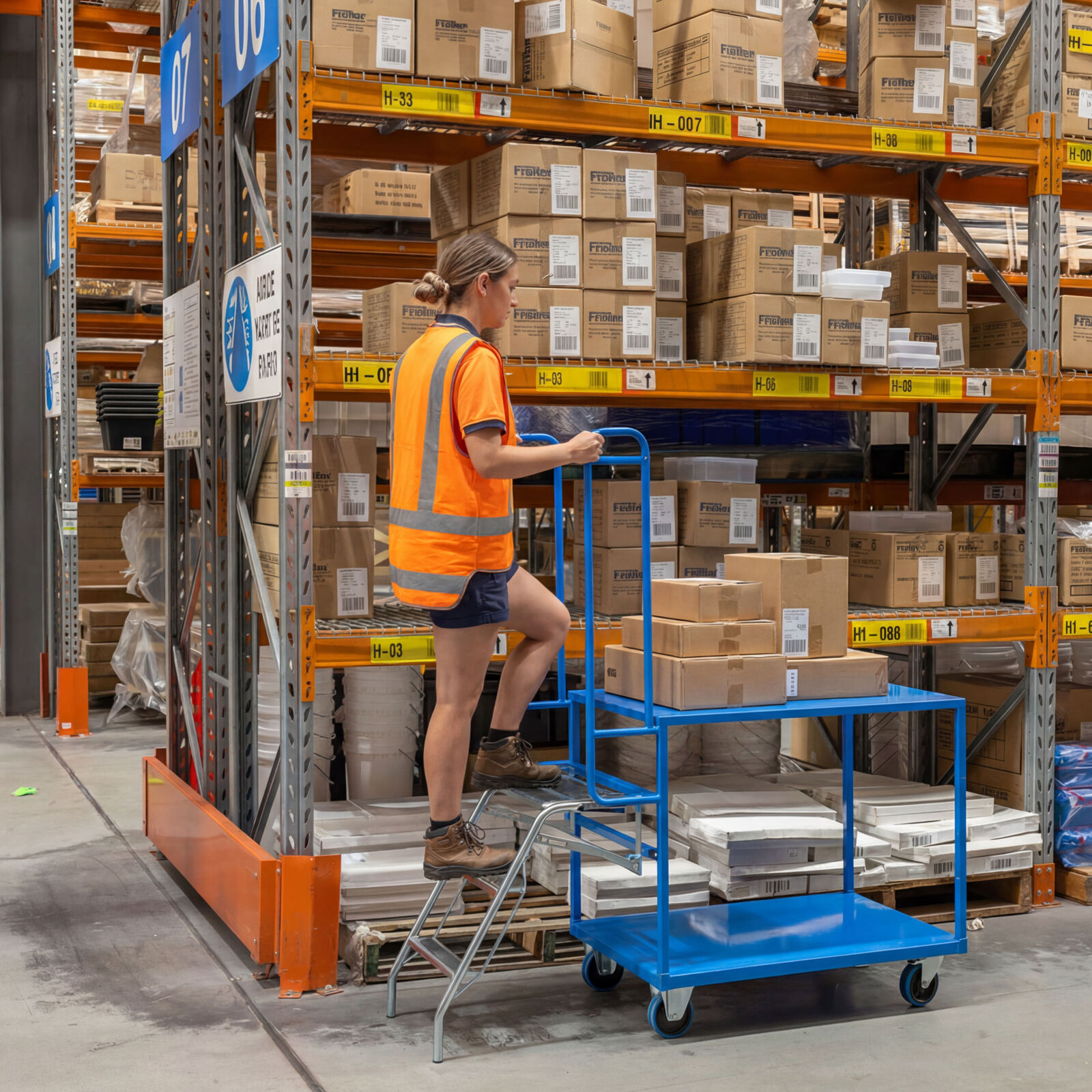

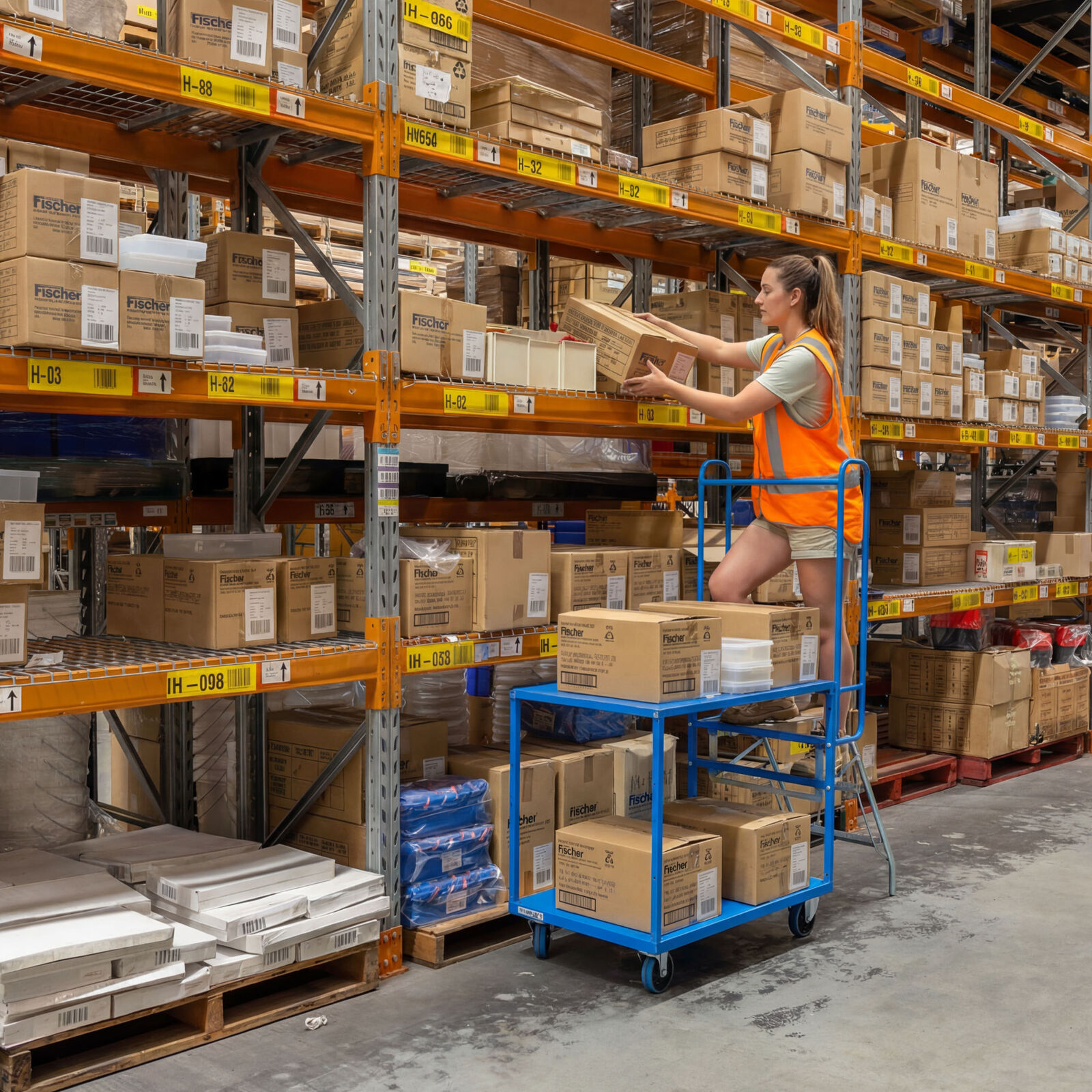

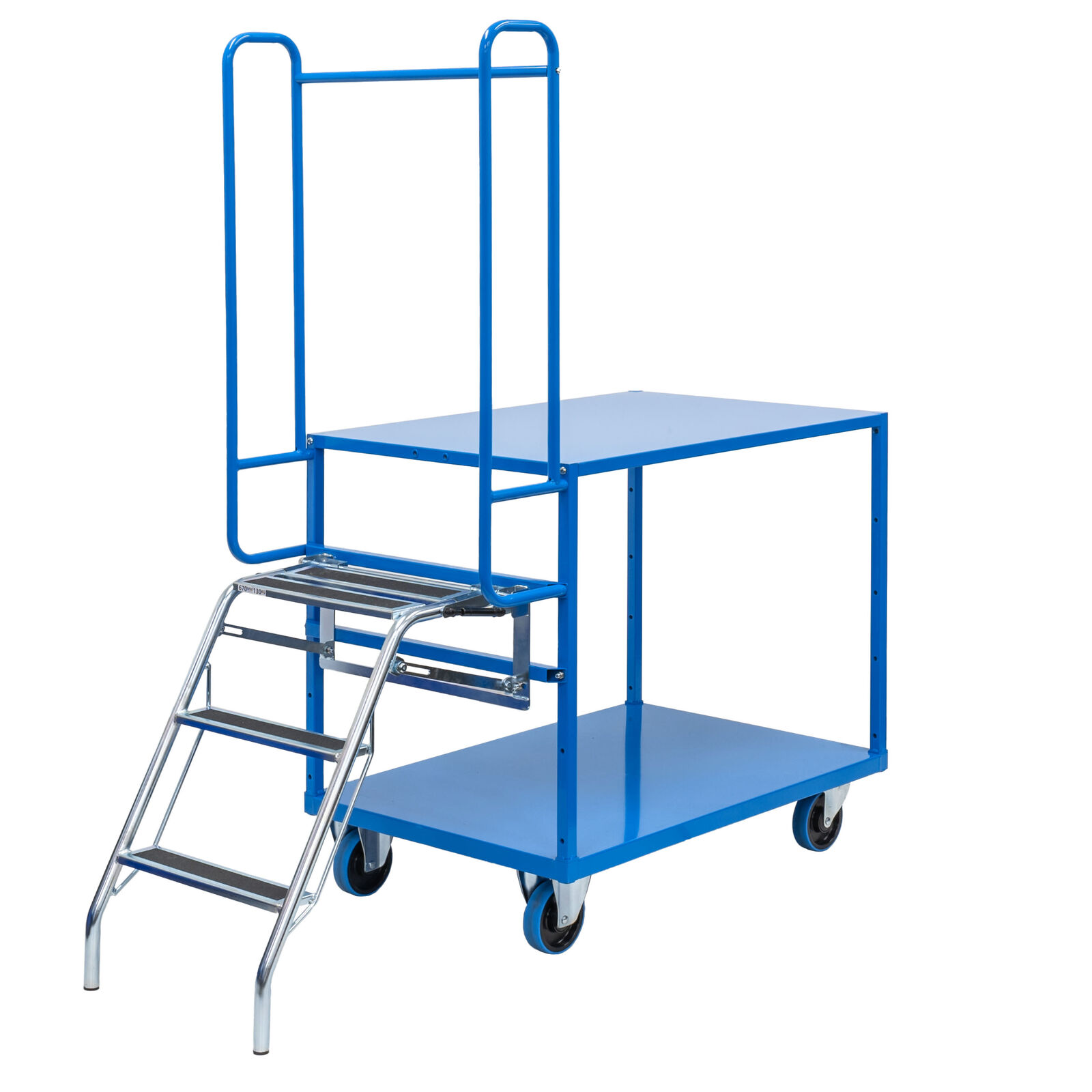

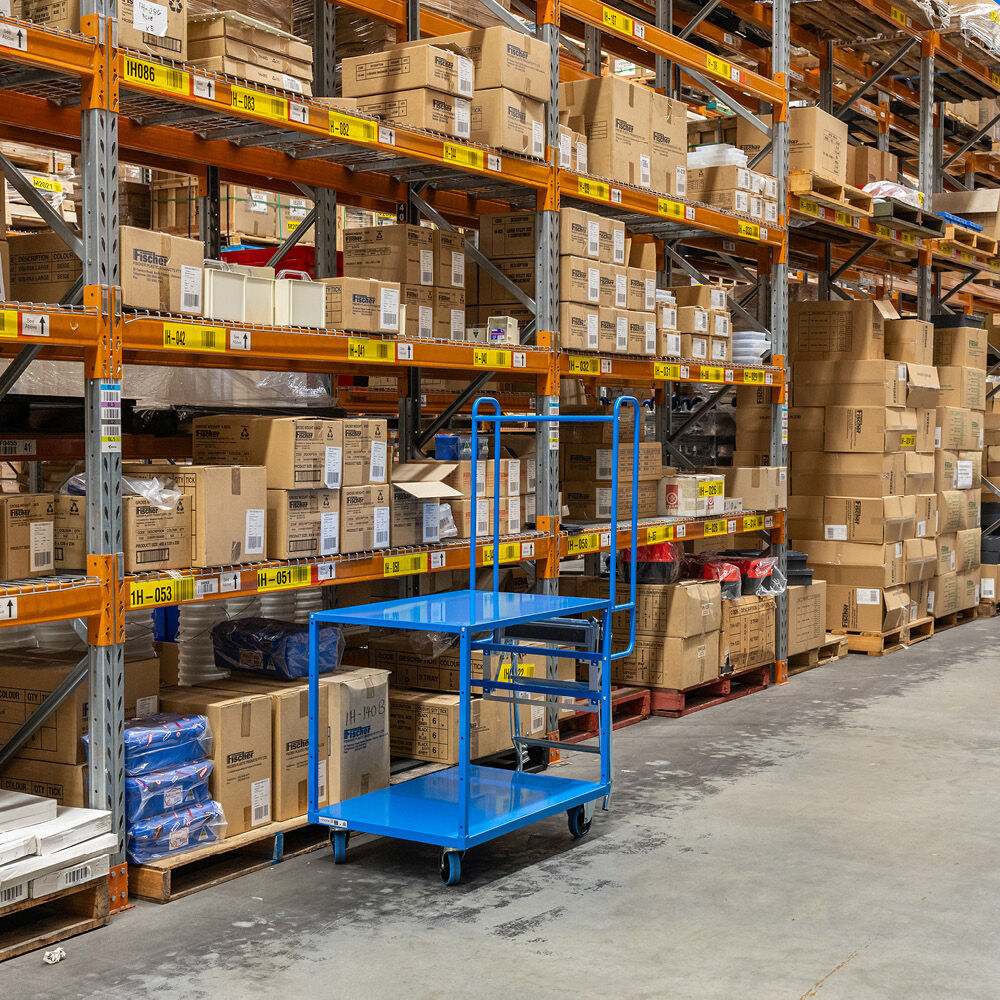

The 2 Tier Ladder Trolley is a practical order picking solution for warehouses, distribution centres, and retail environments. It combines a compact two-tier trolley with a retractable ladder, allowing users to safely access higher stock while moving efficiently between picking locations. Designed to improve productivity and safety, it is well suited to busy picking aisles and space-restricted work areas.

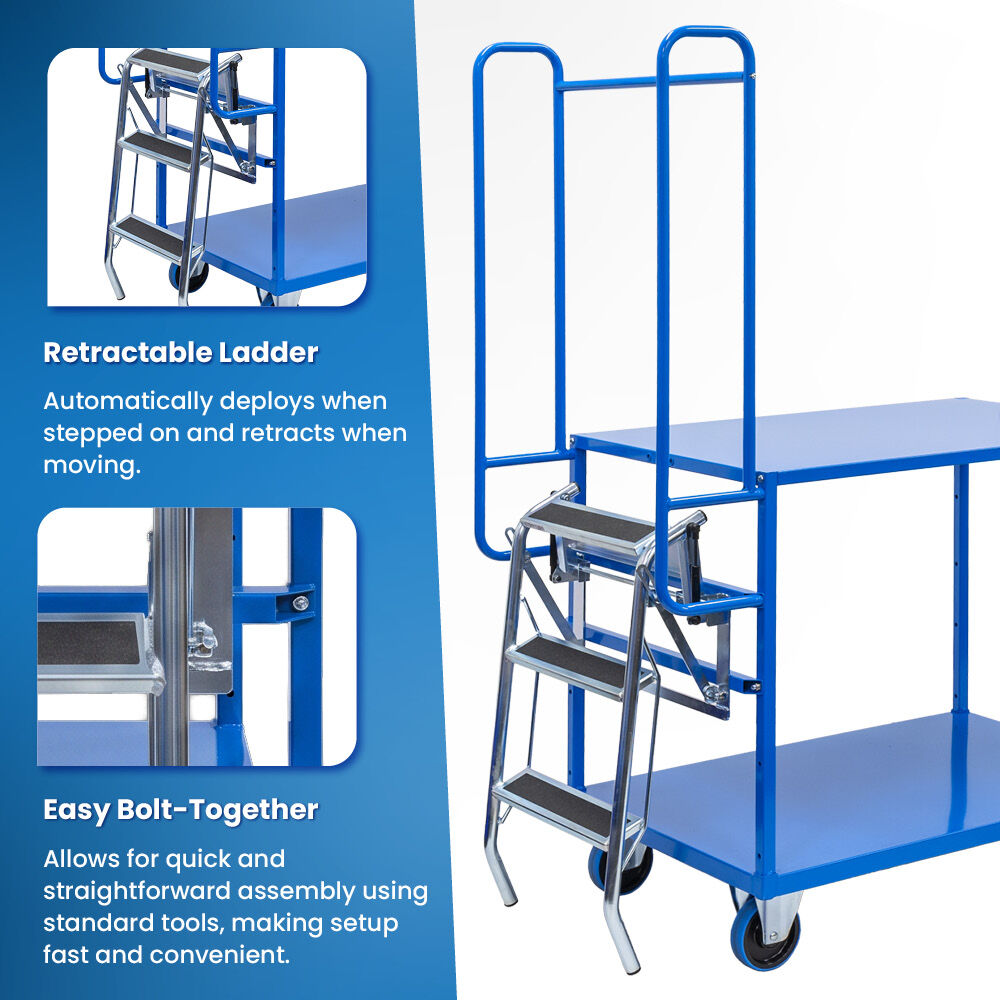

  • Retractable ladder automatically deploys when stepped on and retracts when moving
  • Built-in step-locking system helps prevent trolley movement during use

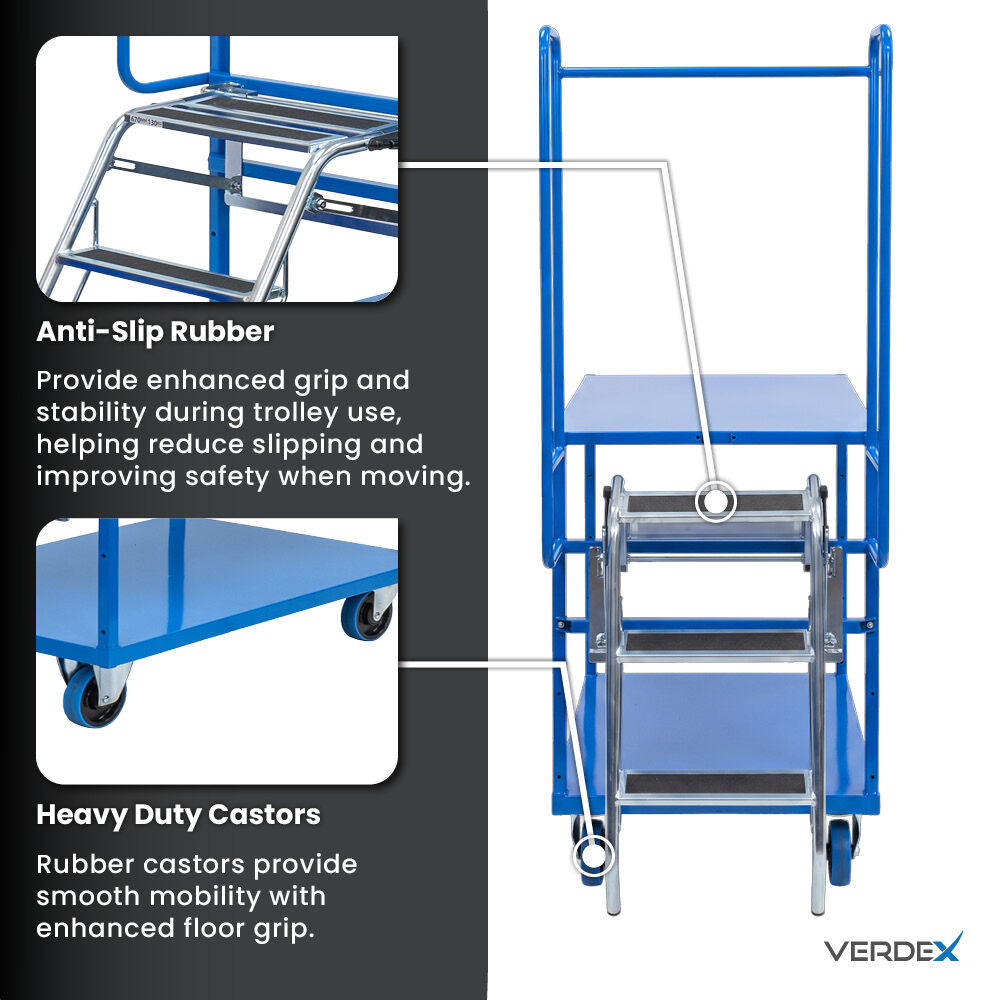

  • Anti-slip ladder steps and rubber castors improve safety while using
  • Compact design allows easy use in aisles and tight spaces
  • Two-tier trolley supports efficient order picking and item handling
  • Easy bolt-together assembly for quick setup
  • Material: Steel (Body/Ladder), Rubber (Castors)
  • Finish: Powder Coated - Blue (Body), Zinc Plated (Ladder)
  • Load Capacity: 120kg
  • Shelf Dimensions (LxW): 910x665mm
  • Top Shelf Height: 883mm
  • Bottom Shelf Height: 192mm
  • Handle Height: 1642mm
  • Ladder Step / Rung Distance: 218mm (Distance between Steps)
  • Ladder Step Width: 395mm
  • Ladder Top Step Height: 666mm
  • Castors: 125mm Diameter

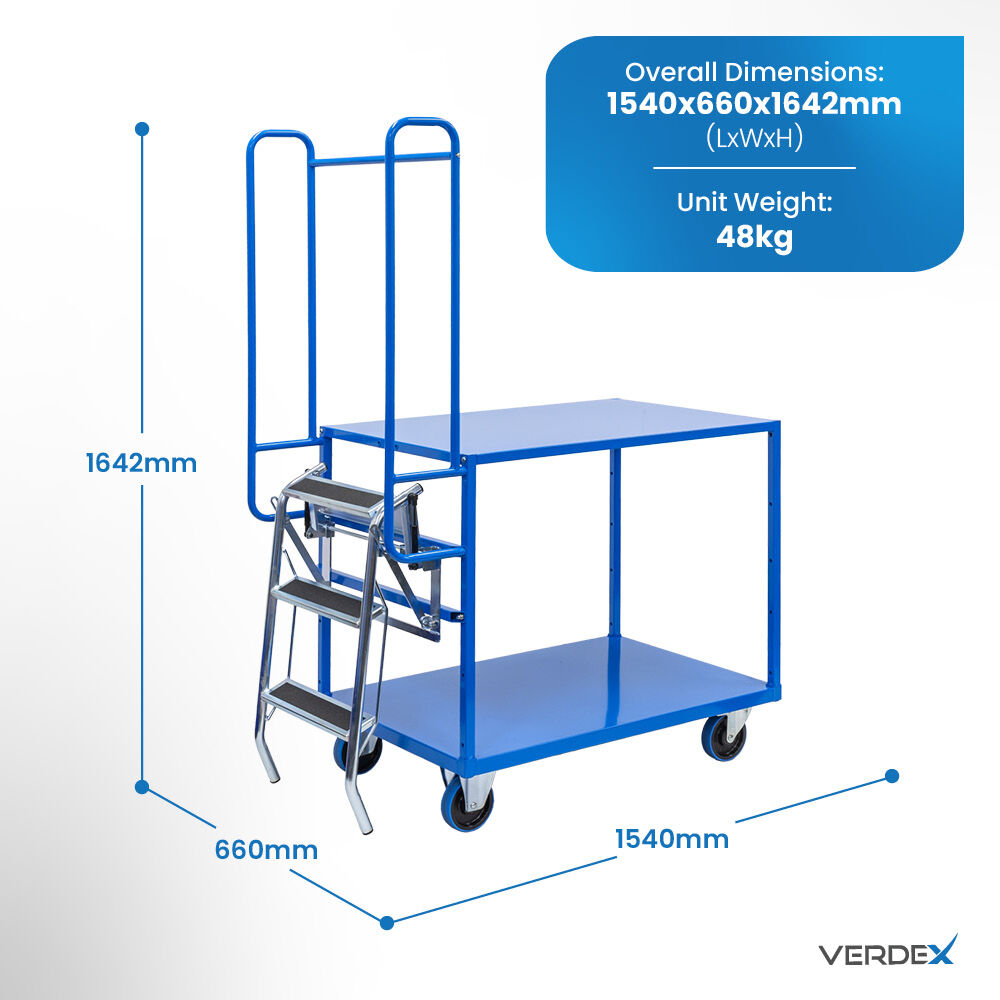

  • Overall Dimensions (LxWxH): 1540x660x1642mm
  • Unit Weight: 48kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

3 years Verdex Warranty

1. Warranty Period

Verdex Equipment Pty Ltd ("Verdex") warrants to the original purchaser that its equipment will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery.

2. Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

3. Reporting Delivery Damage

Any visible damage or defects present at the time of delivery must be reported within 14 days of delivery. This requirement does not limit your rights under the Australian Consumer Law.

4. Exclusions and Limited Warranty Items

The following items are subject to normal wear and tear and are not covered under the 3-year warranty, but are covered by a 3-month warranty from date of delivery where applicable:

  • Batteries
  • Castors, wheels and tyres

The following are not covered under warranty, except where a defect arises from faulty materials or workmanship:

  • Hydraulic hoses
  • Electrical cabling
  • Consumable items (e.g. globes or similar components)

The warranty does not cover:

  • Normal wear and tear, including faded paint due to UV or sun exposure
  • Damage caused by negligence, misuse, abuse, overloading, or improper operation
  • Failure to follow operating or maintenance instructions provided with the product
  • Unauthorised repairs, modifications, or use of non-Verdex parts
  • Damage caused by improper installation or environmental conditions

5. Warranty Process (Back-to-Base)

This warranty is a back-to-base warranty. The customer is responsible for returning the goods to the place of purchase or a nominated Verdex service location.

Verdex will assess the returned product and, where a valid warranty claim is confirmed, will repair or replace the item at its discretion, acting reasonably.

Verdex may assist in arranging return freight; however, transport costs are the responsibility of the customer, unless otherwise required under the Australian Consumer Law.

6. Limitation of Liability

To the extent permitted by law:

  • Verdex is not liable for any loss of use, downtime, or indirect or consequential damages
  • Verdex’s total liability in connection with any claim will not exceed the original purchase price of the equipment

Nothing in this warranty excludes, restricts, or modifies any rights or remedies available under the Australian Consumer Law.

7. Conditions of Warranty

This warranty applies only where Verdex determines, upon inspection, that the defect has not been caused by:

  • Misuse or improper operation
  • Neglect or lack of maintenance
  • Unauthorised repair or modification
  • Abnormal deterioration due to environmental or operating conditions
  • Accident or incorrect installation







Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


2 Tier Ladder Trolley - Safe, Efficient Order Picking in One Compact Unit

The 2 Tier Ladder Trolley combines a mobile trolley and retractable ladder in one practical solution, designed to improve order picking efficiency in warehouses, distribution centres, and retail stockrooms. It allows staff to safely access higher shelves while transporting goods between picking locations, reducing unnecessary trips and manual handling.

Ideal for busy picking aisles and tight spaces, this unit supports safer workflows without sacrificing mobility.

Integrated Ladder for Safer Elevated Access

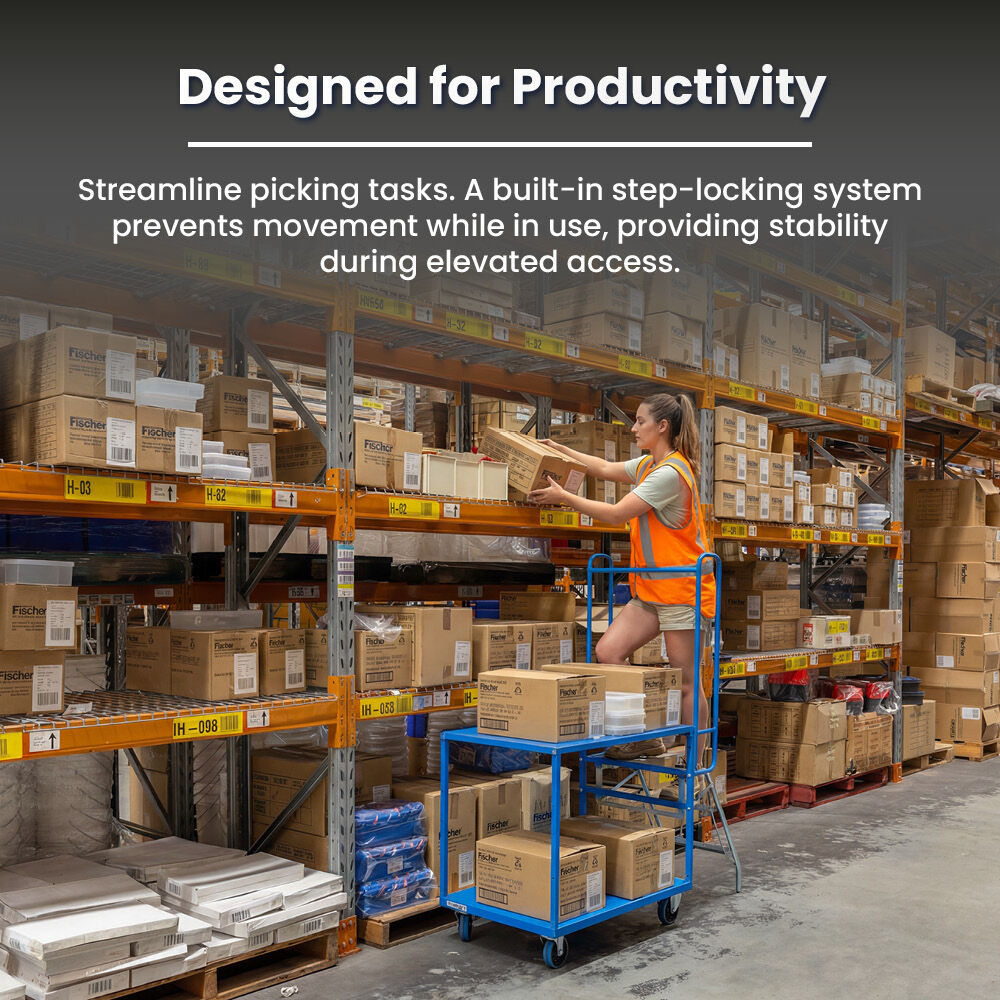

The retractable ladder automatically deploys when stepped on and retracts when the trolley is moved, helping streamline picking tasks. A built-in step-locking system prevents movement while in use, providing stability during elevated access.

Anti-slip ladder steps and 125mm rubber castors improve grip and control on warehouse floors. With a ladder top step height of 666mm and comfortable 395mm wide steps, it offers practical access to mid-level shelving without the need for separate ladders.

Designed for Productivity in Compact Spaces

The two-tier design provides efficient item handling and storage while picking. With shelf dimensions of 910x665mm, a top shelf height of 883mm, and a bottom shelf height of 192mm, it supports organised stock movement across work areas.

Constructed from durable steel with a powder-coated blue body and zinc-plated ladder, the trolley is built for daily industrial use. With a 120kg load capacity and overall dimensions of 1540x660x1642mm, it remains compact enough for narrow aisles while maintaining strength and stability.

Improve Order Picking Safety and Efficiency

If your operation requires faster stock access with improved safety, the 2 Tier Ladder Trolley delivers a practical, space-saving solution.

Order online today or contact the Verdex team for assistance selecting the right picking equipment for your warehouse.
