Manual Stackers & Lifters

Aluminium Lifter (5000mm lift height)


$3,965.00 Price excludes GST

SKU

V2241

Availability:

In StockIn Stock

Subtotal:

$3,965.00
PRICES EXCL. GST

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

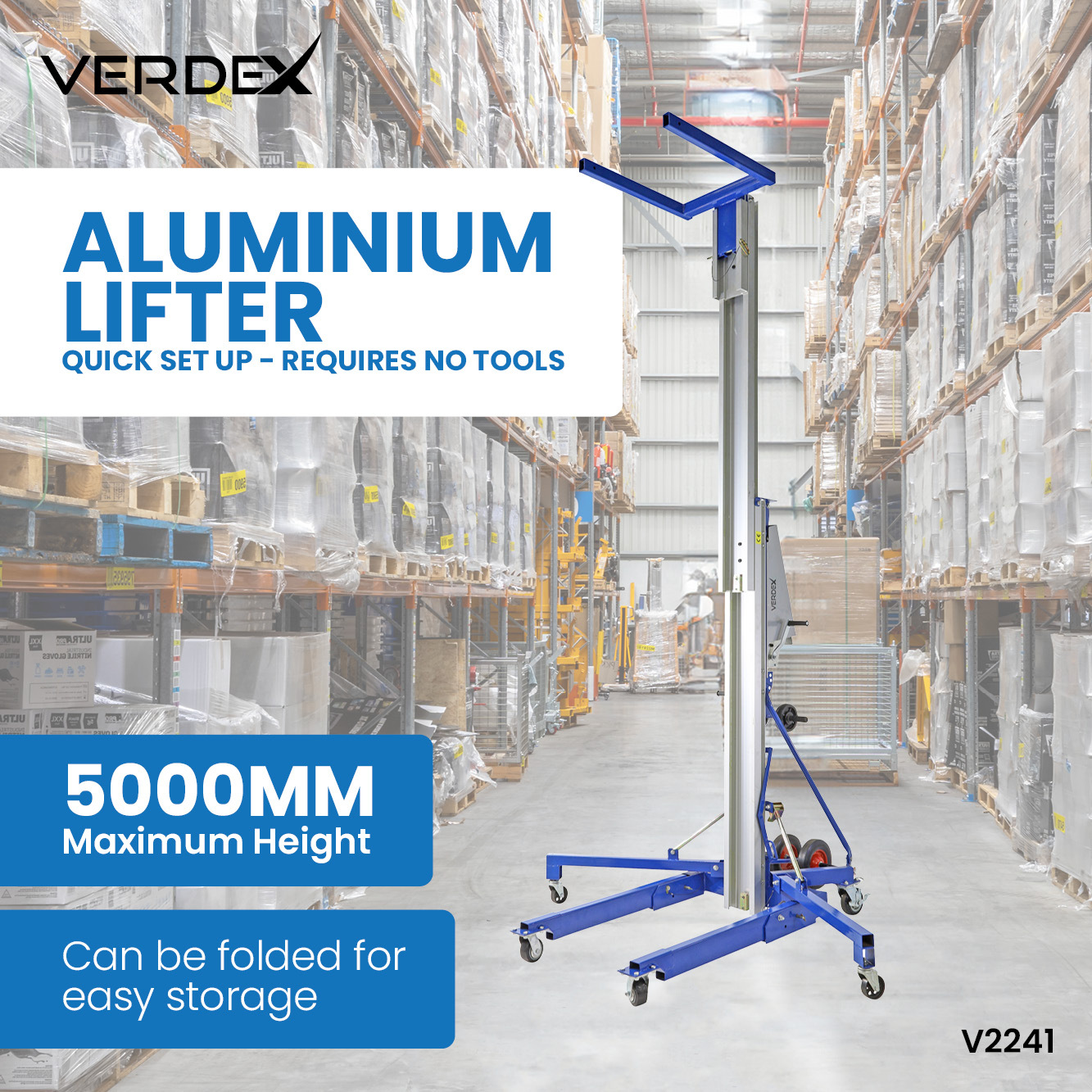

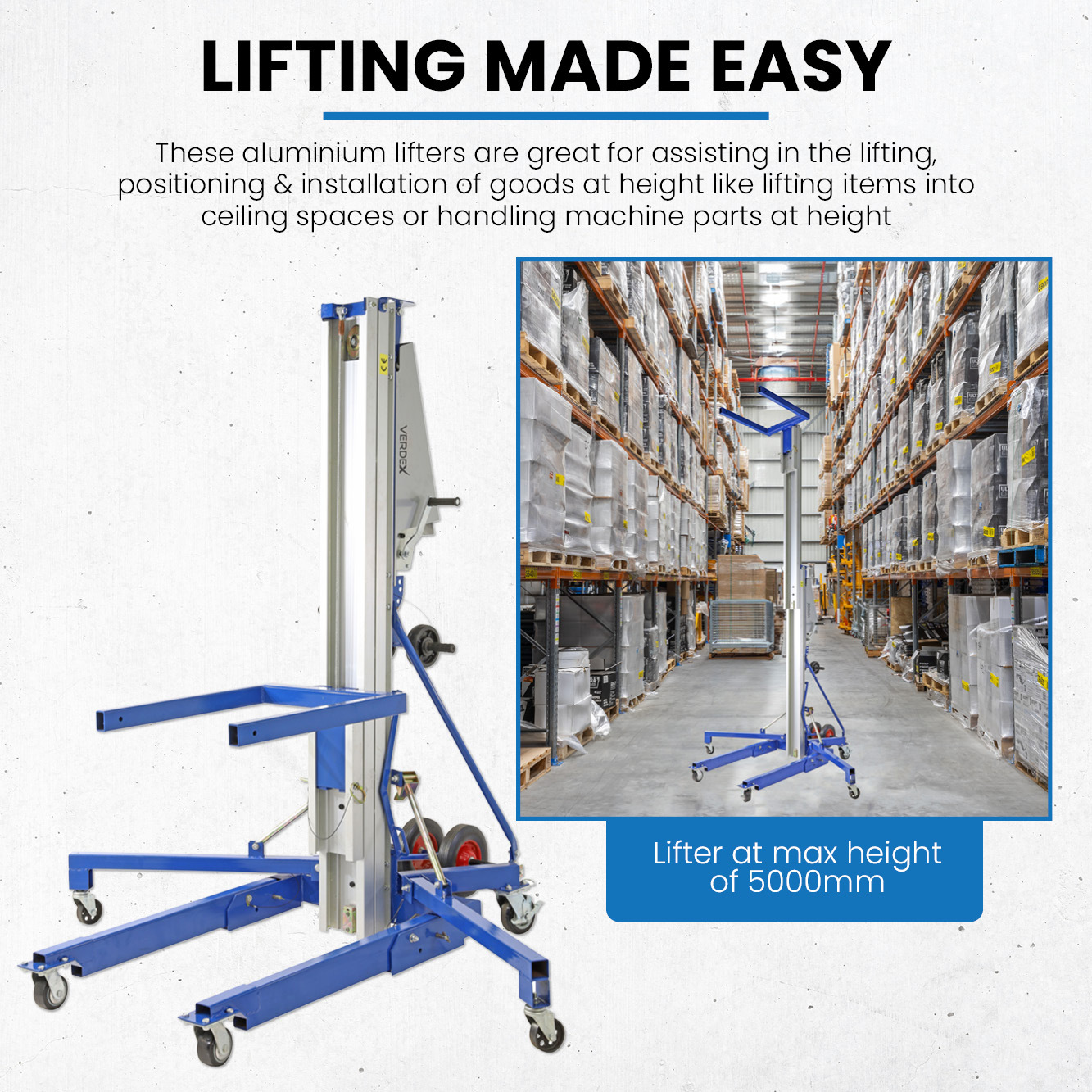

  • These aluminium lifters are great for assisting in the lifting, positioning and installation of goods at height.
  • Ideal for lifting items into ceiling spaces or handling machine parts at height.
  • Folds for easy storage and transport.
  • Manual hand winch control with automatic braking action

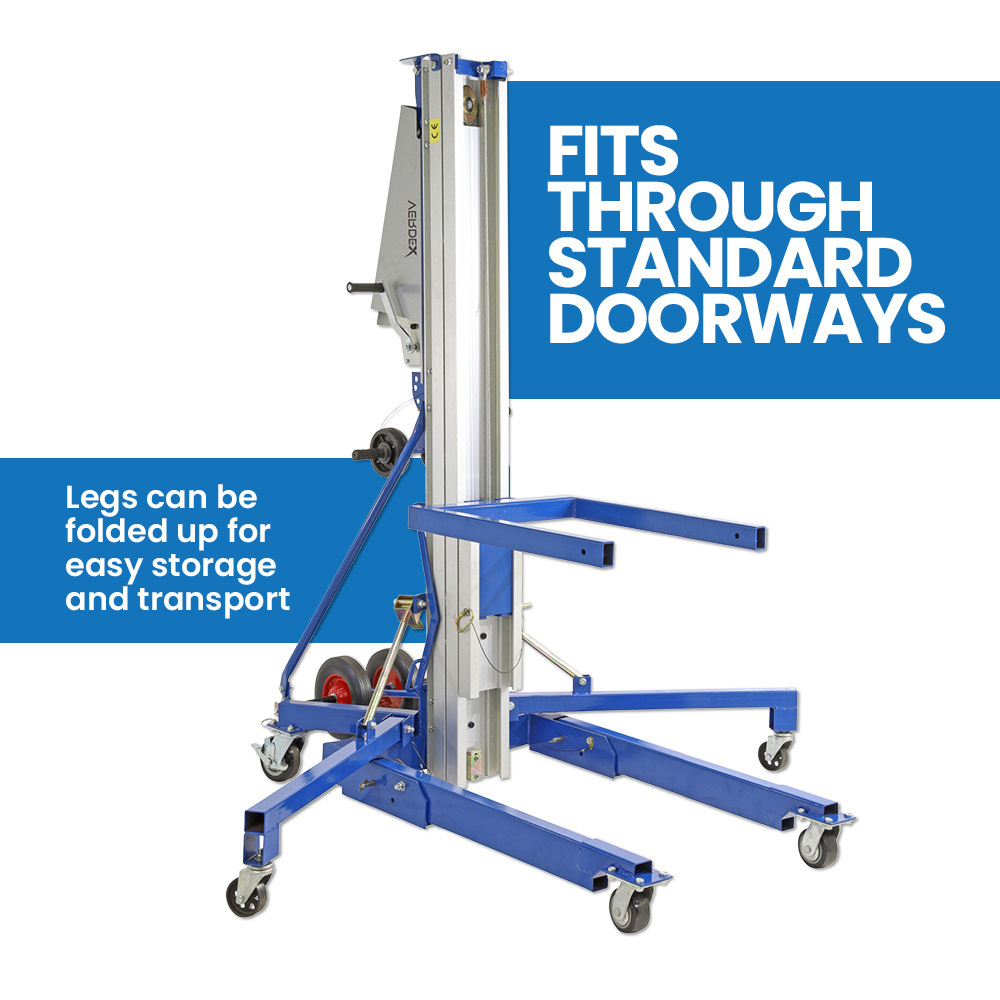

  • Fits through standard doorways.

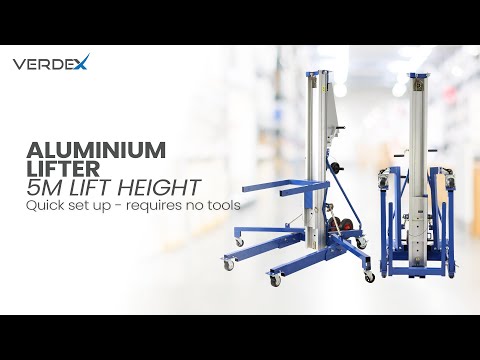

  • Quick set up - requires no tools.
  • Legs fold up for easy storage.

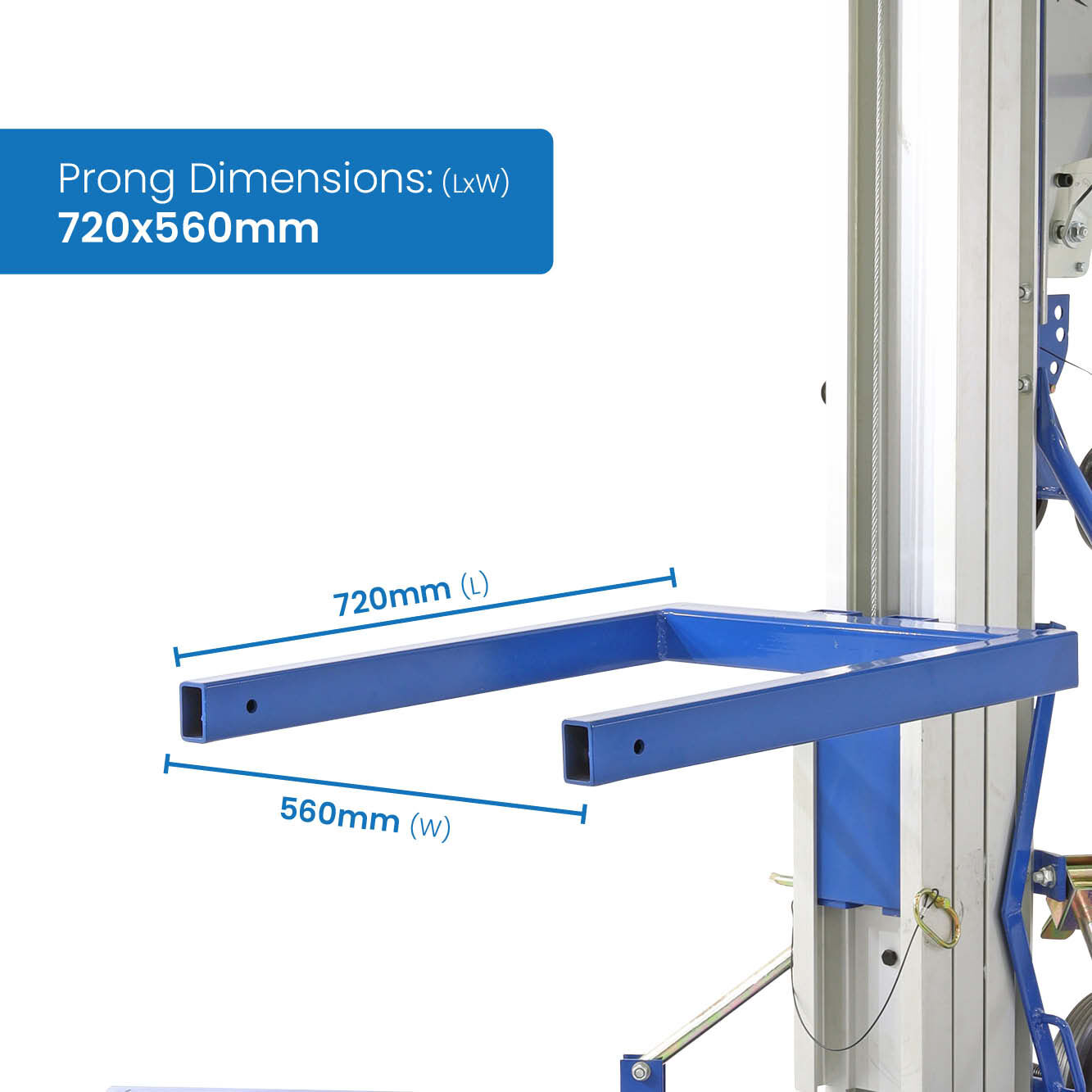

  • Arm Length: 800mm
  • Ground Clearance: 50mm

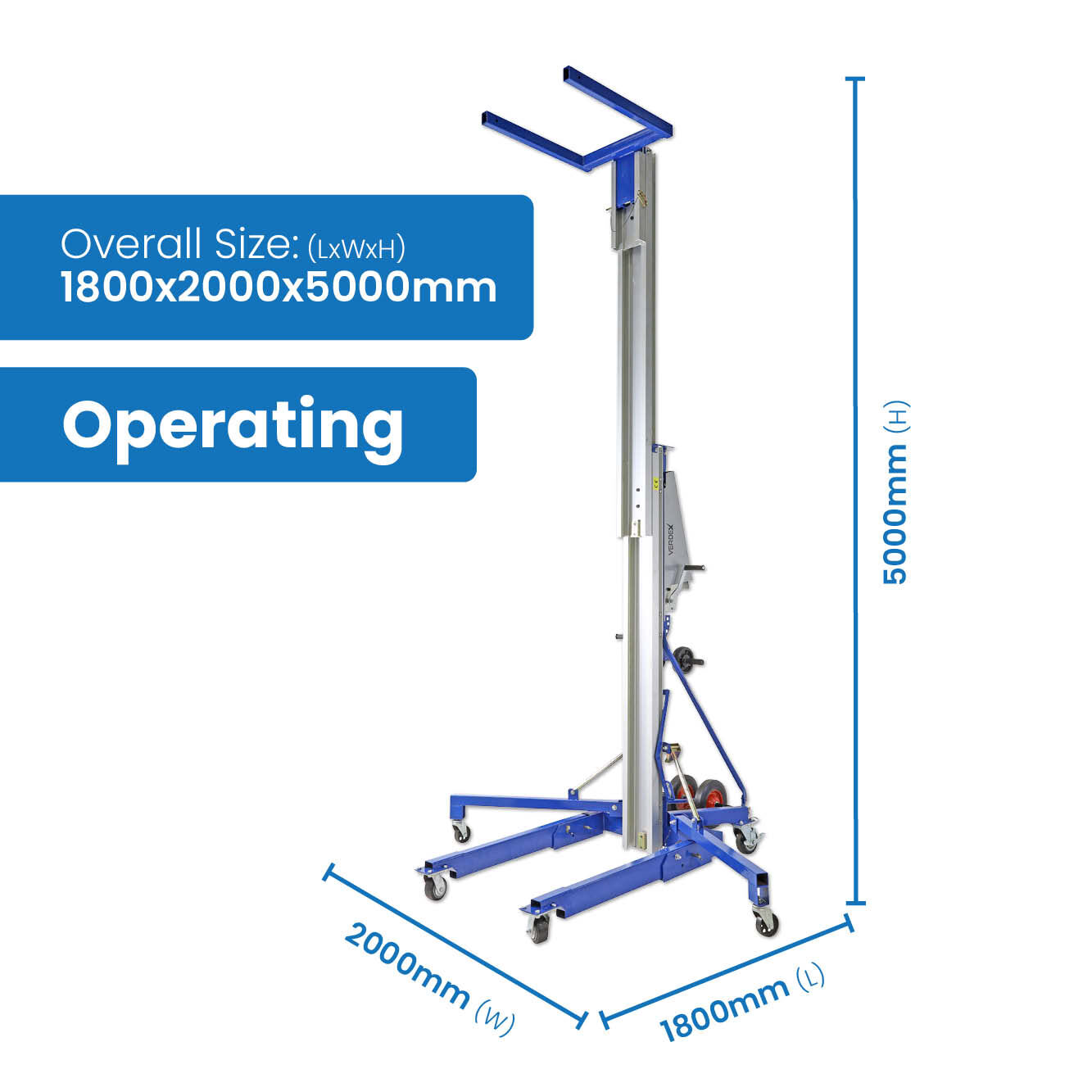

  • Operating Length: 1880mm

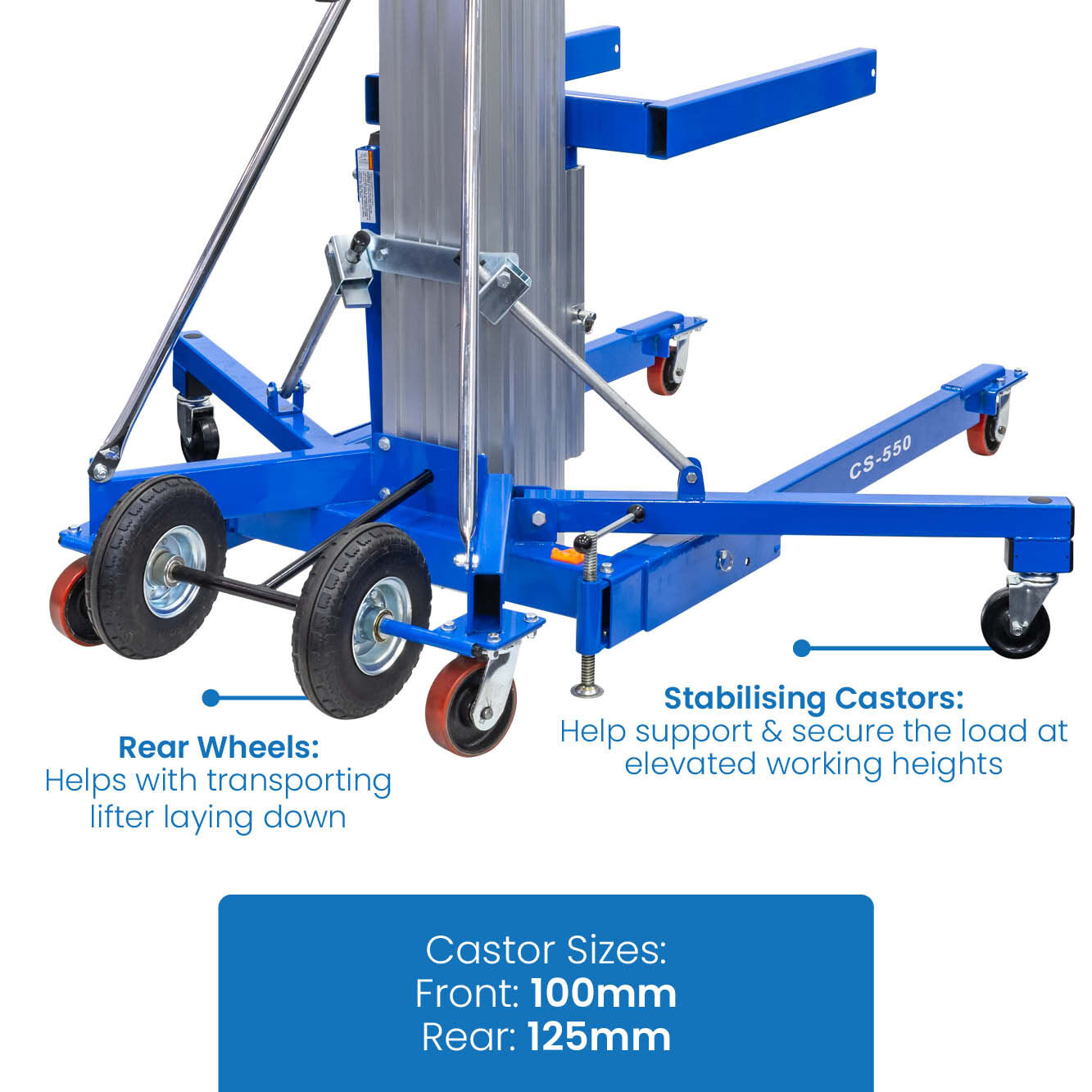

  • Front Castors: 100mm
  • Rear Castors: 125mm
  • Load Capacity at a 400mm load centre: 350kg
  • Load Capacity at a 1000mm load centre: 150kg
  • Minimum Height: 150mm
  • Max Height: 5000mm

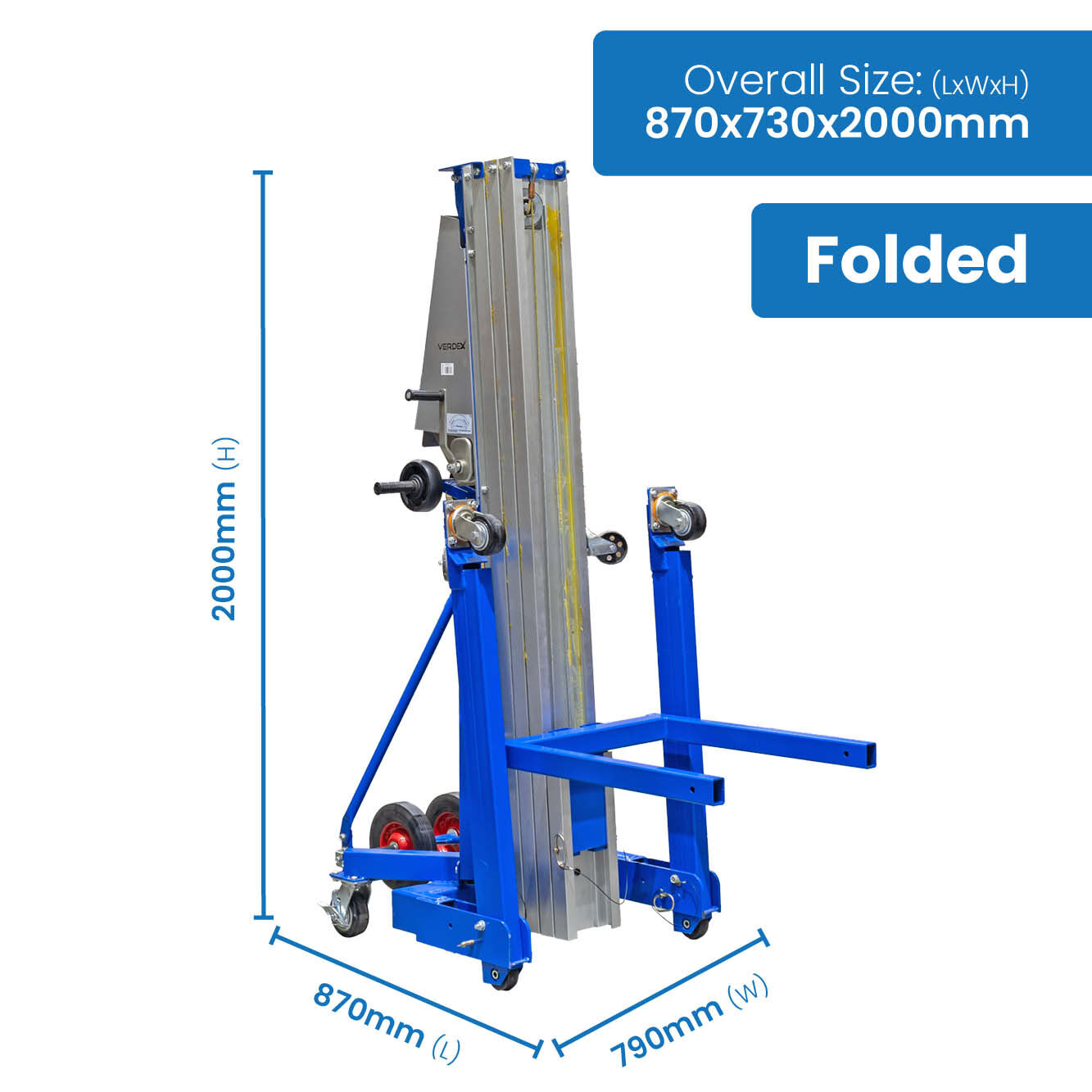

  • Folded Size (LxWxH): 870x730x2000mm
  • Unit Weight: 145kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


Aluminium Lift Assist Device

Enhance your lifting efficiency with the Aluminium Lift Assist Device, engineered to provide optimal support and ease when handling heavy materials. Ideal for use in warehouses, workshops, and industrial settings, this device combines lightweight construction with robust functionality to streamline your lifting operations. Crafted from high-grade aluminium, the Lift Assist Device offers exceptional strength and durability while remaining easy to handle. Its ergonomic design includes adjustable features that ensure a customised fit for various lifting tasks, reducing strain and improving safety during operation. The device is designed to facilitate smooth and controlled lifting, minimising the risk of injuries associated with manual handling. Its user-friendly mechanism enables effortless adjustments and positioning, making it a valuable tool for increasing productivity and efficiency. With its combination of lightweight construction and reliable performance, the Aluminium Lift Assist Device is an essential addition to any workplace where heavy lifting and ergonomic support are required. Experience enhanced lifting capability and safety with this versatile and durable assist device.

The Aluminium Lifter: The Ultimate Solution for Lifting and Positioning at Height

When it comes to lifting and positioning goods at height, few tools offer the versatility and ease of use that an Aluminium Lifter provides. Whether you're working in construction, maintenance, or warehouse environments, lifting and handling materials safely and efficiently can be a daunting task. The Aluminium Lifter (5000mm lift height) is specifically designed to assist with lifting and positioning items into ceiling spaces or handling machine parts at height, making it an indispensable tool for a wide range of industries.

A Lift Designed for Versatility and Convenience

One of the standout features of the Aluminium Lifter is its manual hand winch control with an automatic braking action. This allows operators to lift heavy items smoothly and securely, offering a safe lifting mechanism while ensuring precise control over the movement. The manual winch offers a dependable and robust method of raising the platform to a height of up to 5000mm (5 metres), making it ideal for jobs that require handling heavy items at elevated levels.

The automatic braking action enhances safety, ensuring that the load remains steady once it reaches the desired height. The lifter’s winch system provides a simple, reliable, and effective method for positioning items with precision, whether you're installing ceiling lights, handling equipment, or lifting parts into tight spaces.

Compact, Portable, and Easy to Store

The Aluminium Lifter is designed with convenience in mind, ensuring that it’s easy to transport, set up, and store when not in use. It can fit through standard doorways, making it a versatile tool for both large warehouses and confined spaces. Its compact design ensures that it can be manoeuvred into tight spots where other lifting equipment might not fit.

Quick setup is another advantage of this lifter. There are no tools required to get it up and running, meaning that the setup time is kept to a minimum, allowing for quick and efficient operation. This feature is particularly beneficial in time-sensitive work environments where fast turnaround is essential.

The legs of the lifter fold up, allowing for easy storage and transport. When folded, the lifter measures just 870x730x2000mm, making it easy to fit into storage spaces and transport between different work sites. This foldable design enhances the lifter’s portability without sacrificing its lifting power or stability.

Ideal for a Range of Applications

The Aluminium Lifter is perfect for a variety of applications that involve working at height. Whether you're lifting machine parts, installing ceiling fixtures, or moving equipment in tight spaces, this lifter offers the precision and stability you need to get the job done safely. Its impressive lift height of 5000mm provides the reach needed for a wide range of tasks, making it a versatile addition to any job site.

The lifter's adjustable lifting capacity, depending on the load centre, makes it suitable for handling both heavy and light loads. With a load capacity of 350kg at a 400mm load centre and a load capacity of 150kg at a 1000mm load centre, it provides flexibility to lift varying types of materials with ease. This makes it a valuable tool in both small and large-scale operations.

Designed for Safety and Stability

Safety is always a top concern when working with lifting equipment, especially when dealing with elevated loads. The Aluminium Lifter is designed with several features to ensure safe operation. The manual hand winch control allows operators to lift and lower loads with smooth control, reducing the risk of sudden movements.

Additionally, the automatic braking action ensures that the load is securely held in place when it reaches the desired height, eliminating the risk of accidents during operation. The 50mm ground clearance allows the lifter to be used on uneven surfaces, providing stability even in challenging environments.
