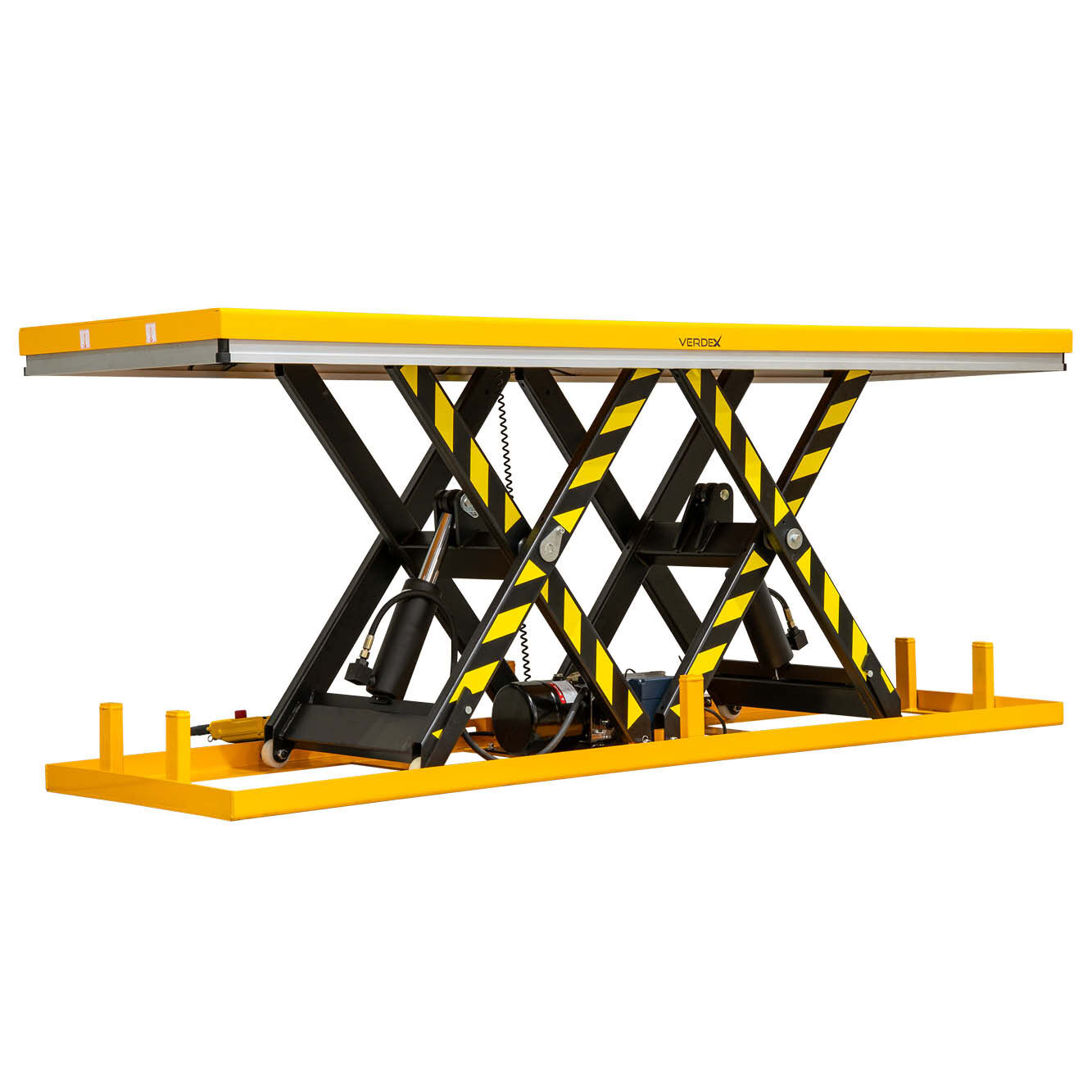

Extra Long Scissor Electric Lift Table

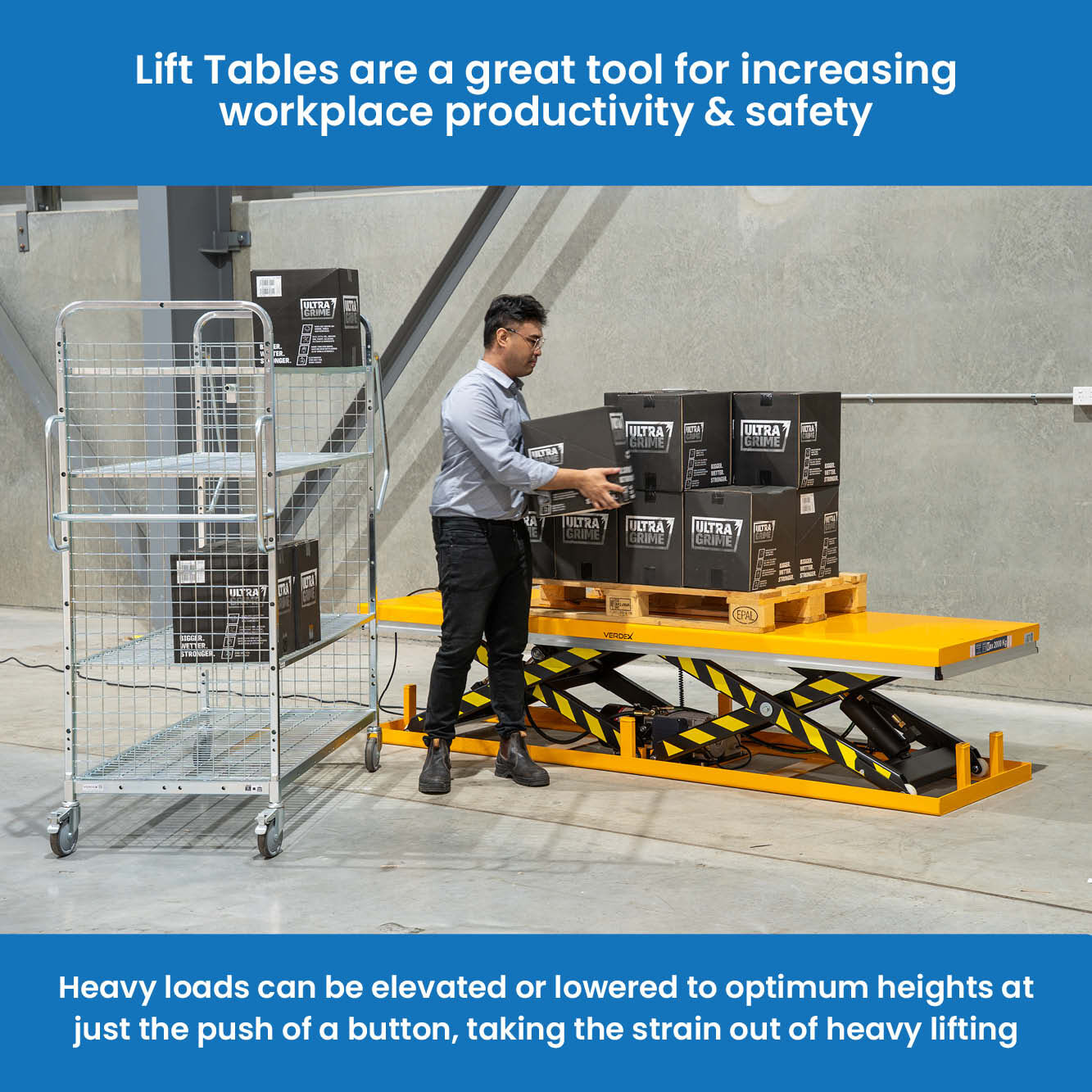

Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.

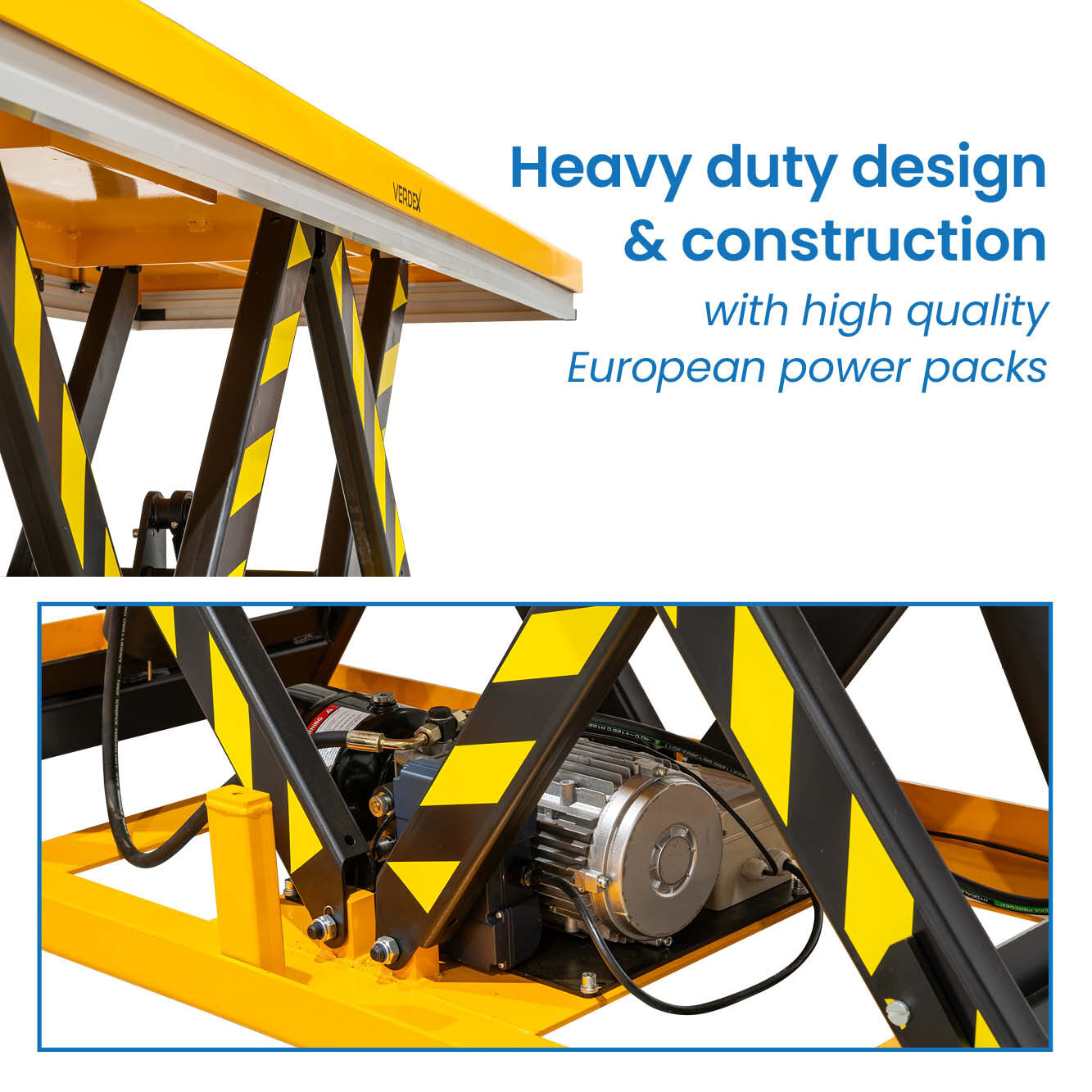

- Heavy duty design and construction
- High quality European power packs
- Suitable for on floor applications or in floor pit applications
- Self lubricating bushings on pivot points
- Removable lifting eyes to facilitate installation and maintenance
- 240V power supply (3 phase available as an option

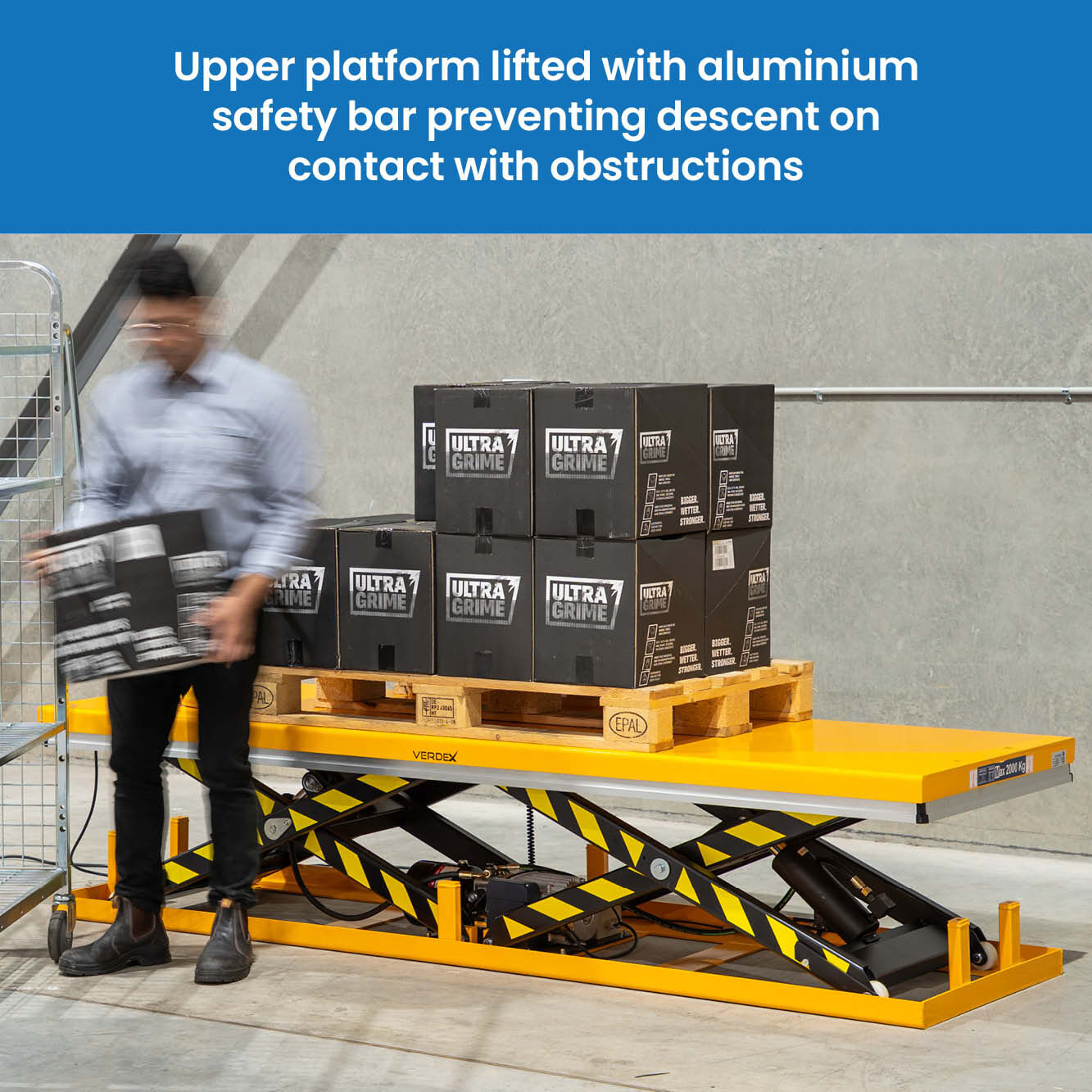

- Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions
- Low volt (24v) control box with up-down buttons.
- Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed

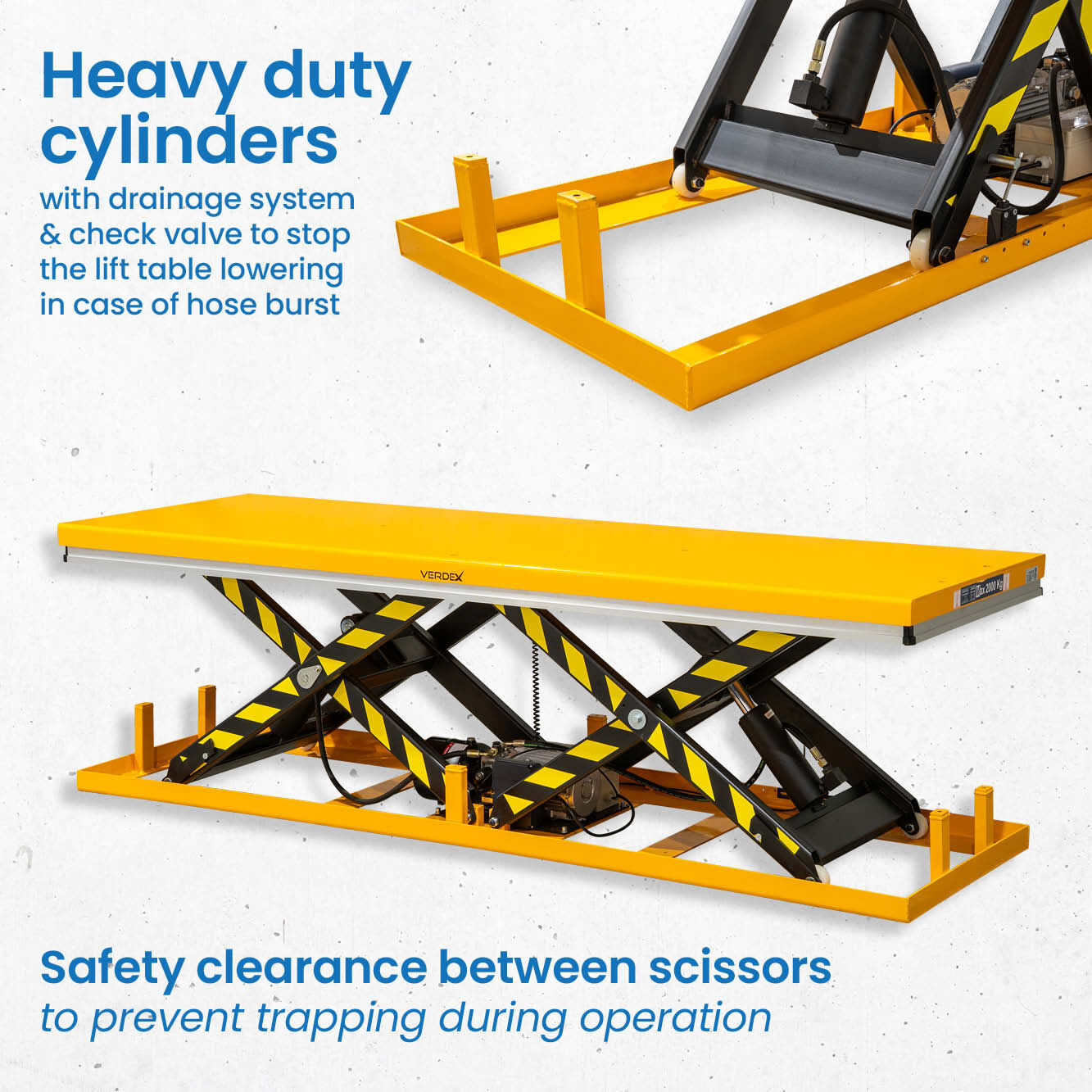

- Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst
- Safety clearance between scissors to prevent trapping during operation.

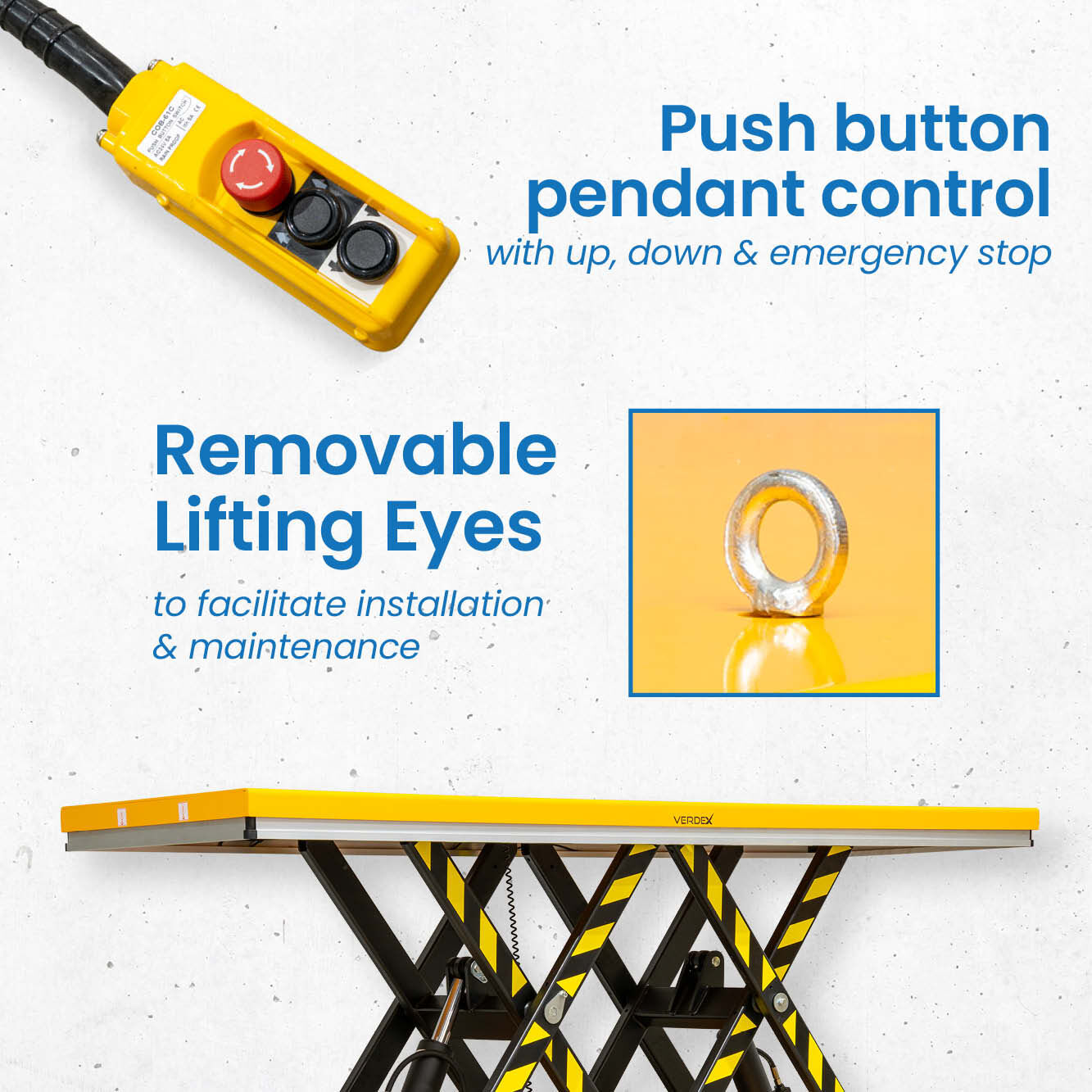

- Push button pendant control with up, down and emergency stop
Specifications:
- Capacity: 2000kg

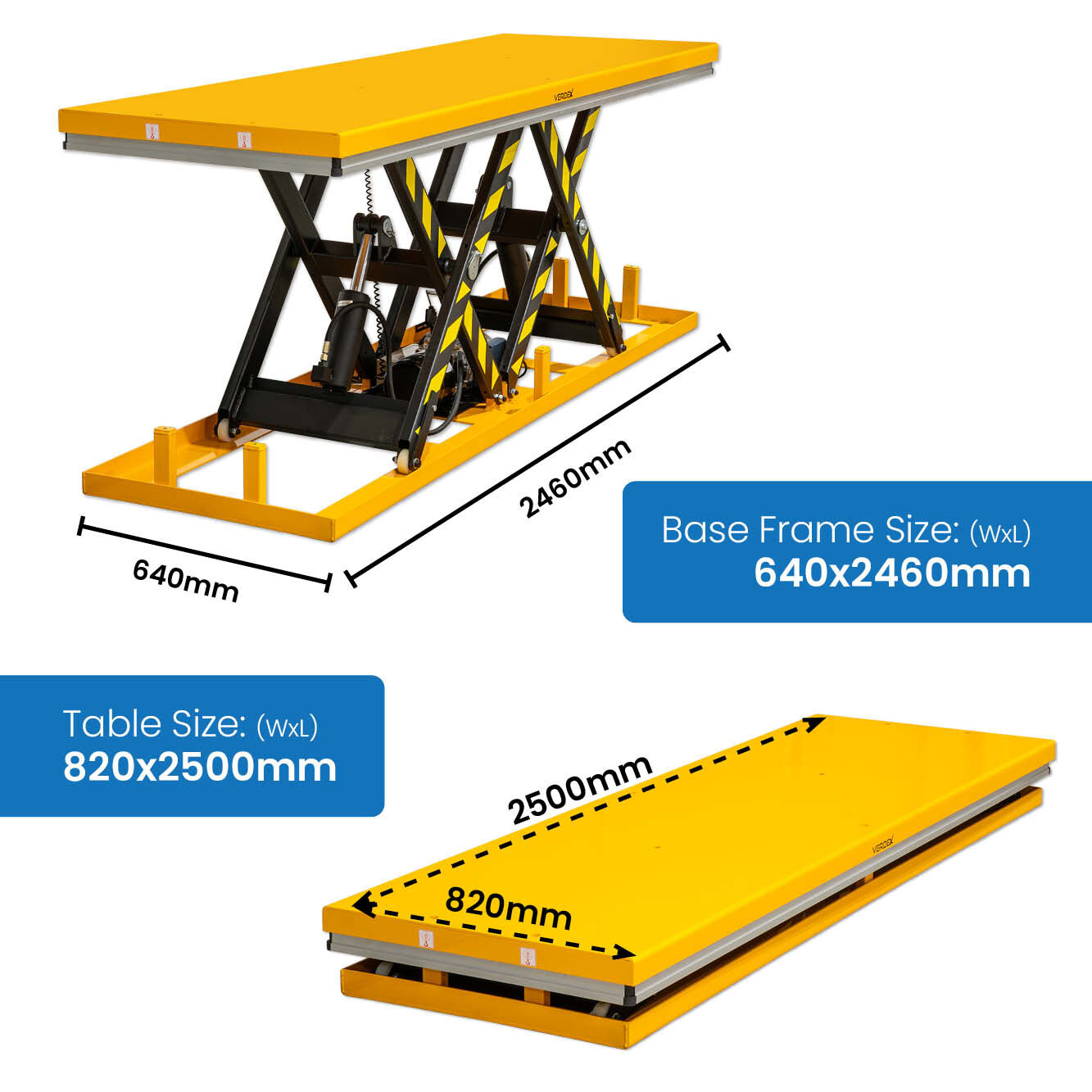

- Table Size: 820x2500mm (WxL)
- Base Frame Size: 640x2460mm (WxL)

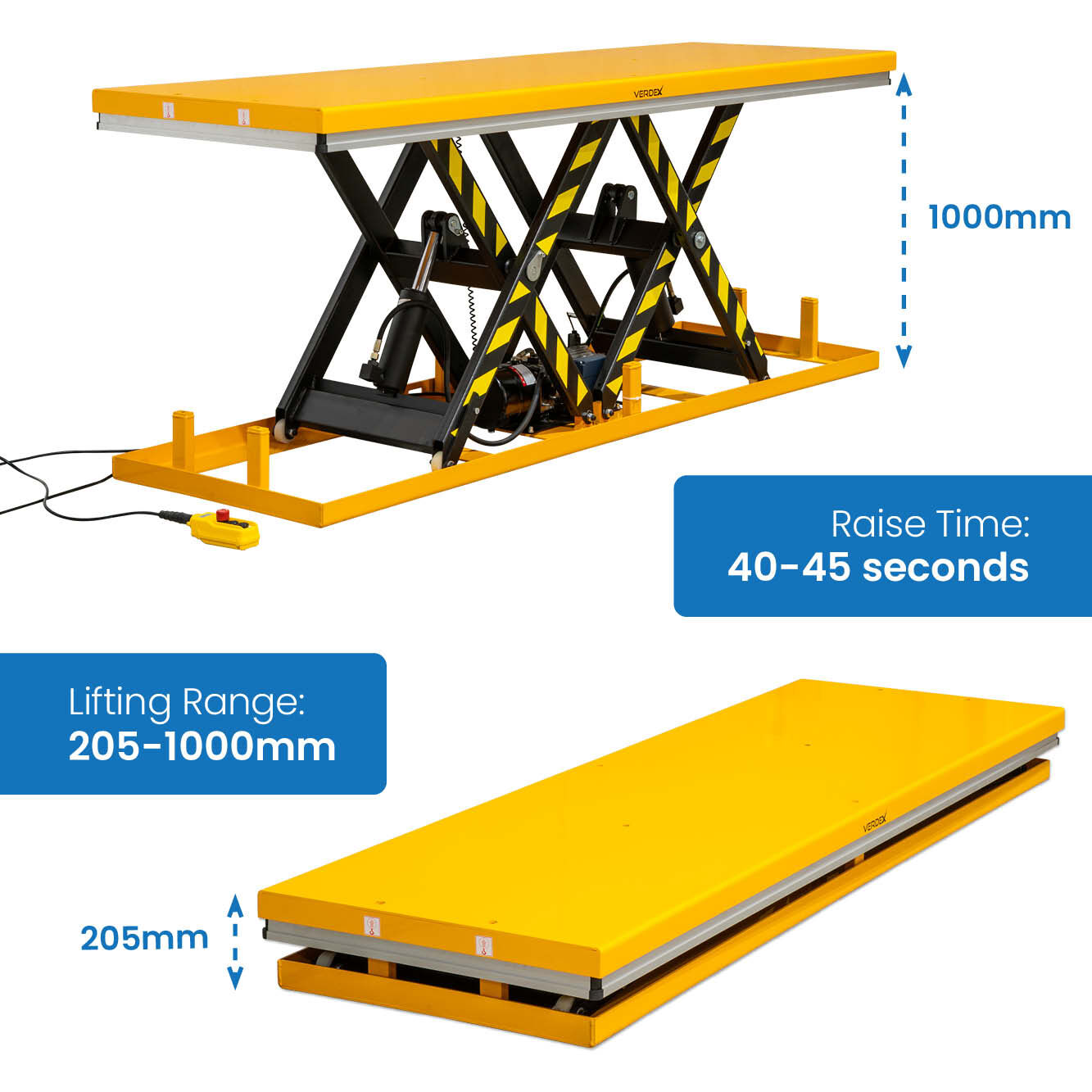

- Min Height: 205mm
- Max Height:1000mm
- Raise Time: 40-45 Seconds
- Unit Weight: 265kg
Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.
Please Note - We are not able to deliver goods to a PO Box address.
Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.
Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.
Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.
Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.
Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.
Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.
International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.
Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.
Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.
Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.
Click here to download a PDF Brochure Click here to fill in the form to request your required document
Extra Long Scissor Electric Lift Table
Maximise your lifting capabilities with the Extra Long Scissor Electric Lift Table, designed to handle extended loads and enhance material handling efficiency in a variety of industrial settings. Ideal for warehouses, manufacturing facilities, and distribution centres, this lift table offers a combination of extended reach and electric-powered precision. The extra-long platform accommodates larger and longer items, making it perfect for handling oversized materials or multiple pallets simultaneously. The electric motor provides smooth and effortless height adjustments, allowing for precise control and reducing manual effort, thus improving ergonomic handling and productivity. Constructed from high-strength steel, the Extra Long Scissor Electric Lift Table is built for durability and stability, even under heavy loads. Its scissor lift mechanism ensures a high lift range while maintaining a compact footprint, making it suitable for tight workspaces and high-frequency use. Safety features include a non-slip surface and integrated safety locks, ensuring secure operation throughout the lifting process. The Extra Long Scissor Electric Lift Table is an invaluable tool for boosting efficiency, handling large loads, and improving safety in any busy operational environment.
Maximise Efficiency with the Extra Long Scissor Electric Lift Table
In many industrial environments, handling large and heavy loads efficiently is essential for maintaining productivity and safety. The Extra Long Scissor Electric Lift Table offers a robust and reliable solution for those businesses that need to lift and transport large materials with precision and ease. With a significant load capacity of 2000kg and an extra-long table size, this lift table is ideal for operations requiring heavy lifting over extended lengths.
Heavy-Duty Design for Maximum Efficiency
The Extra Long Scissor Electric Lift Table is built for heavy-duty use, with a capacity of 2000kg, making it capable of handling large and bulky items with ease. This impressive load capacity ensures that the lift table can support a wide range of materials, from large machinery to heavy pallets, making it an indispensable tool for industries such as manufacturing, warehouses, and distribution centres.
With its extra-long table size of 820x2500mm (WxL), the lift table provides ample space for oversized loads, allowing multiple items to be lifted at once, reducing the need for multiple lifting operations. This helps increase operational efficiency and productivity, as workers can lift large quantities of material in a single move.
Versatility in Lifting Heights
The Extra Long Scissor Electric Lift Table offers a lifting range from 205mm to 1000mm, making it suitable for a variety of tasks that require precise height adjustments. Whether you're stacking items, assembling components, or loading materials onto vehicles, the ability to raise and lower the table to optimal heights ensures that the job is done quickly and safely.
With a raise time of 40-45 seconds, the lift table operates at a moderate speed, providing enough time for careful handling of heavy loads while ensuring efficiency. The adjustable height is perfect for accommodating different work processes, such as bringing materials to the optimal ergonomic level for assembly, or positioning heavy items for easy loading and unloading.
Enhanced Safety Features
Safety is always a primary concern when working with heavy lifting equipment, and the Extra Long Scissor Electric Lift Table is designed with several important safety features to protect workers and ensure smooth operations.
-
Safety Clearance: The table is designed with safety clearance between the scissor arms, preventing any risk of trapping or pinching during operation. This feature is essential for maintaining a safe working environment and reducing the risk of injury to personnel.
-
Emergency Stop: The lift table comes equipped with a push-button pendant control, which includes an emergency stop feature. In case of any unexpected issues or if the operator needs to halt the operation quickly, the emergency stop function provides immediate control.
-
Stable Support: The heavy-duty design and stable base frame provide reliable support for large and heavy loads. This ensures that the table remains steady during the lifting process, reducing the risk of accidents or tipping.
Durability and Easy Maintenance
The Extra Long Scissor Electric Lift Table is built to last, thanks to its high-quality components and robust construction. The unit weight of 265kg gives it the sturdiness needed to handle demanding tasks day in and day out. Additionally, the lift table’s self-lubricating bushings on pivot points reduce wear and tear, contributing to a longer lifespan with less maintenance.
When maintenance is needed, the table is easy to service, ensuring that downtime is kept to a minimum. With proper care, the lift table can continue to provide reliable service over many years, making it a wise investment for your business.
