Double Scissor Electric Lift Tables

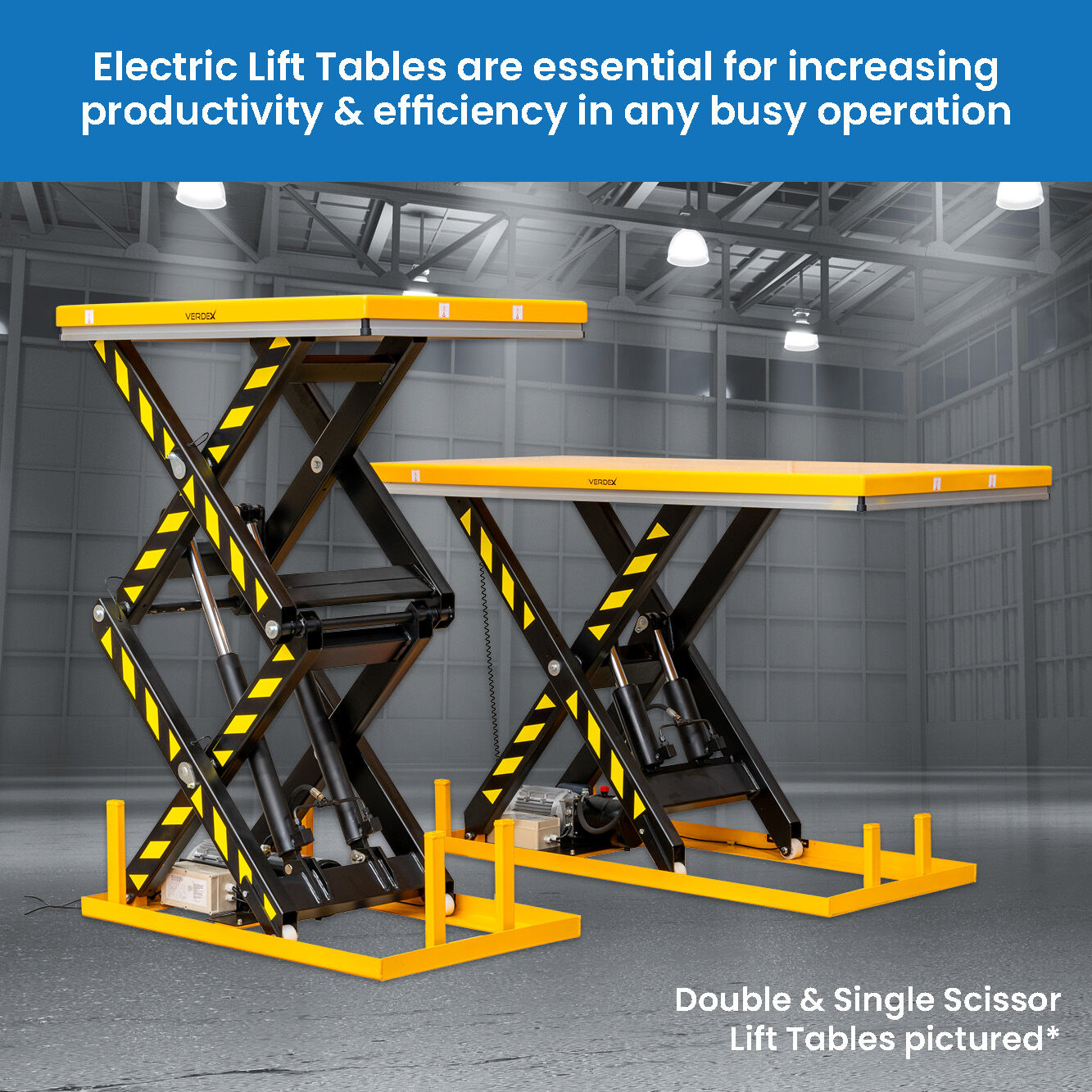

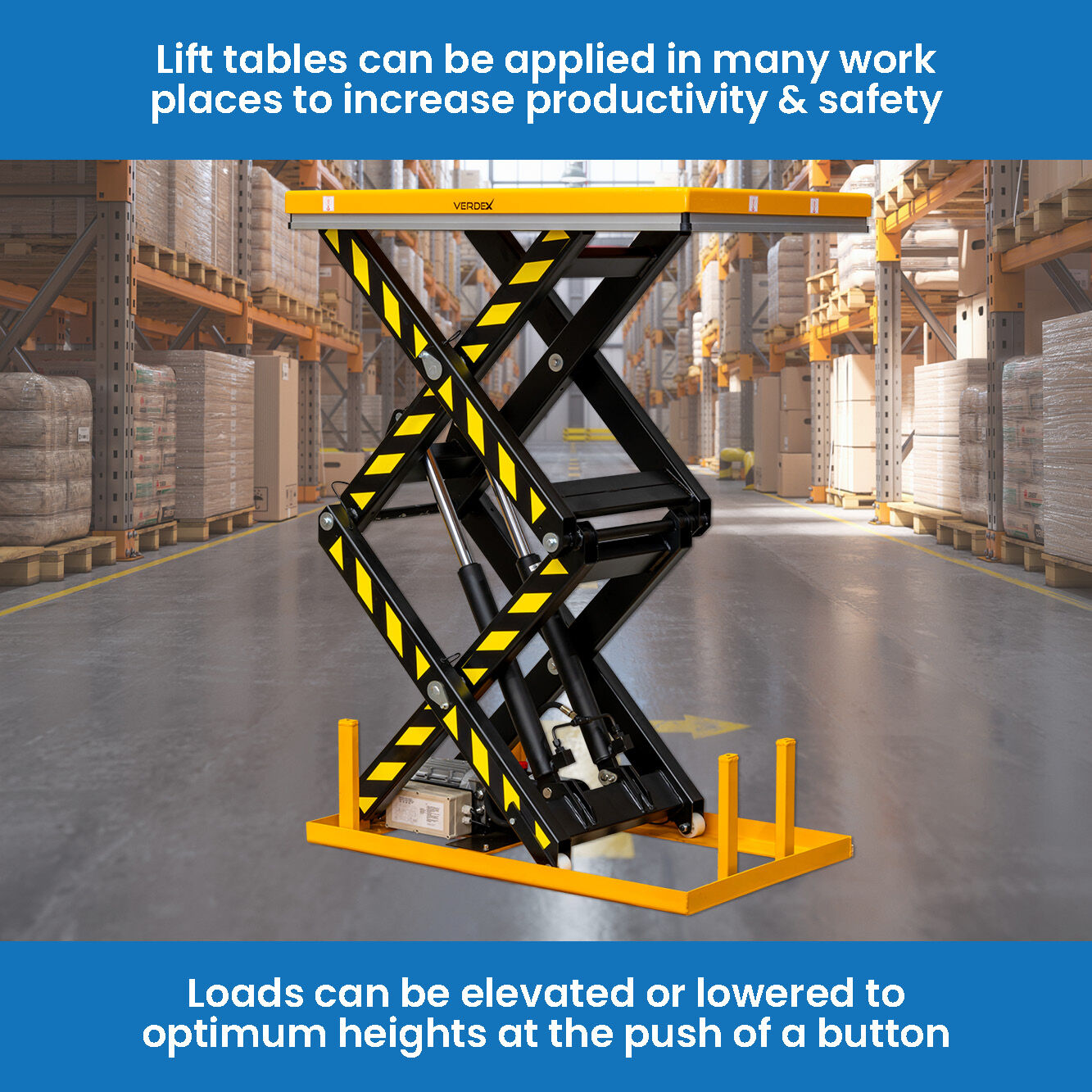

Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.
Features
-

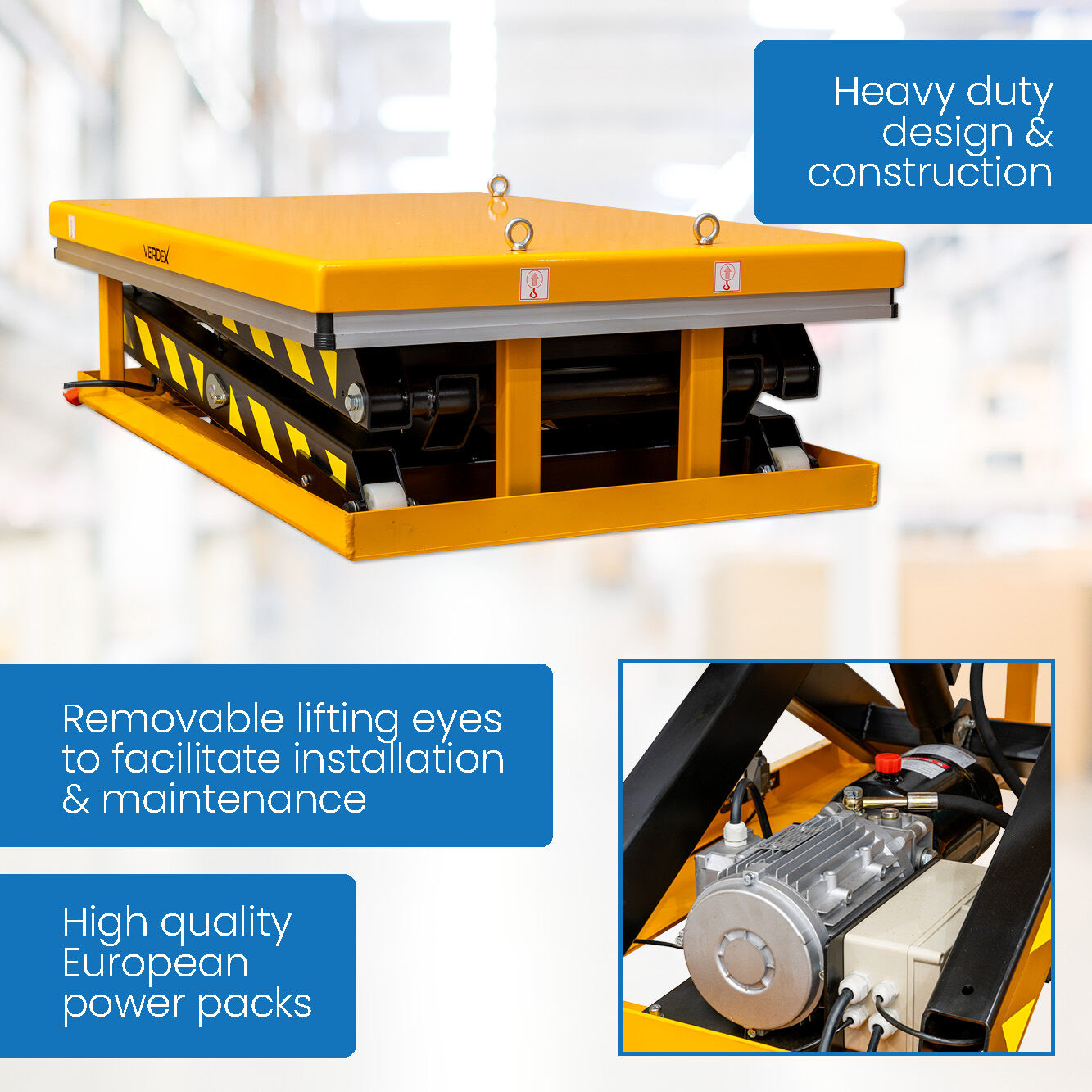

Heavy duty design and construction
-
High quality European power packs
-
Suitable for on floor applications or in floor pit applications
-
Self lubricating bushings on pivot points
-
Removable lifting eyes to facilitate installation and maintenance
-
Standard Safety Features
-

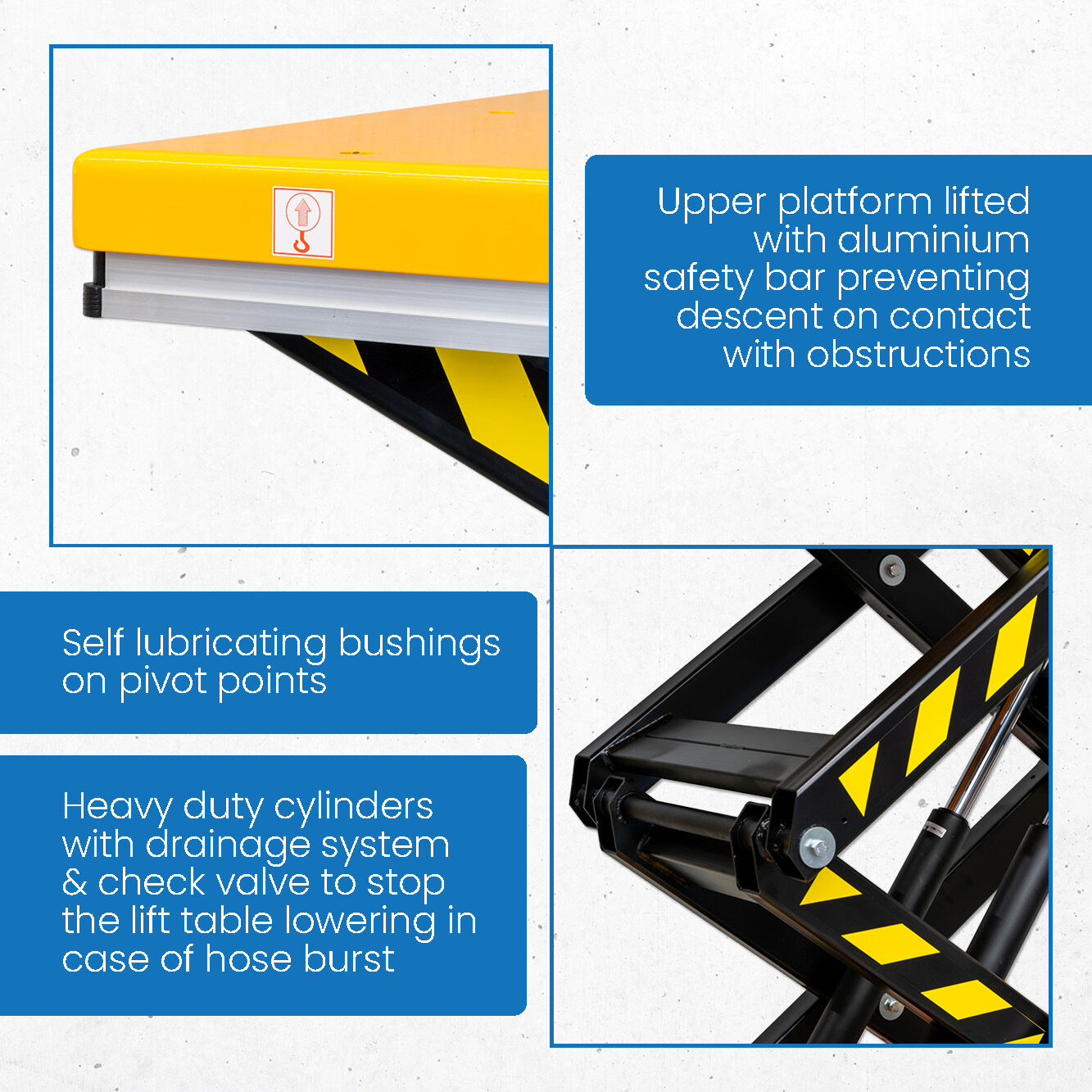

Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions.
-
Low volt (24v) control box with up-down buttons.
-
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
-
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
-
Safety clearance between scissors to prevent trapping during operation.
-
Push button pendant control with up, down and emergency stop.
-
240v or 3 phase options available
Scroll left to view details
Image | Description | Code | Price Each | Order Quantity |
Availability
|
---|---|---|---|---|---|

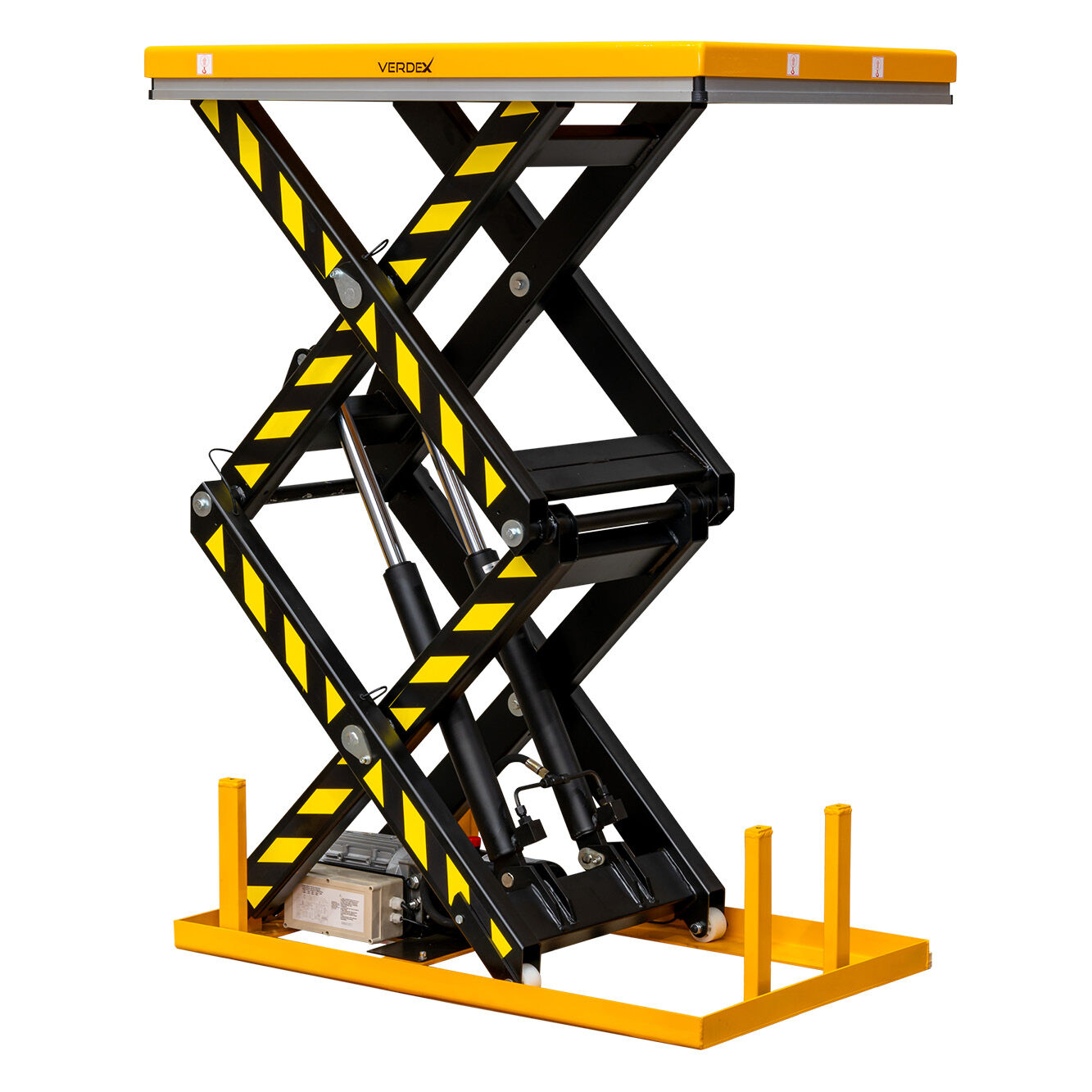

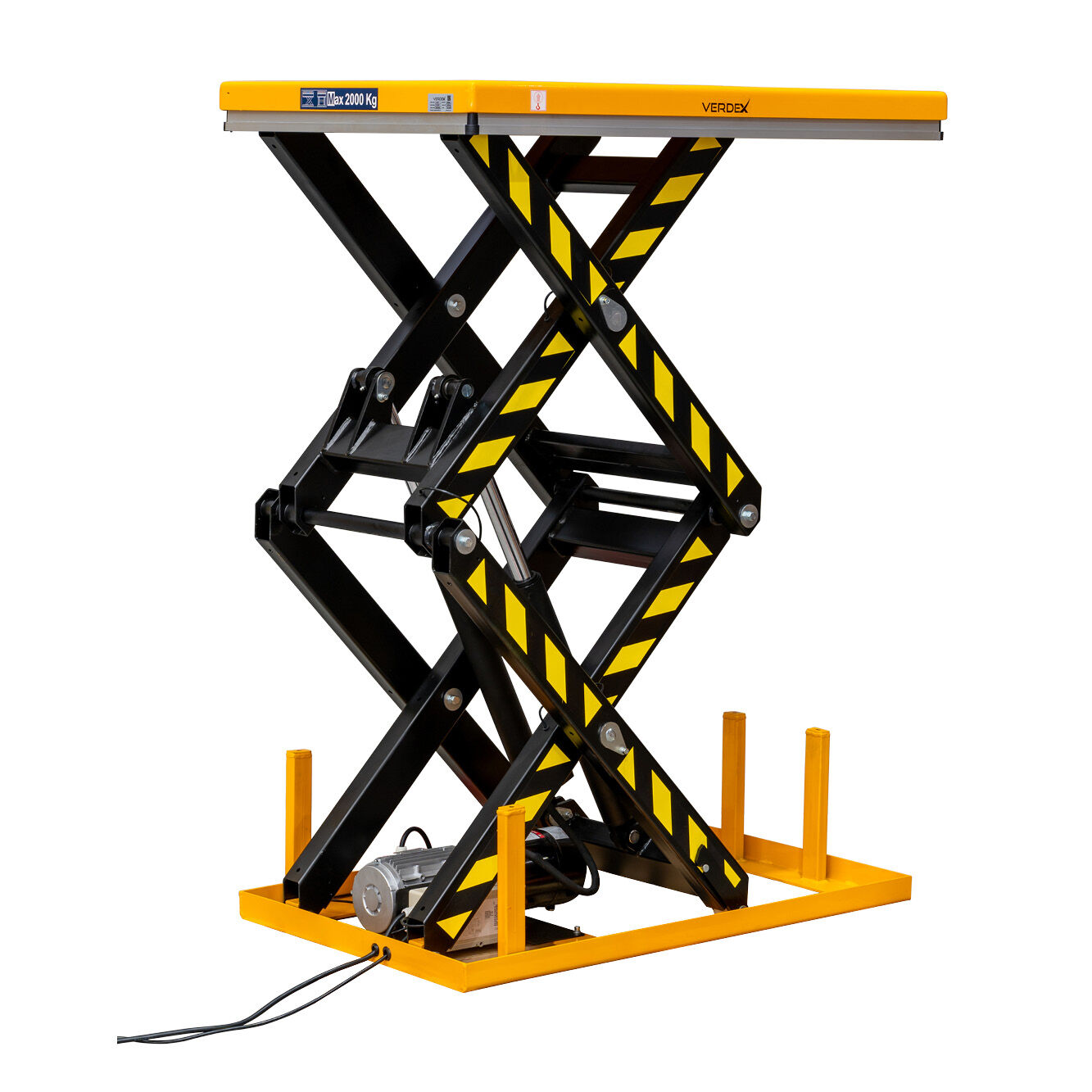

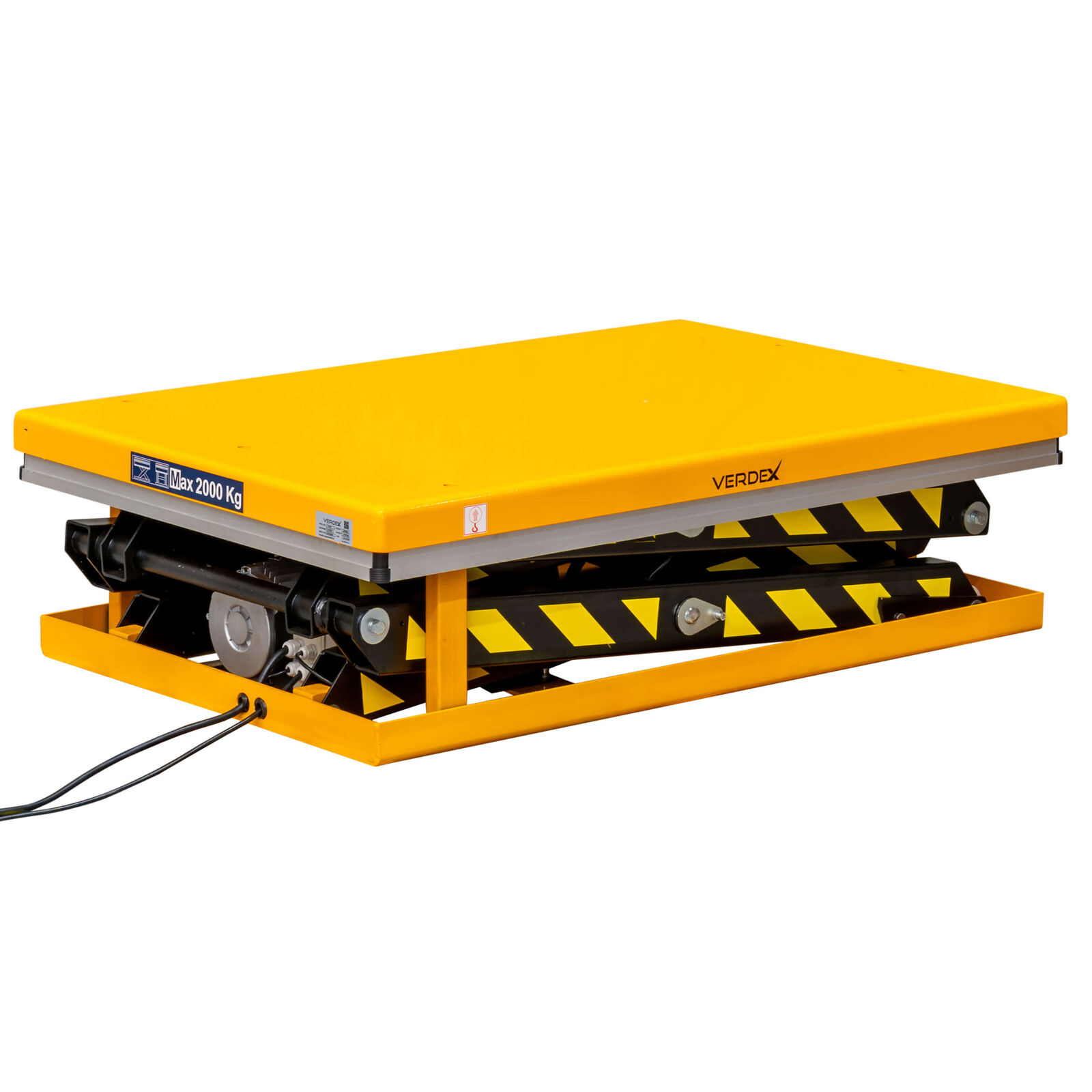

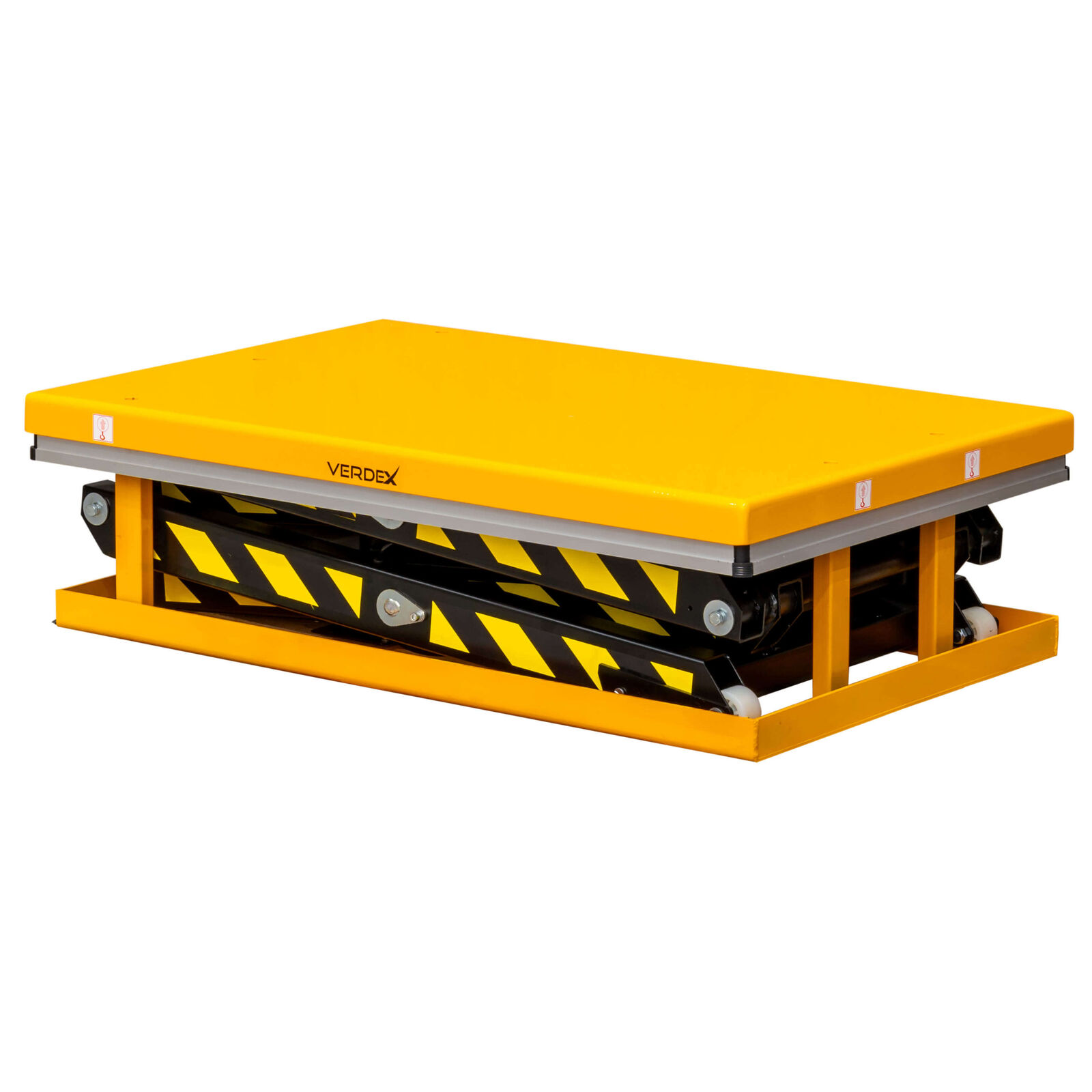

![]() Double Scissor Electric Lift Table - 2000kg capacityProduct Code: V2165
|
Double Scissor Electric Lift Table - 2000kg capacity |
V2165
View Details |
$5,625.00 max - 2 - min 1 |
-
+
|
|
![]() Double Scissor Electric Lift Table - 4000kg capacityProduct Code: V2166
|
Double Scissor Electric Lift Table - 4000kg capacity |
V2166
View Details |
$7,987.00 max - 3 - min 1 |
-
+
|
|
Scroll left to view details
Please for pricing on bulk quantity purchases
Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.
Features
-
Heavy duty design and construction
-
High quality European power packs
-
Suitable for on floor applications or in floor pit applications
-
Self lubricating bushings on pivot points
-
Removable lifting eyes to facilitate installation and maintenance
-
Standard Safety Features
-
Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions.
-
Low volt (24v) control box with up-down buttons.
-
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
-
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
-
Safety clearance between scissors to prevent trapping during operation.
-
Push button pendant control with up, down and emergency stop.
-
240v or 3 phase options available
Code |
Capacity |
Table Size |
Base Frame Size |
Raise Time |
Min Height |
Max Height |
Unit Weight |
Power Supply |

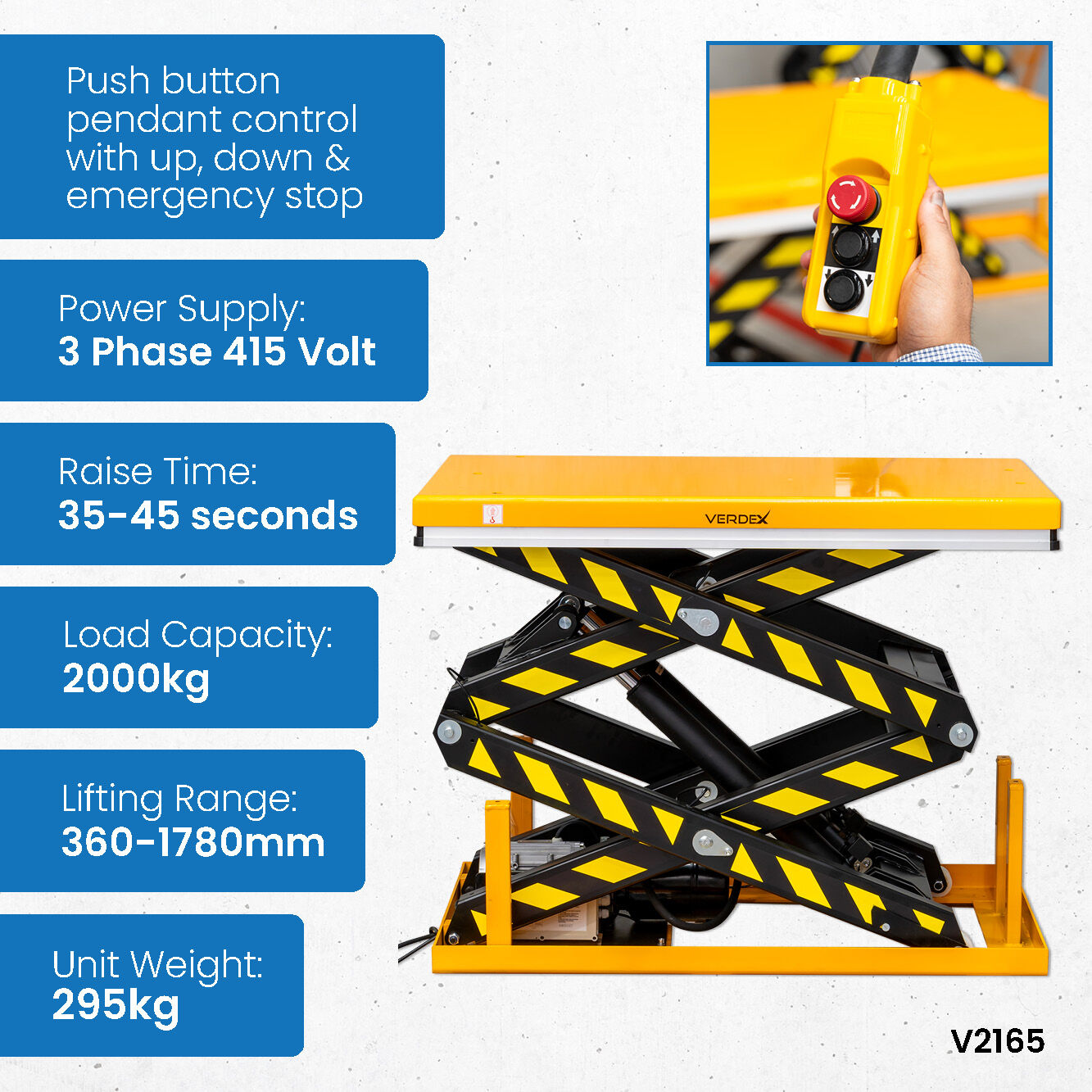

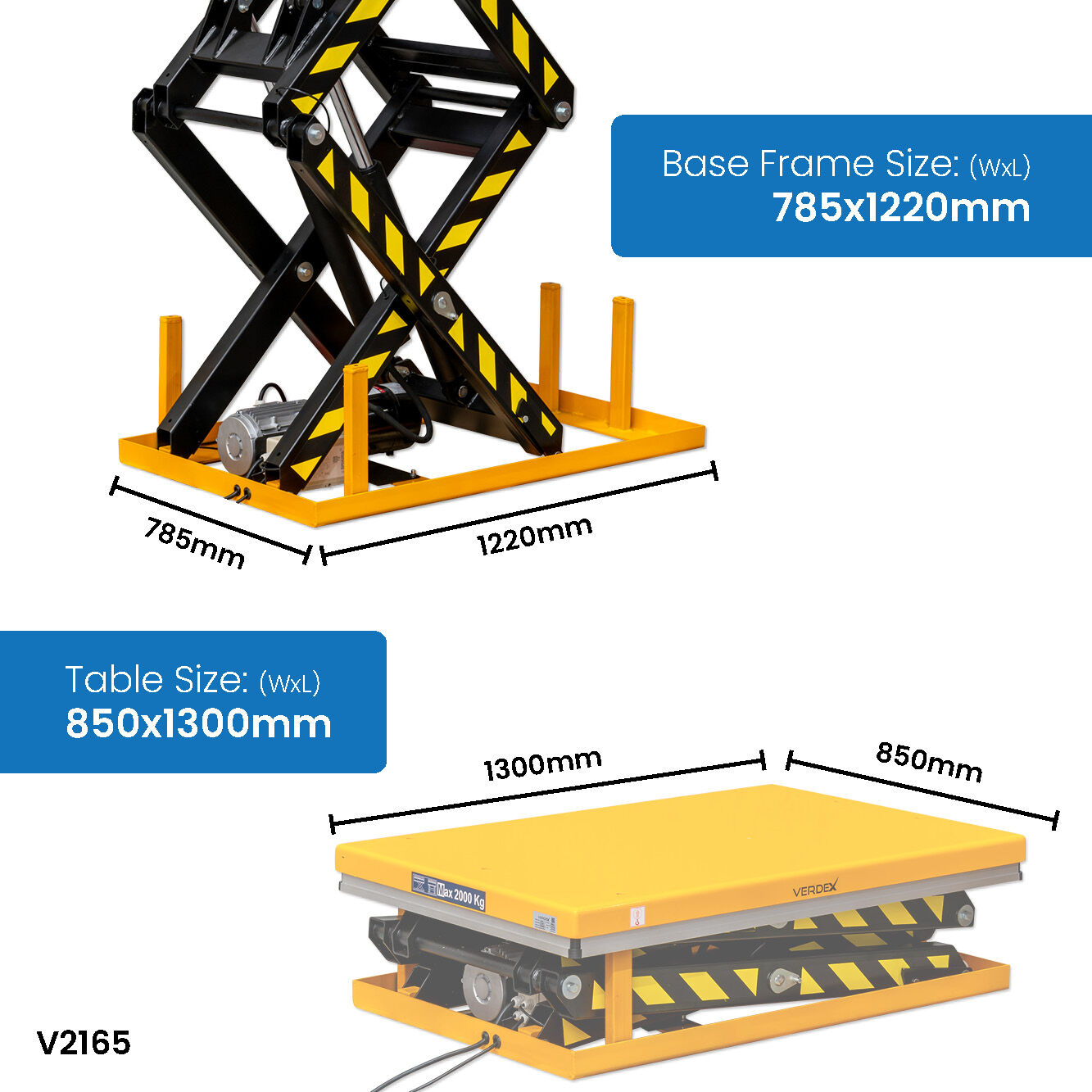

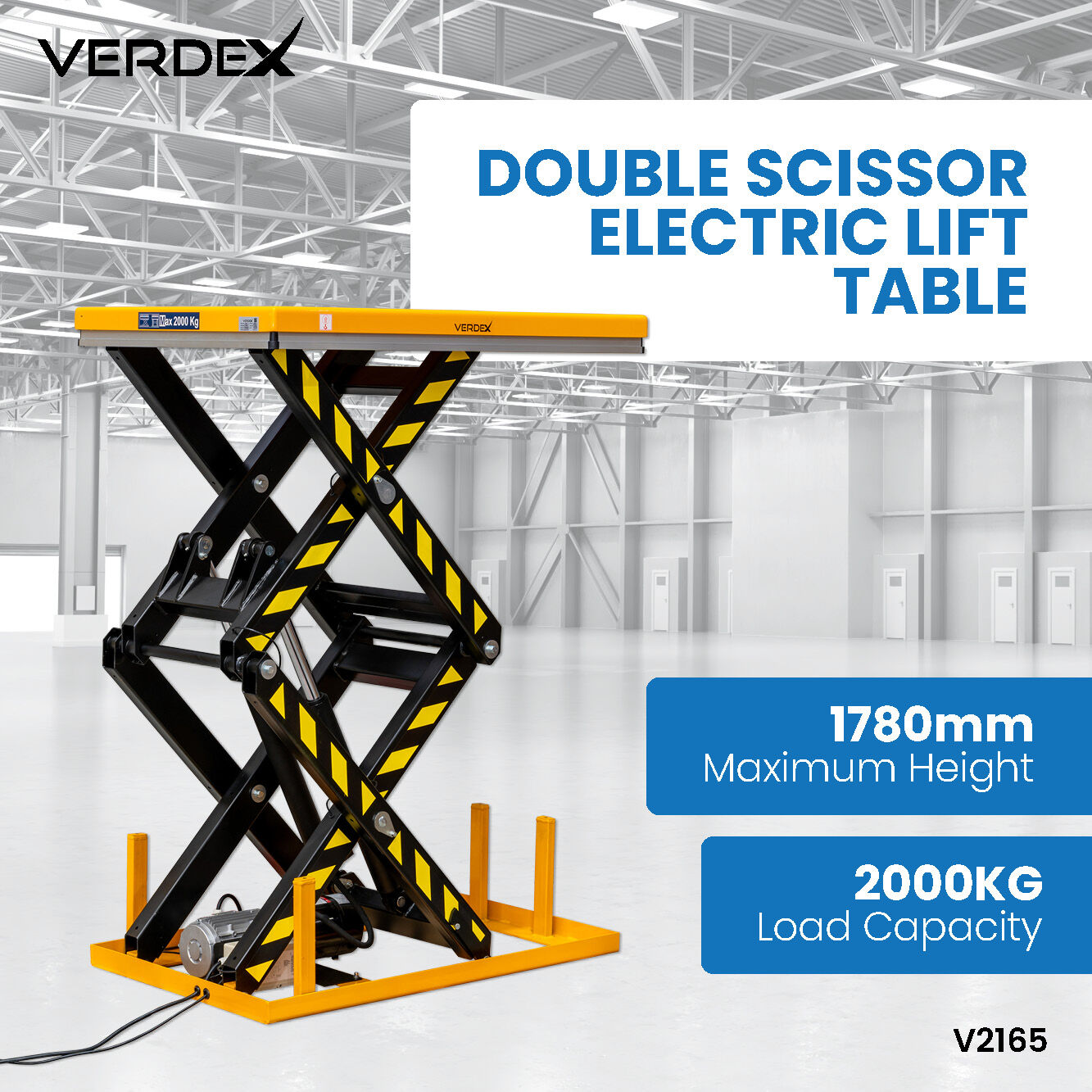

V2165 | 2000kg | 850x1300mm | 785x1220mm | 35-45 secs | 360mm | 1780mm | 295kg | 3 Phase 415 Volt |

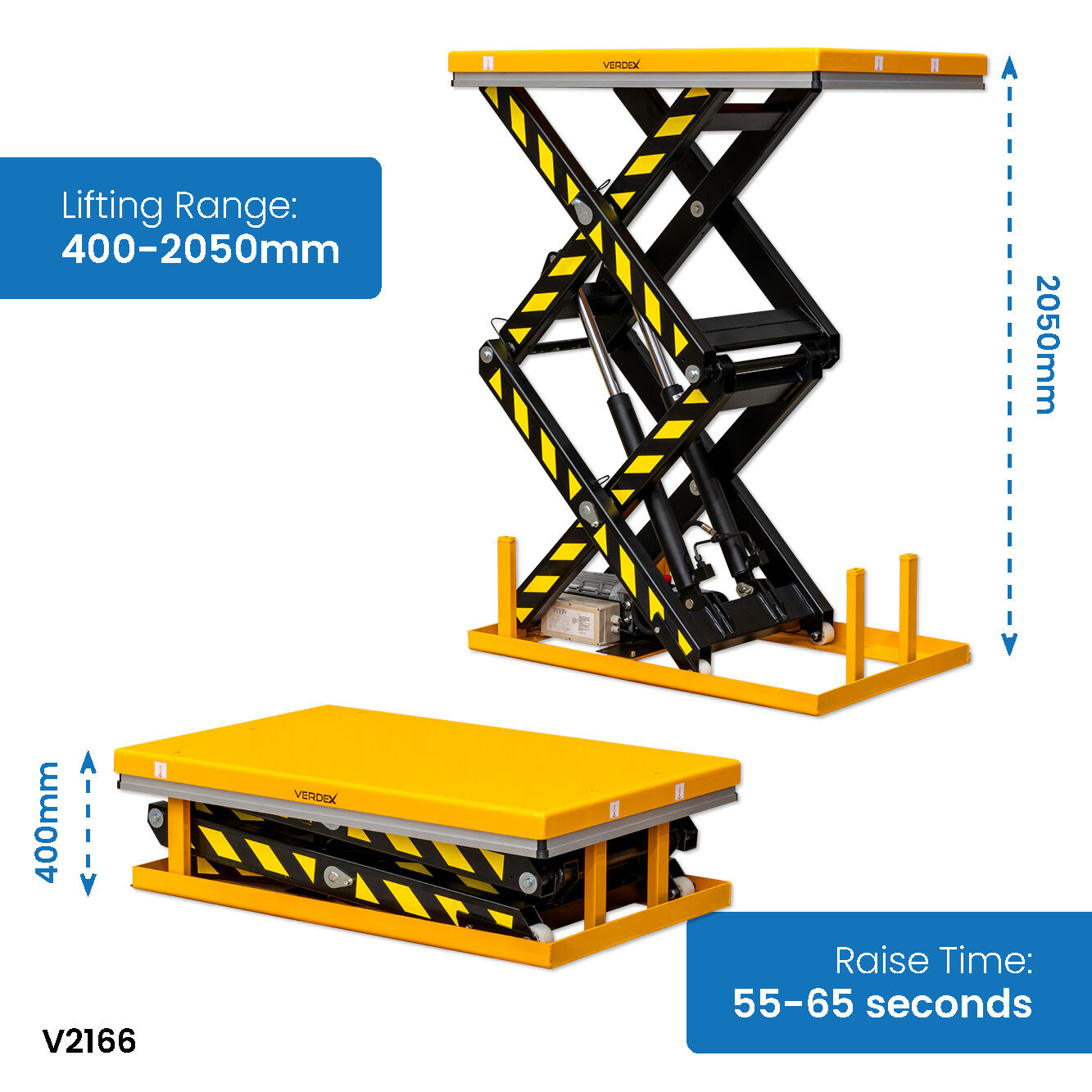

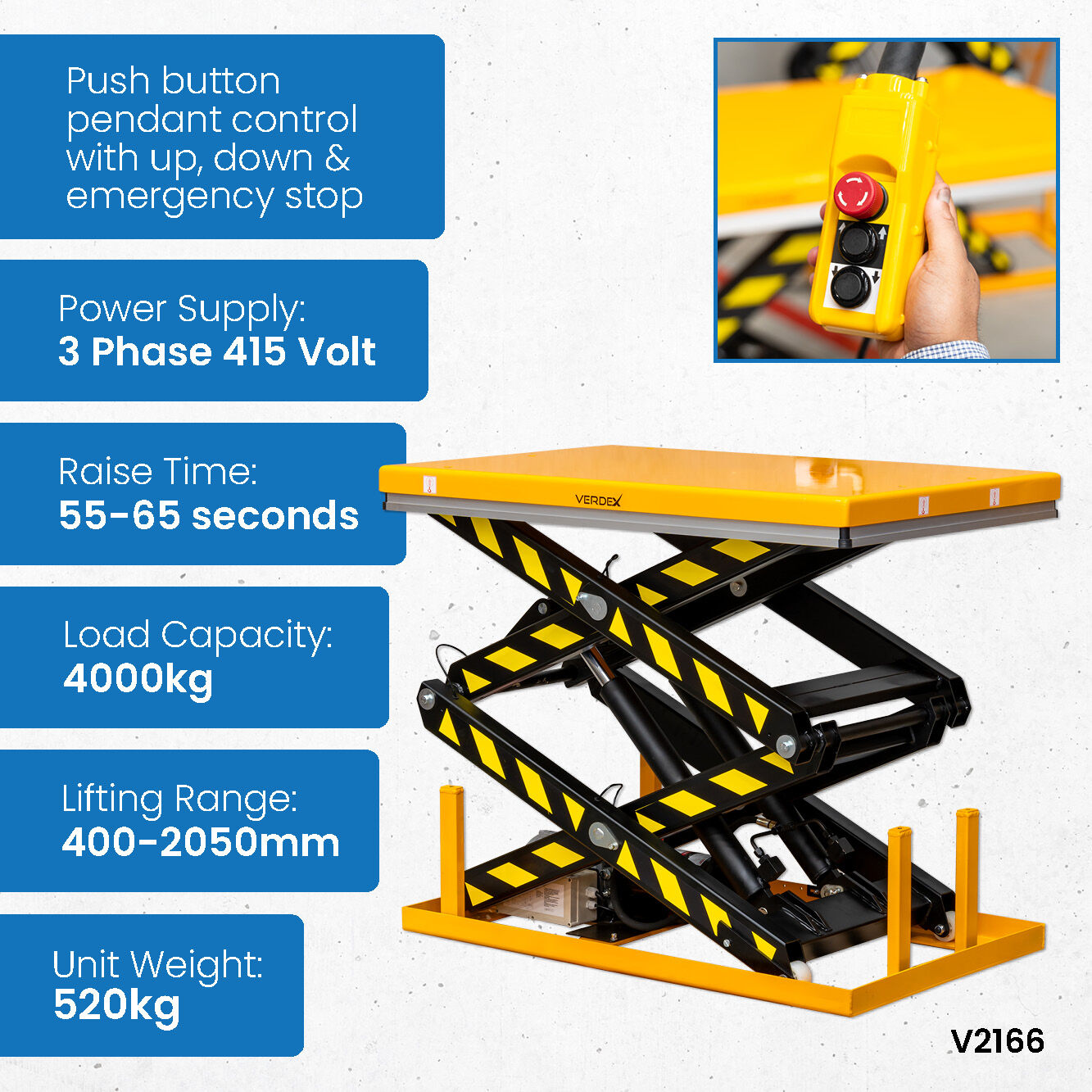

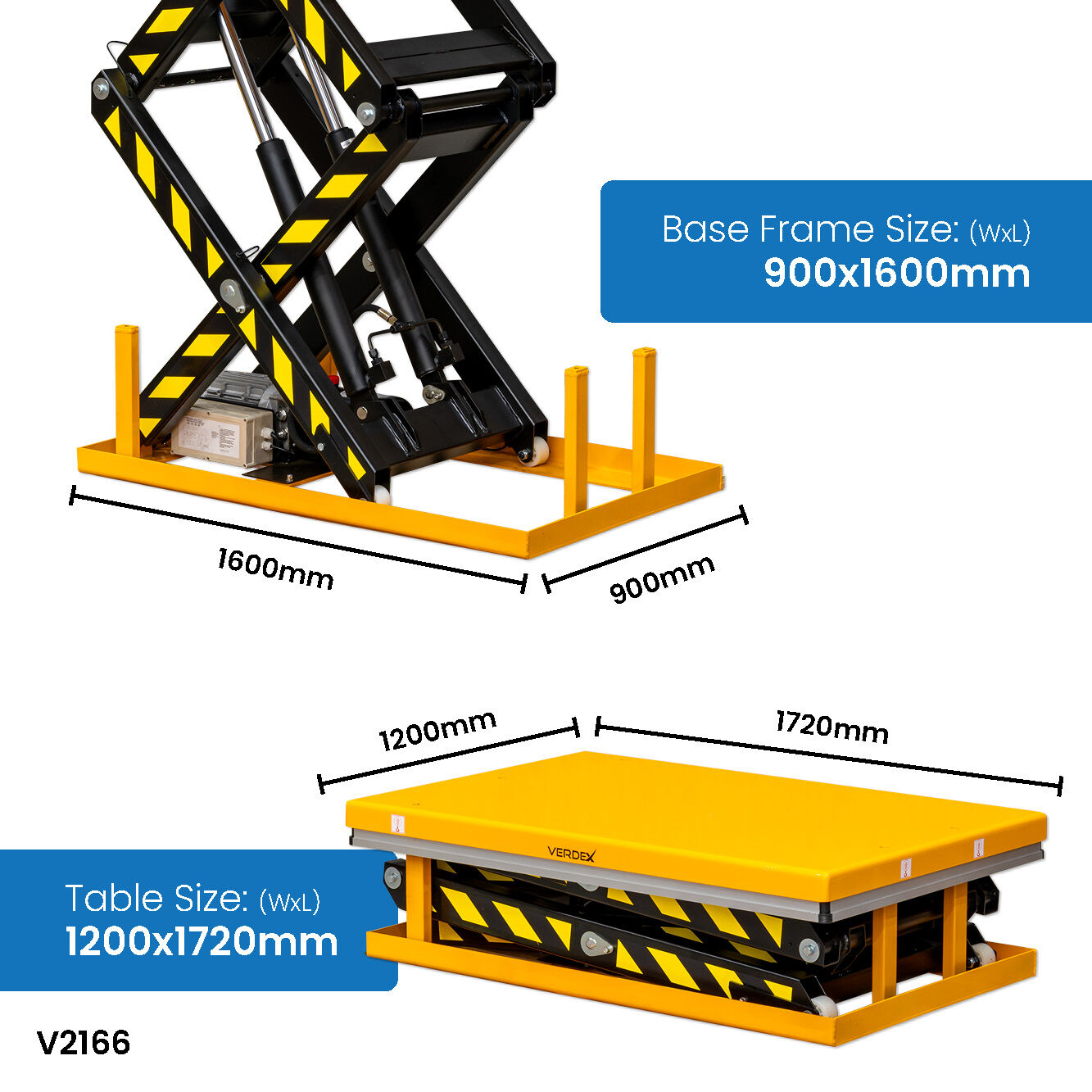

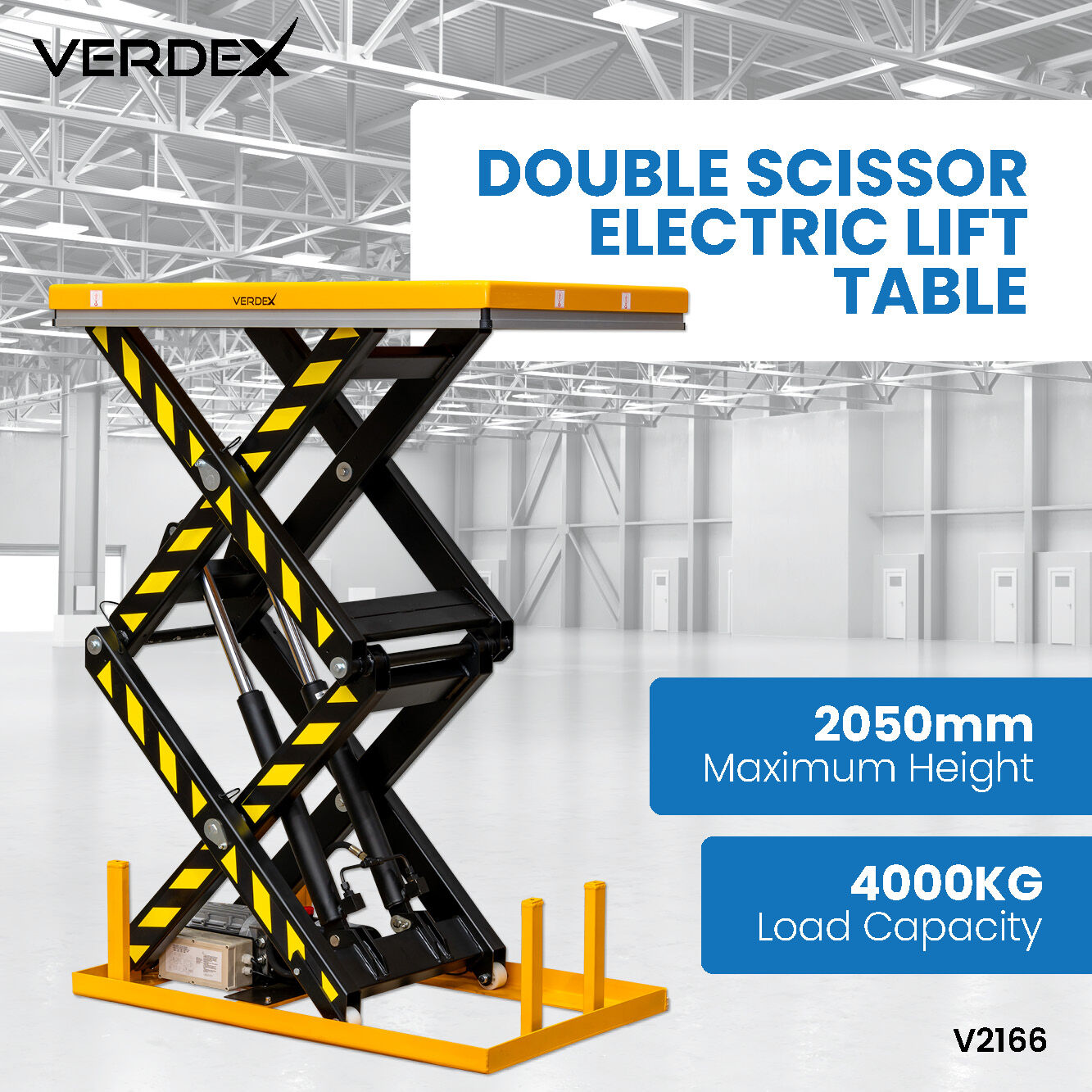

V2166 | 4000kg | 1200x1720mm | 900x1600mm | 55-65 secs | 400mm | 2050mm | 520kg | 3 Phase 415 Volt |
Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.
Please Note - We are not able to deliver goods to a PO Box address.
Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.
Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.
Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.
Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.
Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.
Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.
International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.
Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.
Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.
Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.
Click here to download a PDF Brochure Click here to fill in the form to request your required document
Code: V2082
Self Propelled Electric Scissor Lift Trolley (double scissor)
Now $5,254.00 Was $5,838.00
View DetailsDouble Scissor Electric Lift Tables
Enhance your material handling with Double Scissor Electric Lift Tables, designed for superior stability and extended lifting capabilities in industrial settings. Ideal for warehouses, factories, and distribution centres, these lift tables offer the perfect balance of strength and precision for handling heavy and oversized loads. The double scissor mechanism ensures a higher lift range while maintaining a compact footprint, providing reliable support for tall items and heavy-duty tasks. The electric motor allows for smooth, effortless height adjustments at the touch of a button, reducing manual effort and improving ergonomic handling. Constructed from high-quality steel, these tables are built to withstand rigorous use and offer exceptional durability. The design includes a non-slip platform and integrated safety features, such as safety locks, to ensure secure operation and minimise the risk of accidents. Double Scissor Electric Lift Tables are an essential tool for increasing productivity and efficiency in any busy operation, offering robust performance and reliable safety for handling a wide range of materials and applications.
Enhance Workplace Efficiency and Safety with Double Scissor Electric Lift Tables
In the fast-paced world of industrial operations, efficient lifting equipment is crucial for boosting productivity while ensuring the safety of workers. The Double Scissor Electric Lift Tables stand out as a powerful and reliable solution for heavy lifting tasks. With their heavy-duty design, high-quality European power packs, and a range of safety features, these tables are an excellent addition to any workplace that demands both efficiency and safety.
Heavy-Duty Construction for Maximum Durability
The Double Scissor Electric Lift Tables are built with heavy-duty design and construction to handle the most demanding lifting tasks. Whether you're working in manufacturing, warehousing, or distribution, these lift tables are built to withstand the rigours of industrial environments.
Equipped with high-quality European power packs, the lift tables deliver exceptional lifting performance. The self-lubricating bushings on pivot points help reduce wear and tear, ensuring the smooth operation of the table over time. This feature also helps to reduce maintenance costs and downtime, allowing you to get more out of your equipment without compromising on performance.
Additionally, the design of these tables allows them to be used in both on-floor applications and in-floor pit applications, offering flexibility to suit different work environments. Whether you need to raise materials from floor level or from an in-floor pit, these lift tables provide a versatile and reliable solution.
Advanced Safety Features for a Secure Workplace
Safety is always a top priority when working with heavy equipment, and the Double Scissor Electric Lift Tables come equipped with several key safety features to protect workers and prevent accidents.
-
Aluminium Safety Bar: The upper platform is fitted with an aluminium safety bar that prevents the table from descending when it comes into contact with obstructions. This safety feature ensures that no unexpected descent occurs, protecting both the operators and any nearby workers or equipment.
-
Emergency Stop Button: The low volt (24V) control box features an emergency stop button, which can quickly halt the lift table's operation if any issues arise. This adds an extra layer of security, allowing operators to stop the lift table immediately in case of an emergency, minimising the risk of accidents.
-
Safety Clearance Between Scissors: The table is designed with safety clearance between the scissor arms, which prevents any possibility of trapping or pinching during operation. This ensures that operators can use the table with confidence, knowing that their safety is prioritised.
-
Check Valves and Drainage System: The heavy-duty cylinders are equipped with a drainage system and check valve, preventing the table from lowering in case of a hose burst. This feature is critical in maintaining a safe environment, as it stops the table from descending uncontrollably, which could otherwise cause damage or injury.
Efficient and User-Friendly Operation
The Double Scissor Electric Lift Tables are designed for simple and efficient operation, making them easy for operators to use in a variety of tasks. The push-button pendant control allows operators to easily raise and lower the table, with clear up and down buttons and an emergency stop for added safety. The pendant control makes it simple for workers to control the table’s movement, reducing the risk of errors or mishaps during operation.
Moreover, these lift tables come with removable lifting eyes, making installation and maintenance quick and hassle-free. This feature is particularly helpful when setting up the table in different areas of the workplace or when maintenance needs to be performed.
