Auto-Adjusting Electric Stacker (1000kg Capacity)


$14,750.00 Price excludes GST

SKU

V2196

Availability:

In StockIn Stock

Subtotal:

$14,750.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

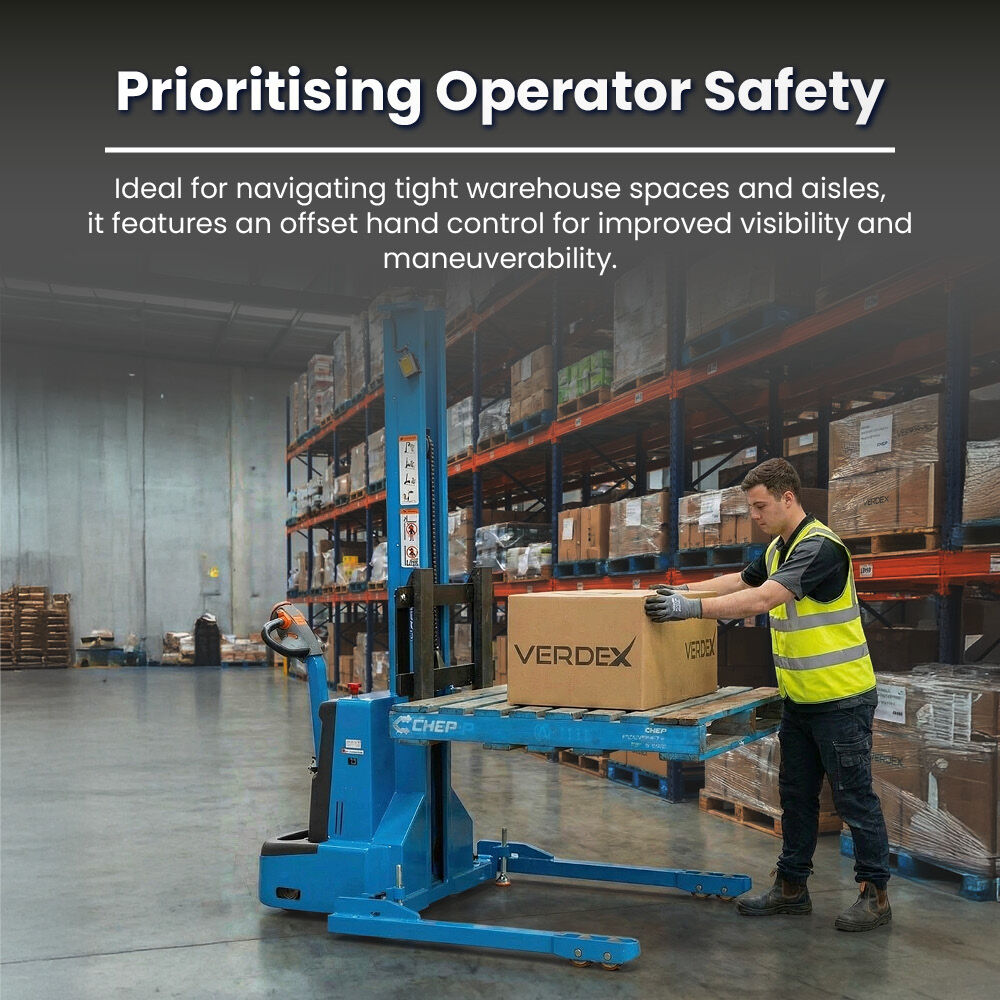

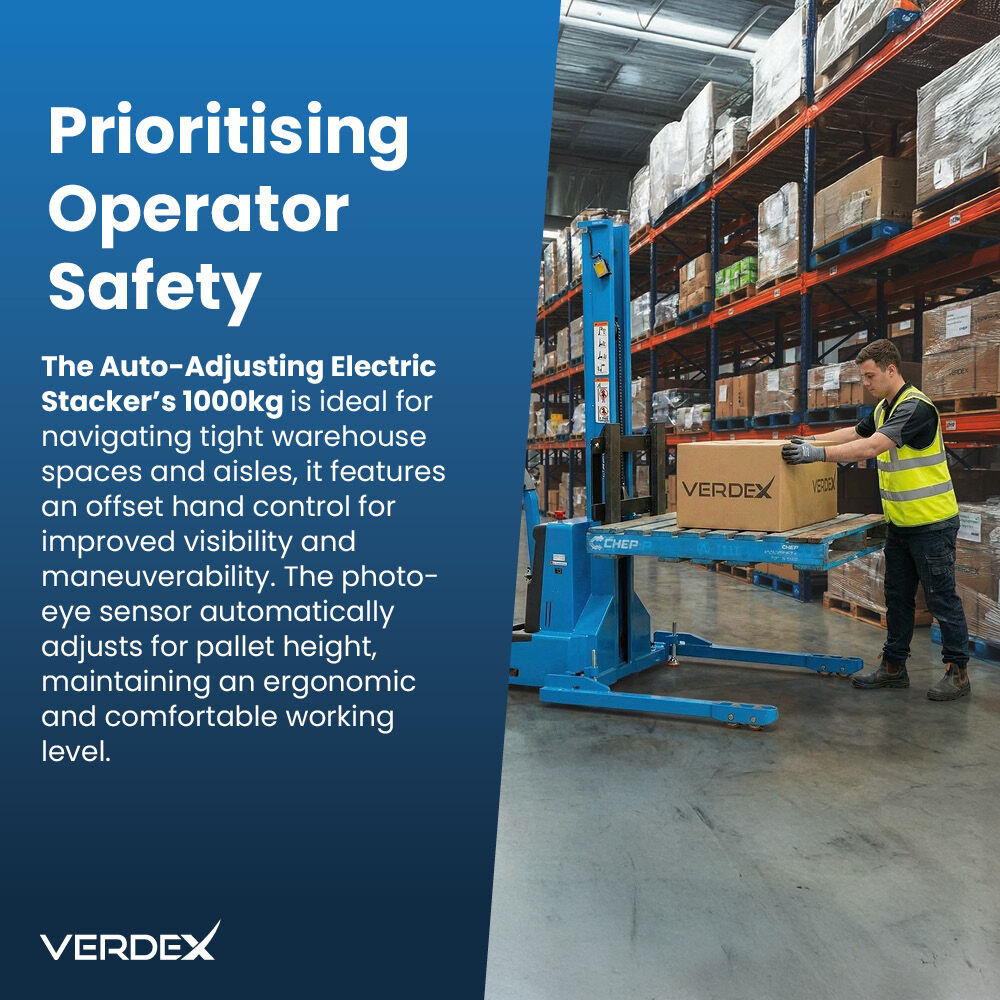

The Auto-Adjusting Electric Stacker's 1000kg load capacity and straddle-leg design allows for easy handling of standard Australian pallets. Ideal for navigating tight warehouse spaces and aisles, it features an offset hand control for improved visibility and maneuverability. The photo-eye sensor automatically adjusts for pallet height, maintaining an ergonomic and comfortable working level. This unit includes an Emergency Stop (E-Stop) and a crucial built-in safety reverse function that automatically drives the unit forward, prioritising operator safety, preventing crushing and injury.

  • Fitted with four wheels
  • Straddle-leg design allows handling of standard Australian pallets
  • Adjustable tines and stacker legs to suit narrow aisles or various pallet sizes
  • Convenient charging port and onboard charger
  • Emergency stop (E-Stop) for quick shutdown
  • Keyed on/off ignition
  • Battery level gauge for quick monitoring
  • Mono-mast constructed from high-strength alloy steel
  • Offset hand control for better load visibility
  • Pull-down control handle with horn
  • Fast and slow speed options on the handle
  • Variable-speed motor for both drive and reverse
  • Built-in safety reverse function: If an operator is accidentally pushed against a wall during operation, the unit automatically moves forward to prevent injury.

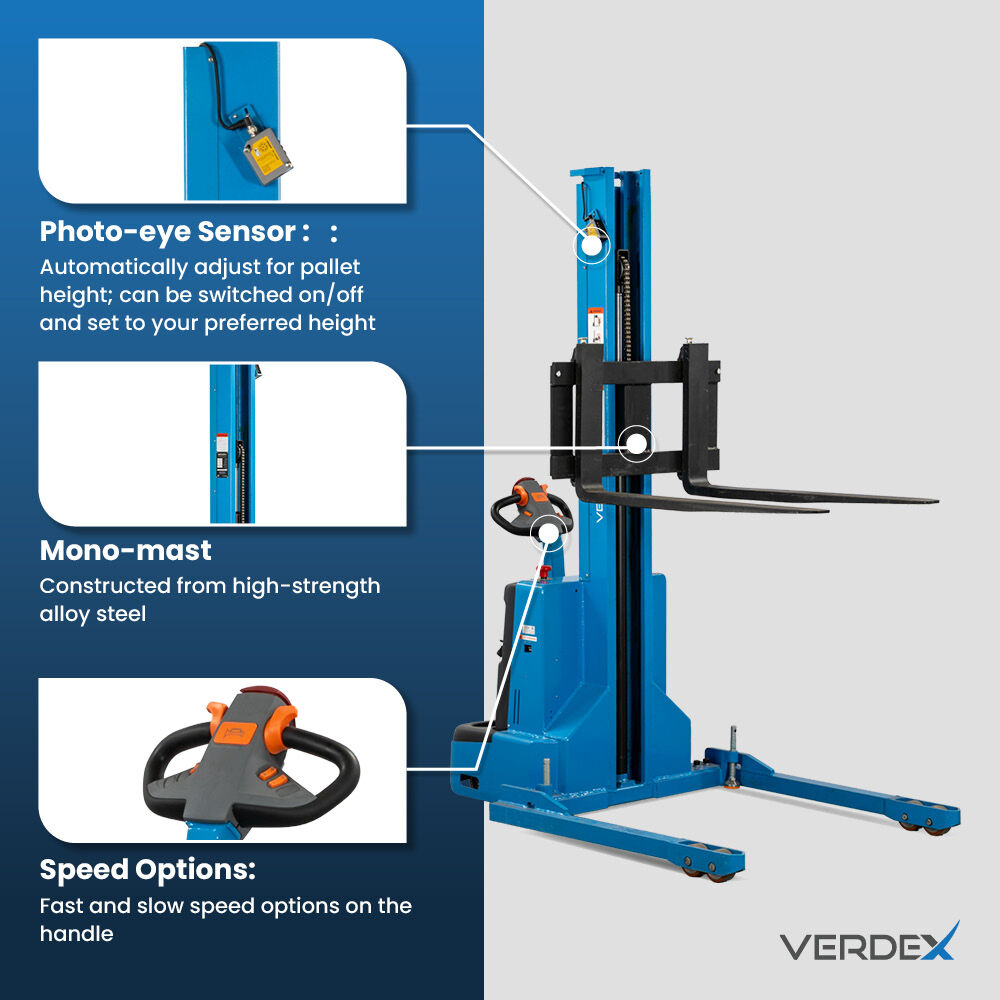

  • Photo-eye sensor to automatically adjust for pallet height; can be switched on/off and set to your preferred height
  • Material: Steel Chassis
  • Finish: Powder Coated
  • Load Capacity: 1000kg
  • Load Centre Distance: 450mm
  • Max. Fork / Lifting Height: 1900mm
  • Fork Width (Outer): 200-760mm
  • Fork Size (LxWxD): 1070x100x35mm
  • Length of Pallet Fork: 1070mm
  • Max. Lifting Speed: Up to 70 mm/s when loaded and 100 mm/s when unloaded
  • Max. Descending Speed: 60/70 mm/s
  • Noise Level: < 70 dB(A)
  • Lifting Motor: 24V/2.2 Kw
  • Drive Motor: 24V/0.75 Kw
  • Driving Speed: 60/70 mm/s
  • Drive Type: Battery
  • Battery Voltage/Rated Capacity: 2x12/75 (120) V/Ah
  • Battery Weight: 2 x 28kg (total 56kg)

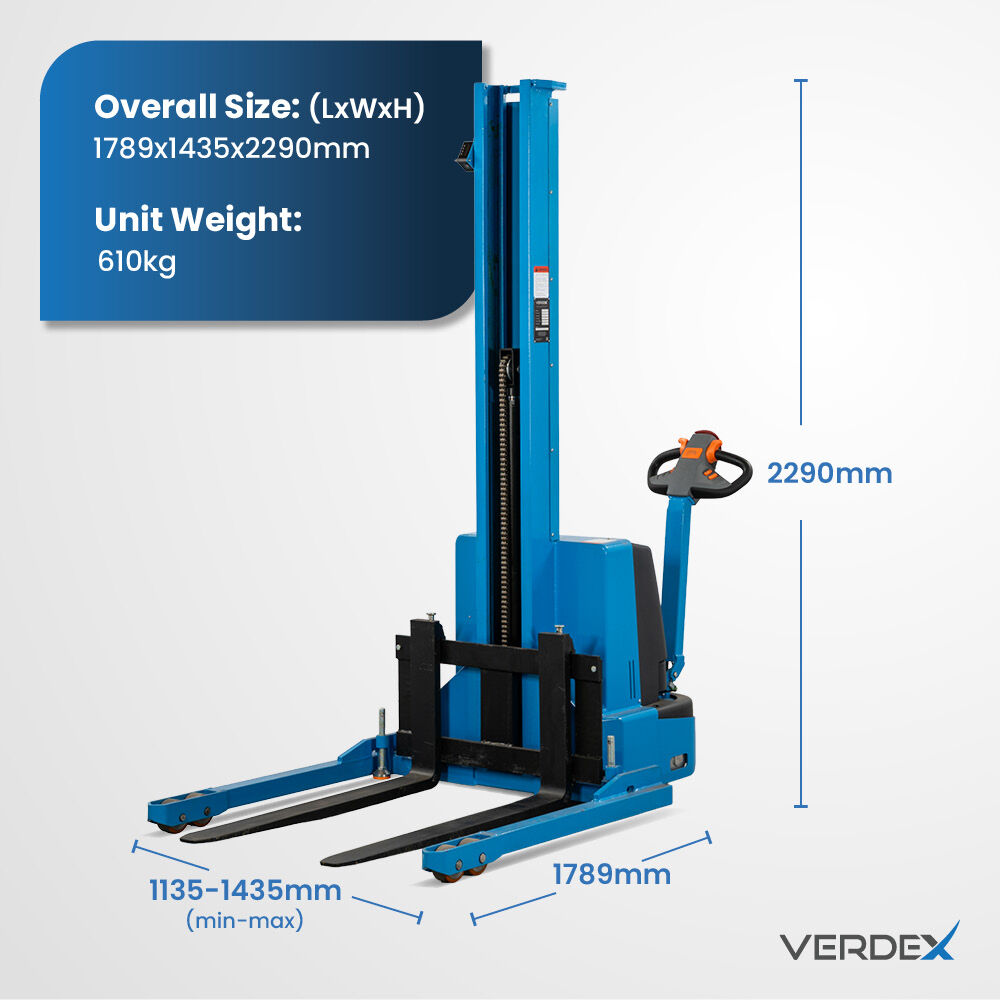

  • Dimensions (LxH): 1789x2290mm
  • Width: 1135-1435mm (min.-max.)
  • Unit Weight: 610kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Optimise Your Warehouse With The Auto-Adjusting Electric Stacker (1000kg Capacity)

The Auto-Adjusting Electric Stacker (1000kg Capacity) is engineered to redefine efficiency and safety in your material handling operations. Combining robust steel construction with advanced features like fully adjustable forks and a high-capacity, zero-maintenance battery, this is the reliable power stacker your business needs to move more, faster, and safer.

Core Features and Practical Benefits

Experience the unmatched power and precision of the Auto-Adjusting Electric Stacker. We've focused on engineering that delivers real benefits on the job.

You’ll enjoy extended operating hours and eliminate downtime thanks to the high-capacity, zero-maintenance sealed battery (2x12/75 V/Ah). You’ll never need to top up distilled water or fluids again. For lifting, the Alloy Steel C-Type Mast provides 30% greater strength and durability than standard carbon steel, ensuring secure lifting up to an impressive 1900mm height.

This strength is paired with precise control, as the continuously variable speed allows smooth, safe handling to meet the speed requirements of any unique warehouse environment. The stacker's flexibility is further enhanced by its adjustable fork width (200-760mm outer), allowing you to effortlessly handle a diverse range of pallet sizes.

Quick access to key components and wiring via the simplified maintenance layout works to minimise your service time and costs too.

Applications and Ideal Use Cases

Maximise your return on investment by deploying this high-capacity electric stacker in environments where power and precision are paramount.

  • Retail Back-of-House: Efficiently move and stack inventory on high shelving without manual strain or complicated setups.

  • Small to Medium-Sized Warehouses: Perfect for high-density storage aisles where manoeuvrability and lifting height are crucial. The low noise level (< 70 dB(A)) ensures compliance in shared work environments.

  • Manufacturing and Production Lines: Seamlessly feed components or stack finished goods with a 1000 kg rated load, supported by a robust four-wheel design for enhanced stability and safety.

  • Loading Docks: The fast lifting and lowering speeds (up to 100 mms) accelerate throughput, keeping your dock operations flowing smoothly during peak times.
