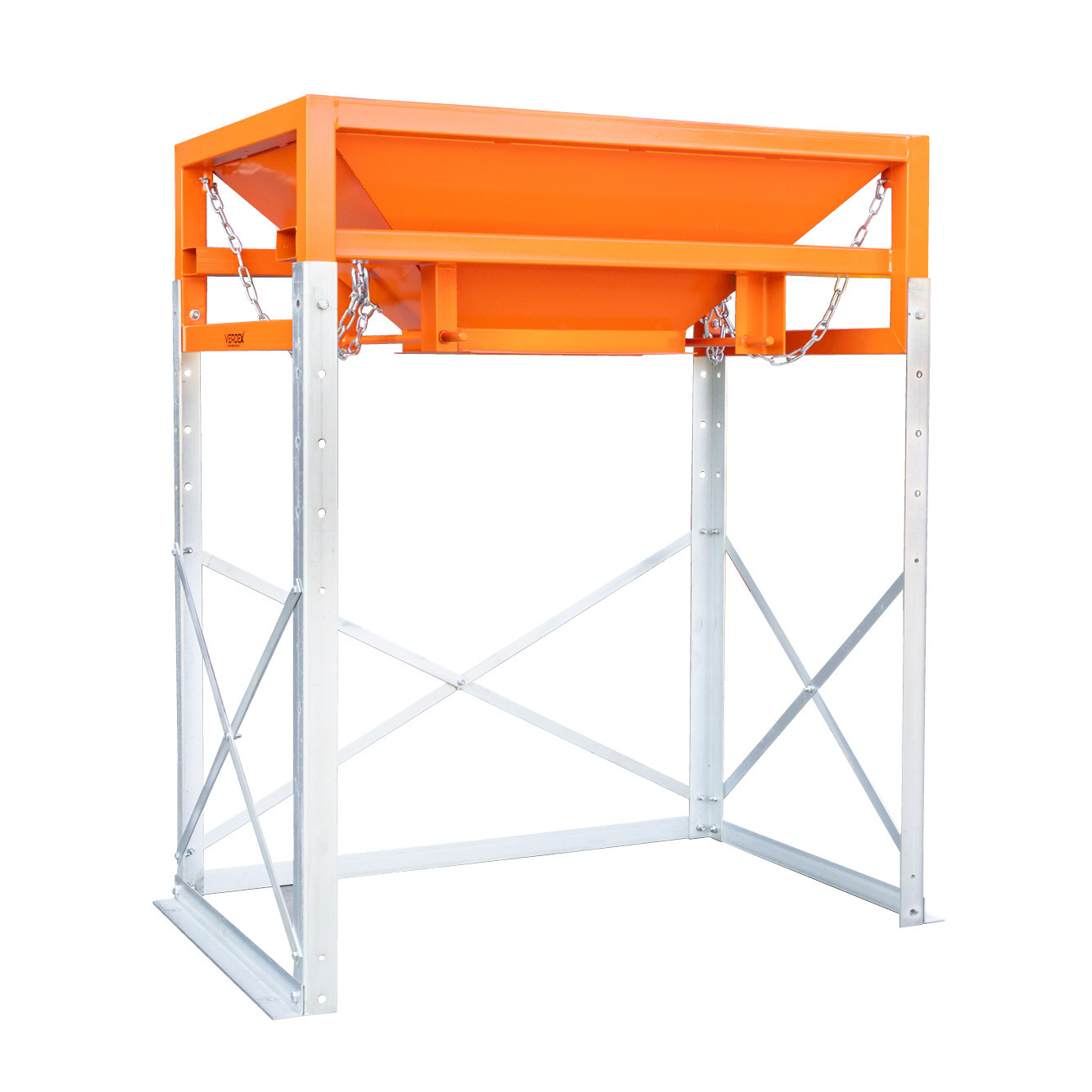

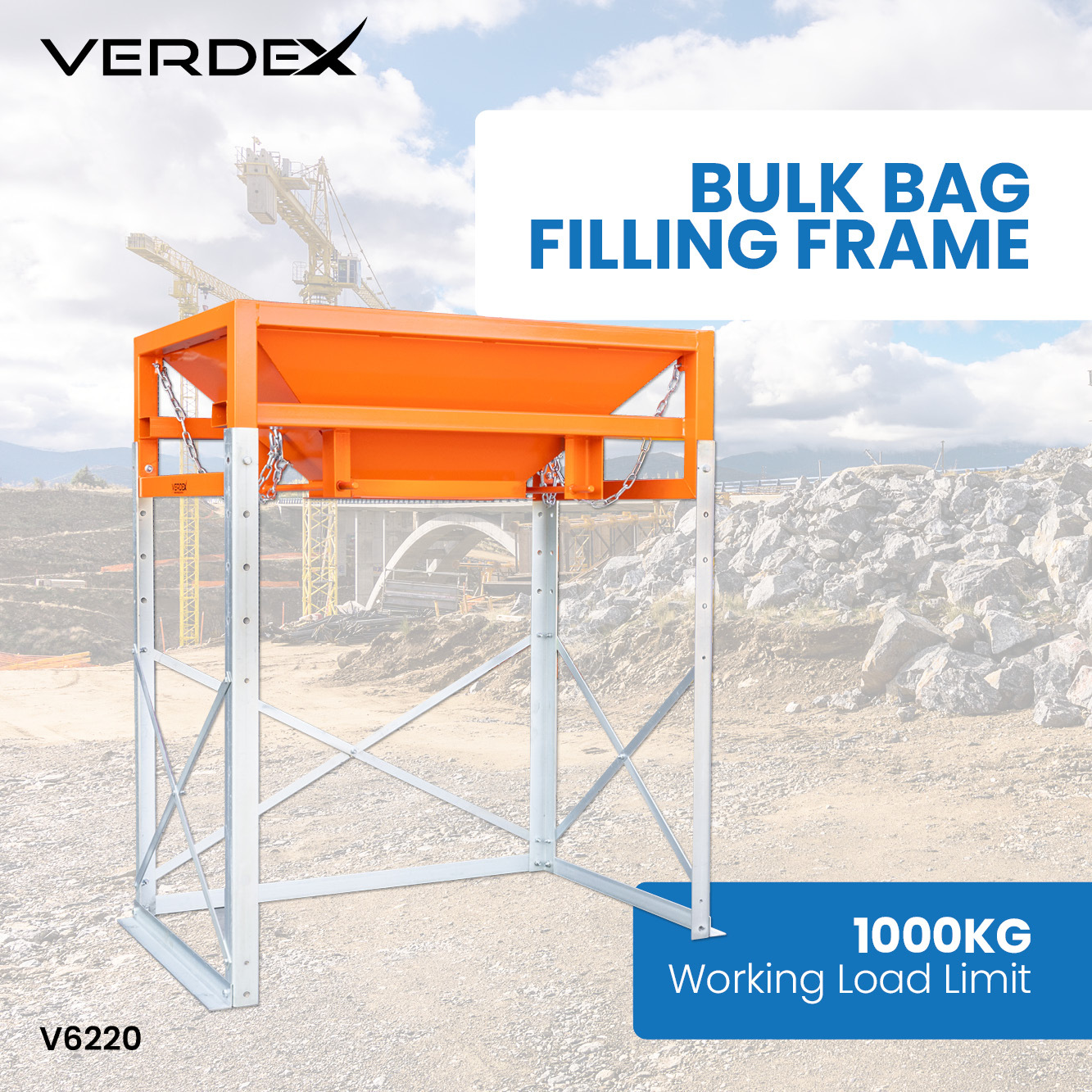

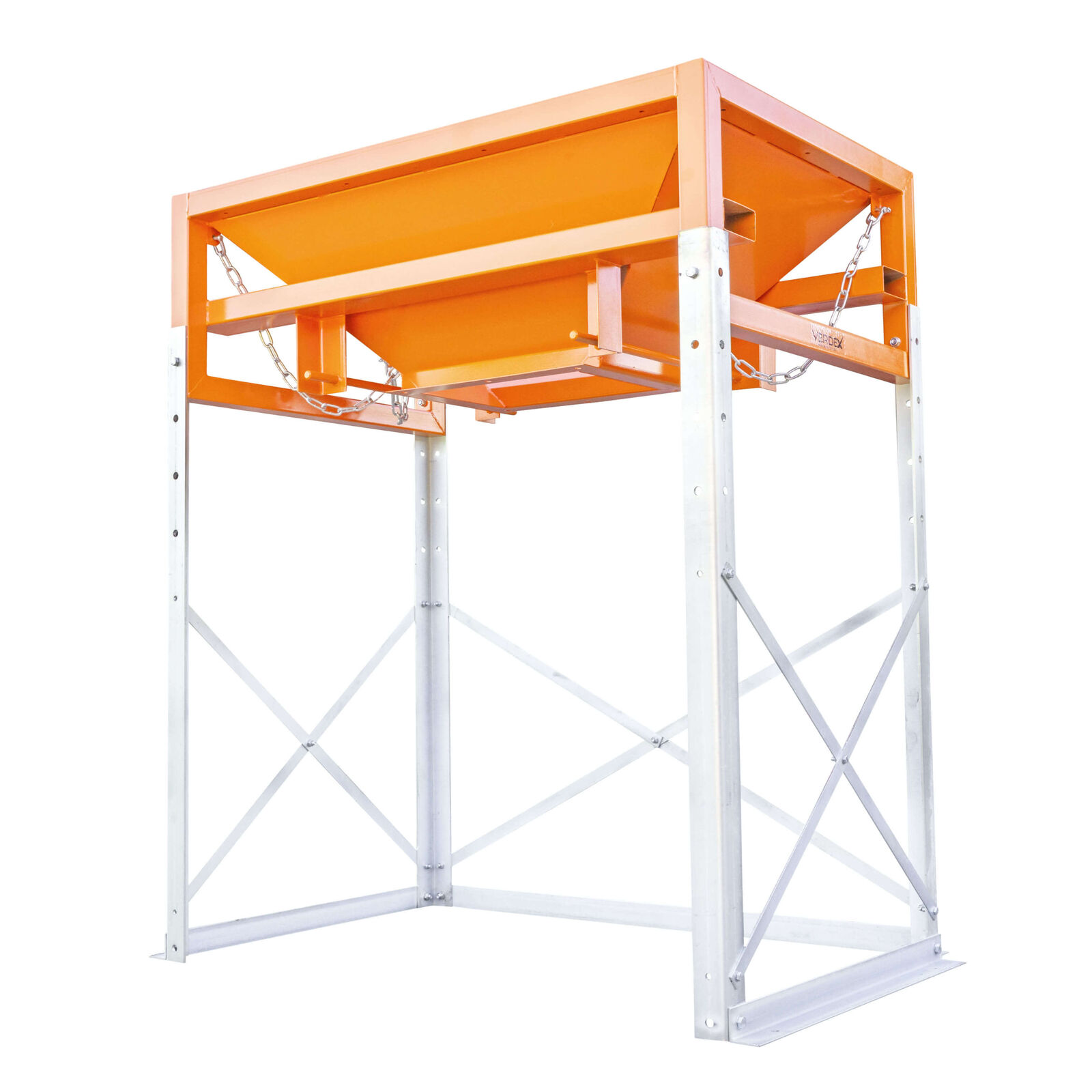

Bulk Bag Filling Frame

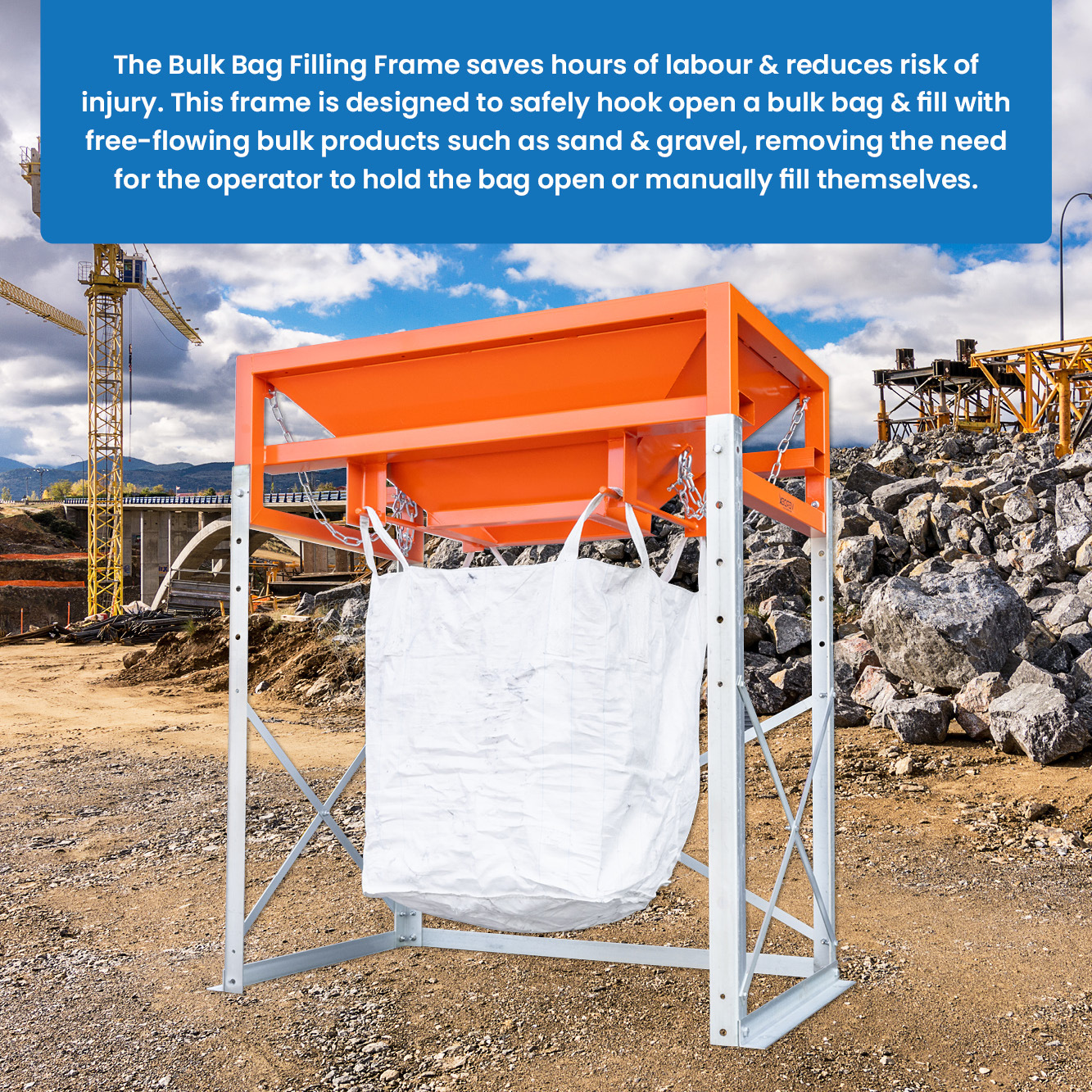

The V6220 BULK BAG FILLING FRAME saves hours of labour and reduces risk of injury. This frame is designed to safely hook open a bulk bag and fill with free-flowing bulk products such as sand and gravel, removing the need for the operator to hold the bag open or manually fill themselves.
SPECIFICATIONS:

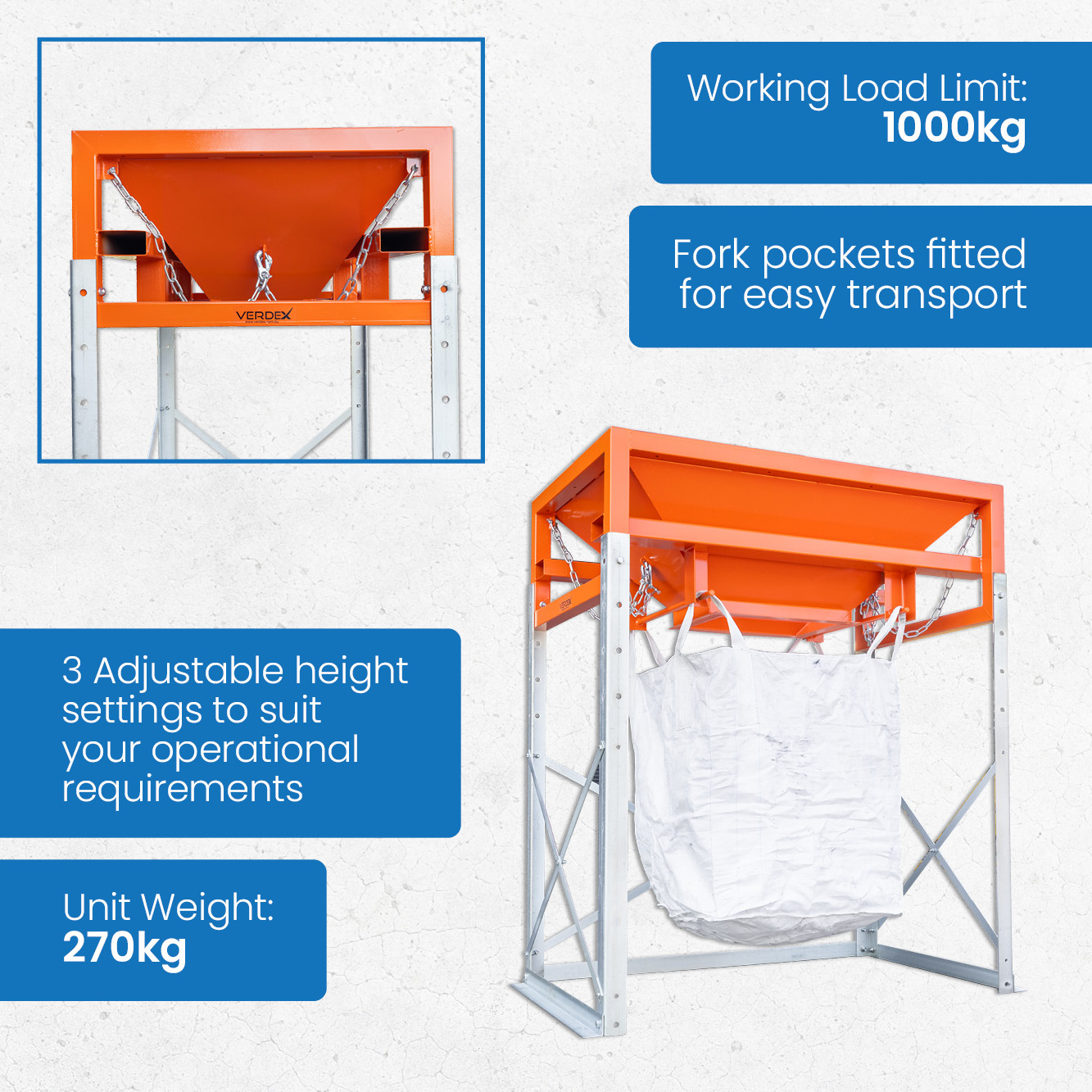

- 4 safety swivel hooks hold bulk bag in position whilst filling
- Adjustable bag restraining chains position bulk bag at correct height

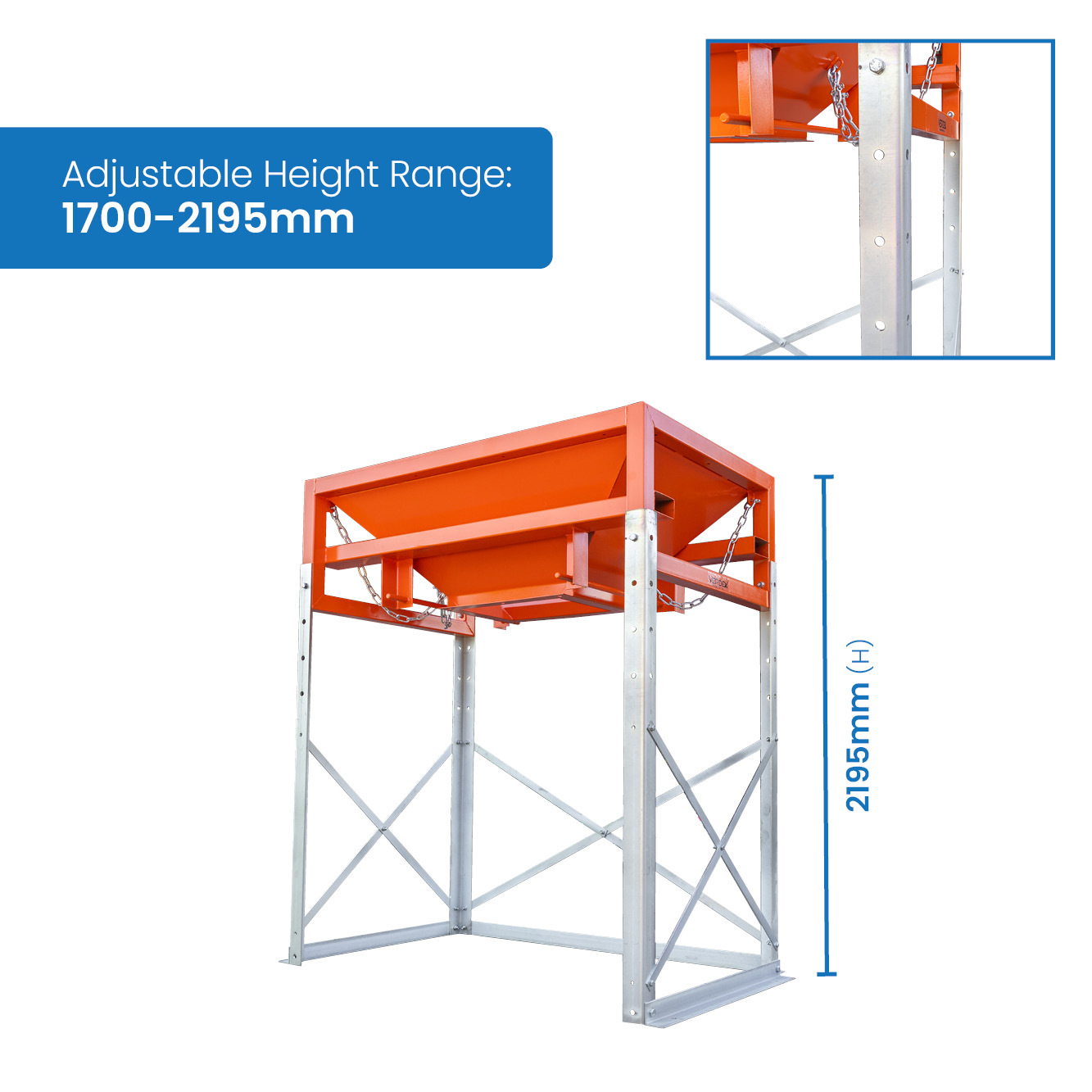

- 3 adjustable height settings to suit your operational requirements
- Fork pockets fitted for easy transport

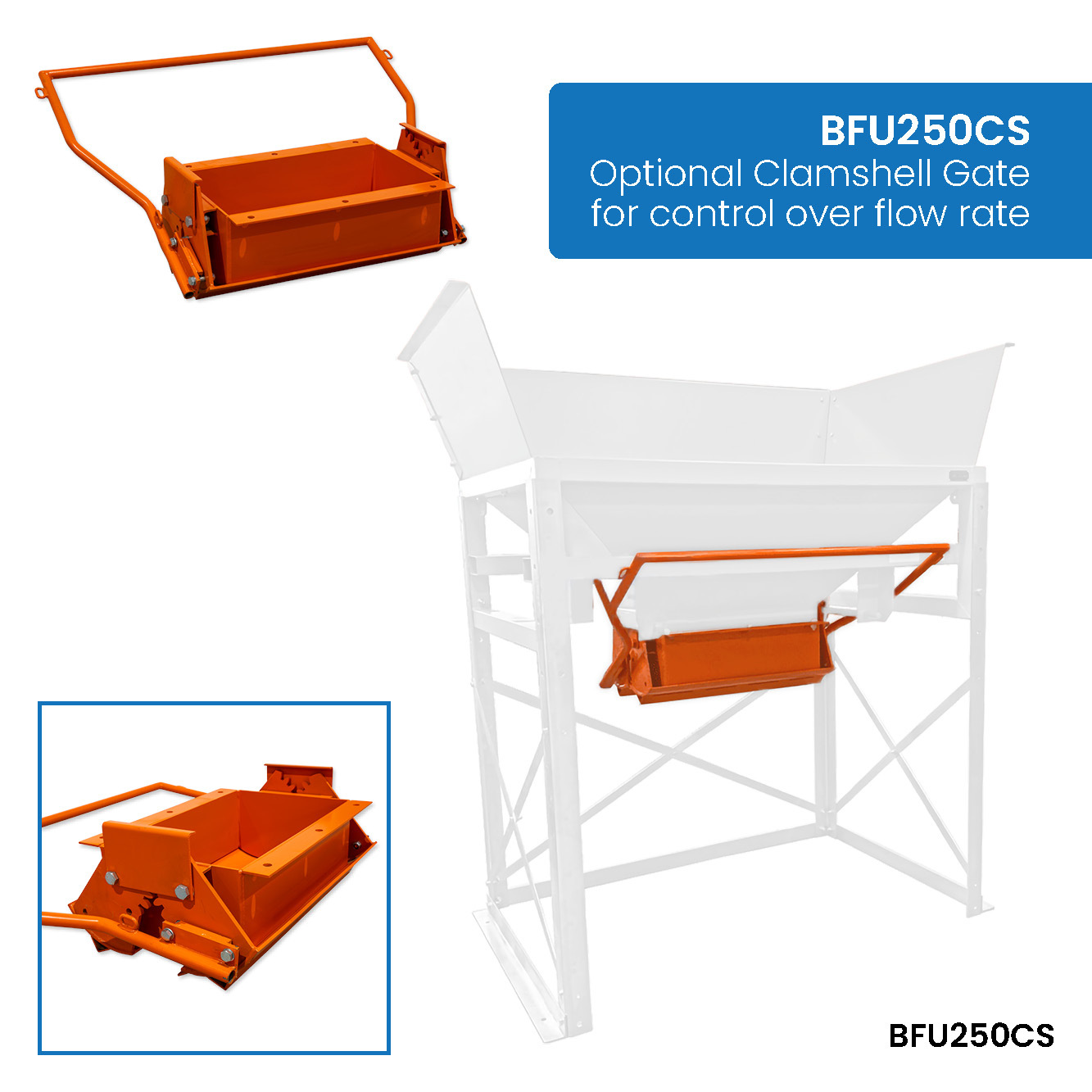

- Optional clamshell gate (BFU250CS) for control over flow rate

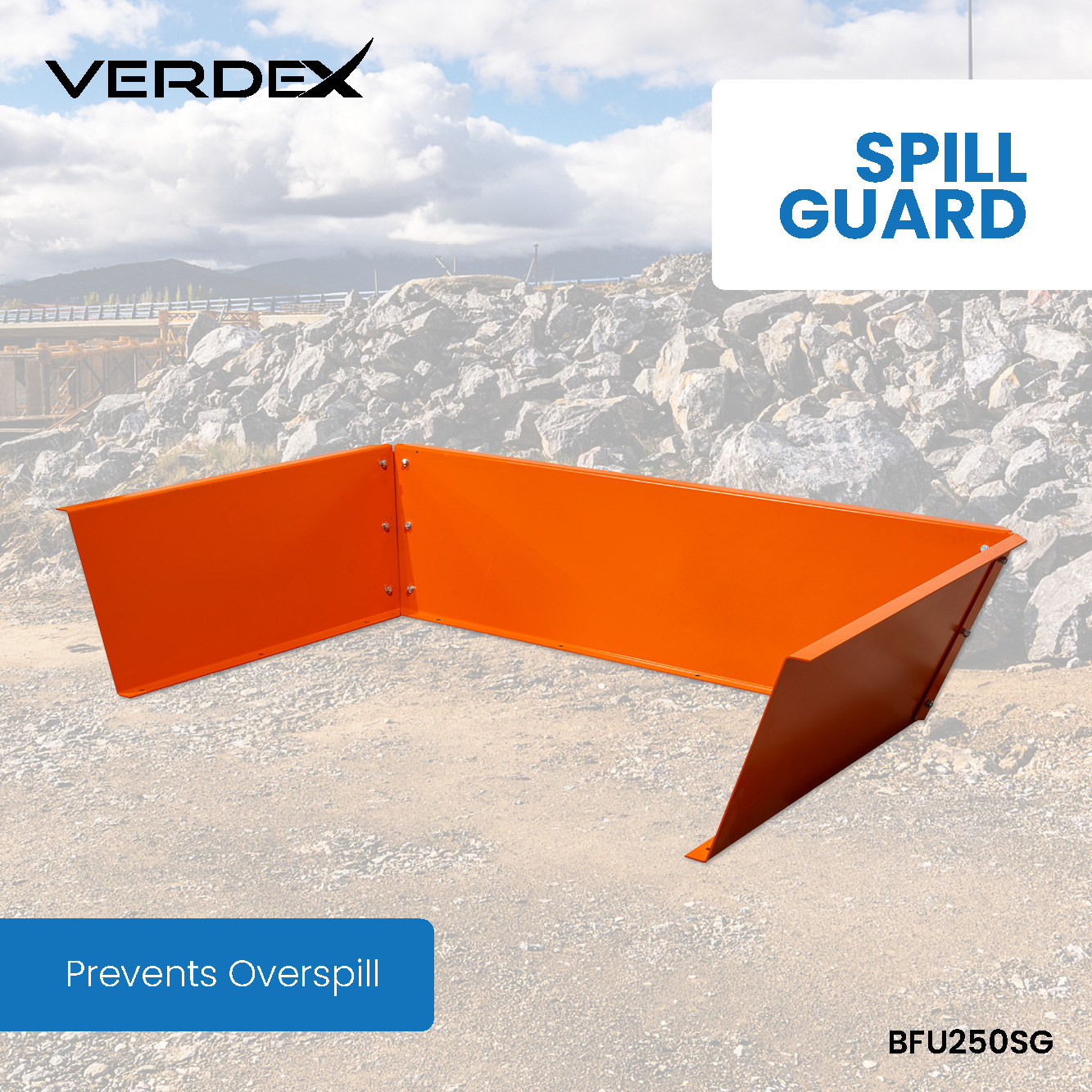

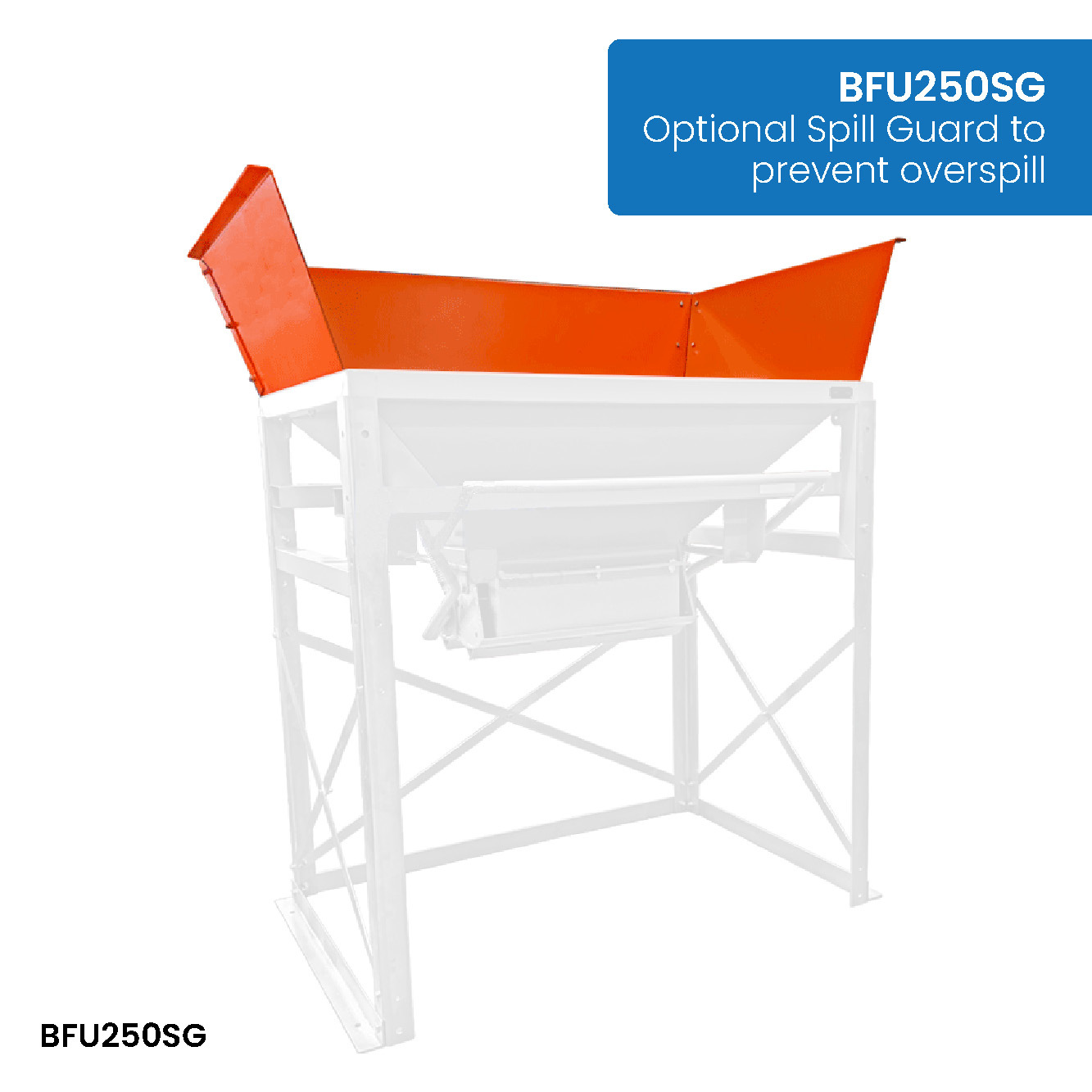

- Optional spill guard (BFU250SG) prevents overspill
- Upper hopper assembly enamel paint finish. Support frame zinc finich
- Working Load Limit (WLL): 1000kg
- Overall Dimensions; 1800 x 1150mm

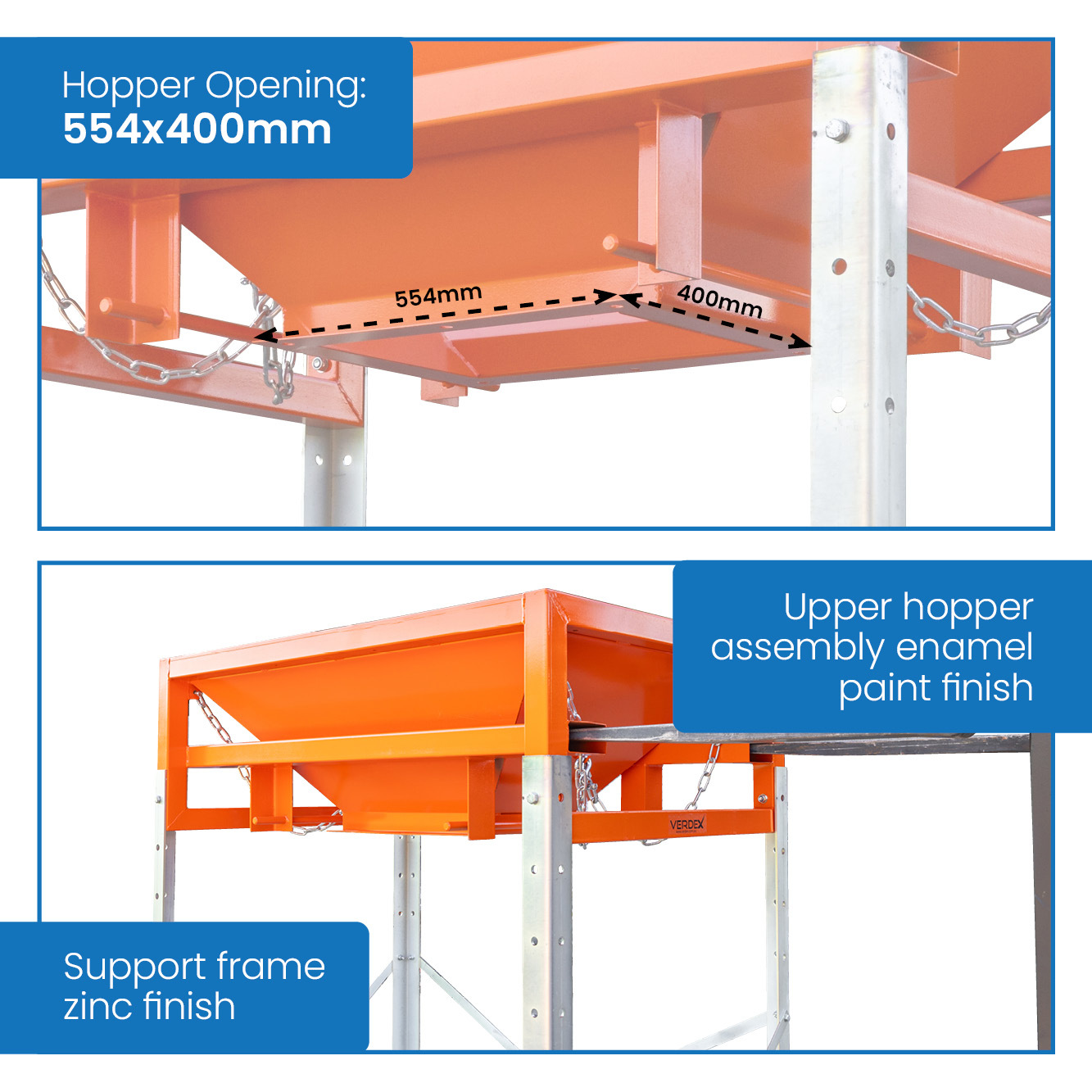

- Hopper Opening: 554 x 400mm
- Unit Weight: 270kg * Unit weight does not include optional clamshell gate or spill guard

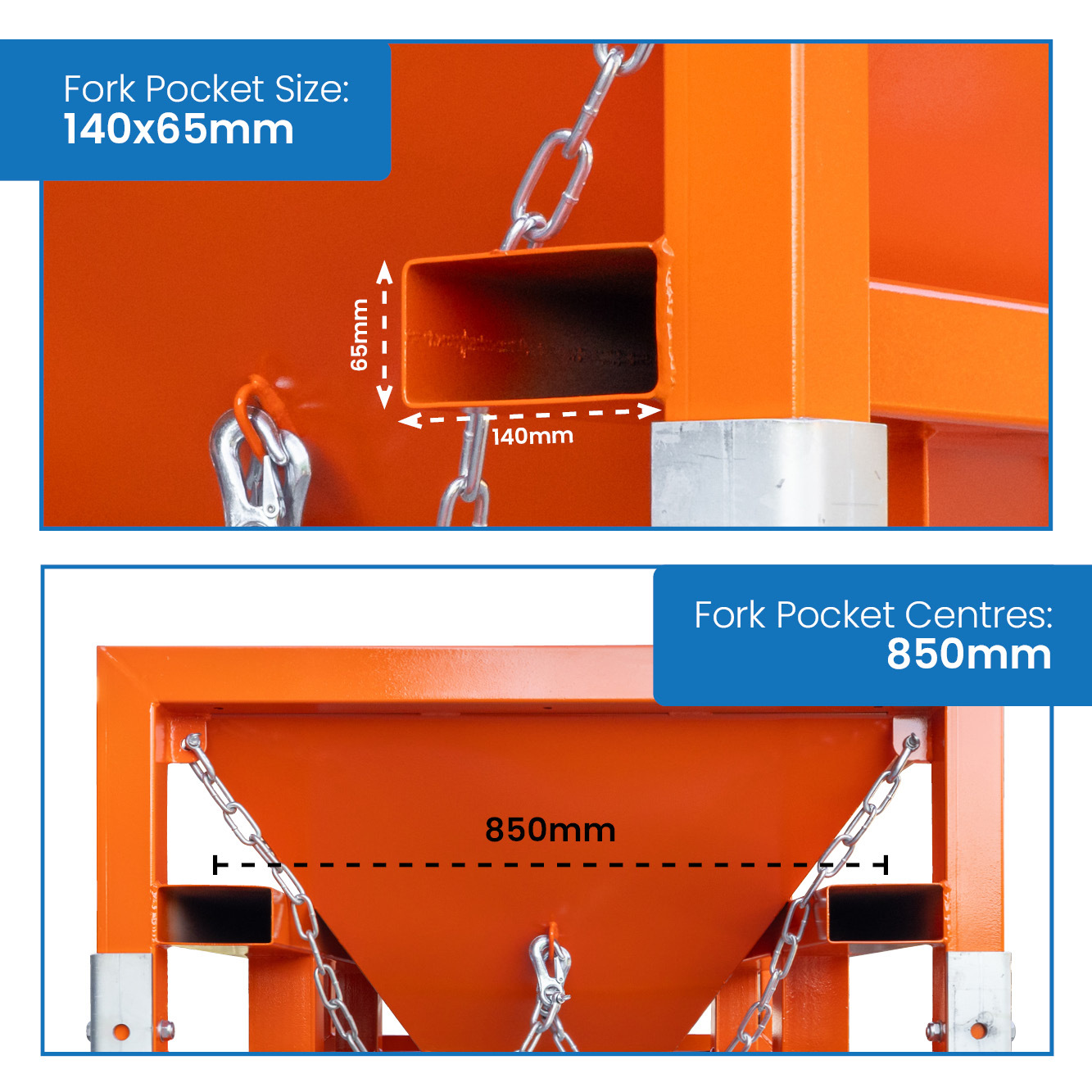

- Fork Pocket Size: 140 x 65mm
- Fork Pocket Centres: 850mm
Scroll left to view details
Image | Description | Code | Price Each | Order Quantity |
Availability
|
---|---|---|---|---|---|
![]() Bulk Bag Filling FrameProduct Code: V6220
|
Bulk Bag Filling Frame |
V6220
View Details |
$2,440.00 max - 2 - min 1 |
-
+
|
|

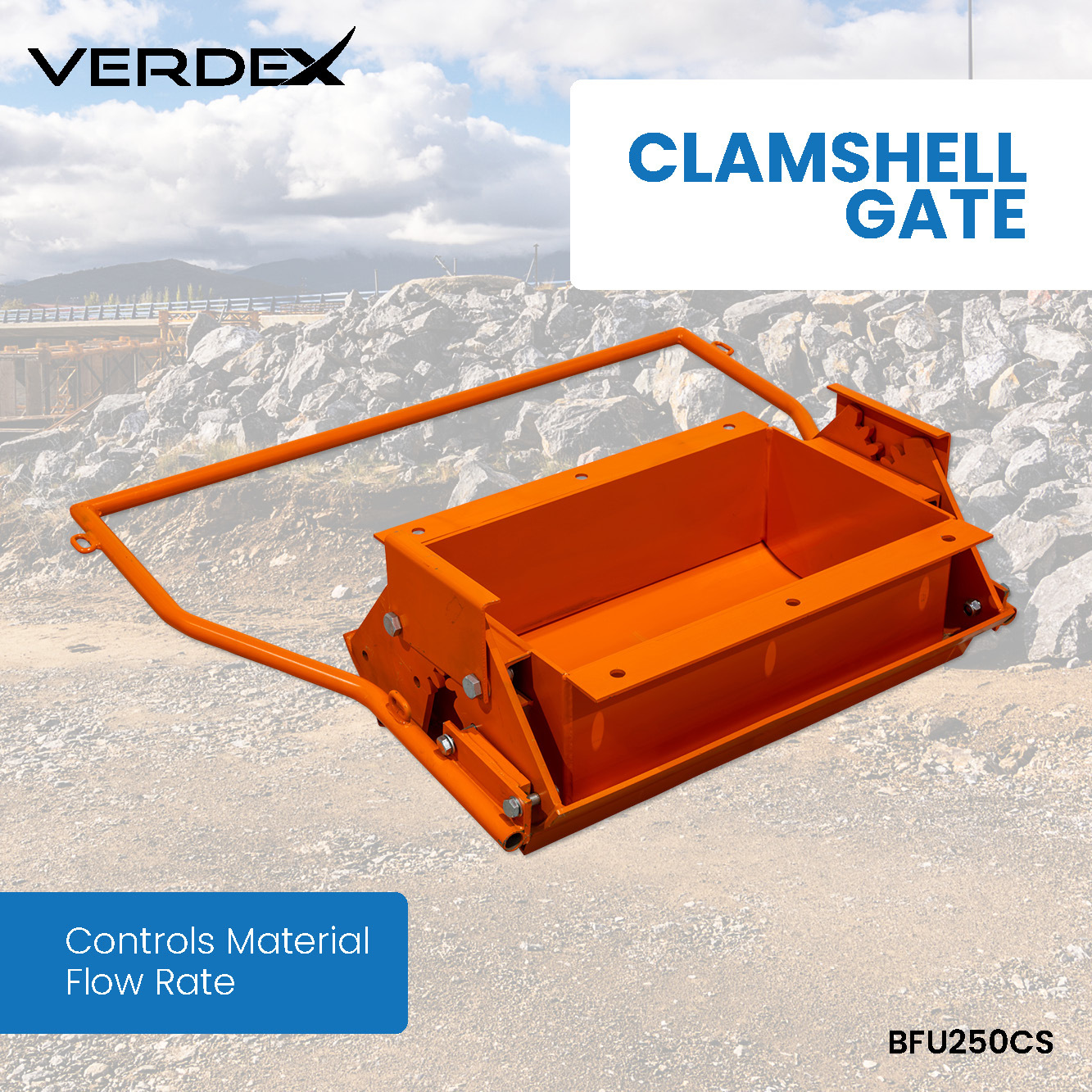

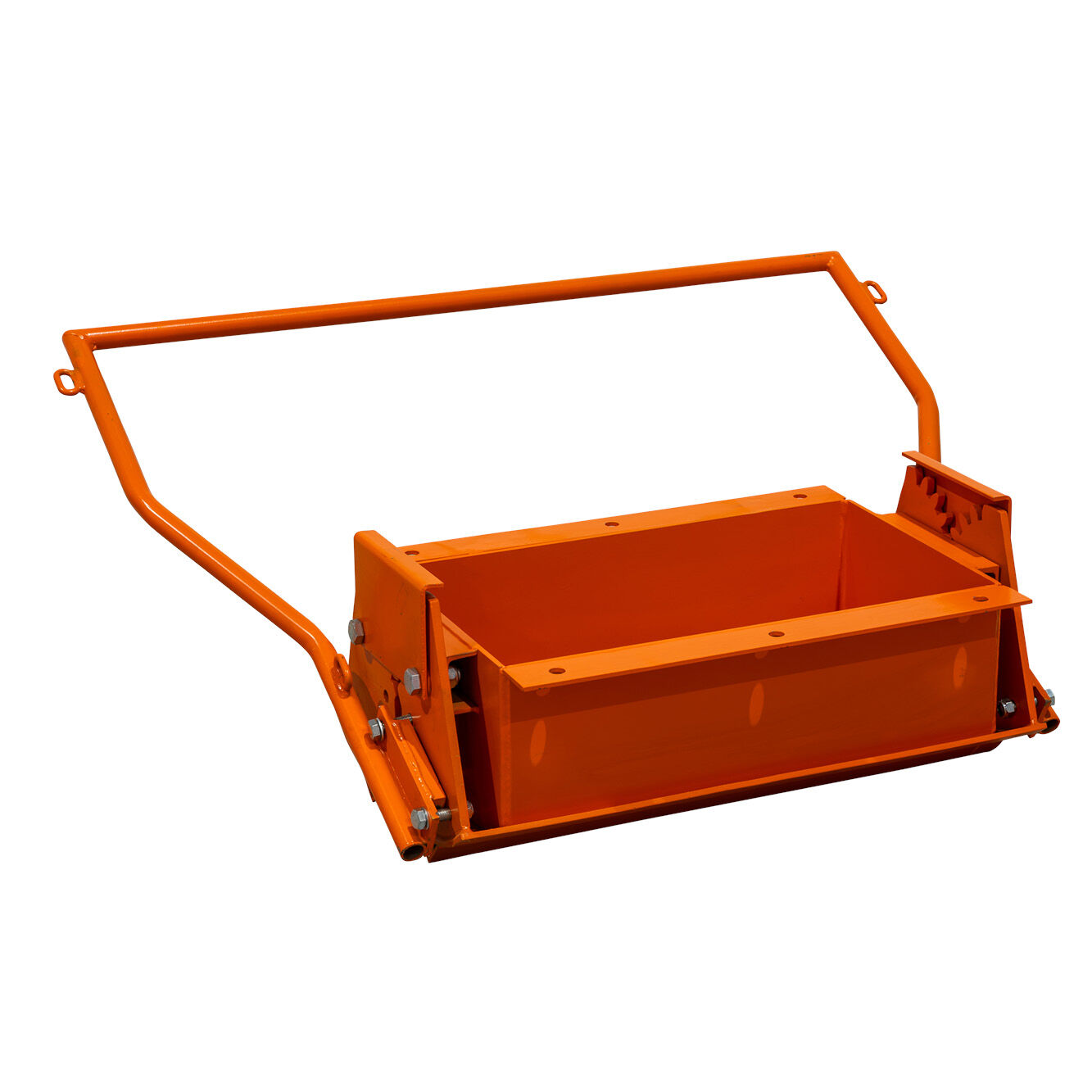

![]() Optional Clamshell GateProduct Code: BFU250CS
|
Optional Clamshell Gate |
BFU250CS
View Details |
$1,340.00 max - 2 - min 1 |
-
+
|
|

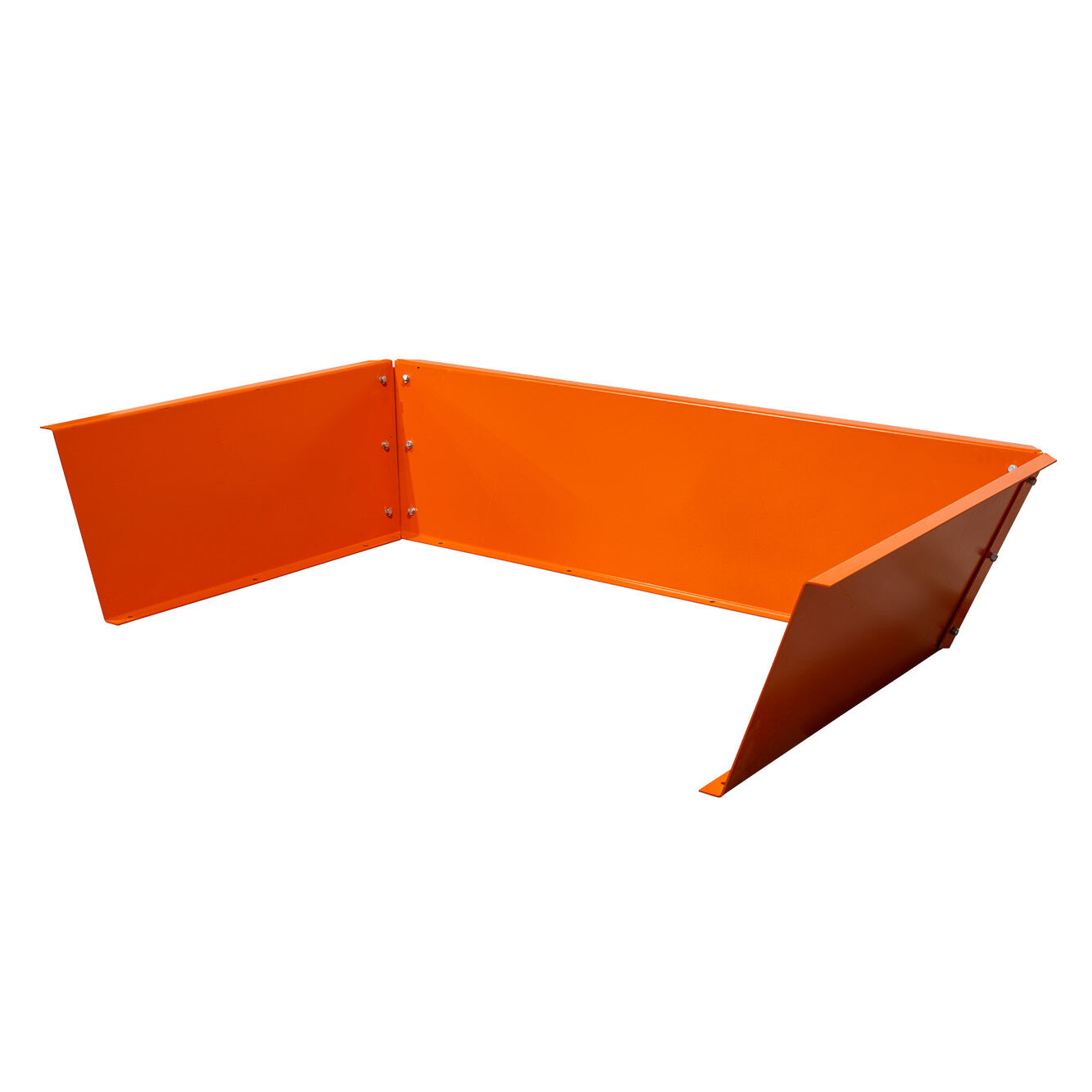

![]() Optional Spill GuardProduct Code: BFU250SG
|
Optional Spill Guard |
BFU250SG
View Details |
$1,250.00 max - 2 - min 1 |
-
+
|
|
Scroll left to view details
Please for pricing on bulk quantity purchases
The V6220 BULK BAG FILLING FRAME saves hours of labour and reduces risk of injury. This frame is designed to safely hook open a bulk bag and fill with free-flowing bulk products such as sand and gravel, removing the need for the operator to hold the bag open or manually fill themselves.
SPECIFICATIONS:
- 4 safety swivel hooks hold bulk bag in position whilst filling
- Adjustable bag restraining chains position bulk bag at correct height
- 3 adjustable height settings to suit your operational requirements
- Fork pockets fitted for easy transport
- Optional clamshell gate (BFU250CS) for control over flow rate
- Optional spill guard (BFU250SG) prevents overspill
- Upper hopper assembly enamel paint finish. Support frame zinc finich
- Working Load Limit (WLL): 1000kg
- Overall Dimensions; 1800 x 1150mm
- Hopper Opening: 554 x 400mm
- Unit Weight: 270kg * Unit weight does not include optional clamshell gate or spill guard
- Fork Pocket Size: 140 x 65mm
- Fork Pocket Centres: 850mm
Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.
Please Note - We are not able to deliver goods to a PO Box address.
Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.
Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.
Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.
Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.
Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.
Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.
International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.
Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.
Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.
Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.
Click here to download a PDF Brochure Click here to fill in the form to request your required document
Bulk Bag Filling Frame
Enhance your bulk material handling with the Bulk Bag Filling Frame, designed to streamline the process of filling large bags with efficiency and precision. Ideal for use in industrial and commercial settings, this sturdy frame ensures a stable and secure platform for bulk bag filling operations. Constructed from heavy-duty steel, the Bulk Bag Filling Frame offers exceptional durability and stability, even under the weight of heavy materials. Its versatile design accommodates various bag sizes and types, allowing for flexible and customisable filling solutions to meet your specific needs. The frame features adjustable straps and a simple locking mechanism, ensuring that bags remain securely in place during the filling process. This reduces spillage and enhances overall operational efficiency. The open design allows for easy access and quick adjustments, making the filling process smooth and hassle-free.
Maximising Efficiency and Safety with the Bulk Bag Filling Frame
In industries where bulk material handling is an essential part of daily operations, efficiency and safety are paramount. The Bulk Bag Filling Frame offers a practical, safe, and effective solution for handling large quantities of bulk materials, such as powders, granules, or other bulk goods. Designed for ease of use, versatility, and durability, this product is ideal for a range of industrial applications, including manufacturing, construction, agriculture, and more.
Key Features of the Bulk Bag Filling Frame
The Bulk Bag Filling Frame is equipped with several key features that enhance both the safety and efficiency of your operations. One of its standout attributes is the 4 safety swivel hooks that securely hold the bulk bag in place while it is being filled. These hooks ensure that the bag remains stable and properly positioned, preventing accidents caused by movement or misalignment during the filling process.
Additionally, the frame features adjustable bag restraining chains that help position the bulk bag at the correct height for optimal filling. These chains are designed to accommodate various bag sizes and weights, ensuring that the filling process is both safe and effective. By adjusting the height to meet operational needs, the Bulk Bag Filling Frame provides flexibility, making it adaptable to a range of applications.
Adjustable Height for Maximum Efficiency
The Bulk Bag Filling Frame is built with 3 adjustable height settings, allowing operators to customise the frame to suit their specific operational requirements. This adjustability ensures that the bag filling process can be done comfortably and ergonomically, reducing the risk of strain or injury. By providing different height options, it accommodates a wide range of users and operational conditions, improving overall productivity.
These adjustable settings make the frame versatile enough to handle a variety of bulk bags, enabling operators to fill different sizes and weights of bags with ease. The frame’s ability to adapt to the work environment helps reduce time spent on setup and allows workers to focus on the task at hand.
Forklift Compatibility for Easy Transport
Another feature that makes the Bulk Bag Filling Frame particularly user-friendly is its fork pockets, which are fitted for easy transport with a forklift. With fork pocket sizes of 140 x 65mm and a fork pocket centre distance of 850mm, the frame can be moved efficiently across the workplace.
This feature eliminates the need for manual handling, reducing the physical strain on workers and improving workplace efficiency. Whether you need to relocate the frame within a warehouse or move it to another part of the facility, forklift compatibility ensures that it can be done quickly and safely.
Optional Features for Enhanced Control and Safety

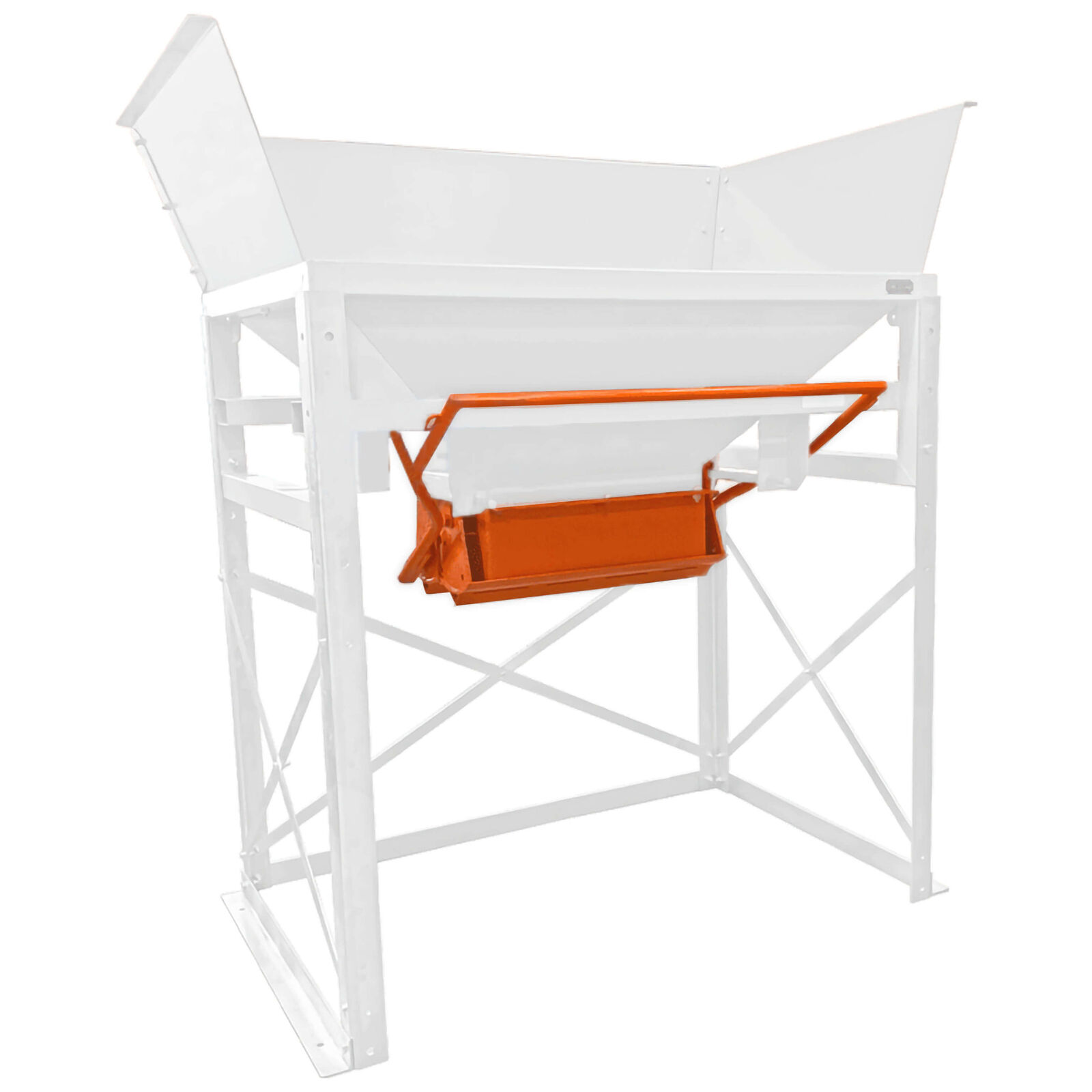

The Bulk Bag Filling Frame also offers optional features to enhance its functionality and safety. The optional clamshell gate (BFU250CS) provides precise control over the flow rate of the materials being filled into the bag. This gate can be adjusted to regulate the speed at which materials are dispensed, offering better control over the filling process and reducing the risk of overfilling or spillage.

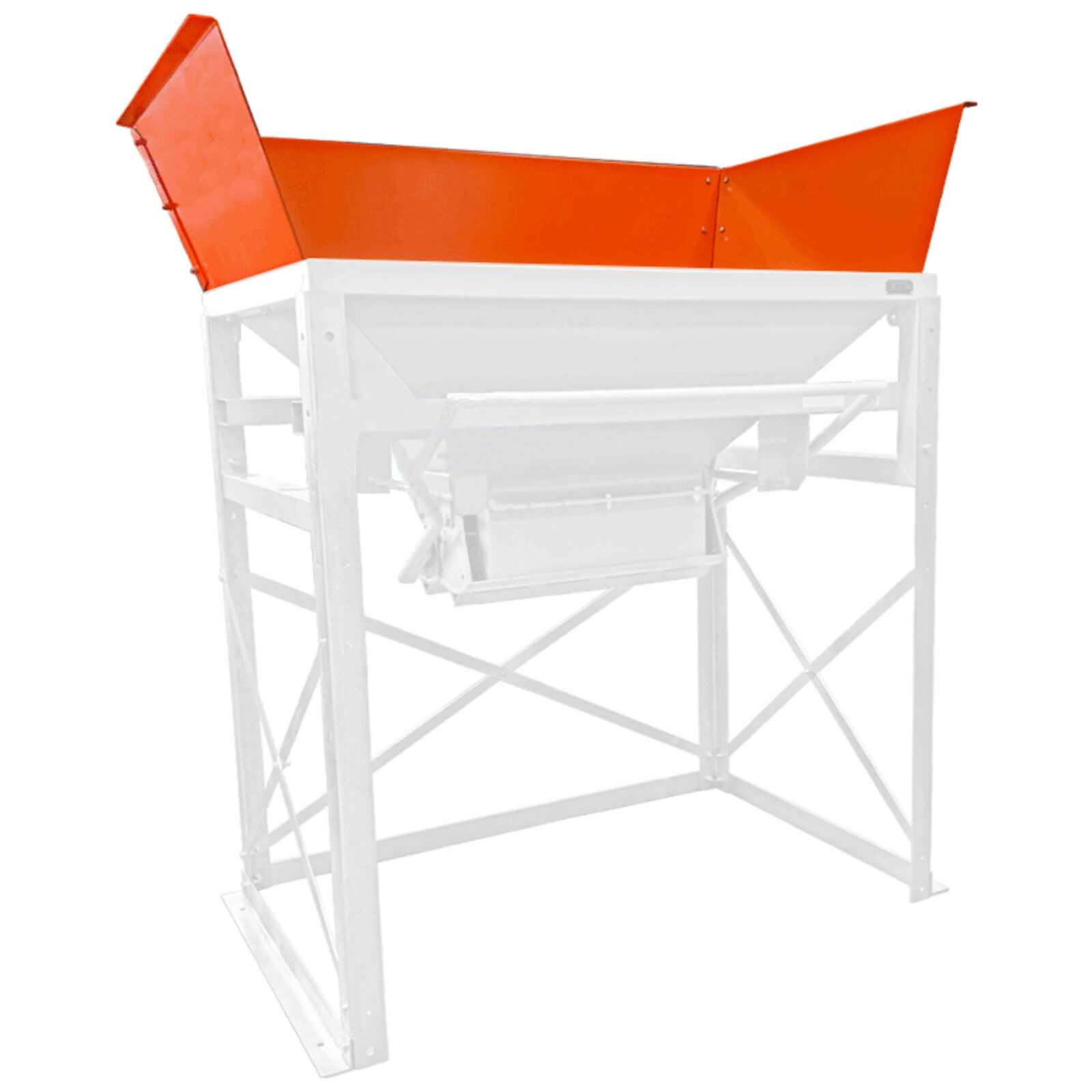

For workplaces that require additional safety measures, the optional spill guard (BFU250SG) can be added to prevent any overspill during the filling process. This guard ensures that the material stays within the bag and does not spill over the edges, helping to maintain a cleaner, safer work environment. The spill guard is especially useful when working with fine powders or granules, which can be prone to spilling if not handled carefully.
Durable Construction for Long-Term Use
The Bulk Bag Filling Frame is built to last. The upper hopper assembly is finished with enamel paint, offering excellent resistance to corrosion and wear. The support frame, which is zinc-coated, ensures added durability and longevity, even in harsh working environments. This robust construction makes the frame suitable for use in a variety of industrial settings where heavy-duty performance is required.
With a working load limit (WLL) of 1000kg, the frame is capable of handling a substantial amount of material, ensuring it can accommodate larger bulk bags without compromising safety. Its overall dimensions of 1800 x 1150mm and a hopper opening size of 554 x 400mm provide ample space for easy loading and unloading of materials.
