Collapsible Tyre Stillage Cage


$1,255.00 Price excludes GST

SKU

V7590

Availability:

In StockIn Stock

Subtotal:

$1,255.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

The Collapsible Tyre Stillage is suitable for high-volume tyre inventory and bulk warehouse storage. Built from durable steel with a zinc plated finish, this stillage offers a 1000kg capacity and ensures long-term performance. It maximises floor space by folding down to a collapsed height of 310mm.

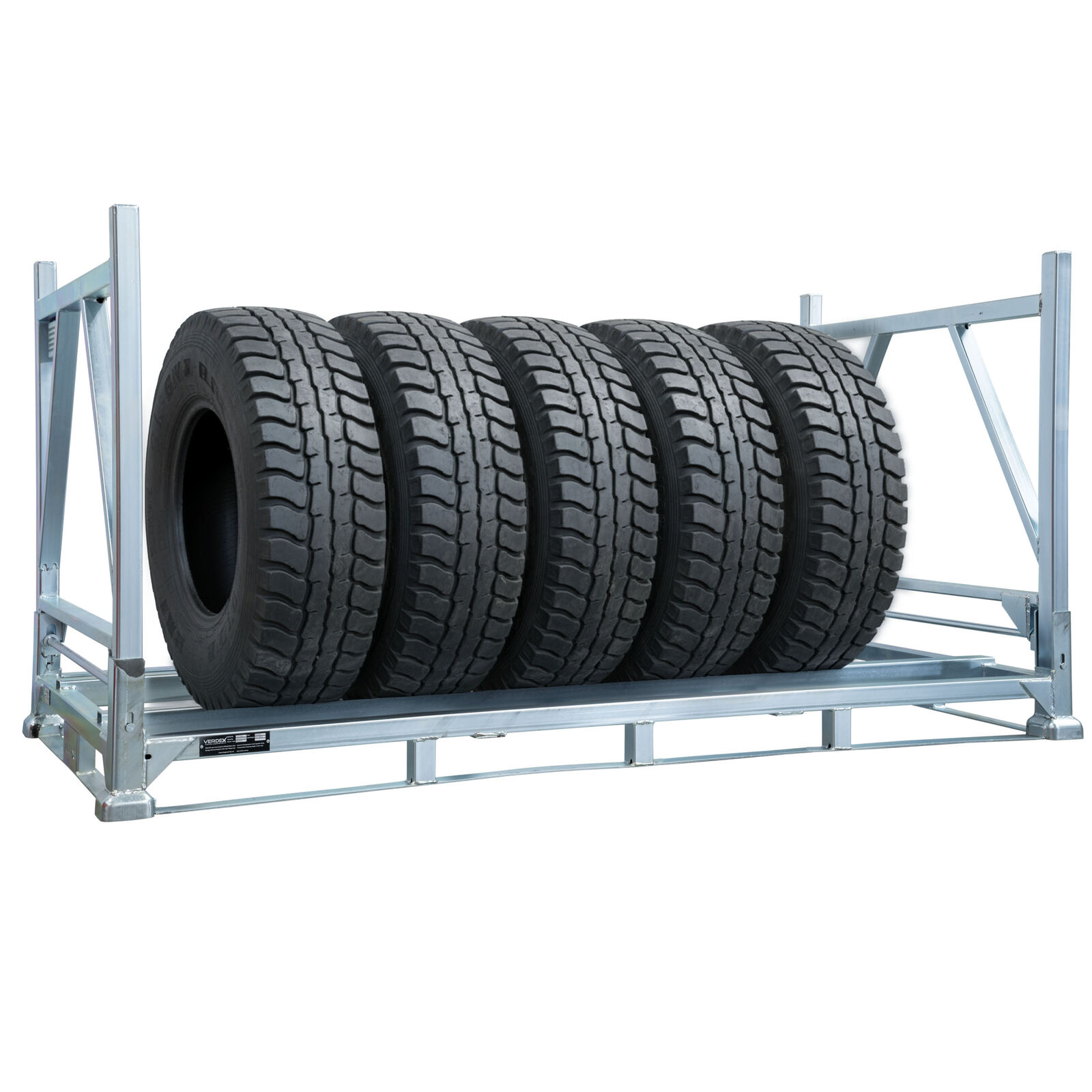

  • Fits a wide range of common passenger tyres with diameters between 400mm and 900mm
  • Enables safe handling during transport when stacked 2 high (fully loaded) (on a truck / dynamic loading)
  • Maximises storage efficiency when stacked 6 high (fully loaded) (static)

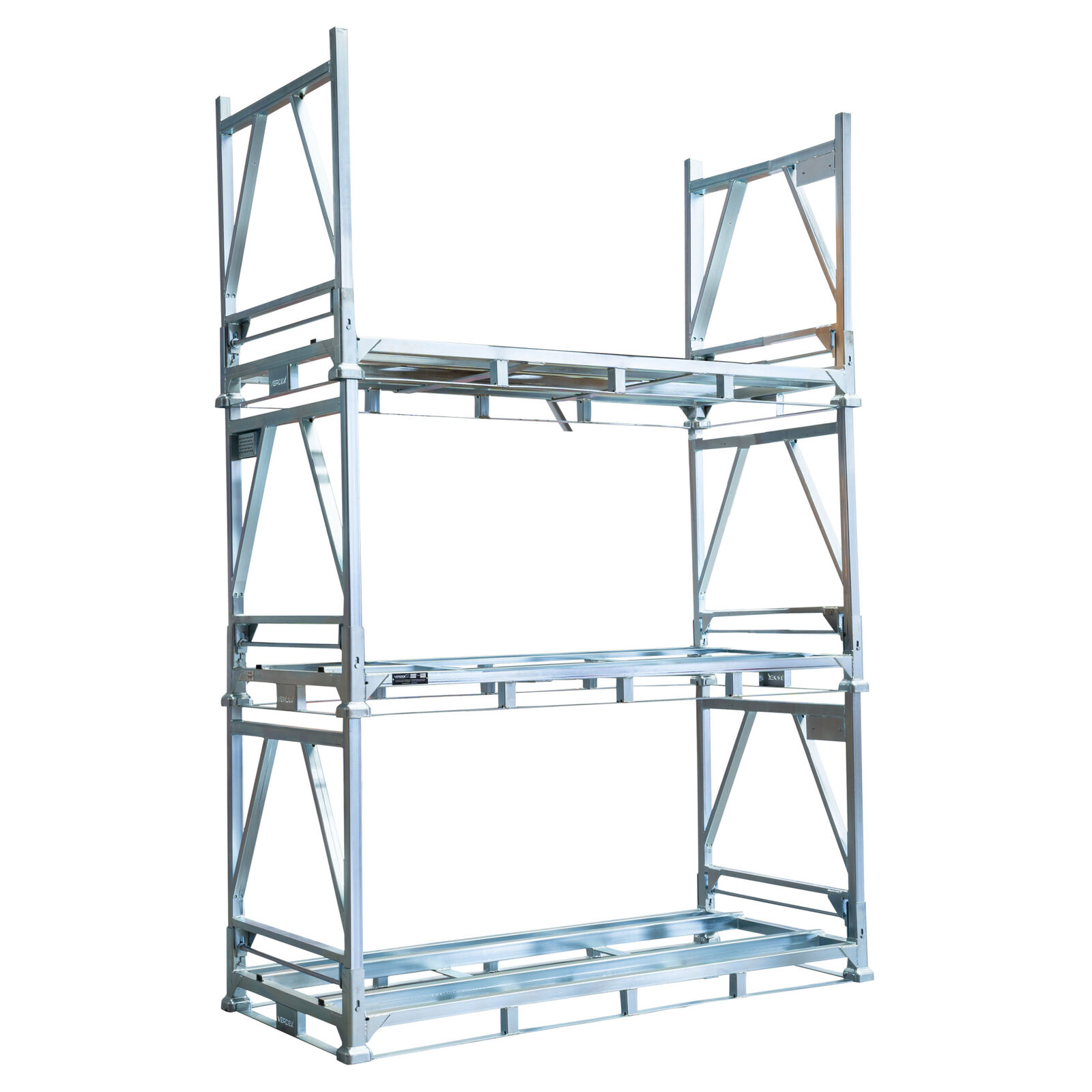

  • Allows up to 20 collapsed units to be stacked vertically, freeing up valuable floor space

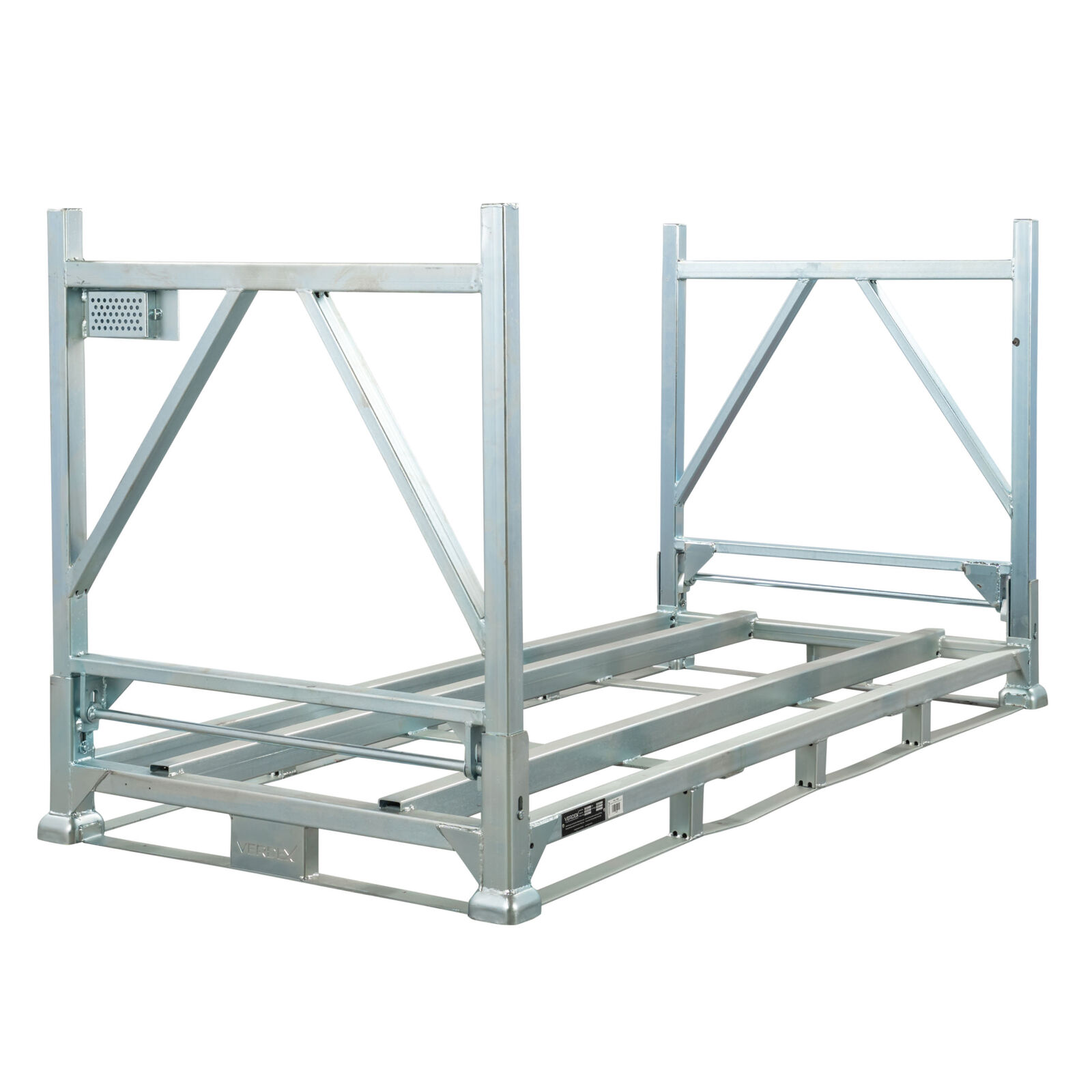

  • Supplied with a GPS tracking enclosure

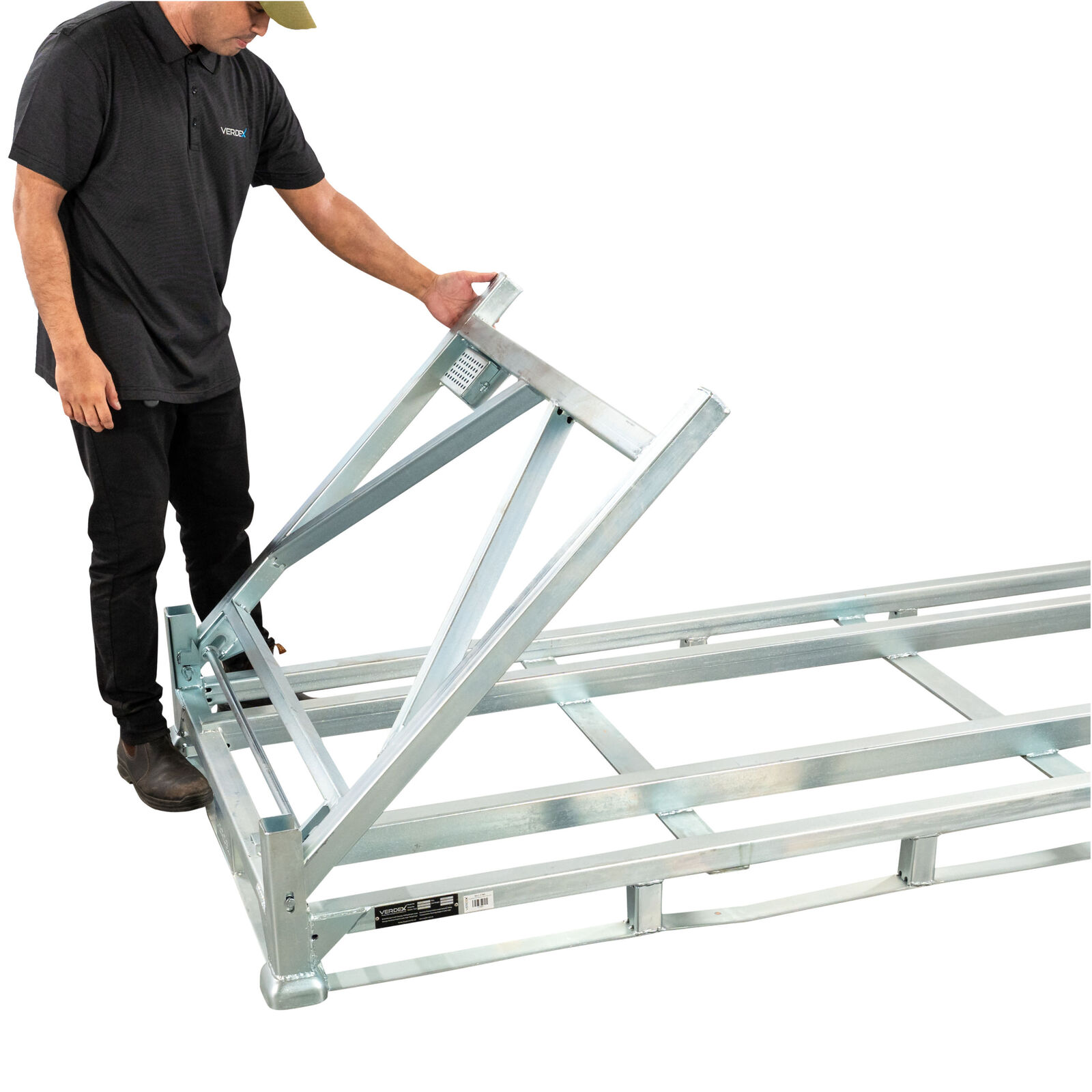

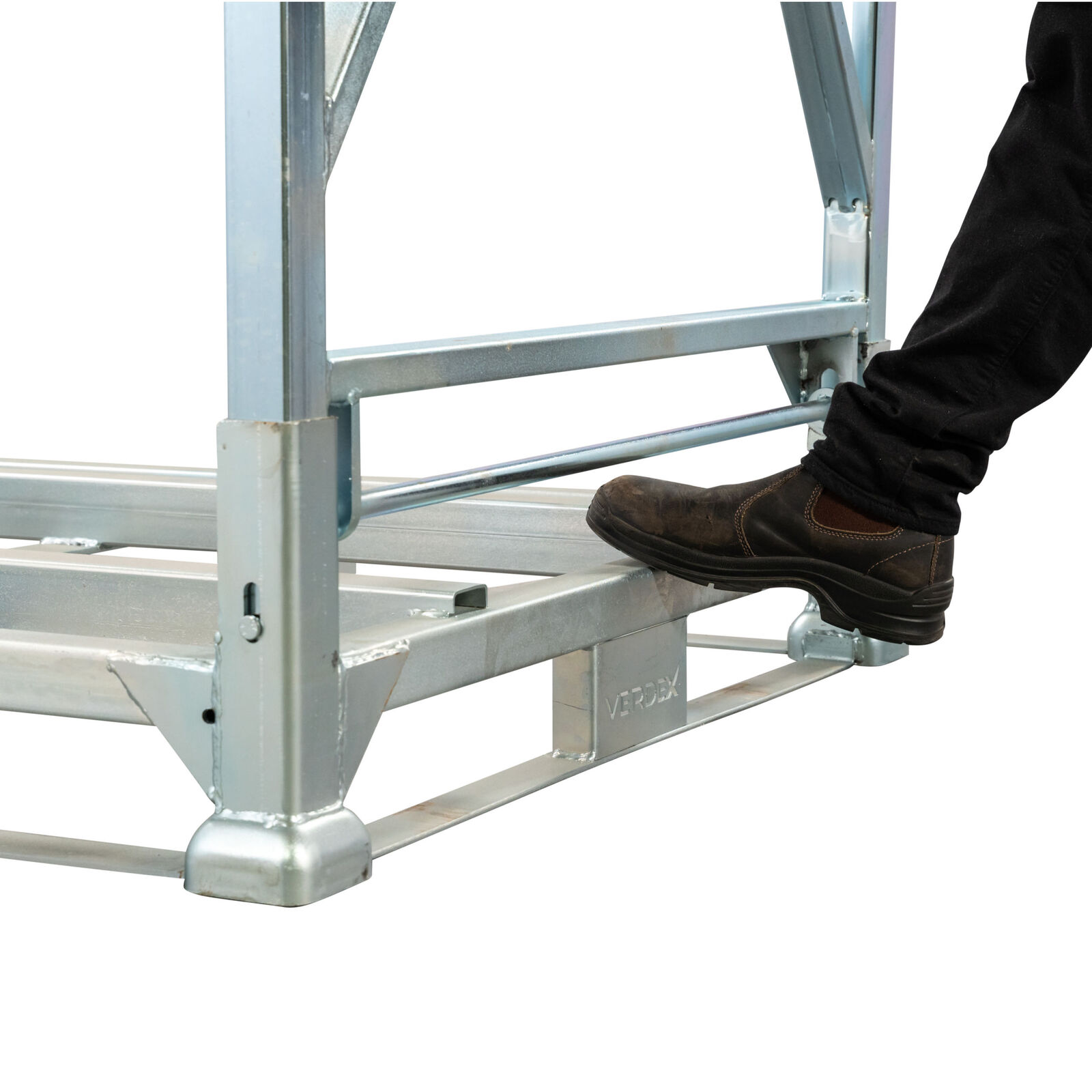

  • Foot-lift Locking Bar allows easy folding of the stillage side without bending
  • Material: Steel
  • Finish: Zinc Galvanised
  • Load Capacity: 1000kg
  • Base Floor Size: 2200x1050mm

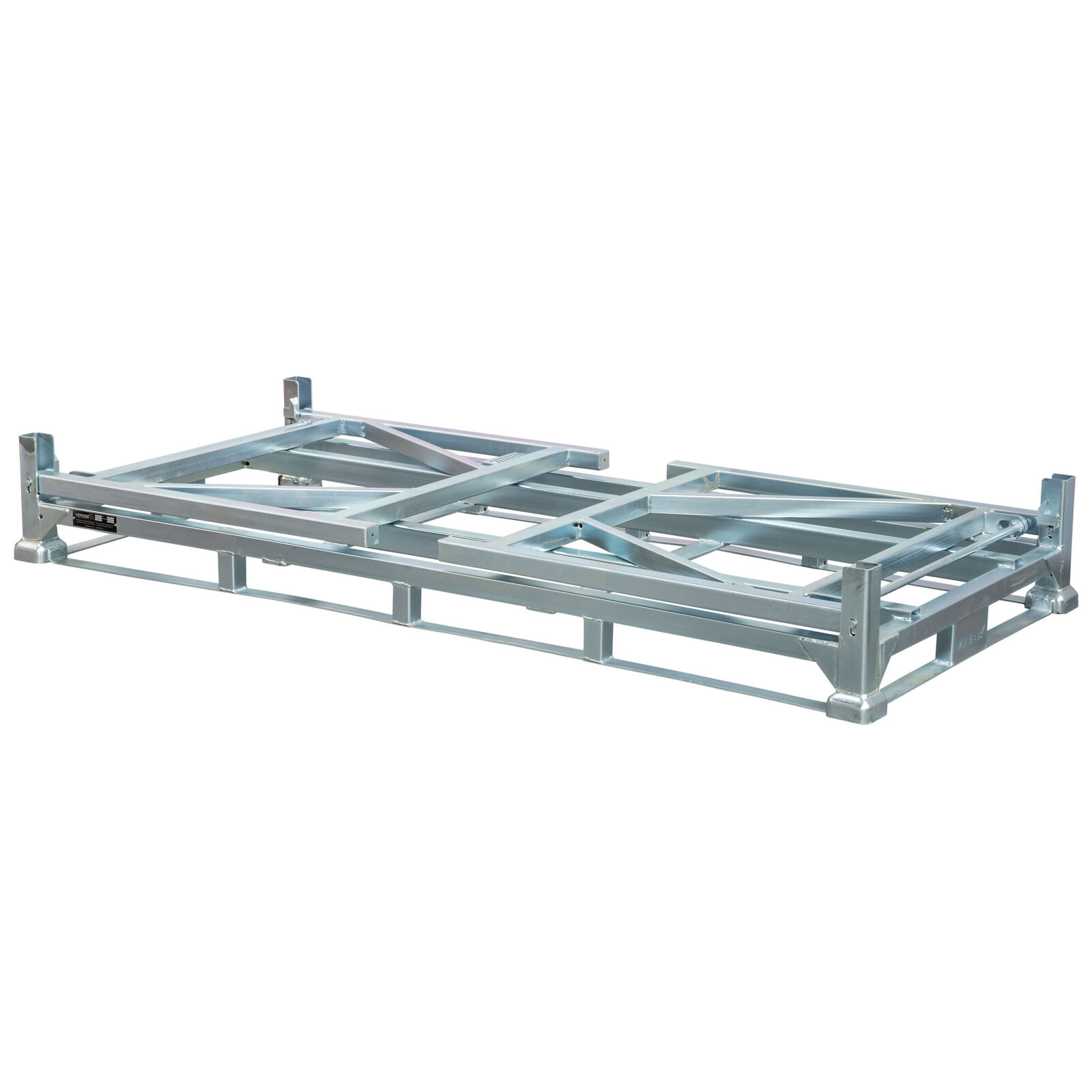

  • Collapsed Height: 310mm
  • Overall Dimensions (LxWxH): 2350x1100x1200mm
  • Unit Weight: 123kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Collapsible Tyre Stillage Cage: Maximise Your Tyre Storage Efficiency in Australia

The Collapsible Tyre Stillage Cage is the ultimate solution for high-volume tyre inventory and bulk warehouse storage across Australian industrial and commercial operations. Constructed from durable zinc galvanised steel and boasting a massive 1000kg load capacity, this stillage is engineered for long-term, high-performance use. Its intelligent design allows it to fold down to a compact 310mm collapsed height, instantly maximising your valuable floor space when not in use.

Key Features and Benefits of the Collapsible Tyre Stillage

This robust storage cage is designed for safety and efficiency, accommodating a wide range of common passenger tyre diameters (400mm to 900mm). It ensures safe handling and transport, allowing for dynamic stacking up to two units high when fully loaded on a truck. For static warehouse storage, you can achieve incredible spatial efficiency by stacking up to six fully loaded units high. When empty, up to 20 collapsed units can be stacked vertically. Enhanced features include a Foot-lift Locking Bar for effortless, back-saving folding and a dedicated GPS tracking enclosure for seamless asset management across large fleets or multiple sites.

Applications and Ideal Use Cases for the Tyre Stillage Cage

The versatility and durability of the Collapsible Tyre Stillage Cage make it essential for various large-scale industrial and commercial sectors in Australia.

  • Tyre Wholesalers/Distributors: Efficiently manage vast inventories of passenger tyres for distribution across the nation.

  • Large Vehicle Fleet Operators: Provide organised, safe storage for replacement tyres in depots (e.g., major bus or delivery company depots).

  • Logistics and 3PL Providers: Offer flexible, high-density storage solutions for clients with seasonal or fluctuating tyre inventory needs.

  • Mining Operations: Store heavy-duty vehicle passenger tyres securely at remote sites, with the tracking enclosure aiding in site-to-site asset control.

  • Automotive Manufacturers/Assembly Plants: Organise and feed production lines with tyres, optimising the handling of components.

Ready to Optimise Your Tyre Storage?

Transform your warehouse logistics and free up valuable floor space with the heavy-duty Collapsible Tyre Stillage Cage. Contact our industrial storage specialists today to discuss your specific high-volume requirements and secure your quote.
