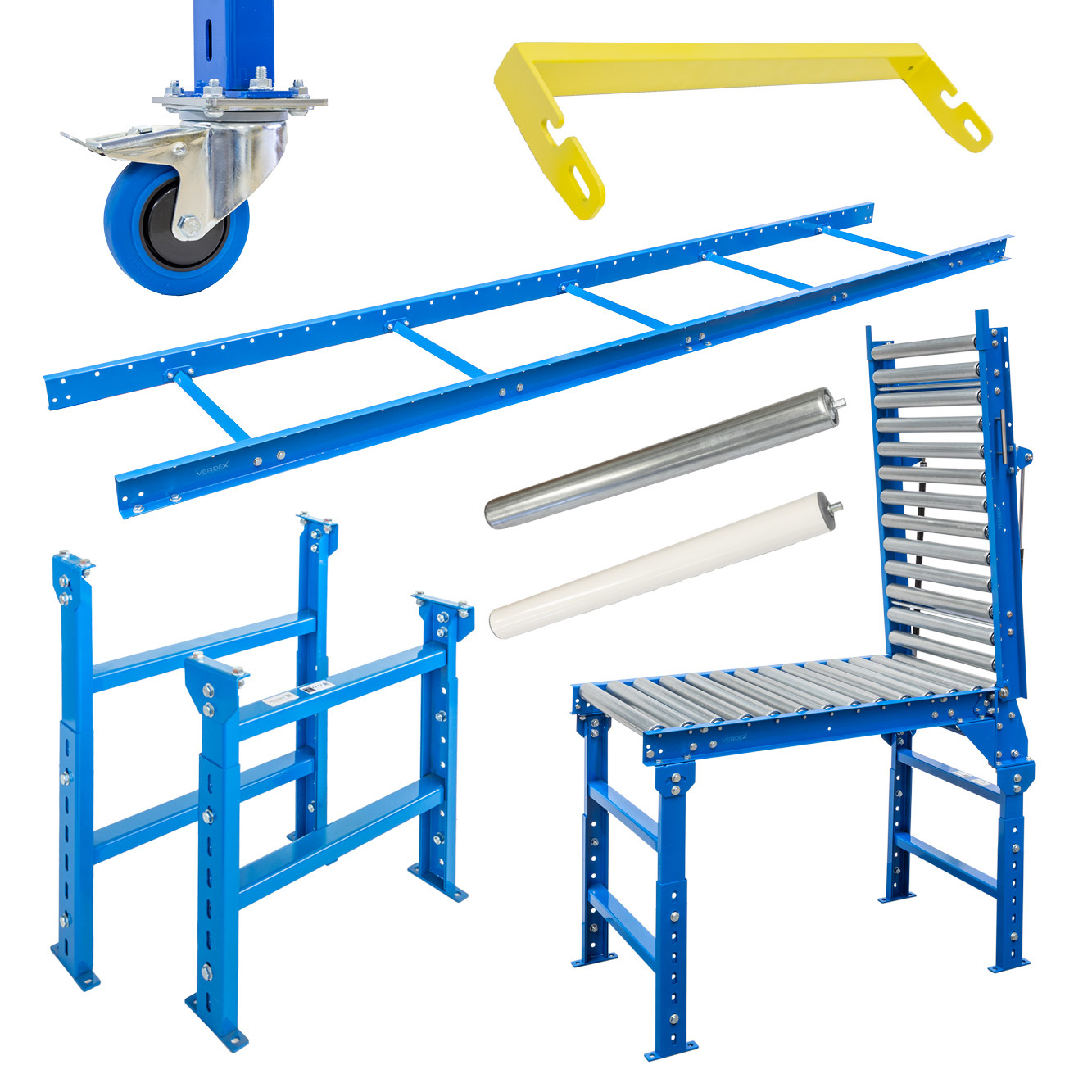

Build your own Conveyor System


Verdex’s full range of gravity conveyors provides the simple solution for moving all types of products in industries such as
transport, distribution centres, container unloading & similar. Roller conveyors are one of the most common types of conveyors applied in conveying flat bottom type products such as cases, boxes, pallets & trays. These kind of conveyors improve efficiency distribution & line links between different stages of production of your product.

Buy complete kits here

V3240 Conveyor Frame (Rollers Sold Separately)

  • Power coated Blue
  • Overall Size: 3000x660x80mm
  • 40 Rollers = 75mm pitch between roller
  • 20 Rollers = 150mm pitch between roller
  • Frame Capacity: 200kgs / mtr
  • Unit Weight: 19kg



V3140 600mm Conveyor Stand

  • Power coated Blue
  • Overall Size: 660x125x1015mm
  • Adjustable Height: 805-1105mm (includes frame)
  • Unit Weight: 8.5kg



V3142 Galvanised Steel Rollers to suit 600mm Wide Conveyors

  • Overall Size: 552x48mm
  • Roller Size: 527x48mm
  • Shaft Size: 10x8mm
  • Spring Loaded Shaft
  • Pre-Galvanized Tube 1.65mm Thick
  • Capacity: 100kg / Roller
  • 20 per carton
  • Unit Weight: 1.35kg



V3143  Poly Rollers to suit 600mm Wide Conveyors

  • Overall Size: 552x48mm
  • Roller Size: 527x48mm
  • Shaft Size: 10x8mm
  • Spring Loaded Shaft
  • Capacity: 20kg / Roller
  • 20 per carton
  • Unit Weight: 0.98kg



V3102 Castor Kit to suit Conveyors

  • Unit Weight: 2kg
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

Build your own Conveyor System


Verdex’s full range of gravity conveyors provides the simple solution for moving all types of products in industries such as
transport, distribution centres, container unloading & similar. Roller conveyors are one of the most common types of conveyors applied in conveying flat bottom type products such as cases, boxes, pallets & trays. These kind of conveyors improve efficiency distribution & line links between different stages of production of your product.

Buy complete kits here

V3240 Conveyor Frame (Rollers Sold Separately)

  • Power coated Blue
  • Overall Size: 3000x660x80mm
  • 40 Rollers = 75mm pitch between roller
  • 20 Rollers = 150mm pitch between roller
  • Frame Capacity: 200kgs / mtr
  • Unit Weight: 19kg



V3140 600mm Conveyor Stand

  • Power coated Blue
  • Overall Size: 660x125x1015mm
  • Adjustable Height: 805-1105mm (includes frame)
  • Unit Weight: 8.5kg



V3142 Galvanised Steel Rollers to suit 600mm Wide Conveyors

  • Overall Size: 552x48mm
  • Roller Size: 527x48mm
  • Shaft Size: 10x8mm
  • Spring Loaded Shaft
  • Pre-Galvanized Tube 1.65mm Thick
  • Capacity: 100kg / Roller
  • 20 per carton
  • Unit Weight: 1.35kg



V3143  Poly Rollers to suit 600mm Wide Conveyors

  • Overall Size: 552x48mm
  • Roller Size: 527x48mm
  • Shaft Size: 10x8mm
  • Spring Loaded Shaft
  • Capacity: 20kg / Roller
  • 20 per carton
  • Unit Weight: 0.98kg



V3102 Castor Kit to suit Conveyors

  • Unit Weight: 2kg
View More Specifications

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

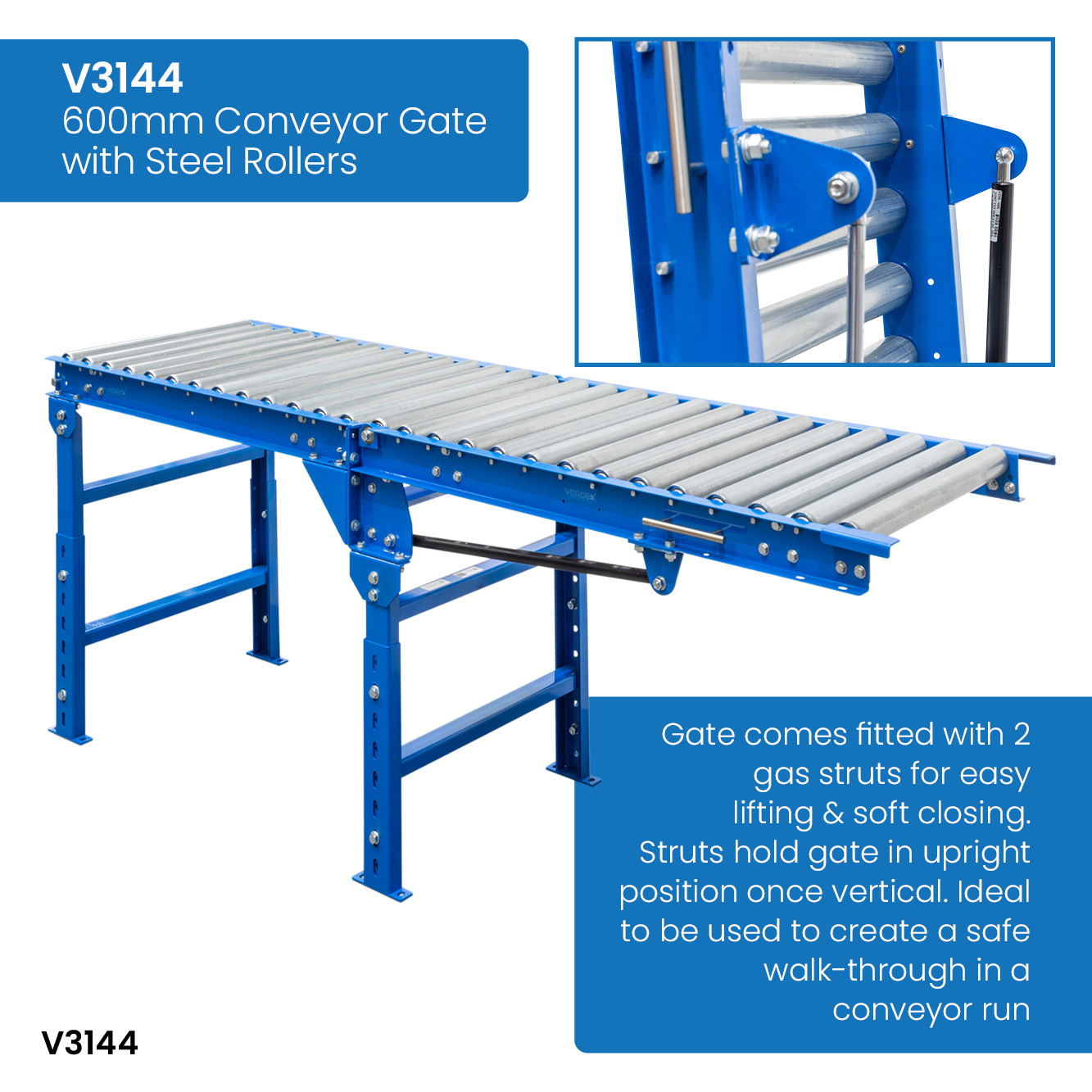

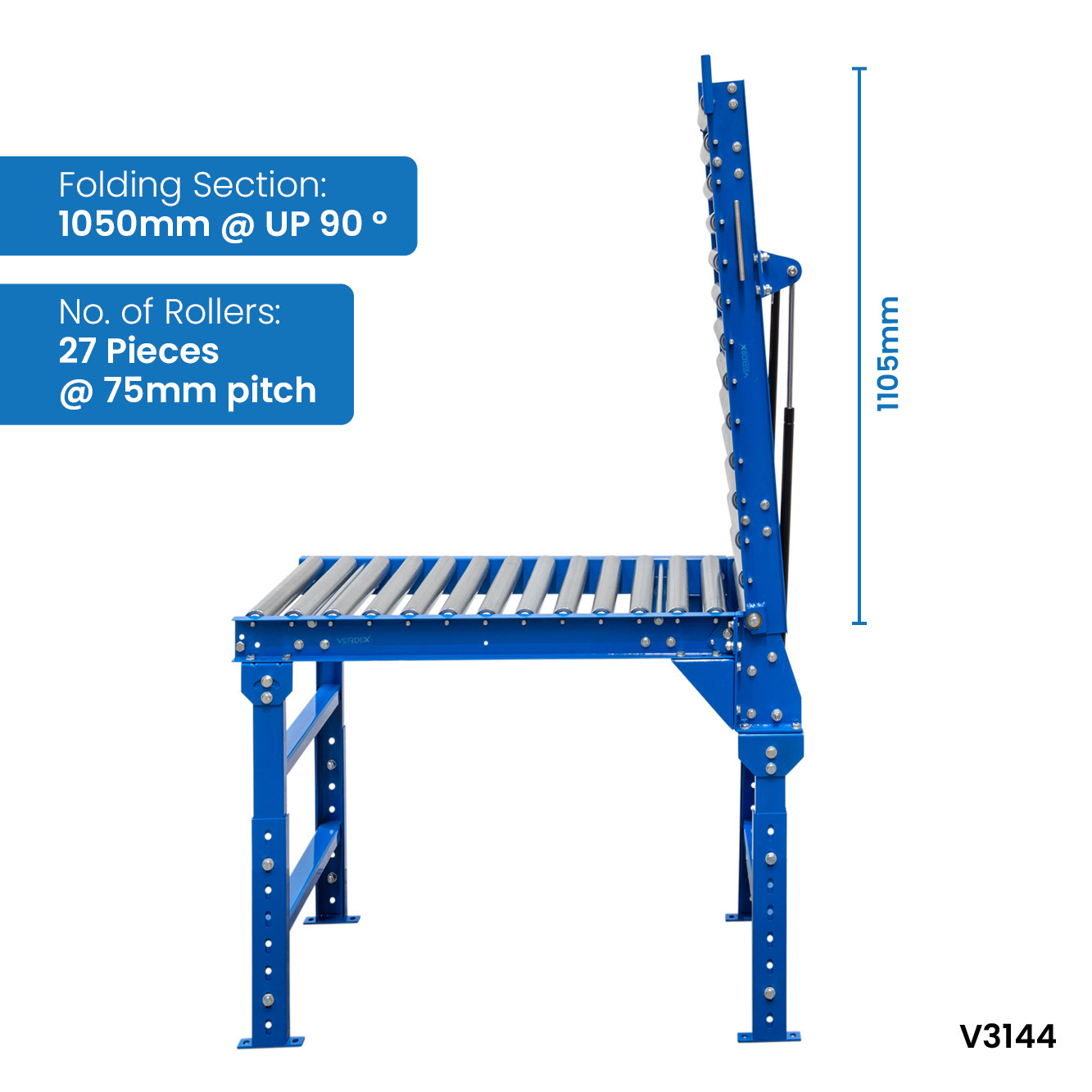

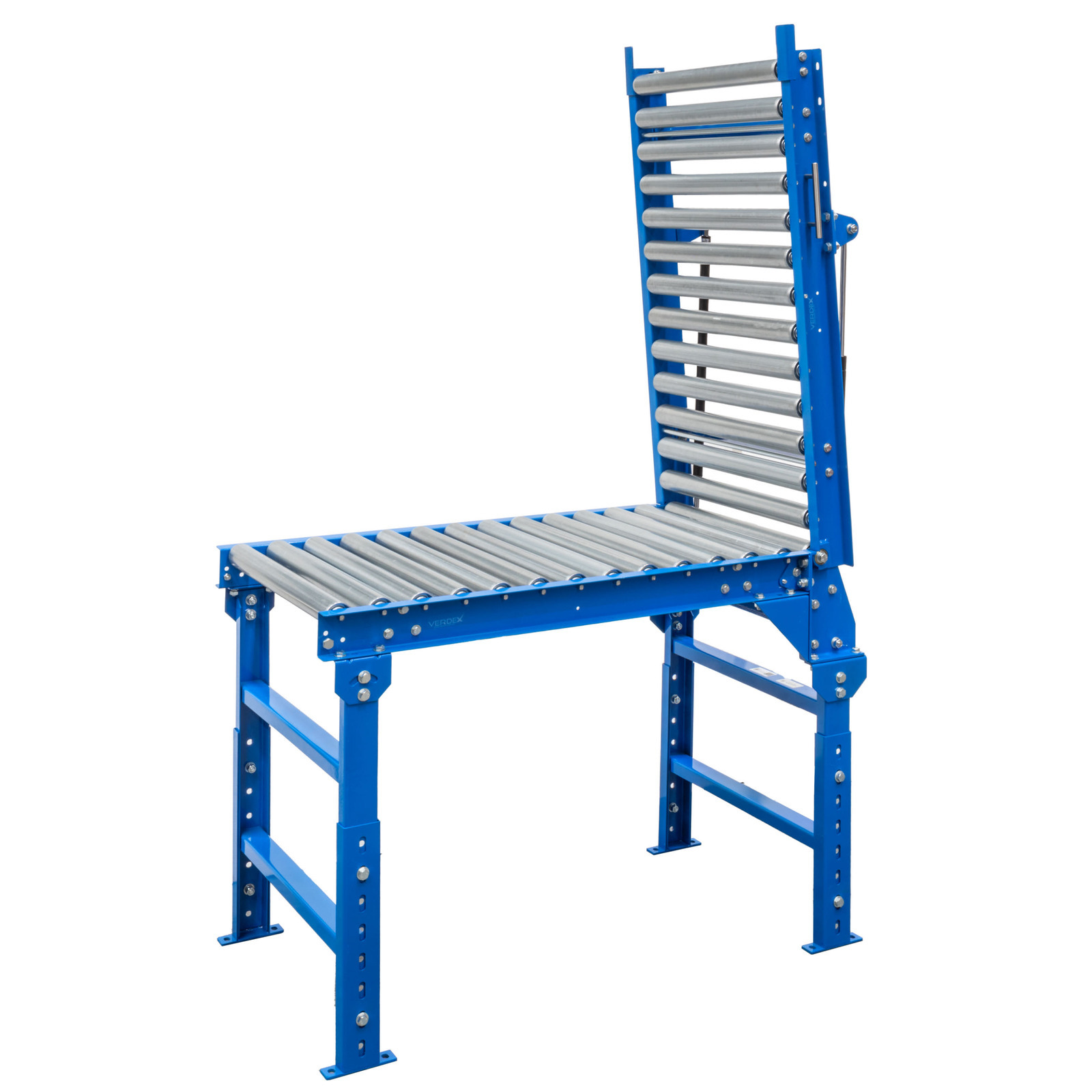

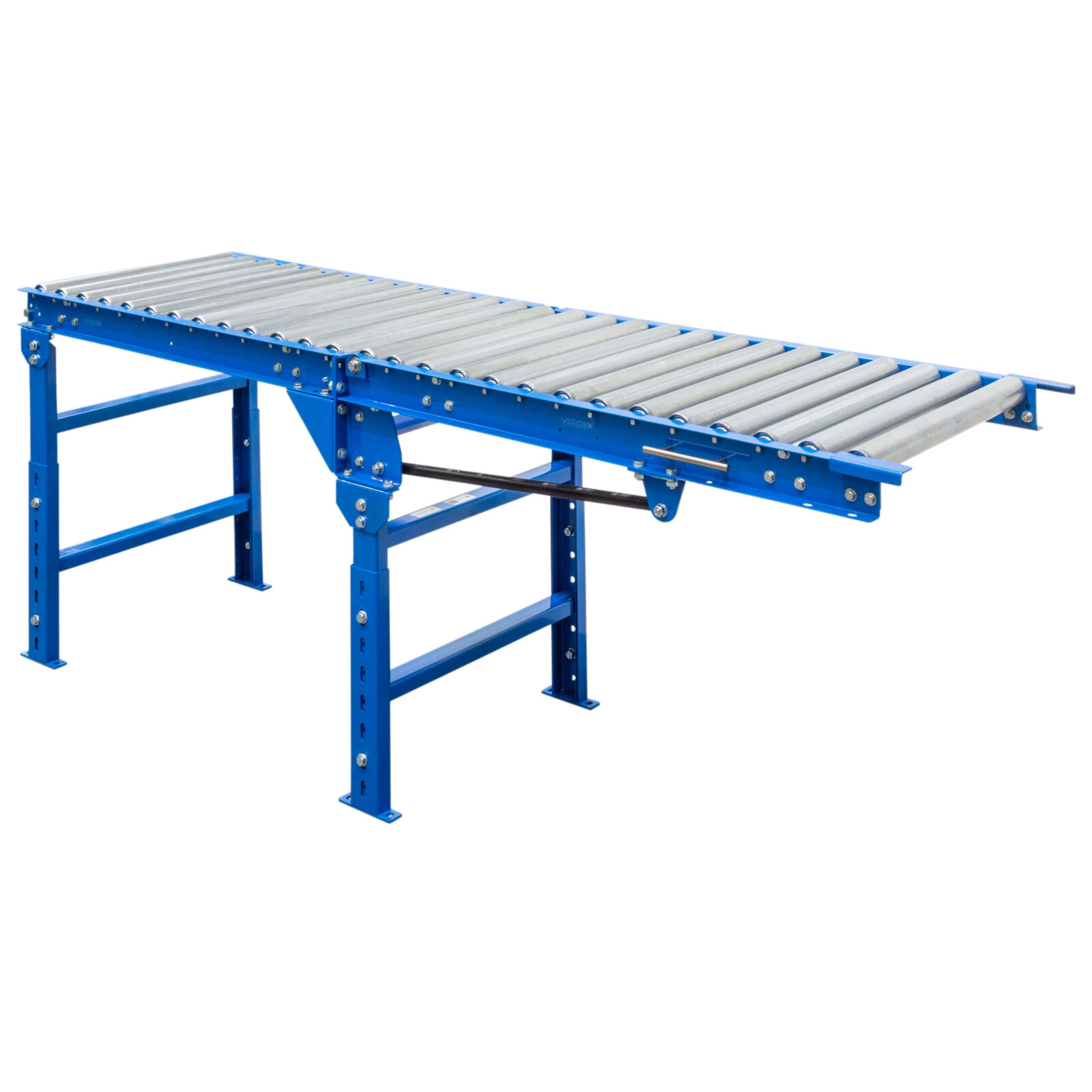

600mm Conveyor Gate with Steel Rollers

600mm Conveyor Gate with Steel Rollers

Product Code: V3144

  • Gate comes fitted with 2 gas struts for easy lifting and soft closing
  • Supplied With 2 Stands
  • Powdercoated Blue
  • Overall Size (LxWxH): 2025x660x1105mm
  • Folding Section: 1050mm @ UP 90°
  • No. Of Rollers: 27PCS @ 75mm Pitch
  • Adjustable Height: 805-1105mm
  • Unit Weight: 88kg
600mm Conveyor Gate with Steel Rollers V3144
View Details

$1,988.00

-
+
In StockIn Stock
In StockIn Stock

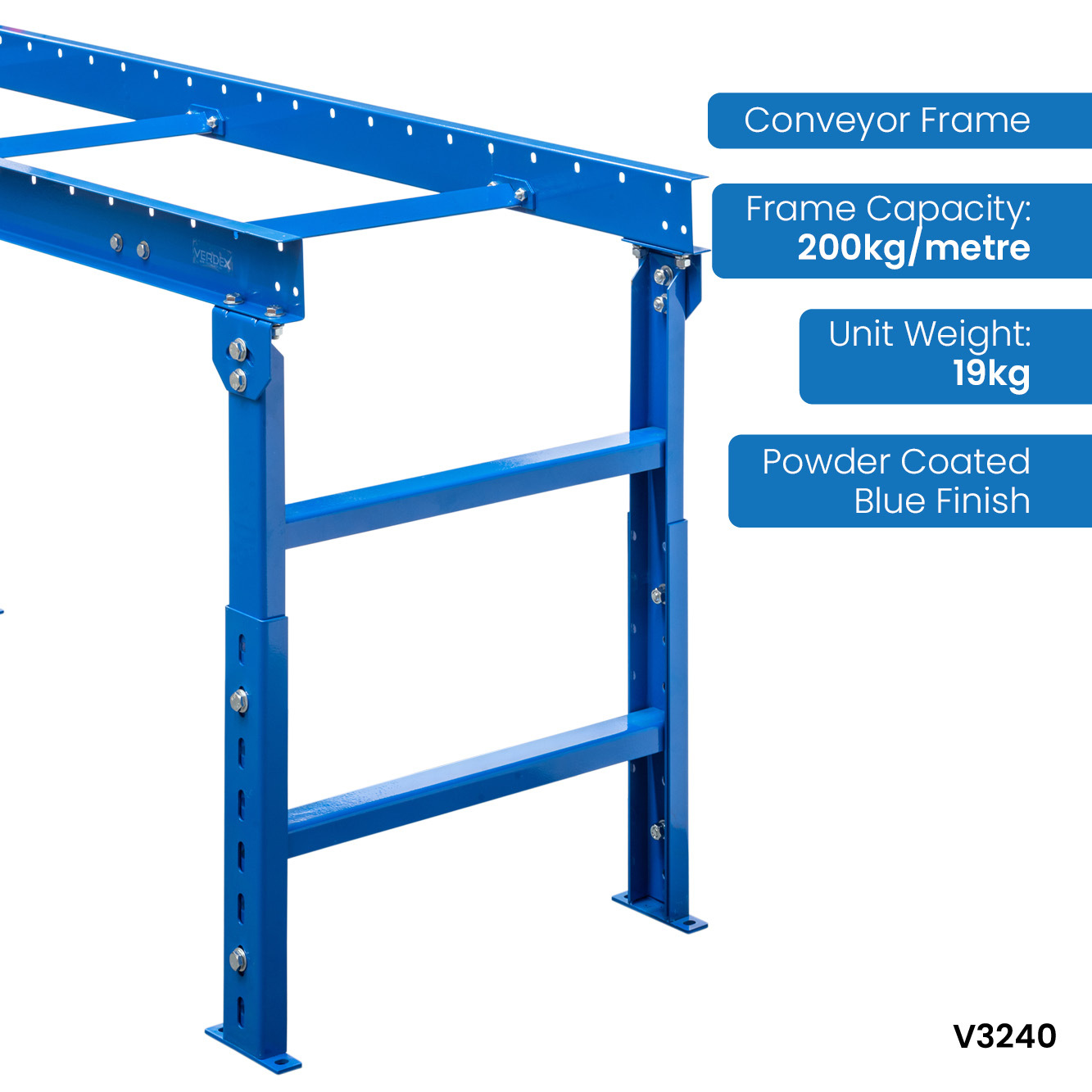

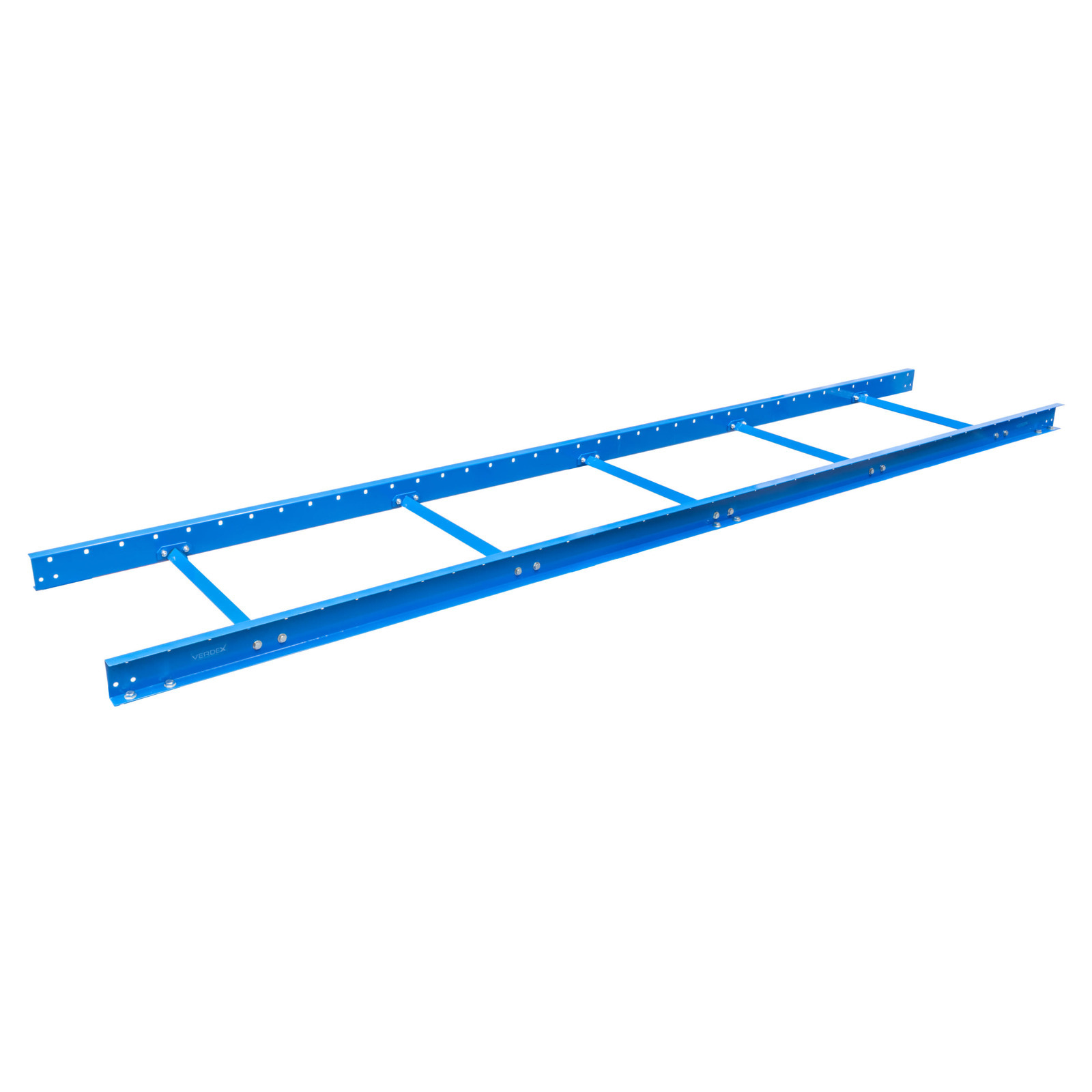

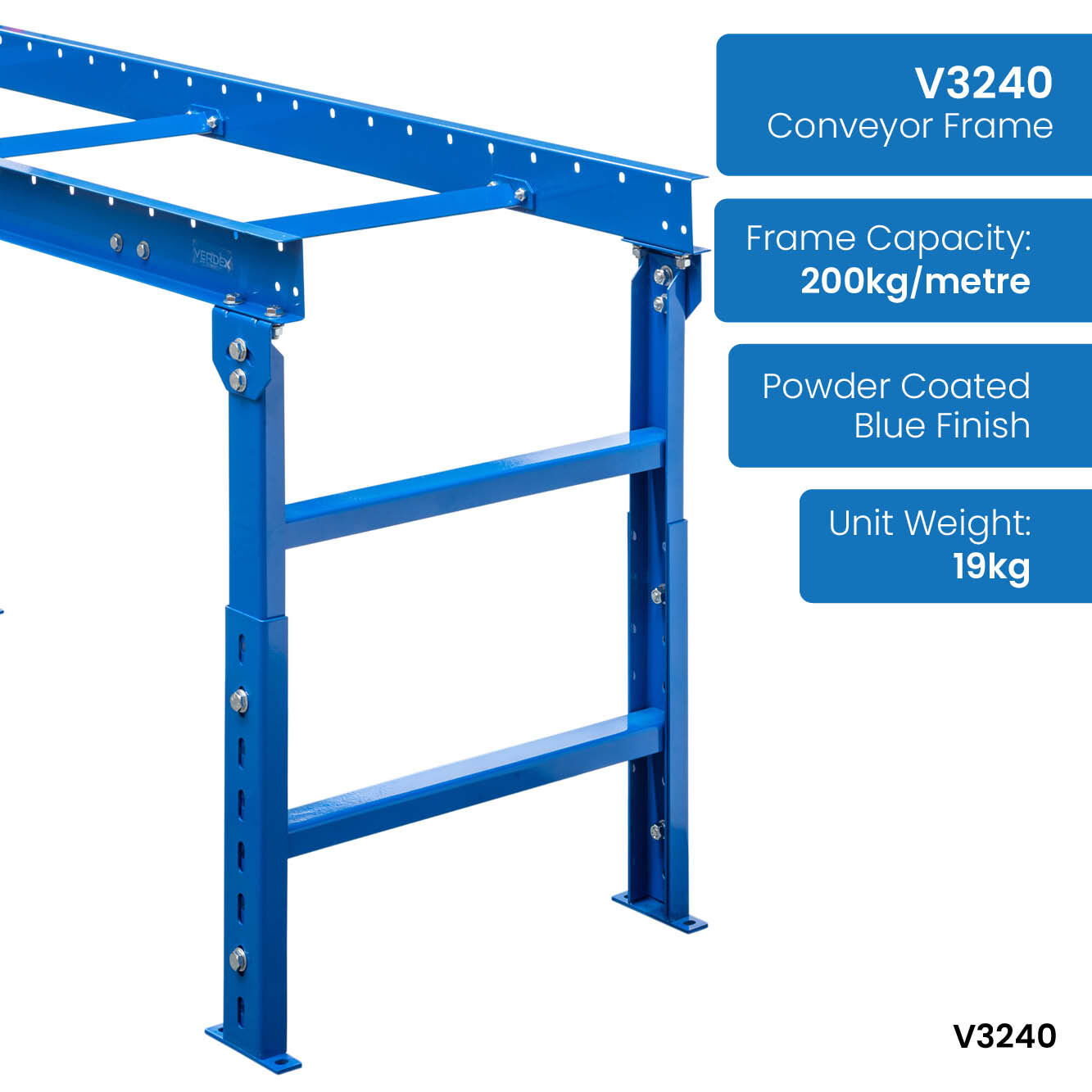

Conveyor Frame - 600x3000mm (Rollers Sold Separately)

Conveyor Frame - 600x3000mm (Rollers Sold Separately)

Product Code: V3240

  • Power coated steel
  • Colour: Blue
  • Overall Size: 3000x660x80mm
  • 40 Rollers = 75mm pitch between roller
  • 20 Rollers = 150mm pitch between roller
  • Frame Capacity: 200kgs / mtr
  • Unit Weight: 19kg
  • Please note: Rollers are sold seperately
Conveyor Frame - 600x3000mm (Rollers Sold Separately) V3240
View Details

$295.00

-
+
In StockIn Stock
In StockIn Stock

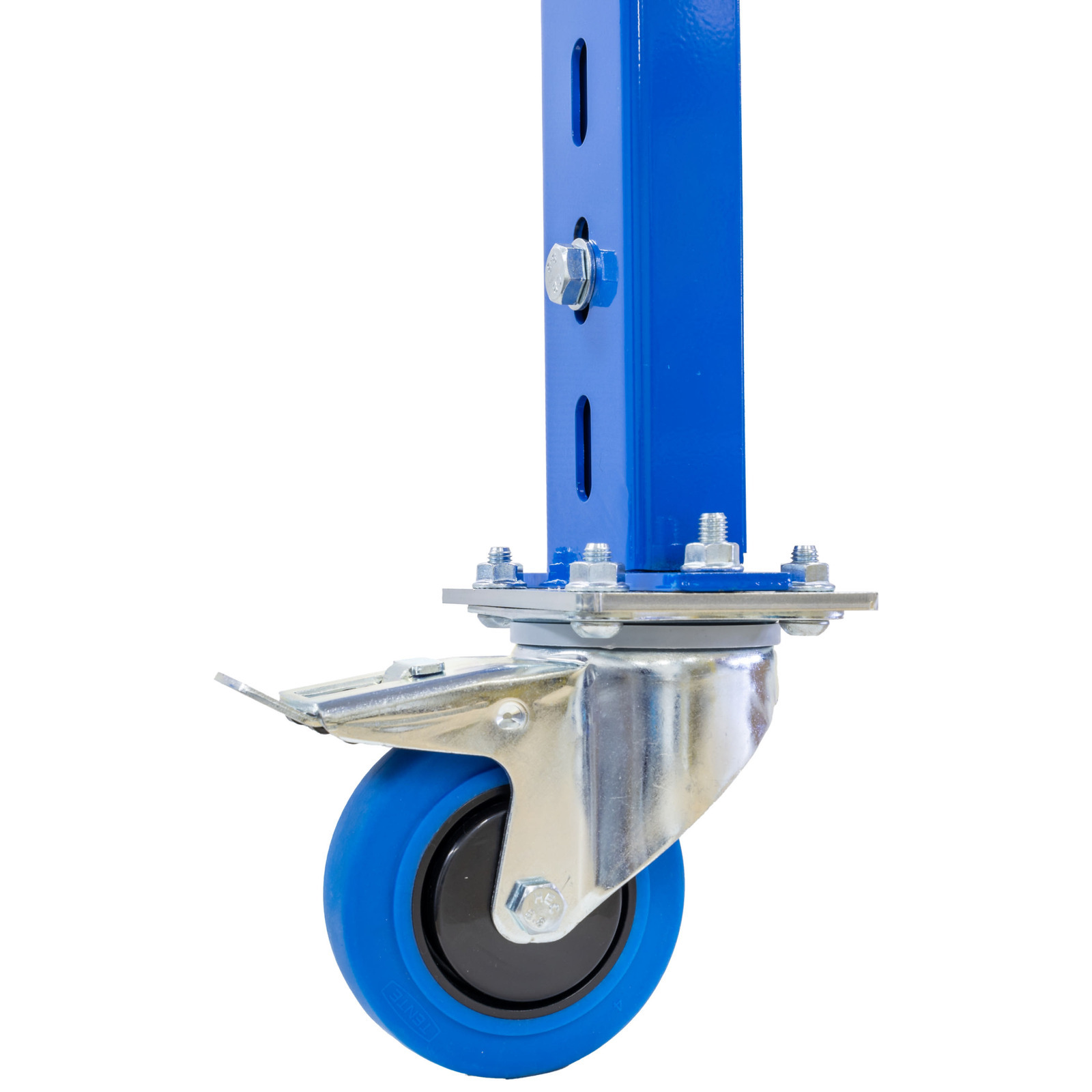

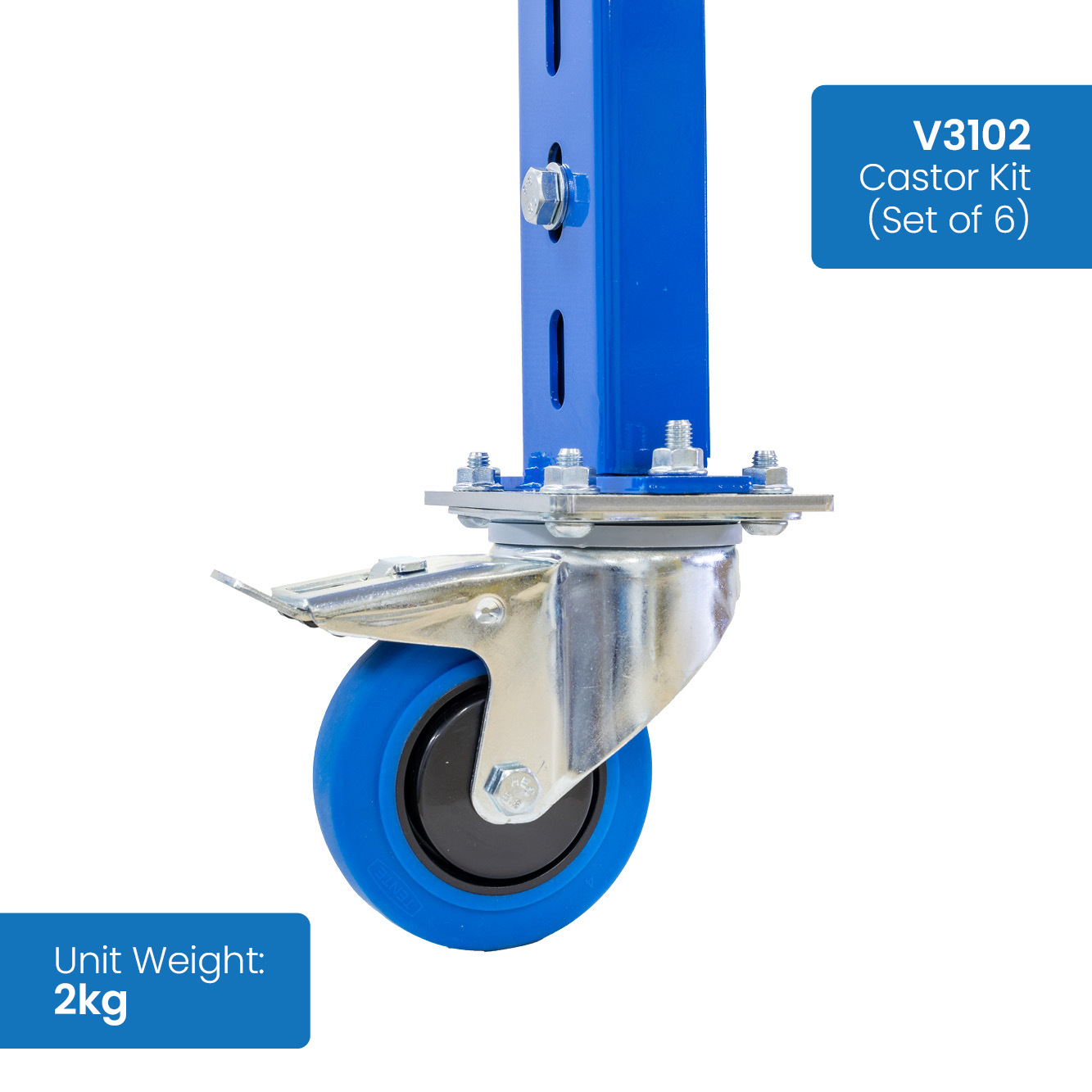

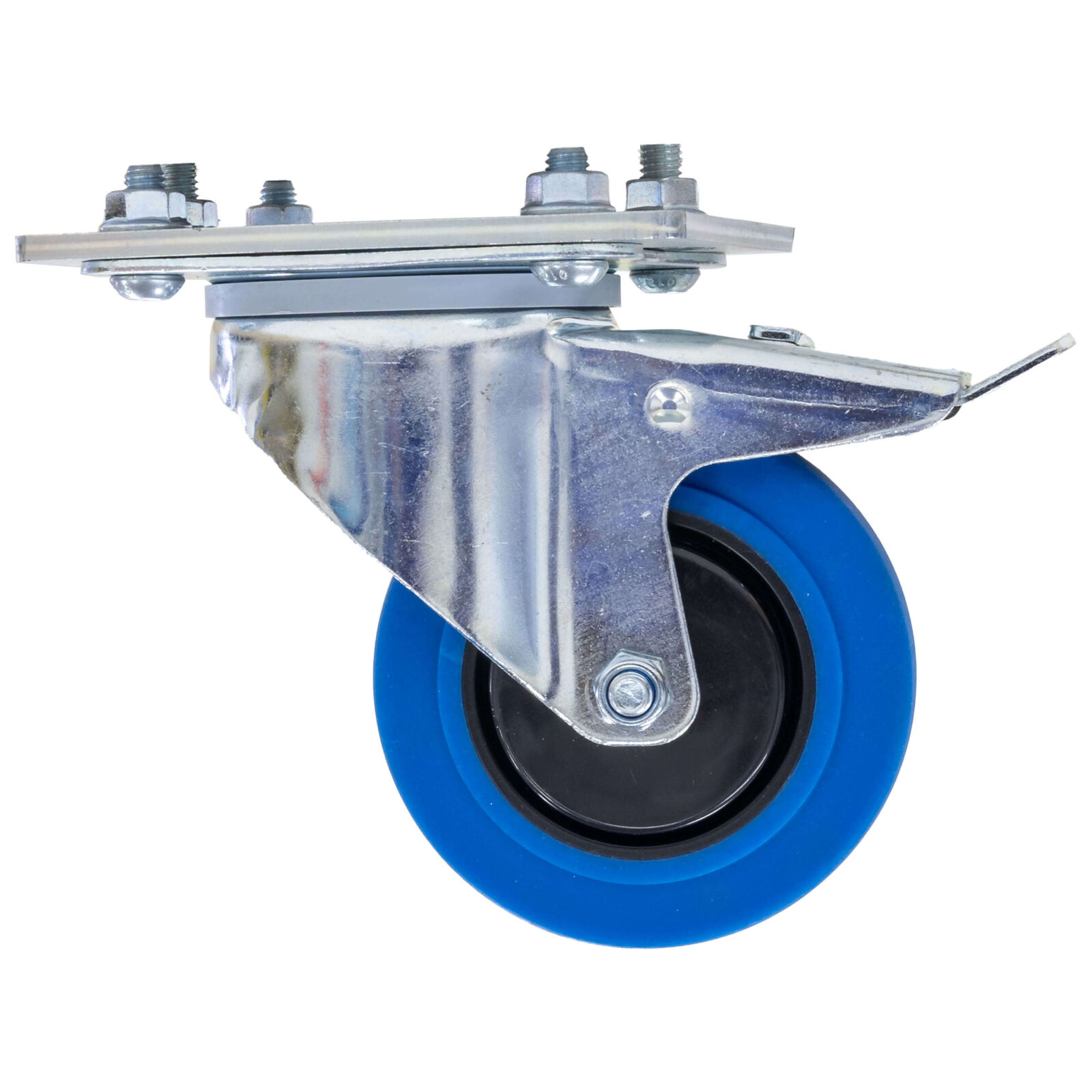

Castor Kit to suit

Castor Kit to suit

Product Code: V3102

  • Castor Kit to suit 600mm Conveyor Gate
  • Supplied as a set of 6
  • Powder coates steel
  • Colour: Blue
  • Unit Weight: 2kg
Castor Kit to suit V3102
View Details

$288.00

-
+
In StockIn Stock
In StockIn Stock

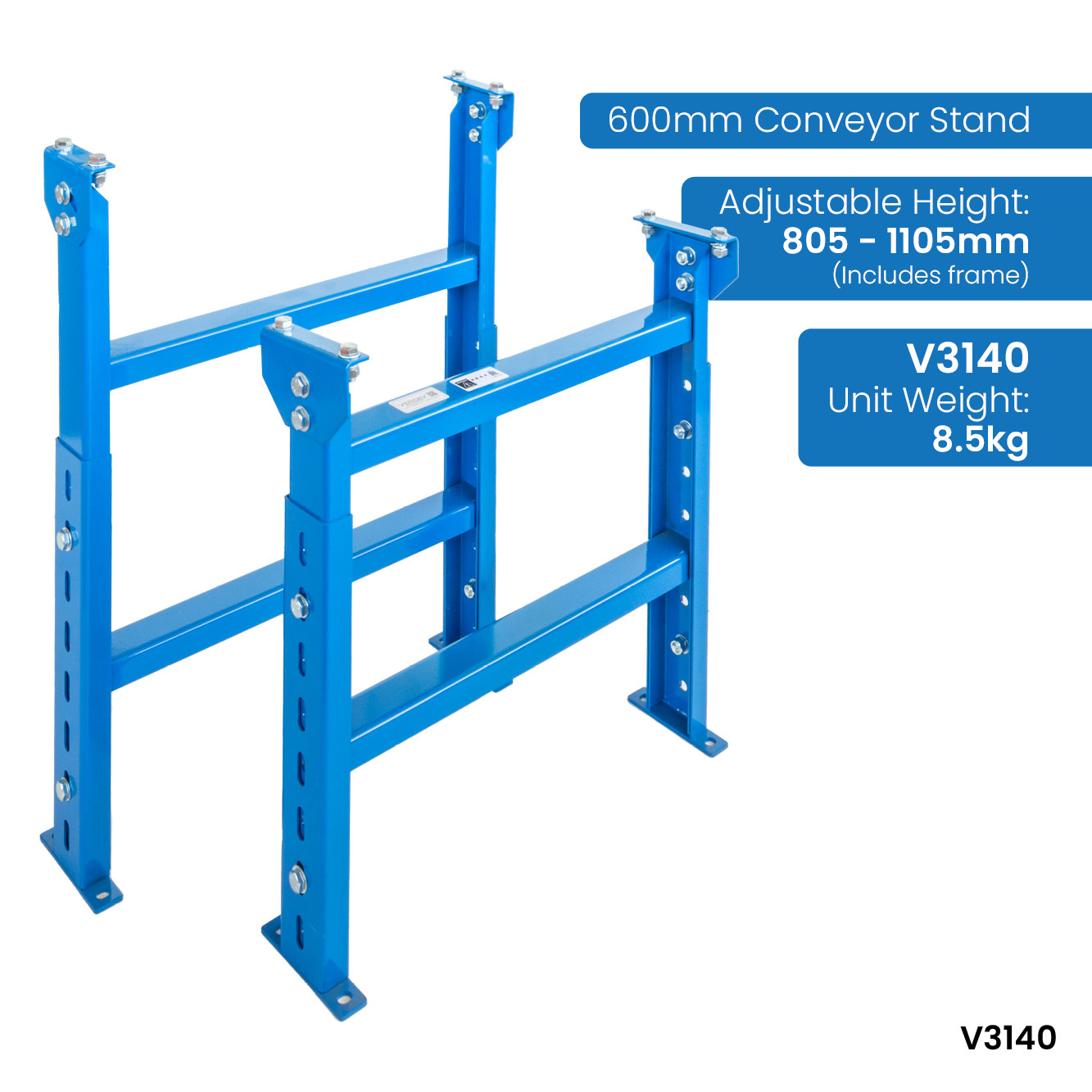

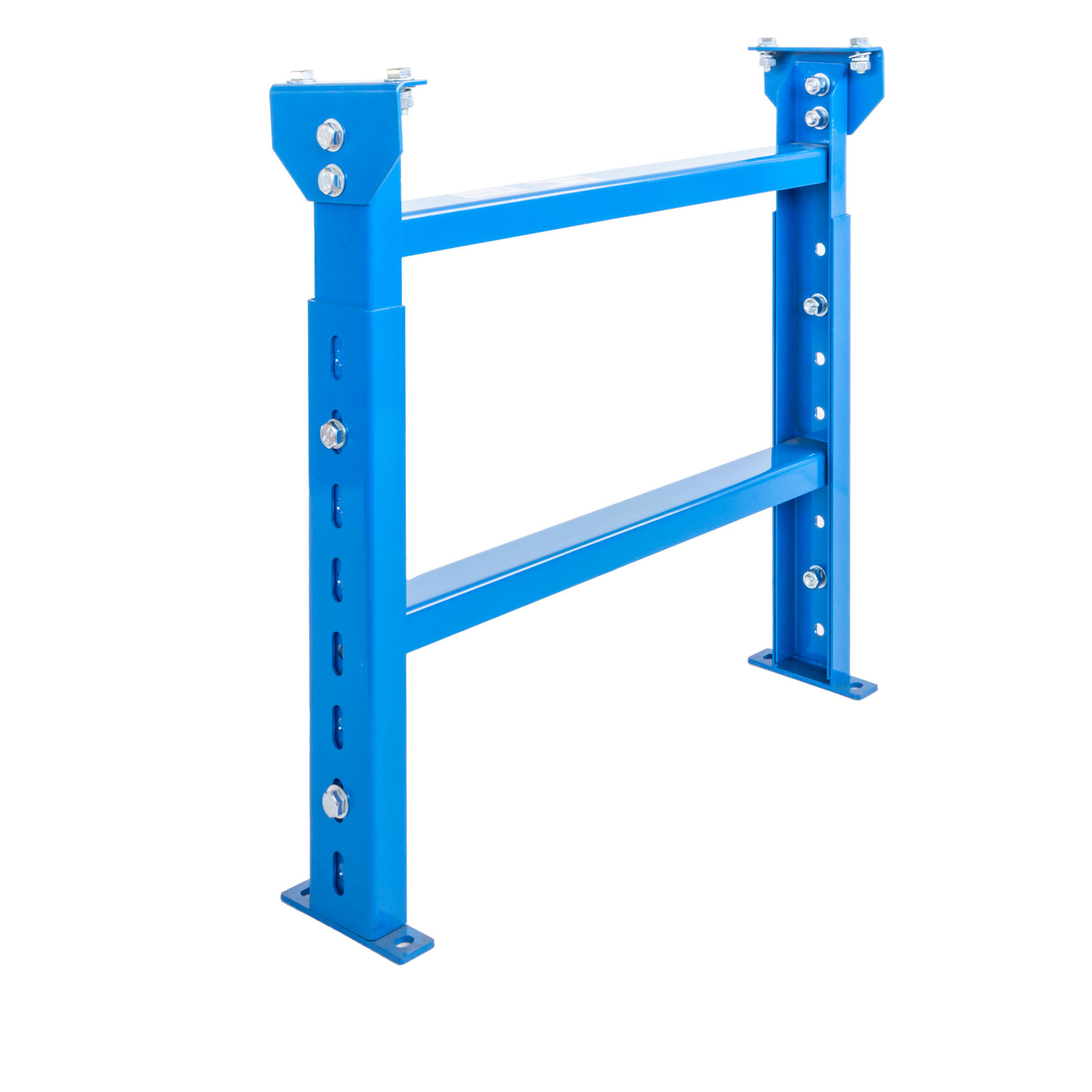

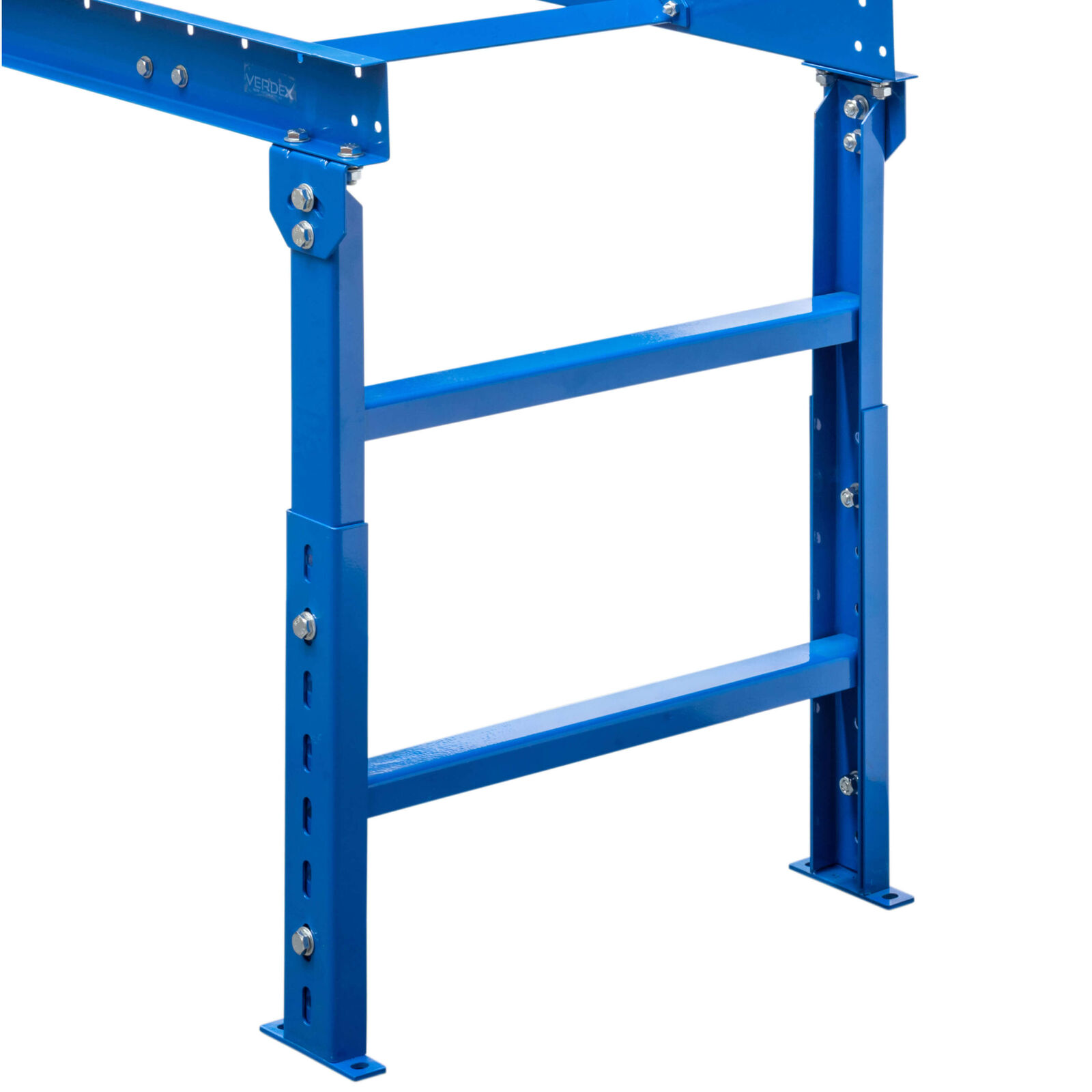

Conveyor Stand to suit 600mm Frames

Conveyor Stand to suit 600mm Frames

Product Code: V3140

  • Suits 600mm frames
  • Power coated steel
  • Colour: Blue
  • Overall Size: 660x125x1015mm
  • Adjustable Height: 805-1105mm (includes frame)
  • Unit Weight: 8.5kg
Conveyor Stand to suit 600mm Frames V3140
View Details

$185.00

-
+
In StockIn Stock
In StockIn Stock

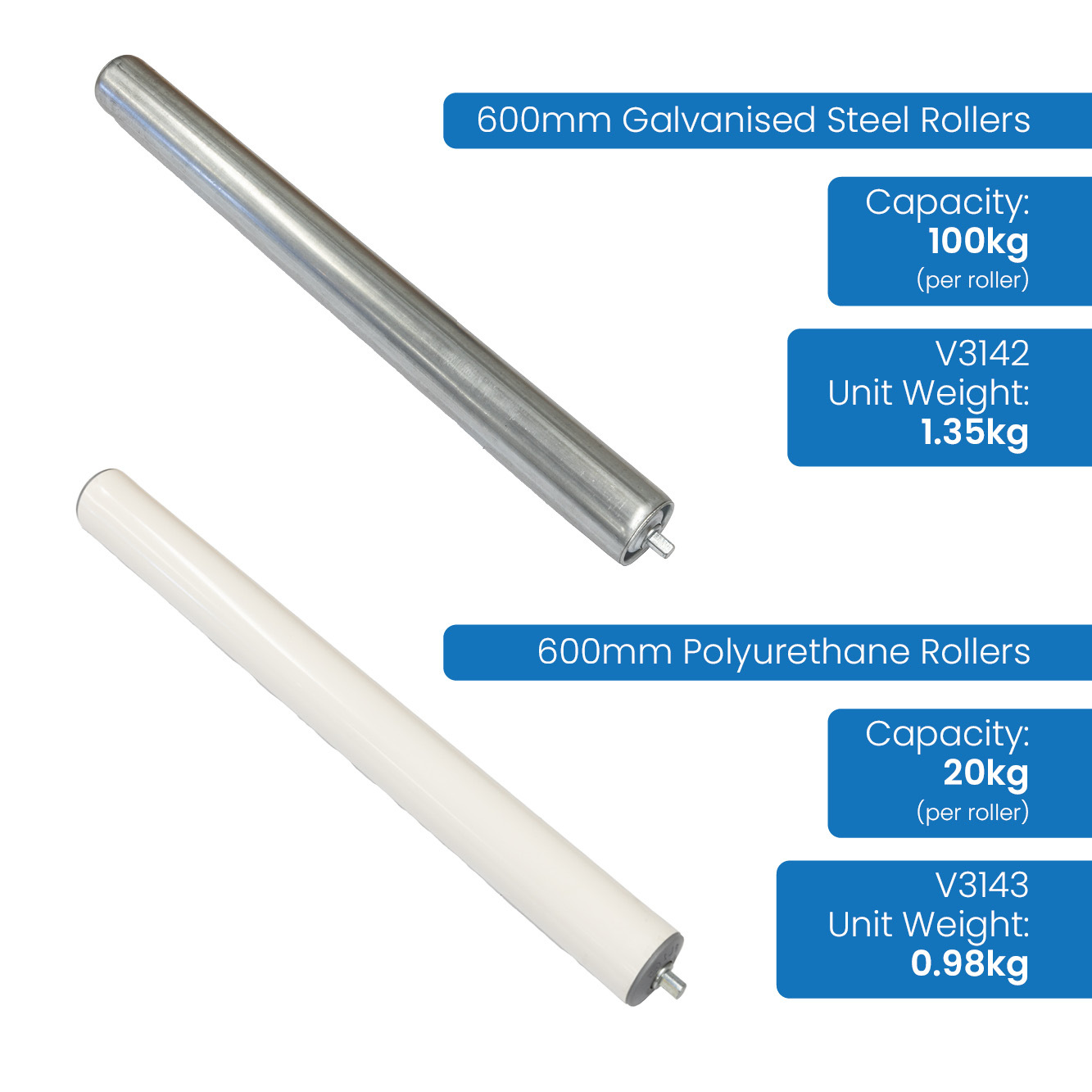

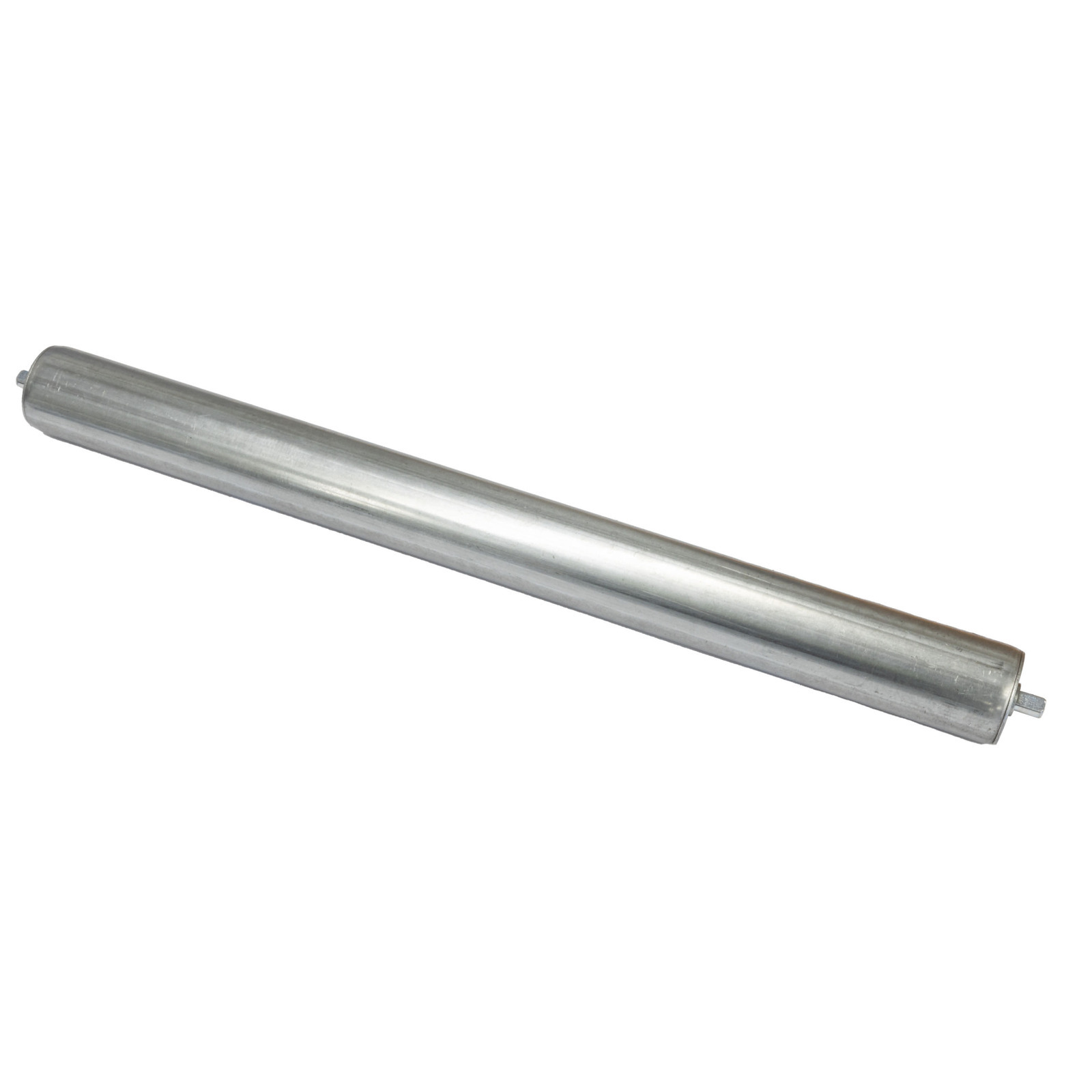

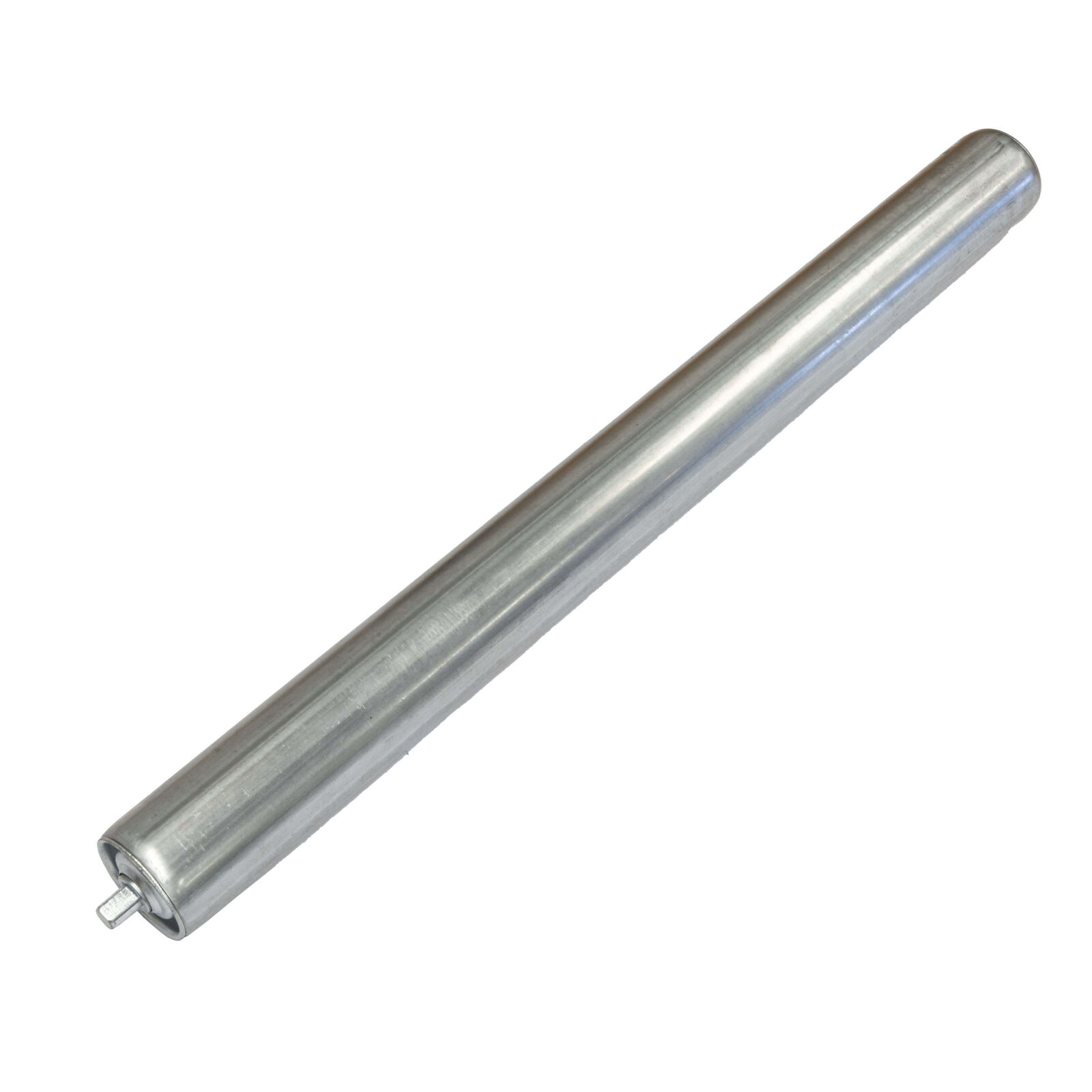

Galvanised Steel Rollers to suit 600mm Wide Conveyor (20 Rollers per carton)

Galvanised Steel Rollers to suit 600mm Wide Conveyor (20 Rollers per carton)

Product Code: V3142

  • Galvanised Steel Rollers to suit 600mm Wide Conveyor
  • 20 Rollers per carton
  • Overall Size: 552x48mm
  • Roller Size: 527x48mm
  • Shaft Size: 10x8mm
  • Spring Loaded Shaft
  • Pre-Galvanized Tube 1.65mm Thick
  • Capacity: 100kg / Roller
  • Unit Weight: 1.35kg
Galvanised Steel Rollers to suit 600mm Wide Conveyor (20 Rollers per carton) V3142
View Details

$455.00 / Carton

-
+
In StockIn Stock
In StockIn Stock

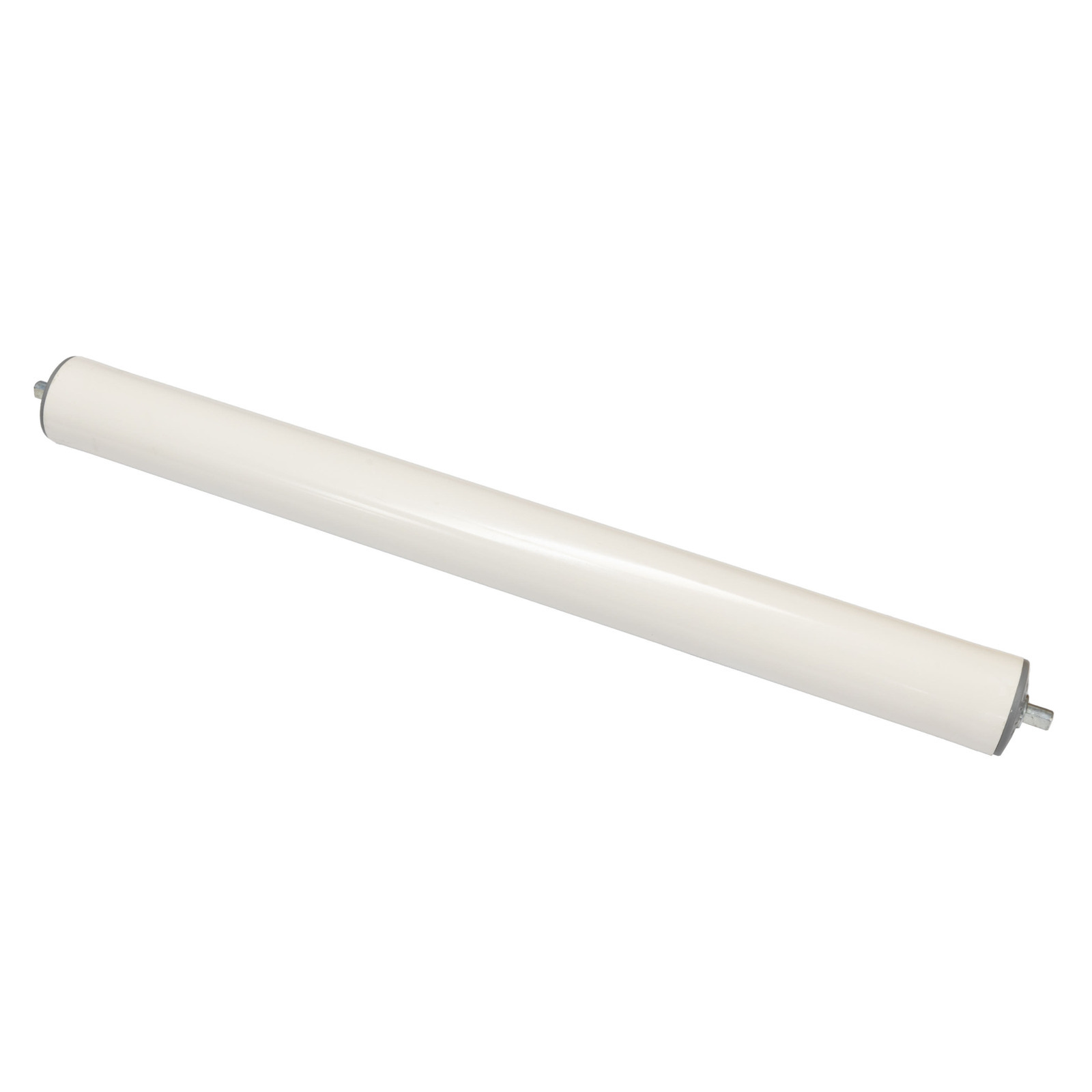

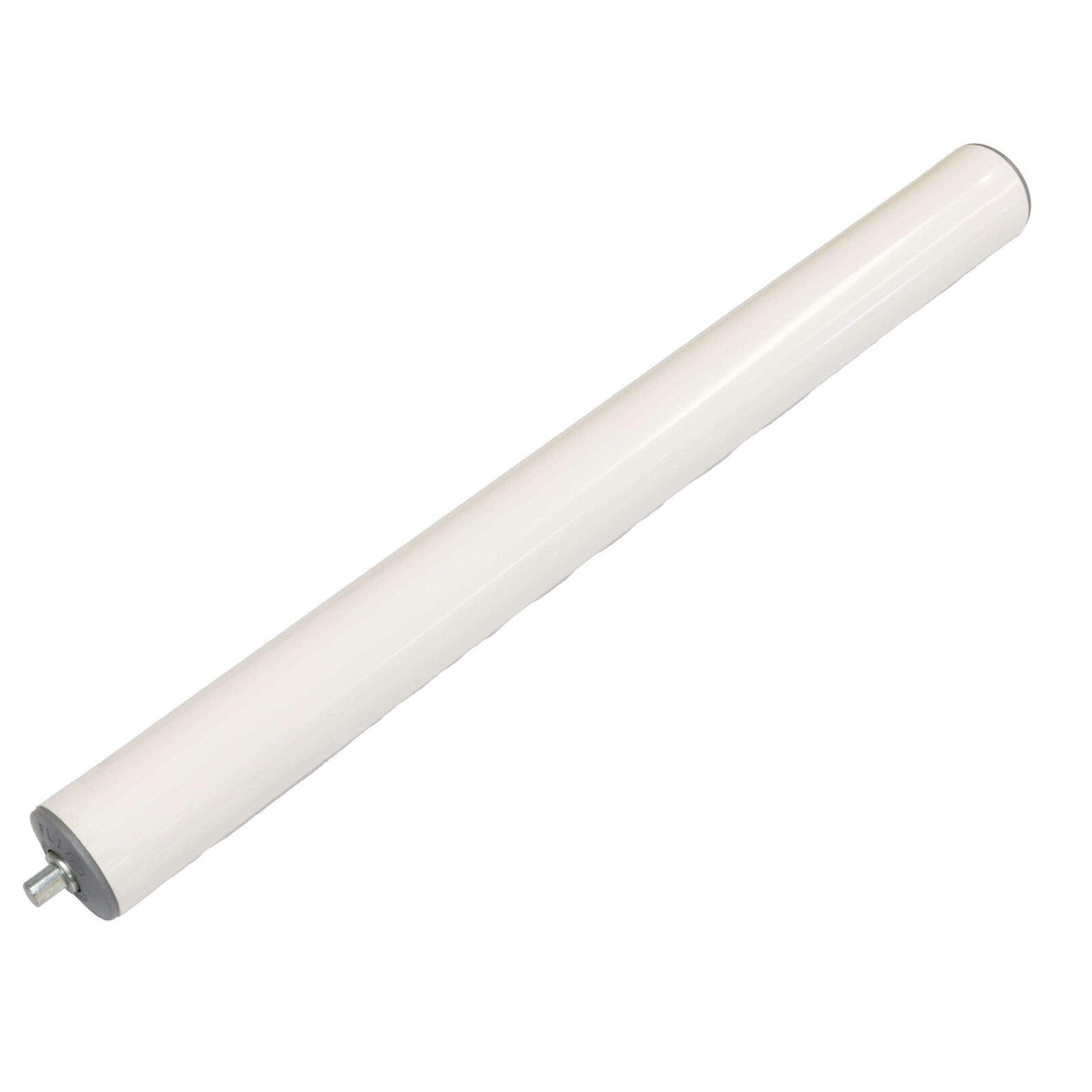

Poly Rollers to suit 600mm Wide Conveyor (20 Rollers per carton)

Poly Rollers to suit 600mm Wide Conveyor (20 Rollers per carton)

Product Code: V3143

  • Poly Rollers to suit 600mm Wide Conveyor
  • 20 Rollers per carton
  • Overall Size: 552x48mm
  • Roller Size: 527x48mm
  • Shaft Size: 10x8mm
  • Spring Loaded Shaft
  • Capacity: 20kg / Roller
  • 20 per carton
  • Unit Weight: 0.98kg
Poly Rollers to suit 600mm Wide Conveyor (20 Rollers per carton) V3143
View Details

$455.00 / Carton

-
+
In StockIn Stock
In StockIn Stock

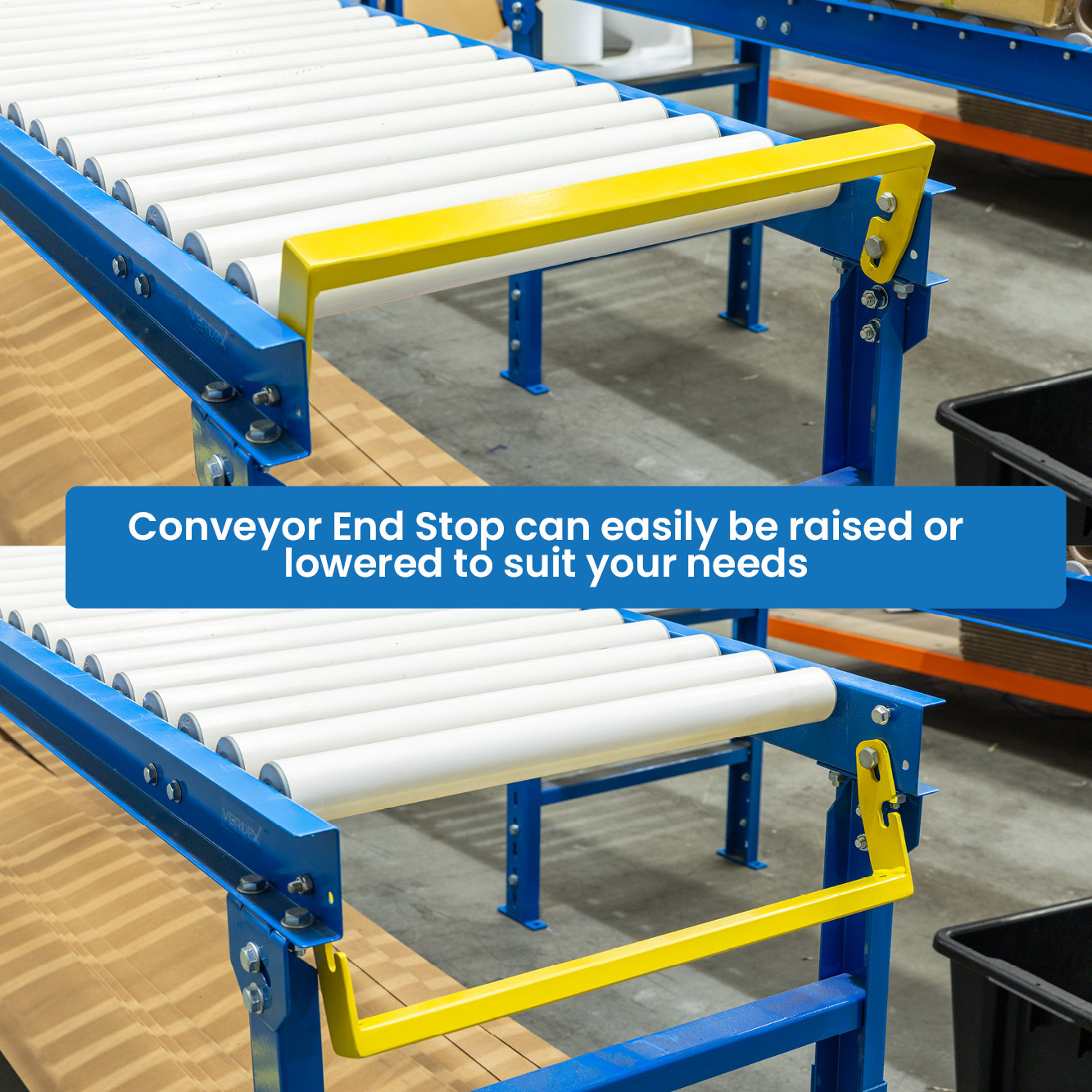

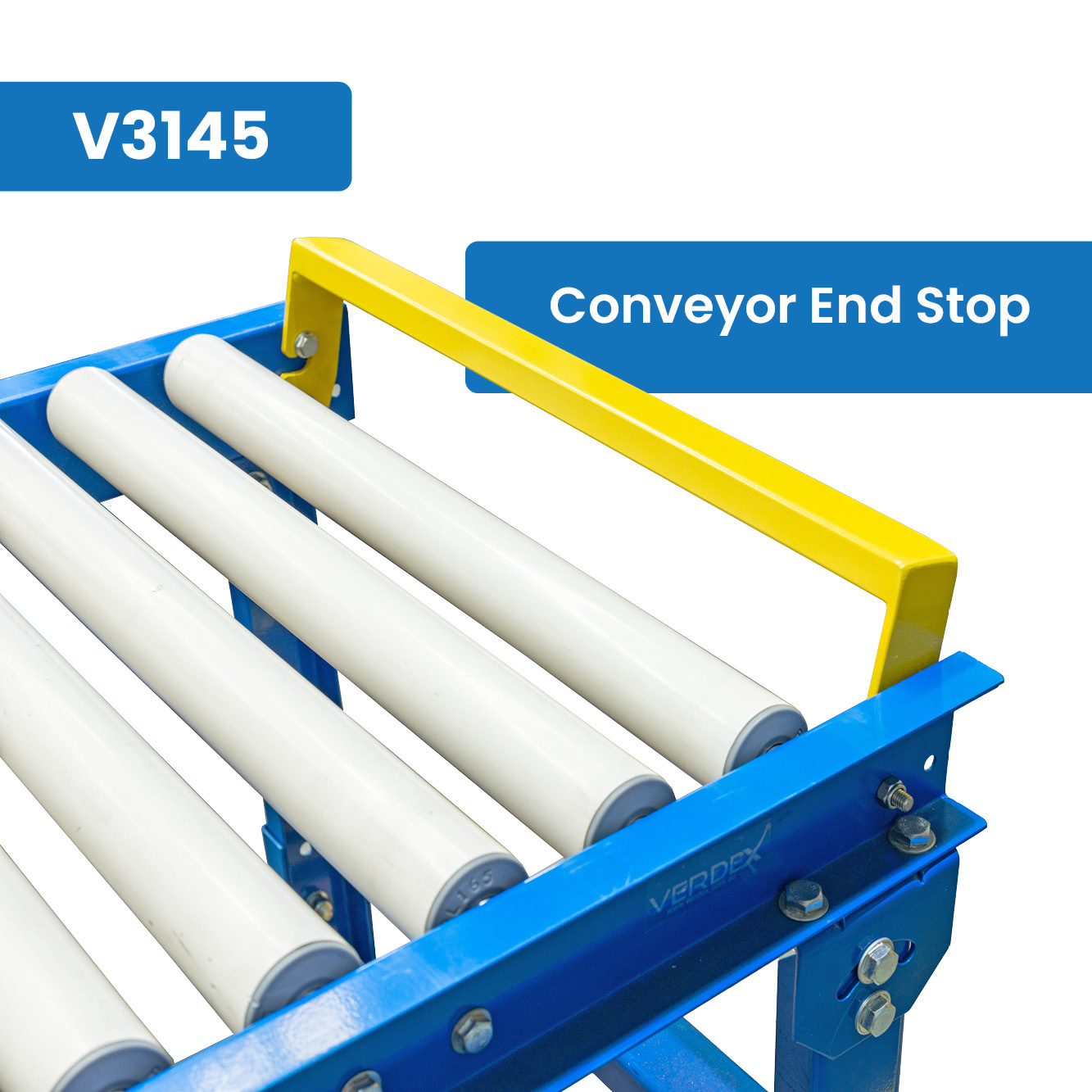

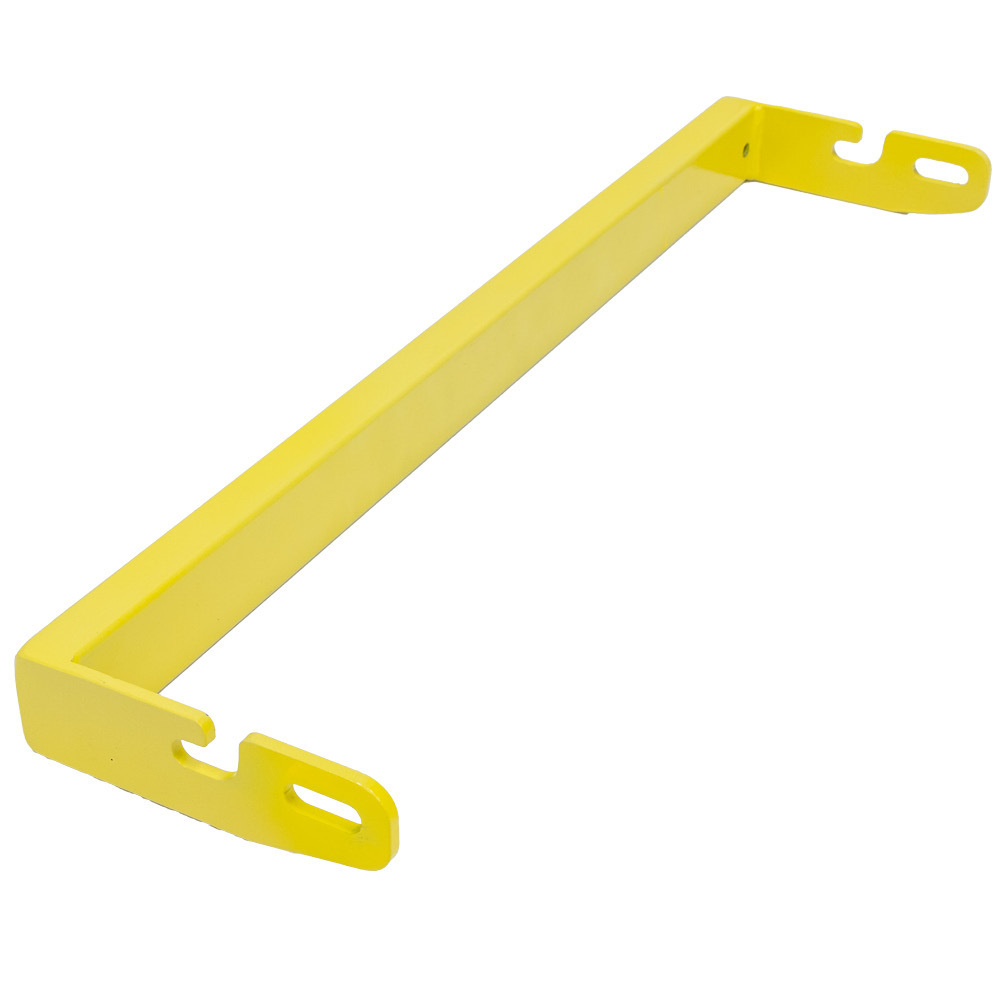

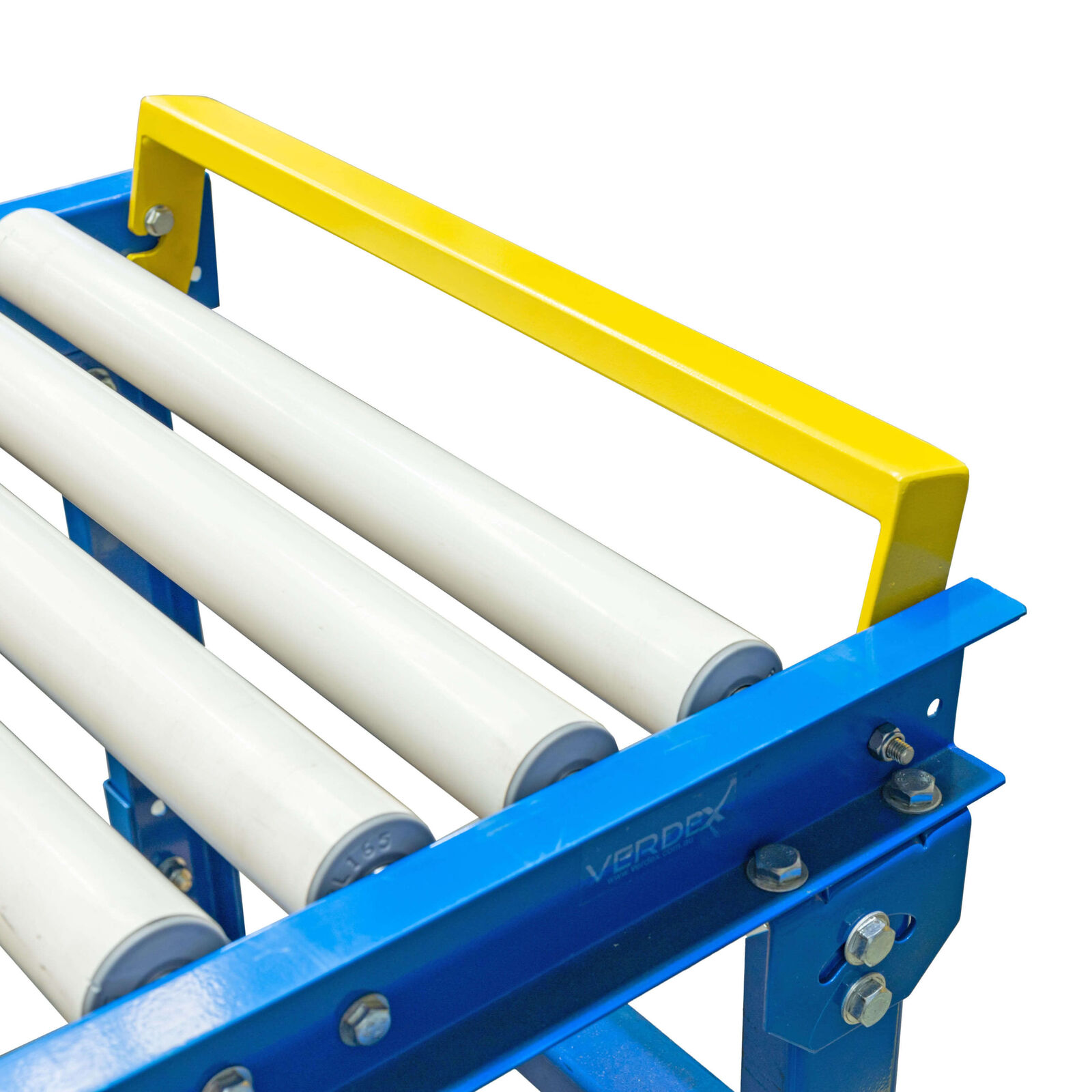

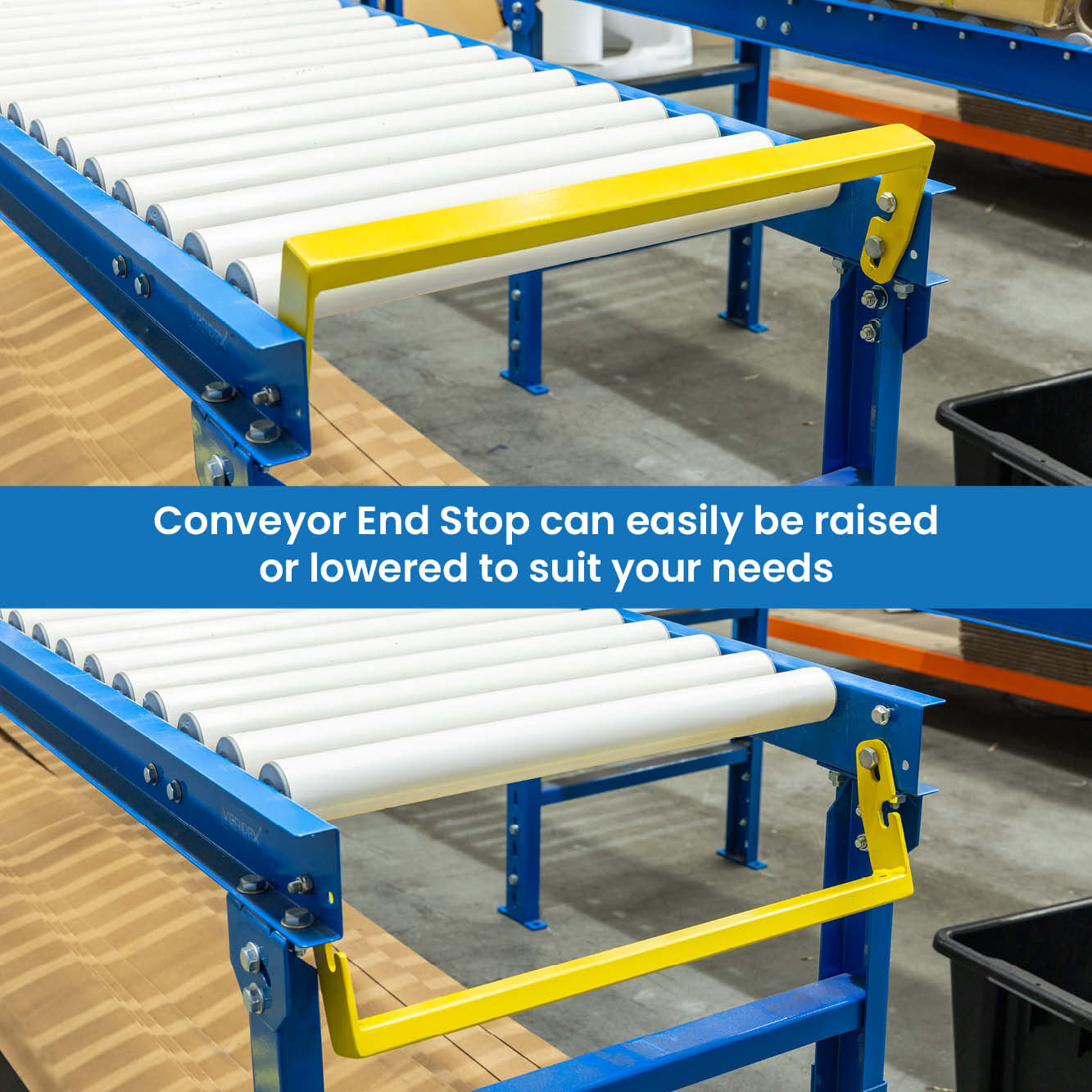

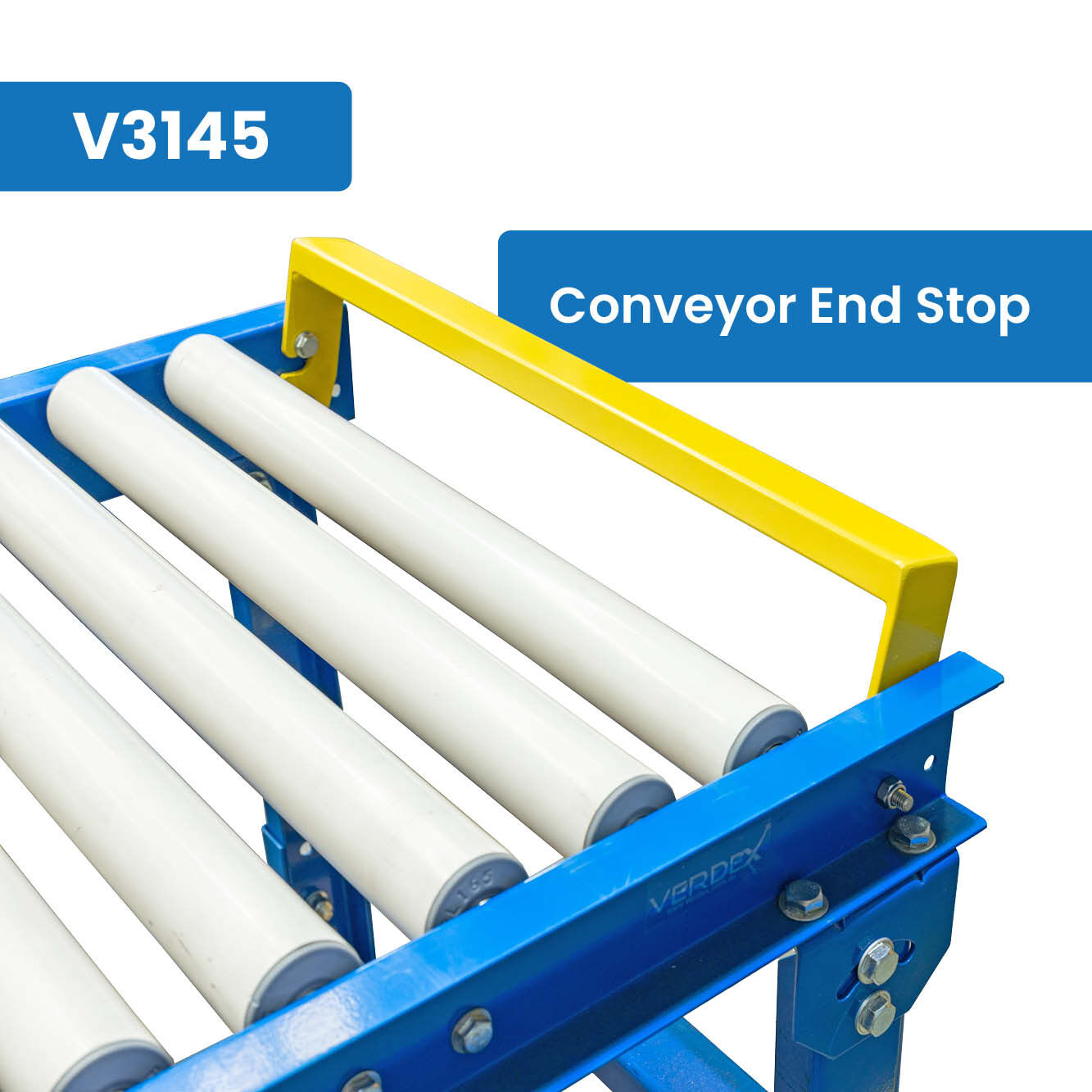

Conveyor End Stop to suit

Conveyor End Stop to suit

Product Code: V3145

  • Suits Conveyors V3340 & V3342
  • Powder coated steel
  • Colour: Yellow
  • Unit Weight: 1kg
Conveyor End Stop to suit V3145
View Details

$55.00

$49.00

SAVE $6.00
-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications

Build your own Conveyor System


Verdex’s full range of gravity conveyors provides the simple solution for moving all types of products in industries such as
transport, distribution centres, container unloading & similar. Roller conveyors are one of the most common types of conveyors applied in conveying flat bottom type products such as cases, boxes, pallets & trays. These kind of conveyors improve efficiency distribution & line links between different stages of production of your product.

Buy complete kits here

V3240 Conveyor Frame (Rollers Sold Separately)

  • Power coated Blue
  • Overall Size: 3000x660x80mm
  • 40 Rollers = 75mm pitch between roller
  • 20 Rollers = 150mm pitch between roller
  • Frame Capacity: 200kgs / mtr
  • Unit Weight: 19kg



V3140 600mm Conveyor Stand

  • Power coated Blue
  • Overall Size: 660x125x1015mm
  • Adjustable Height: 805-1105mm (includes frame)
  • Unit Weight: 8.5kg



V3142 Galvanised Steel Rollers to suit 600mm Wide Conveyors

  • Overall Size: 552x48mm
  • Roller Size: 527x48mm
  • Shaft Size: 10x8mm
  • Spring Loaded Shaft
  • Pre-Galvanized Tube 1.65mm Thick
  • Capacity: 100kg / Roller
  • 20 per carton
  • Unit Weight: 1.35kg



V3143  Poly Rollers to suit 600mm Wide Conveyors

  • Overall Size: 552x48mm
  • Roller Size: 527x48mm
  • Shaft Size: 10x8mm
  • Spring Loaded Shaft
  • Capacity: 20kg / Roller
  • 20 per carton
  • Unit Weight: 0.98kg



V3102 Castor Kit to suit Conveyors

  • Unit Weight: 2kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

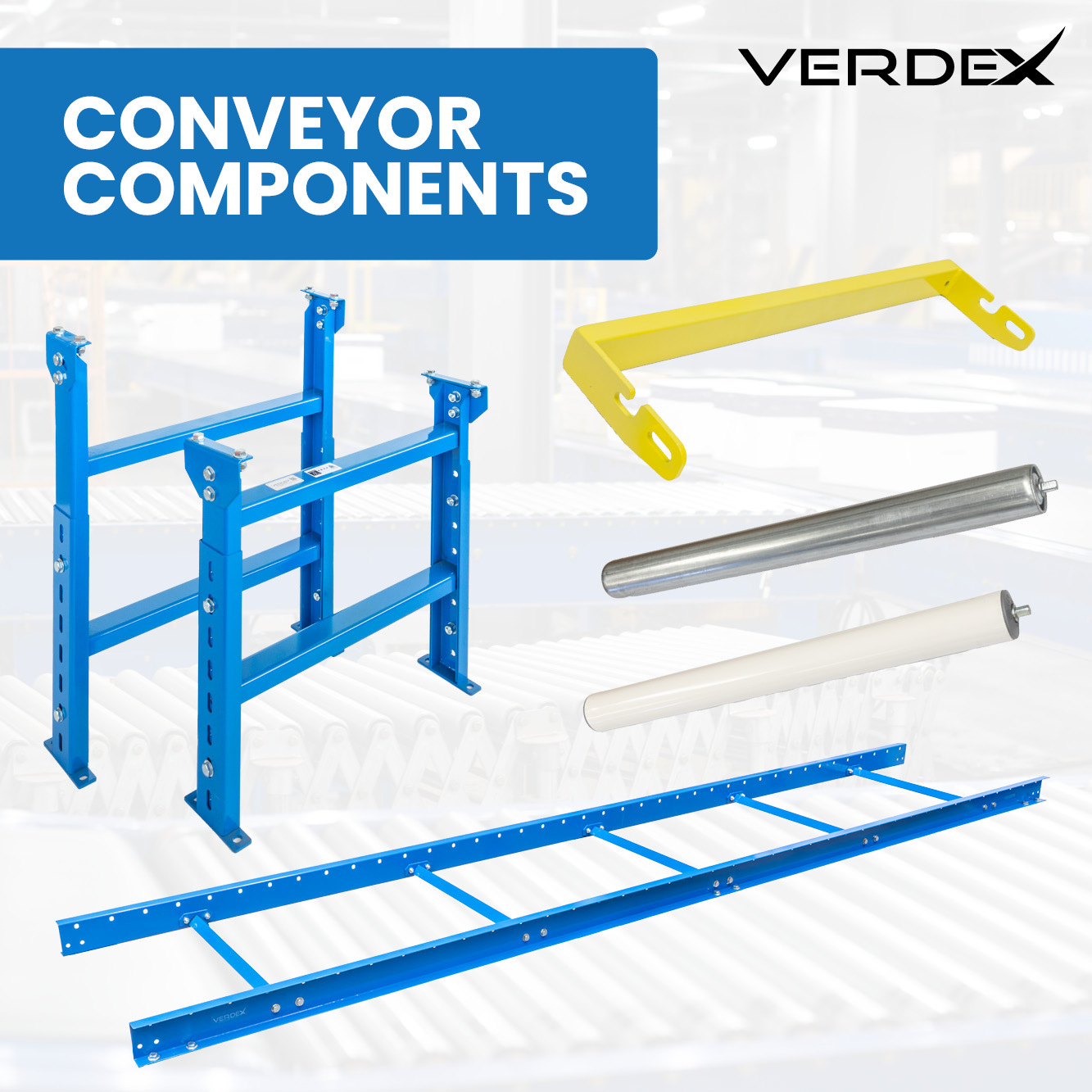

Conveyor Components

Our range of conveyor components offers essential parts and accessories for building and maintaining efficient conveyor systems. Designed to enhance the functionality and durability of your material handling setup, these components are ideal for various industrial applications, including warehouses, production lines, and distribution centres. Featuring high-quality materials and precision engineering, our conveyor components include rollers, belts, pulleys, and bearings, all crafted to withstand heavy use and provide reliable performance. Whether you need to repair existing systems or assemble new conveyors, these components ensure smooth operation and minimise downtime. From adjustable conveyor stands to drive assemblies, our diverse selection covers all the essentials for creating customised conveyor solutions tailored to your specific needs. Each component is designed for easy installation and maintenance, making system upgrades and repairs straightforward and efficient. Choose our conveyor components to optimise your material handling processes, increase productivity, and ensure long-lasting reliability in your operations. Explore our range to find the perfect solutions for your conveyor system needs.

Maximising Efficiency with High-Quality Conveyor Components

In the fast-paced world of manufacturing, warehousing, and logistics, having the right equipment can make all the difference in streamlining operations and improving productivity. Conveyor systems are crucial for moving materials efficiently, but ensuring the system works at its best requires high-quality, reliable components.

This is where our range of Conveyor Components comes in. From durable conveyor frames and stands to sturdy rollers and castor kits, each product is designed to enhance your existing system, reduce downtime, and improve overall material handling.

Conveyor Frame (V3240): The Backbone of Your Conveyor System

The V3240 Conveyor Frame is the essential foundation for your conveyor system. Designed to support rollers, this robust frame ensures smooth movement of goods across your workplace, whether it’s for assembly, packaging, or distribution. Coated with a durable blue powder finish, the frame is built to withstand the rigours of industrial environments while providing a professional appearance.

Key Features

  • Overall Size: 3000mm x 660mm x 80mm

  • Roller Capacity: 200kg/m

  • Weight: 19kg

  • Roller Configuration Options:

    • 40 rollers with a 75mm pitch

    • 20 rollers with a 150mm pitch

This frame is versatile and can be configured with different roller setups to suit your specific needs. Whether you're handling light or heavy items, this frame offers the strength and durability required to ensure continuous operation.

600mm Conveyor Stand (V3140): Adjustable and Stable Support

For optimal performance, a sturdy and adjustable stand is essential. The V3140 Conveyor Stand supports your conveyor frame and provides flexibility in height adjustments. This allows you to align your conveyor system perfectly with other equipment or workflow lines, reducing the risk of product jams or misalignment.

Key Features

  • Adjustable Height: 805mm to 1105mm

  • Overall Size: 660mm x 125mm x 1015mm

  • Weight: 8.5kg

The ability to adjust the height of the stand means that you can accommodate different workspaces and optimise the flow of materials throughout your warehouse or factory. This flexibility ensures that your conveyor system can adapt to changing operational requirements.

Galvanised Steel Rollers (V3142): Heavy-Duty Performance

The V3142 Galvanised Steel Rollers are the perfect choice for heavy-duty applications. These rollers are specifically designed for use with 600mm wide conveyor systems and are built to handle demanding tasks. Made from pre-galvanised steel, these rollers are resistant to corrosion and wear, ensuring long-lasting durability and low maintenance.

Key Features

  • Roller Size: 527mm x 48mm

  • Shaft Size: 10mm x 8mm

  • Capacity: 100kg per roller

  • Spring-Loaded Shaft

  • 20 Rollers per Carton

  • Weight: 1.35kg per roller

With a capacity of 100kg per roller, these steel rollers are ideal for moving heavier materials, including boxes, crates, and large components. The spring-loaded shaft ensures easy installation and removal, and the pre-galvanized tube construction means the rollers will hold up well under industrial conditions.

Poly Rollers (V3143): Light and Reliable

For lighter applications, the V3143 Poly Rollers are a perfect fit. These rollers are designed for use in conveyor systems that handle lighter materials or less heavy-duty loads. Their lightweight nature doesn’t compromise their durability, making them a great choice for industries where lighter loads are frequently moved.

Key Features

  • Roller Size: 527mm x 48mm

  • Shaft Size: 10mm x 8mm

  • Capacity: 20kg per roller

  • Spring-Loaded Shaft

  • 20 Rollers per Carton

  • Weight: 0.98kg per roller

Poly rollers are particularly useful in applications that require frequent movement or easy adjustments. The spring-loaded shafts make installation hassle-free, while their lightweight design keeps your system running smoothly without adding unnecessary weight.
