90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide
Click on image above to enlarge

Roller & Skate Conveyors

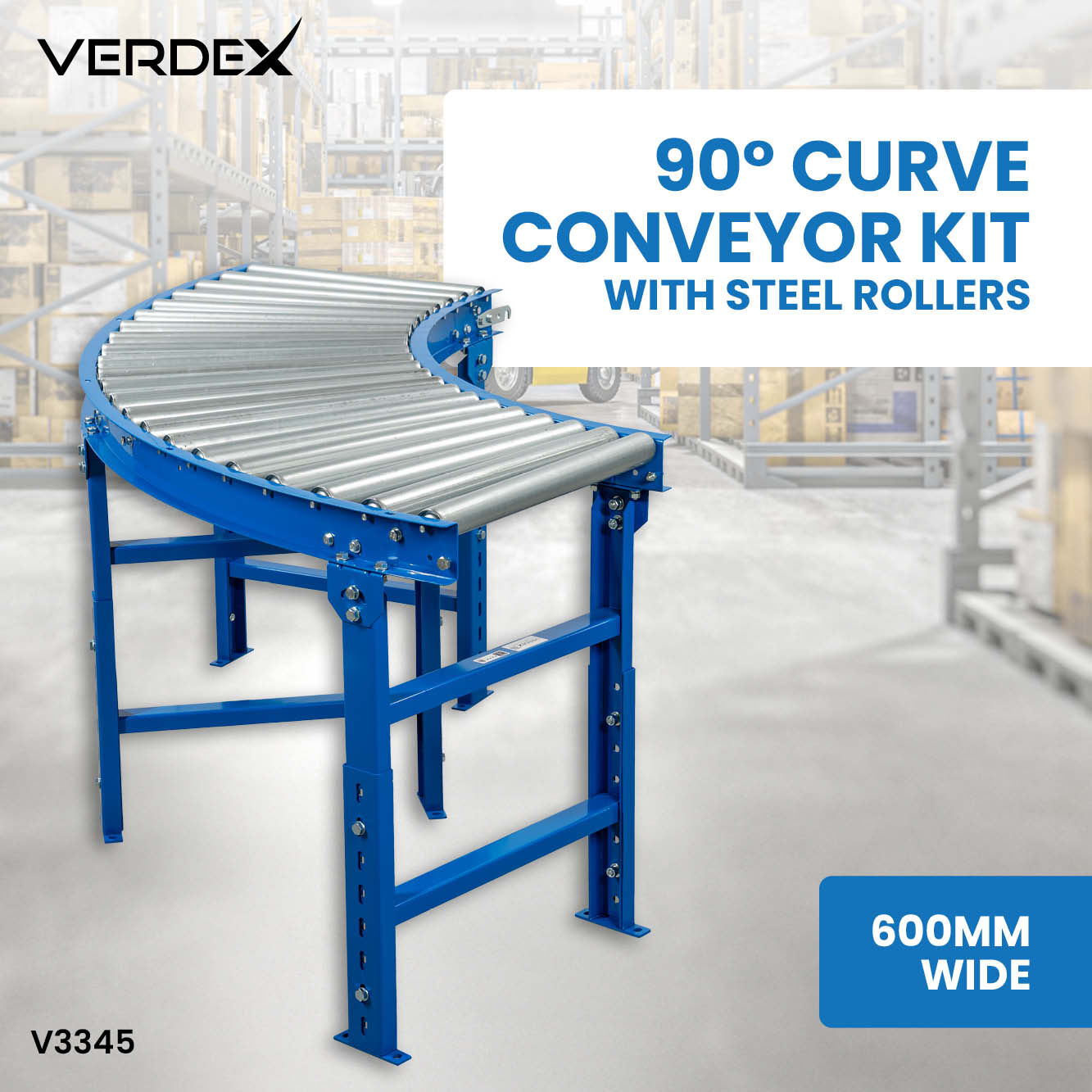

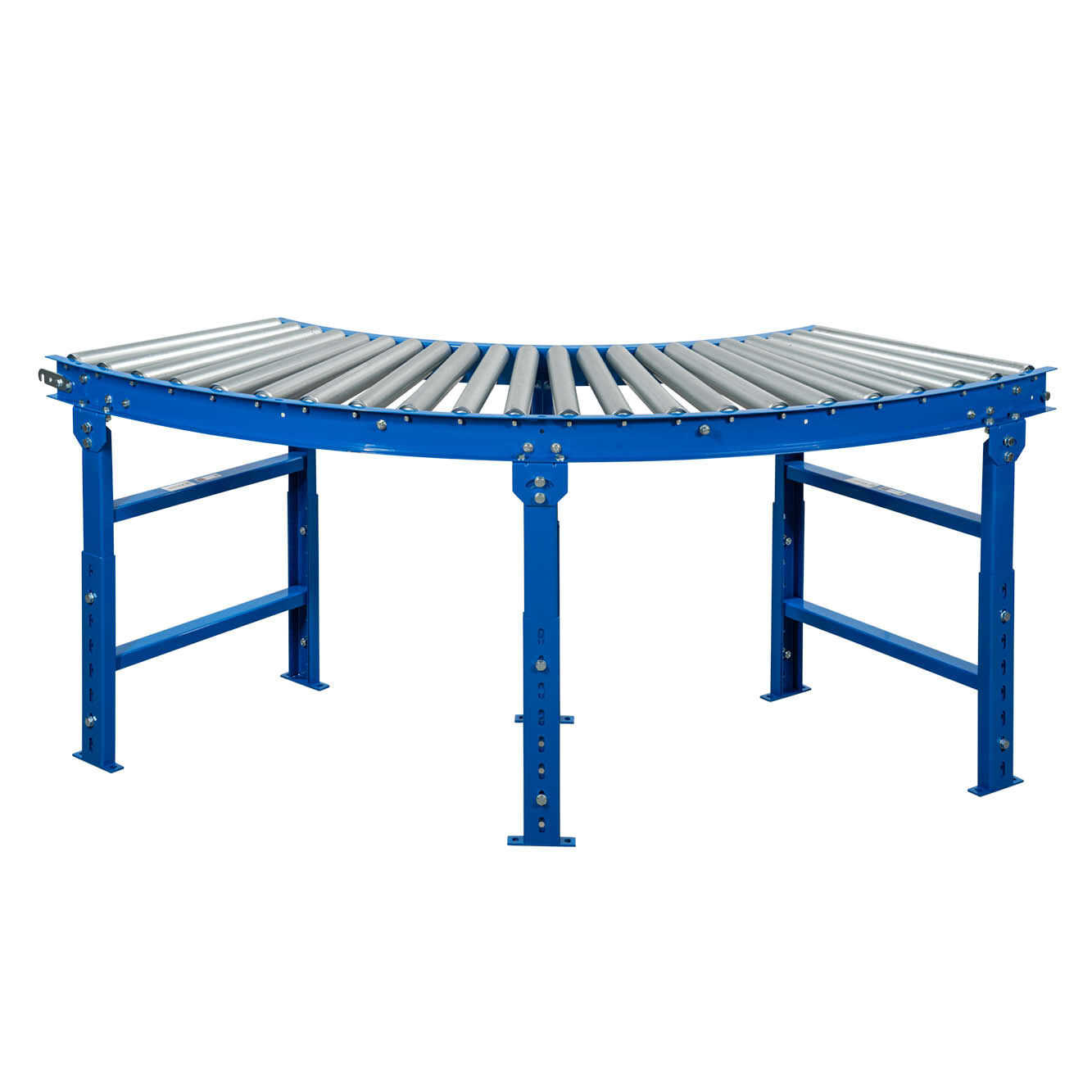

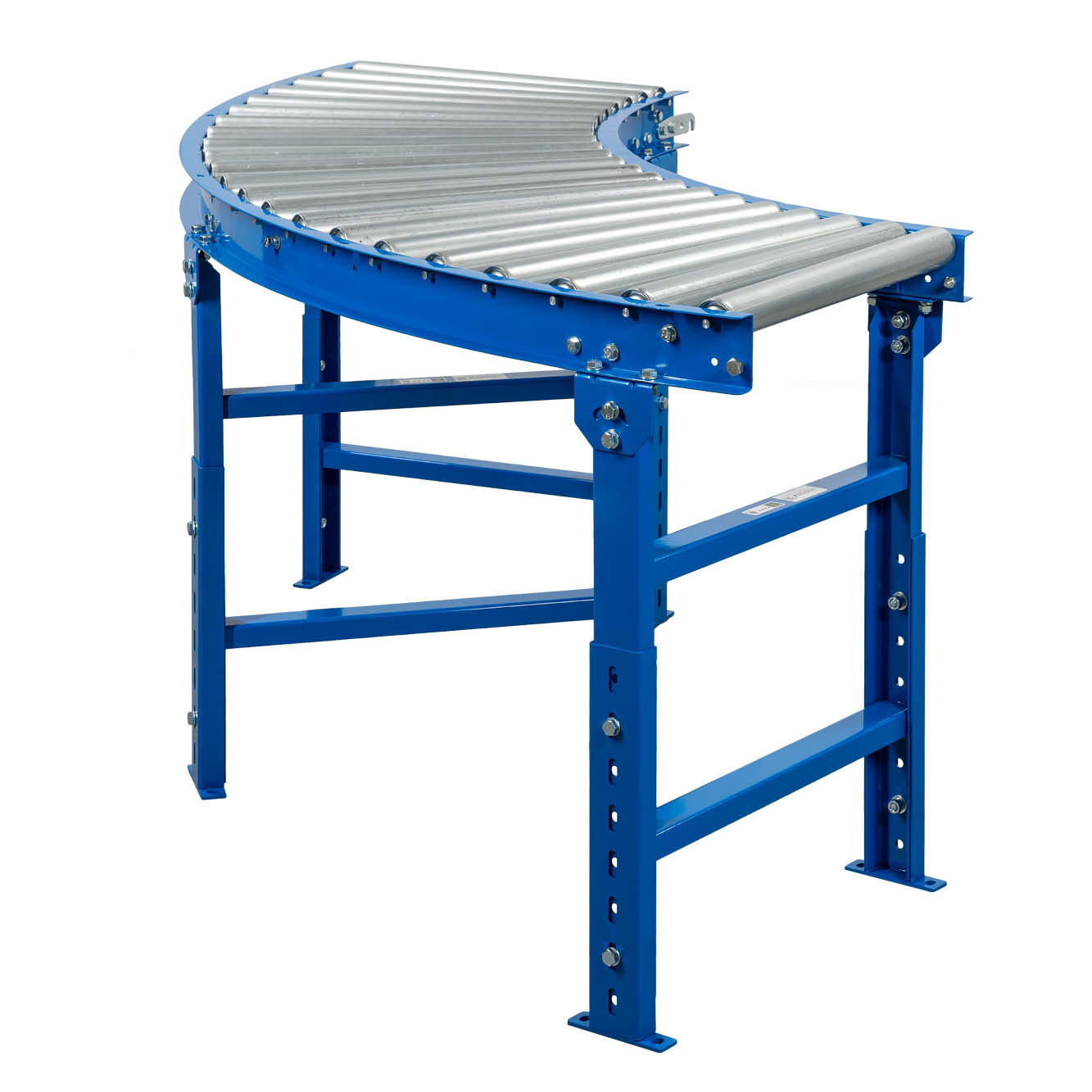

90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide


$1,265.00 Price excludes GST

SKU

V3345

Availability:

In StockIn Stock

Subtotal:

$1,265.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

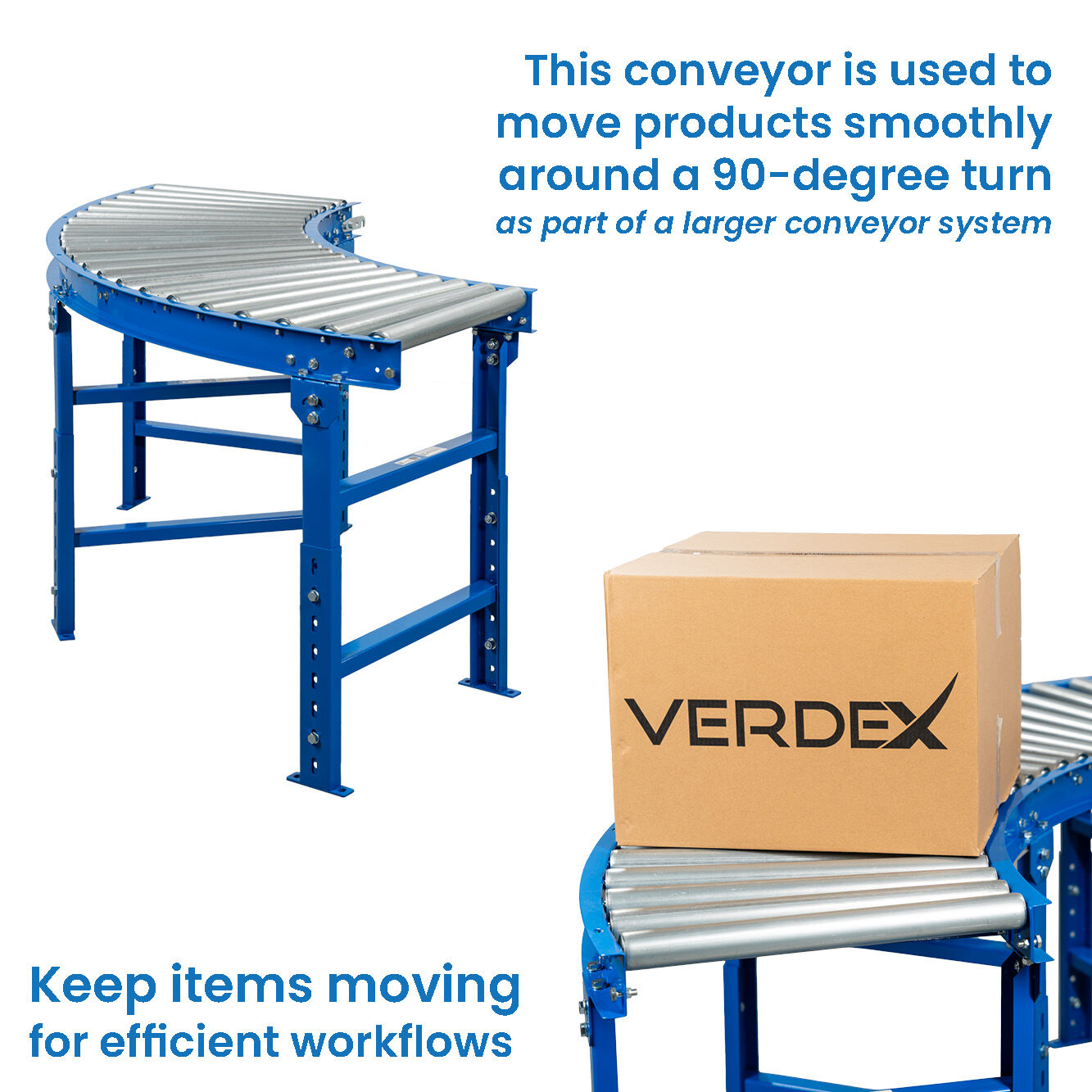

This conveyor is used to move products smoothly around a 90-degree turn as part of a larger conveyor system. The durable steel rollers are suitable for handling medium to heavy items. With a 600mm width, it can handle a variety of product sizes and helps keep everything moving in the right direction without needing to stop or turn items manually.

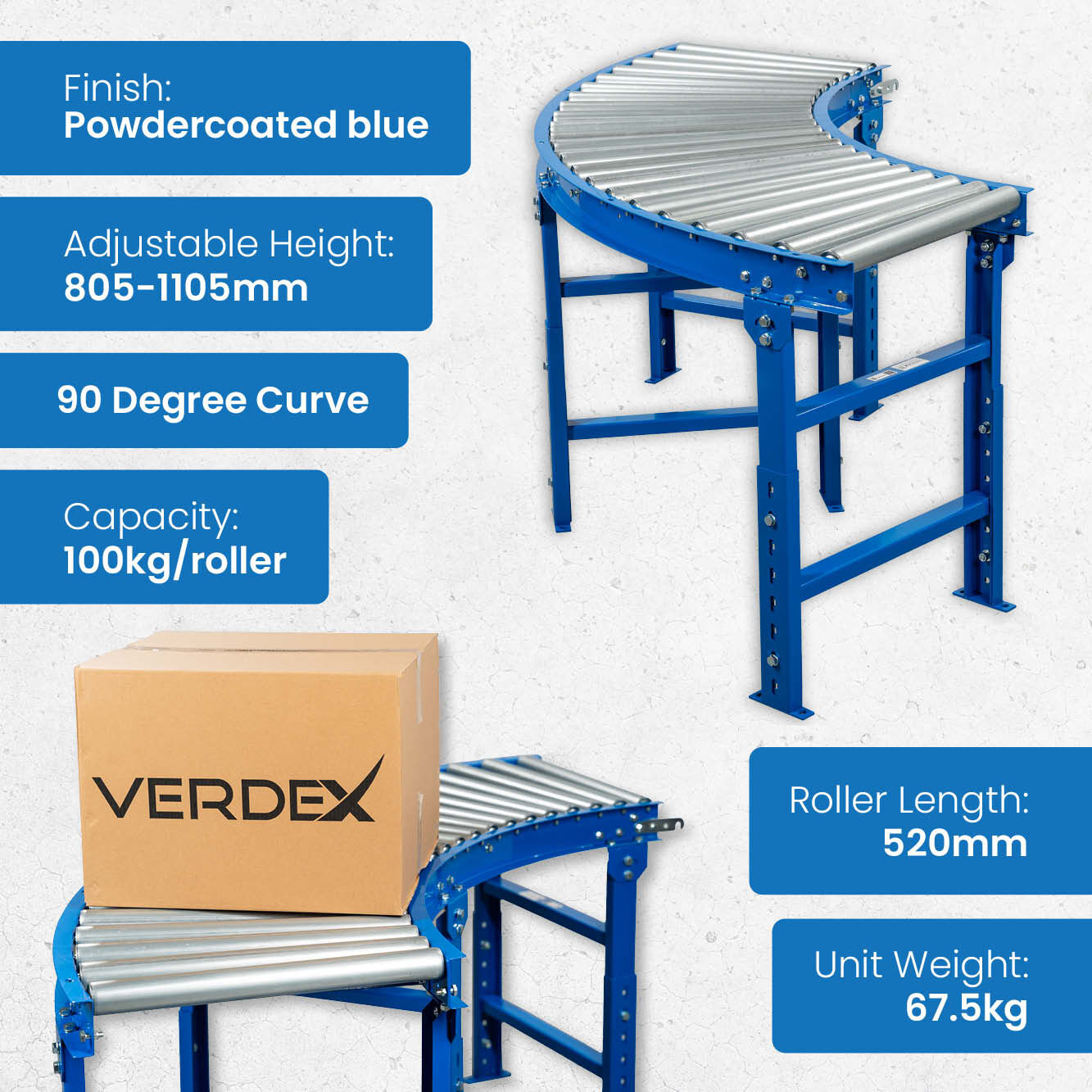

  • 90 degree curve
  • Capacity: 100kg/Roller
  • Roller Length: 520mm
  • Powdercoated blue finish
  • Overall Size (LxWxH): 1410x1410x90mm
  • Adjustable Height: 805-1105mm
  • Width of Entry Point on Conveyor: 600mm (see image)
  • Unit Weight: 67.5kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Efficient 90 Deg Curve Conveyor with Steel Rollers (600mm Wide)

The 90 Deg Curve Conveyor Kit with Steel Rollers – 600mm wide is purpose-built to guide goods smoothly through right-angle transitions within larger conveyor setups. With durable construction and a space-efficient curved layout, it eliminates the need for manual turning, making it ideal for streamlining material handling operations.

Key Features and Benefits

This curved conveyor is designed to maintain the flow of materials without interruption, particularly in areas where space or layout requires a directional change. Its steel roller design provides strength and reliability, especially in demanding industrial settings. Below are the key features and benefits of the curved conveyor:

  • Smooth 90° curve for seamless corner transitions in conveyor systems

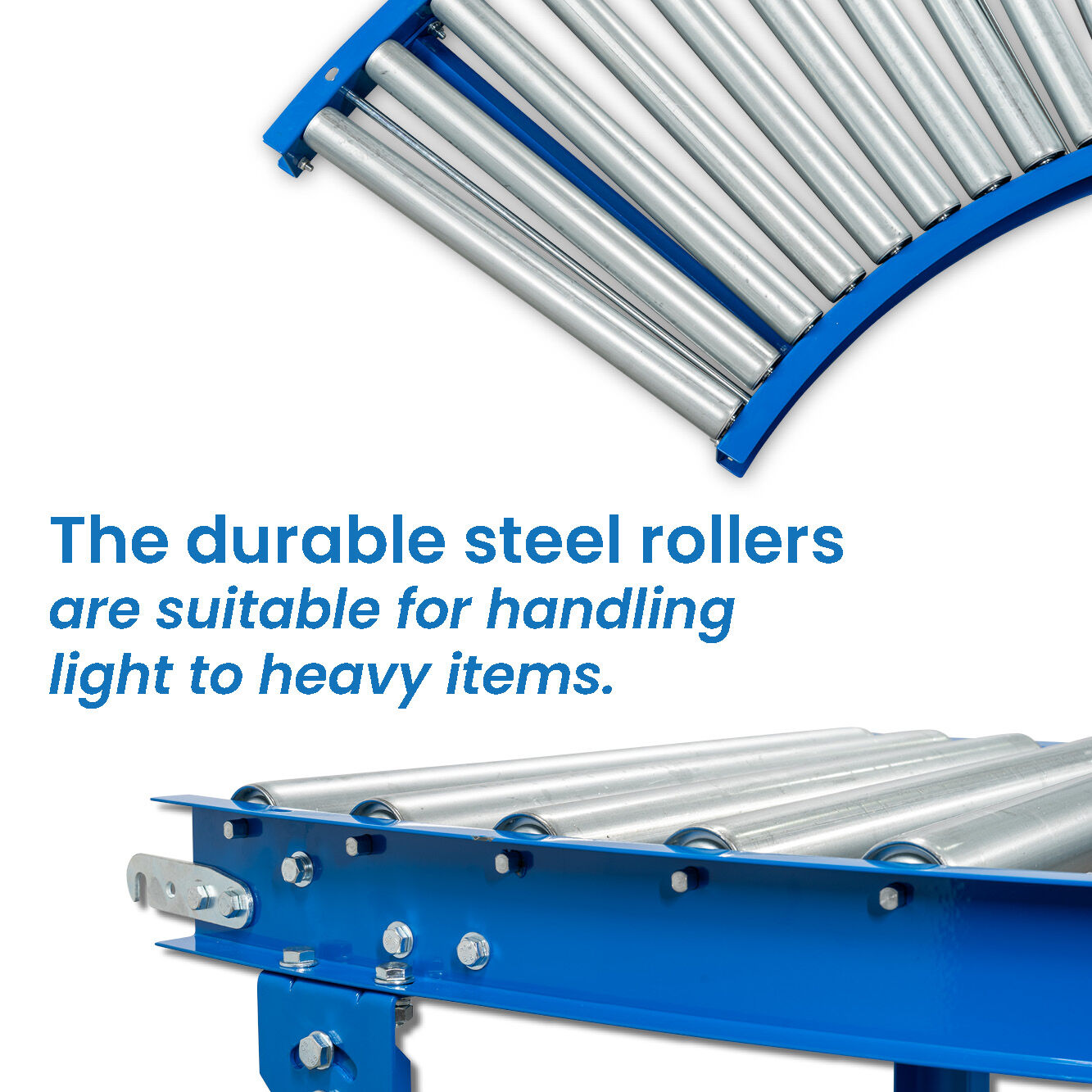

  • Durable steel rollers, capable of handling medium to heavy loads - each individual roller has a length of 520mm

  • 600mm wide frame supports a wide variety of product sizes

  • Minimises manual handling by maintaining directional flow automatically

  • Ideal for warehouse, distribution, and manufacturing environments

Product Specifications

Built for industrial use, this unit combines heavy-duty materials with compact dimensions to fit into space-constrained layouts while ensuring performance and safety with specifications including:

  • Configuration: 90-degree curved conveyor

  • Roller Load Capacity: 100kg per roller

  • Roller Length: 520mm

  • Overall Dimensions (LxWxH): 1410x1410x90mm

  • Unit Weight: 67.5kg

  • Construction: Heavy-duty steel roller design

  • Width: 600mm

Applications and Ideal Use Cases

The 90 Deg Curve Conveyor Kit with Steel Rollers – 600mm wide is an excellent choice for a range of industrial environments. In warehouses and logistics centres, it helps maintain product movement around tight corners without stopping workflow.

In manufacturing plants, it integrates into production lines to support the steady transfer of goods between workstations. Meanwhile, for packaging or distribution hubs, this conveyor improves operational efficiency by reducing the need for manual handling where layout constraints demand a directional shift.

Whether you're managing bulk packaged items, boxed goods, or component parts, this curved conveyor is a dependable option for any facility requiring reliable, medium to heavy-duty material flow in confined spaces.

Need a Curved Conveyor Solution

Get in touch with the team at Verdex to discuss how the 90 Deg Curve Conveyor Kit with Steel Rollers - 600mm wide can improve your material handling efficiency. Call us on our toll-free number 1800 750 500 or email us on sales@verdex.com.au today. We're here to help you find the right solution for your operation.
