Product Dimensions / Specifications

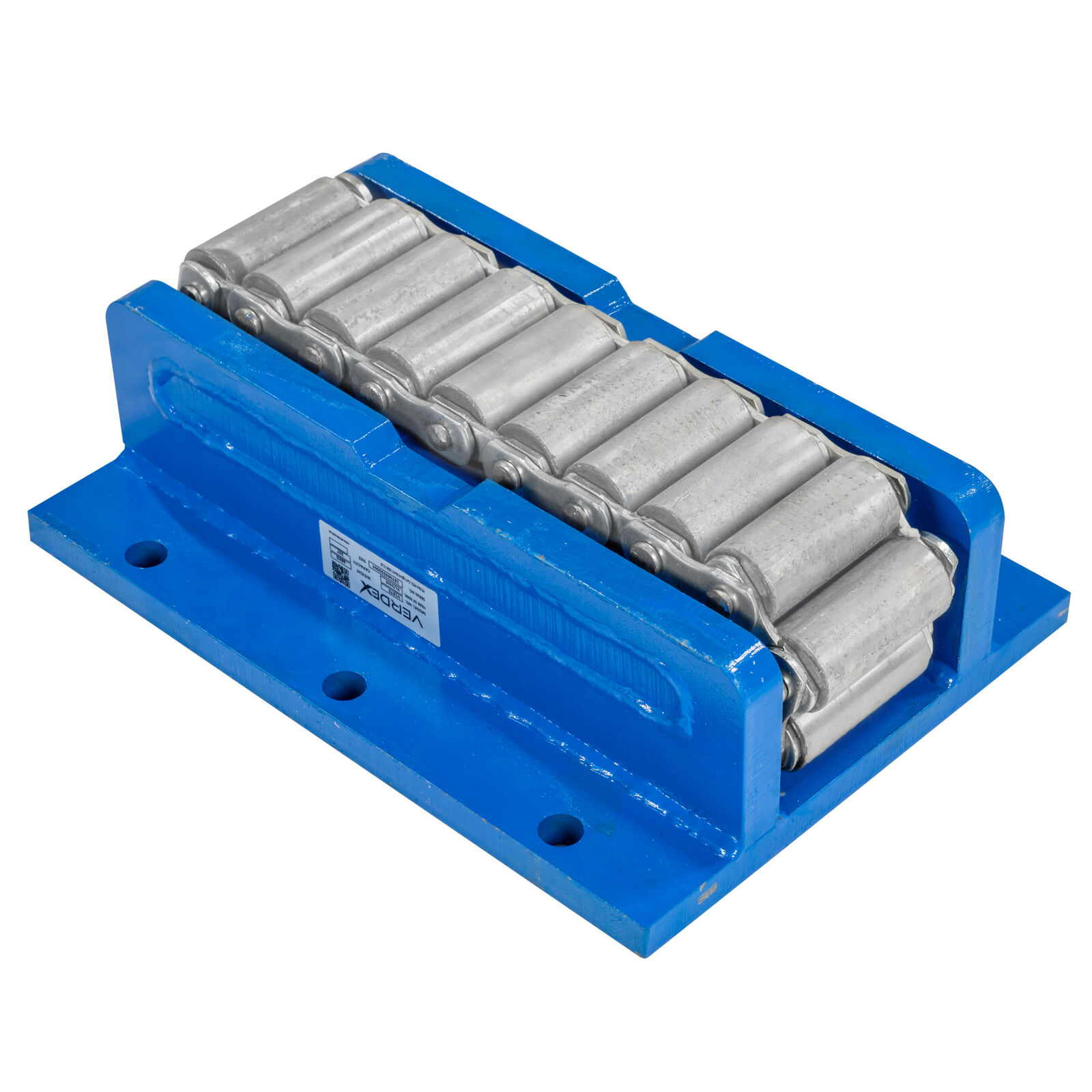

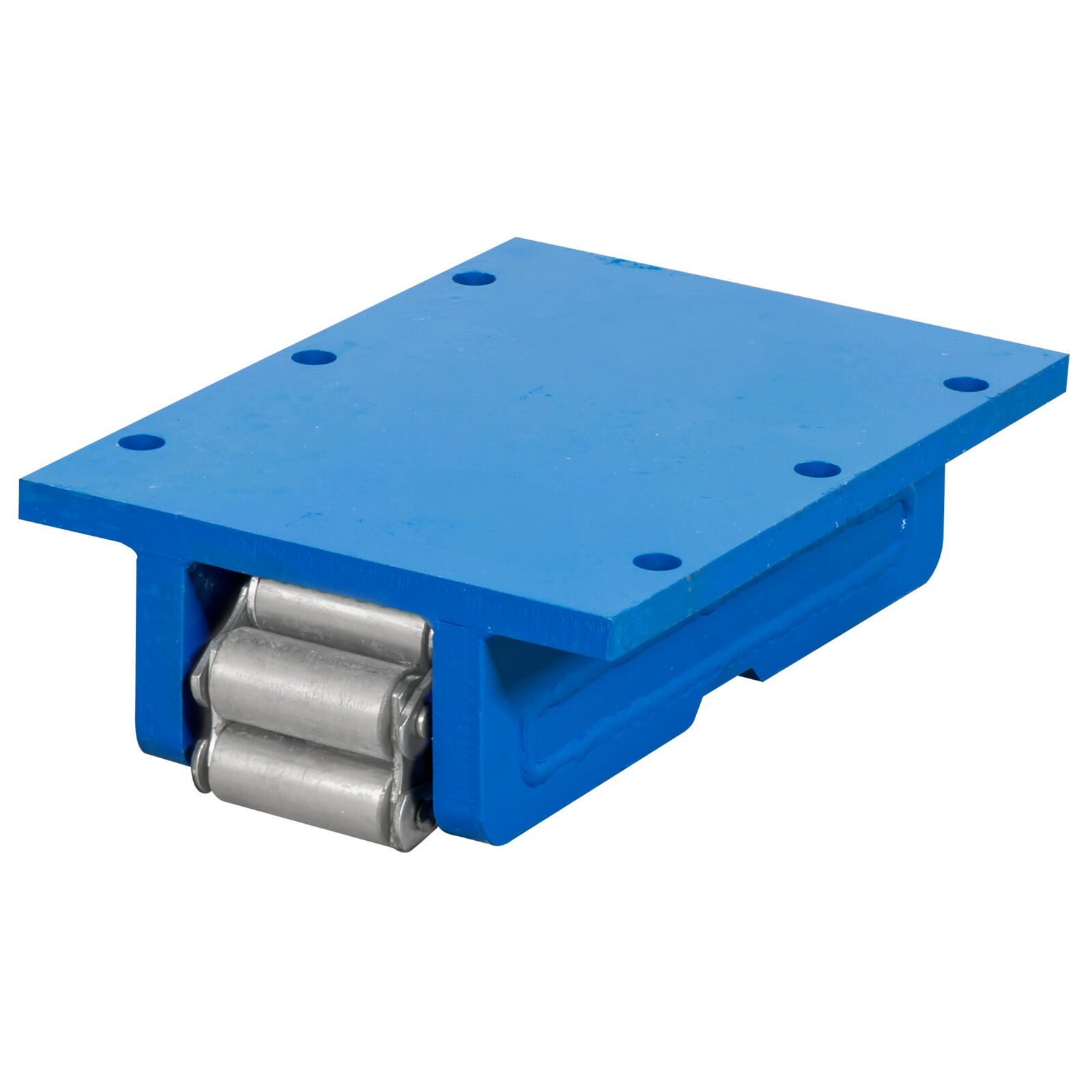

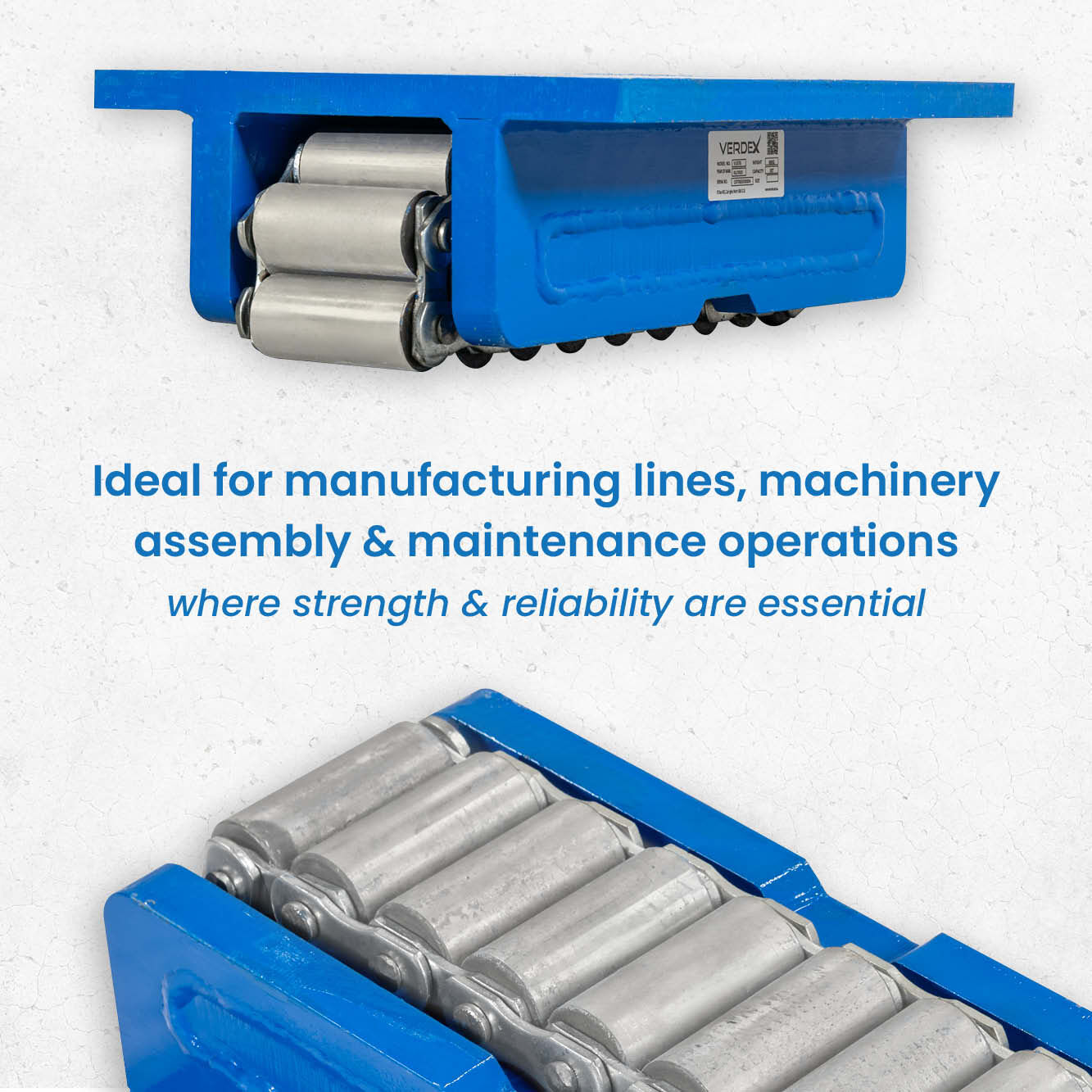

The Equipment Roller Load Skate – 50,000kg is a versatile solution built for demanding industrial applications, making it a smart choice for repetitive motion or integration into larger equipment. Its design enables smooth, controlled movement of heavy loads in any direction. Ideal for manufacturing lines, machinery assembly, and maintenance operations where strength and reliability are essential.

  • Ideal for linear motion, repetitive movements or use as a built-in component in equipment.
  • Heavy duty robust rollers built for long life.
  • Rollers have a fixed hole pattern for bolt-mounting.
  • Can be used right side up, inverted, or on their side.

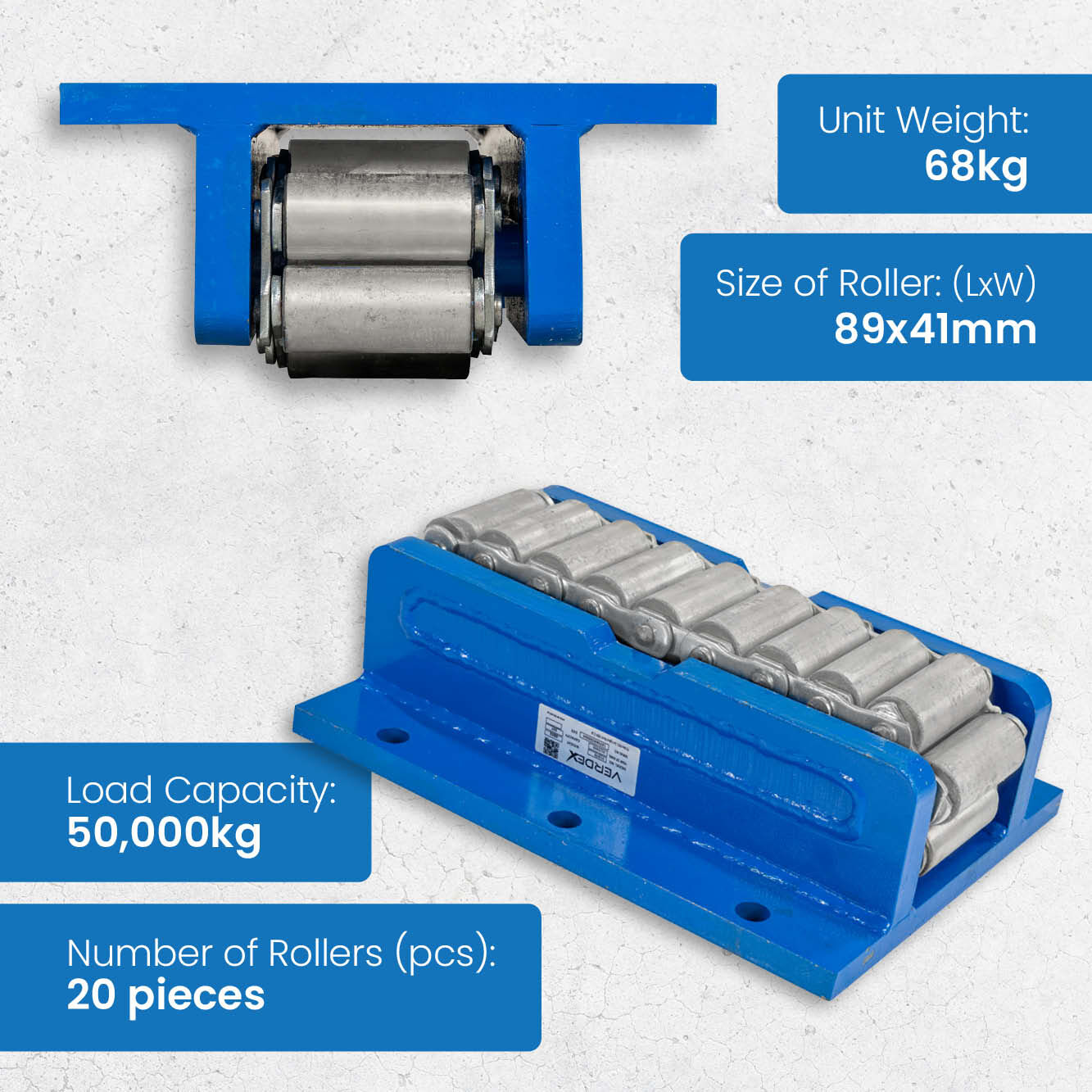

  • Capacity: 50,000kg
  • Size of roller (LxW): 89x41mm
  • Number of Roller (pcs): 20

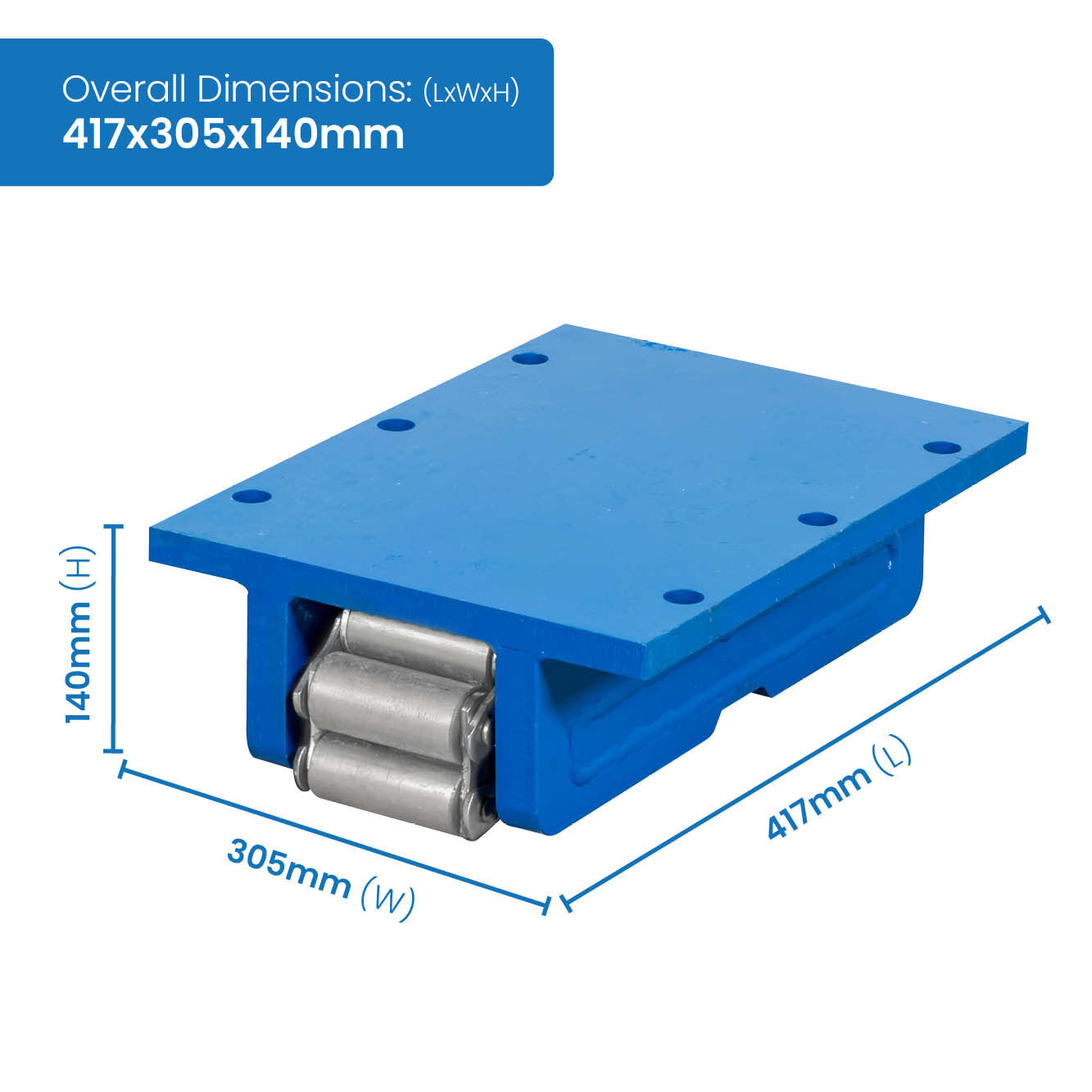

  • Dimension (LxWxH): 417x305x140mm
  • Unit Weight: 68kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Equipment Roller Load Skate – 50,000kg - Heavy-Duty Load Handling Made Easy

The Equipment Roller Load Skate – 50,000kg is built to take on your toughest material handling challenges. Engineered for industrial environments where strength, durability, and precision are non-negotiable, this load skate provides smooth, multi-directional movement under extreme weight conditions.

Built for Performance, Designed for Versatility

With a massive 50-tonne capacity, this load skate is ideal for applications requiring consistent linear motion, repetitive tasks, or fixed installation within larger systems. Its 20 high-performance rollers are precision-aligned for even load distribution and long-lasting durability. Bolt-mounting options and the ability to operate in upright, inverted, or side-mounted positions make it one of the most adaptable skates on the market. Whether you're shifting machinery or integrating the unit into an automated assembly line, this skate keeps operations moving efficiently and safely.

Product Specifications

This unit supports a heavy load capacity of 50 tonnes, making it suitable for the most demanding tasks. Each of the 20 rollers measures 41mm in diameter and 89mm in length, providing smooth, controlled movement under weight. The overall dimensions of the skate are 417mm long, 305mm wide, and 140mm high, with a total unit weight of 68kg. It features a fixed hole pattern that allows for secure bolt-mounting, enhancing stability during use.

Ideal for High-Load, Precision Environments

Perfect for machinery maintenance, production line integration, equipment transport, or permanent fixture in automated systems, the Equipment Roller Load Skate – 50,000kg excels in workshops, manufacturing plants, and heavy-duty industrial facilities. Its rugged design is trusted by professionals in industries where failure is not an option.
