Heavy Duty Manual Fork Stackers


View Pricing & Order

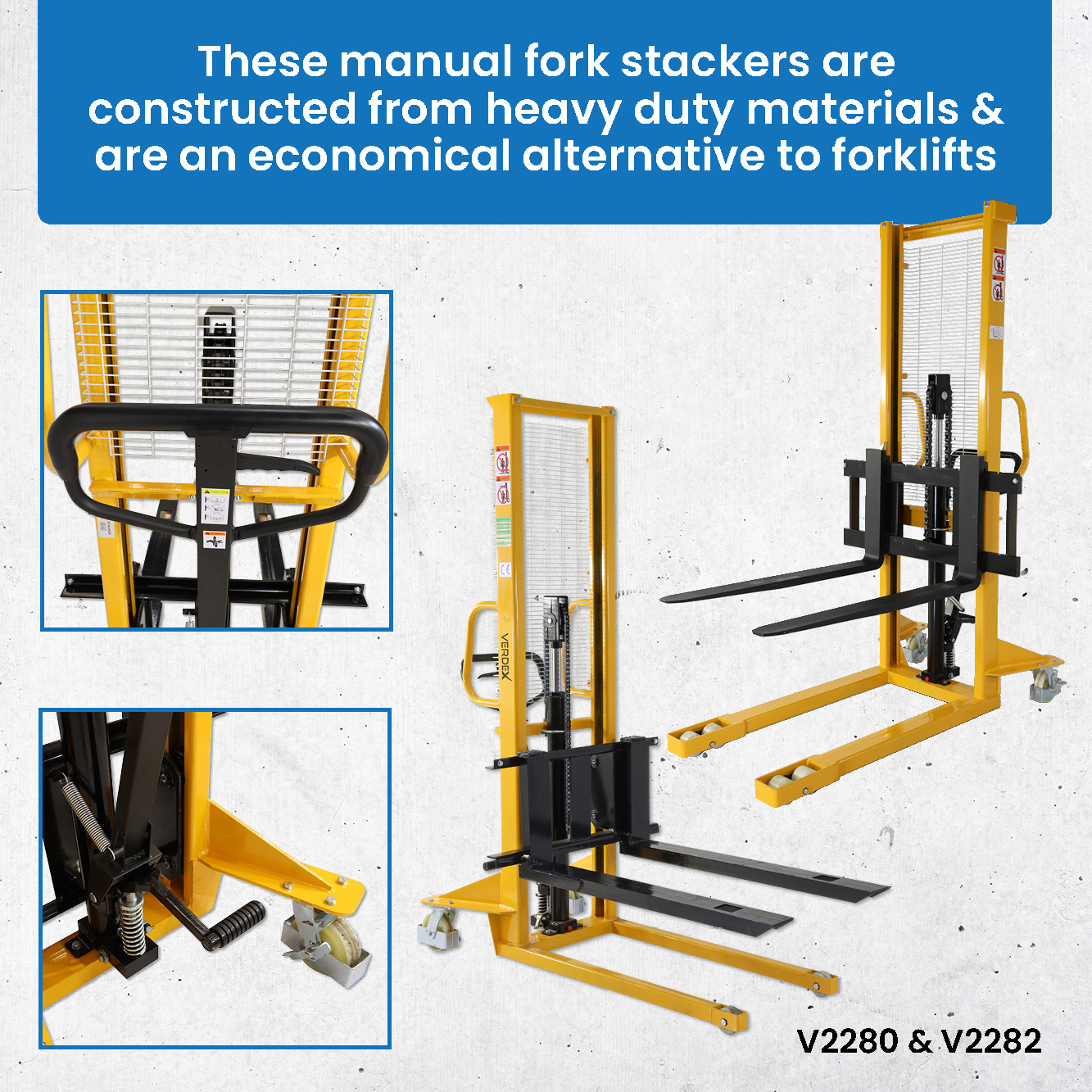

  • These manual fork stackers are constructed from very heavy duty materials, and are an economical alternative to forklifts.
  • Manual hydraulic lift via pallet truck style handle or foot pedal.
  • Straddle leg model for use with standard 1170mm Australian pallets.
  • Standard leg model for use on Euro pallets and small skids.
  • Lockable wheels are standard on all models.
  • Tine Length: 1060mm
Sale Ends in
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

  • These manual fork stackers are constructed from very heavy duty materials, and are an economical alternative to forklifts.
  • Manual hydraulic lift via pallet truck style handle or foot pedal.
  • Straddle leg model for use with standard 1170mm Australian pallets.
  • Standard leg model for use on Euro pallets and small skids.
  • Lockable wheels are standard on all models.
  • Tine Length: 1060mm
View More Specifications

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

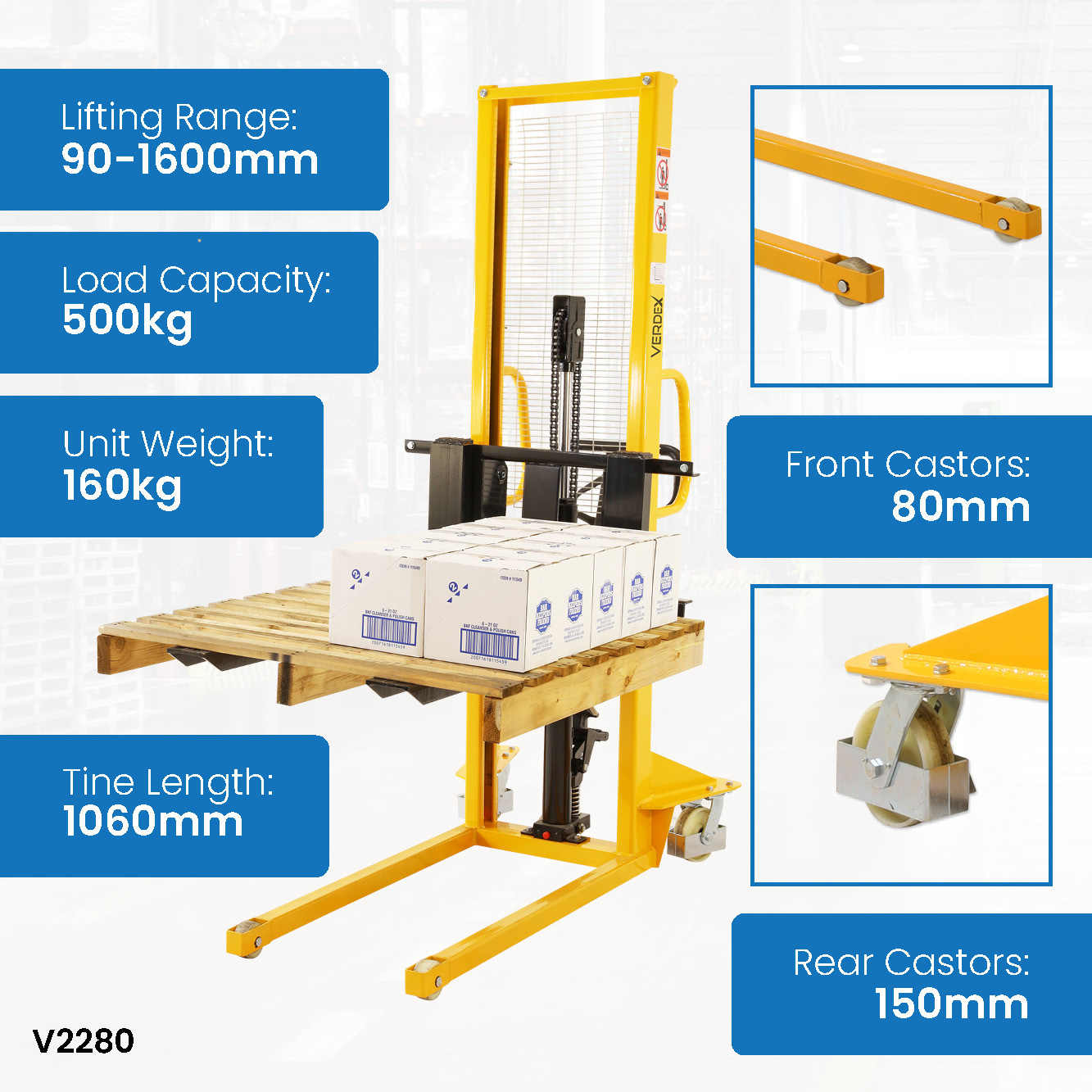

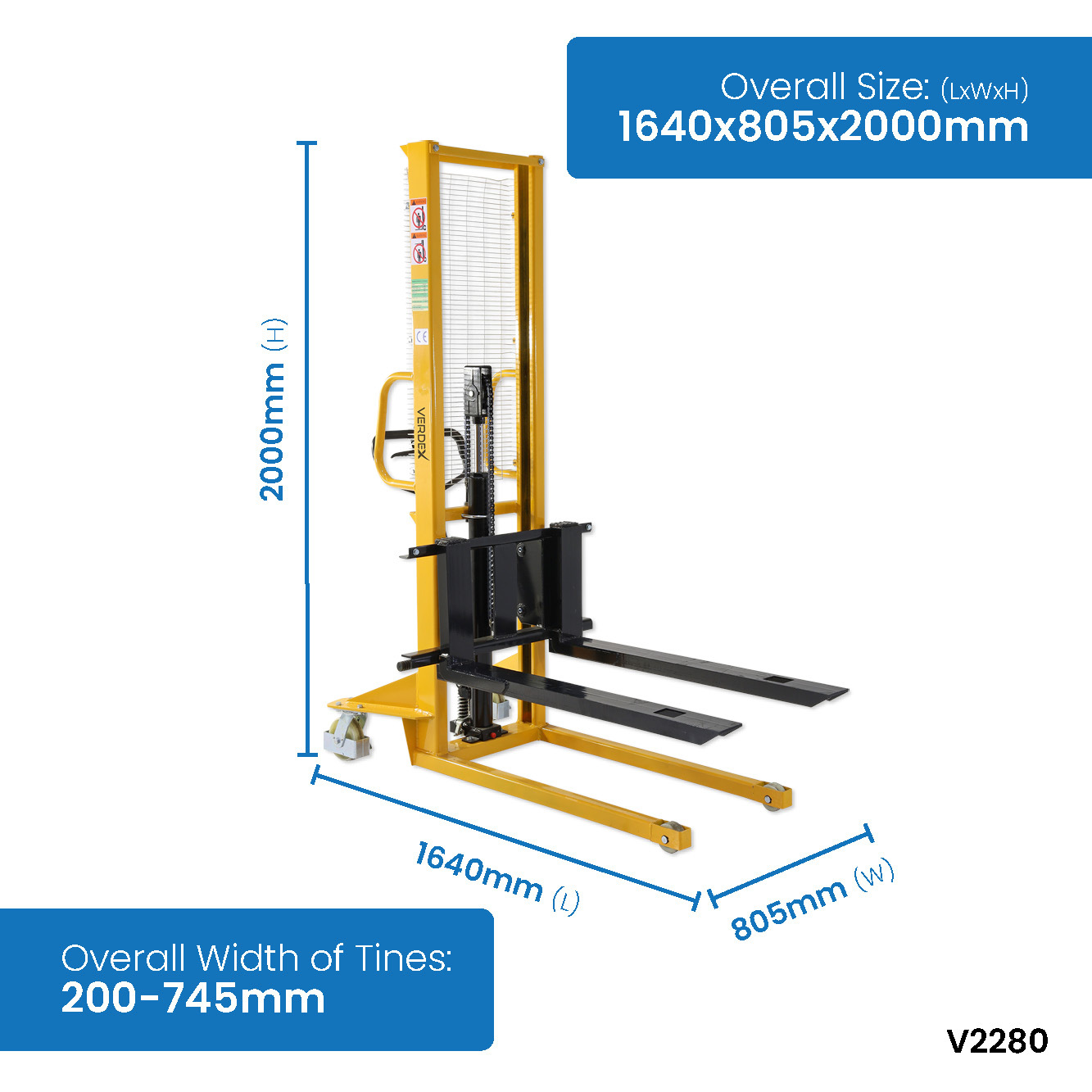

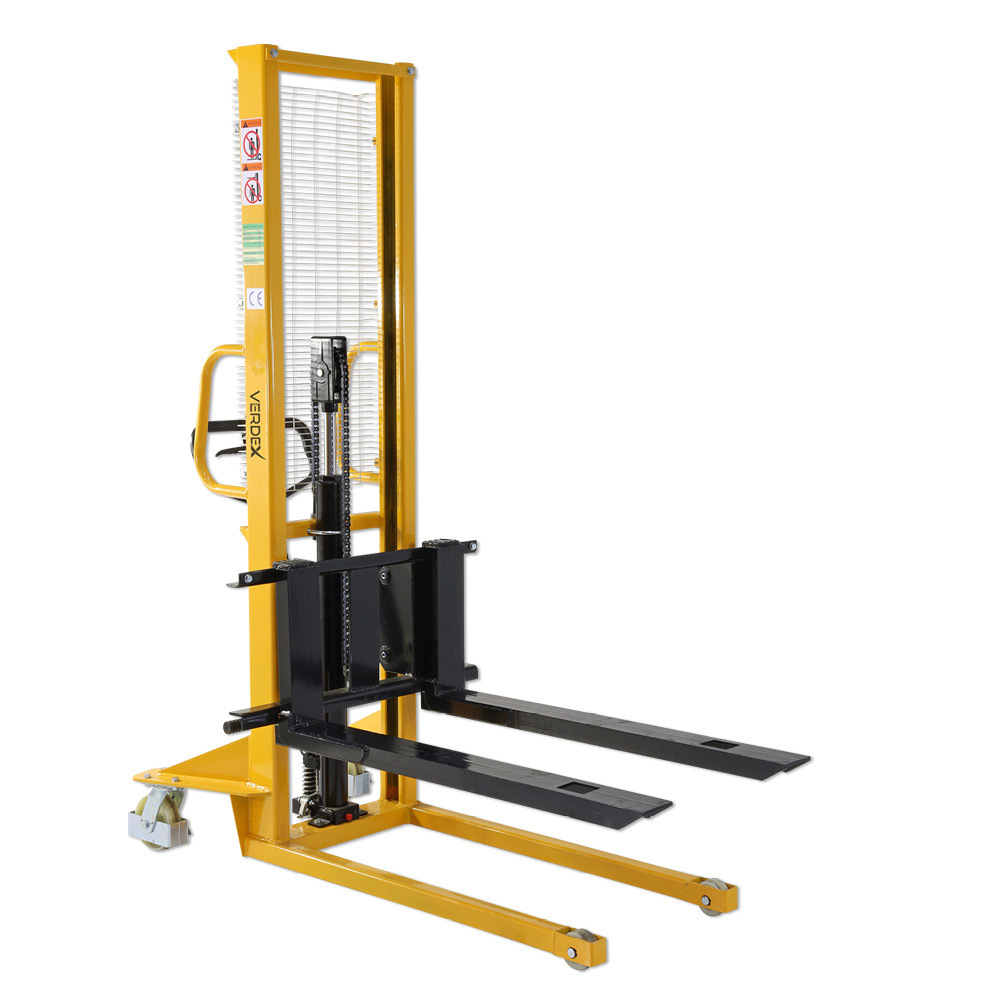

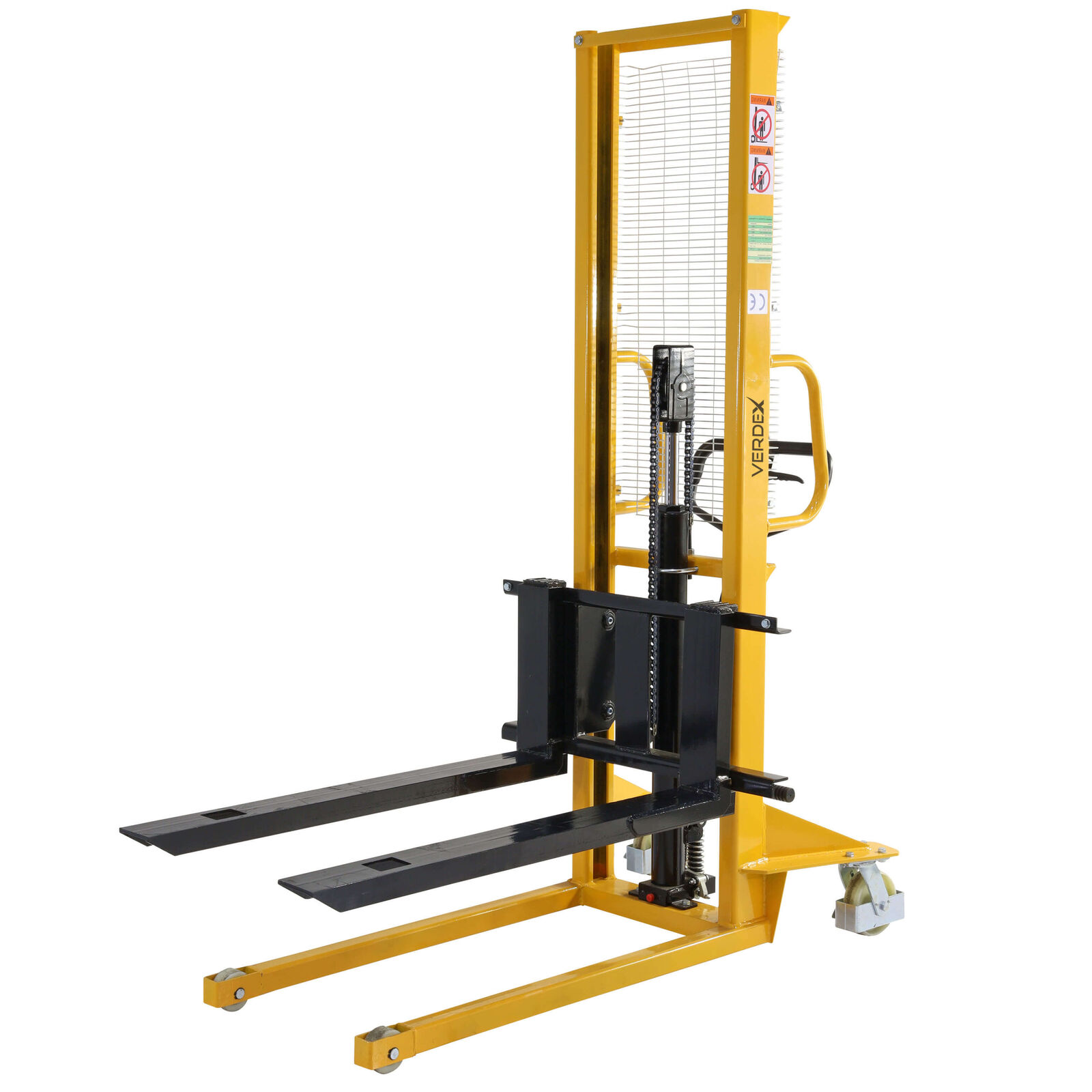

 Standard Leg Fork Stacker  - 500kg capacity

Standard Leg Fork Stacker - 500kg capacity

Product Code: V2280

  • Standard Legs
  • Powder coated yellow
  • Designed for use on Euro pallets and small skids.
  • Tine Length: 1060mm
  • Load Capacity: 500kg
  • Rear Castors: 150mm
  • Front Castors: 80mm
  • Lifting Range: 90-1600mm
  • Overall Width of Tines: 200-745mm
  • Overall Size (LxWxH): 1640x805x2000mm
  • Unit Weight: 160kg
Standard Leg Fork Stacker - 500kg capacity V2280
View Details

$1,885.00

$1,690.00

SAVE $195.00
-
+
In StockIn Stock
In StockIn Stock

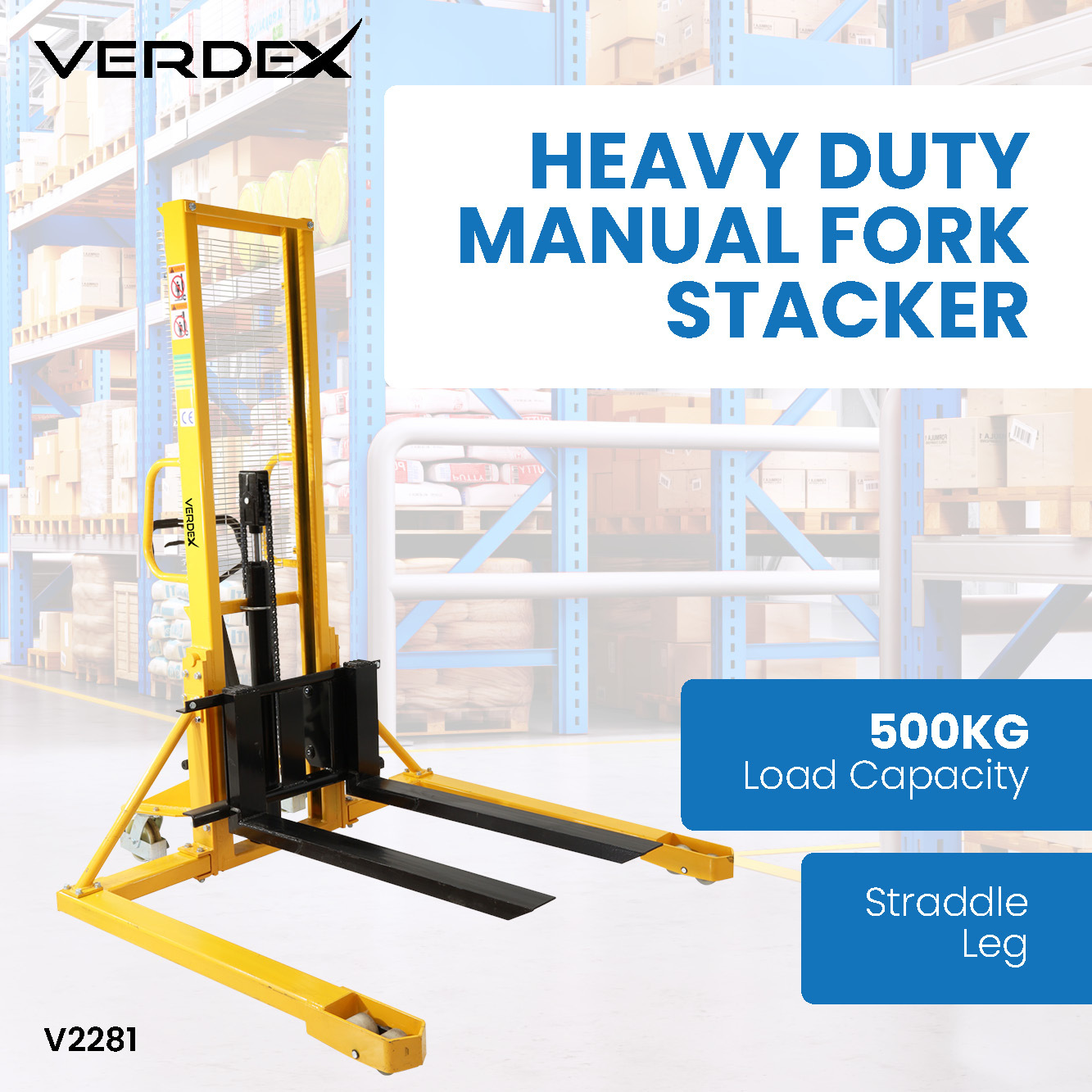

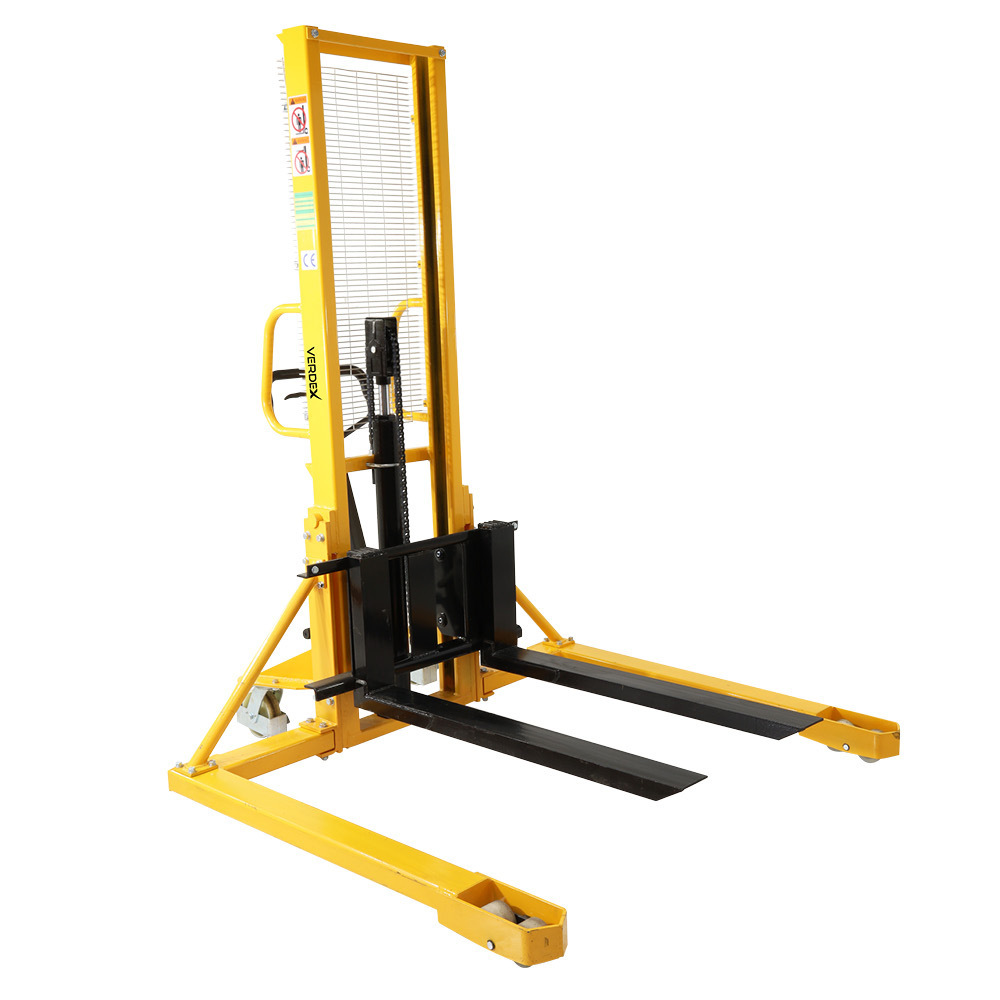

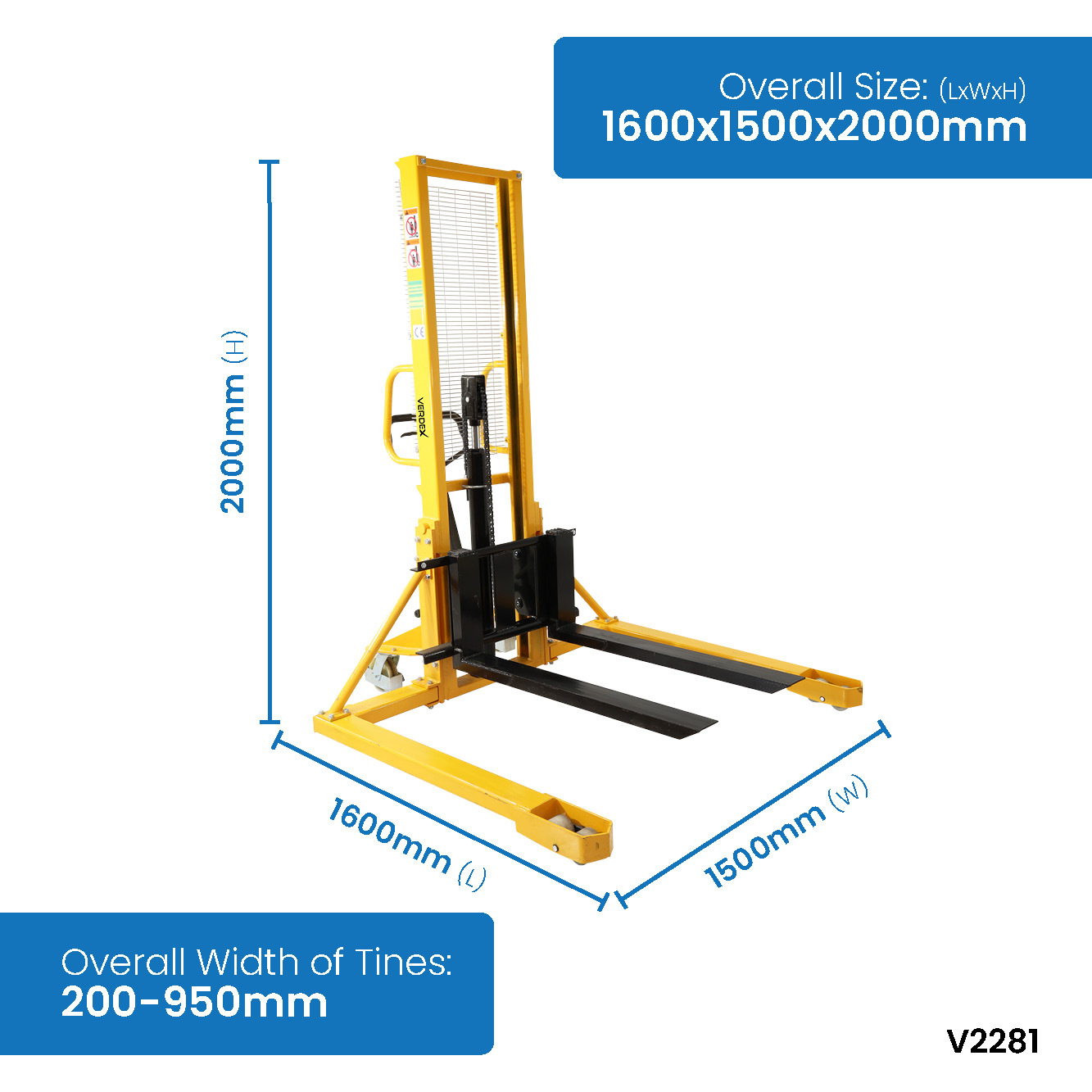

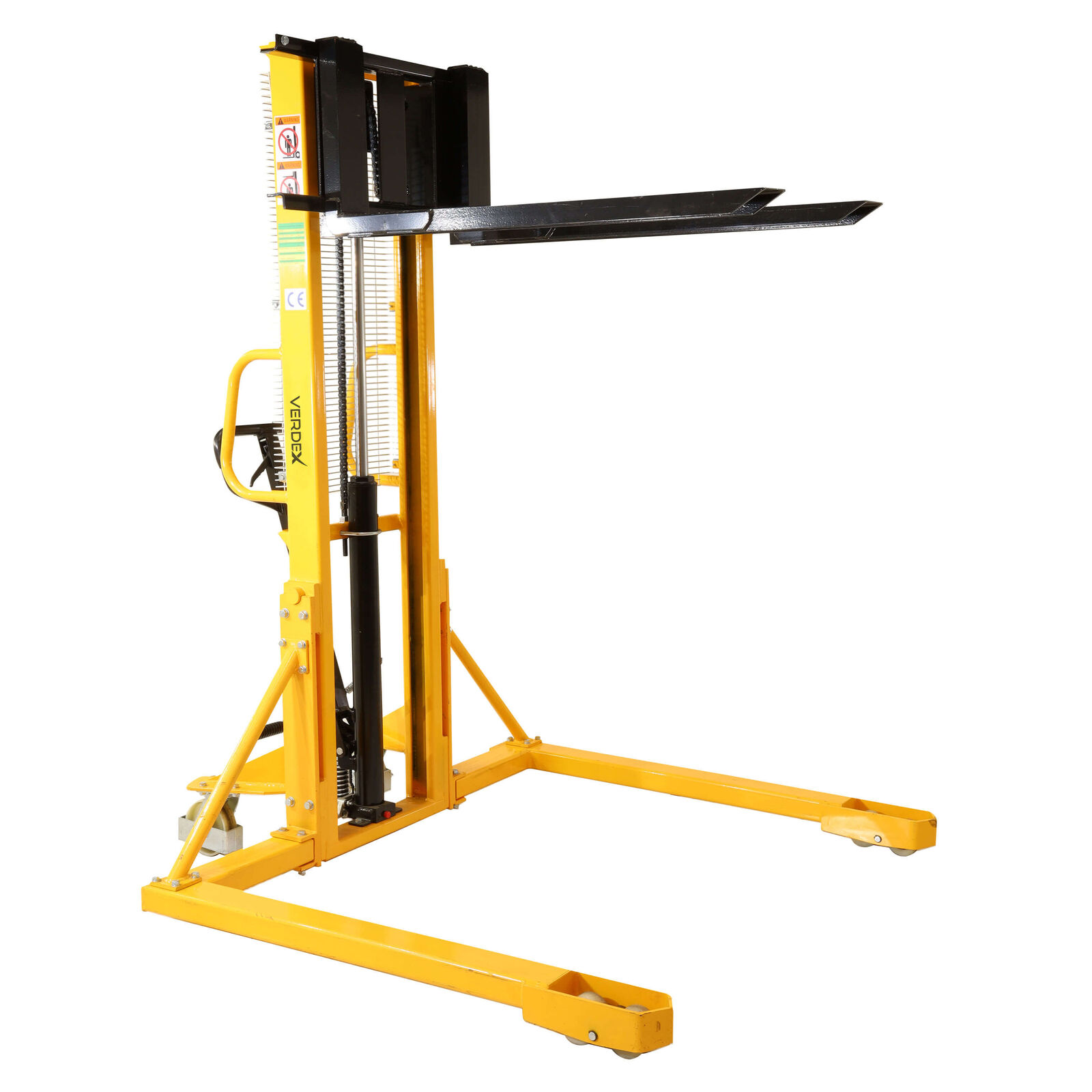

 Straddle Leg Fork Stacker - 500kg capacity

Straddle Leg Fork Stacker - 500kg capacity

Product Code: V2281

  • Straddle Legs
  • Powder coated yellow
  • Designed for use with standard 1170mm Australian pallets
  • Tine Length: 1060mm
  • Load Capacity: 500kg
  • Rear Castors: 150mm
  • Front Castors: 80mm
  • Lifting Range: 70-1600mm
  • Overall Width of Tines: 200-950mm
  • Overall Size (LxWxH): 1600x1500x2000mm
  • Unit Weight: 225kg
Straddle Leg Fork Stacker - 500kg capacity V2281
View Details

$2,395.00

-
+
In StockIn Stock
In StockIn Stock

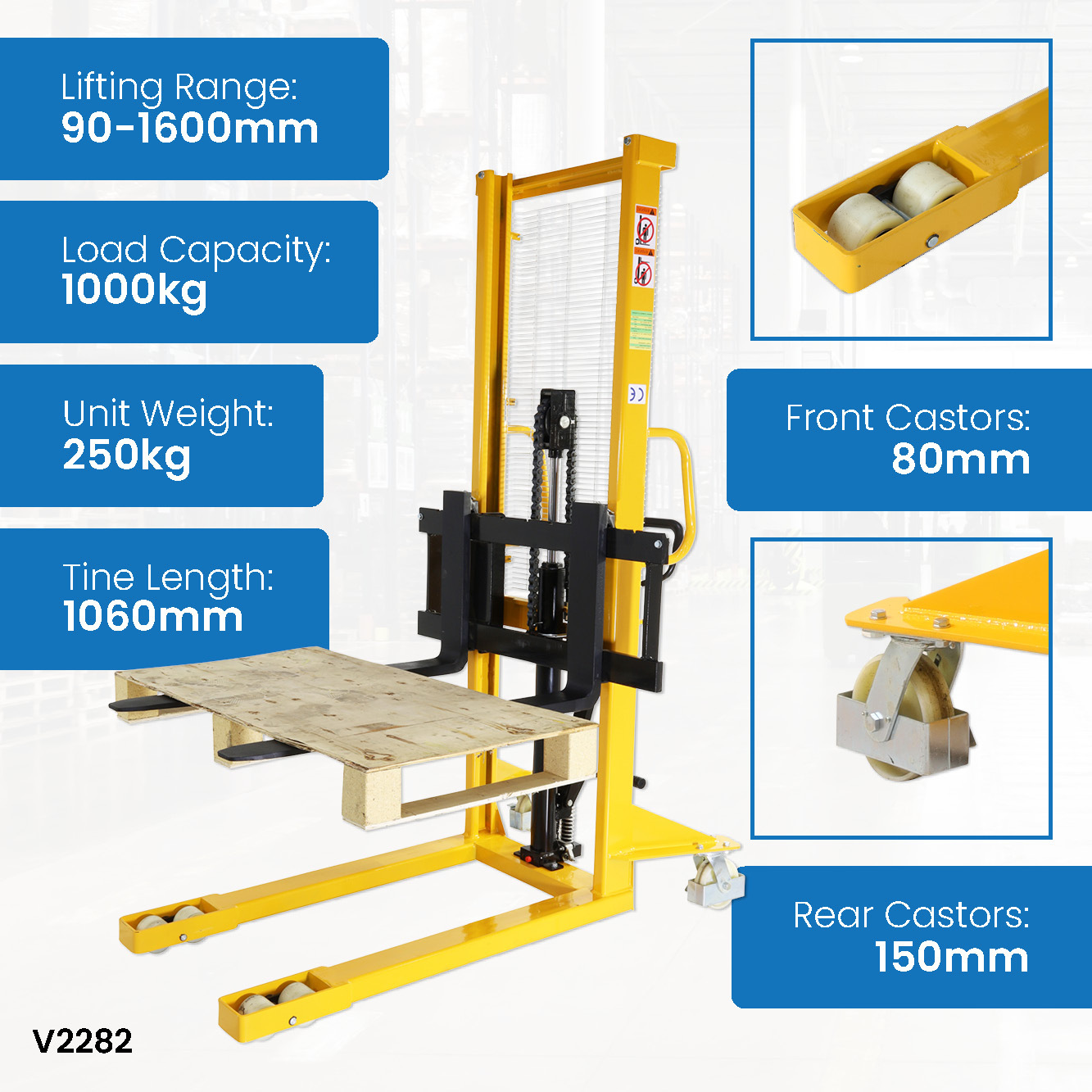

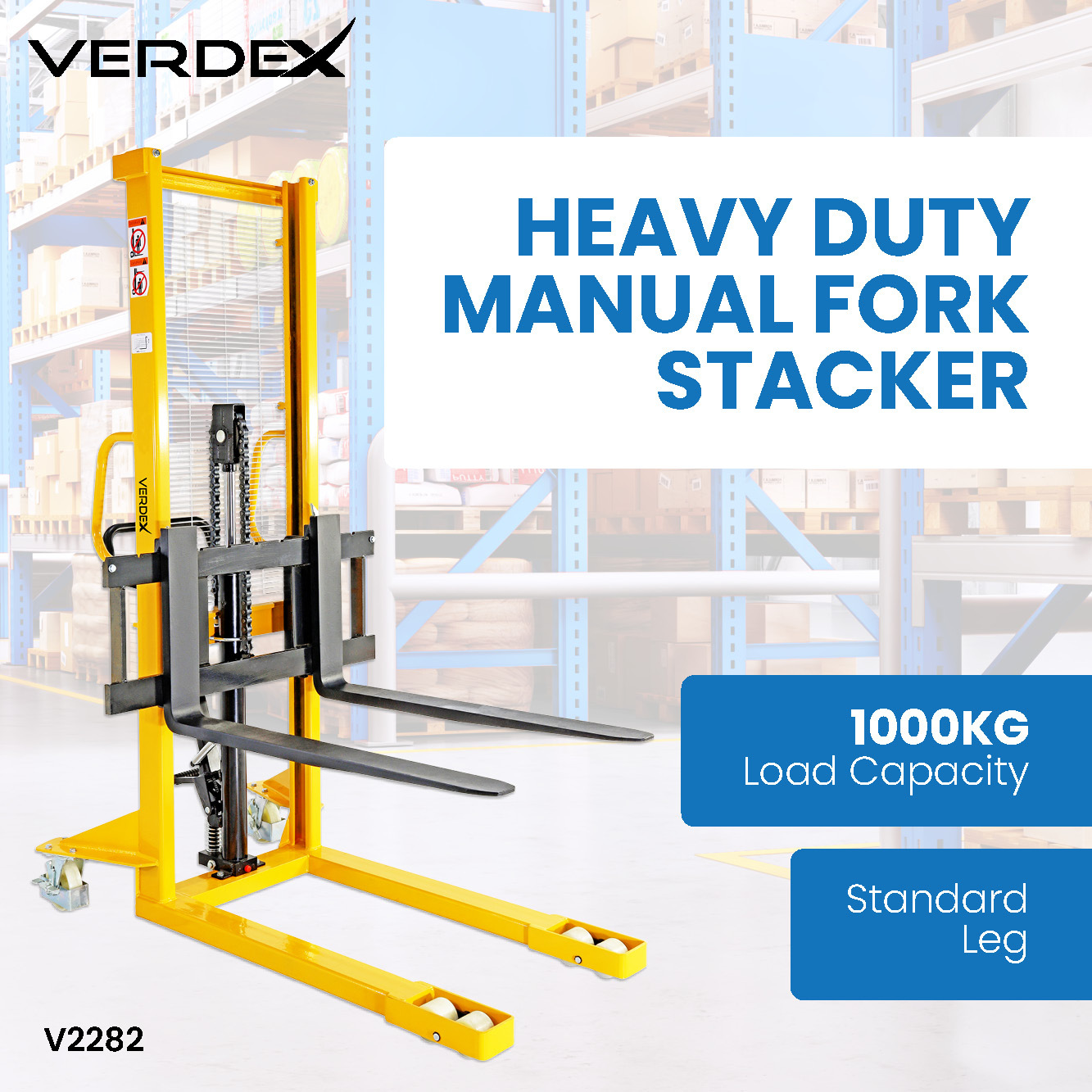

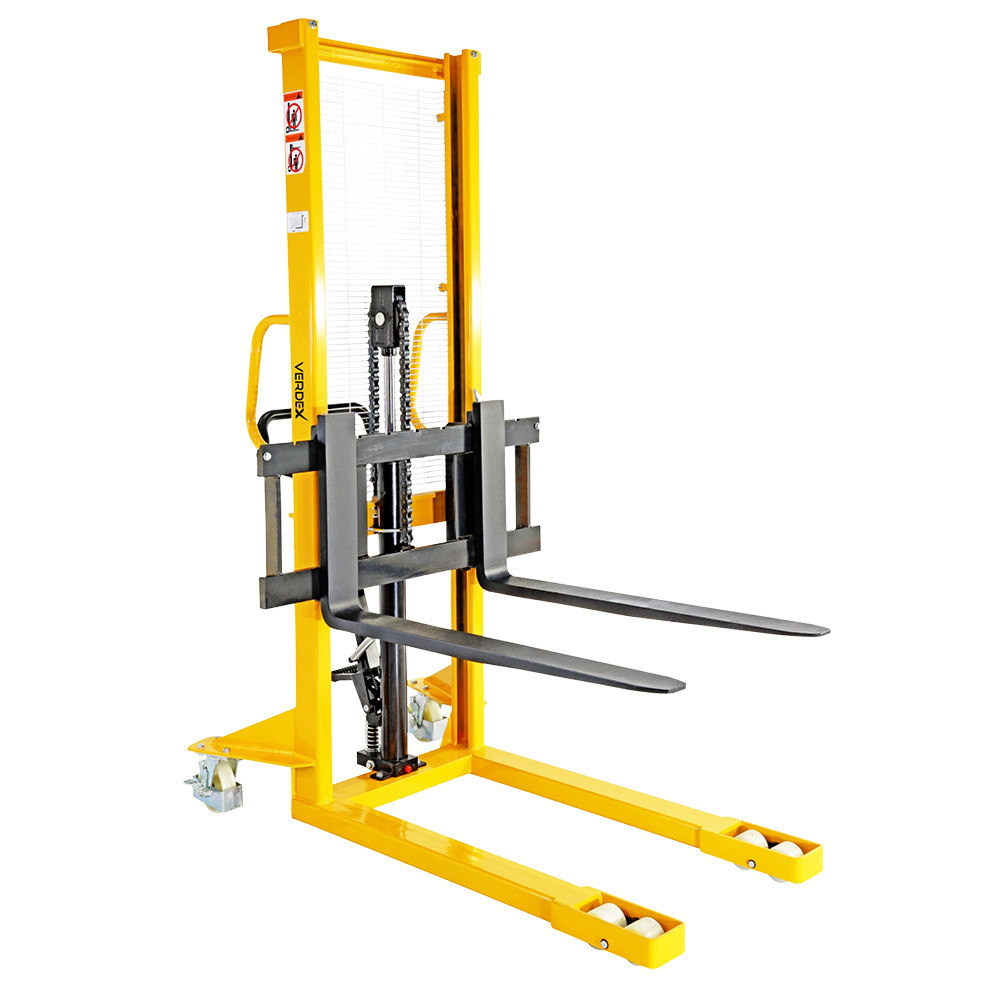

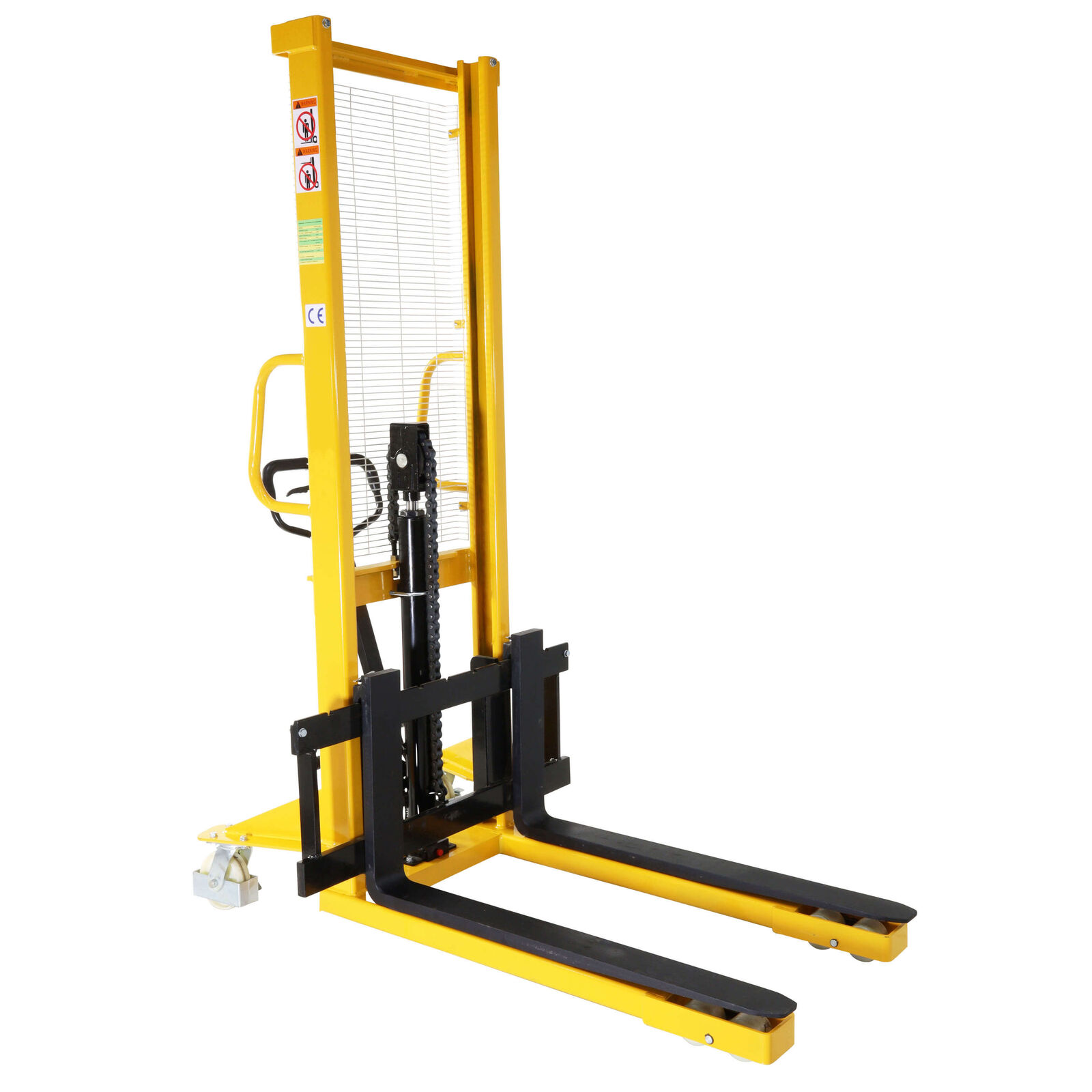

Standard Leg Fork Stacker - 1000kg capacity

Standard Leg Fork Stacker - 1000kg capacity

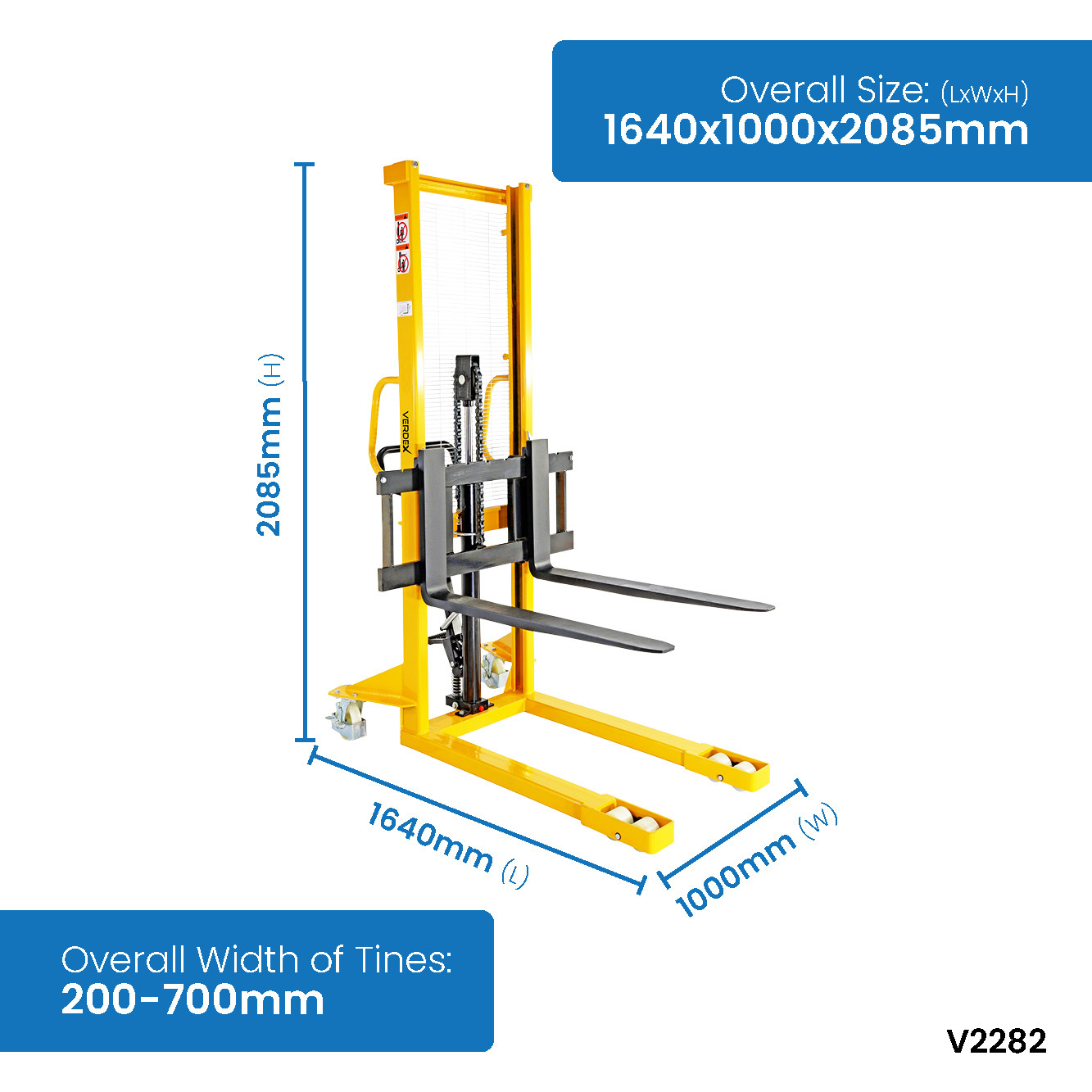

Product Code: V2282

  • Standard Legs
  • Powder coated yellow
  • Designed for use on Euro pallets and small skids.
  • Tine Length: 1060mm
  • Load Capacity: 1000kg
  • Rear Castors: 150mm
  • Front Castors: 80mm
  • Lifting Range: 90-1600mm
  • Overall Width of Tines: 200-700mm
  • Overall Size (LxWxH): 1640x1000x2085mm
  • Unit Weight: 250kg
Standard Leg Fork Stacker - 1000kg capacity V2282
View Details

$2,735.00

-
+
In StockIn Stock
In StockIn Stock

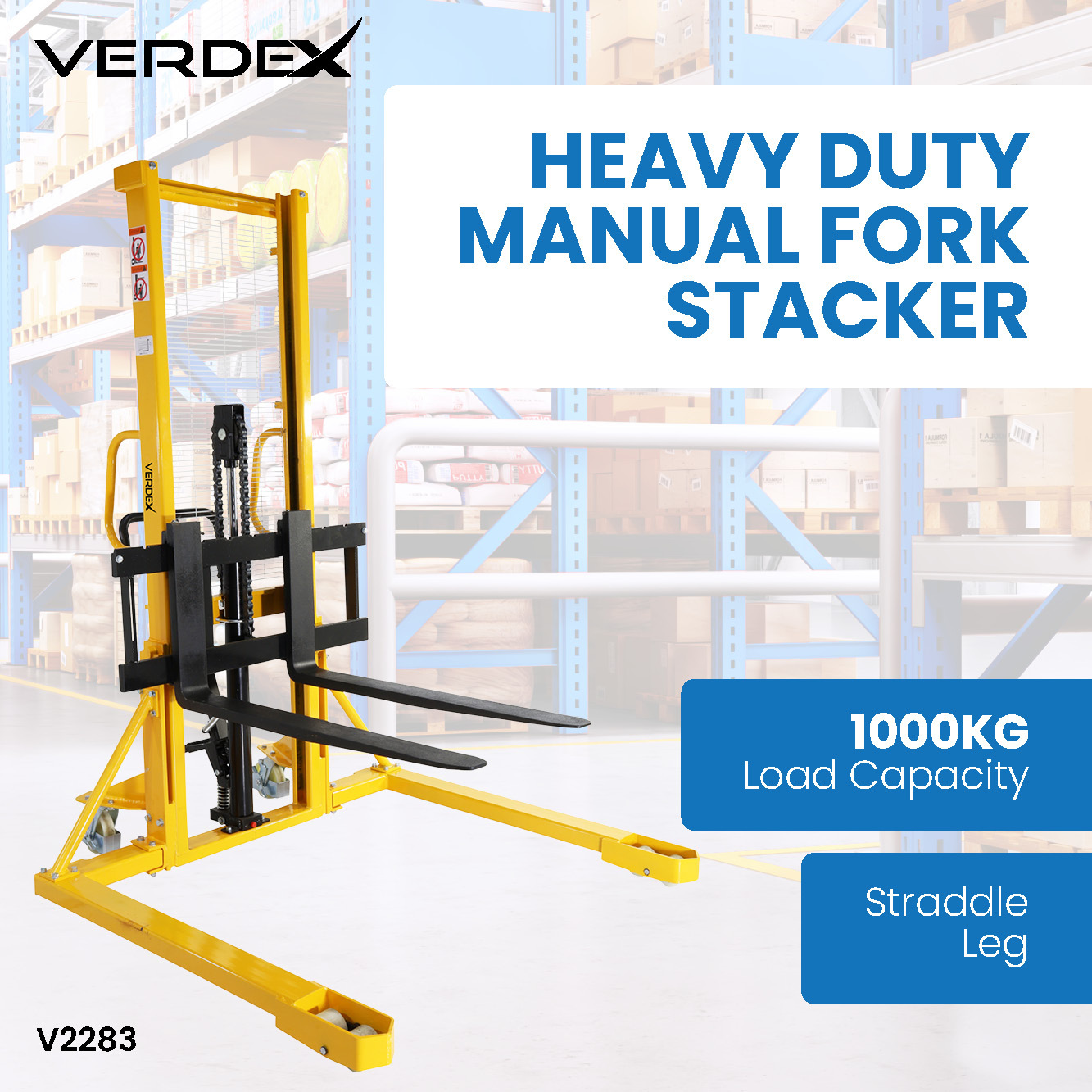

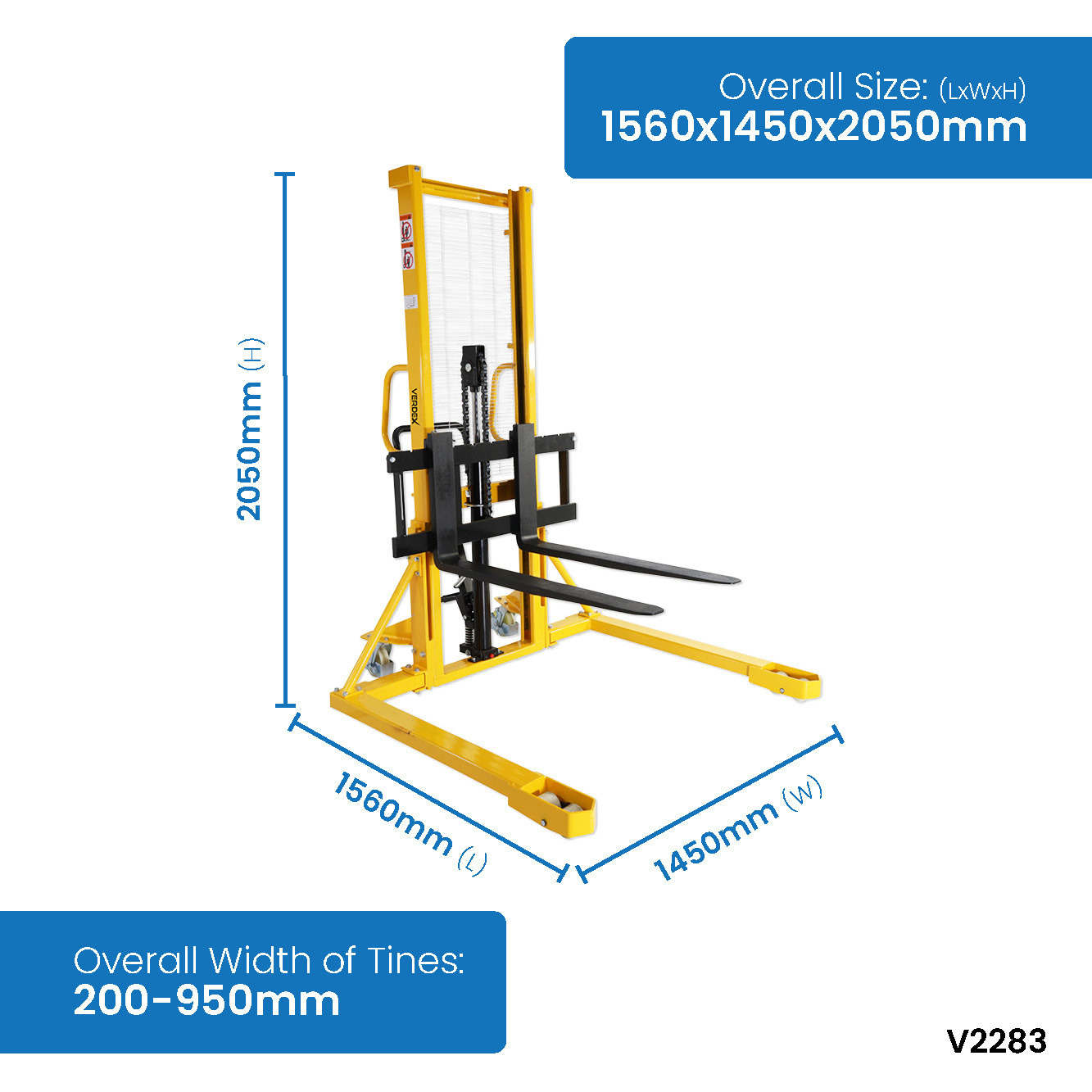

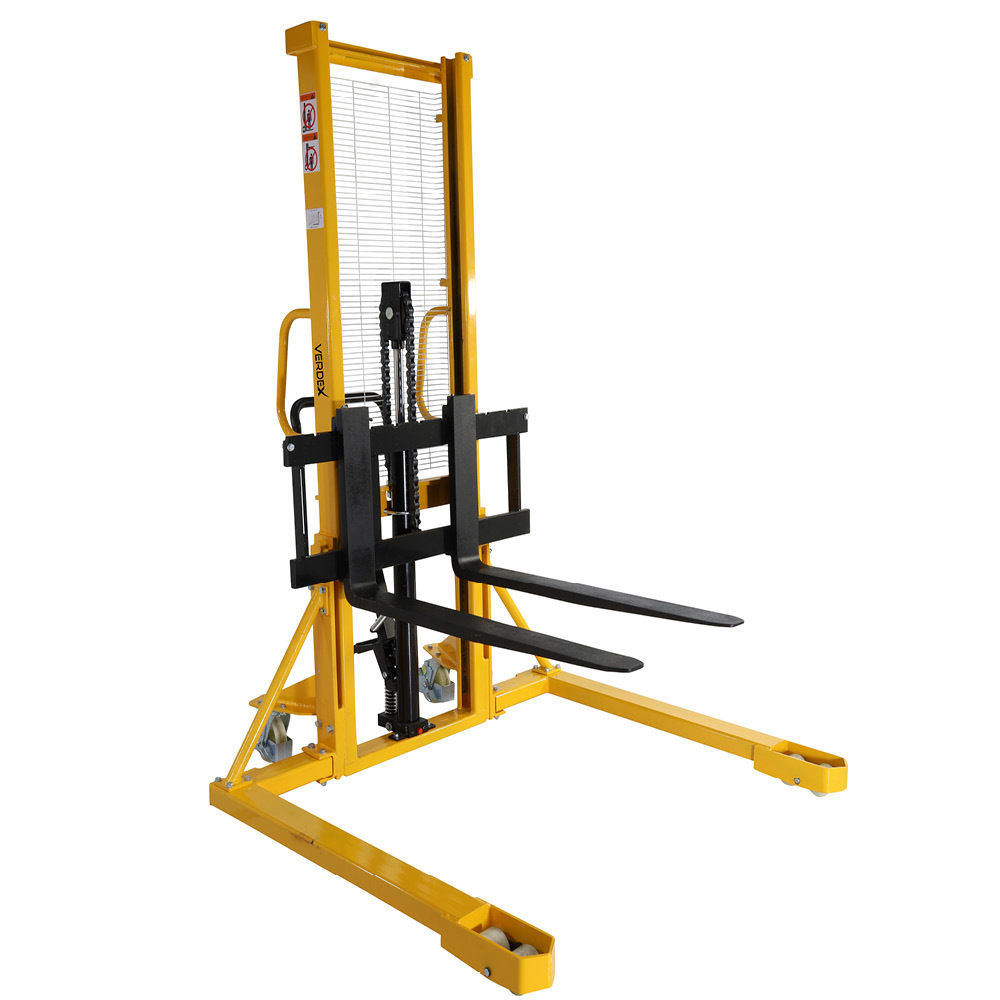

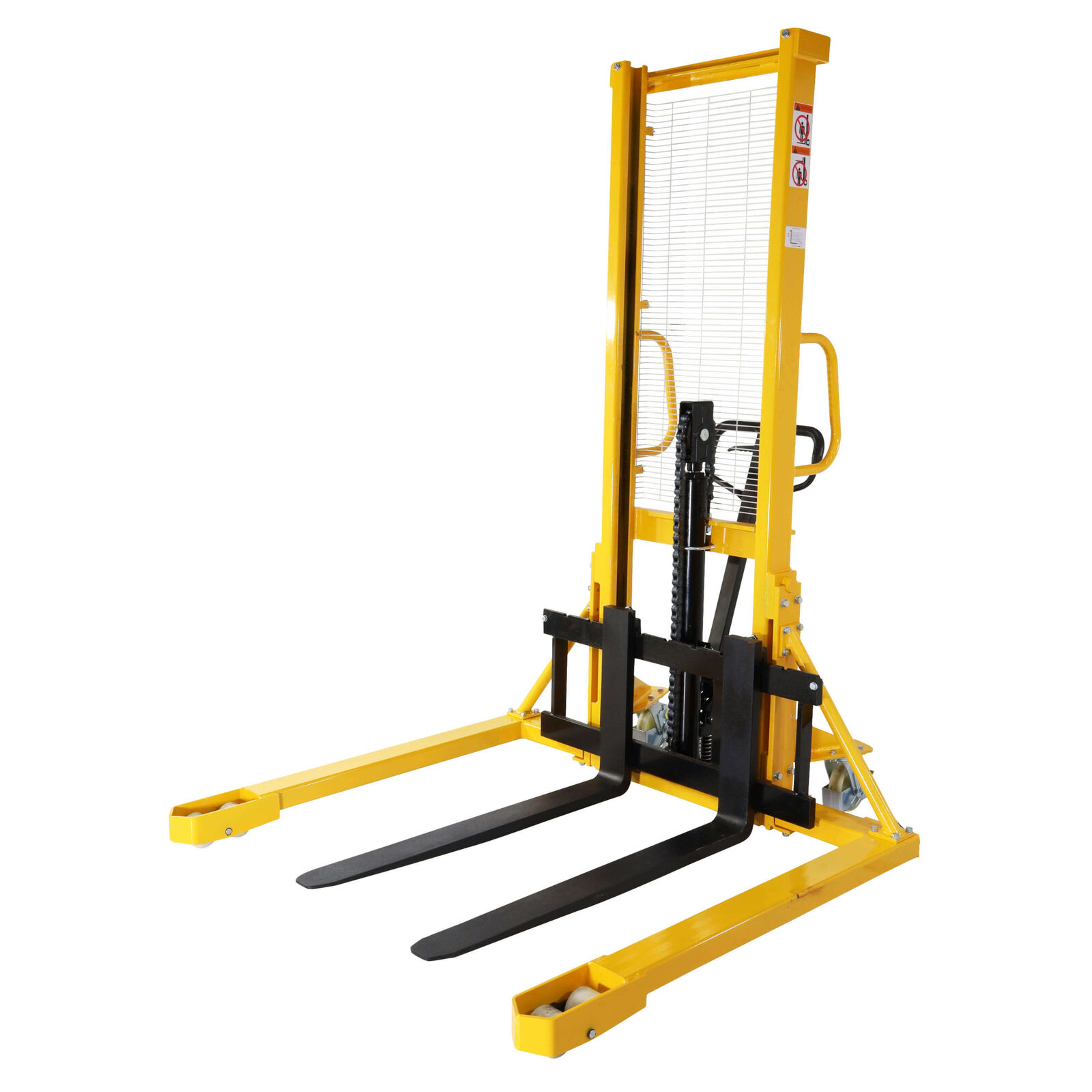

Straddle Leg Fork Stacker - 1000kg capacity

Straddle Leg Fork Stacker - 1000kg capacity

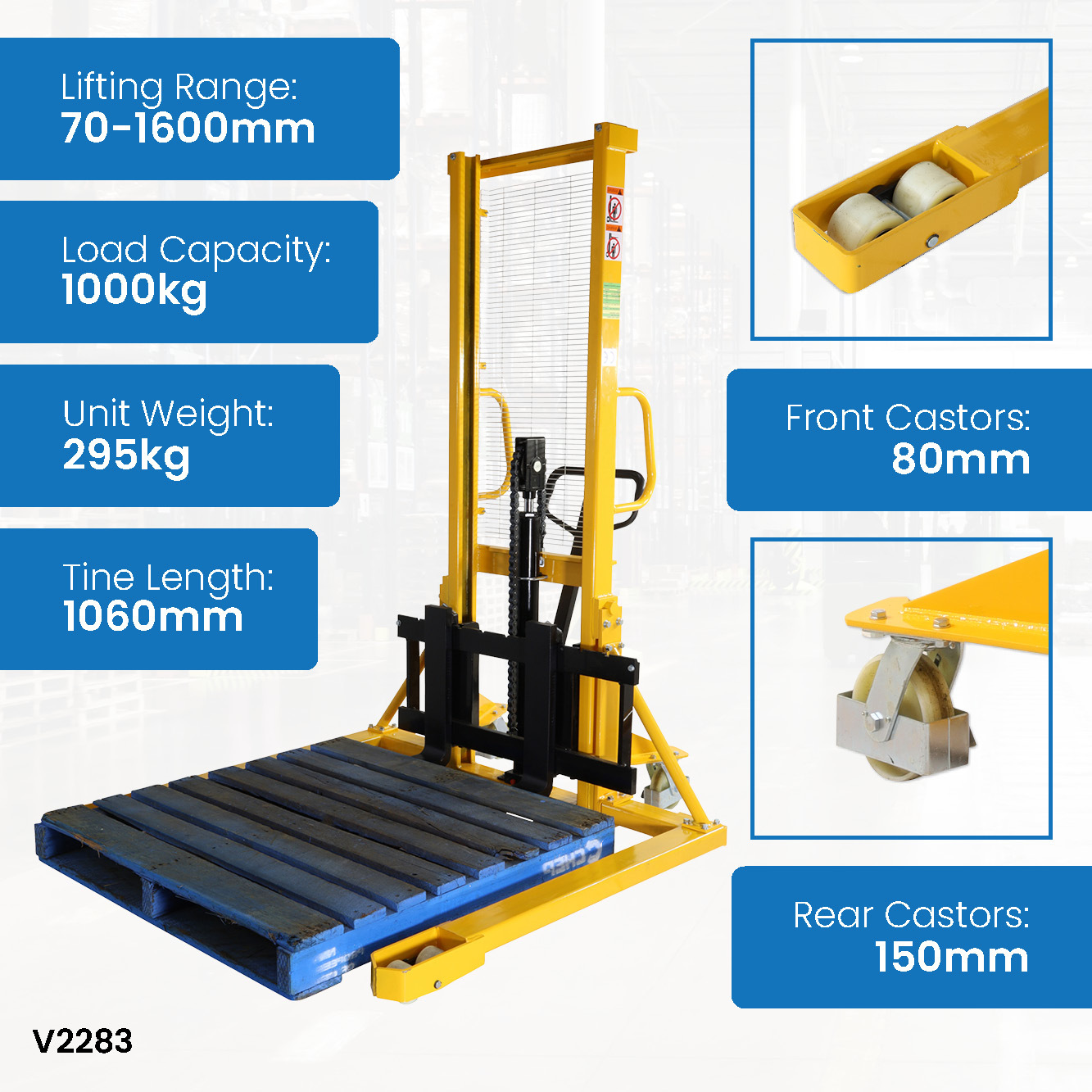

Product Code: V2283

  • Straddle Legs
  • Powder coated yellow
  • Designed for use with standard 1170mm Australian pallets
  • Tine Length: 1060mm
  • Load Capacity: 1000kg
  • Rear Castors: 150mm
  • Front Castors: 80mm
  • Lifting Range: 70-1600mm
  • Overall Width of Tines: 200-950mm
  • Overall Size (LxWxH): 1560x1450x2050mm
  • Unit Weight: 295kg
Straddle Leg Fork Stacker - 1000kg capacity V2283
View Details

$2,998.00

-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications
  • These manual fork stackers are constructed from very heavy duty materials, and are an economical alternative to forklifts.
  • Manual hydraulic lift via pallet truck style handle or foot pedal.
  • Straddle leg model for use with standard 1170mm Australian pallets.
  • Standard leg model for use on Euro pallets and small skids.
  • Lockable wheels are standard on all models.
  • Tine Length: 1060mm

Code
Details
Load Capacity
Rear Castors
Front Castors
Lifting Range
Overall Width of Tines
Overall Size (LxWxH)
Unit Weight
V2280 Standard Leg 500kg 150mm 80mm 90-1600mm 200-745mm 1640x805x2000mm 160kg
V2281 Straddle Leg 500kg 150mm 80mm 70-1600mm 200-950mm 1600x1500x2000mm 225kg
V2282 Standard Leg 1000kg 150mm 80mm 90-1600mm 200-700mm 1640x1000x2085mm 250kg
V2283 Straddle Leg 1000kg 150mm 80mm 70-1600mm 200-950mm 1560x1450x2050mm 295kg






Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


Heavy Duty Manual Fork Stackers

Elevate your material handling efficiency with Heavy Duty Manual Fork Stackers, engineered for robust performance and reliability in demanding industrial and commercial environments. These stackers are designed to handle heavy loads with ease, making them ideal for warehouses, factories, and distribution centres. Constructed from high-grade steel, the Heavy Duty Manual Fork Stackers offer exceptional strength and durability, capable of supporting substantial weights while ensuring long-lasting use. The manual operation provides precise control over lifting and lowering, allowing for smooth and accurate handling of pallets and other bulky items. Equipped with ergonomic handles and intuitive controls, these stackers ensure comfortable operation and reduce physical strain on the user. Their sturdy base and high-quality wheels provide excellent stability and manoeuvrability, even in tight spaces. With their combination of strength, versatility, and ease of use, the Heavy Duty Manual Fork Stackers are a valuable asset for improving productivity and safety in any material handling task. Enhance your operational efficiency with this dependable and powerful tool.

Heavy Duty Manual Fork Stackers: A Reliable and Cost-Effective Solution for Material Handling

When it comes to material handling in warehouses, distribution centres, and manufacturing facilities, efficiency, safety, and cost-effectiveness are top priorities. For businesses that need to lift, stack, and move heavy loads, a Heavy Duty Manual Fork Stacker offers a perfect solution. Built from robust materials and designed to handle heavy-duty tasks, these stackers provide an economical alternative to traditional forklifts, making them a smart investment for businesses of all sizes.

What Makes Heavy Duty Manual Fork Stackers Stand Out?

Manual fork stackers are engineered to provide a reliable and safe method for moving and stacking goods. Their design is specifically tailored to perform a range of tasks efficiently while maintaining ease of use and long-lasting durability. Here are the key features that make these stackers a great choice for your material handling needs.

1. Robust Construction for Heavy-Duty Use

One of the standout features of the Heavy Duty Manual Fork Stacker is its rugged build. Constructed from high-quality, heavy-duty materials, these stackers are built to handle demanding lifting and stacking tasks. Whether you are working with pallets, skids, or other large loads, these stackers can withstand the rigours of day-to-day operations, ensuring that you get a tool that’s built to last.

2. Manual Hydraulic Lift System

These stackers feature a manual hydraulic lift system, which can be operated using either the pallet truck-style handle or the foot pedal. This simple yet effective lifting mechanism allows for easy operation, even in confined spaces or areas with limited mobility. The hydraulic system ensures smooth lifting and lowering, making it perfect for raising and stacking pallets or skids at various heights with ease.

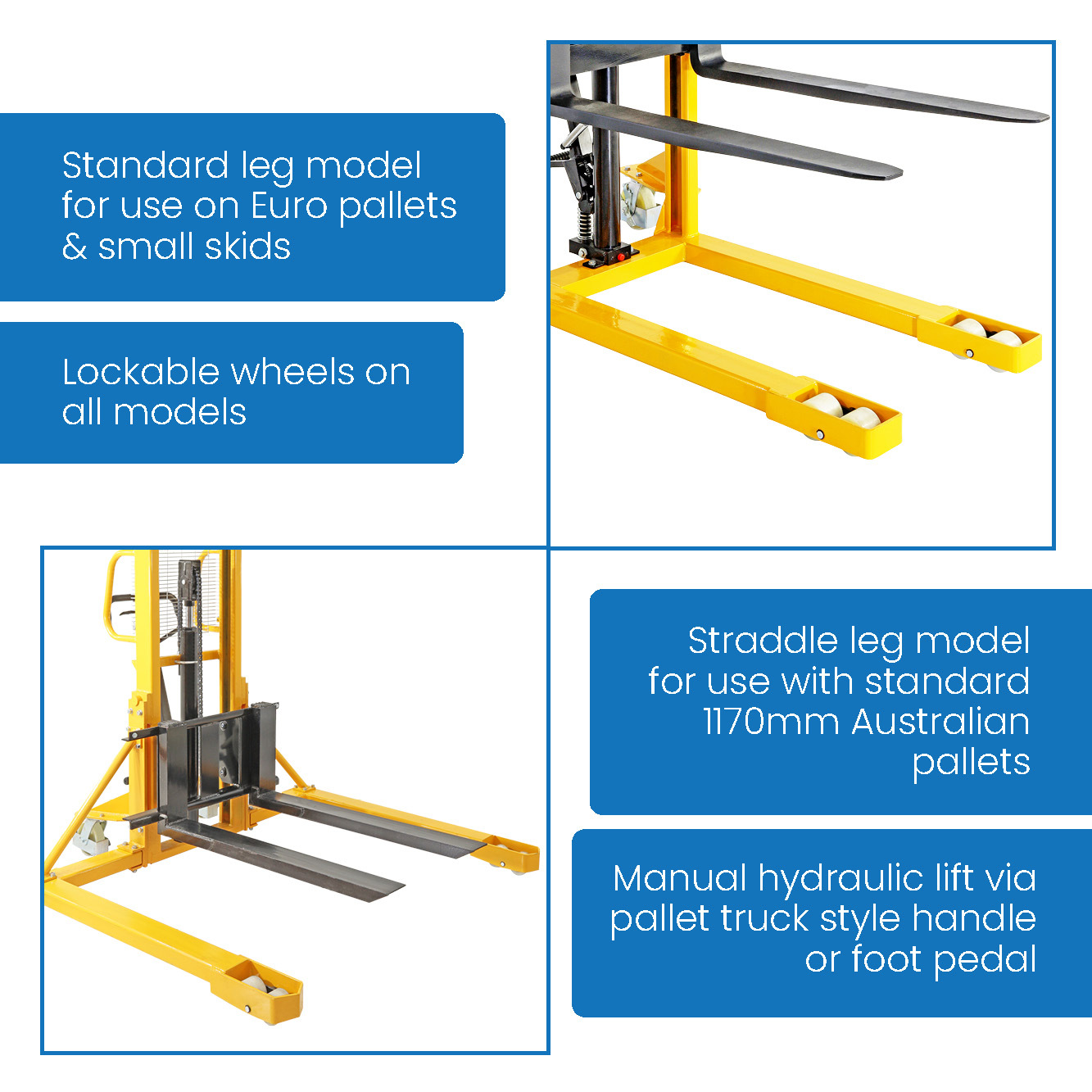

3. Versatile Leg Models for Different Pallet Sizes

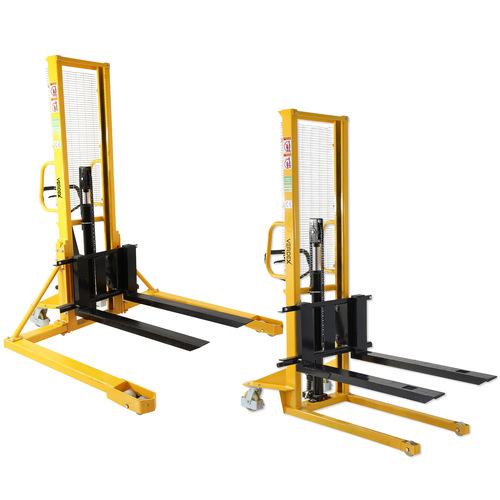

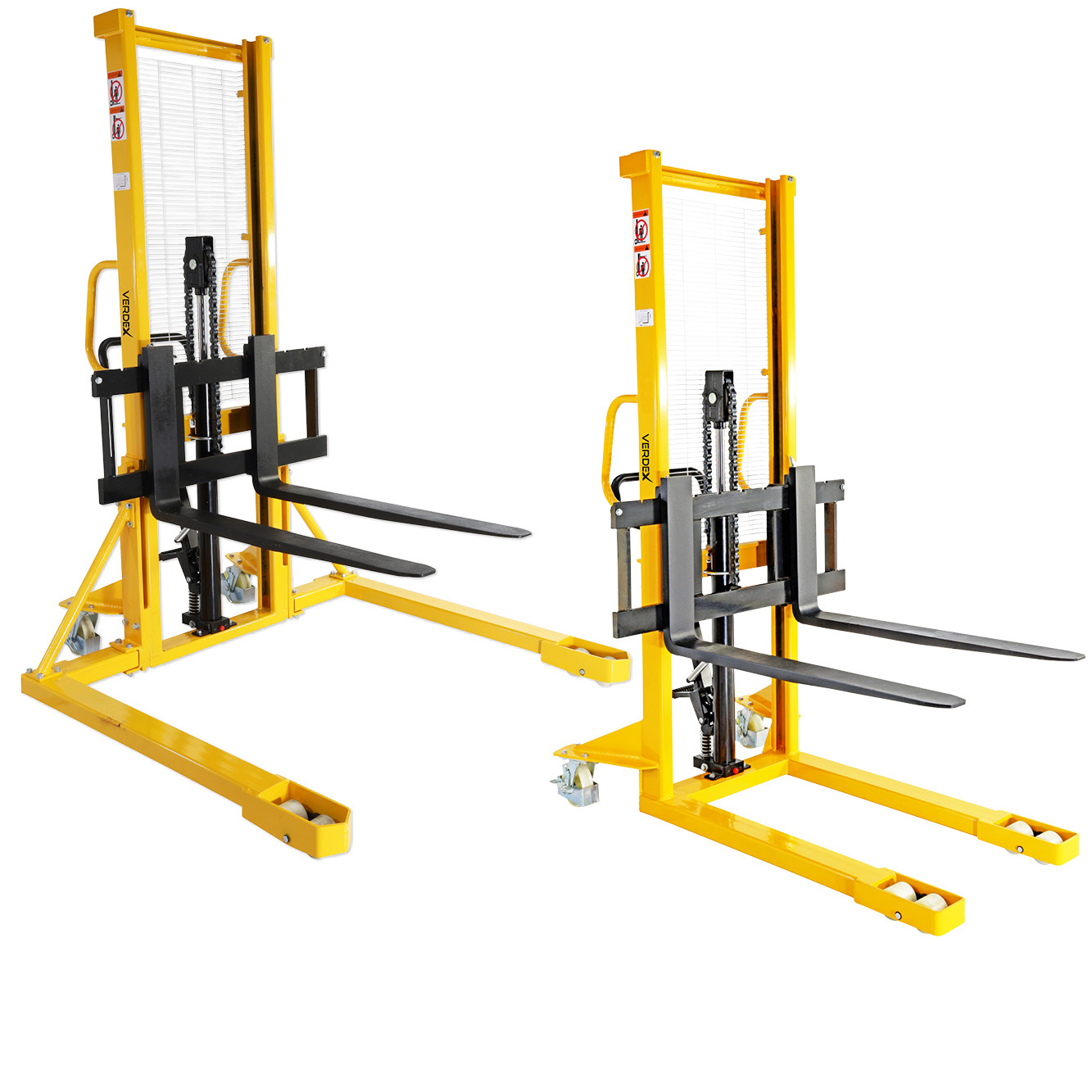

The Heavy Duty Manual Fork Stackers come in two primary leg models:

  • Straddle Leg Model: Ideal for handling standard 1170mm Australian pallets, this model provides optimal clearance, allowing the stacker to easily lift and move large loads.

  • Standard Leg Model: Designed for use with Euro pallets and smaller skids, this version provides the flexibility to handle different pallet types and sizes, making it a versatile option for businesses dealing with a variety of loads.

The ability to choose between these two leg options ensures that you can find the stacker that best suits your specific pallet handling requirements.

4. Lockable Wheels for Stability

For added safety and stability, all models of the Heavy Duty Manual Fork Stackers come equipped with lockable wheels. This feature ensures that the stacker remains stationary when needed, preventing any unwanted movement during lifting, lowering, or stacking tasks. Lockable wheels provide enhanced control over the stacker’s movement, reducing the risk of accidents or mishaps.

5. Extended Tine Length for Greater Reach

The 1060mm tine length of the stacker ensures that it can easily handle larger loads, such as pallets, skids, and other bulky items. With this extended reach, the stacker is capable of lifting a variety of items, making it highly versatile in different operational environments. The longer tines provide a greater load surface, ensuring better stability when lifting heavy or large items.

Cost-Effective Alternative to Forklifts

While forklifts are powerful and widely used, they can be expensive to purchase, maintain, and operate. For businesses that don’t need the heavy lifting capacity of a forklift or are looking for a more cost-effective solution, the Heavy Duty Manual Fork Stacker offers a perfect alternative. These stackers require minimal maintenance and are much more affordable, both in terms of initial investment and operational costs. The manual hydraulic system eliminates the need for expensive fuel, electricity, or batteries, making it a budget-friendly choice for businesses.
