Lifting Hoists & Pallet Hooks

Heavy Duty Pallet Hook 4500kg


$4,565.00 Price excludes GST

SKU

V2460

Availability:

In StockIn Stock

Subtotal:

$4,565.00
PRICES EXCL. GST

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

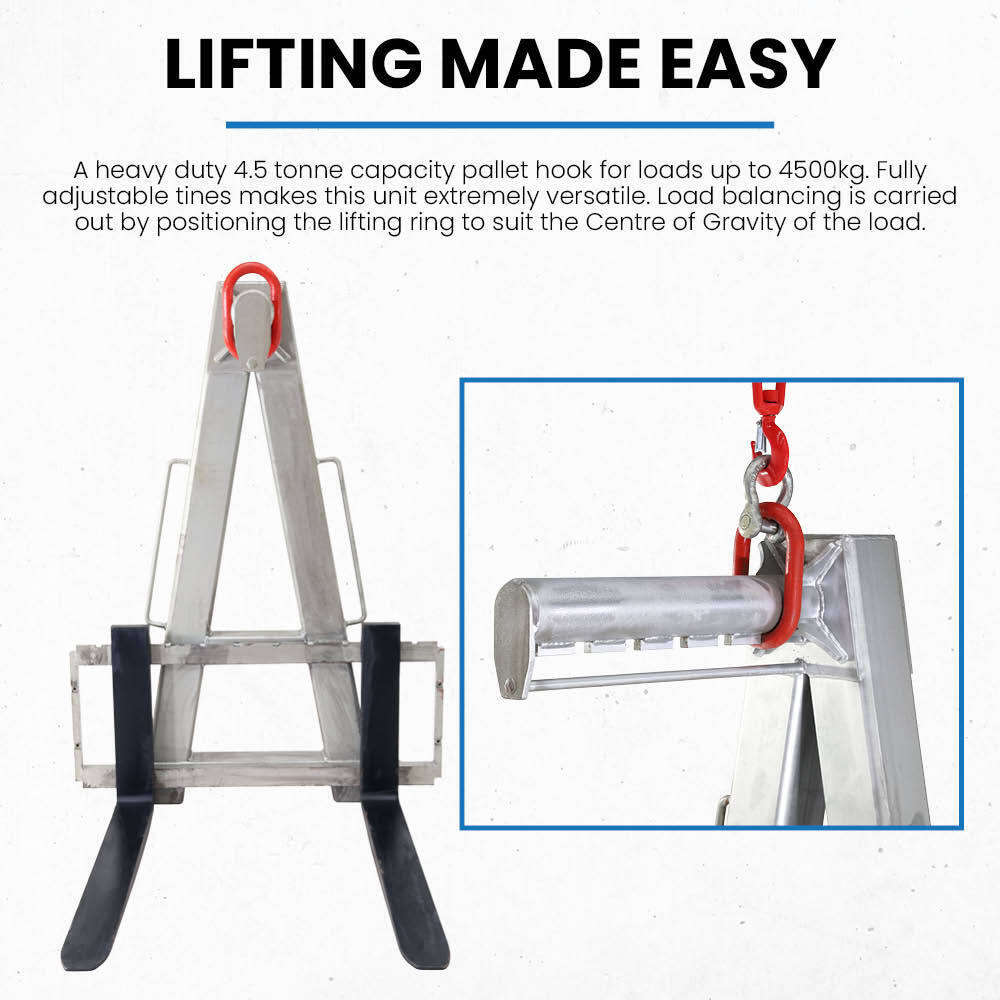

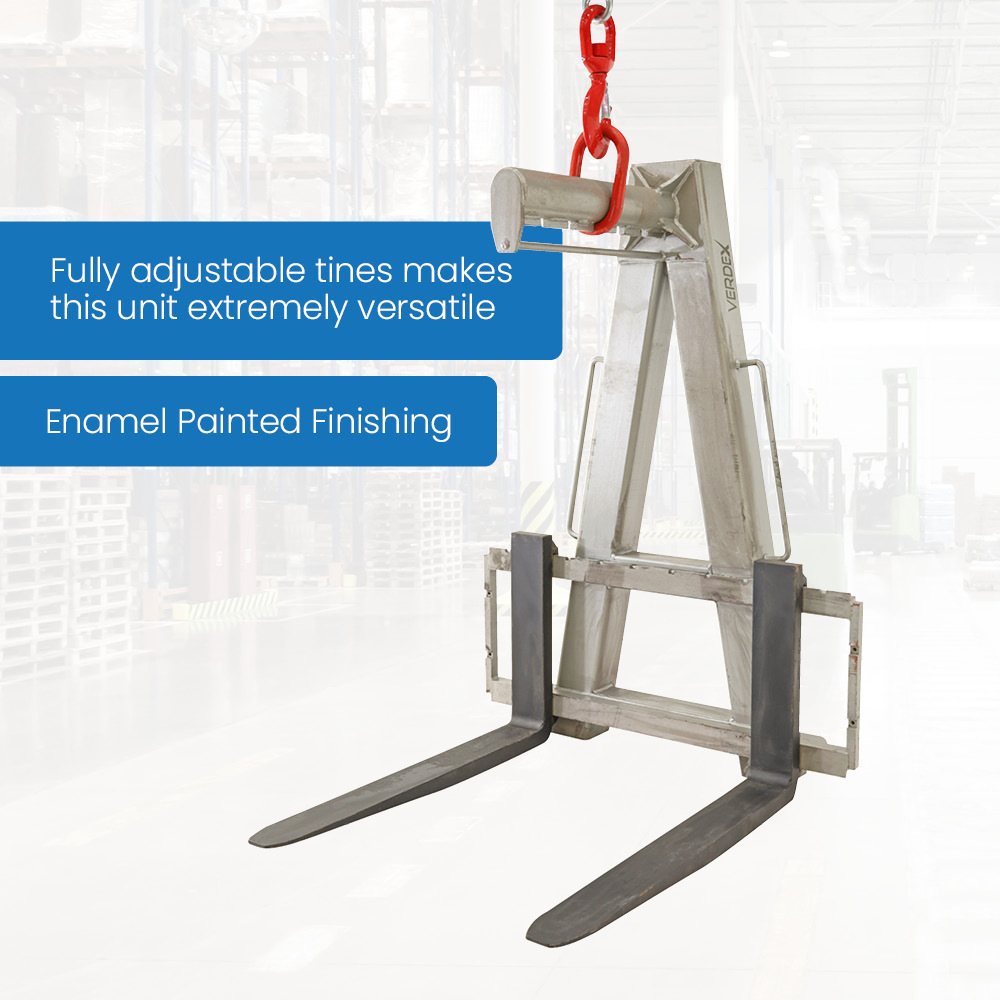

A heavy duty 4.5 tonne capacity pallet hook for loads up to 4500kg. Fully adjustable tines makes this unit extremely versatile. Load balancing is carried out by positioning the lifting ring to suit the Centre of Gravity of the load.

  • Finish: Enamel painted
  • Load balancing is via the moveable lifting ring.The Pallet Hook has been designed & certified in accordance with Australian Standard AS 1418.1

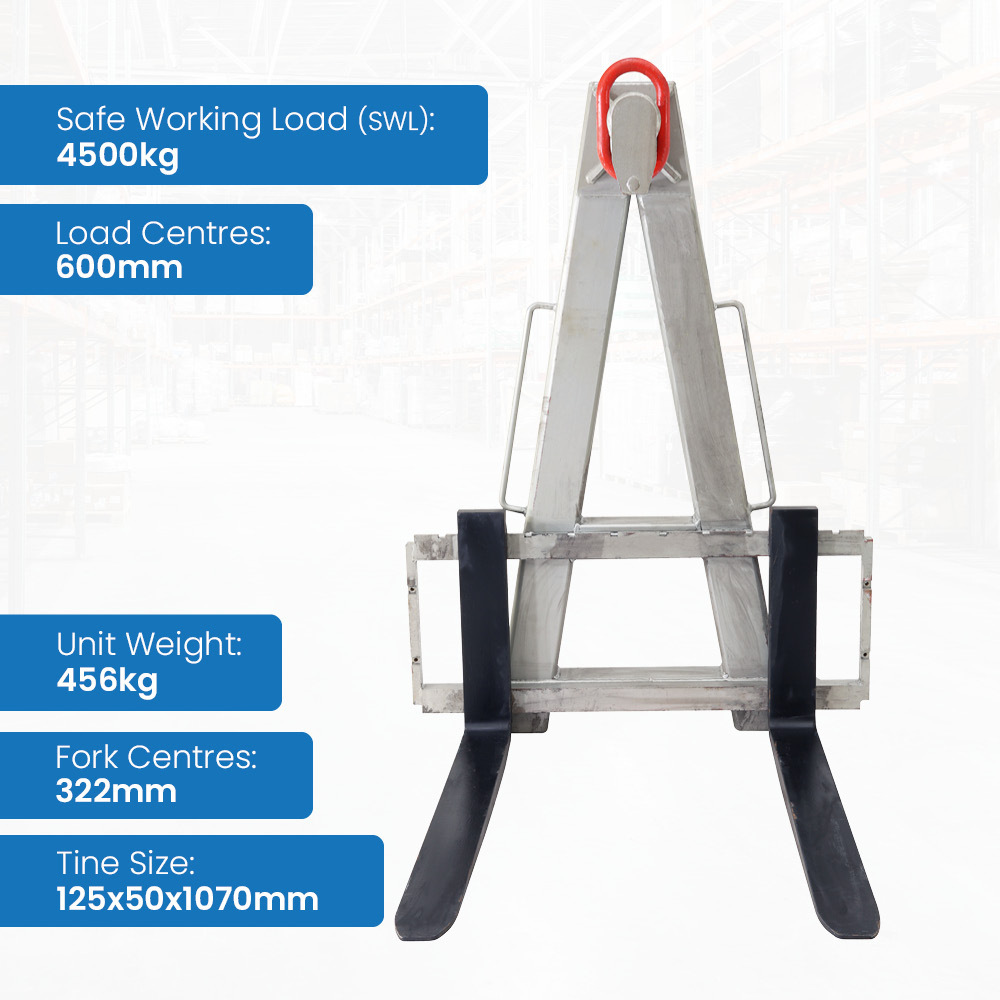

Specifications:
  • Safe Working Load (SWL): 4500kg
  • Load Centre: 600mm
  • Tine Size: 125x50x1070mm

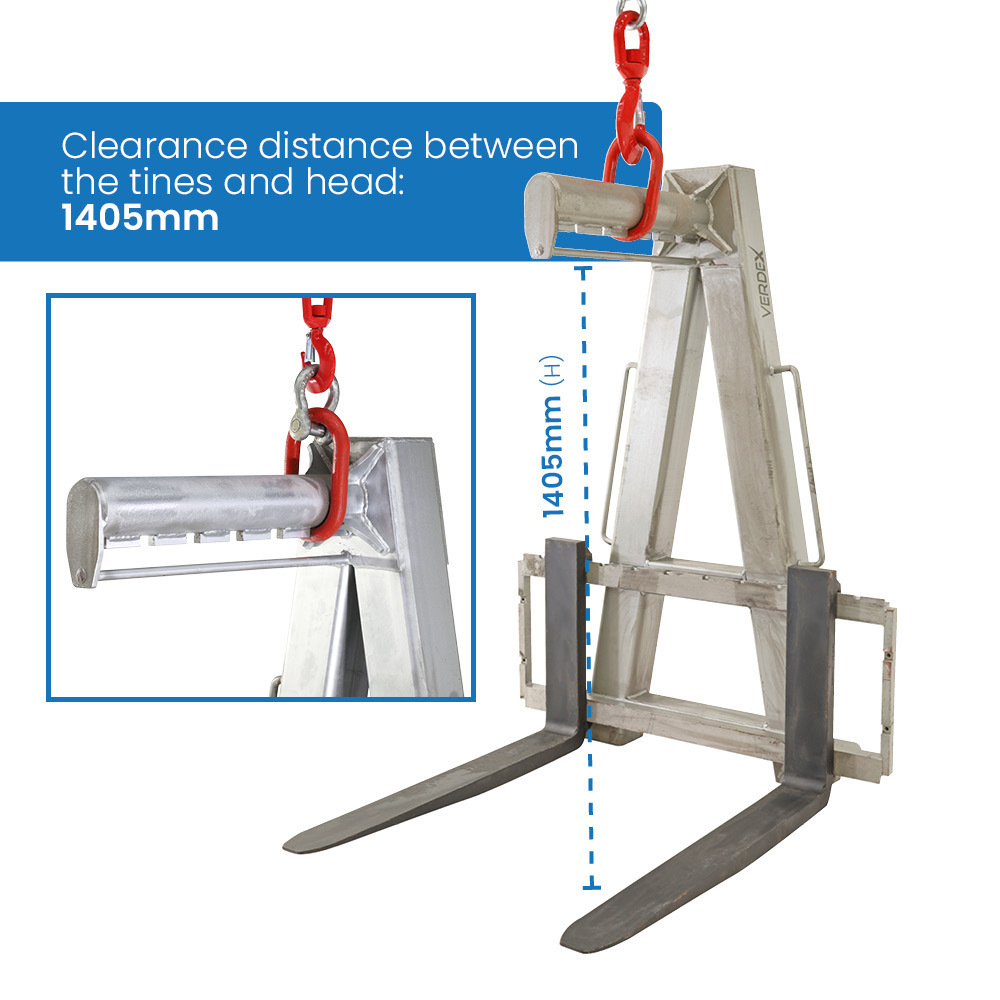

  • Clearance: 1405mm (distance between tines and head)
  • Unit Weight: 456kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


Heavy Duty Pallet Hook 4500kg

The Heavy Duty Pallet Hook, with a robust capacity of 4500kg, is designed for the demanding needs of industrial and commercial environments. This high-strength hook is ideal for safely lifting and transporting heavy palletised loads with maximum efficiency and security. Constructed from premium-grade steel, the hook ensures exceptional durability and resilience under heavy loads. Its reinforced design provides reliable support and reduces the risk of failure during operations. The heavy-duty construction also enhances resistance to wear and tear, making it a long-lasting addition to your material handling equipment. Featuring a precision-engineered hook shape, it securely grips pallets and minimizes load slippage. The hookÂ’s compatibility with various lifting systems makes it versatile for different applications, including warehouses, manufacturing facilities, and logistics operations. With an easy-to-use interface, this pallet hook simplifies load handling, streamlining your workflow and improving overall safety. Its rugged design and high load capacity make it a dependable choice for high-demand environments, ensuring that you can handle your palletised materials with confidence and ease.

Heavy Duty Pallet Hook – 4500kg Capacity for Rugged Lifting Jobs

When your operation demands a robust and reliable lifting solution for palletised goods, the Heavy Duty Pallet Hook – 4500kg is up for the challenge. Purpose-built for demanding industrial and construction applications, this lifting attachment is ideal for handling heavy loads safely and efficiently with overhead cranes or lifting devices.

From job sites and logistics yards to warehouses and manufacturing floors, this pallet hook delivers strength, versatility, and ease of use where it counts.

Built to Handle the Heaviest Loads

With a Safe Working Load (SWL) of 4500kg, this heavy-duty pallet hook is engineered to manage significant weight with complete stability. Whether you're lifting building materials, machinery, or large containers, you can count on this unit to hold steady under pressure.

Its 600mm load centre ensures an ideal balance between lifting power and safety, helping to prevent tipping or unbalanced loads during elevation and transport.

Generous Clearance for Versatility

One of the standout features of this pallet hook is its 1405mm clearance – the distance between the tines and the top of the frame. This ample space provides room for various sized loads and ensures smooth and hassle-free access when used in combination with slings or lifting straps. The design is well-suited to both open and restricted environments, offering the versatility needed in a wide range of industries.

Durable Construction and Design

This unit is built to withstand the harsh realities of daily use in industrial settings. With tines measuring 125x50x1070mm, the hook provides a stable and secure base for lifting. The robust steel construction means it can take a beating from the toughest working conditions while maintaining peak performance.

Despite its rugged strength, the pallet hook maintains a practical form factor with a unit weight of 456kg, providing the right balance between sturdiness and usability.

Efficient and Safe Operation

Designed with safety and simplicity in mind, the Heavy Duty Pallet Hook allows operators to lift palletised goods without the need for a forklift. It’s a perfect solution for sites where forklifts may not be practical, or when goods need to be moved vertically from ground level to an upper storey.

Pair it with a crane, hoist, or other overhead lifting equipment, and you’ve got a powerful tool for increasing efficiency while keeping your team safe. The fork-style tines securely cradle the load, minimising the risk of shifting during lifts.

Ideal For Use In

  • Construction sites: hoisting bricks, blocks, and building supplies

  • Warehouses: moving heavy pallets without a forklift

  • Manufacturing plants: transporting machine parts or raw materials

  • Ports and shipping yards: lifting goods from cargo containers

  • Agricultural operations: handling bulk materials or supplies

Product Specifications at a Glance

  • Safe Working Load (SWL): 4500kg

  • Load Centre: 600mm

  • Tine Size: 125 x 50 x 1070mm

  • Clearance (tines to head): 1405mm

  • Unit Weight: 456kg

A Smart Investment in Heavy Lifting

Whether you're looking to boost your site’s lifting capabilities or simply need a safer, forklift-free solution for handling heavy pallets, the Heavy Duty Pallet Hook – 4500kg is a must-have. With its rugged build, high capacity, and practical design, it provides a long-lasting solution for businesses that can’t compromise on performance.
