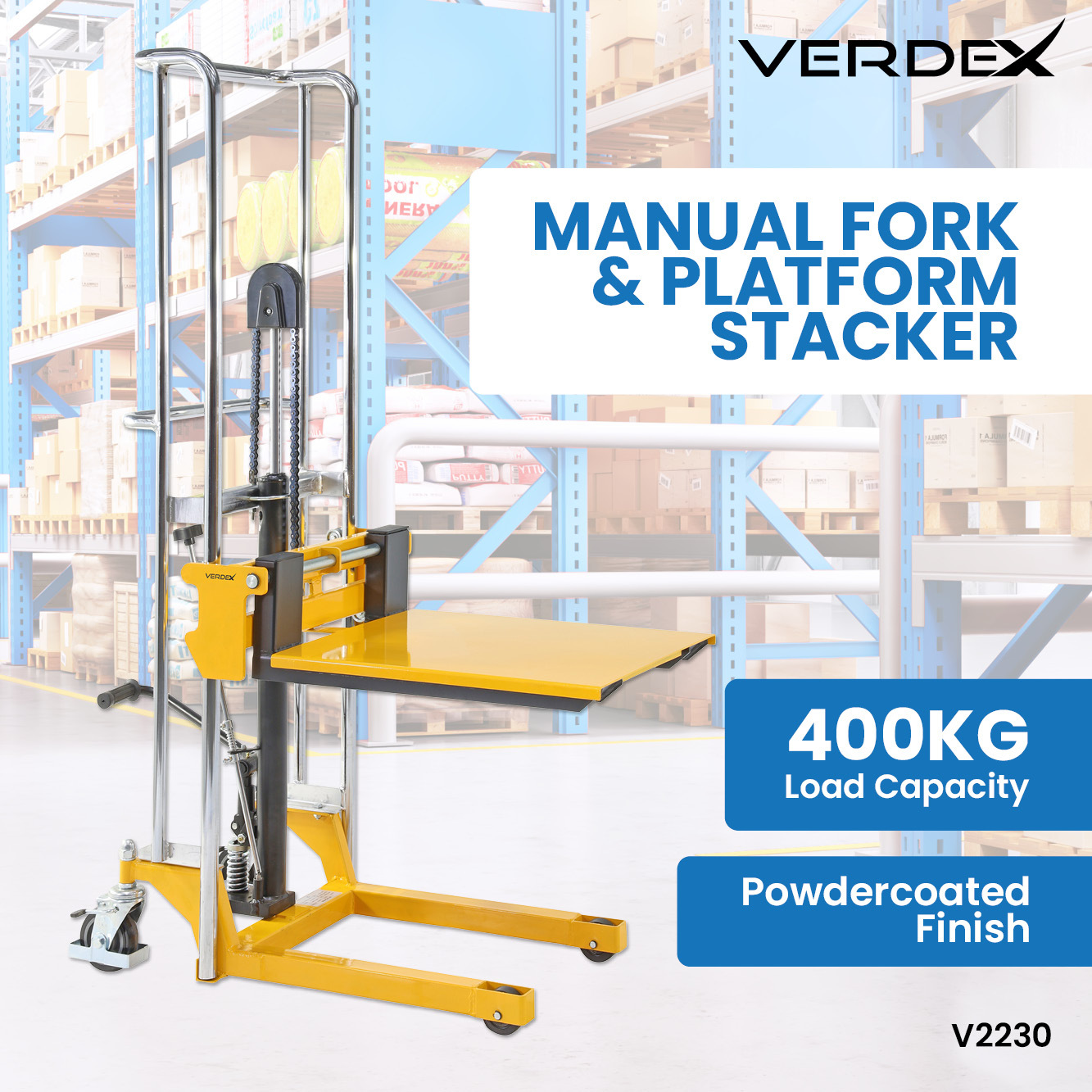

Manual Fork / Platform Stacker


View Pricing & Order

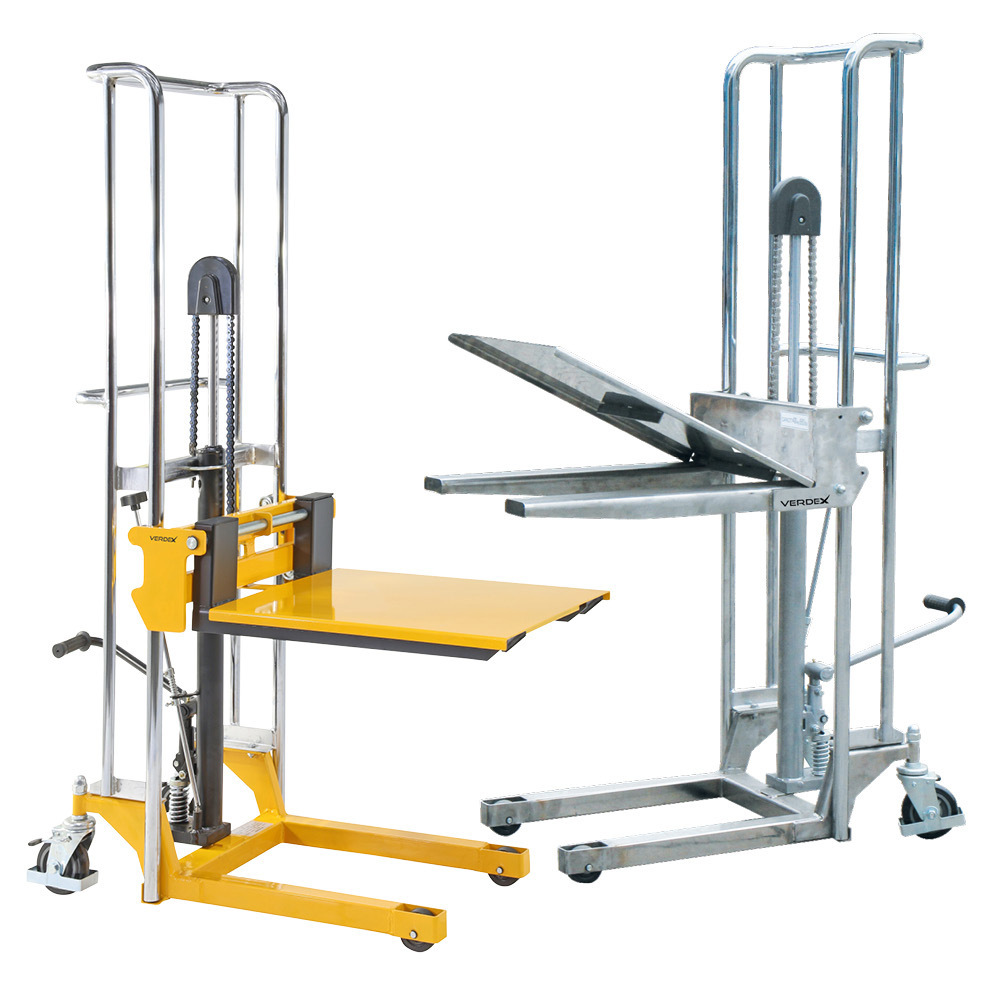

  • This Manual Fork/Platform Stacker combines ease of use, versatility, and robust construction, making it suitable for a wide range of material handling tasks in warehouses, workshops, and other industrial settings
  • Foot pump hydraulic lift
  • Comes with a removable platform and have 2 adjustable fork tines under platform for lifting skids and pallets
  • V2230: Powder coated
  • V2230S: Stainless Steel

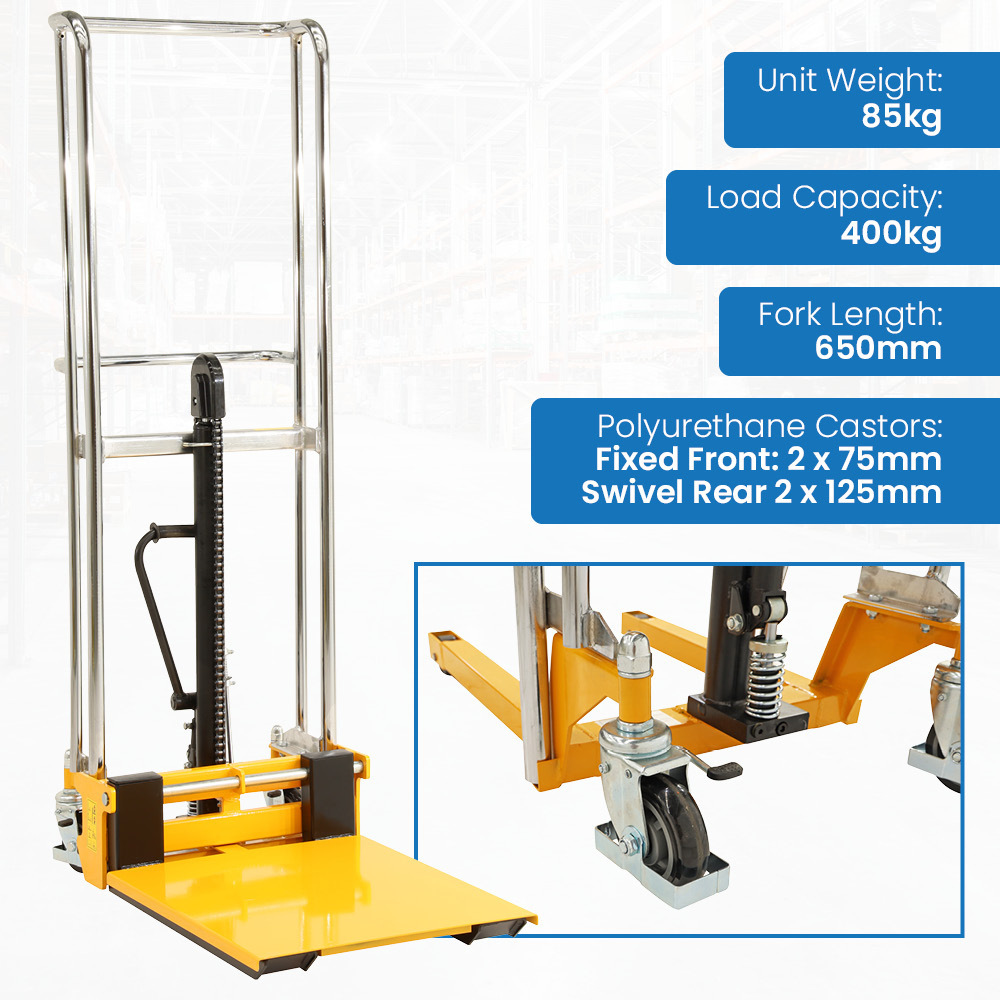

  • Polyurethane castors- 2 x fixed, 2 x swivel with brakes
  • Load Capacity: 400kg
  • Rear Castors: 125mm
  • Front Castors: 75mm
  • Platform Size: 660x580mm
  • Fork Length: 650mm
  • Lifting Range: 75-1500mm

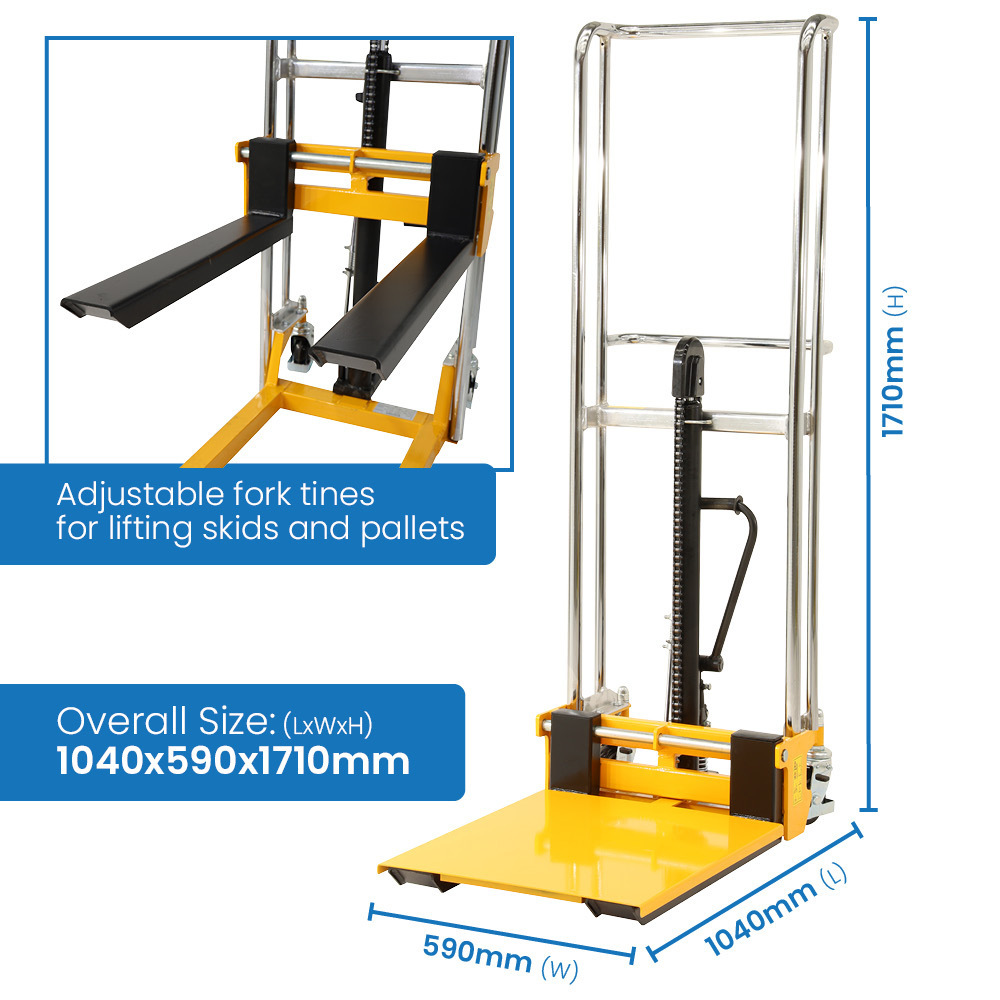

  • Overall Size (LxWxH): 1040x590x1710mm
  • Unit Weight: 85kg
Sale Ends in
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

  • This Manual Fork/Platform Stacker combines ease of use, versatility, and robust construction, making it suitable for a wide range of material handling tasks in warehouses, workshops, and other industrial settings
  • Foot pump hydraulic lift
  • Comes with a removable platform and have 2 adjustable fork tines under platform for lifting skids and pallets
  • V2230: Powder coated
  • V2230S: Stainless Steel
  • Polyurethane castors- 2 x fixed, 2 x swivel with brakes
  • Load Capacity: 400kg
  • Rear Castors: 125mm
  • Front Castors: 75mm
  • Platform Size: 660x580mm
  • Fork Length: 650mm
  • Lifting Range: 75-1500mm
  • Overall Size (LxWxH): 1040x590x1710mm
  • Unit Weight: 85kg
View More Specifications

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

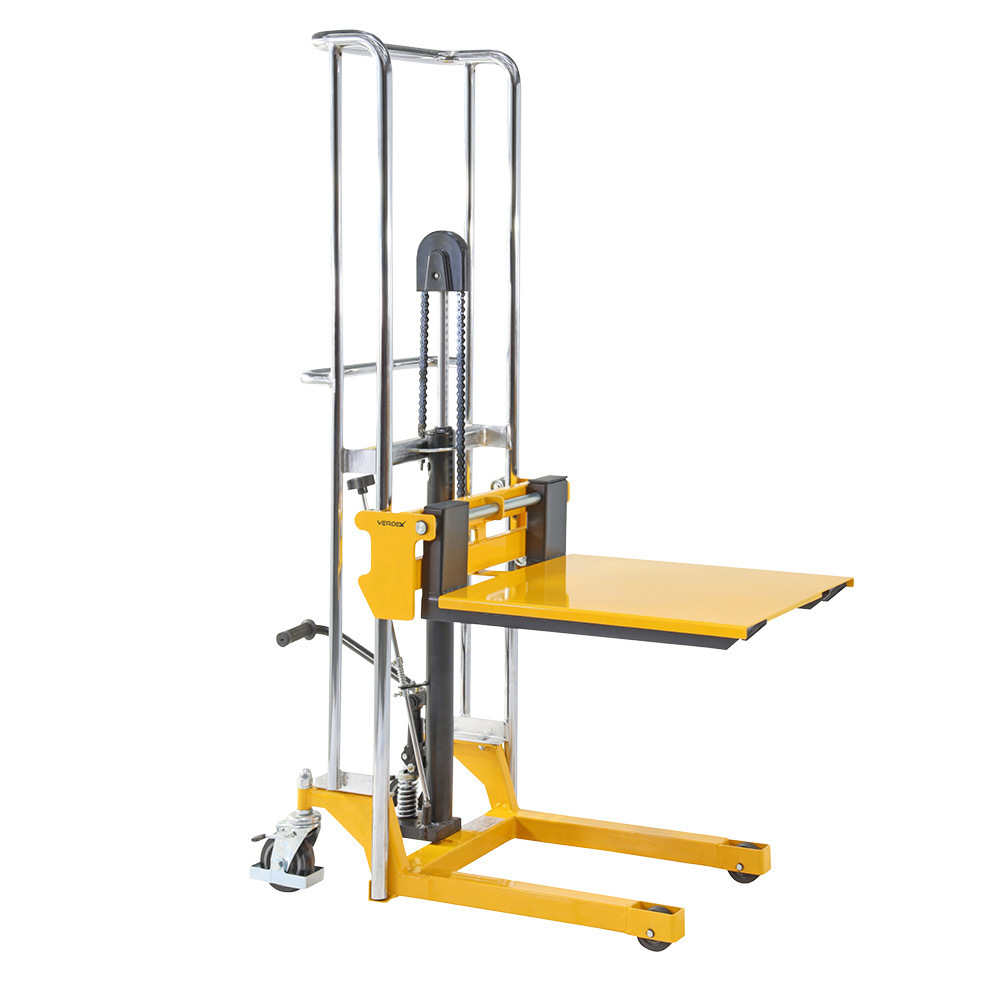

 Manual Stacker (400kg capacity)

Manual Stacker (400kg capacity)

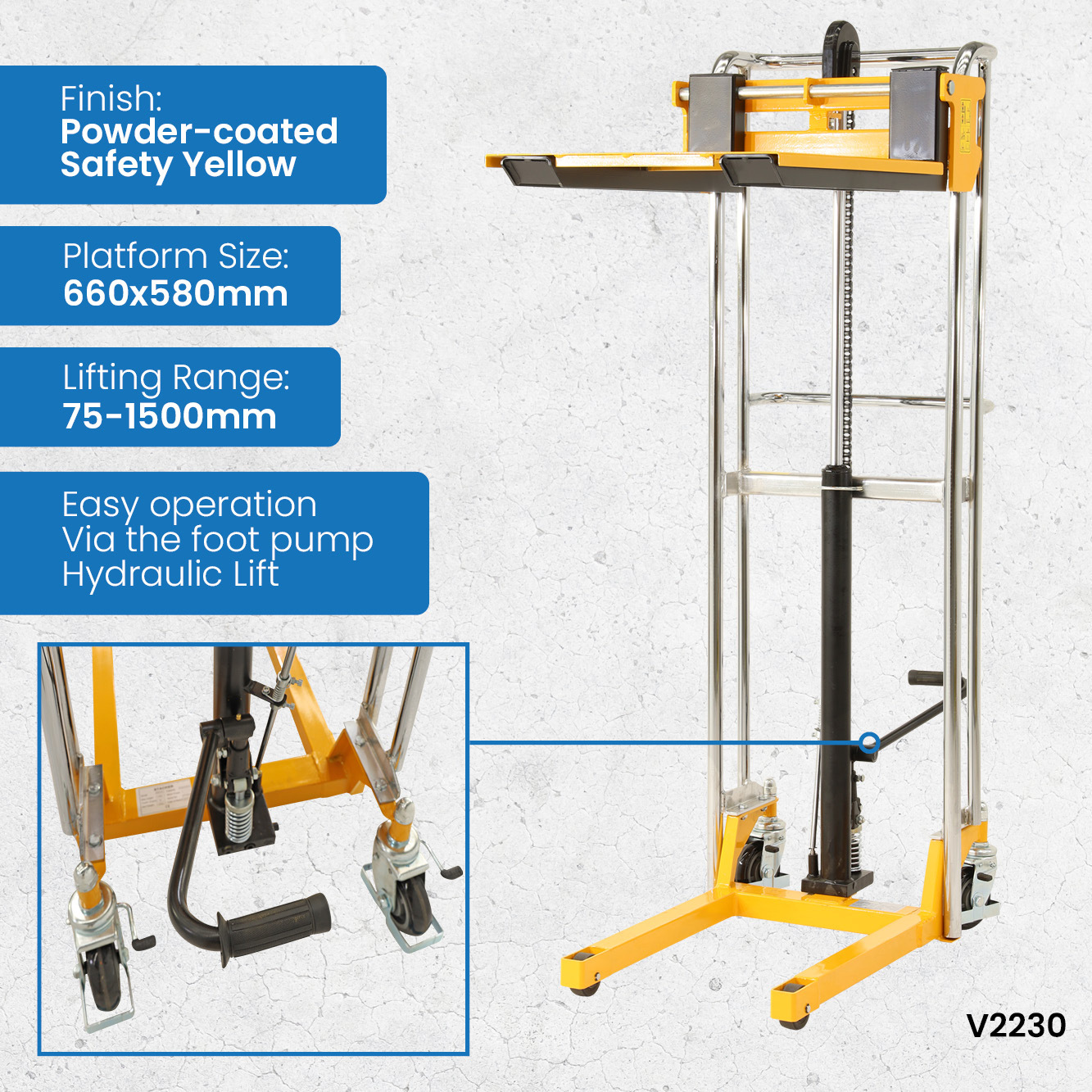

Product Code: V2230

  • Powder coated Steel
  • Colour: Yellow
  • Foot pump hydraulic lift
  • Comes with a removable platform and has 2 adjustable fork tines under platform for lifting skids and pallets
  • Polyurethane castors- 2 x fixed, 2 x swivel with brakes
  • Load Capacity: 400kg
  • Rear Castors: 125mm
  • Front Castors: 75mm
  • Platform Size: 660x580mm
  • Fork Length: 650mm
  • Lifting Range: 75-1500mm
  • Overall Size (LxWxH): 1040x590x1710mm
  • Unit Weight: 85kg
Manual Stacker (400kg capacity) V2230
View Details

$1,312.00

$1,178.00

SAVE $134.00
-
+
In StockIn Stock
In StockIn Stock

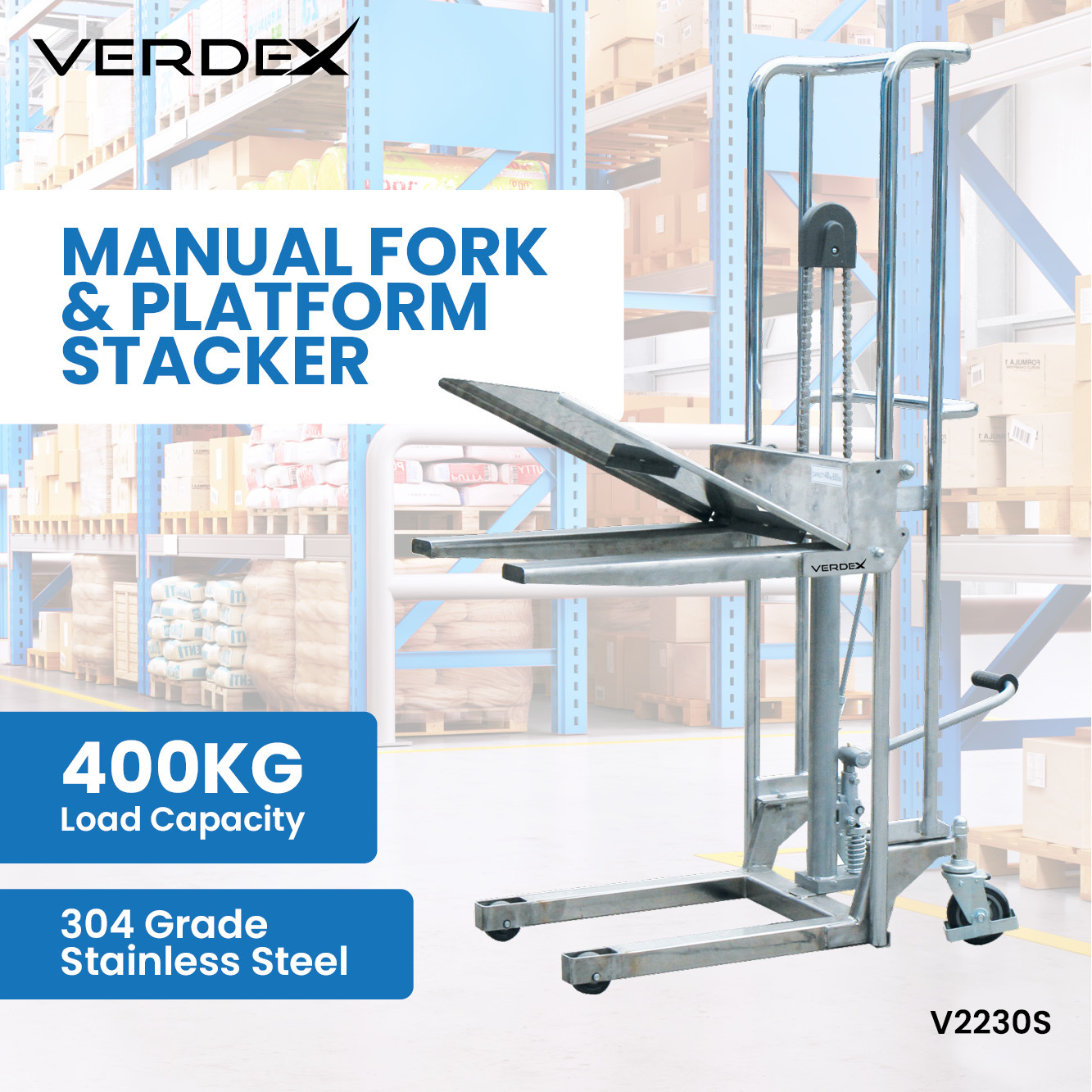

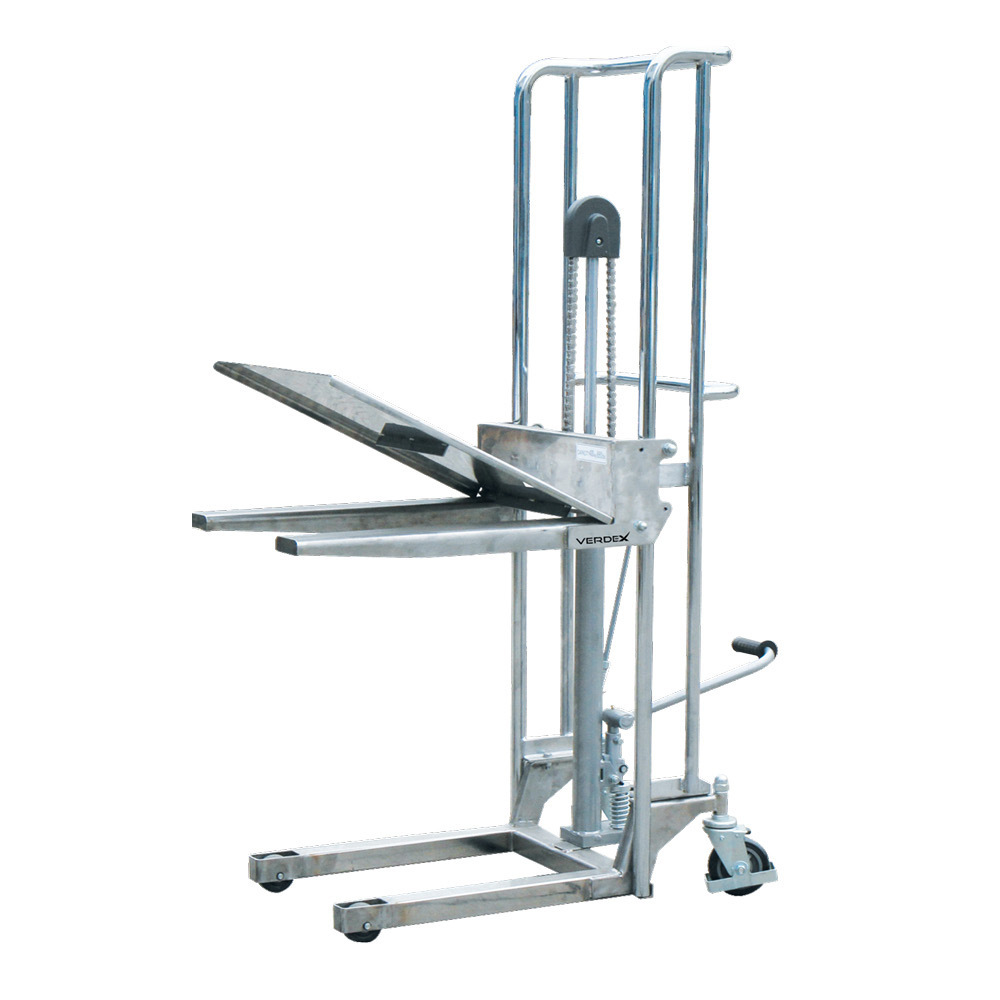

Stainless Steel Manual Stacker - 400kg capacity

Stainless Steel Manual Stacker - 400kg capacity

Product Code: V2230S

  • Stainless Steel
  • Colour: Silver
  • Foot pump hydraulic lift
  • Comes with a removable platform and has 2 adjustable fork tines under platform for lifting skids and pallets
  • Polyurethane castors- 2 x fixed, 2 x swivel with brakes
  • Load Capacity: 400kg
  • Rear Castors: 125mm
  • Front Castors: 75mm
  • Platform Size: 660x580mm
  • Fork Length: 650mm
  • Lifting Range: 75-1500mm

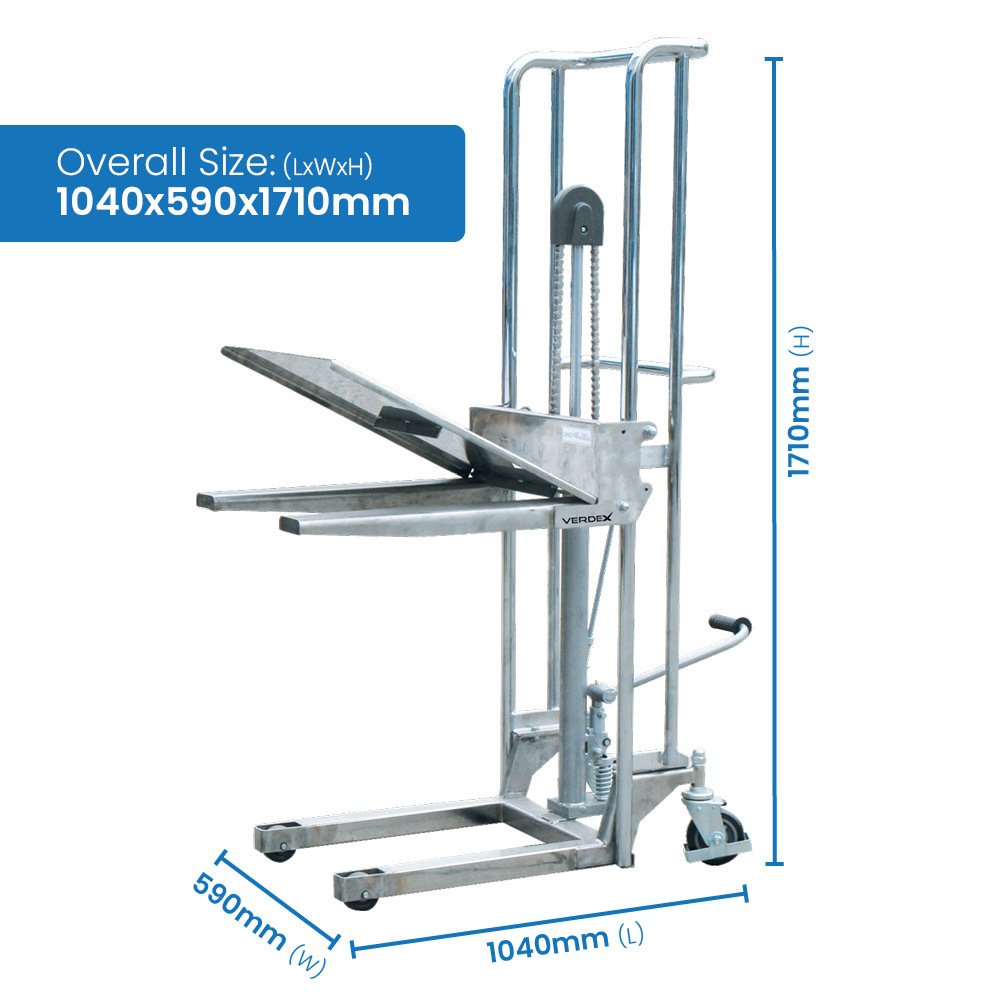

  • Overall Size (LxWxH): 1040x590x1710mm
  • Unit Weight: 85kg
Stainless Steel Manual Stacker - 400kg capacity V2230S
View Details
Click here to request a quotation
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications
  • This Manual Fork/Platform Stacker combines ease of use, versatility, and robust construction, making it suitable for a wide range of material handling tasks in warehouses, workshops, and other industrial settings
  • Foot pump hydraulic lift
  • Comes with a removable platform and have 2 adjustable fork tines under platform for lifting skids and pallets
  • V2230: Powder coated
  • V2230S: Stainless Steel
  • Polyurethane castors- 2 x fixed, 2 x swivel with brakes
  • Load Capacity: 400kg
  • Rear Castors: 125mm
  • Front Castors: 75mm
  • Platform Size: 660x580mm
  • Fork Length: 650mm
  • Lifting Range: 75-1500mm
  • Overall Size (LxWxH): 1040x590x1710mm
  • Unit Weight: 85kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


Manual Fork Platform Stacker

Efficiently manage your material handling tasks with the Manual Fork Platform Stacker, a versatile and user-friendly solution for lifting and moving heavy loads in various industrial settings. Perfect for warehouses, workshops, and retail environments, this stacker combines manual operation with robust functionality to enhance productivity. Featuring a durable fork platform, the stacker allows for smooth and controlled lifting and lowering of pallets and other loads. The manual pump system enables precise height adjustments, giving operators full control over load positioning without the need for electrical power. This makes it a cost-effective and reliable option for environments where electricity is limited or unavailable. Constructed from high-quality steel, the Manual Fork Platform Stacker is built to withstand rigorous use and support substantial weights. Its ergonomic design includes easy-to-operate levers and a comfortable handle, ensuring that the stacker can be manoeuvred with minimal effort. Safety features, such as stabilising wheels and secure locking mechanisms, provide added security during operation. The Manual Fork Platform Stacker is a practical and efficient tool for improving material handling and workflow in any busy workspace.

Maximise Efficiency with the Manual Fork/Platform Stacker

When it comes to material handling in industrial environments like warehouses, workshops, and manufacturing facilities, having the right equipment is crucial to maintaining productivity and ensuring safety. The Manual Fork/Platform Stacker offers an ideal solution, providing both versatility and reliability for a range of lifting and handling tasks. Whether you're lifting pallets, skids, or other heavy loads, this stacker combines ease of use with a robust design, making it an essential tool for any operation.

Effortless Lifting with Foot Pump Hydraulic Lift

One of the standout features of the Manual Fork/Platform Stacker is its foot pump hydraulic lift system. This easy-to-use feature allows operators to quickly and safely lift heavy loads without the need for electrical power or excessive manual effort. The foot pump mechanism ensures that the load can be raised smoothly and steadily to a maximum height of 1500mm, providing flexibility for a wide variety of tasks. Whether you're stacking pallets, moving heavy equipment, or adjusting the height of materials, this system makes lifting as simple as pressing a foot pedal.

Versatile Fork and Platform Design

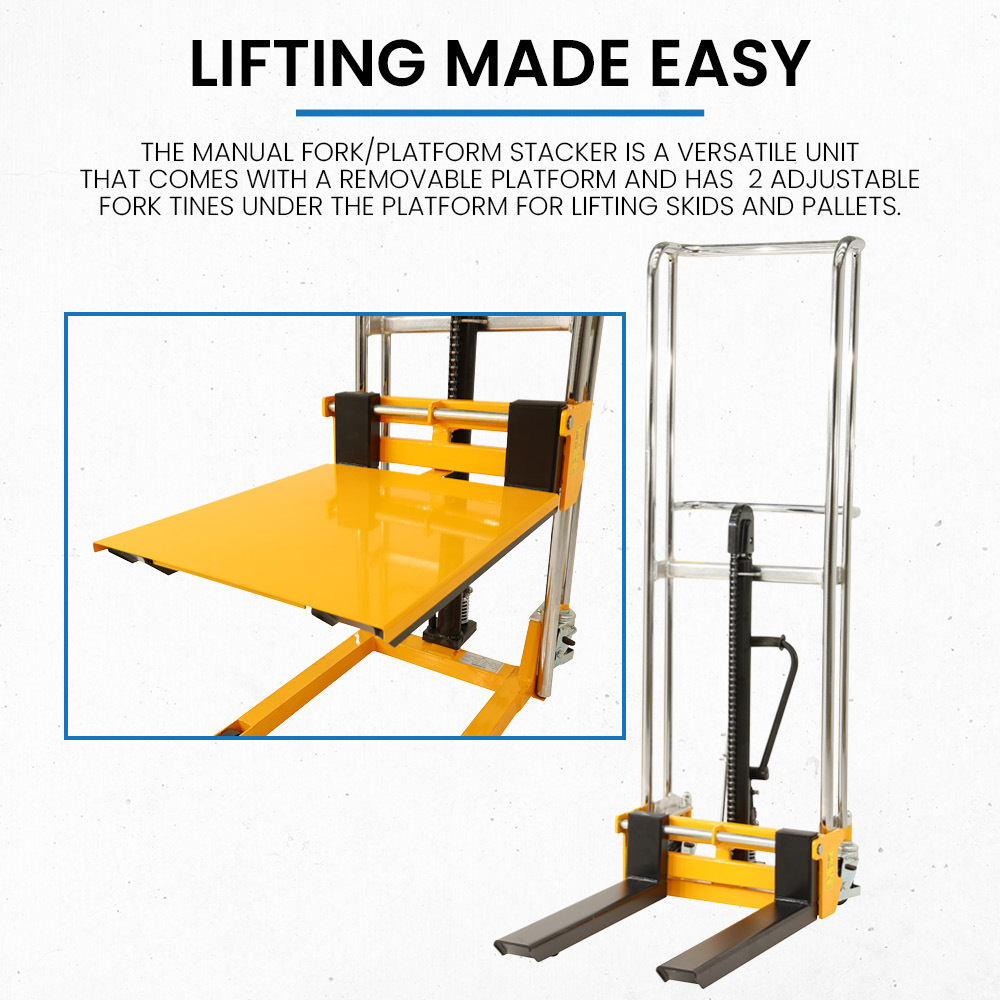

The Manual Fork/Platform Stacker is designed with versatility in mind. The stacker comes equipped with a removable platform that can easily be detached when not needed, allowing you to switch between platform and fork configurations depending on the task. The stacker also includes two adjustable fork tines underneath the platform, which provide the capability to lift pallets, skids, and other materials with ease.

This adjustability allows operators to handle a wide range of load sizes and configurations, making it a practical choice for warehouses that deal with different types of goods. The fork length of 650mm offers ample support for most pallet sizes, while the adjustable fork tines ensure that the stacker can accommodate both smaller and larger loads as needed.

Durability and Strength for Heavy Duty Use

When it comes to industrial equipment, durability is a key consideration, and the Manual Fork/Platform Stacker delivers on this front. Designed for heavy-duty use, the stacker boasts a load capacity of up to 400kg, making it ideal for handling even the heaviest loads within its capacity. Whether you're lifting large boxes, equipment, or bulk materials, you can trust this stacker to perform reliably and safely.

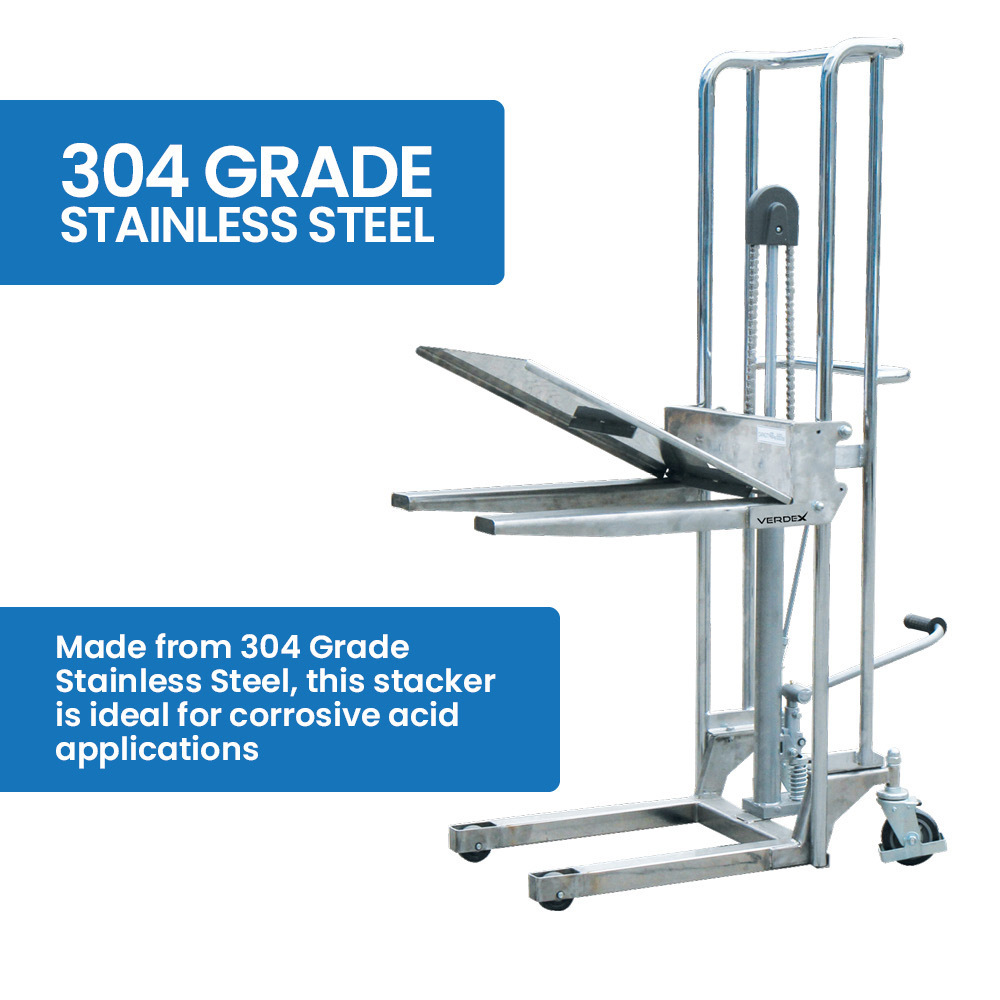

Available in two material options, V2230 offers a powder-coated finish, providing a strong and durable frame that is resistant to wear and tear. For environments where hygiene is a concern, such as food processing or pharmaceutical facilities, the V2230S model comes with a stainless steel frame, making it easy to clean and maintain while still offering the same robustness and load capacity.

Easy Mobility and Stability

The Manual Fork/Platform Stacker is designed with ease of movement in mind. It is equipped with polyurethane castors that are both durable and smooth-running, providing a steady and quiet operation. The stacker has two fixed rear castors (125mm) and two swivel front castors (75mm) with brakes, offering both manoeuvrability and stability. The front swivel castors provide flexibility, allowing the operator to turn and move the stacker easily in tight spaces, while the rear fixed castors ensure that the unit remains stable during lifting.

The braked castors further improve safety by allowing operators to lock the stacker in place when needed, preventing unintended movement during operations. This combination of smooth manoeuvrability and secure stability makes the stacker ideal for use in crowded warehouses, narrow aisles, or high-traffic environments where quick adjustments and secure handling are required.
