Telescopic Forklift Jib - 10 Tonne


$3,998.00 Price excludes GST

SKU

V2433

Availability:

In StockIn Stock

Subtotal:

$3,998.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

The 10 Tonne Telescopic Forklift Jib is a heavy-duty forklift attachment engineered for demanding material-handling tasks in construction, manufacturing, and logistics environments. Built from powder-coated, zinc-plated steel for durability, it provides secure lifting for loads up to 10 tonnes. Its telescopic design allows it to extend up to 3.6m for increased reach, while wide fork pockets accommodate hydraulic tine positioners for better control. A safety swivel hook, shackle, and chain ensure secure attachment, and its compact closed length enhances ease of handling and storage.

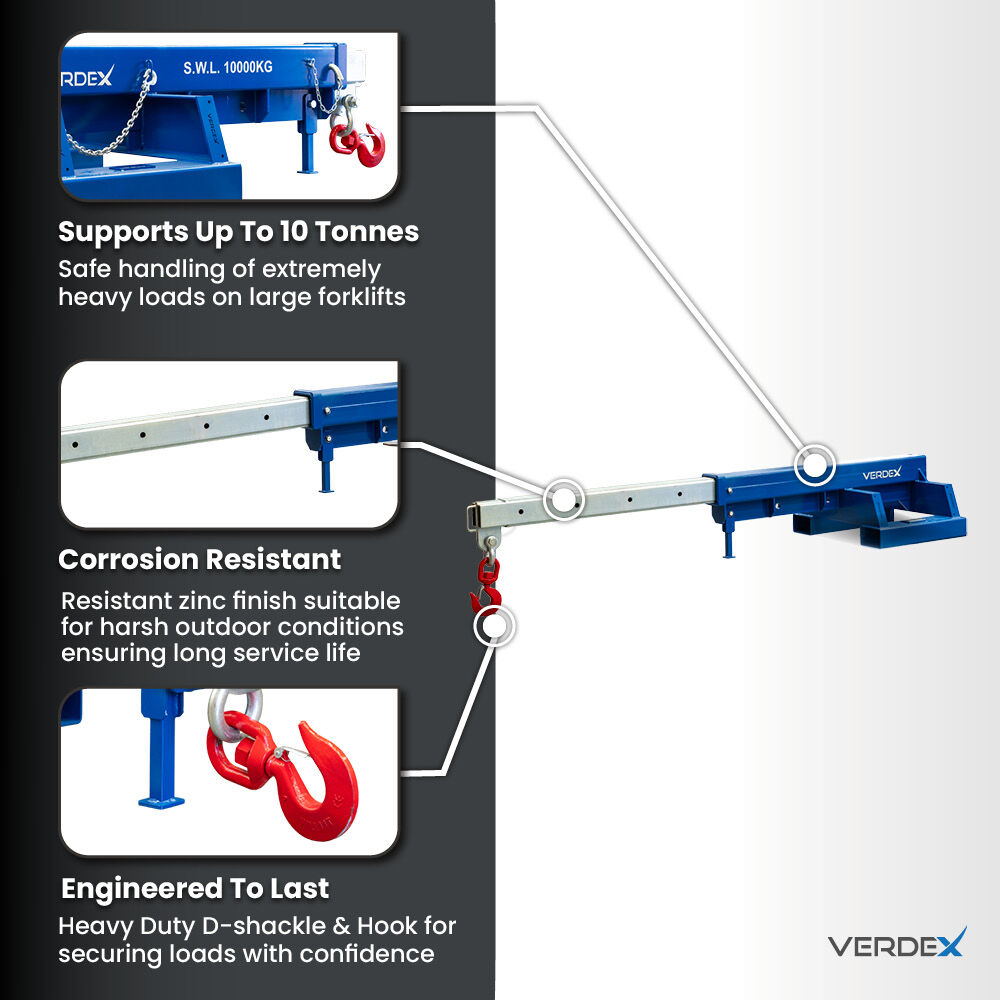

  • Supports up to 10 tonnes (10,000kg), enabling safe handling of extremely heavy loads on large forklifts
  • Telescopic extension up to 2000mm provides extra reach for placing materials in hard-to-access areas
  • Support Stand to keep the Jib level when not being used
  • Compact 2190mm closed length makes jib easier to manoeuvre, transport, and store when not in use
  • Wide fork pockets suit most large tines on high tonnage forklifts
  • Safety chain attachment keeps jib securely fixed to forklift
  • High strength swivel lifting and shackle
  • Powder coated and corrosion-resistant zinc finish makes it suitable for harsh outdoor or industrial conditions, ensuring long service life
  • Material: Steel
  • Finish: Powder Coated & Zinc Plated
  • Working Load Limit: 10,000kg (10T)
  • HCG: 919mm
  • Load Centre: 920mm
  • Jib Length (when closed): 2190mm
  • Jib Length (when extended): 3560mm
  • Fork Pocket Centre: 875mm
  • Fork Pocket Size: 230x114mm

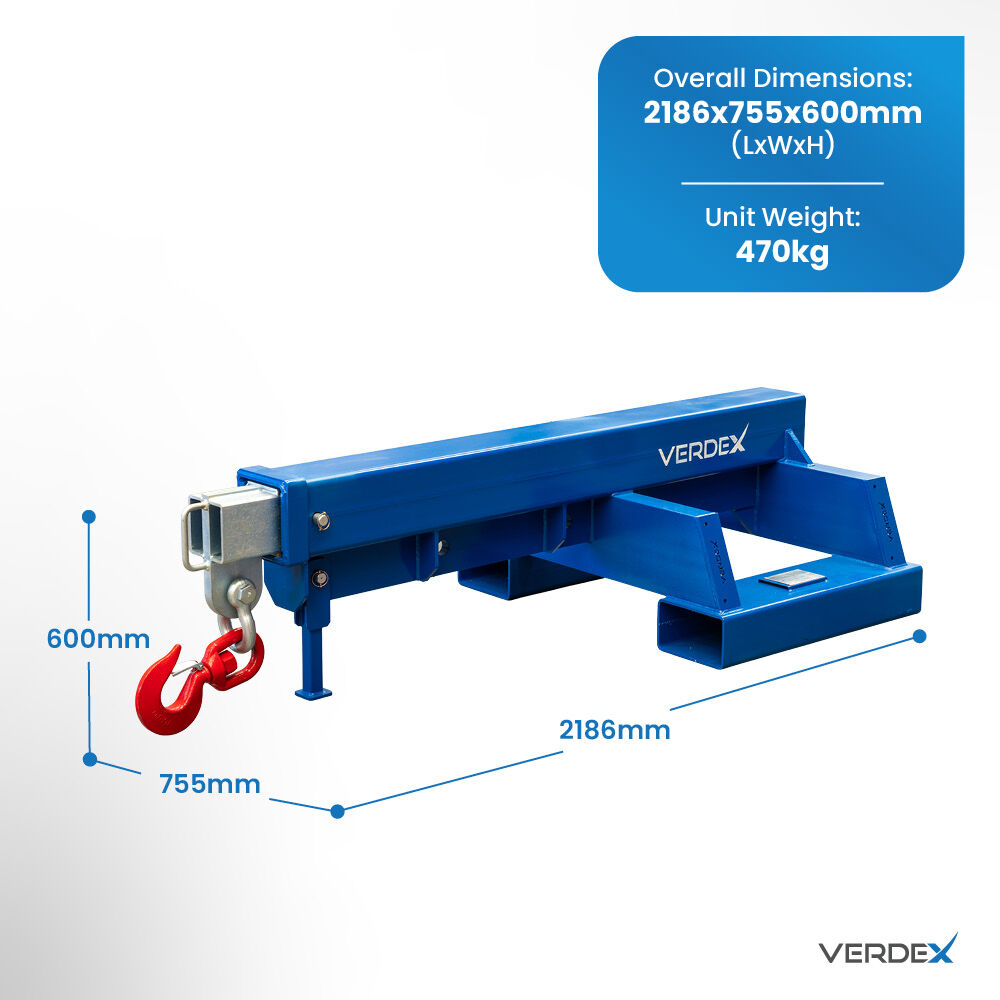

  • Overall Dimensions (LxWxH): 2190x755x600mm
  • Unit Weight: 470kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

1 year Verdex Warranty

1. Warranty Period

Verdex Equipment Pty Ltd ("Verdex") warrants to the original purchaser that its equipment will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery.

2. Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

3. Reporting Delivery Damage

Any visible damage or defects present at the time of delivery must be reported within 14 days of delivery. This requirement does not limit your rights under the Australian Consumer Law.

4. Exclusions and Limited Warranty Items

The following items are subject to normal wear and tear and are not covered under the 1-year warranty, but are covered by a 3-month warranty from date of delivery where applicable:

  • Batteries
  • Castors, wheels and tyres

The following are not covered under warranty, except where a defect arises from faulty materials or workmanship:

  • Hydraulic hoses
  • Electrical cabling
  • Consumable items (e.g. globes or similar components)

The warranty does not cover:

  • Normal wear and tear, including faded paint due to UV or sun exposure
  • Damage caused by negligence, misuse, abuse, overloading, or improper operation
  • Failure to follow operating or maintenance instructions provided with the product
  • Unauthorised repairs, modifications, or use of non-Verdex parts
  • Damage caused by improper installation or environmental conditions

5. Warranty Process (Back-to-Base)

This warranty is a back-to-base warranty. The customer is responsible for returning the goods to the place of purchase or a nominated Verdex service location.

Verdex will assess the returned product and, where a valid warranty claim is confirmed, will repair or replace the item at its discretion, acting reasonably.

Verdex may assist in arranging return freight; however, transport costs are the responsibility of the customer, unless otherwise required under the Australian Consumer Law.

6. Limitation of Liability

To the extent permitted by law:

  • Verdex is not liable for any loss of use, downtime, or indirect or consequential damages
  • Verdex’s total liability in connection with any claim will not exceed the original purchase price of the equipment

Nothing in this warranty excludes, restricts, or modifies any rights or remedies available under the Australian Consumer Law.

7. Conditions of Warranty

This warranty applies only where Verdex determines, upon inspection, that the defect has not been caused by:

  • Misuse or improper operation
  • Neglect or lack of maintenance
  • Unauthorised repair or modification
  • Abnormal deterioration due to environmental or operating conditions
  • Accident or incorrect installation







Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Magnetic Whiteboards

Magnetic Whiteboards

Magnetic Whiteboards

From $177.00

View Details
2 Tier Aluminium Trolleys

2 Tier Aluminium Trolleys

2 Tier Aluminium Trolleys

From $810.00

View Details
Dumpmaster Bin Tipper (1800mm)

Dumpmaster Bin Tipper (1800mm)

Code: DM1800

Dumpmaster Bin Tipper (1800mm)

Now $10,680.00 Was $12,250.00

View Details
On Special
Portable Industrial Electric Fan Heater (15kW)

Portable Industrial Electric Fan Heater (15kW)

Code: V6509

Portable Industrial Electric Fan Heater (15kW)

Now $936.00 Was $1,126.00

View Details
On Special
Semi-Auto Stretch Wrapping Machine (with Scale)

Semi-Auto Stretch Wrapping Machine (with Scale)

Semi-Auto Stretch Wrapping Machine (with Scale)

From $13,549.00

View Details
On Special
Verdex Beanie

Code: GA3710

Verdex Beanie

FREE GIVEAWAY

View Details
Pizza Oven

Code: GA3540

Pizza Oven

FREE GIVEAWAY

View Details
4 Drum Bunded Spill Pallet

4 Drum Bunded Spill Pallet

4 Drum Bunded Spill Pallet

From $473.00

View Details
On Special

Frequently Asked Questions

1. What is the Telescopic Forklift Jib 10 Tonne used for?

The Telescopic Forklift Jib 10 Tonne is used for lifting, positioning and transporting heavy suspended loads with a forklift in warehouses, construction sites, manufacturing facilities and industrial workplaces. Its telescopic design provides adjustable reach for handling loads in difficult or elevated positions.

2. Why choose a Telescopic Forklift Jib instead of standard forklift lifting methods?

A telescopic forklift jib allows forklifts to lift and position loads with greater reach and flexibility than standard forklift tynes alone. This helps improve access to difficult lifting areas while supporting safer and more controlled heavy load handling.

3. Is the Telescopic Forklift Jib 10 Tonne suitable for industrial workplaces?

Yes. The telescopic forklift jib is commonly used in warehouses, logistics operations, workshops, construction projects, transport yards and industrial facilities where operators require flexible heavy-duty lifting solutions.

4. How does the Telescopic Forklift Jib 10 Tonne improve workplace efficiency?

The jib allows operators to position and transport heavy loads more efficiently while improving lifting reach and reducing handling limitations during workplace tasks. Its telescopic functionality also supports improved versatility for different load positioning requirements.

5. Where is the Telescopic Forklift Jib 10 Tonne commonly used?

The Telescopic Forklift Jib 10 Tonne is commonly used in warehouses, construction sites, manufacturing facilities, freight yards and industrial workplaces requiring dependable forklift lifting and heavy load positioning solutions.



Improve Heavy Load Handling with the Telescopic Forklift Jib 10 Tonne

Efficient lifting and positioning of heavy materials are essential for maintaining productivity and workplace safety across industrial environments. The Telescopic Forklift Jib 10 Tonne provides practical forklift lifting support that helps businesses improve workflow efficiency while supporting safer handling of suspended and oversized loads.

Unlike standard forklift lifting methods with limited reach, this telescopic forklift jib provides adjustable extension capability for improved load access and positioning flexibility. This supports safer and more controlled lifting throughout demanding workplace activities.

Practical Forklift Lifting Support for Industrial Workplaces

In warehouses, construction projects and manufacturing facilities, operators frequently move and position heavy materials between storage areas and operational work zones. The Telescopic Forklift Jib 10 Tonne supports smoother workflow movement by improving lifting flexibility and reducing operational limitations during material handling tasks.

Its telescopic design and high lifting capacity make it particularly useful in workplaces requiring adjustable lifting reach and dependable heavy-duty load positioning performance.

Why Telescopic Forklift Jibs Improve Workplace Safety

Handling suspended or awkward loads with unsuitable lifting methods can increase workplace injury risks and reduce operational productivity throughout daily activities. The Telescopic Forklift Jib 10 Tonne improves workplace safety by supporting controlled lifting and improving load positioning stability during transport operations.

Compared with standard forklift lifting configurations, telescopic jibs support smoother workflows, improved operational flexibility and more efficient heavy load handling performance.

Choose the Right Forklift Lifting Solution for Your Workplace

The Telescopic Forklift Jib 10 Tonne delivers dependable lifting performance for businesses seeking improved workplace efficiency, safer heavy load handling and reliable forklift lifting support. Verdex supplies forklift attachments and workplace handling solutions suited to warehouses, logistics operations and industrial environments requiring practical daily functionality. Contact the Verdex team if you need advice on jib suitability, forklift compatibility or selecting the right lifting solution for your operation.
