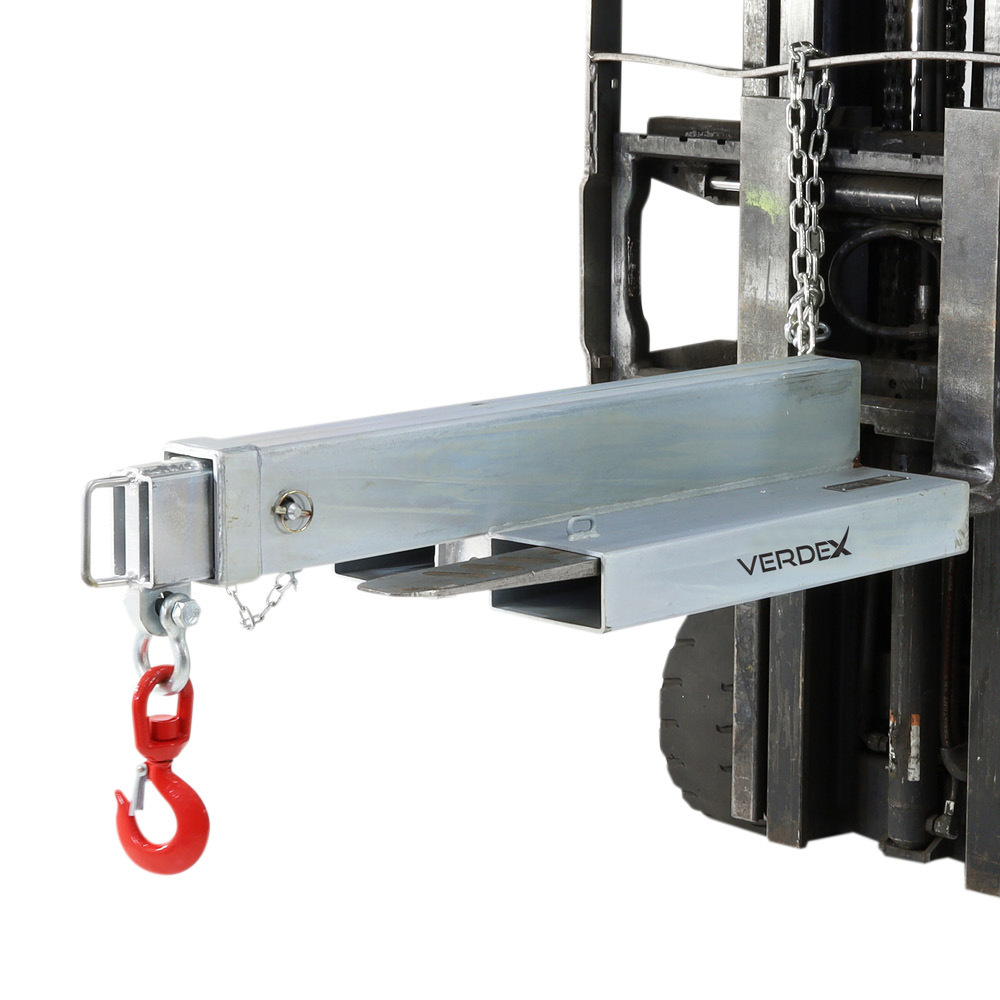

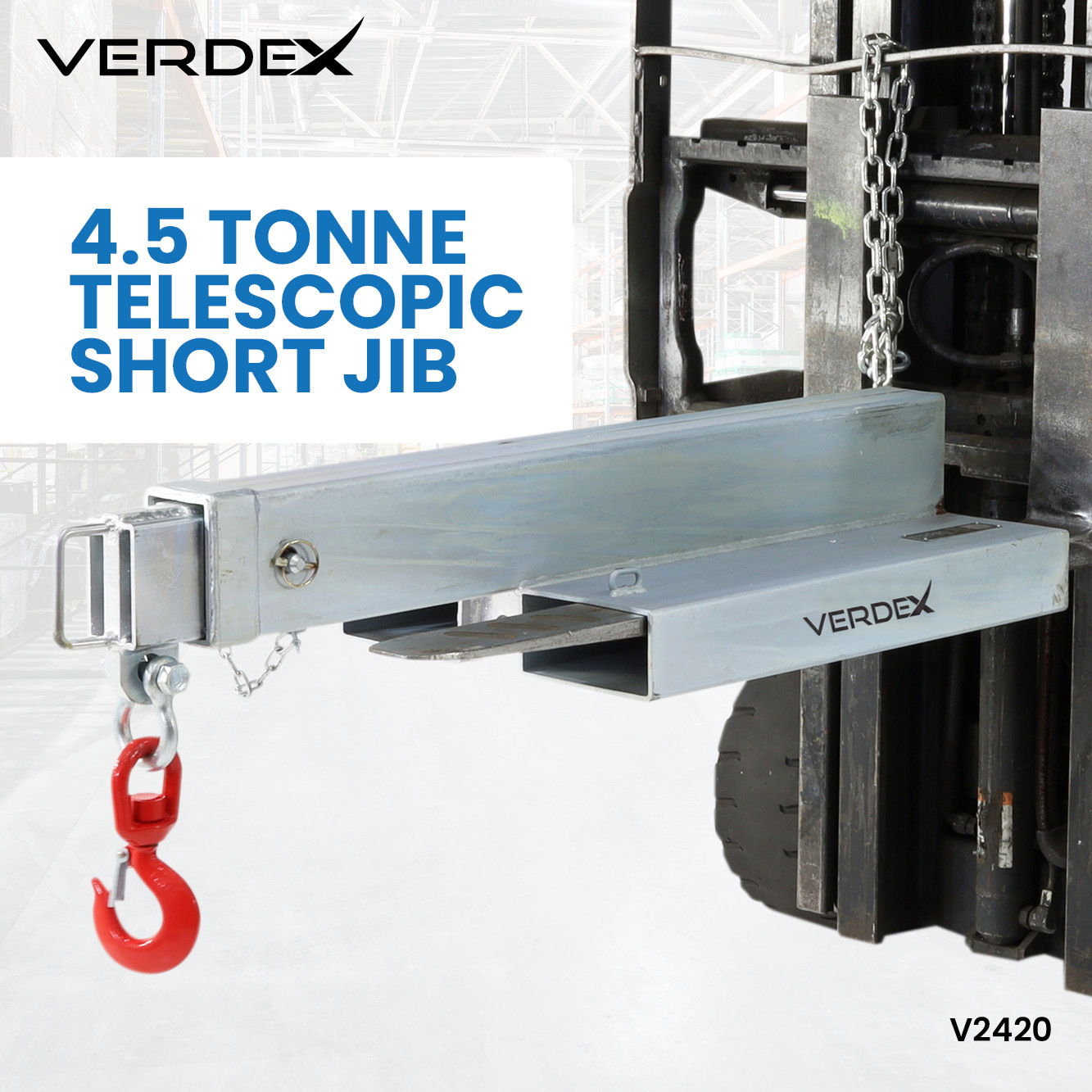

4.5 Tonne Telescopic Short Jib

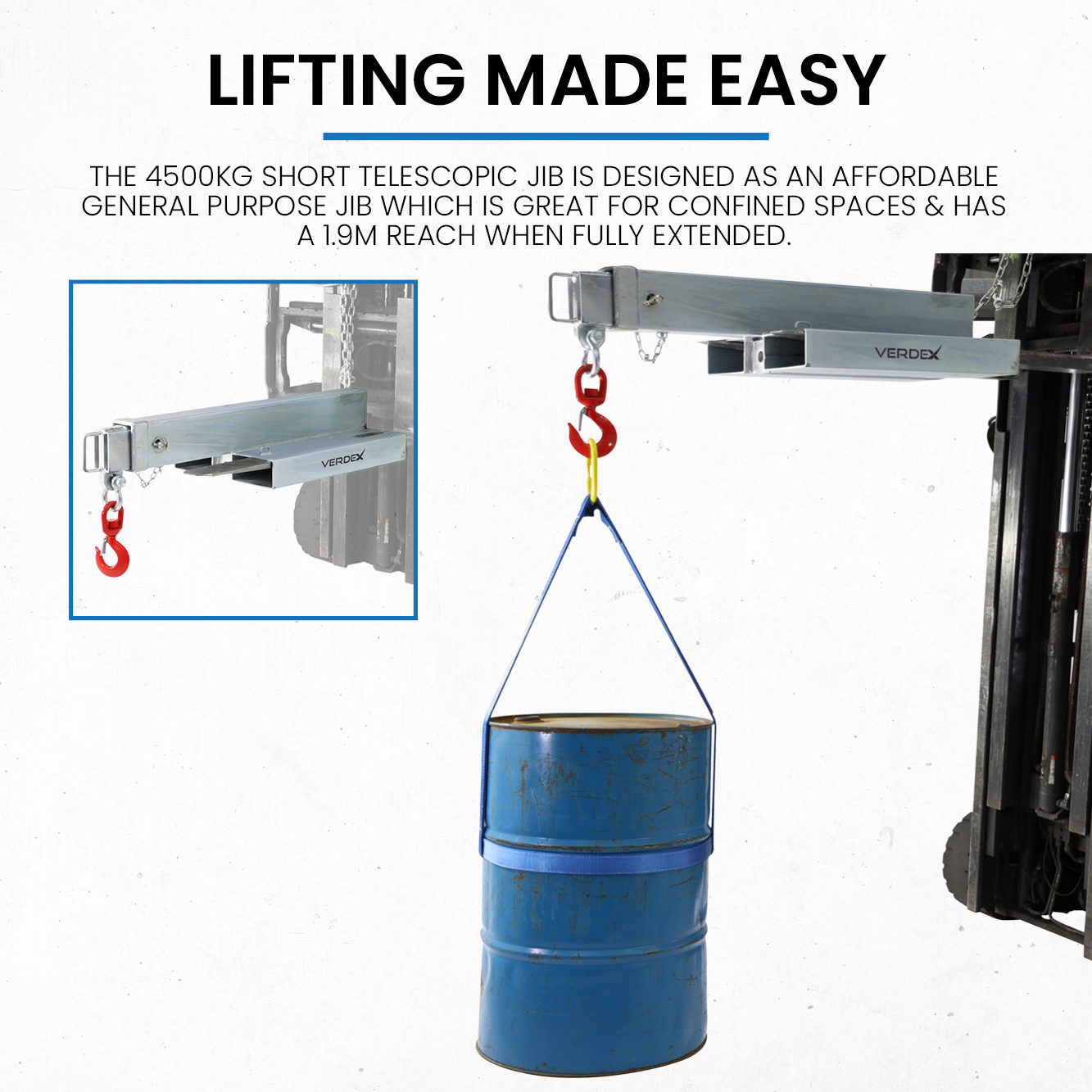

This 4500kg short fixed jib is designed as an affordable general purpose jib which is great for confined spaces and has a 1.9 metre reach when fully extended.
- Finish: Zinc plated
- 4 jib positions

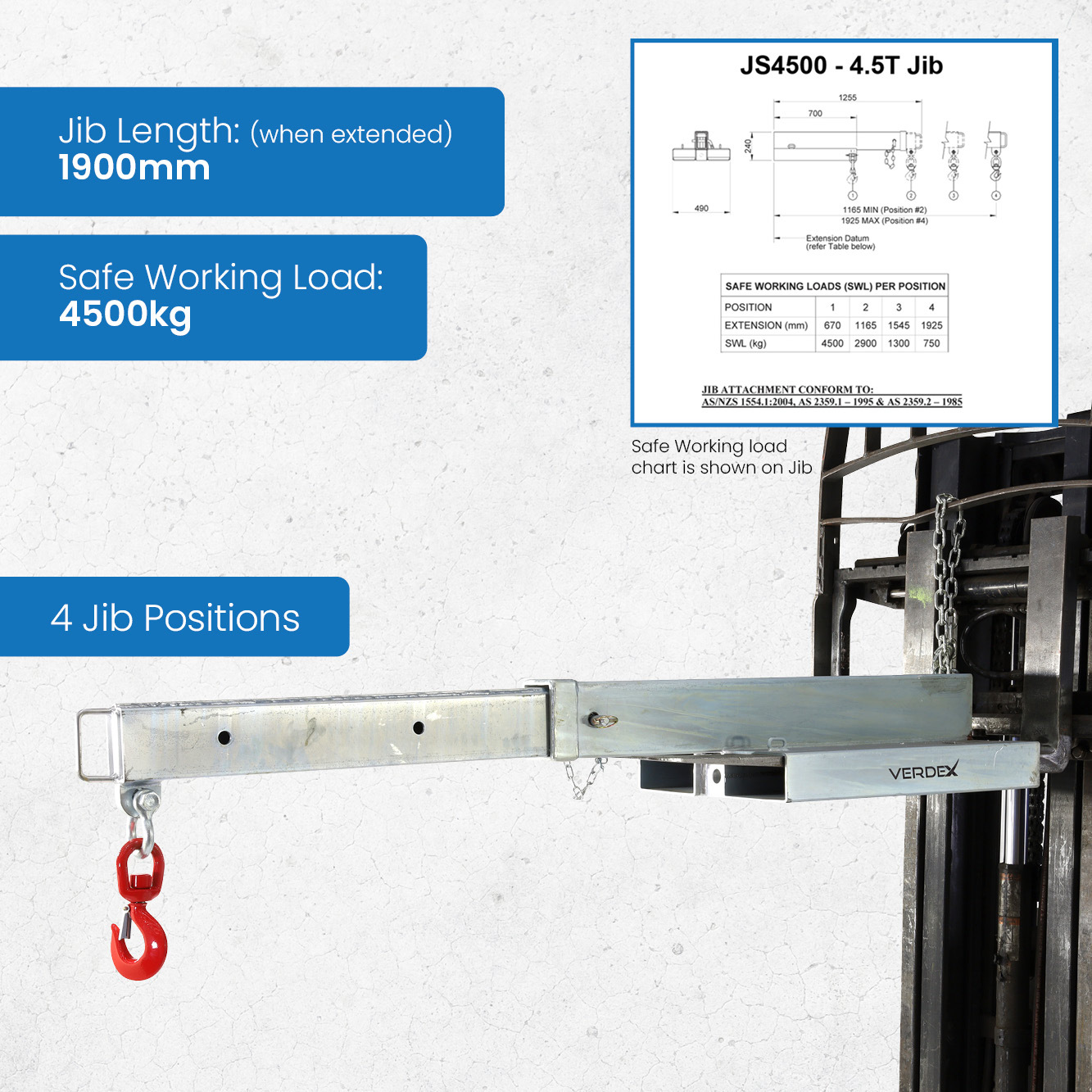

- Safe Working Load: 4500kg (SWL load chart is shown on jib)
- Load Centre: 670mm
- HCG: 542mm

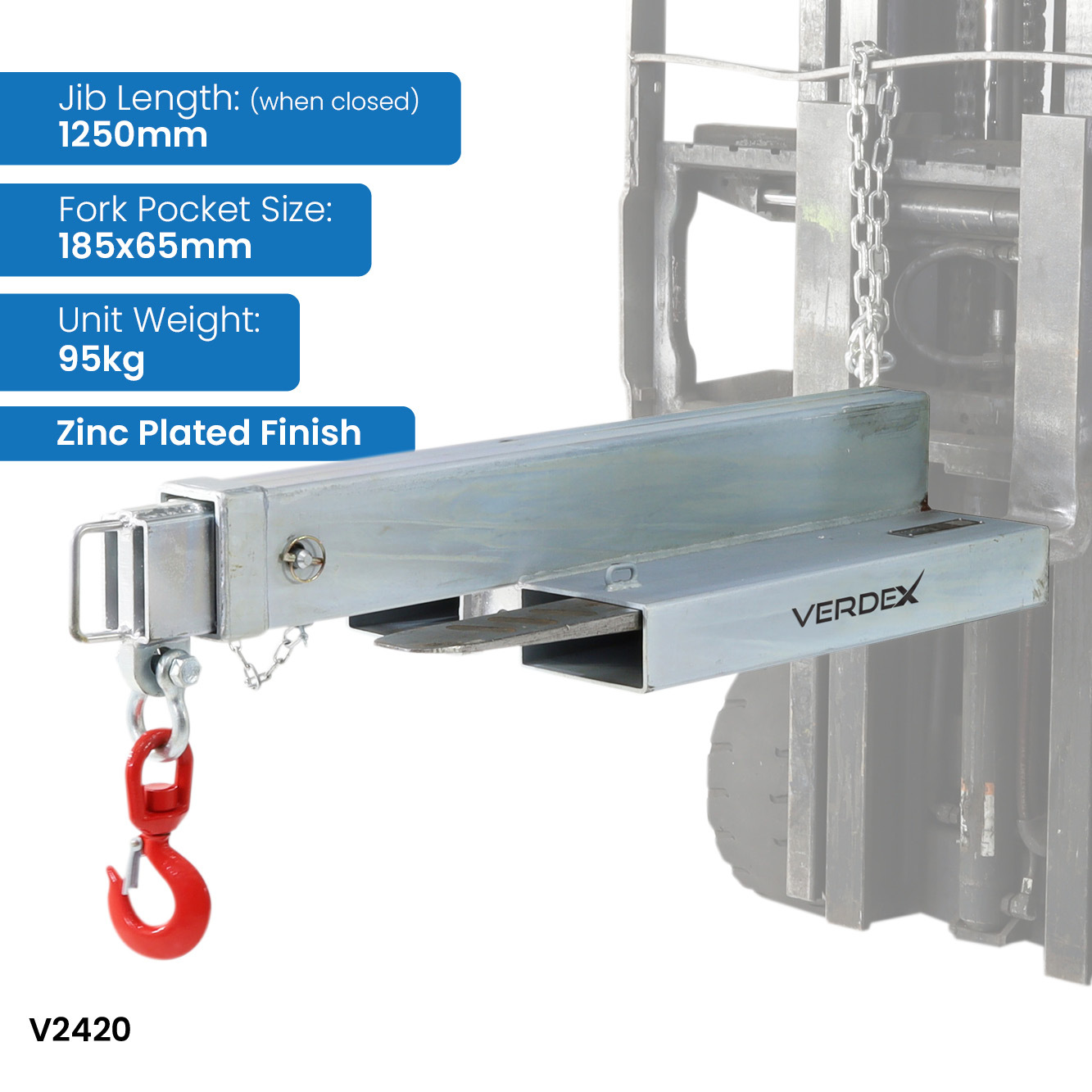

- Jib Length (when closed): 1250mm
- Jib Length (when extended): 1900mm
- Fork Pocket Size: 185x65mm
- Fork Pocket Centres: 290mm
- Unit Weight: 95kg
Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.
Please Note - We are not able to deliver goods to a PO Box address.
Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.
Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.
Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.
Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.
Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.
Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.
International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.
Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.
Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.
Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.
Click here to download a PDF Brochure Click here to fill in the form to request your required document
4.5 Tonne Telescopic Short Jib
The 4.5 Tonne Telescopic Short Jib is a versatile lifting accessory designed to enhance the capabilities of your crane or forklift. Ideal for a range of heavy-duty applications, this robust jib allows for precise and efficient lifting and moving of loads, making it a valuable addition to any industrial or construction setup. Constructed from high-strength steel, the short jib provides exceptional durability and stability, supporting loads up to 4.5 tonnes with ease. Its telescopic feature allows for adjustable reach, offering flexibility to accommodate different lifting needs and ensuring optimal performance in various operational scenarios. The compact design of the Telescopic Short Jib ensures ease of use and manoeuvrability in tight spaces, while its secure locking mechanisms guarantee safe and reliable operation. Whether you need to lift materials, equipment, or components, this jib enhances productivity and efficiency, making complex lifting tasks more manageable. Invest in the 4.5 Tonne Telescopic Short Jib for a dependable and adaptable lifting solution that meets the demands of your heavy-duty operations with precision and ease.
The 4.5 Tonne Telescopic Short Jib: Affordable and Versatile Lifting Solution
When it comes to material handling in tight spaces or confined environments, having the right lifting equipment is crucial. The 4.5 Tonne Telescopic Short Jib is a powerful, yet affordable solution that enhances the lifting capabilities of forklifts, particularly when navigating areas with limited space. Designed for a wide range of general-purpose lifting tasks, this jib offers both versatility and safety, ensuring smooth and efficient operations in warehouses, construction sites, and industrial environments.
Designed for Compact Lifting
The 4.5 Tonne Telescopic Short Jib is an ideal choice for businesses that frequently operate in confined spaces. The compact design of the jib ensures it doesn’t take up unnecessary space, allowing for better manoeuvrability in narrow aisles or tight corners. When fully extended, the jib provides an impressive reach of 1.9 metres, allowing forklift operators to lift and position heavy loads with ease, even in restricted areas.
The ability to extend the jib makes it highly versatile, giving operators the flexibility to lift objects that are beyond the reach of a standard forklift. Whether you're moving materials at height or need to position a load in a tricky spot, this telescopic jib makes it easier and more efficient to perform such tasks.
Strength and Reliability
Despite its compact size, the 4.5 Tonne Telescopic Short Jib is built to handle heavy-duty loads. With a Safe Working Load (SWL) of 4500kg, it’s capable of lifting substantial materials, making it suitable for various industries, including construction, manufacturing, and logistics. Whether lifting building materials, machinery parts, or heavy equipment, the jib ensures that the load is supported securely.
The load centre of 670mm and HCG (hook centre of gravity) of 542mm are optimally designed to provide the right balance and stability while lifting, ensuring the load remains steady during the operation. This reduces the risk of accidents or instability, making the jib an essential tool for any workplace where heavy lifting is required.
Easy to Use with Four Jib Positions
One of the standout features of the 4.5 Tonne Telescopic Short Jib is its four adjustable jib positions, which allow operators to fine-tune the lifting height and reach according to the task at hand. This feature adds to the versatility of the jib, as it can be configured for different load types and lifting scenarios.
The adjustability of the jib positions provides the flexibility to handle a wide range of tasks without the need for multiple pieces of equipment. Whether you need a low, medium, or high lifting range, you can quickly adjust the jib to meet your specific needs, improving productivity and reducing downtime.
Durability and Corrosion Resistance
The zinc-plated finish of the 4.5 Tonne Telescopic Short Jib ensures that it’s built to withstand tough industrial environments. The zinc plating offers excellent protection against rust and corrosion, which is crucial when using the jib in environments where exposure to moisture, chemicals, or harsh conditions is common.
This corrosion resistance not only extends the lifespan of the jib but also ensures it continues to operate safely and efficiently over time. The jib’s robust construction, combined with the zinc-plated finish, ensures it remains a reliable tool for heavy lifting tasks, even under the most demanding conditions.
Compatibility and Ease of Installation
The 4.5 Tonne Telescopic Short Jib is designed to fit most standard forklifts with fork pockets measuring 185x65mm and a pocket centre distance of 290mm, making it highly compatible with a wide range of equipment. The straightforward installation process allows operators to quickly attach the jib to the forklift, reducing downtime and improving efficiency.
Once attached, the jib can be easily adjusted to suit the lifting needs of the job. Its compact design also makes it easy to store when not in use, saving valuable space in the workplace.
