Drum Tipper / Dumper Drum Tipper / Dumper Drum Tipper / Dumper Drum Tipper / Dumper Drum Tipper / Dumper Drum Tipper / Dumper Drum Tipper / Dumper
Click on image above to enlarge

Forklift Drum Handling

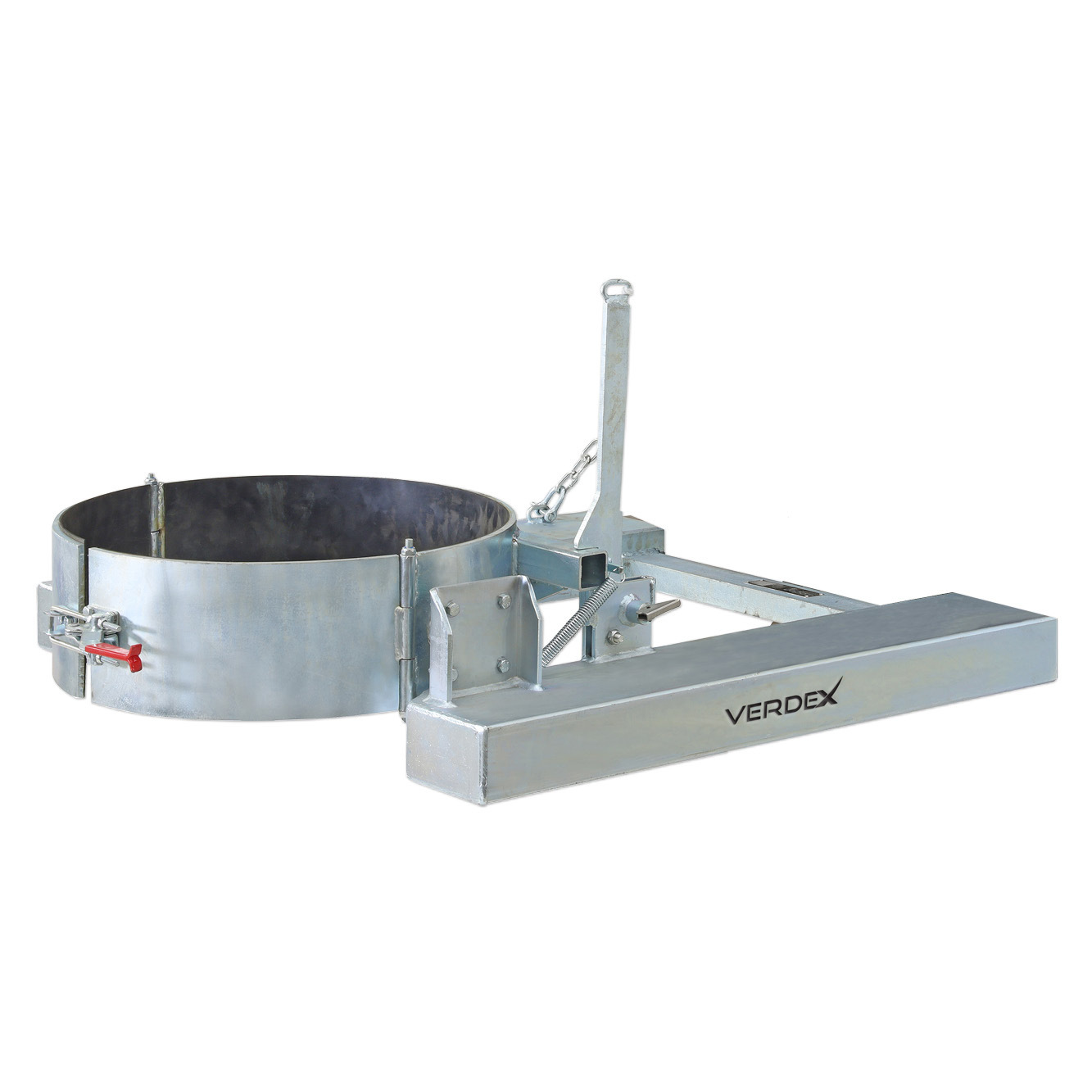

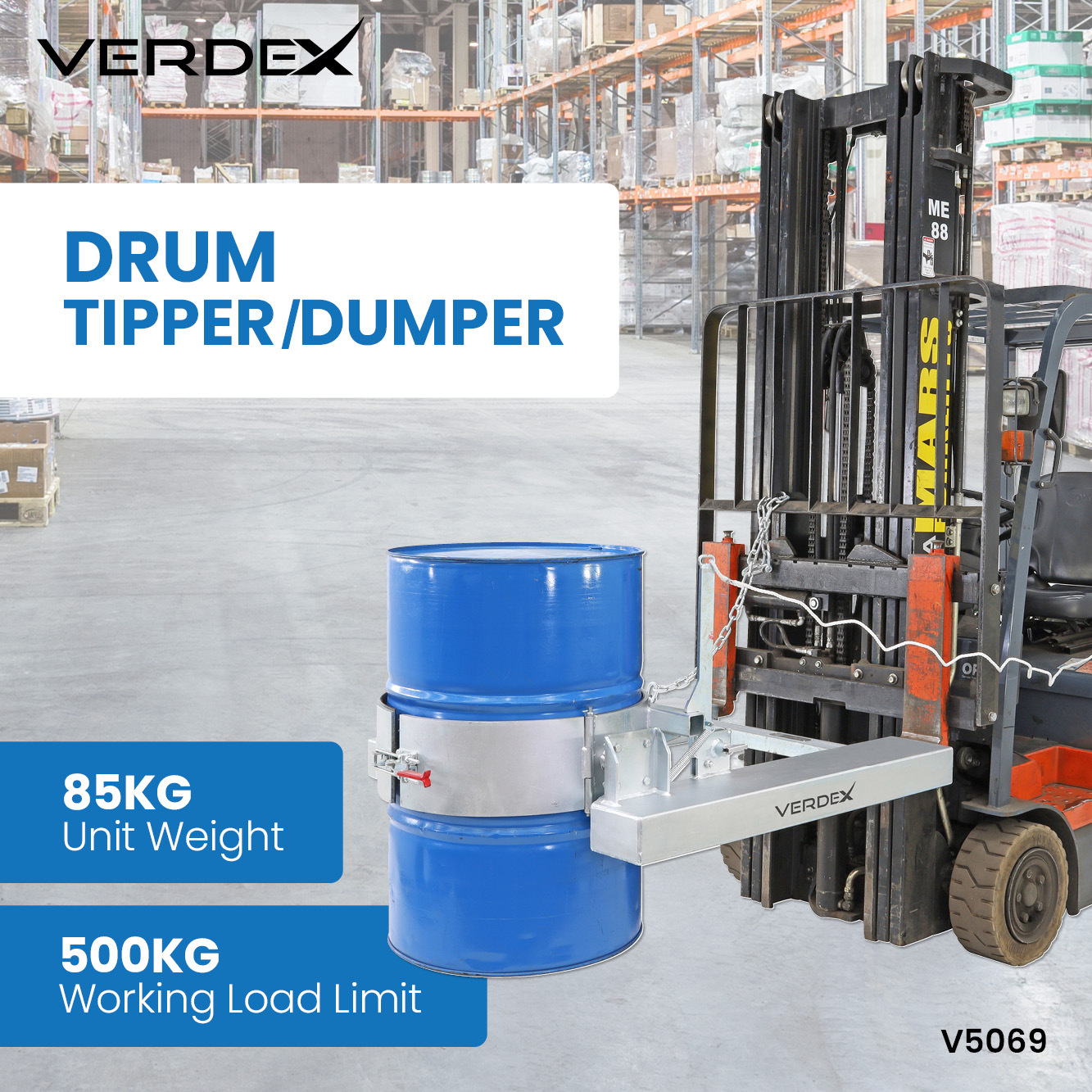

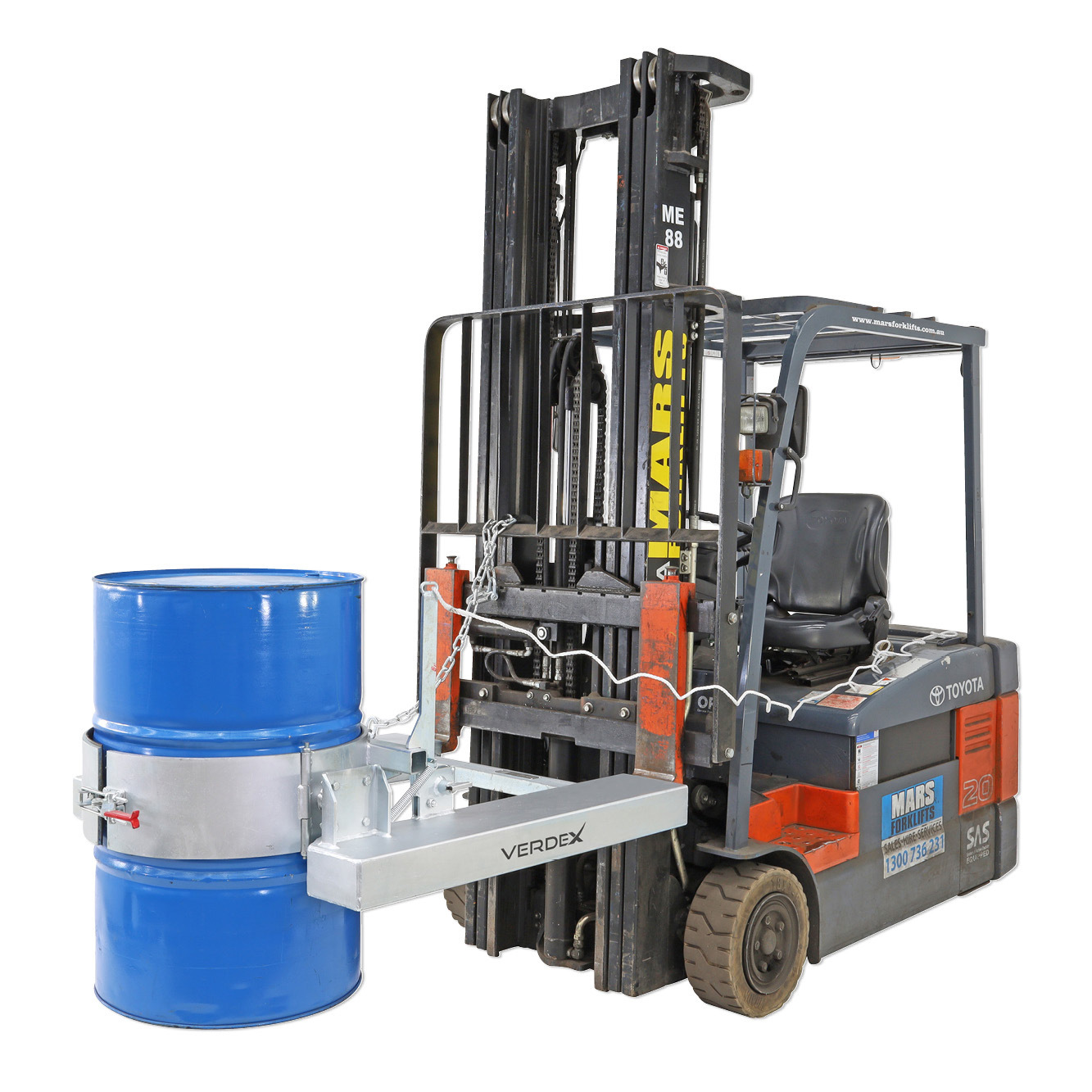

Drum Tipper / Dumper


$935.00 Price excludes GST

SKU

V5069

Availability:

In StockIn Stock.

Subtotal:

$935.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

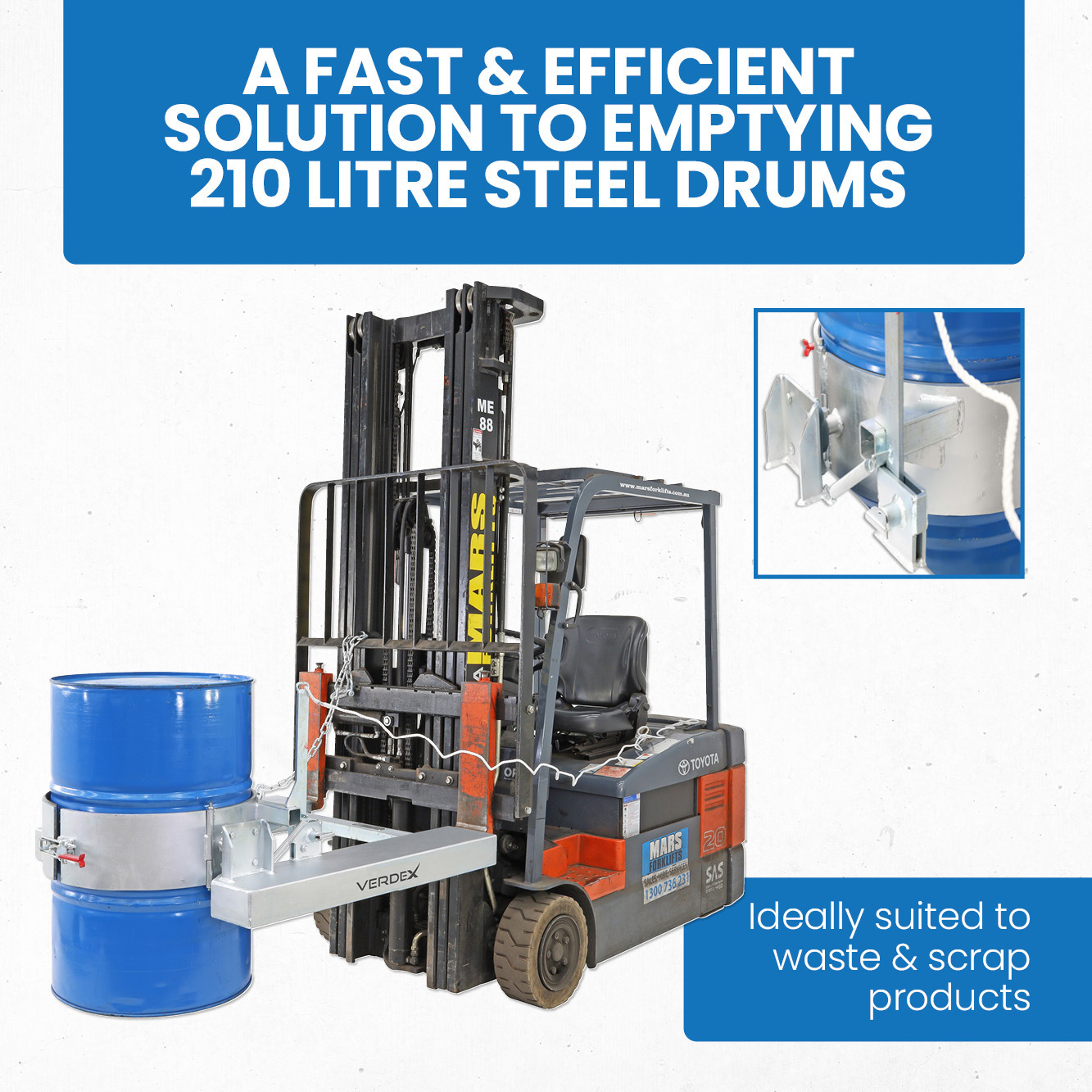

  • Fast and efficient solution to emptying 210 litre steel drums, ideally suited to waste and scrap products

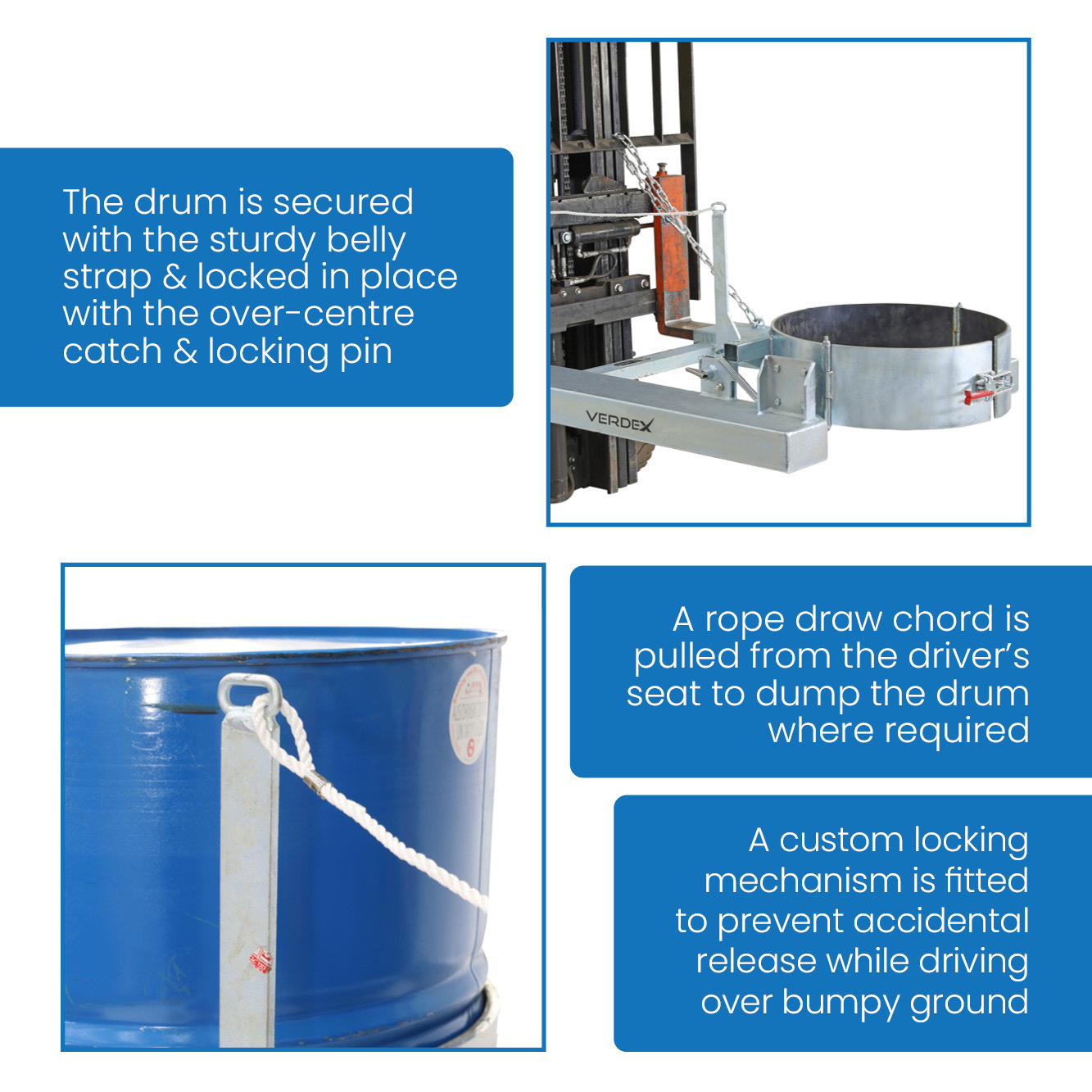

  • The drum is secured with the sturdy belly strap and locked in place with the over-centre catch and locking pin
  • A rope draw chord is pulled from the driver’s seat to dump the drum where required. A custom locking mechanism is fitted to prevent accidental release while driving over bumpy ground
  • Zinc Plated finish

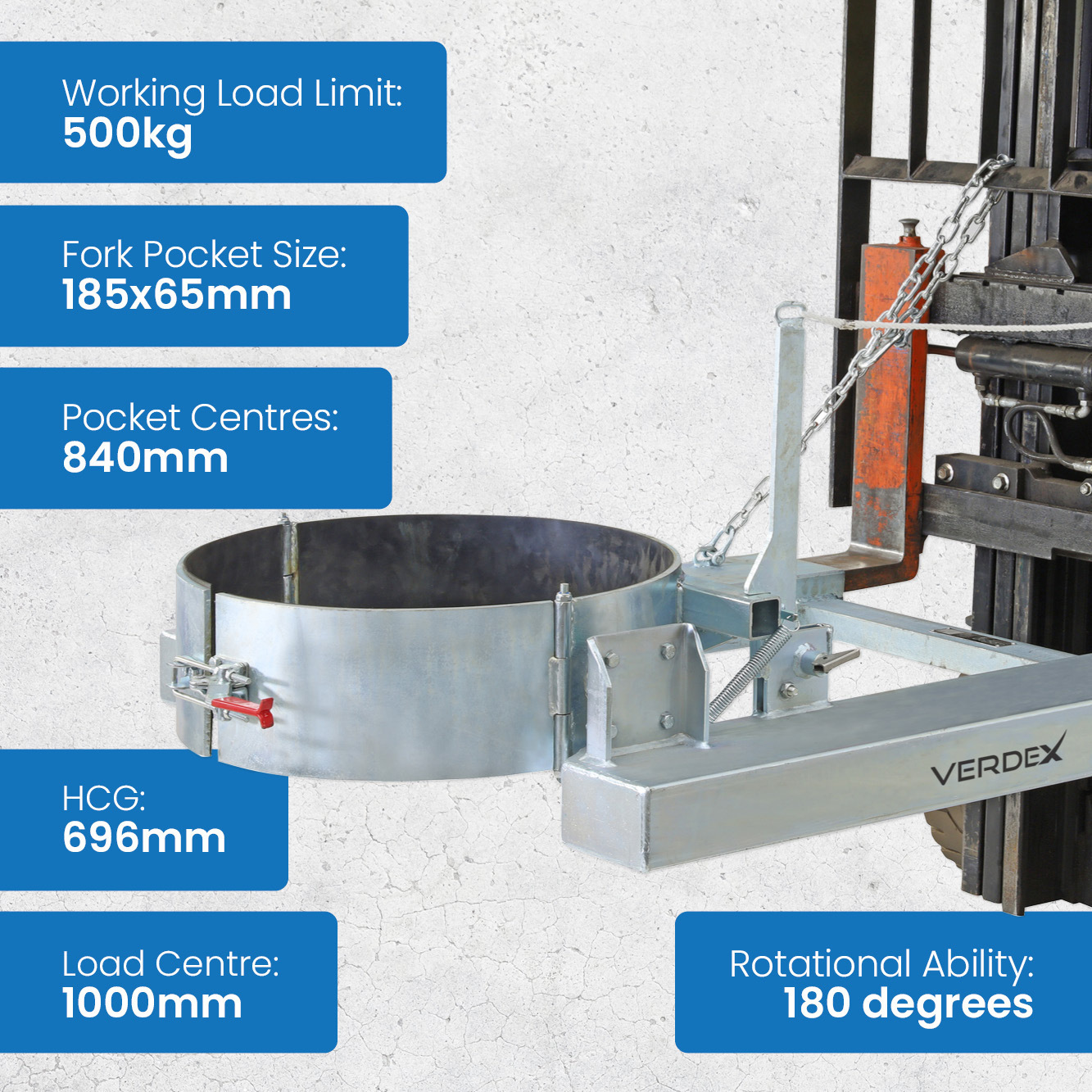

  • Working Load Limit (WLL): 500kg
  • HCG: 696mm
  • Rotational ability 180 degrees
  • Load centre: 1000mm

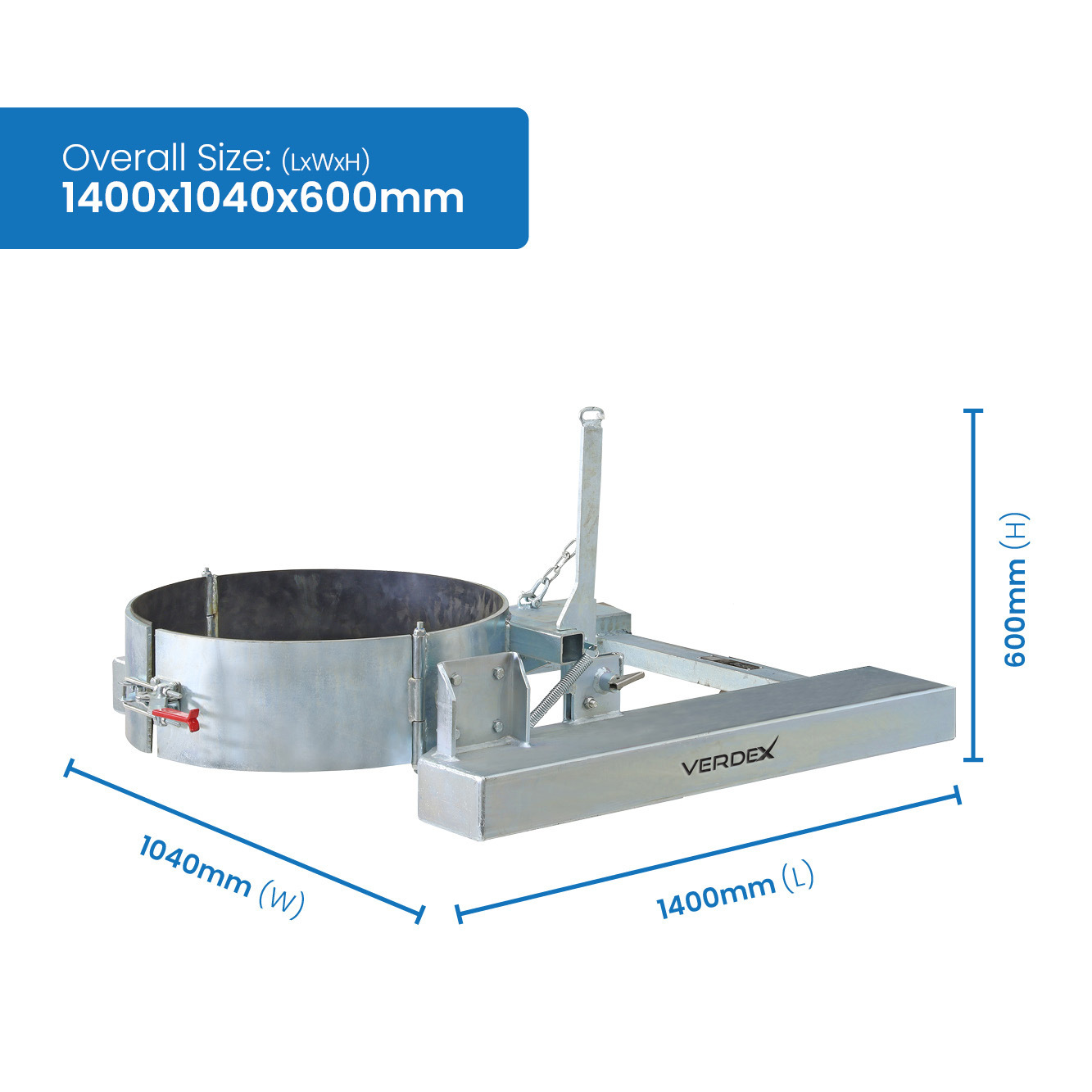

  • Overall Size (LxWxH): 1400x1040x600mm
  • Fork pocket size 185 x 65mm
  • Pocket centres 840mm
  • Unit weight: 85kg





Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Drum Tipper Dumper

Efficiently handle and dispose of drums with the Drum Tipper Dumper from Verdex. This robust and versatile equipment is designed to safely and effectively tip, empty, and dump drums, reducing manual handling and increasing workplace productivity. Built with high-quality materials, it features a sturdy frame that ensures durability and stability even under heavy loads. The Drum Tipper Dumper is equipped with a user-friendly control system, allowing for precise tipping angles and smooth operation. Ideal for warehouses, manufacturing facilities, and industrial environments, it enhances safety by minimising the risk of manual lifting injuries. The compact design also ensures that it fits seamlessly into tight spaces, making it an excellent choice for optimising workflow efficiency. With easy maintenance and reliable performance, the Drum Tipper Dumper is an essential tool for any facility needing efficient drum handling solutions.

Drum Tipper / Dumper: Streamlining Drum Emptying with Precision and Ease

In industries where large quantities of material are stored or disposed of in 210-litre steel drums, efficient and safe handling is crucial to maintaining smooth operations. Whether it's for waste, scrap, or liquid products, manually emptying or tilting these heavy drums can be a challenging and time-consuming task. This is where the Drum Tipper / Dumper comes into play, offering a fast and efficient solution to safely emptying and handling drums with ease.

What is a Drum Tipper / Dumper?

The Drum Tipper / Dumper is a highly effective drum-handling tool designed to facilitate the easy and safe dumping of 210-litre steel drums. Whether your business deals with waste, scrap materials, or liquids, this device simplifies the task of emptying heavy drums, saving time and reducing the risk of injury. The Drum Tipper is ideal for use in industrial, manufacturing, or waste management settings where drums are frequently handled.

This equipment allows the operator to securely tip and empty a drum without the need for manual lifting, reducing physical strain and improving safety in the workplace. The Drum Tipper is operated from the safety of the driver’s seat via a rope draw chord, offering precise control of the drum’s tipping motion.

Key Features and Benefits of the Drum Tipper / Dumper

1. Efficient Drum Emptying with 180-Degree Rotation

The Drum Tipper provides a 180-degree rotational ability, allowing for a complete and controlled dumping of drum contents. This ensures that waste, scrap, or liquids are emptied thoroughly and accurately. Whether you need to dump materials into a container, skip bin, or waste disposal area, the Drum Tipper ensures maximum efficiency with minimal effort.

The working load limit (WLL) of 500kg allows the device to handle even heavy drums filled with dense materials, giving operators the confidence that it will be able to manage the weight and volume typically found in industrial and waste management settings.

2. Secure Drum Handling with Locking Mechanisms

Safety is a top priority when handling large, heavy drums, and the Drum Tipper is built with security features to prevent accidents during operation. The sturdy belly strap securely holds the drum in place, preventing it from shifting during the tipping process.

An additional over-centre catch and locking pin provide extra security by locking the drum in place, ensuring that it stays secure even when moving over bumpy or uneven ground. Furthermore, a custom locking mechanism is designed to prevent accidental release, ensuring the drum stays safely secured until the operator is ready to dump it. This robust locking system provides peace of mind, reducing the risk of mishaps during operation.

3. User-Friendly Operation from the Driver’s Seat

One of the standout features of the Drum Tipper / Dumper is its ease of use. The device is operated by pulling a rope draw chord from the comfort and safety of the driver’s seat, making it simple to tip and empty the drum without leaving the vehicle. This hands-off operation reduces the risk of injury to operators and increases the efficiency of the drum-emptying process.

The ability to operate the drum tipper remotely is especially beneficial when working in hazardous or hard-to-reach areas, allowing the operator to stay safely inside the vehicle while managing the drum.
