Linehaul Stillage Cage


$2,131.00 Price excludes GST

SKU

V7547

Availability:

In StockIn Stock

Subtotal:

$2,131.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

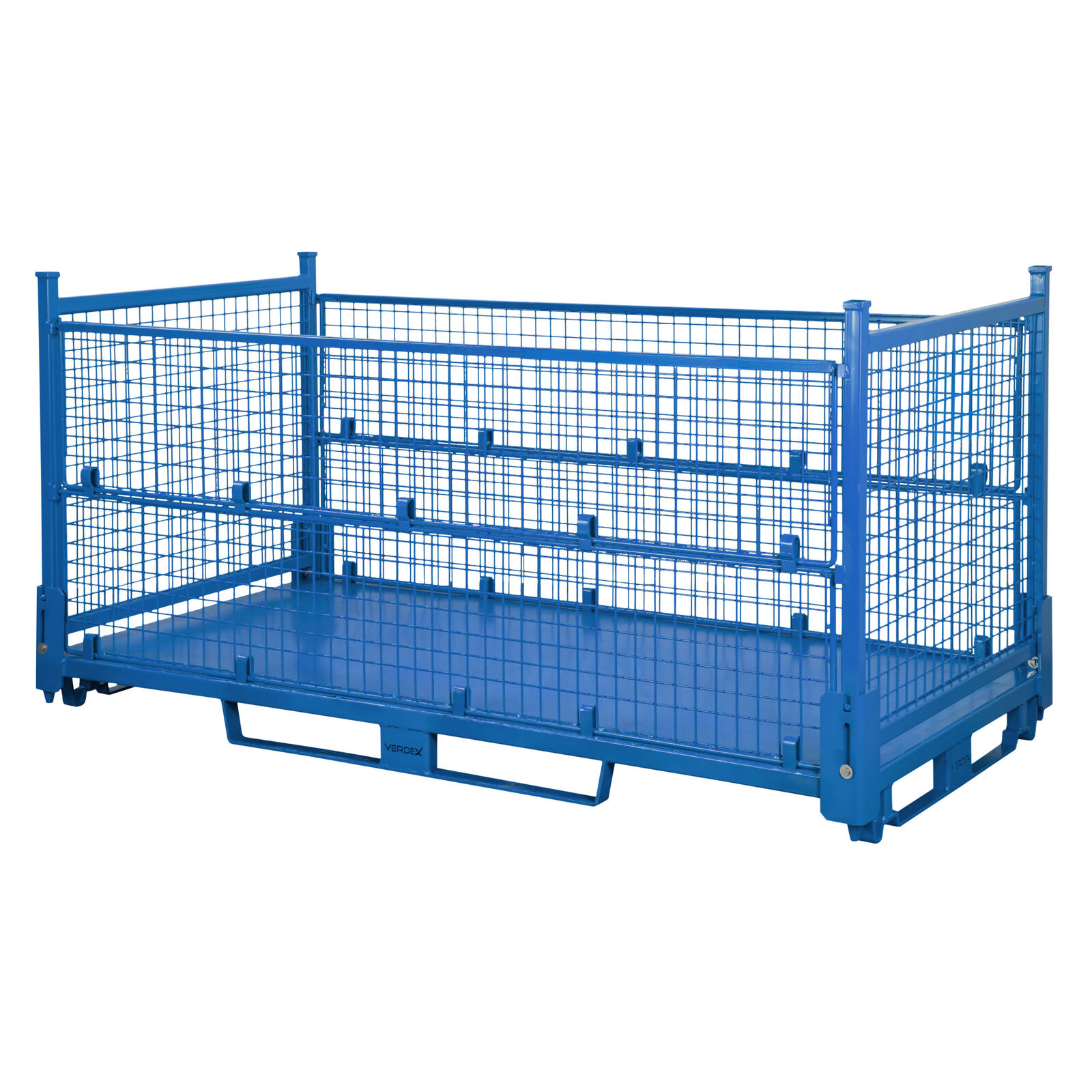

The Linehaul Stillage Cage is a heavy-duty storage and transport solution designed for warehouse, freight, and distribution environments. Built for high-volume handling, it provides secure pallet racking compatibility, efficient stacking, and easy forklift access. Its fold-down design allows compact storage when not in use, making it ideal for operations focused on maximising space, safety, and transport efficiency.

  • Positive locking base design for safe use in pallet racking
  • Stackable design to maximise storage and transport efficiency
  • Four-way forklift entry with pallet truck access

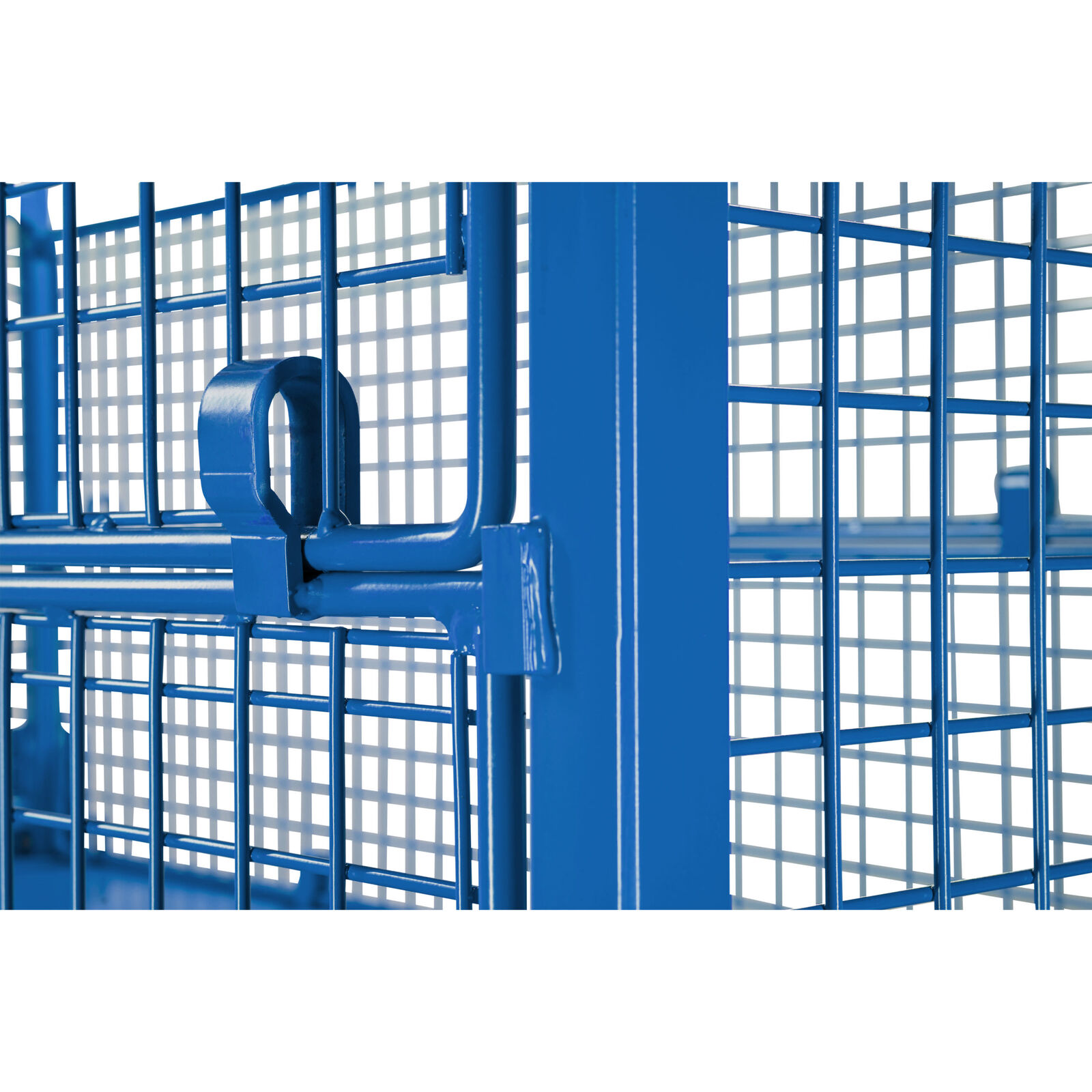

  • Removable front and rear drop-down gates
  • Quick fold-down design for fast setup and compact storage
  • Material: Steel
  • Finish: Powder coated
  • Load Capacity: 1050kg
  • Stackable: 5 high Static
  • Stackable forking: 1 high
  • Stackable Transport: 2 high
  • Stackable Collapsed: 20 High

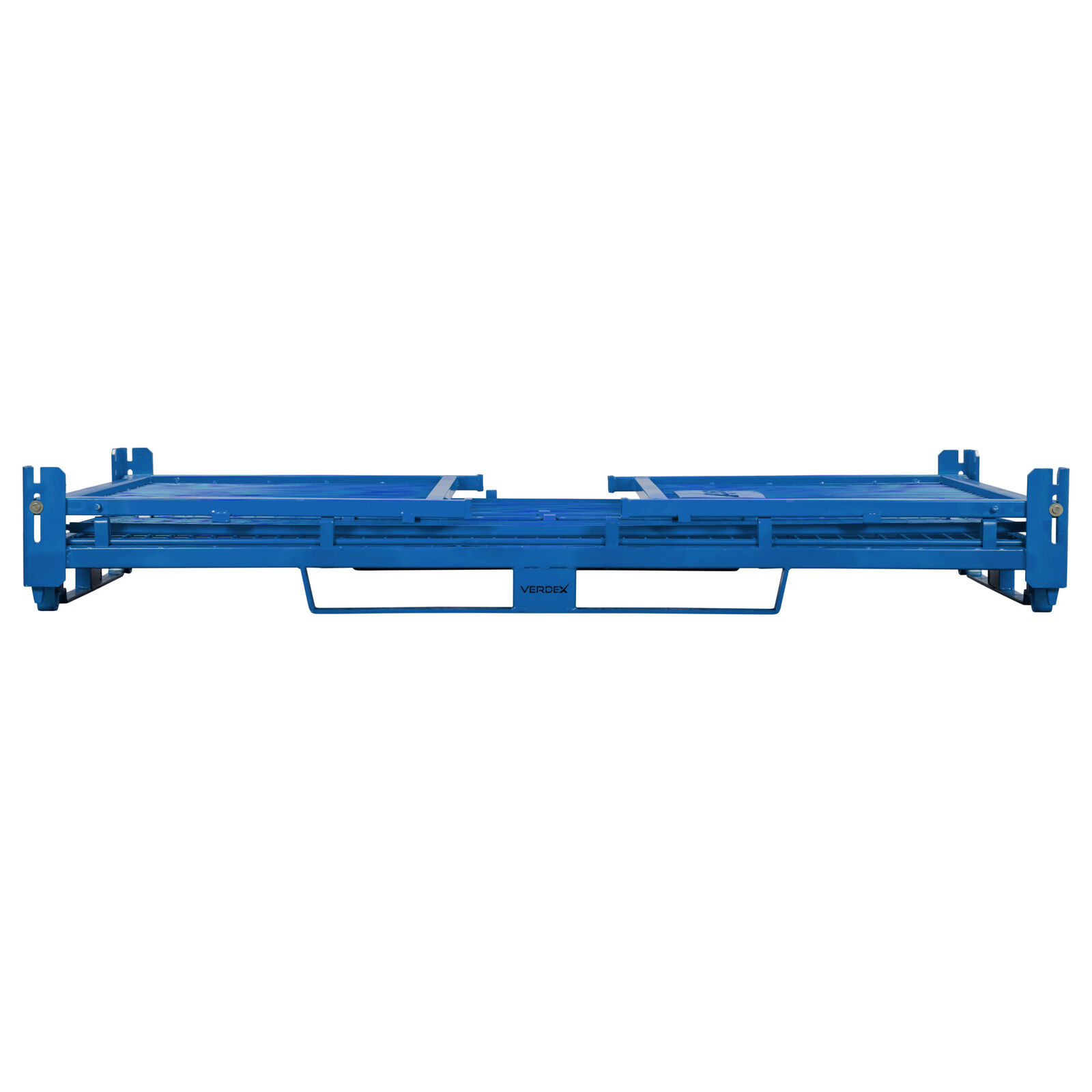

  • Collapsed Height: 440mm
  • Internal Dimensions (LxWxH): 2105x1080x800mm

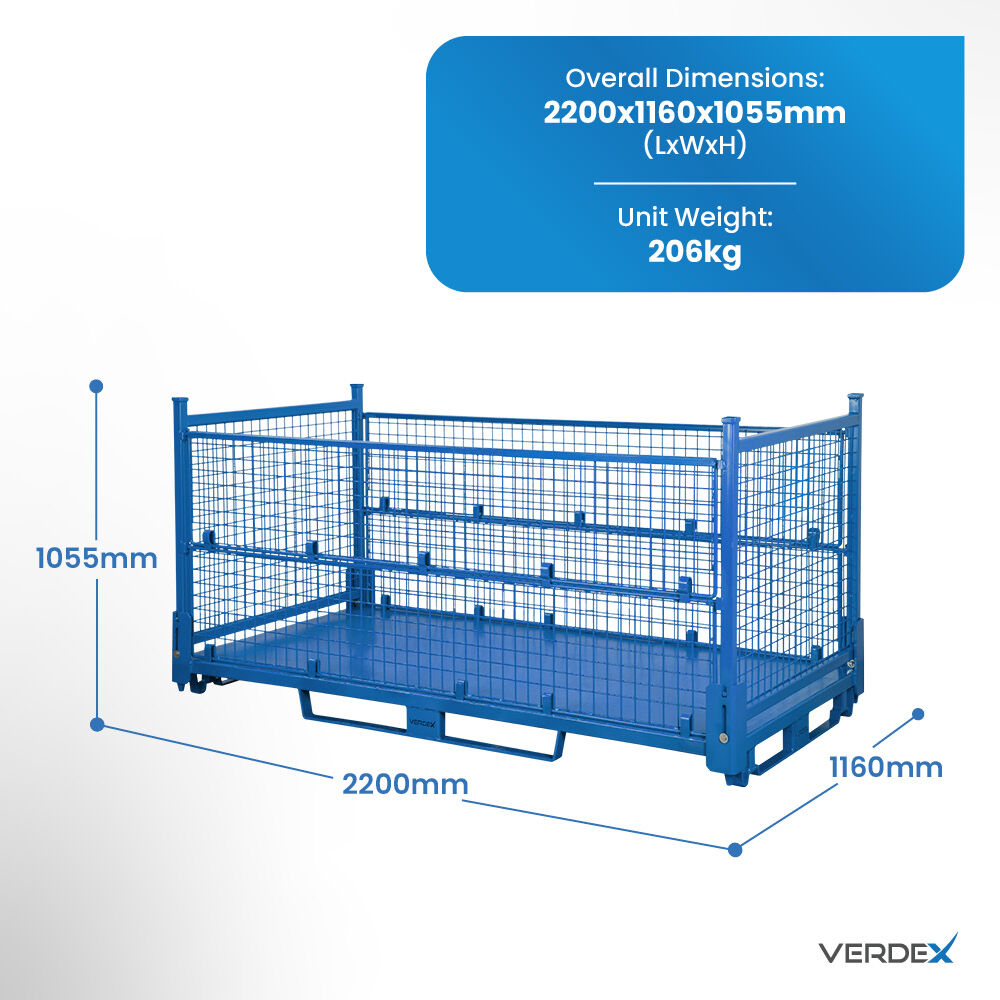

  • Overall Dimensions (LxWxH): 2200x1160x1055mm
  • Unit Weight: 206kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

3 years Verdex Warranty

1. Warranty Period

Verdex Equipment Pty Ltd ("Verdex") warrants to the original purchaser that its equipment will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery.

2. Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

3. Reporting Delivery Damage

Any visible damage or defects present at the time of delivery must be reported within 14 days of delivery. This requirement does not limit your rights under the Australian Consumer Law.

4. Exclusions and Limited Warranty Items

The following items are subject to normal wear and tear and are not covered under the 3-year warranty, but are covered by a 3-month warranty from date of delivery where applicable:

  • Batteries
  • Castors, wheels and tyres

The following are not covered under warranty, except where a defect arises from faulty materials or workmanship:

  • Hydraulic hoses
  • Electrical cabling
  • Consumable items (e.g. globes or similar components)

The warranty does not cover:

  • Normal wear and tear, including faded paint due to UV or sun exposure
  • Damage caused by negligence, misuse, abuse, overloading, or improper operation
  • Failure to follow operating or maintenance instructions provided with the product
  • Unauthorised repairs, modifications, or use of non-Verdex parts
  • Damage caused by improper installation or environmental conditions

5. Warranty Process (Back-to-Base)

This warranty is a back-to-base warranty. The customer is responsible for returning the goods to the place of purchase or a nominated Verdex service location.

Verdex will assess the returned product and, where a valid warranty claim is confirmed, will repair or replace the item at its discretion, acting reasonably.

Verdex may assist in arranging return freight; however, transport costs are the responsibility of the customer, unless otherwise required under the Australian Consumer Law.

6. Limitation of Liability

To the extent permitted by law:

  • Verdex is not liable for any loss of use, downtime, or indirect or consequential damages
  • Verdex’s total liability in connection with any claim will not exceed the original purchase price of the equipment

Nothing in this warranty excludes, restricts, or modifies any rights or remedies available under the Australian Consumer Law.

7. Conditions of Warranty

This warranty applies only where Verdex determines, upon inspection, that the defect has not been caused by:

  • Misuse or improper operation
  • Neglect or lack of maintenance
  • Unauthorised repair or modification
  • Abnormal deterioration due to environmental or operating conditions
  • Accident or incorrect installation







Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Linehaul Stillage Cage

Linehaul Stillage Cage

Code: V7547

Linehaul Stillage Cage

$2,131.00

View Details
On Special
Panel Cart with 7 Adjustable Load Bars

Code: V1265-CLR

Panel Cart with 7 Adjustable Load Bars

Now $550.00 Was $1,099.00

View Details
On Special
A Frame Panel Trolley

A Frame Panel Trolley

Code: V1261

A Frame Panel Trolley

Now $495.00 Was $927.00

View Details
On Special
Drip Tray - 43L

Drip Tray - 43L

Code: DT400

Drip Tray - 43L

Now $91.50 Was $118.00

View Details
On Special
Plastic Wheelie Bin 120 Litre- Dark Green (Clearance)

Plastic Wheelie Bin 120 Litre- Dark Green (Clearance)

Code: V6350DG

Plastic Wheelie Bin 120 Litre- Dark Green (Clearance)

Now $85.00 Was $120.00

View Details
On Special
Plastic Wheelie Bin 240 Litre Red (Clearance)

Plastic Wheelie Bin 240 Litre Red (Clearance)

Code: V6360R

Plastic Wheelie Bin 240 Litre Red (Clearance)

Now $116.00 Was $145.00

View Details
On Special
Heavy Duty Timber Longspan Shelving (600mm Deep)

Heavy Duty Timber Longspan Shelving (600mm Deep)

Heavy Duty Timber Longspan Shelving (600mm Deep)

From $524.00

View Details
On Special
Metal Lockers

Metal Lockers

Metal Lockers

From $196.00

View Details
On Special

Linehaul Stillage Cage - Heavy-Duty Linehaul Transport Cage for Warehouses & Freight Operations

The Linehaul Stillage Cage is engineered for high-volume warehouse, freight, and distribution environments where secure handling, stacking efficiency, and pallet racking compatibility are critical. Built from heavy-duty steel with a durable powder-coated finish, this cage is designed to withstand repeated forklift handling and long-distance transport.

With a 1050kg load capacity, it delivers reliable performance for operations managing bulk goods, inter-warehouse transfers, and linehaul freight movements.

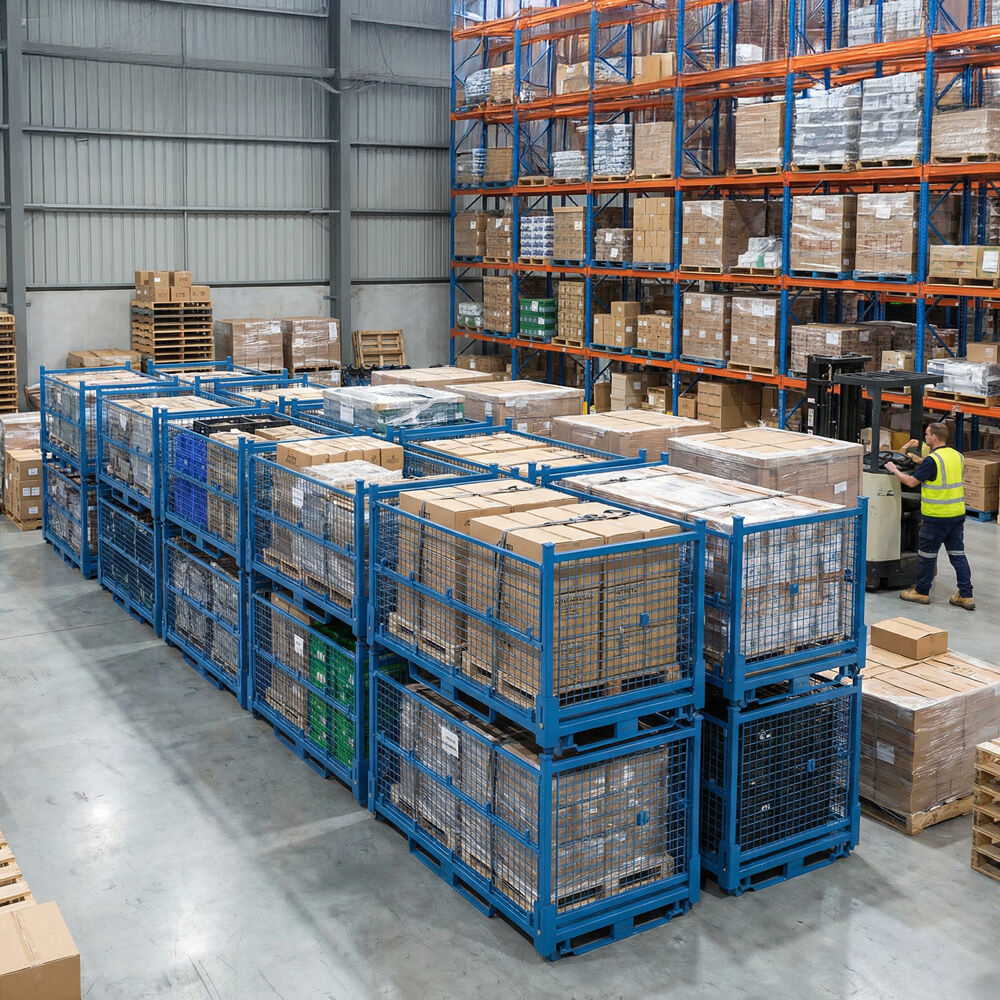

Built for Safe Pallet Racking and Secure Stacking

Unlike standard transport cages, this unit features a positive locking base design, making it safe for use in pallet racking systems. This improves storage flexibility while maintaining stability in elevated positions.

The stackable design maximises vertical storage capacity:

  • Up to 5 high when stacked statically

  • Up to 2 high during transport

  • Up to 20 units high when collapsed

This makes it ideal for operations focused on reducing floor congestion and improving trailer load efficiency.

Optimised for Forklift and Pallet Truck Handling

Designed with four-way forklift entry, the Linehaul Stillage Cage allows easy positioning and movement from any direction. Pallet truck access further increases flexibility in busy loading docks and warehouse aisles.

The large footprint of 2200mm x 1160mm provides generous internal capacity (2105mm x 1080mm x 800mm), supporting bulk storage without compromising handling stability.

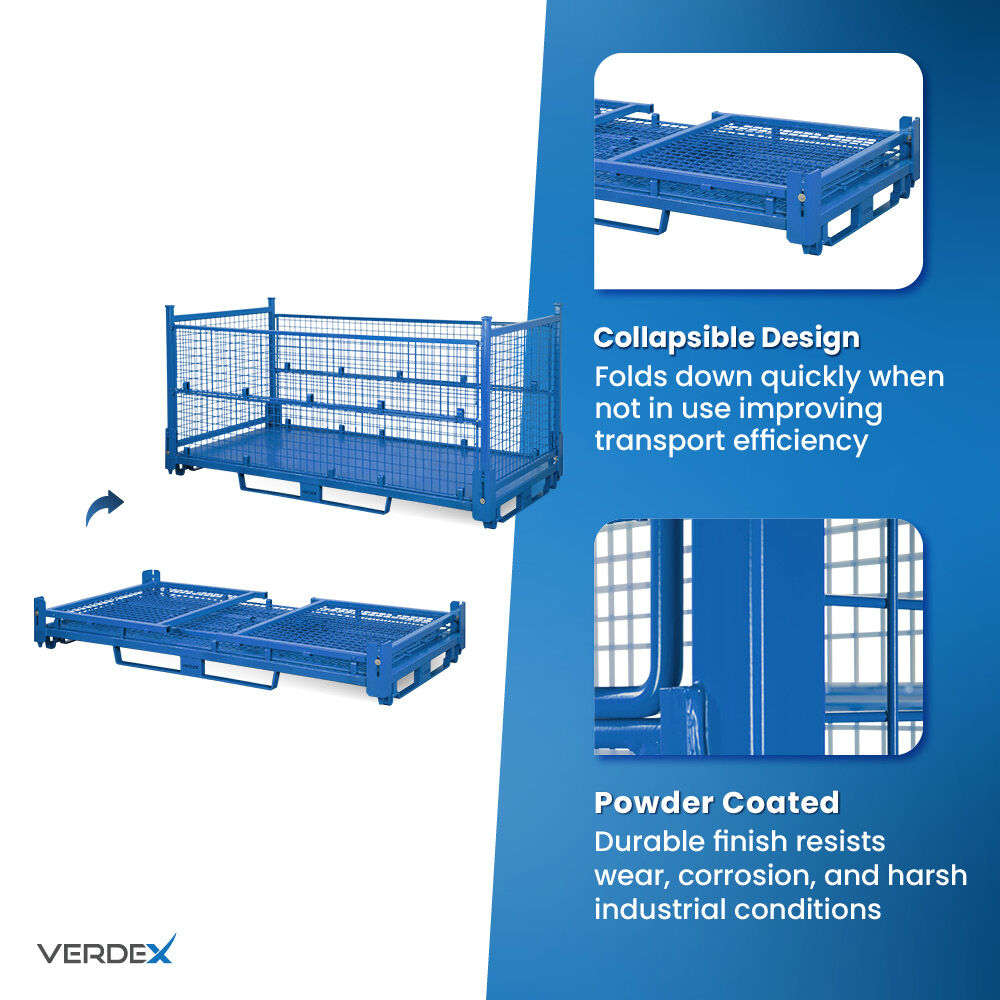

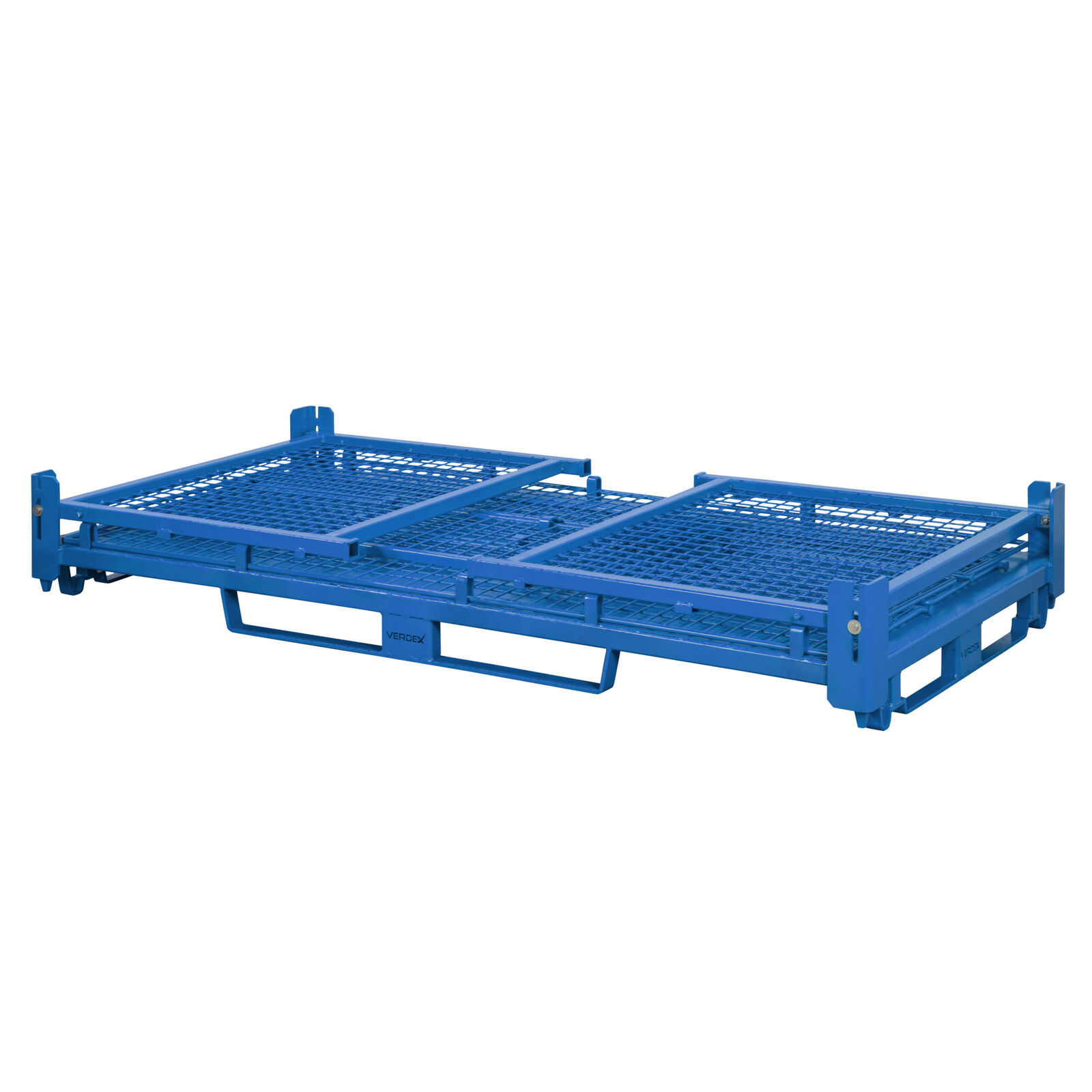

Fold-Down Design for Space-Saving Returns

When empty, the stillage cage quickly folds down to a collapsed height of 440mm, allowing compact storage and efficient return transport. In collapsed form, units can be stacked significantly higher, reducing dead space in warehouses and transport vehicles.

Removable front and rear drop-down gates provide flexible loading access, making it easier to manage oversized or awkward freight.

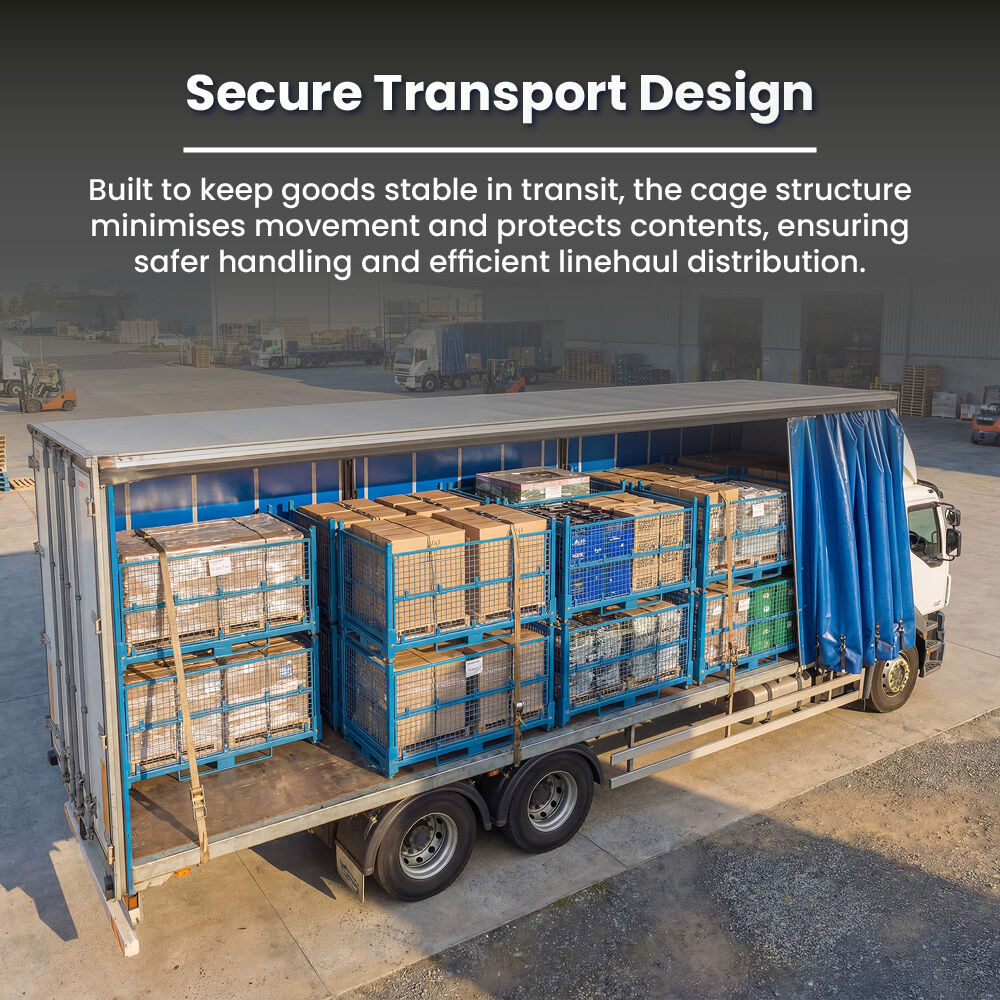

Ideal Applications for Linehaul & Distribution

The Linehaul Stillage Cage is particularly suited to:

  • Inter-warehouse freight transfers

  • Distribution centres managing bulk freight

  • Manufacturing facilities shipping palletised goods

  • Third-party logistics (3PL) providers

  • Retail supply chains

  • Export and containerised freight handling

Its robust 206kg construction ensures stability during repeated loading cycles and long-haul transport.

Improve Freight Efficiency and Warehouse Organisation

Loose freight handling increases damage risk, slows dispatch, and consumes valuable space. The Linehaul Stillage Cage provides a structured, high-capacity transport solution that improves safety, stackability, and operational control.

If your operation moves large volumes of goods between sites or through distribution hubs, this cage delivers the durability and efficiency required for demanding environments.

Order online or contact the Verdex team to discuss bulk supply and freight integration options. Australia-wide delivery available.
