Crane / Forklift Spreader Beam


$2,286.00 Price excludes GST

SKU

V2470

Availability:

In StockIn Stock

Subtotal:

$2,286.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

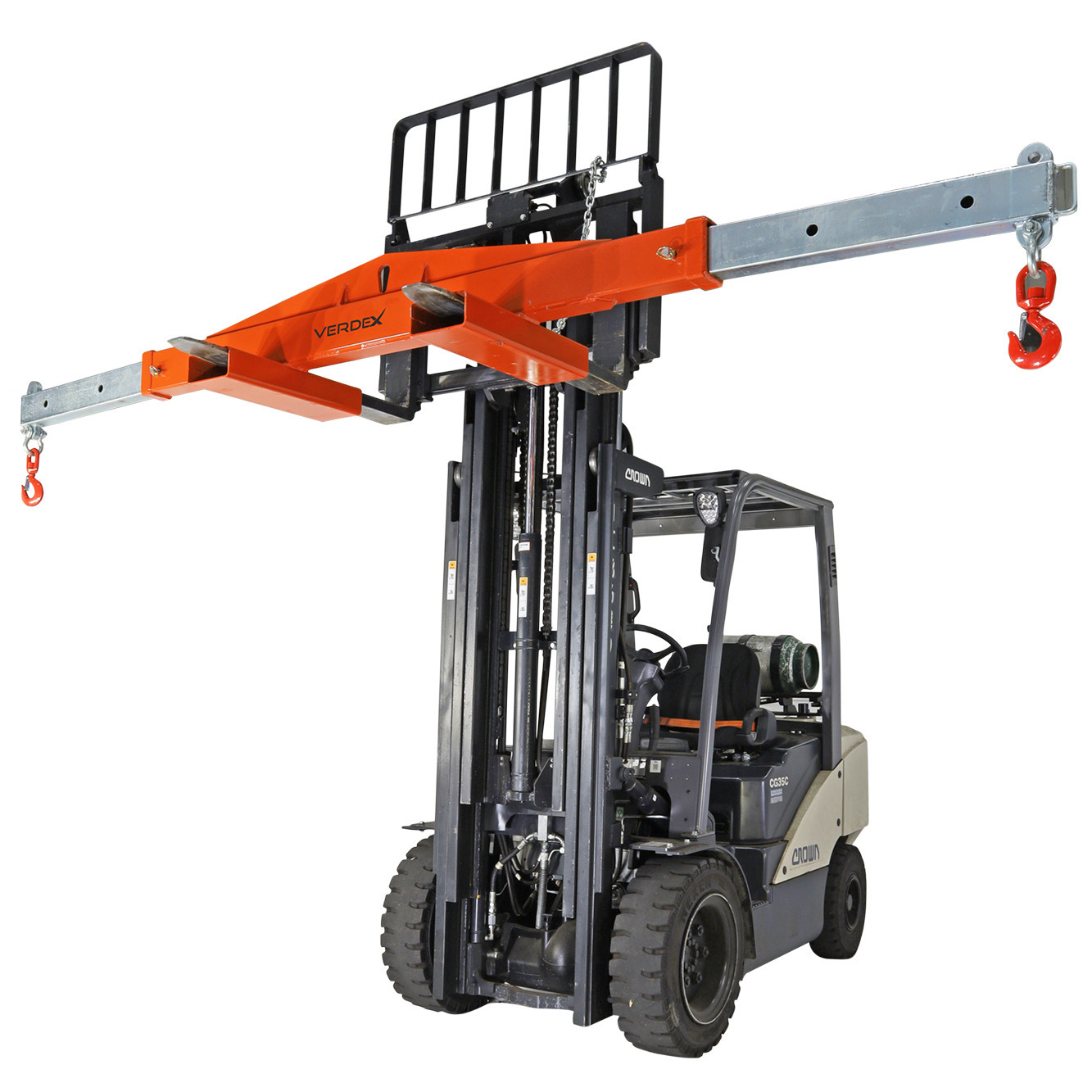

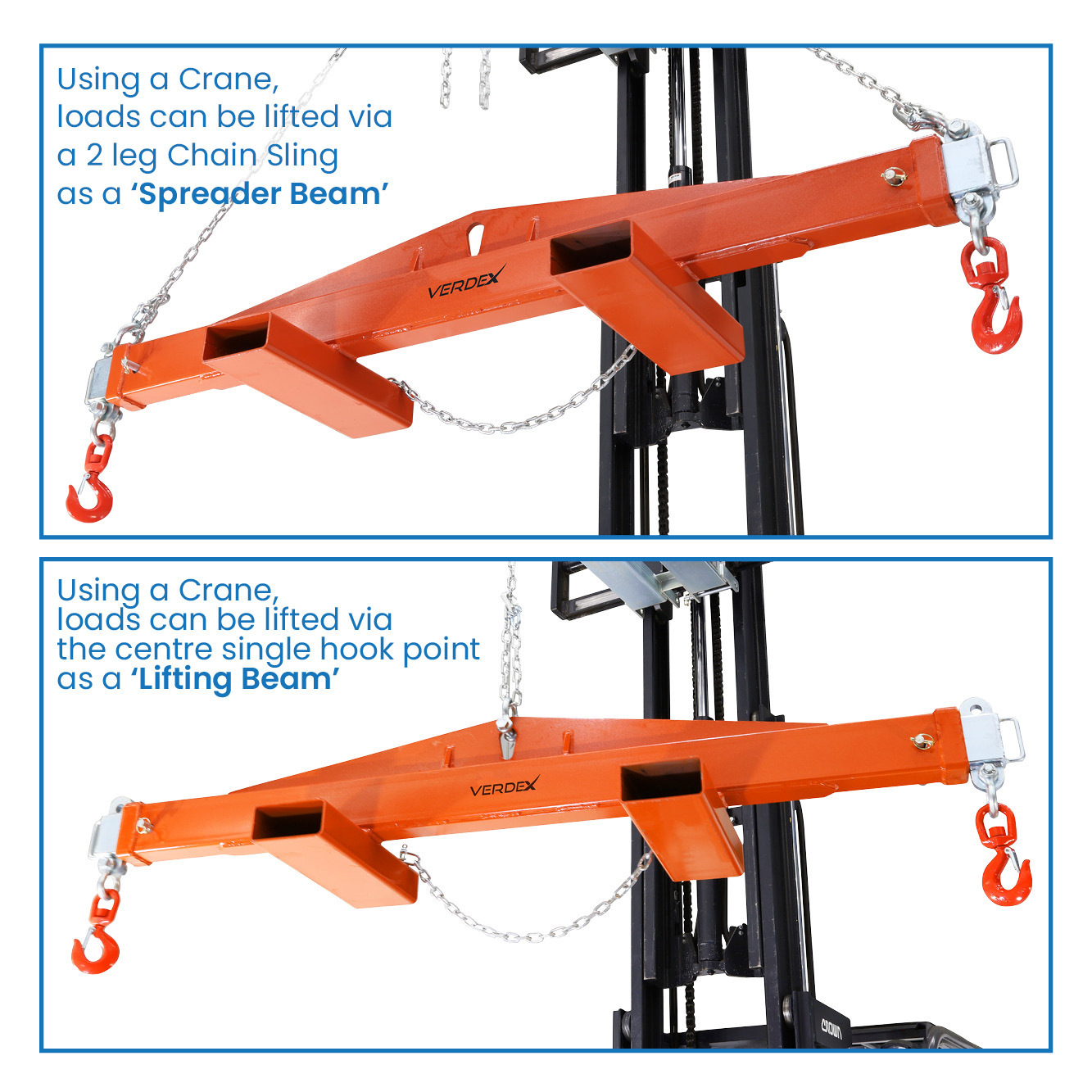

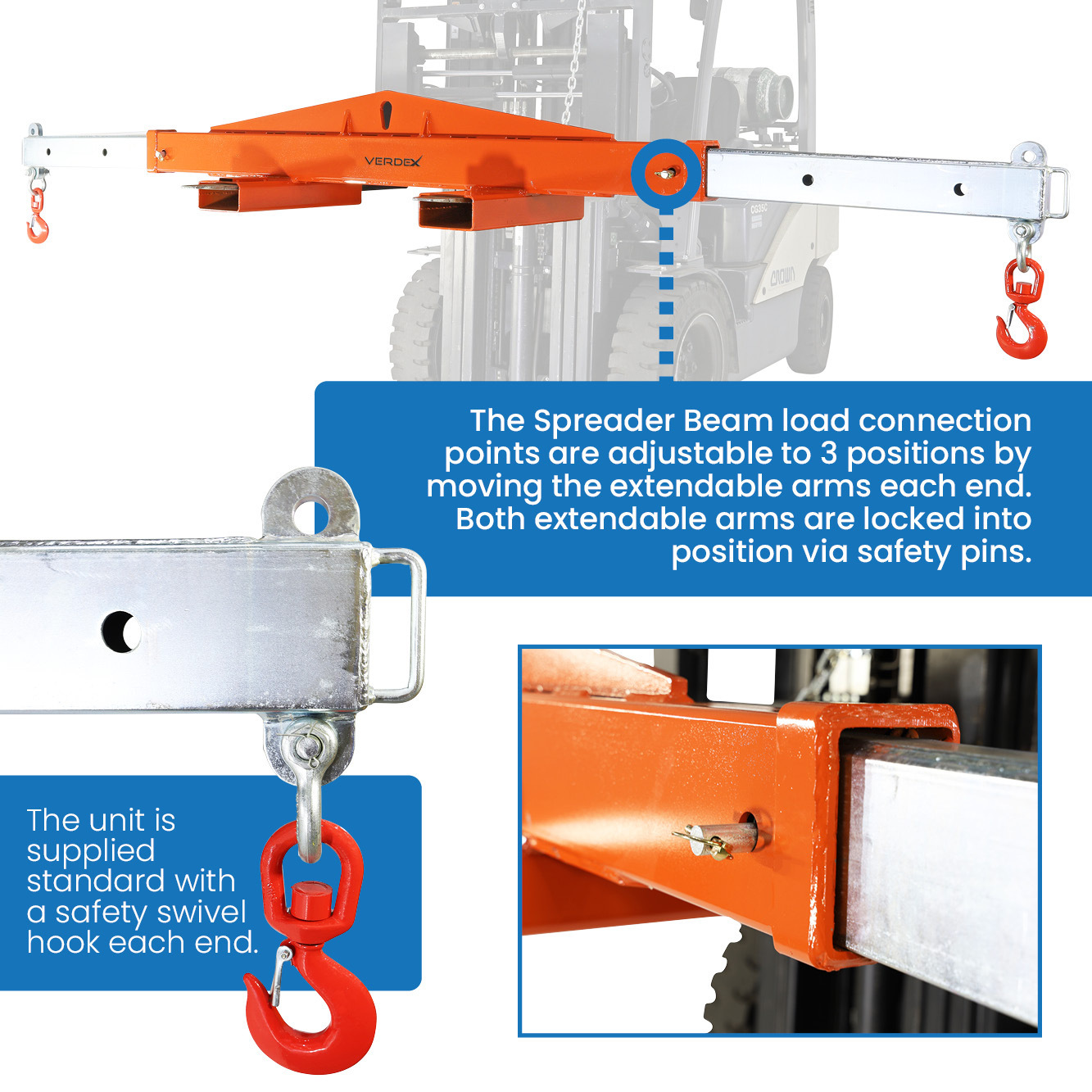

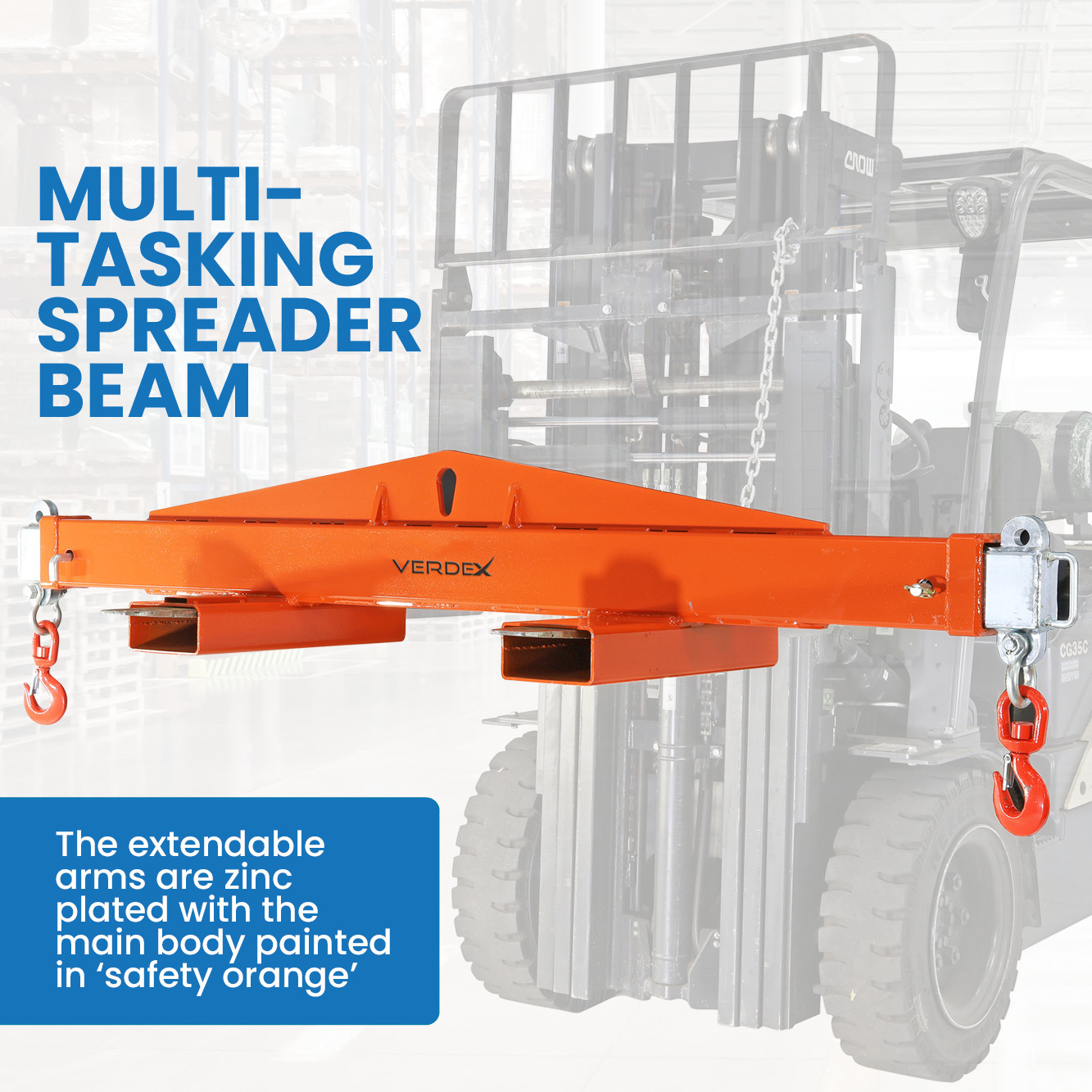

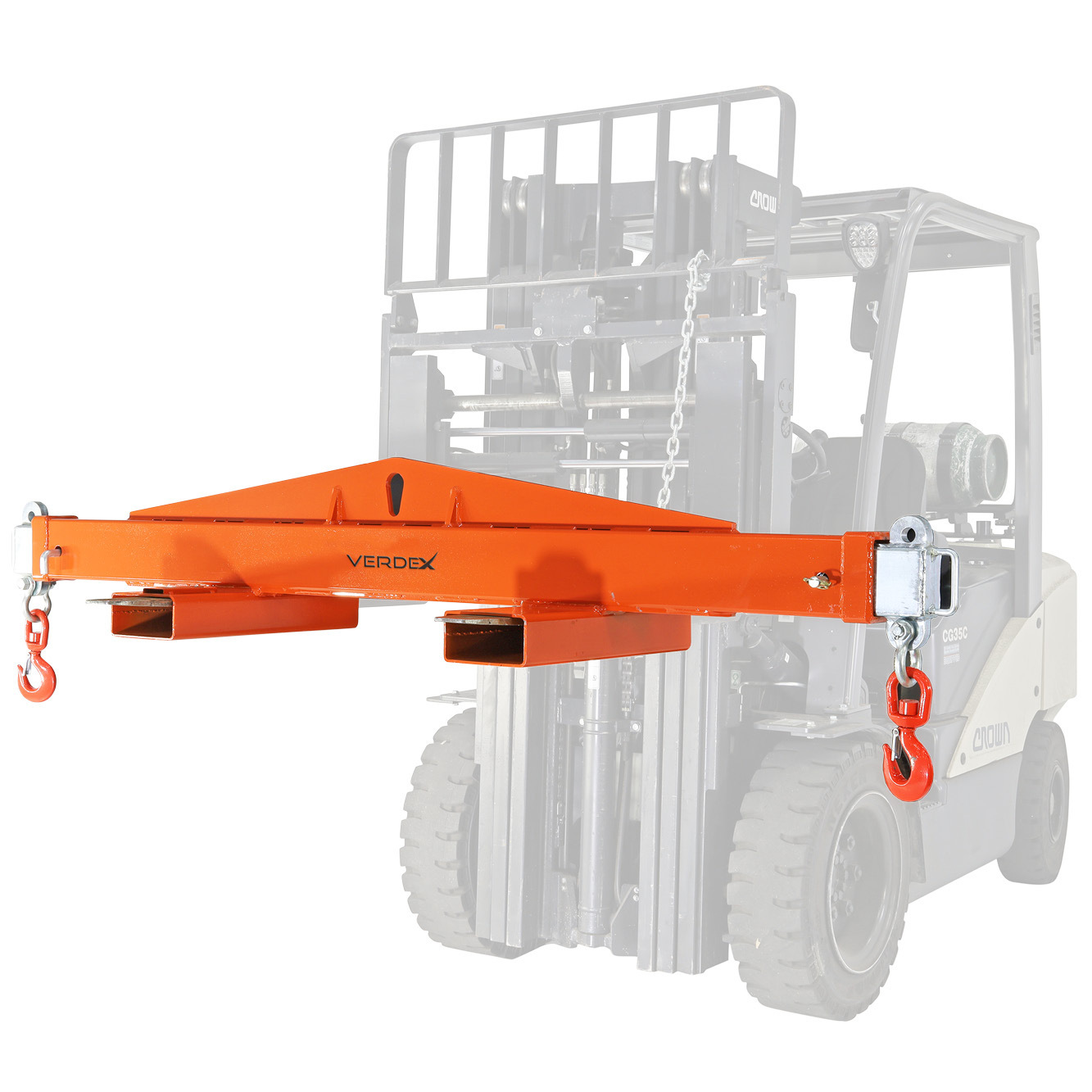

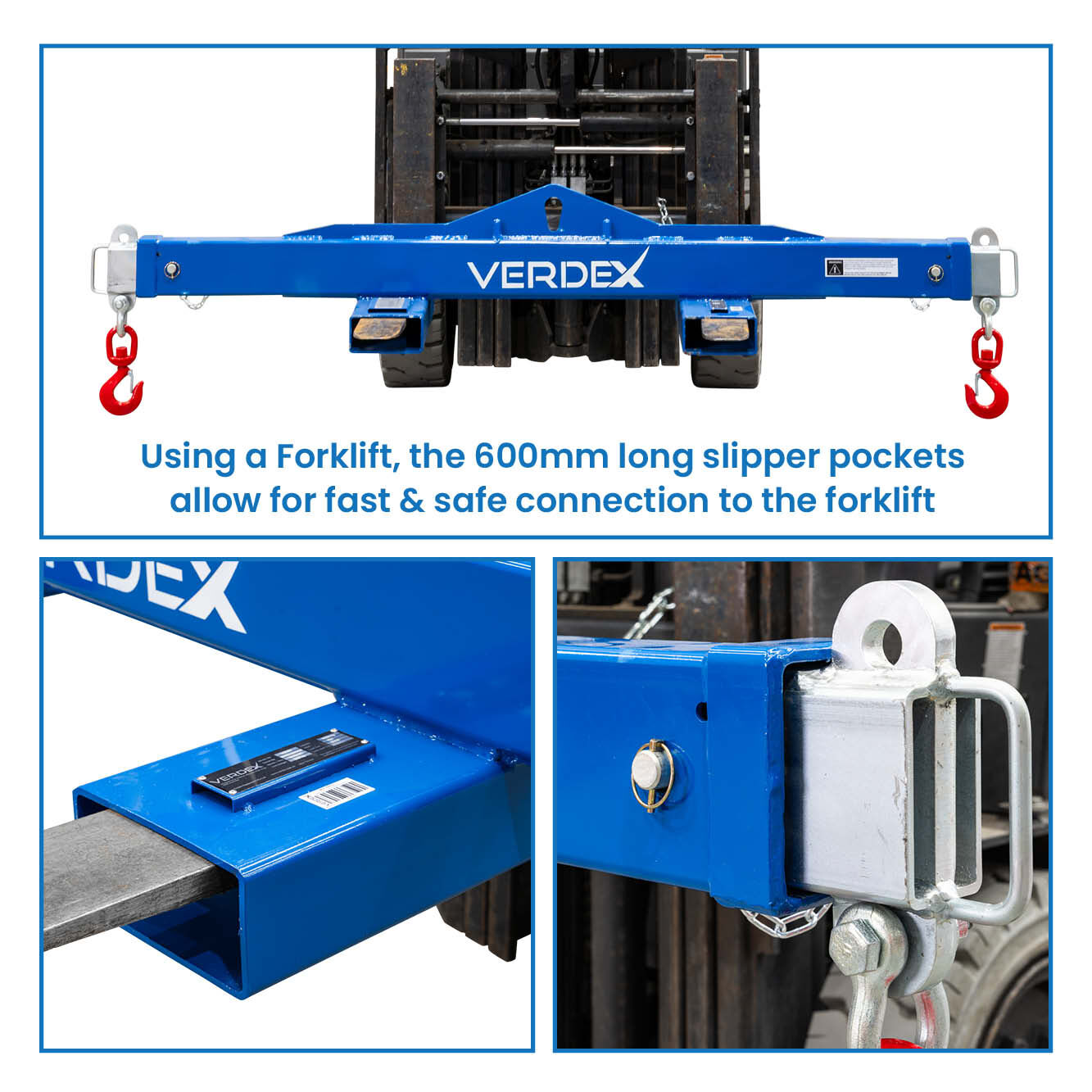

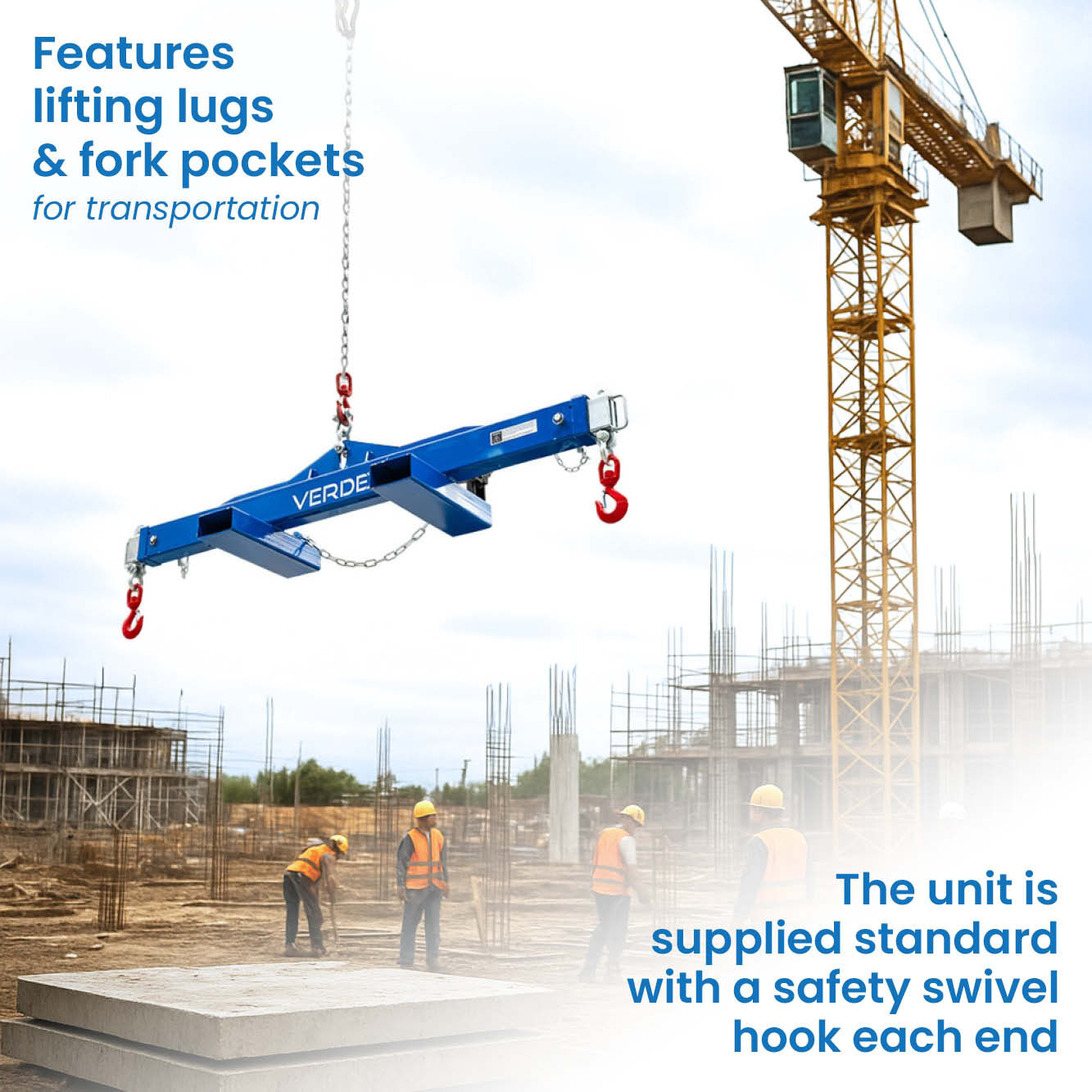

The type V2470 Spreader Beam is a unique multitasking Beam which can be used by Crane or Forklift to lift long loads. Using a Crane, loads can be lifted via the centre single hook point (as a ‘Lifting Beam’), or end lifted using a 2 leg Chain Sling (as a ‘Spreader Beam’). If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection to the truck. The Spreader Beam load connection points are adjustable to 3 positions by moving the extendable arms each end. Both extendable arms are locked into position via safety pins. The unit is supplied standard with a safety swivel hook on each end. The extendable arms are zinc plated with the main body painted in blue.

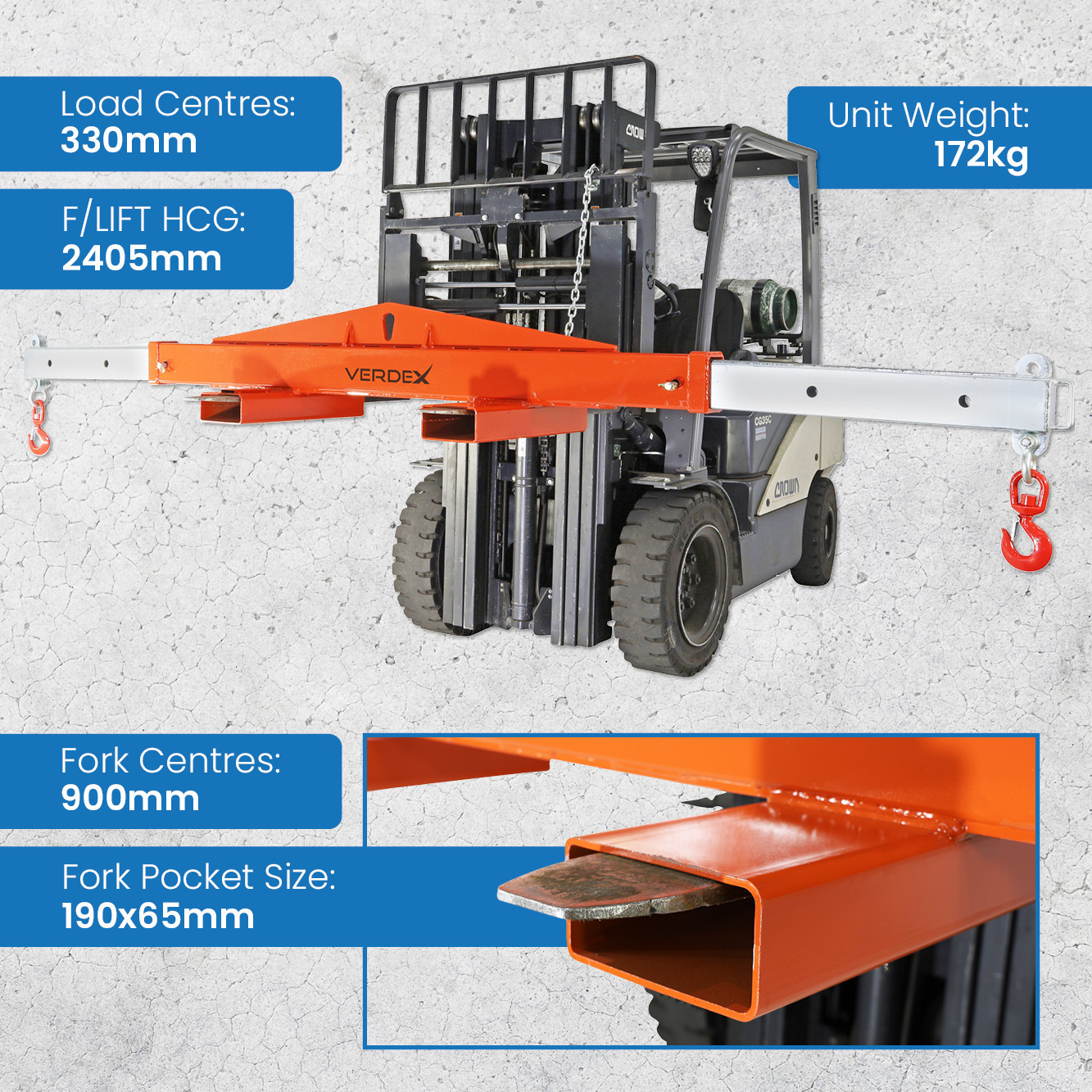

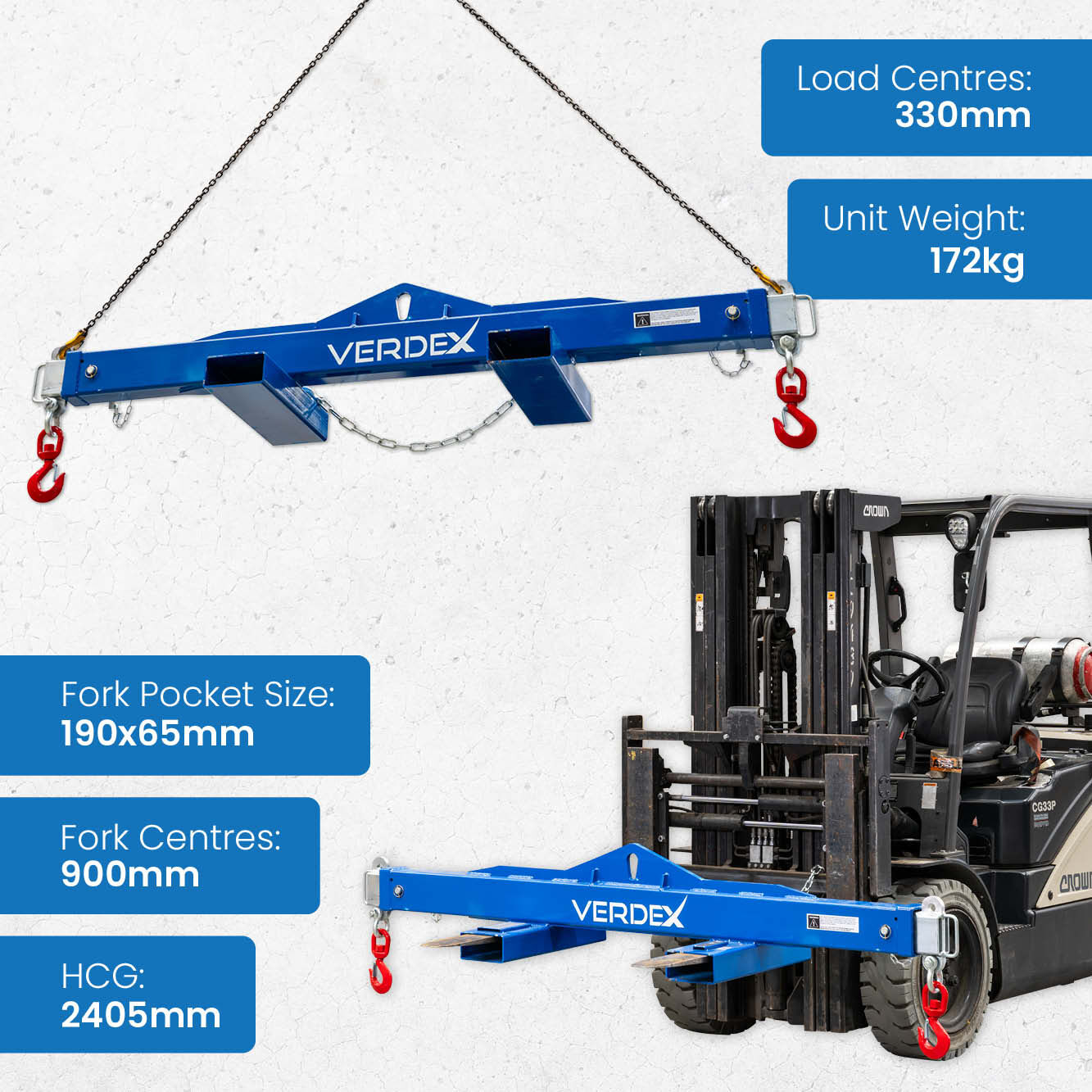

  • F/Lift HCG: 2405mm

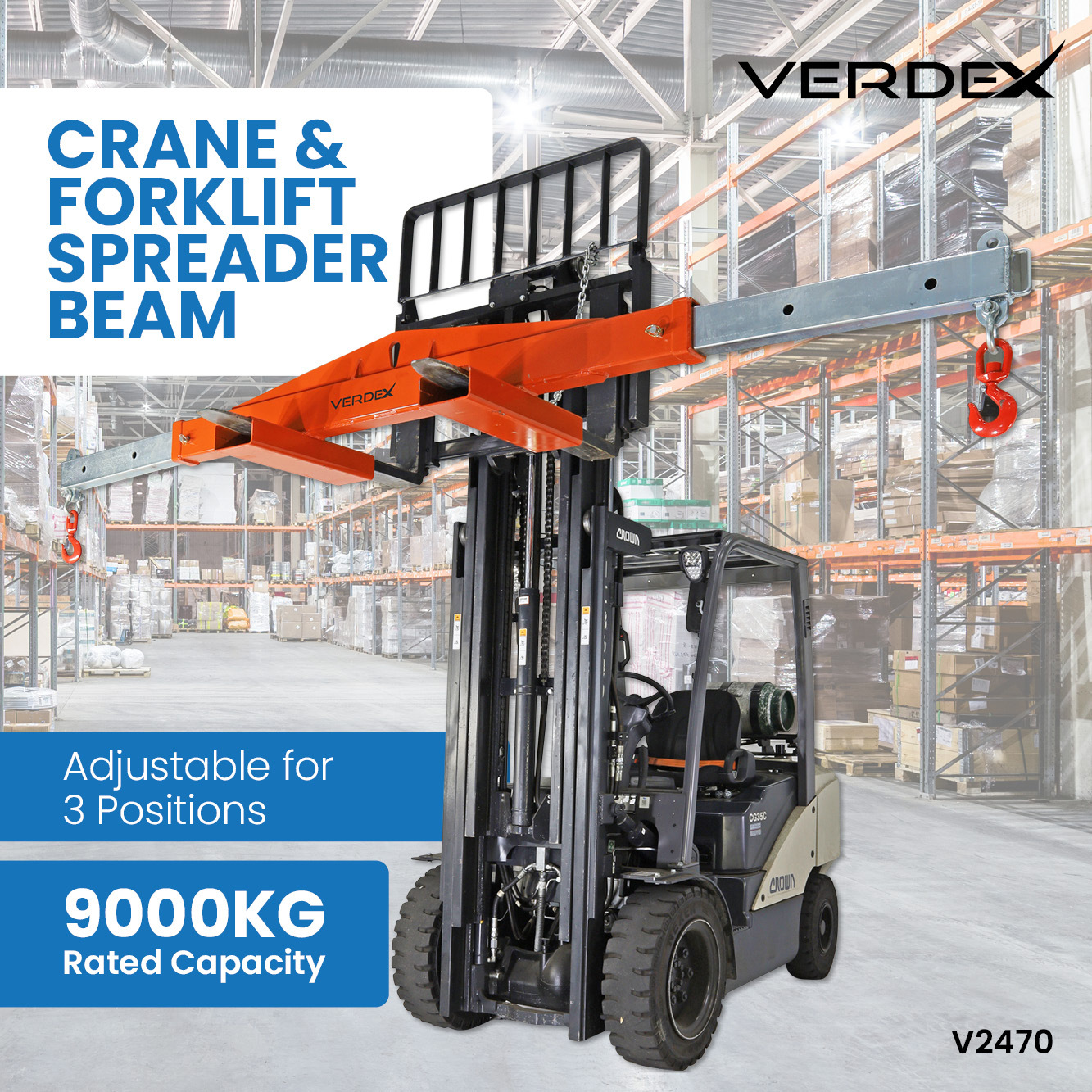

  • Rated Capacity (RC Max.): 9000kg
  • Load Centre (LC): 330mm

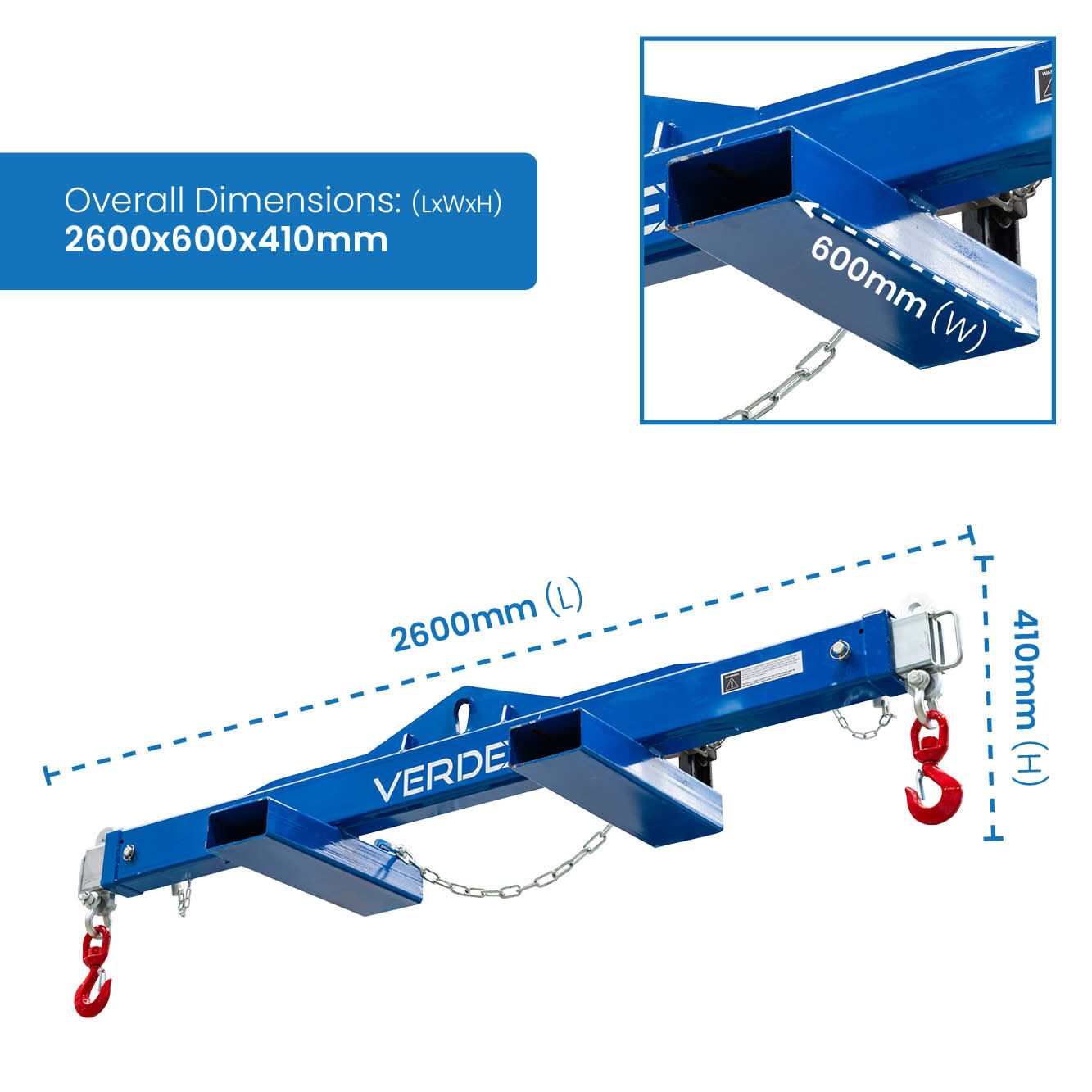

  • Overall Size (LxWxH): 2600x600x410mm
  • Fork Pocket Size: 190x65mm
  • Fork Centres: 900mm
  • Unit Weight: 172kg

Rated Capacity (RC)
When used as
Fully Retracted
(LC @ 2405mm)
Middle Position
(LC @ 3165mm)
Fully Extended
(LC @ 3925mm)
Forklift Attachment 3500kg 1500kg 750kg
Lifting Beam 4500kg 2500kg 1300kg
Spreader Beam 9000kg 7200kg 5600kg




Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

1 year Verdex Warranty

1. Warranty Period

Verdex Equipment Pty Ltd ("Verdex") warrants to the original purchaser that its equipment will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery.

2. Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

3. Reporting Delivery Damage

Any visible damage or defects present at the time of delivery must be reported within 14 days of delivery. This requirement does not limit your rights under the Australian Consumer Law.

4. Exclusions and Limited Warranty Items

The following items are subject to normal wear and tear and are not covered under the 1-year warranty, but are covered by a 3-month warranty from date of delivery where applicable:

  • Batteries
  • Castors, wheels and tyres

The following are not covered under warranty, except where a defect arises from faulty materials or workmanship:

  • Hydraulic hoses
  • Electrical cabling
  • Consumable items (e.g. globes or similar components)

The warranty does not cover:

  • Normal wear and tear, including faded paint due to UV or sun exposure
  • Damage caused by negligence, misuse, abuse, overloading, or improper operation
  • Failure to follow operating or maintenance instructions provided with the product
  • Unauthorised repairs, modifications, or use of non-Verdex parts
  • Damage caused by improper installation or environmental conditions

5. Warranty Process (Back-to-Base)

This warranty is a back-to-base warranty. The customer is responsible for returning the goods to the place of purchase or a nominated Verdex service location.

Verdex will assess the returned product and, where a valid warranty claim is confirmed, will repair or replace the item at its discretion, acting reasonably.

Verdex may assist in arranging return freight; however, transport costs are the responsibility of the customer, unless otherwise required under the Australian Consumer Law.

6. Limitation of Liability

To the extent permitted by law:

  • Verdex is not liable for any loss of use, downtime, or indirect or consequential damages
  • Verdex’s total liability in connection with any claim will not exceed the original purchase price of the equipment

Nothing in this warranty excludes, restricts, or modifies any rights or remedies available under the Australian Consumer Law.

7. Conditions of Warranty

This warranty applies only where Verdex determines, upon inspection, that the defect has not been caused by:

  • Misuse or improper operation
  • Neglect or lack of maintenance
  • Unauthorised repair or modification
  • Abnormal deterioration due to environmental or operating conditions
  • Accident or incorrect installation







Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Frequently Asked Questions

1. What is the Crane Forklift Spreader Beam used for?

The Crane Forklift Spreader Beam is used for lifting and distributing suspended loads safely using forklifts or cranes in warehouses, construction sites and industrial workplaces. It helps improve load balance and supports safer handling of wide, long or awkward materials.

2. Why use a Crane Forklift Spreader Beam instead of standard lifting methods?

A spreader beam helps distribute load weight more evenly during lifting operations, reducing stress on lifting points and improving load stability. This supports safer handling of oversized or irregularly shaped materials compared with standard lifting methods.

3. Is the Crane Forklift Spreader Beam suitable for industrial workplaces?

Yes. The spreader beam is commonly used in warehouses, manufacturing facilities, construction projects, transport yards and industrial workplaces where dependable suspended load lifting solutions are required.

4. How does the Crane Forklift Spreader Beam improve workplace efficiency?

The spreader beam allows operators to lift and position awkward or oversized loads more efficiently while improving load control and reducing handling limitations during workplace tasks. Its versatile design also supports improved lifting flexibility across different applications.

5. Where is the Crane Forklift Spreader Beam commonly used?

The Crane Forklift Spreader Beam is commonly used in warehouses, construction sites, manufacturing facilities, freight yards and industrial workplaces requiring dependable suspended load lifting and transport solutions.



Improve Suspended Load Handling with the Crane Forklift Spreader Beam

Efficient lifting and positioning of oversized or awkward materials are essential for maintaining productivity and workplace safety across industrial environments. The Crane Forklift Spreader Beam provides practical lifting support that helps businesses improve workflow efficiency while supporting safer handling of suspended loads.

Unlike unsuitable lifting methods that can create uneven load distribution and reduce operational control, this spreader beam supports improved load balance and more stable lifting performance throughout demanding workplace activities.

Practical Load Distribution Support for Industrial Workplaces

In warehouses, construction projects and manufacturing facilities, operators frequently move suspended materials between storage areas and operational work zones. The Crane Forklift Spreader Beam supports smoother workflow movement by improving lifting flexibility and reducing operational limitations during transport activities.

Its practical load distribution design makes it particularly useful in workplaces requiring dependable support for long, wide or awkward suspended loads.

Why Spreader Beams Improve Workplace Safety

Handling oversized or suspended loads with unsuitable lifting equipment can increase workplace injury risks and reduce operational productivity throughout daily activities. The Crane Forklift Spreader Beam improves workplace safety by supporting controlled lifting and improving load positioning stability during handling operations.

Compared with standard lifting methods, spreader beams support smoother workflows, improved operational safety and more efficient material transport performance.

Choose the Right Suspended Load Lifting Solution for Your Workplace

The Crane Forklift Spreader Beam delivers dependable lifting performance for businesses seeking improved workplace efficiency, safer suspended load handling and reliable material transport support. Verdex supplies lifting equipment and workplace handling solutions suited to warehouses, logistics operations and industrial environments requiring practical daily functionality. Contact the Verdex team if you need advice on spreader beam suitability or selecting the right lifting solution for your operation.
