Drum Trolleys & Lifters

Spring Loaded Drum Tilter


$359.00 Price excludes GST

SKU

V7579

Availability:

Out Of StockAvailable for Backorder

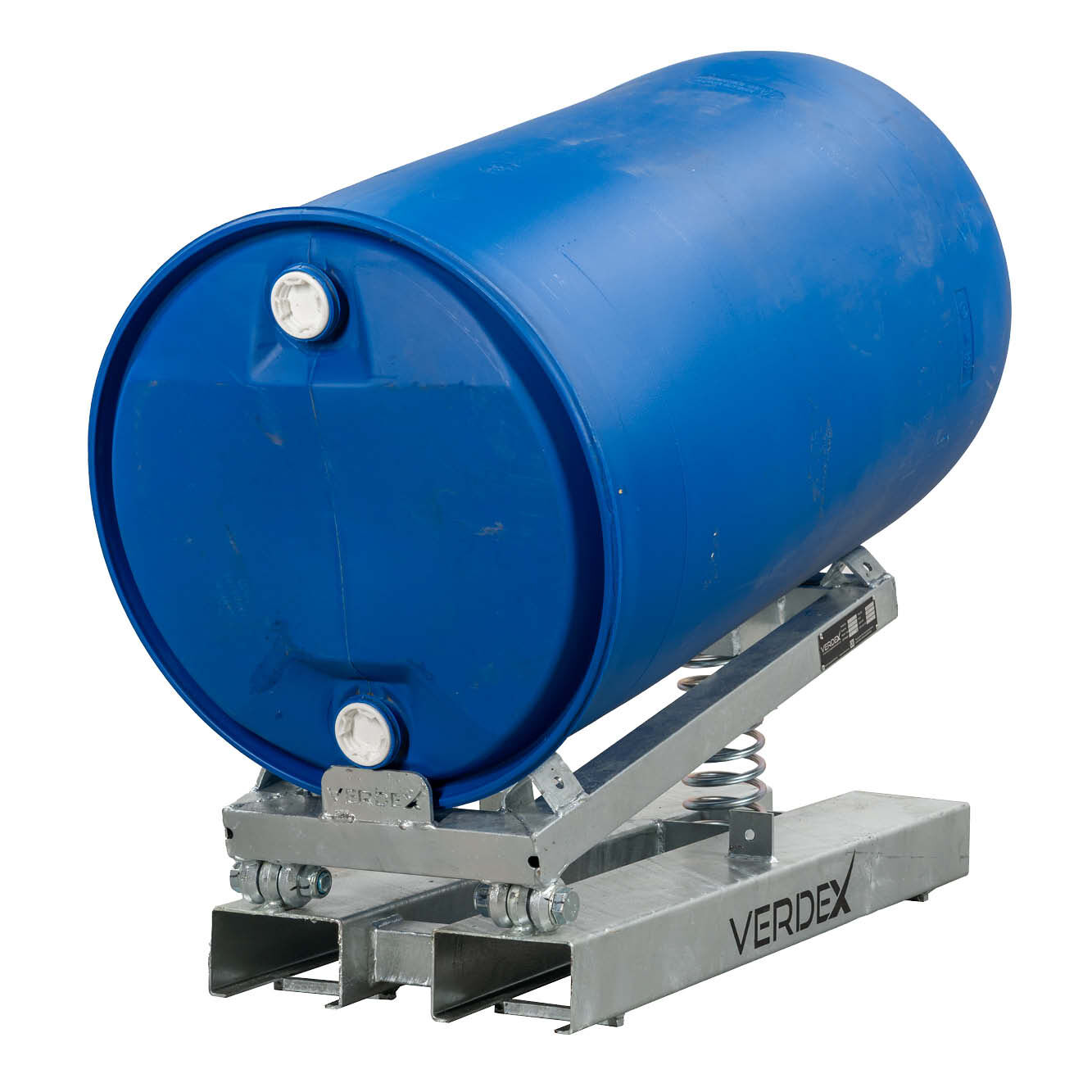

Please Note; Drum pictured is not supplied with the unit

Subtotal:

$359.00
PRICES EXCL. GST

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

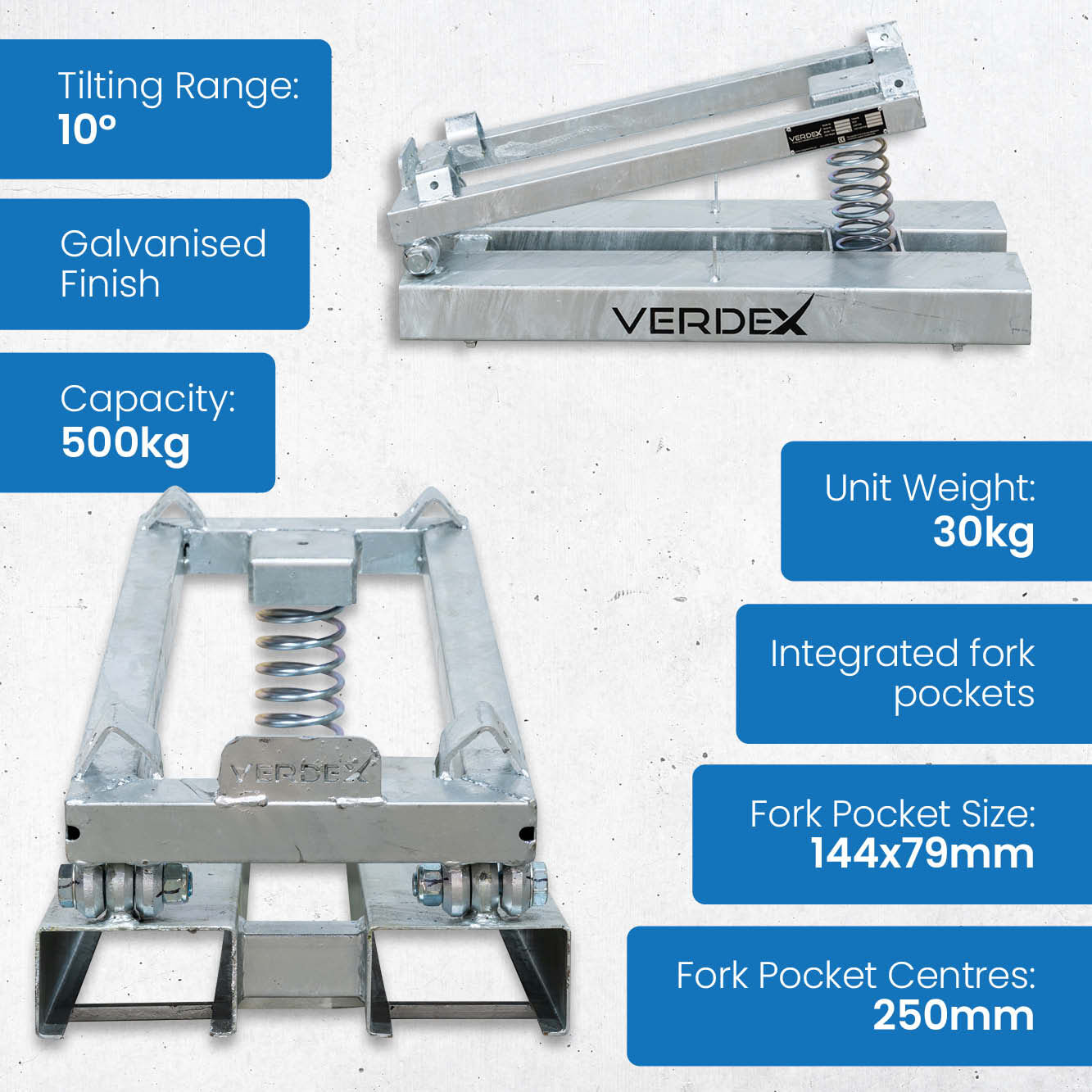

Product Dimensions / Specifications

The Spring-Loaded Drum Tilter is designed to enable safe and efficient tilting, rotating, and pouring of drums or barrels. Commonly used in warehouses and industrial facilities, to handle heavy drums containing liquids, powders, or other materials with ease.

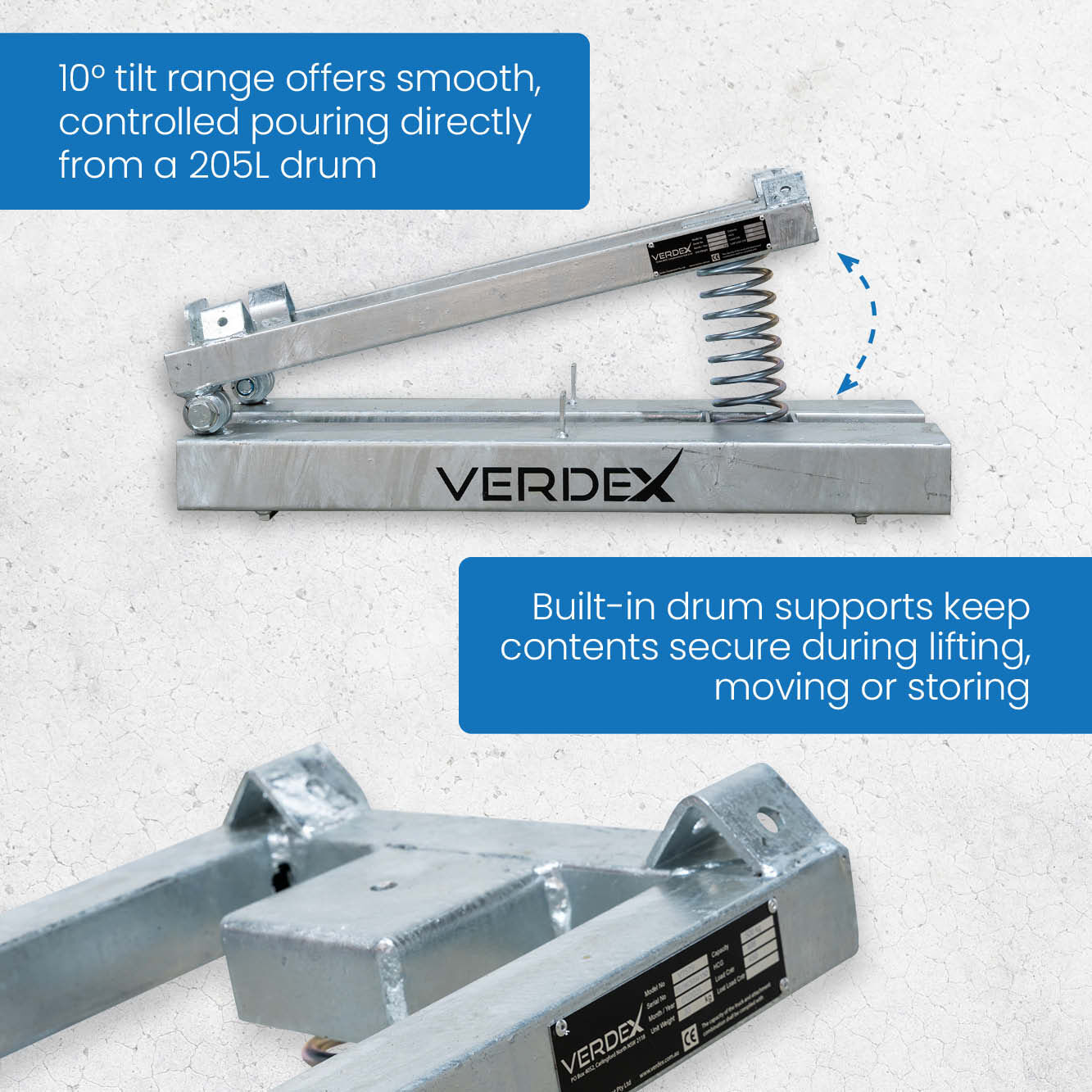

  • 10° tilt angle allows for direct pouring from a standard 205L drum
  • Features securing points which ensure the drum stays stable during transport and storage
  • Integrated fork pockets allow for easy movement and positioning using a forklift
  • Compact design makes it suitable for storage in pallet racking systems
  • Zinc finish
  • Tilting Range: 10°
  • Load Capacity: 500kg
  • Fork Pocket Centres: 250mm
  • Fork Pocket Size: 144x79mm

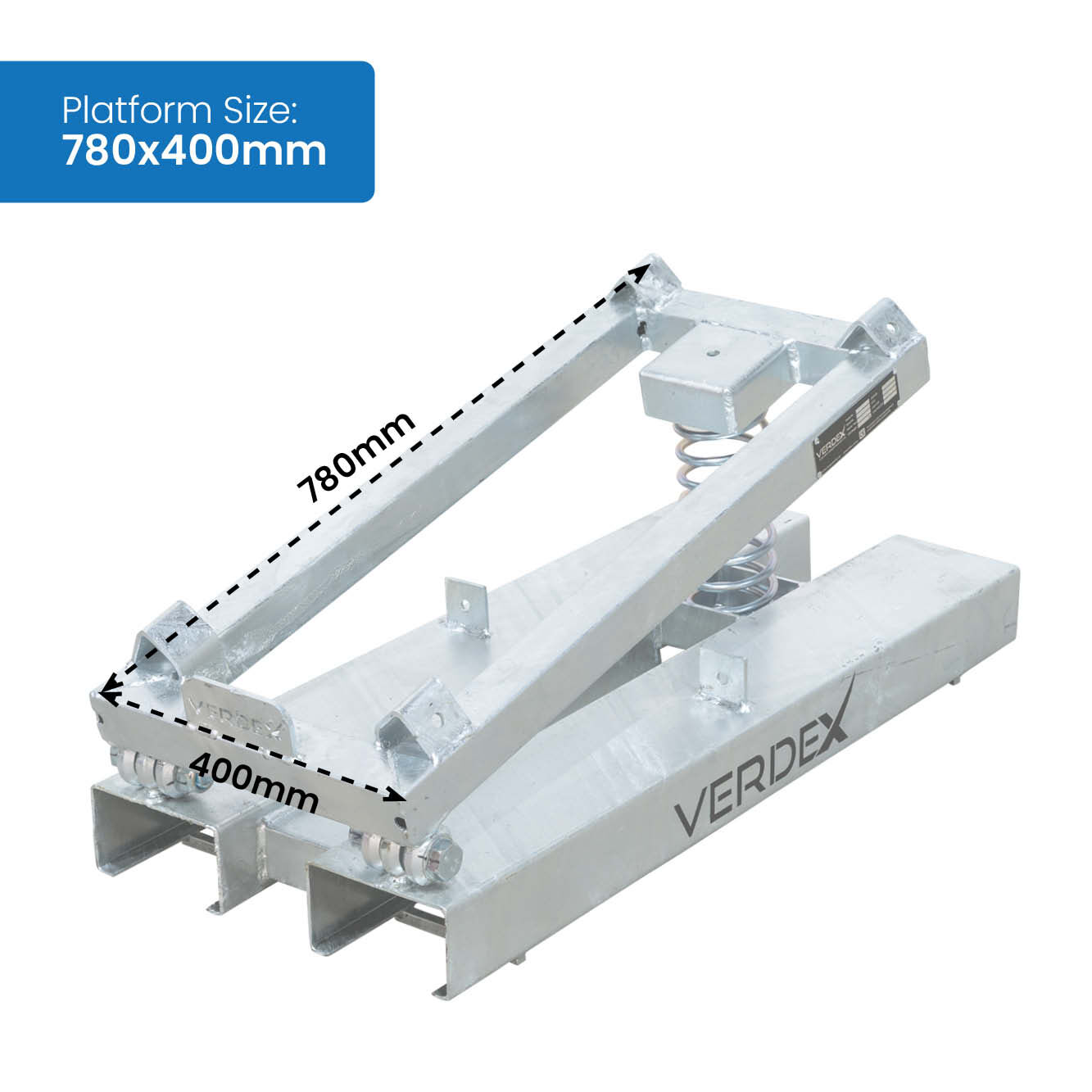

  • Platform Size: 780x400mm

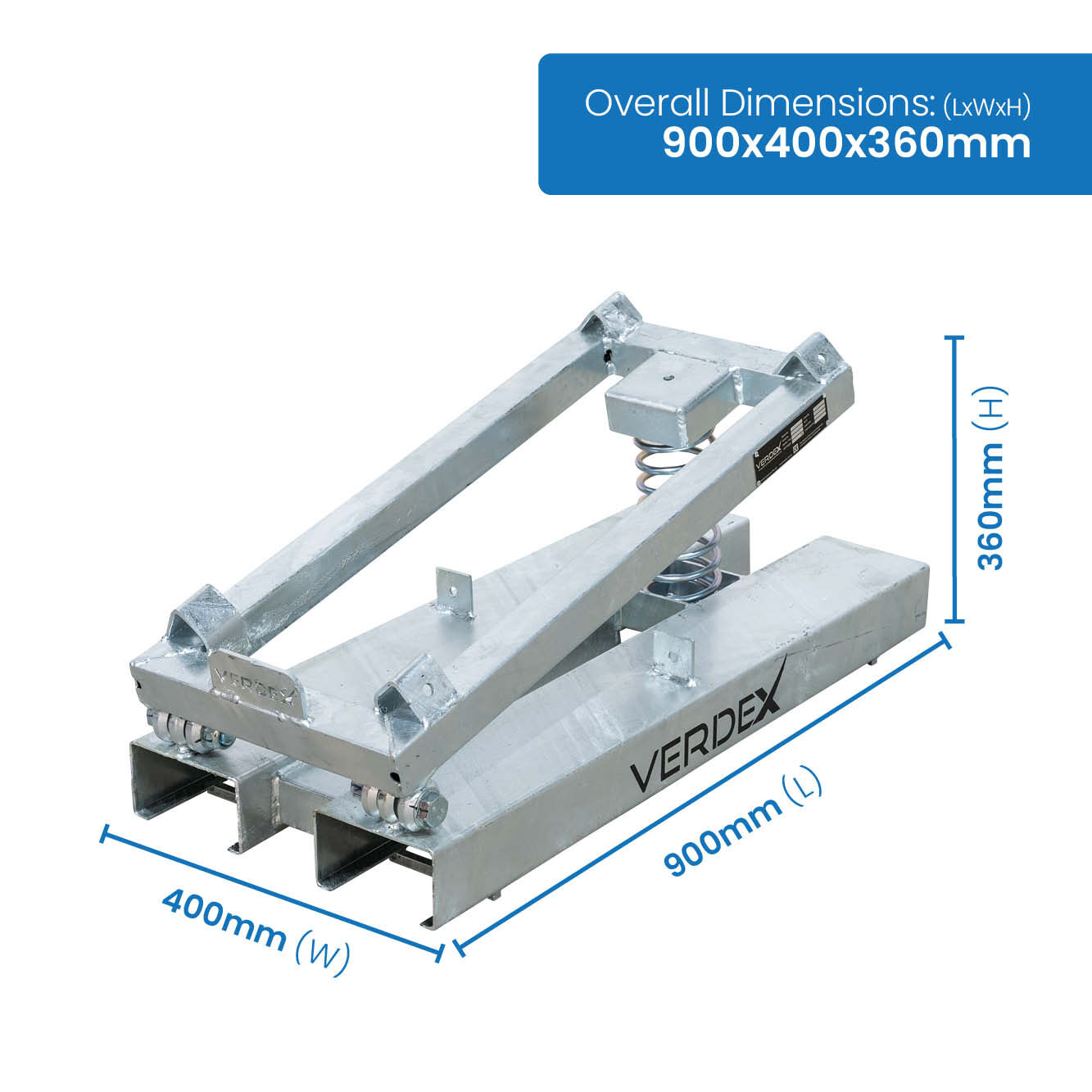

  • Overall Size (LxWxH): 900x400x360mm
  • Unit Weight: 30kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

3 years Verdex Warranty

1. Warranty Period

Verdex Equipment Pty Ltd ("Verdex") warrants to the original purchaser that its equipment will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery.

2. Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

3. Reporting Delivery Damage

Any visible damage or defects present at the time of delivery must be reported within 14 days of delivery. This requirement does not limit your rights under the Australian Consumer Law.

4. Exclusions and Limited Warranty Items

The following items are subject to normal wear and tear and are not covered under the 3-year warranty, but are covered by a 3-month warranty from date of delivery where applicable:

  • Batteries
  • Castors, wheels and tyres

The following are not covered under warranty, except where a defect arises from faulty materials or workmanship:

  • Hydraulic hoses
  • Electrical cabling
  • Consumable items (e.g. globes or similar components)

The warranty does not cover:

  • Normal wear and tear, including faded paint due to UV or sun exposure
  • Damage caused by negligence, misuse, abuse, overloading, or improper operation
  • Failure to follow operating or maintenance instructions provided with the product
  • Unauthorised repairs, modifications, or use of non-Verdex parts
  • Damage caused by improper installation or environmental conditions

5. Warranty Process (Back-to-Base)

This warranty is a back-to-base warranty. The customer is responsible for returning the goods to the place of purchase or a nominated Verdex service location.

Verdex will assess the returned product and, where a valid warranty claim is confirmed, will repair or replace the item at its discretion, acting reasonably.

Verdex may assist in arranging return freight; however, transport costs are the responsibility of the customer, unless otherwise required under the Australian Consumer Law.

6. Limitation of Liability

To the extent permitted by law:

  • Verdex is not liable for any loss of use, downtime, or indirect or consequential damages
  • Verdex’s total liability in connection with any claim will not exceed the original purchase price of the equipment

Nothing in this warranty excludes, restricts, or modifies any rights or remedies available under the Australian Consumer Law.

7. Conditions of Warranty

This warranty applies only where Verdex determines, upon inspection, that the defect has not been caused by:

  • Misuse or improper operation
  • Neglect or lack of maintenance
  • Unauthorised repair or modification
  • Abnormal deterioration due to environmental or operating conditions
  • Accident or incorrect installation







Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


Code: V1265-CLR

Panel Cart with 7 Adjustable Load Bars

Now $550.00 Was $1,099.00

View Details
On Special

Code: V1261

A Frame Panel Trolley

Now $495.00 Was $927.00

View Details
On Special

Code: DT400

Drip Tray - 43L

Now $91.50 Was $118.00

View Details
On Special
On Special

Code: V6360R

Plastic Wheelie Bin 240 Litre Red (Clearance)

Now $116.00 Was $145.00

View Details
On Special

Spring Loaded Drum Tilter for Safe and Simple Drum Pouring

Make drum handling easier and safer with the Verdex Spring Loaded Drum Tilter. It is a practical solution for rotating, tilting, and emptying heavy drums with confidence. Designed for use in warehouses, production facilities, and other high-demand environments, this unit delivers controlled performance while reducing manual effort.

Why Choose the Spring Loaded Drum Tilter

This drum tilter is engineered for smooth, accurate dispensing from standard 205L drums. With a fixed 10° tilt angle, it enables steady, controlled pouring that reduces the risk of spills and improves material transfer efficiency.

The secure tie-down system keeps the drum firmly in place while being moved or stored, enhancing on-site safety. Operators can relocate the unit quickly using the integrated fork pockets, allowing seamless positioning in various work areas.

The compact design makes it easy to fit into pallet racking or tight storage zones, helping maintain an organised workspace. With its corrosion-resistant zinc finish and high 500kg load capacity, this unit is ready for heavy-duty, everyday industrial use.

Spring Loaded Drum Tilter Specifications

Built tough for industrial demands, the Spring Loaded Drum Tilter combines strength, portability, and smart design to support safe and efficient drum management. Its dimensions and weight make it easy to handle, store, and deploy across various work zones.

  • Tilt Capability: Fixed 10°
  • Designed for: 205L drums
  • Fork Entry Size: 144 x 79mm
  • Overall Dimensions: 900 x 400 x 360mm (LxWxH)
  • Unit Weight: 30kg
  • Maximum Load: 500kg
  • Finish: Zinc

Best Use Cases for the Spring Loaded Drum Tilter

This unit is ideal for businesses that regularly handle large drums, such as manufacturing plants, distribution centres, and mining or construction sites. Its robust construction and ease of operation make it a valuable addition to any environment where drum decanting, transferring, or storing is a routine part of the workflow. Compact and forklift-compatible, it’s especially useful in settings where space and safety are top priorities.

Contact Us for a Quote

Looking to upgrade your drum handling setup? Reach out today by calling our toll-free number 1800 750 500, or completing our contact form to find out more about the Verdex Spring Loaded Drum Tilter or to request a personalised quote. Buy now and streamline your operations.
