Crane IBC Cage Crane IBC Cage Crane IBC Cage
Click on image above to enlarge

Stillage & Transport Cages

Crane IBC Cage


$2,050.00 Price excludes GST

SKU

CGC100

Availability:

In StockIn Stock

Subtotal:

$2,050.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Beat Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

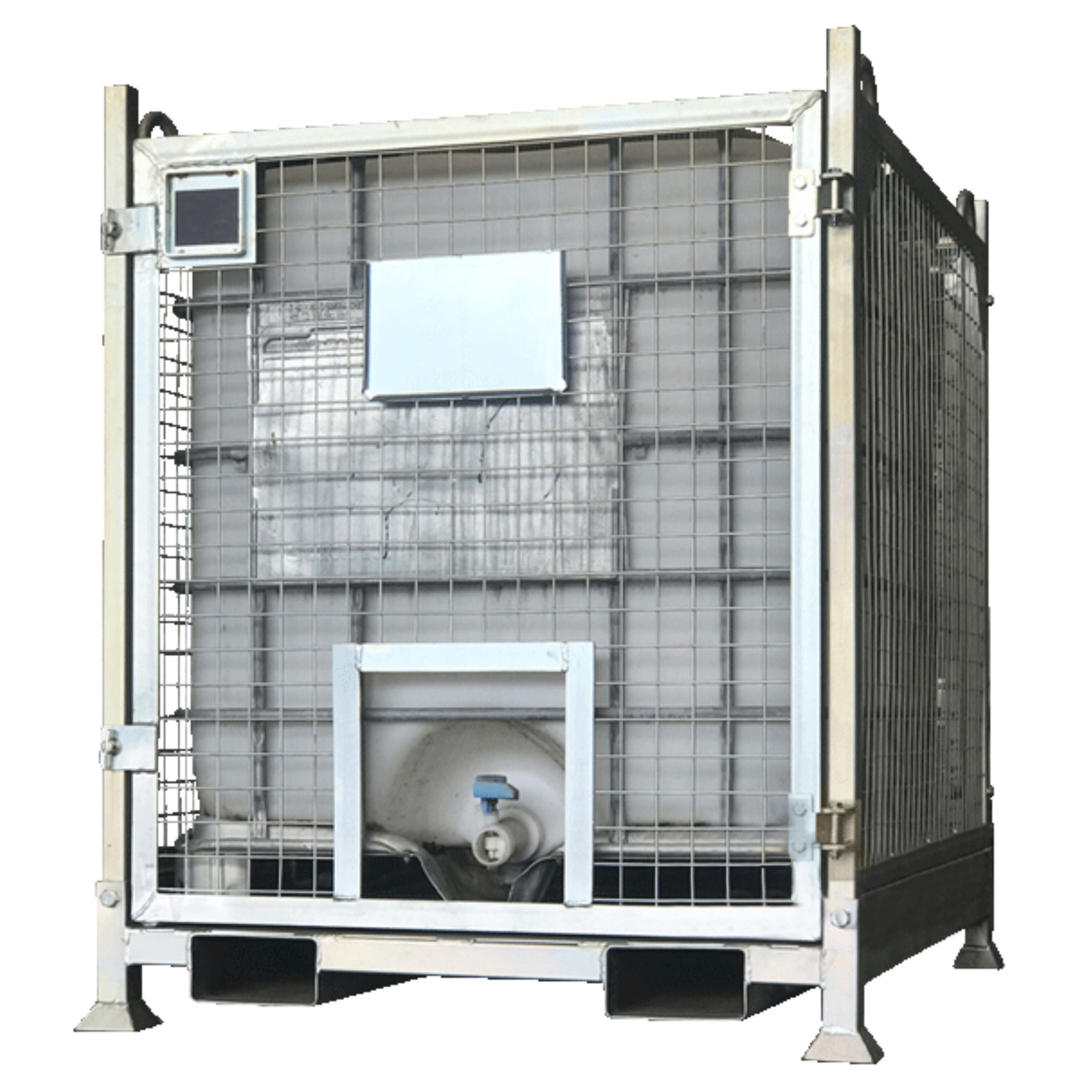

The CGC100 IBC Crane Cage has been designed to safely store and transport Intermediate Bulk Containers (IBCs) by crane or forklift.

FEATURES:

  • Suitable for use with Intermediate Bulk Containers (IBCs)
  • Large cut-out area allows ease of dispensing IBC from cage
  • Fully opening front gate for easy loading and unloading
  • Stacks 3 high when empty or 2 high when loaded
  • Fitted with 4 point lift crane lugs and forklift pockets
  • Zinc finish
  •  Working Load Limit (WLL): 1250kg
  •  Overall Dimensions: 1170 x 1390 x 1380mm
  •  Inside Clearance: 1020 x 1220mm
  •  Fork Pocket Size: 185 x 85mm
  •  Fork Pocket Centres: 620mm
  •  Unit Weight: 205kg

Supplied standard as 'flatpack' for on-site assembly





Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Crane IBC Cage The Crane IBC Cage is designed for secure and efficient handling of Intermediate Bulk Containers (IBCs). Constructed with a zinc finish for durability and corrosion resistance, this cage features a large cut-out area that facilitates easy dispensing of the IBCs. Its fully opening front gate ensures straightforward loading and unloading, enhancing operational efficiency.

The cage is engineered to stack up to three units high when empty and two high when loaded, optimising storage space. It is equipped with four-point lift crane lugs and forklift pockets, providing versatile handling options for crane or forklift use. With a working load limit (WLL) of 1250kg and overall dimensions of 1170 x 1390 x 1380mm (LxWxH), it accommodates standard IBC sizes effectively. The inside clearance measures 1020 x 1220mm, with fork pockets sized at 185 x 85mm and fork pocket centres at 620mm. Weighing 205kg, the Crane IBC Cage is supplied as a 'flatpack' for easy on-site assembly, combining robust construction with practical features for efficient material management and transport.

IBC Storage Cage – Safe & Efficient Bulk Container Handling

For industries that rely on Intermediate Bulk Containers (IBCs), ensuring safe storage and easy dispensing is important. The IBC Storage Cage is designed to provide a secure, efficient, and space-saving solution for handling IBCs in industrial and commercial environments.

With a fully opening front gate, 4-point lift crane lugs, and forklift pockets, this storage cage allows for easy loading, unloading, and transportation of bulk containers. Whether in warehouses, construction sites, or manufacturing facilities, this strong and practical cage enhances operational efficiency while maintaining safety and durability.

Key Features & Benefits

✔ Suitable for use with IBCs – Designed for use with standard Intermediate Bulk Containers for easy storage and handling.
✔ Large cut-out area – Allows for hassle-free dispensing of liquids and materials from IBCs directly from the cage.
✔ Fully opening front gate – Enables easy loading and unloading without the need for complex lifting equipment.
✔ Stackable design – Stacks three high when empty and two high when loaded, maximizing warehouse space efficiency.
✔ Heavy-duty construction – Built to withstand tough industrial conditions, ensuring long-lasting durability.

Versatile & Secure Lifting Options

The IBC Storage Cage is designed for easy transport and lifting, making it easy to reposition and position as needed.

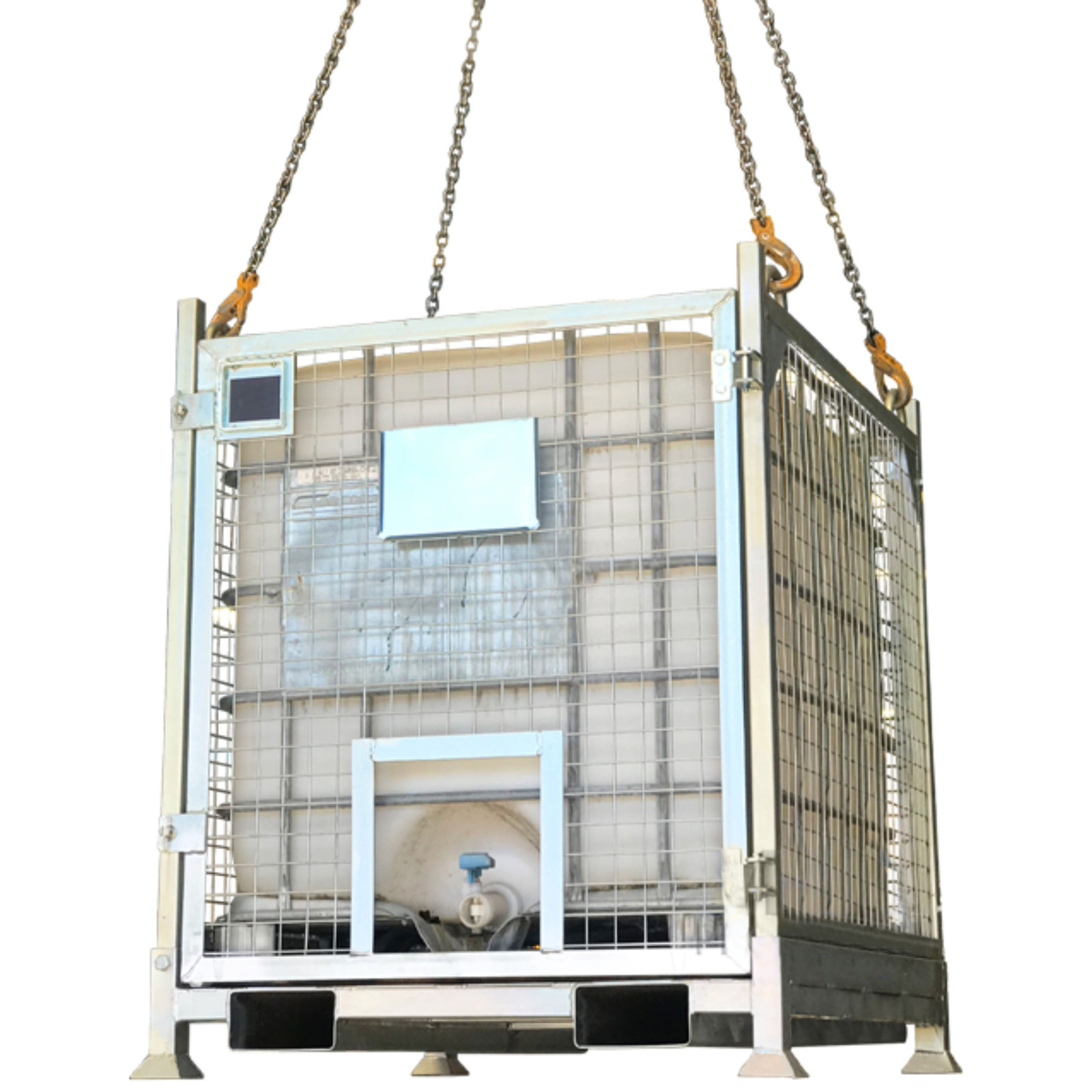

✔ Fitted with 4-point lift crane lugs – Enables safe and controlled lifting using an overhead crane.

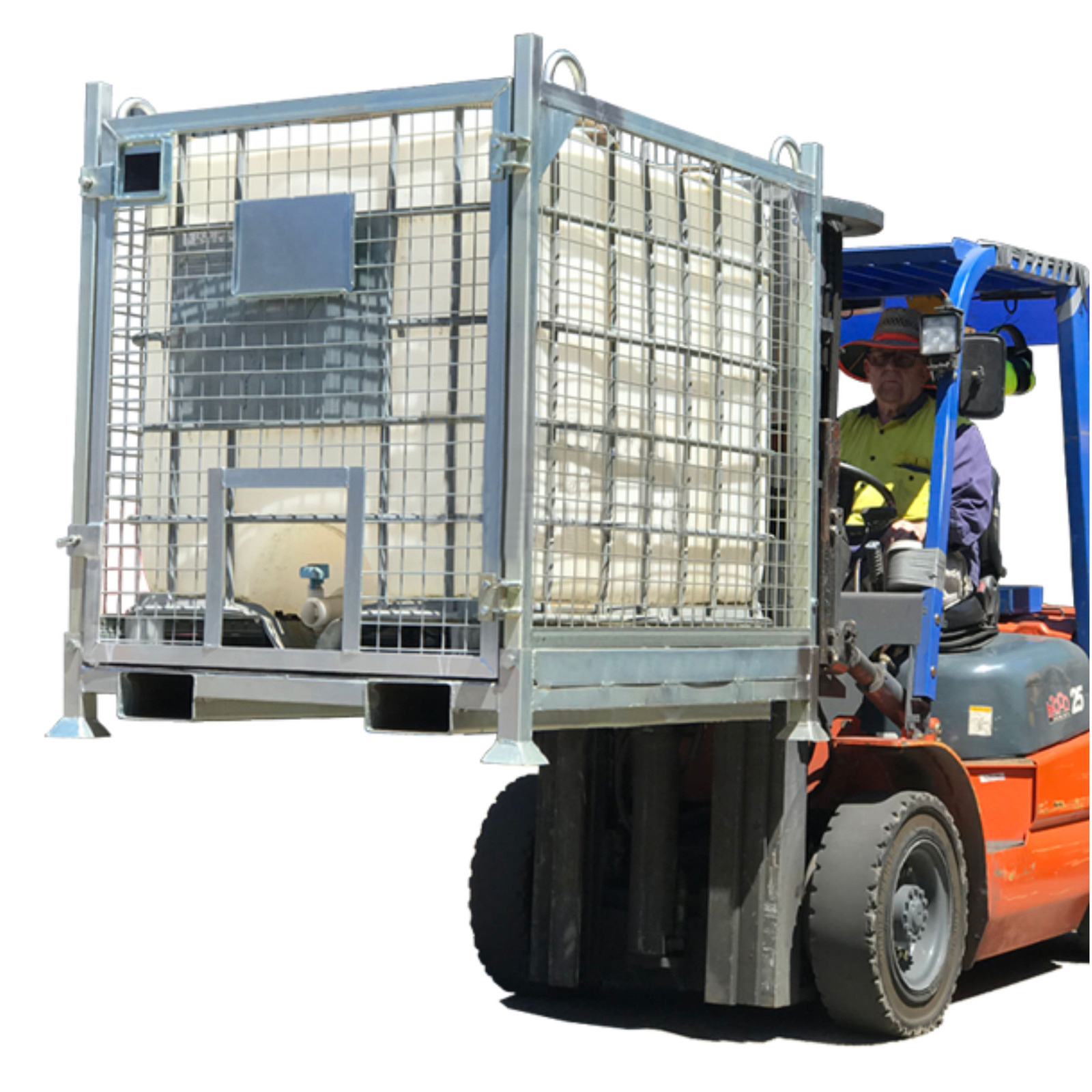

✔ Forklift pockets included – Allows for easy movement using forklifts, improving handling efficiency.
✔ Fork pocket size: 185 x 85mm – Designed for secure and stable lifting.
✔ Fork pocket centres: 620mm – Guarantees balanced weight distribution for enhanced safety.

These lifting options make the IBC Storage Cage a critical tool for industries requiring bulk liquid storage and transport solutions.

Durability & Corrosion Resistance

Built with a high-quality zinc finish, the IBC Storage Cage is resistant to corrosion and harsh weather conditions, making it ideal for indoor and outdoor use.

✔ Zinc finish – Protects against rust, wear, and damage in demanding work environments.
✔ Heavy-duty steel frame – Ensures the cage can withstand high loads and frequent use.
✔ Working Load Limit (WLL) of 1250kg – Designed to safely handle full IBCs without compromising structural integrity.

This rugged construction ensures long-term reliability, reducing upkeep costs and improving overall worksite efficiency.

Space-Saving & Easy Assembly

One of the best features of this cage is its stackable and flatpack design, which allows for efficient storage and transport when not being used.

✔ Stacks three high when empty – Saves valuable warehouse or storage space.
✔ Stacks two high when loaded – Enhances organisation and logistics management.
✔ Supplied as a flatpack – Allows for on-site assembly, reducing shipping costs and improving convenience.

This smart design makes the IBC Storage Cage an excellent choice for businesses looking to optimise storage without compromising accessibility.

Technical Specifications

✔ Working Load Limit (WLL): 1250kg
✔ Overall Dimensions: 1170 x 1390 x 1380mm
✔ Inside Clearance: 1020 x 1220mm
✔ Fork Pocket Size: 185 x 85mm
✔ Fork Pocket Centres: 620mm
✔ Unit Weight: 205kg

Ideal for a Wide Range of Industries

The IBC Storage Cage is great for various industrial sectors, including:

✔ Warehousing & Logistics – Efficient storage and handling of bulk liquid containers.
✔ Construction & Mining – Safe transport and storage of chemical or liquid-filled IBCs.
✔ Manufacturing & Agriculture – Ideal for bulk material containment and dispensing applications.

Why Choose the IBC Storage Cage?

✔ Durable and heavy-duty construction for long-term use.
✔ Versatile lifting options with crane lugs and forklift pockets.
✔ Space-saving stackable design to optimise warehouse space.
✔ Flatpack delivery for convenient on-site assembly.
✔ Corrosion-resistant zinc finish for improved longevity.
